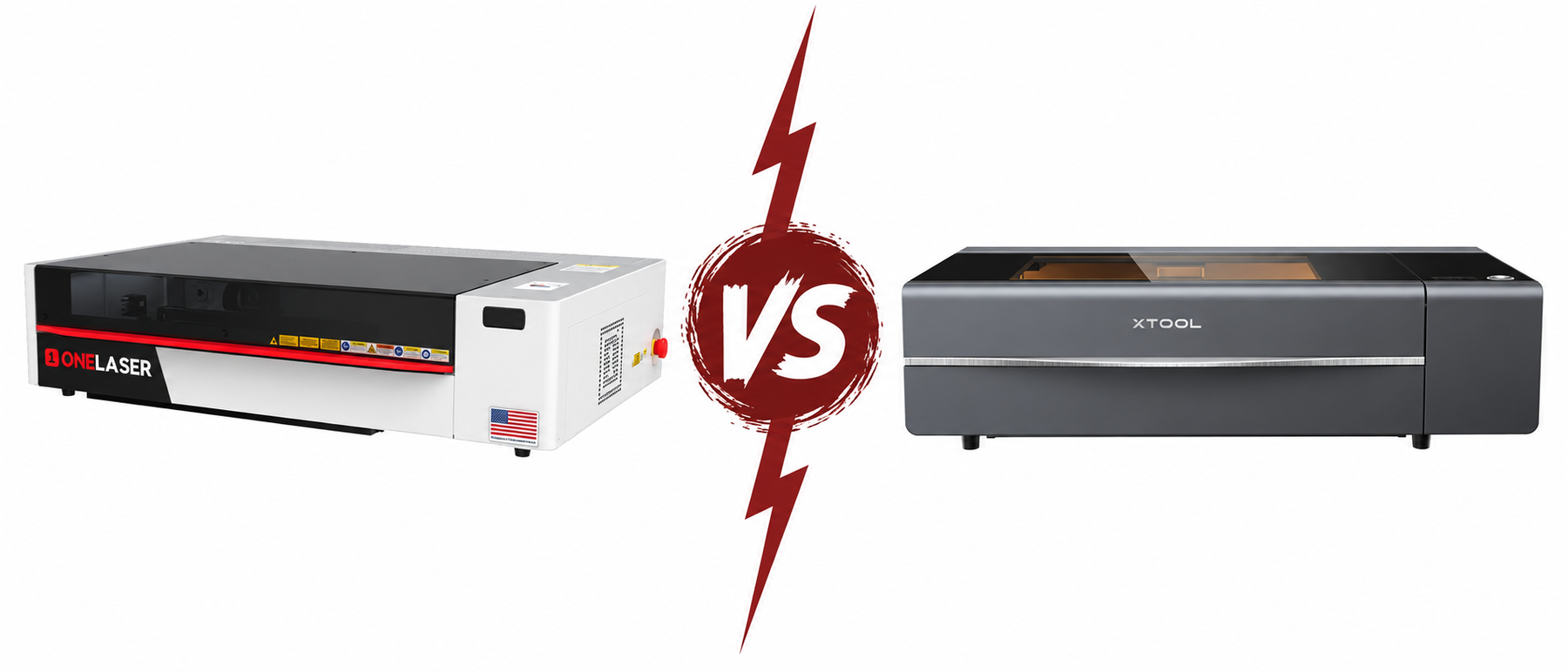

OneLaser XRF vs xTool P2S: Which CO2 Laser Is Better?

OneLaser XRF vs xTool P2S is not a simple 38W-versus-55W decision. The XRF uses a 38W RF metal CO2 tube built around fine engraving, rapid switching, air cooling, and long service life. The P2S uses a 55W glass CO2 tube and a highly guided camera-and-software ecosystem aimed at versatile desktop cutting and approachable operation. Their work areas are almost the same. Their priorities are not.

Research note: This comparison uses current OneLaser, xTool, and Maker’s Chest specifications available in September 2026. Performance figures are manufacturer ratings. Material, thickness, finish, focus, optics, airflow, artwork, maintenance, and software settings determine actual results. Where a feature depends on an accessory, it is identified rather than treated as standard.

The Short Answer

The OneLaser XRF product page is the source of truth for current configurations, pricing, warranty, and availability at The Maker’s Chest. This comparison deliberately targets the “XRF vs P2S” choice rather than trying to rank for the standalone XRF product query.

OneLaser XRF vs xTool P2S Specifications

Do not compare only wattage. A tighter RF beam can concentrate energy efficiently and produce cleaner fine detail, while the 55W glass tube still has an advantage in raw average power for cutting. Saying a 38W RF “equals” a specific glass wattage in every job oversimplifies optics, material, and process. Test the job you will sell.

Why the XRF Is the Engraving Specialist

RF switching and beam behavior

RF metal tubes can pulse rapidly and consistently, which matters when the artwork contains fine grayscale, tiny serif text, dense vectors, or intricate photo detail. OneLaser publishes a 0.07 mm spot and up to 2,000 DPI for the XRF. Those figures describe capability under suitable conditions; the sellable question is whether small features remain distinct on your actual wood, acrylic, coated material, leather, or stone.

Speed plus acceleration

The XRF’s published 1,200 mm/s speed is twice the P2S headline maximum. The current Maker’s Chest specification lists 3G acceleration, which helps the machine approach that speed on shorter engraving strokes. Still, top speed is not cycle time. Loading, camera alignment, raster length, overscan, material response, and cleanup can dominate. Ask for a timed file, not an empty-axis demonstration.

Air cooling and long service life

The RF tube is air-cooled, removing the reservoir, pump, tubing, water quality, freeze risk, and chiller maintenance associated with a glass tube. OneLaser rates the RF source up to 30,000 hours. That is a rating, not a warranty promise, but it changes how a production shop thinks about downtime and tube replacement.

A LightBurn-first workflow

The XRF is designed for LightBurn and RDWorks on Windows, macOS, and Linux, with a touchscreen and Wi-Fi features layered onto that production workflow. For an operator already managing LightBurn libraries across several lasers, avoiding a software transition has real value. LightBurn itself requires a license and training; “open workflow” does not mean “zero setup.”

Why the P2S Is the Guided Cutting All-Rounder

More nominal cutting power

The P2S’s 55W glass tube has more average output than the XRF’s 38W source. That matters most when the job is cutting rather than resolving very fine engraving. xTool publishes cutting examples for wood and acrylic, but maximum-thickness demonstrations often use slow passes and ideal material. Production buyers should define acceptable edge quality, pass count, speed, and cleanup—not only whether the beam eventually gets through.

Dual-camera positioning

xTool’s 16MP dual-camera system is one of the P2S’s clearest advantages. The panoramic camera supports layout across the bed, while the close-range system assists with detail and alignment. For beginners, irregular blanks, and visual placement, a guided camera workflow can reduce setup friction. The XRF’s 5MP camera is useful, but camera resolution and software integration should be evaluated together rather than as megapixels alone.

The xTool Creative Space ecosystem

XCS is designed to make machine setup, material presets, camera placement, and accessories approachable. That can shorten the learning curve for a craft business. The trade is ecosystem dependence: operators should confirm how current firmware, cloud or account features, accessory control, and LightBurn support fit their preferred workflow before purchase.

Purpose-built accessories

The P2S ecosystem includes conveyor and rotary options designed to integrate with xTool’s software. That is convenient when the accessory matches the job. It can also raise total installed cost. Compare complete systems—machine, rotary, conveyor, filtration or exhaust, fire safety, and consumables—not base prices.

Engraving Detail vs Cutting Throughput

Work Area: Nearly a Tie, but Material Handling Is Not

Both machines provide roughly a 600 × 300 mm optical work area. Do not confuse the P2S physical bed dimension used in marketing with the actual engraving area. For ordinary sheets, the difference is negligible. The meaningful distinction is how each handles material beyond the bed.

The XRF gains front-to-back pass-through with the Base Boost riser and can accommodate taller objects and rotary setups. The P2S offers a conveyor system intended to automate longer stock. A pass-through lets the operator index material; a conveyor can automate movement but adds cost, setup, calibration, and floor clearance. Choose based on repeatable products, not an occasional oversized project.

Cooling, Maintenance, and Ownership Risk

RF is not maintenance-free. Lenses, mirrors, rails, belts, extraction, fans, camera calibration, and general cleanliness still matter. Glass is not automatically unreliable. A stable cooling loop, correct alignment, reasonable duty cycle, and proper storage can deliver consistent work. The difference is the maintenance model, not a moral ranking of technologies.

Safety and Installation

• Vent outdoors or use appropriate filtration. Wood smoke, acrylic vapor, leather fumes, adhesives, and coatings are not safe room air.
• Never cut PVC or unknown chlorine-containing plastics. Hazardous gases and corrosive byproducts can injure people and damage the machine.
• Do not run unattended. Enclosures, flame detection, and monitoring reduce risk but do not eliminate fire.
• Plan clearance for accessories. Risers, conveyors, rotary fixtures, hoses, and open lids consume more space than the machine footprint.
• Verify electrical load. Include extraction, filtration, air assist, cooling, and accessories.
• Maintain optics and airflow. Dirty lenses and weak extraction reduce quality and increase heat and fire risk.

Cannibalization Guardrail: Why This Article Exists

The XRF product page should rank and convert for shoppers who already want the OneLaser XRF. This article answers a different question: which machine fits when the buyer is actively choosing between the XRF and P2S? It emphasizes tradeoffs, links down to the XRF product page for the purchase decision, and avoids duplicating the complete product description. That keeps the comparison useful without turning it into a second XRF sales page competing for the same standalone query.

Our Recommendation

Choose the OneLaser XRF when engraving quality, photo detail, speed on marking jobs, LightBurn, air cooling, and long-term tube economics drive the purchase. It is the stronger production-oriented desktop engraver and remains capable of light-to-moderate cutting.

Choose the xTool P2S when the 55W cutting advantage, dual-camera positioning, XCS guidance, and integrated accessory ecosystem matter more than RF tube life or a LightBurn-first workflow. It is the more guided all-rounder.

If thick-stock cutting is already the majority of revenue, do not stop the comparison at these two desktop machines. A larger, higher-power cabinet can make a better production investment even if its interface is less polished.

Frequently Asked Questions

Is 55W P2S automatically more powerful than the 38W XRF?

It has higher nominal average output and generally more cutting headroom. The XRF’s tighter RF beam and switching behavior can outperform it on fine engraving. The better machine depends on the job.

Which machine engraves photos better?

The XRF is the stronger default because its RF source, published 0.07 mm spot, and high-speed engraving design favor fine detail. Material preparation and image processing remain critical.

Which machine cuts acrylic better?

The P2S has the wattage advantage for cutting. For thick or high-volume acrylic, compare both with a larger cabinet rather than assuming a desktop is the production endpoint.

Does the XRF need a water chiller?

No. Its RF metal tube is air-cooled.

Does the P2S use a glass tube?

Yes. It uses a 55W glass CO2 tube with a water-cooling system.

Can both use LightBurn?

The XRF is designed around LightBurn and RDWorks. The P2S supports a different primary XCS workflow; verify current LightBurn compatibility and feature limitations before deciding.

Which has the better camera?

The P2S has a higher-resolution dual-camera system and a strongly integrated guided workflow. The XRF has a 5MP camera. Compare placement accuracy and software behavior, not megapixels alone.

Can either engrave bare metal?

Not directly like a fiber laser. CO2 machines can mark coated or treated metal, but direct bare-metal engraving belongs on a fiber laser.

How large is the real work area?

The XRF is listed at 600 × 300 mm. The P2S is approximately 600 × 305 mm. Marketing bed dimensions should not be confused with optical work area.

Which is cheaper to maintain?

The XRF avoids water-loop maintenance and has a much longer published tube life, but RF replacement can be specialized. The P2S glass tube is more consumable. Total cost depends on use and service.

Which is easier for a complete beginner?

The P2S’s XCS and dual-camera ecosystem are designed for guided operation. The XRF suits users willing to learn a more production-oriented LightBurn workflow.

What sample should I request before buying?

Send the exact file and material, state whether the priority is detail or cutting, specify acceptable cycle time and edge finish, and ask for the settings and pass count used.
