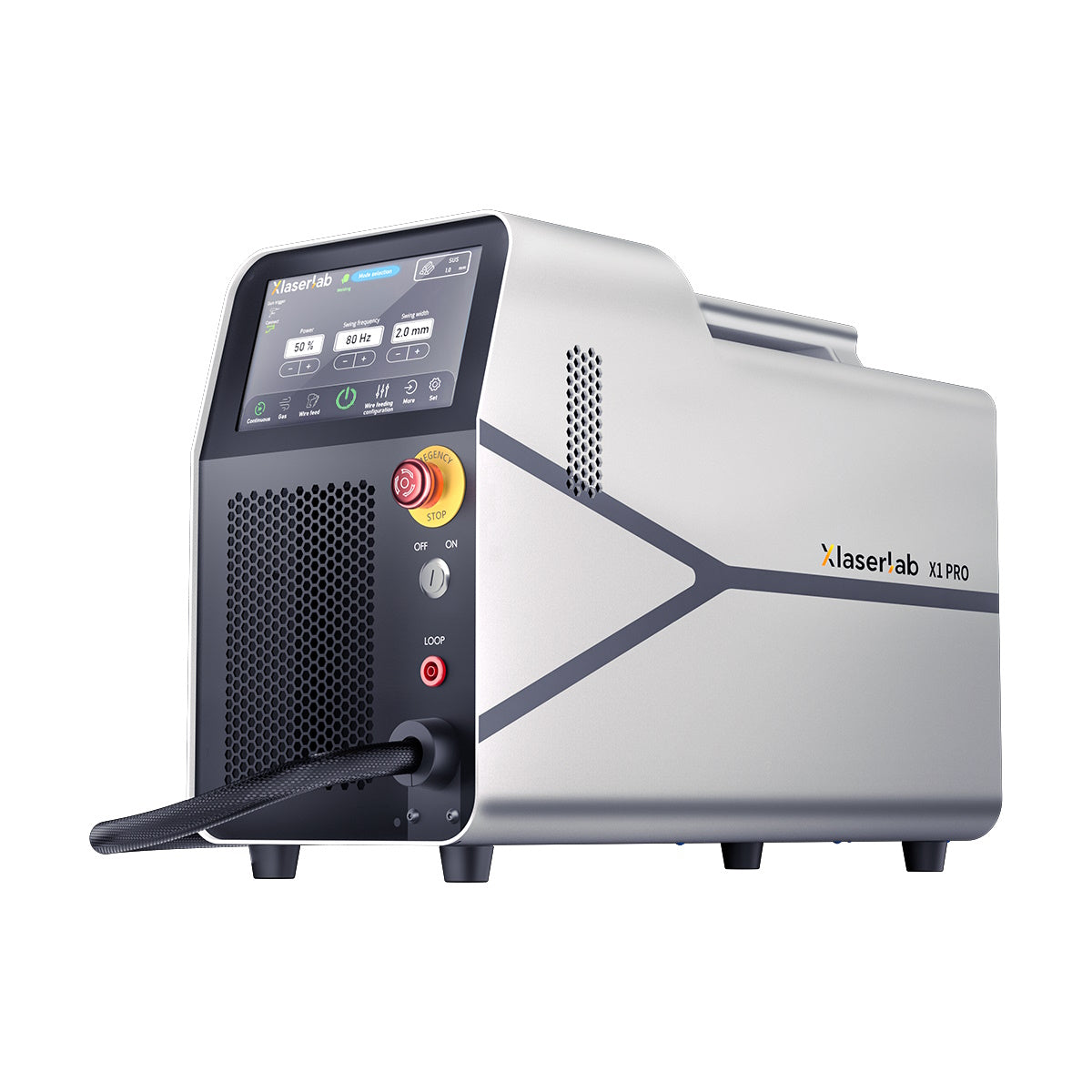

Xlaserlab X1 Pro 700W Laser Welder, Cleaner & Cutter
By Xlaserlab
FOUND A BETTER PRICE?
We'll beat it today — guaranteed!
(Oct 06 – Oct 15)
By Xlaserlab
We'll beat it today — guaranteed!
|
Purchase details at a glance
Need delivery by a specific date? Contact us before ordering and we will confirm the current warehouse and estimated shipping timeline. |
The Xlaserlab X1 Pro combines a 700W continuous-wave fiber laser, air cooling, a handheld welding gun and touchscreen controls in a compact 21kg machine. It is designed for shops that primarily work with thin stainless steel, carbon steel, mild steel and aluminum and want one system for welding, joint preparation, rust removal and occasional thin-sheet cutting.
The published processing range is approximately 0.5–3mm, depending on the material, joint, fit-up and process settings. The machine is most comfortable on thin-gauge fabrication; businesses that routinely weld at or above the upper end of that range should discuss a higher-powered system with us before ordering.
Both configurations use the same X1 Pro machine and provide the same laser power, welding, cleaning and cutting functions. The difference is the wire feeder.
RECOMMENDED FOR MOST BUYERS
Includes the single automatic wire feeder for controlled filler delivery on sheet metal, tubing, brackets, repairs and general fabrication.
Choose Single Wire when:
Replaces the single feeder with the DW1 Dual Wire Feeder, which can operate in single- or dual-wire mode and deliver more filler to wider joints.
Choose Dual Wire when:
The Dual Wire Bundle does not increase laser output or the machine's material-thickness rating. It changes filler delivery. If you are unsure which feeder suits your joints, contact us with the material, thickness, joint type and expected production volume.
| Item | Single Wire | Dual Wire |
|---|---|---|
| X1 Pro 700W main unit | ✓ | ✓ |
| X1 Pro welding gun and fiber cable | ✓ | ✓ |
| Single wire feeder | ✓ | — |
| DW1 Dual Wire Feeder | — | ✓ |
| Laser nozzle accessory box | ✓ | ✓ |
| Power cable | ✓ | ✓ |
| Wire-feeder power/signal cable and feed tube | ✓ | ✓ |
| Gas hose and fitting adapter | ✓ | ✓ |
| Laser-gun holder | ✓ | ✓ |
| External emergency stop and safety clip | ✓ | ✓ |
| Laser safety goggles supplied with machine | ✓ | ✓ |
| Focusing lenses ×2 | ✓ | ✓ |
| Protective lenses ×5 | ✓ | ✓ |
|
Required items not included: shielding-gas cylinder, regulator, welding-wire spool and application-specific personal protective equipment. Argon is the normal starting choice for many welding applications, but gas selection depends on the metal and process. |
| Laser type | Continuous-wave fiber laser |
| Laser output | 700W |
| Wavelength | 1080 ± 10nm |
| Published processing thickness | Approximately 0.5–3mm, material and process dependent |
| Modes | Welding, cutting, rust removal and surface cleaning |
| Common materials | Stainless steel, carbon steel, mild steel, aluminum, titanium, nickel alloys, galvanized steel and other compatible metals |
| Cooling | Air cooled |
| Controls | 7-inch touchscreen with material/process presets |
| Machine dimensions | 470 × 205 × 335mm |
| Machine weight | Approximately 21kg / 46lb |
The X1 Pro is a practical choice for automotive restoration, exhaust and body work, cabinets and enclosures, HVAC, light structural components, brackets, railings, repairs, prototypes and mobile fabrication. The lower heat input of laser welding can reduce distortion and post-weld finishing on suitable thin parts.
The welding function should be the primary reason to buy the machine. Cleaning and rust-removal modes can prepare a localized joint area and clean a finished seam. Handheld cutting is intended for occasional thin-sheet trimming and field adjustments; it is not a replacement for a production CNC cutting system.
Results depend on material condition, alloy, thickness, joint type, fit-up, wire selection, gas coverage, standoff and settings. Presets are a starting point—not a substitute for testing on matching scrap and establishing a documented process.
For U.S. installations, plan around the supplied NEMA 6-50 connection and a correctly rated 240V circuit, typically 50A. Have a qualified electrician confirm the receptacle, breaker, conductor sizing and local-code requirements before the machine arrives.
Do not connect the machine to a standard 120V household receptacle. A plug adapter changes the connector shape; it does not change the available voltage or make an unsuitable circuit safe.
The bundle includes a gas hose and fitting adapter but not the cylinder, regulator or filler-wire spool. Obtain the correct gas, regulator and compatible wire for your application before commissioning the machine. Ask us if you need help matching these items to your material.
Welding and laser cleaning can release hazardous fumes, particularly from coated, painted or galvanized material. Use source-capture ventilation appropriate to the process and substrate.
The X1 Pro is a Class 4 fiber laser. Safe operation requires a controlled laser area, wavelength-appropriate eye and skin protection, reflection control, access controls, fire precautions and trained operators. Supplied eyewear does not eliminate the need for a complete site-specific laser-safety assessment.
The Single Wire Bundle is $3,599.99 and the Dual Wire Bundle is $4,299.99. Select the configuration above to see its live price and availability.
The machine, laser output and core accessories are the same. The Single Wire Bundle includes the single automatic feeder. The Dual Wire Bundle substitutes the DW1 feeder, which supports both single- and dual-wire operation for greater filler deposition and wider joints.
The Single Wire Bundle covers most sheet metal, tubing, repair, maintenance and general-fabrication applications. Choose Dual Wire when wider joints, greater filler deposition or frequent switching between single- and dual-wire work justify the additional cost.
No. The gas hose and fitting adapter are included, but the gas cylinder, regulator and welding-wire spool must be sourced separately.
U.S. buyers should plan for the supplied NEMA 6-50 connection and a properly installed 240V circuit, typically 50A. Have a qualified electrician confirm the installation. Do not use an adapter to run the machine from a standard 120V household outlet.
Both the Single Wire and Dual Wire configurations are currently available. Inventory changes, so the selected variant's live purchase status above is authoritative. Contact us before ordering if you have a firm project deadline.
The Maker's Chest provides a 75-day return window. For a functional return, the buyer is responsible for return shipping and the machine must be returned with its original accessories and packaging. For a verified dead-on-arrival unit, The Maker's Chest covers return shipping and provides a full refund under the applicable policy.
Klarna and Shop Pay Installments may be offered at checkout, subject to provider approval and the terms displayed during checkout.
The machine includes the applicable Xlaserlab manufacturer's warranty. The Maker's Chest provides pre-purchase advice, onboarding assistance and support coordination. Consumables such as protective lenses and nozzles are not normally treated as warranty items.
Shipping time depends on the selected configuration and fulfillment warehouse. Contact us before ordering if timing is critical; we will confirm current availability and the expected delivery window for your address.
