Maximum Airflow. Maximum Filtration. One 15-Inch-Wide Cabinet.

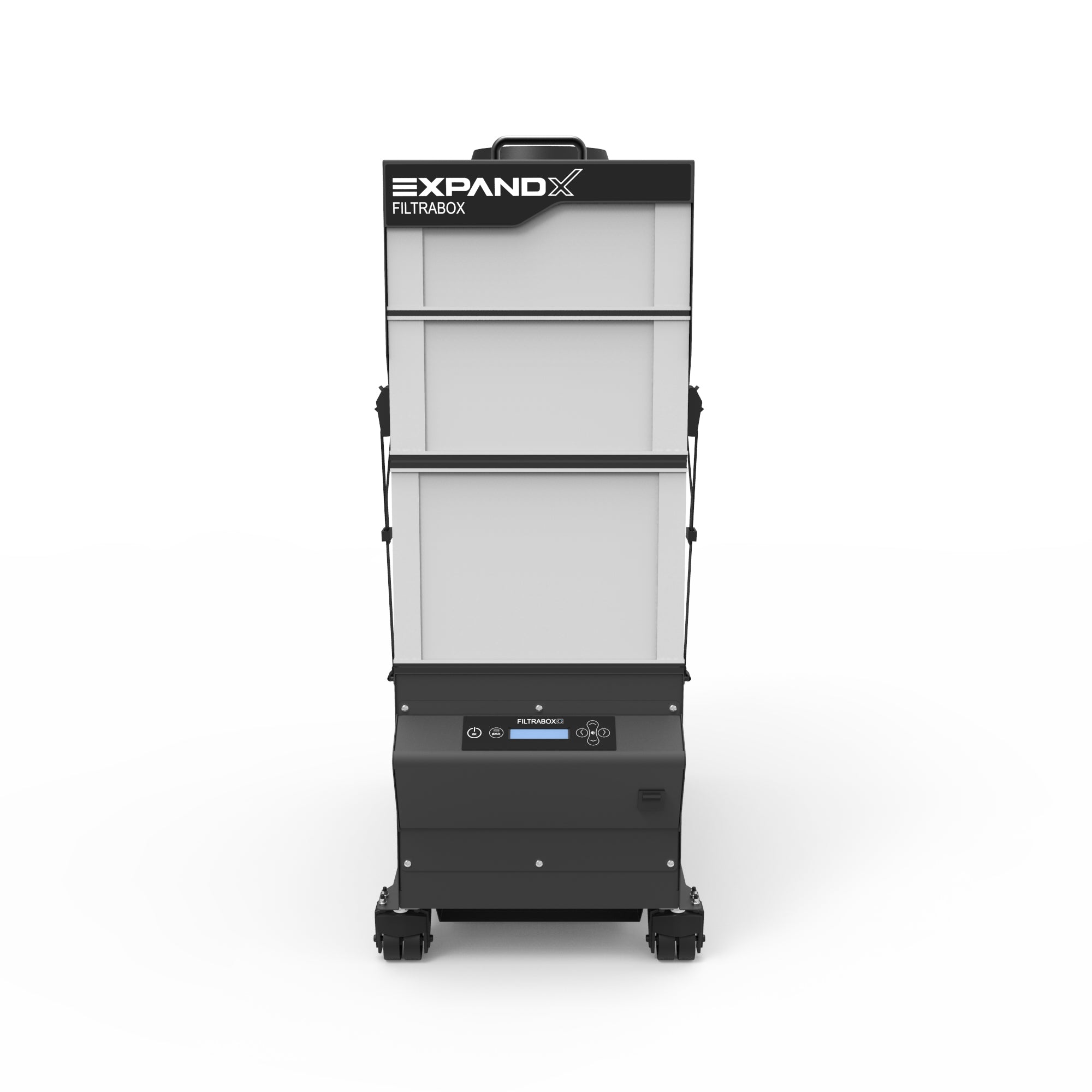

The Filtrabox ExpandX-2 is a dual-blower portable laser fume extractor delivering 2 × 235 CFM (470 CFM total) through a complete 3-stage filtration system — 99.999% HEPA, F9 pre-filter, and 80 lbs of activated carbon gas media — in the same 15-inch-wide slim-line cabinet as the single-blower ExpandX-1. Built for mid-sized to large industrial CO2 laser systems running demanding materials at production volume, or for shops that need one extractor to serve two laser machines simultaneously.
The ExpandX-2 vs. the ExpandX-1 — When You Need the Second Blower
The ExpandX-1 and ExpandX-2 use identical filtration stages — same F9 pre-filter, same 99.999% HEPA H14, same 80-lb chemical cartridge, same 15-inch slim cabinet. The difference is entirely in airflow capacity.
Single blower (ExpandX-1): 235 CFM. Right for small to mid-sized laser systems — typically CO2 machines up to 80W–100W running one to two sessions daily on mixed materials.
Dual blower (ExpandX-2): 470 CFM. The configuration for:
-
Large-format CO2 lasers (100W–150W and above) where 235 CFM doesn't provide sufficient extraction velocity across the full cutting bed
-
Heavy-volume production where the laser runs continuously for extended shifts and airflow demand is sustained rather than intermittent
-
Two laser machines running simultaneously from a single extractor — each drawing from the dual-blower capacity rather than competing for a single blower's output
-
High-VOC material processing (predominantly acrylic, rubber, or coated materials all day) where maximum airflow through the carbon stage extends gas filter life
The ExpandX-2 achieves maximum performance on mid-sized to large industrial laser systems, extracting, filtering, and recirculating clean air into the workspace.
If you own an ExpandX-1 and your production has outgrown it, the upgrade blower module converts it to an ExpandX-2 without replacing the machine. If you're starting fresh and your laser or usage profile clearly falls in the dual-blower category, the ExpandX-2 is the right starting configuration.

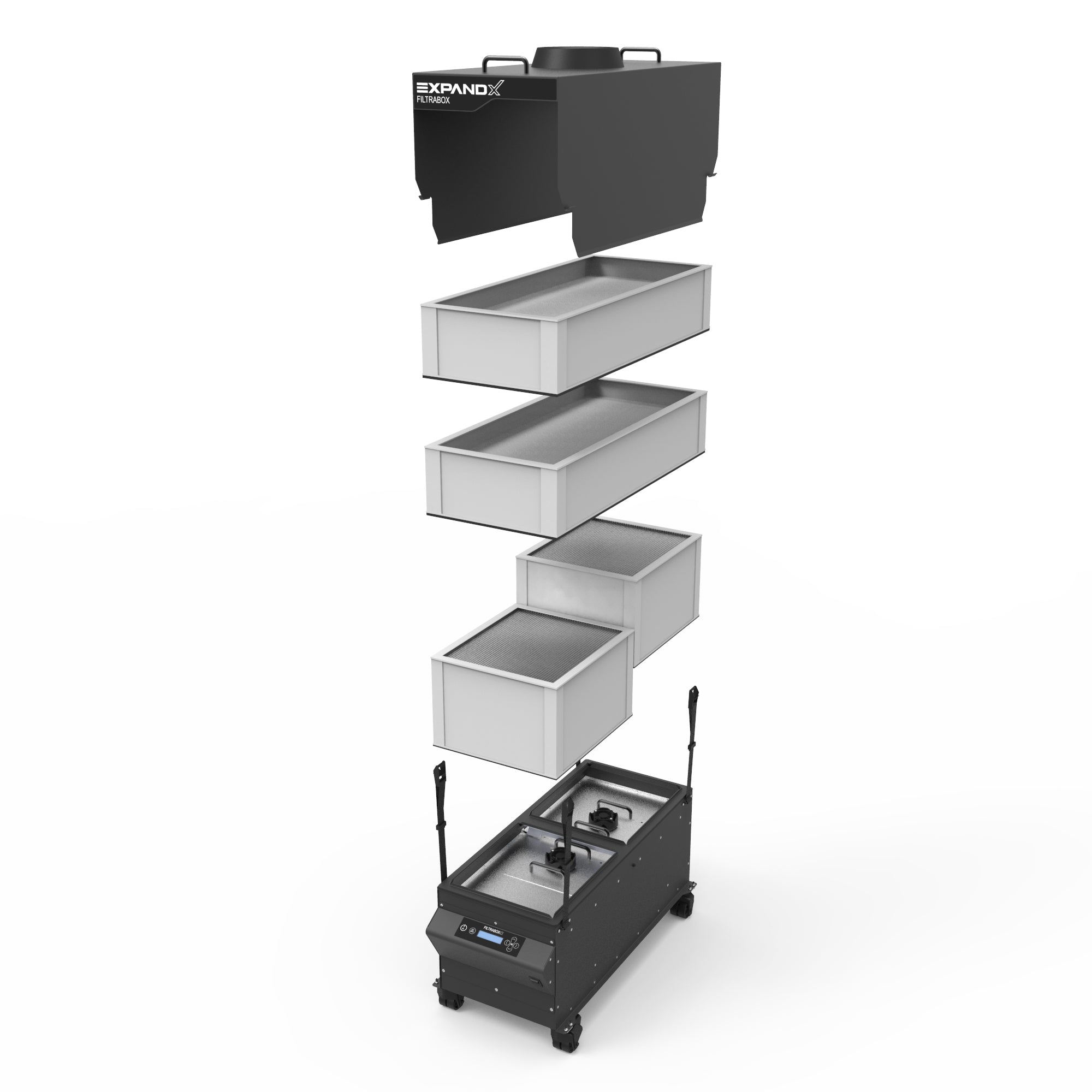

3-Stage Separated Filtration — Why the Separation Matters at This Volume
At 470 CFM, the ExpandX-2 is moving a substantial volume of contaminated air through the filter stack. The engineering decisions around how that filtration is structured have direct consequences for how long filters last and how much they cost to maintain.
Stage 1 — F9 Pre-Filter (15 m², + 1 spare, Rigid Aluminum Cartridge): Handles the bulk of submicron particulate before it reaches the HEPA stage. The pre-filter loads faster than the HEPA and is designed to be replaced more frequently — protecting the more expensive HEPA from premature exhaustion. The ExpandX-2 ships with one spare pre-filter already in the box.
Stage 2 — HEPA H14 Filter (15 m², Rigid Aluminum Cartridge): Tested at 99.999% efficiency at 0.3 microns — removes 99.999% of the most aerodynamically penetrating particles, while smaller and larger particles are captured at even higher efficiency, resulting in extremely clean air free of respirable dust.
At dual-blower airflow, the pressure differential across loaded filters is significant. Cardboard-cased filters flex and crumple under the load of typical fume extractor pressures, leading to leakage of contaminants. All Filtrabox filter cartridges use a thick aluminum box structure to resist flex so that rubber seals maintain contact with sealing surfaces. On the ExpandX-2, this isn't just good engineering practice — at 470 CFM, it's the difference between a sealed, compliant filtration system and one with bypass leakage.
Stage 3 — Chemical Gas Filter (80 lbs Coconut Shell Carbon + KMnO4, Rigid Aluminum Cartridge): The blend removes the broadest spectrum of laser-generated VOC gases at the molecular level. 80 lbs of adsorption media ensures high capacity and efficiency for demanding applications. At the ExpandX-2's airflow, even heavy acrylic processing sessions don't exhaust the gas filter rapidly — the 80-lb capacity is specifically sized for the production volumes this machine is designed for.
Separated Filters = Lower Lifetime Maintenance Costs
Different materials produce different proportions of dust vs. VOC gases. Lasering acrylic produces 90% VOC gases and 10% dust. Lasering wood produces 10% gases and 90% dust. With individually separated filters, each filter can be replaced when it's actually spent — which varies with each material lasered.
For a production shop processing multiple material types across the day, filter replacement schedules will differ between the gas, HEPA, and pre-filter stages. The ExpandX-2's separated architecture means each stage is replaced on its own timeline, not the timeline of whichever stage happens to exhaust first in a combined cartridge. Over a year of production, the cost difference is real — and in a high-volume shop, it compounds meaningfully.
Intelligent Flow Regulator — Consistent Extraction at Every Point in the Filter Life
As filters load with particulate and gases across their service life, airflow resistance increases. Without compensation, the extractor is delivering progressively less extraction performance from the day the filters are installed until the day they're replaced — and the operator may have no idea it's happening.
The intelligent flow regulator proportionally increases power to the blowers to automatically overcome restrictions and maintain consistent fume extraction throughout the filter lifecycle. Just enter your flow setpoint and Filtrabox does the rest. Filtrabox will also let you know when to change filters.
On the ExpandX-2 with dual blowers, this management extends across both blowers simultaneously — maintaining the full 470 CFM setpoint regardless of filter loading state. The system also monitors filter health and notifies the operator when replacement is actually warranted — not on a guessed schedule, but based on real-time system data.
Space-Saving Without Capacity Compromise

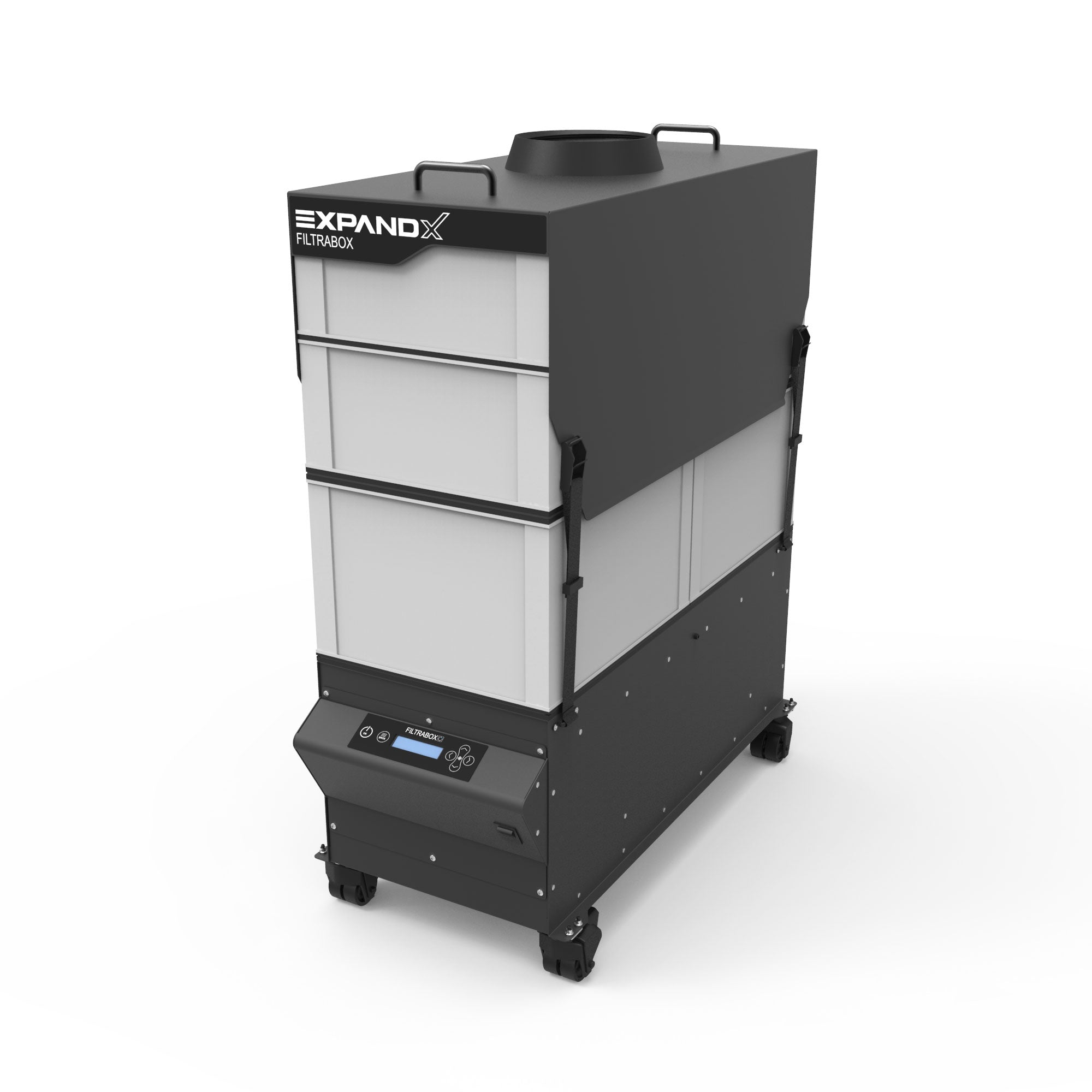

At 38 inches tall, 15 inches wide, and 31 inches deep, the ExpandX-2 fits into the side of a production laser workspace without dominating it. The slim-line design relocates critical performance features into the depth dimension, allowing maximum airflow, filter capacity, and noise reduction with no compromises — unlike approaches that achieve space savings by making smaller machines with less filter media and higher noise.
The top-mounted air inlet keeps the connection hose from consuming lateral space beside the machine — the hose exits upward, keeping the floor-level and bench-level area around the extractor clear for carts, material staging, and operator movement.
At 53 dB, the ExpandX-2 is quiet enough that operators near the machine don't require hearing protection and normal shop communication isn't affected.
Modular Serviceability — Production Downtime Stays Minimal
The ExpandX-2 consolidates all components into two simple, removable modules: the Electronics Module (interface, control, and power systems) and the Blower Module (blower and flow sensor). In the event of a field issue, tech support diagnoses which module is involved and dispatches the appropriate replacement. The modules replace with only a few plug-and-play wire harnesses — no tech experience required.
For a production shop where the laser runs revenue-generating work, an extractor that's down for a week waiting for repairs is a direct financial problem. The modular design ensures repairs are completed in hours — part arrives, it's swapped in, production resumes.
The dustproof, splash-proof, impact-resistant membrane touchpad reduces the risk of interface failure in real shop environments where dust and occasional moisture contact are daily realities.
Technical Specifications:
- Max Airflow: 2 × 235 CFM (470 CFM total)
- Noise Level: 53 dB
- Height: 38"
- Width: 15"
- Depth: 31"
- Voltage: 120V / 230V (auto-switching)
- Rated Amps: 20A (120V) / 10A (230V)
- Pre-filter: Glass Fiber, 30 m² (15 m² installed + 15 m² spare)
- HEPA H14: Glass Fiber, 15 m², Rigid Aluminum Cartridge
- Chemical Cartridge: Coconut Shell Carbon + KMnO4, 80 lbs, Rigid Aluminum Cartridge
- Warranty: 1 year
The Maker's Chest Difference
The Filtrabox ExpandX-2 is available from Filtrabox directly and through other distributors. Here's what changes when you order through The Maker's Chest:
- 🛡️ 75-day returns — significantly longer than most distributor return windows. Enough time to install the unit, run it through your laser and material mix at real production volumes, and confirm the dual-blower configuration is right for your system
- 🇺🇸 Expert USA-based technical support — our team can help with configuration matching to your laser, installation guidance, filter replacement scheduling for your specific materials, and any issues that arise after delivery
- 📞 Dual lines of support — phone and email, so when production is running and something needs attention, you have a direct path to a real person
- 🔧 Straight configuration guidance — ExpandX-1 or ExpandX-2? Not sure whether your laser system and usage pattern requires dual-blower capacity? Tell us your laser model and daily runtime and we'll give you a direct recommendation before you order
Frequently Asked Questions
Q: What is the practical difference between the ExpandX-1 and the ExpandX-2?
A: The filtration stages are identical — same F9 pre-filter, same 99.999% HEPA H14, same 80-lb carbon gas cartridge, same cabinet dimensions. The ExpandX-2 adds a second blower for 470 CFM total (2 × 235 CFM) versus the ExpandX-1's 235 CFM. Choose the ExpandX-2 if you're running a large-format CO2 laser (typically 100W+), running the laser continuously for full production shifts, running two machines simultaneously from one extractor, or processing predominantly high-VOC materials like acrylic at high volume. The ExpandX-1 is appropriate for smaller lasers and moderate daily runtime. Contact our team if you're unsure.
Q: Can the ExpandX-2 serve two laser machines simultaneously?
A: Yes — this is one of the primary use cases for the dual-blower configuration. With a splitter hose setup, the ExpandX-2's 470 CFM capacity supports two machines drawing simultaneously without either system being under-served. The specific hose configuration depends on your laser setups — contact us before ordering if this is your intended use and we'll confirm the right configuration.
Q: Does it need to be ducted outside?
A: No. The ExpandX-2 extracts, filters, and recirculates clean air into the workspace. The three-stage filtration processes extracted fumes to 99.999% HEPA + activated carbon efficiency and returns clean air to the shop. No wall penetrations, no outdoor exhaust, no installation contractor.
Q: What power circuit does the ExpandX-2 require?
A: At 120V, the ExpandX-2 draws 20A — a dedicated 20A circuit is required for 120V operation. At 230V, it draws 10A, within a standard 15A 230V circuit. If your shop is on 120V and you don't have a dedicated 20A circuit, either install one or confirm 230V availability. Contact our team before ordering if you have questions about your electrical setup.
Q: How is the ExpandX-2 different from ExpandX-1 if the filters are the same?
A: The filtration system's capacity is determined by both the filter media area and the airflow through it. Doubling the blower doubles the volume of air processed per minute, which directly increases extraction velocity at the laser's exhaust intake and ensures adequate capture even at higher laser power levels and larger cutting bed areas. The same filter stack processes twice the air — keeping pace with larger systems that generate fumes across a bigger area faster.
Q: Why do the rigid aluminum filter cartridges matter?
A: At 470 CFM with dual blowers, the negative pressure inside the cabinet as filters load is substantial. Cardboard-cased filters flex and crumple under this pressure, breaking the seal between the filter and the housing and allowing contaminated air to bypass the filter. The aluminum cartridge structure resists flex so rubber seals maintain contact with sealing surfaces throughout the filter lifecycle. At dual-blower airflow, this design requirement is non-negotiable for maintaining filtration compliance.
Q: How often do filters need to be replaced?
A: It depends entirely on your materials and daily runtime. The intelligent flow regulator monitors system performance and notifies you when replacement is due — based on actual loading, not a guessed schedule. The pre-filter changes more frequently (protecting the HEPA). The HEPA lasts significantly longer. The gas filter lifespan depends heavily on VOC generation — acrylic-heavy shops replace it more often than wood-dominant shops. A spare pre-filter is included in the box so you have a replacement ready.
Q: What is the noise level, and do I need hearing protection near it?
A: 53 dB — roughly equivalent to a quiet office or library. Operators working near the ExpandX-2 during production do not require hearing protection, and normal shop communication is not affected.
Q: Why buy from The Maker's Chest instead of directly from Filtrabox?
A: Our 75-day return window gives you real production evaluation time — significantly more than Filtrabox's direct policy — enough to assess the unit under your actual laser, material, and volume conditions before you're committed. Our USA-based expert support team is reachable by phone and email for installation guidance, configuration questions, and ongoing production support. If the ExpandX-2 turns out to be more than your system requires, we'll work with you on it.
Filtrabox ExpandX-2 Manual:
Click the links below to download product manuals for the Filtrabox ExpandX-2.
| Filtrabox ExpandX-2 Manual |
|
