Fume Dog Magnetic Wall Mount Weld Fume Extractor Exhaust

Wall-Mounted Extraction Power. A Magnetic Hood That Goes Wherever Your Weld Does.

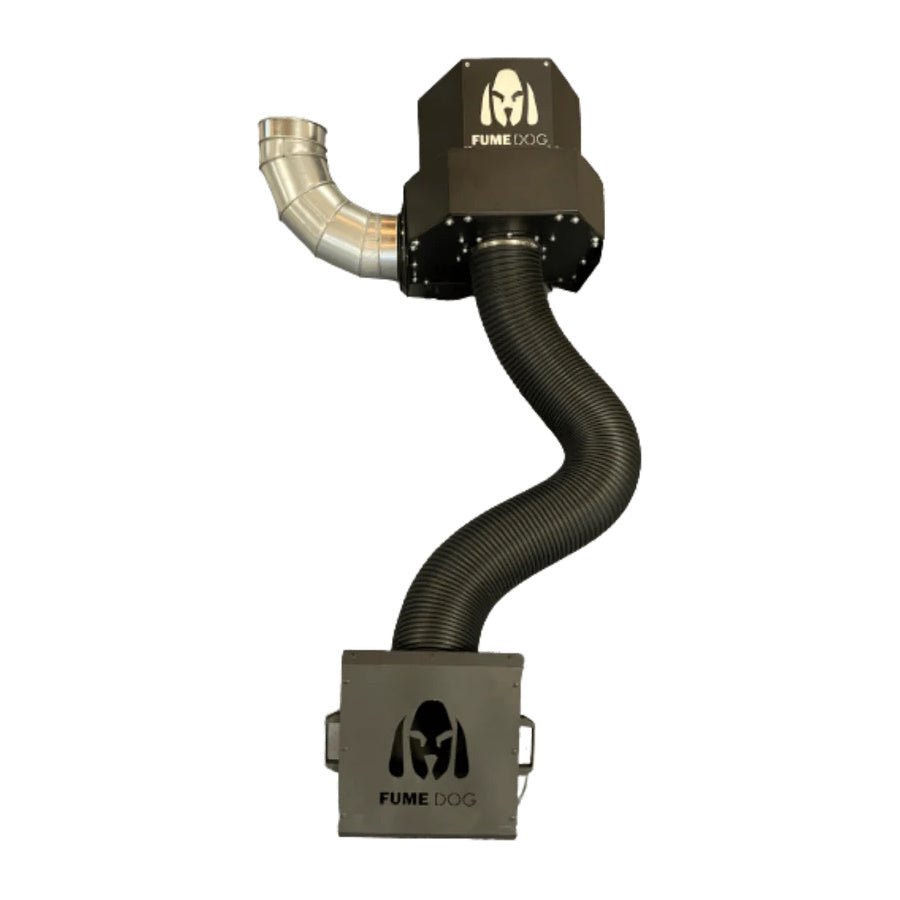

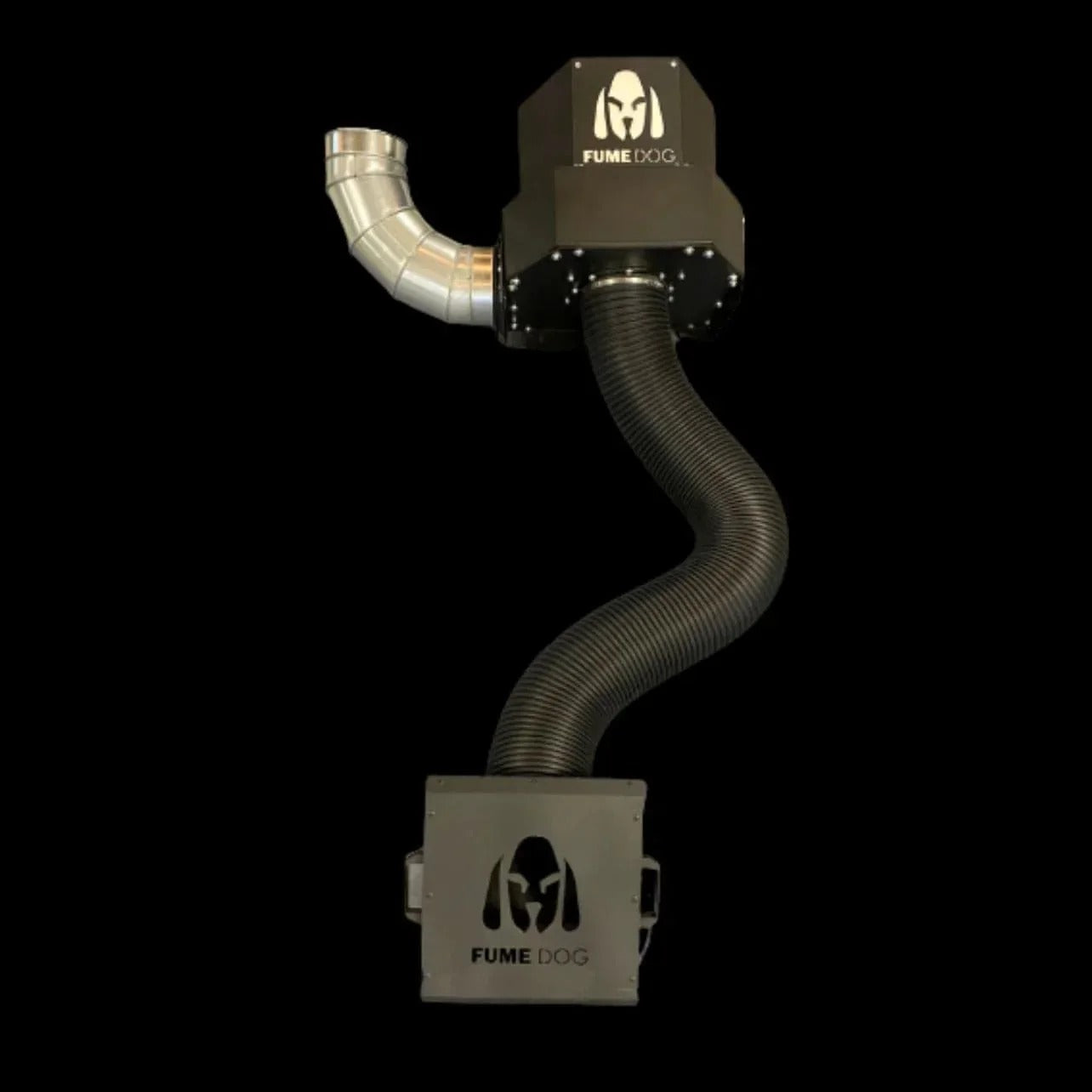

The Fume Dog Bulldog-EX-FLEX is a 1,200 CFM wall-mounted welding fume exhaust system that combines the industrial extraction capacity of the Bulldog platform with a magnetic aluminum hood that repositions instantly across any metal surface — without adjusting the arm, without interrupting your work. For shops with existing ducting and multiple welding positions, this is the extraction setup that finally keeps pace with how welding actually happens.

[Return Policy exception: Fume Dog products are an exception to The Maker's Chest standard returns policy, and all sales are final. However, this does not mean we do not have confidence in these products - in fact, the Fume Dog products come with a 10-year warranty on all major structural components.]

The Problem With Standard Arm Extractors in Real Welding Environments

A standard 10-foot articulating arm works perfectly when the welder stays in one place. The moment you move along a long joint, shift to a different side of a fixture, or change your weld angle significantly, the arm needs to be repositioned. In a busy shop running multi-pass welds on large assemblies, that interruption happens dozens of times per shift.

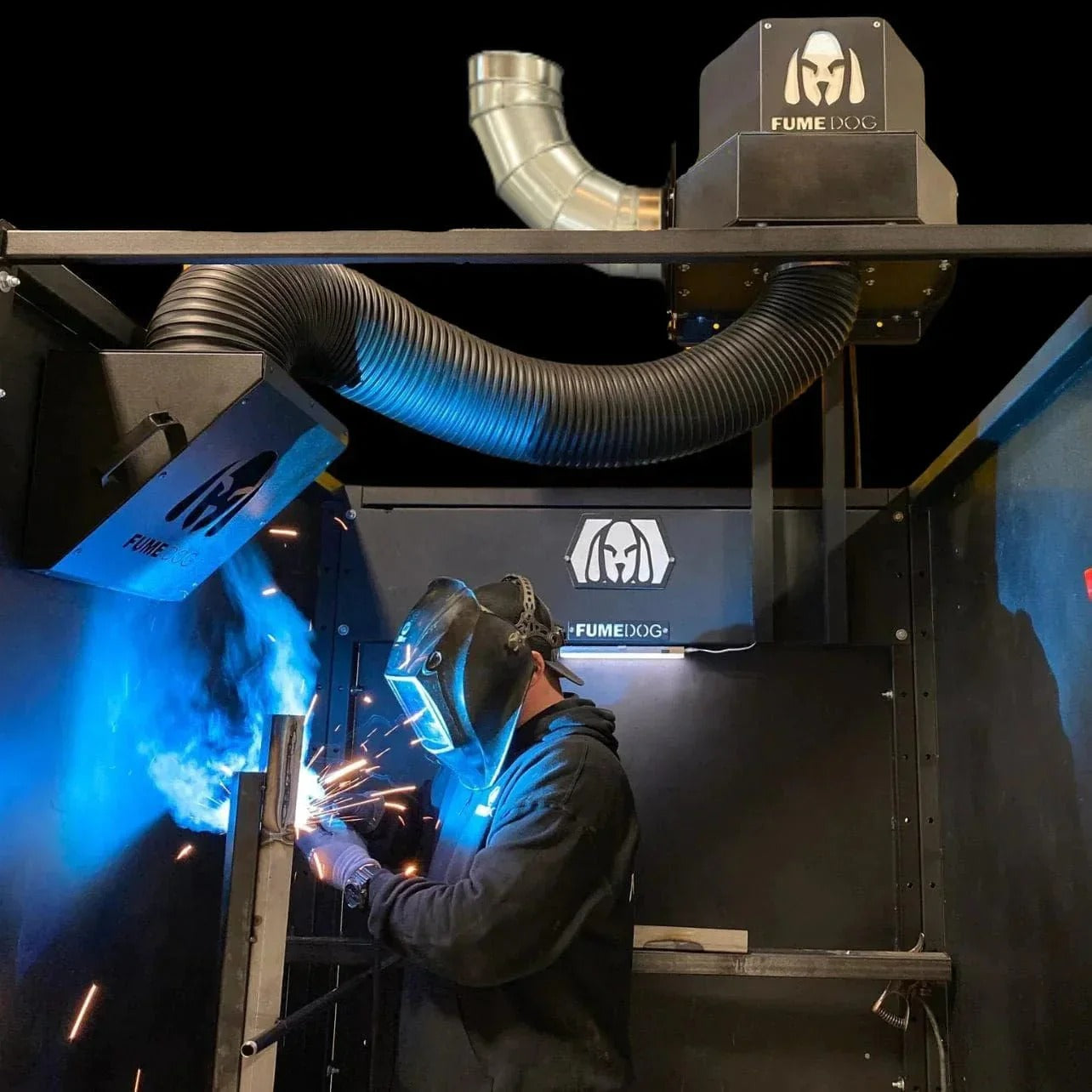

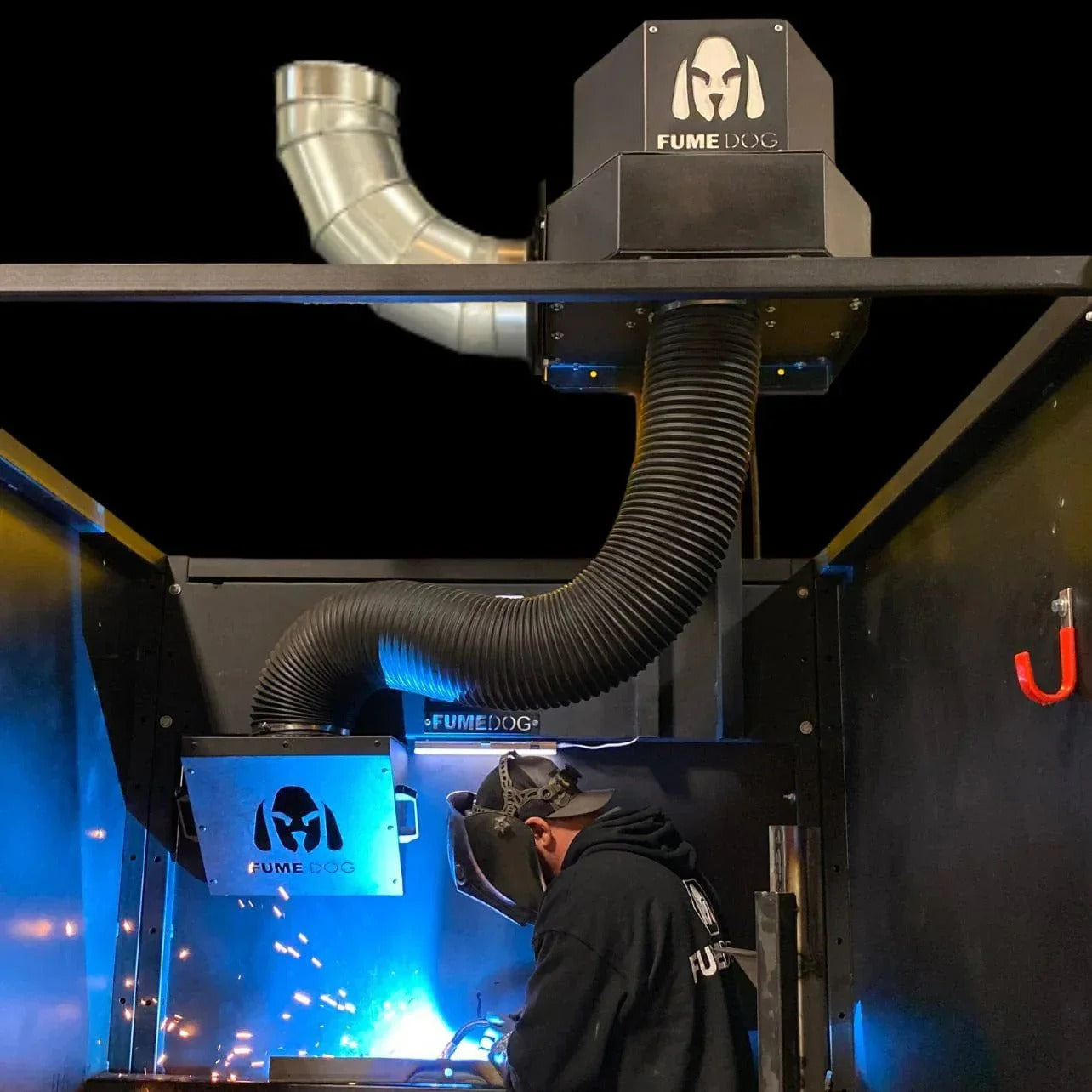

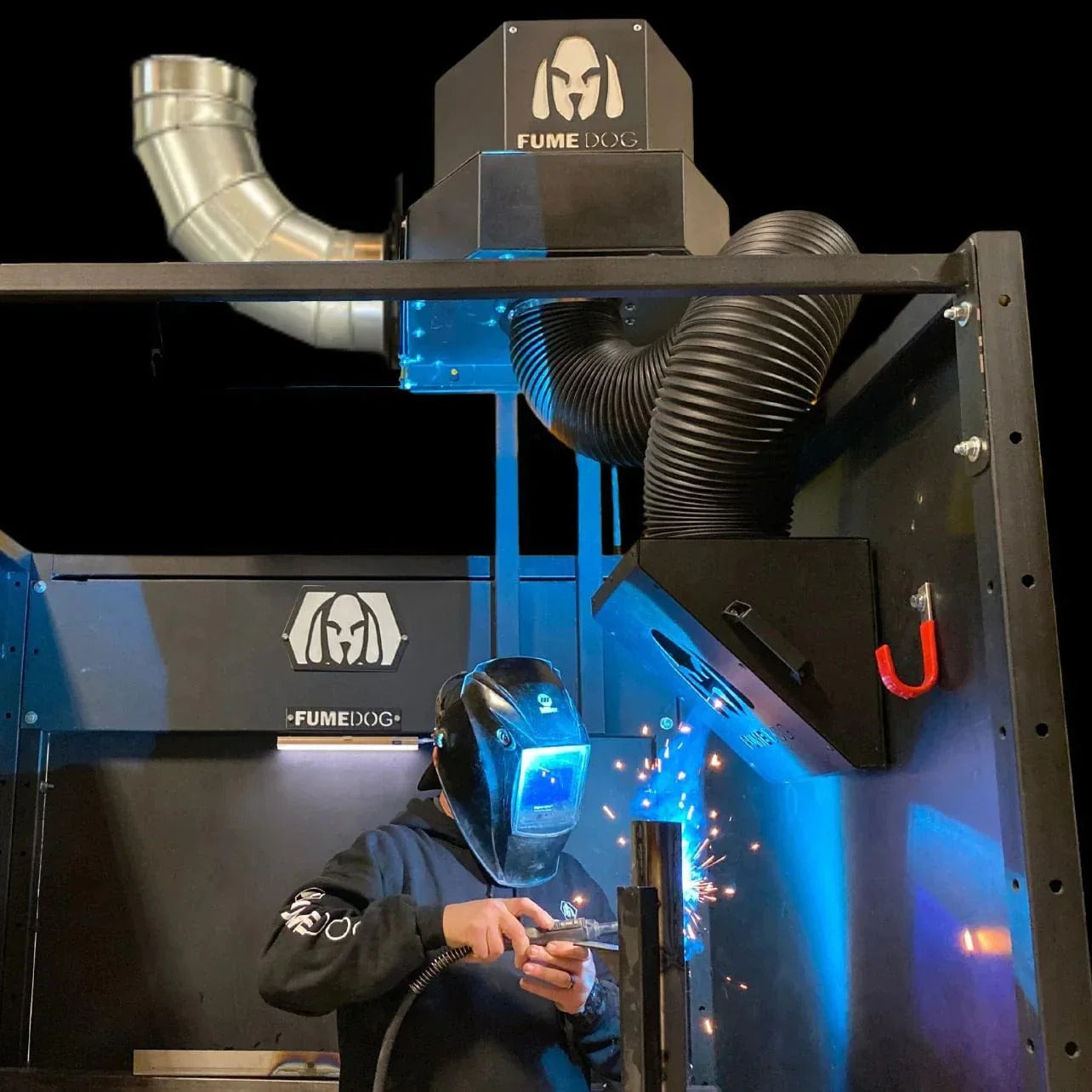

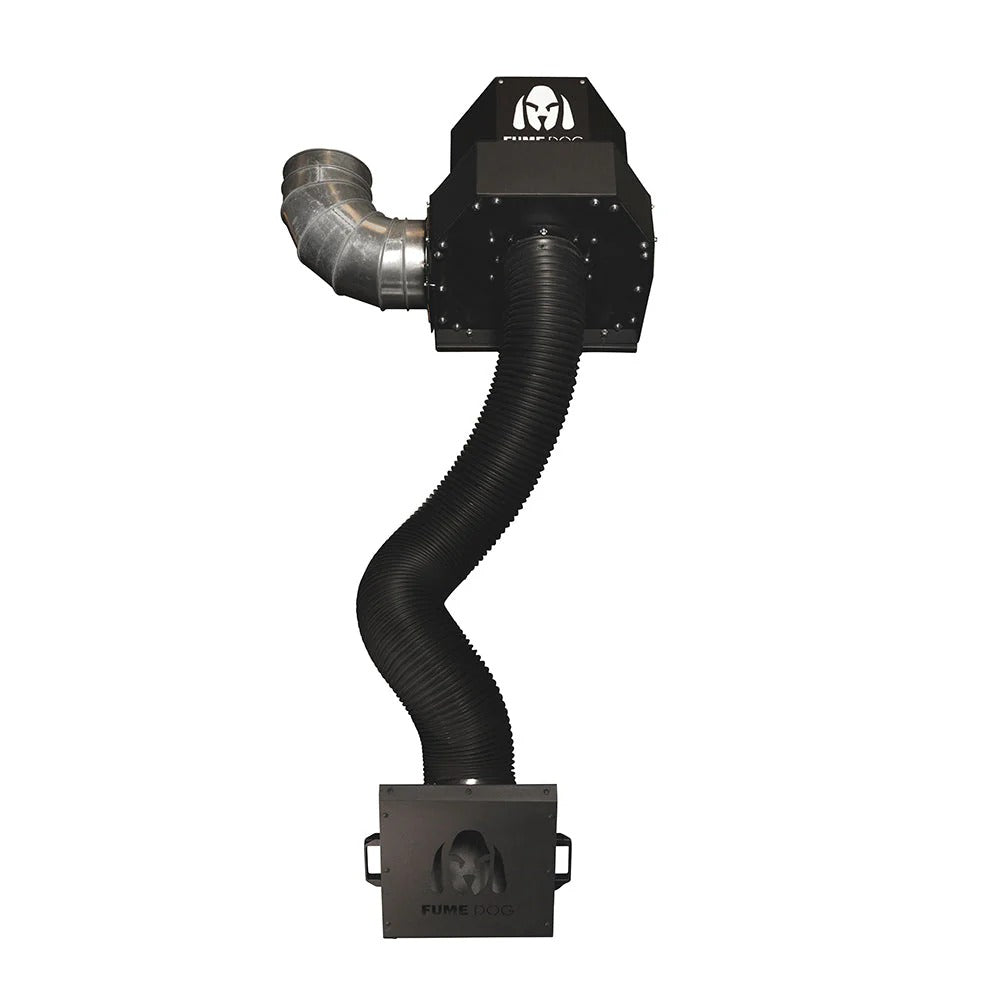

The Bulldog-EX-FLEX solves this with a magnetic aluminum fume hood at the end of the arm. Instead of re-swinging the entire 10-foot arm every time you move, the magnetic hood detaches and repositions independently — sticking to your welding table, a steel fixture, the side of a workpiece, or any other nearby metal surface in seconds. The arm handles the reach; the magnetic hood handles the precision.

It's the difference between a fume extractor that extracts fumes effectively and one that extracts them wherever you actually are.

Direct Outdoor Exhaust — No Filters, No Maintenance Costs

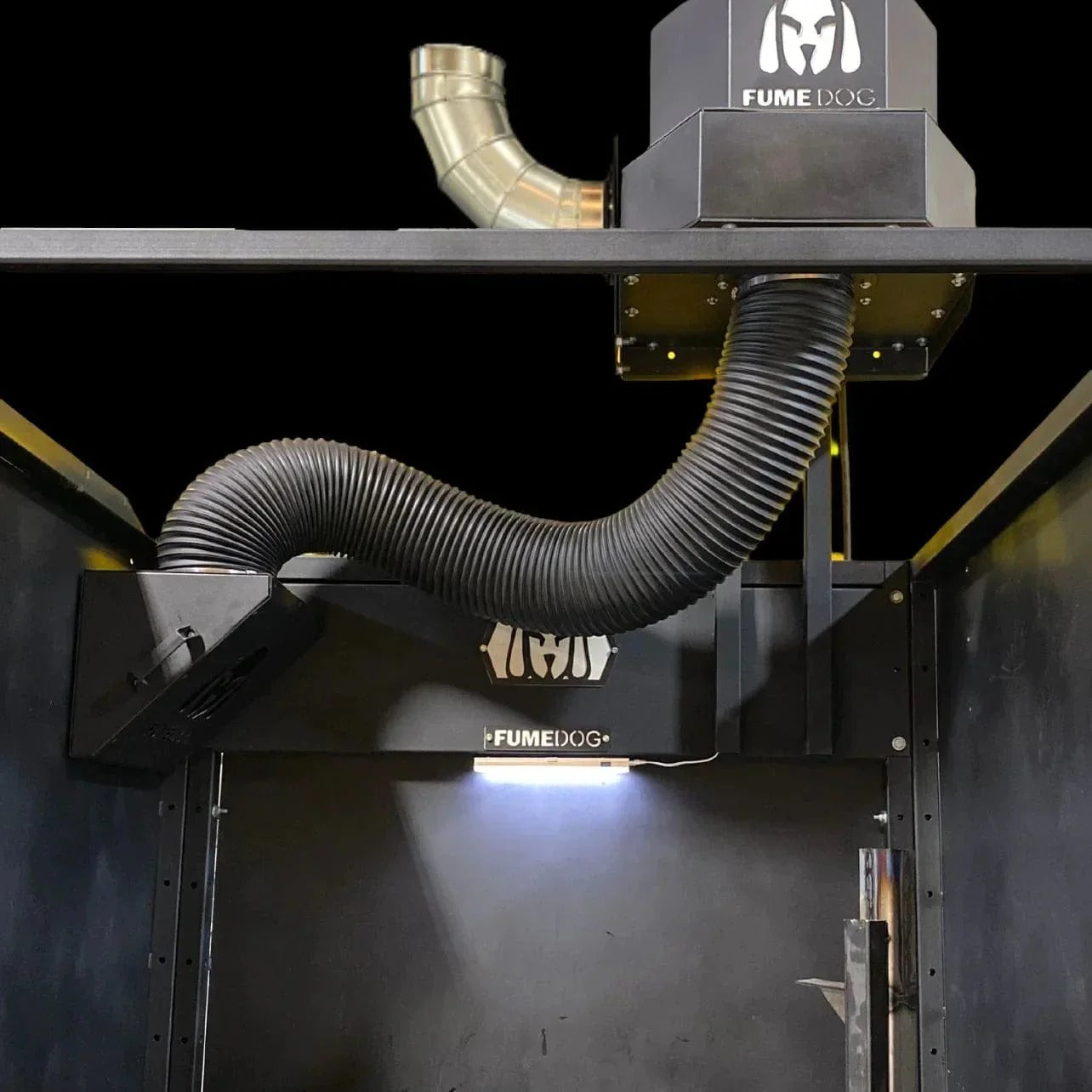

The Bulldog-EX-FLEX is an exhaust-only system. Captured fumes are pulled through the 8-inch arm, through the wall-mounted unit, and vented directly outside your facility through a ducted connection. There are no onboard filters to replace, no filter schedule to manage, and no performance degradation from a clogged filter during a busy production run.

For high-output shops running consistent shifts of MIG or Stick welding, the operational math is simple: exhaust-only systems eliminate filter replacement as a recurring cost and a maintenance task entirely. The tradeoff is clear — ducting is required and not included with the unit. You need a connection from the exhaust outlet to an exterior vent point.

If your facility already has ducting infrastructure, or if you're building out a new welding space and planning outdoor exhaust from the start, the EX-FLEX is purpose-built for that environment. If no ducting is possible or practical, the Bulldog-FILT-FLEX (filtered recirculating version) is the right alternative.

1,200 CFM Through an Arm Built to Deliver It

The extraction capacity backing the magnetic hood is the same 1.5 HP motor driving 1,200 CFM through an 8-inch diameter, 10-foot articulating arm used across the full Bulldog line. The 8-inch arm is non-negotiable for that CFM rating — a 6-inch arm at 1,200 CFM creates pressure drop that significantly reduces capture efficiency at the hood.

External joints on the arm allow precise positioning across the work area and hold position once set. The built-in internal airflow damper lets you reduce extraction volume for TIG welding — where pulling too much air disrupts shielding gas coverage — without reducing the unit's rated capacity for higher-demand MIG and Stick processes.

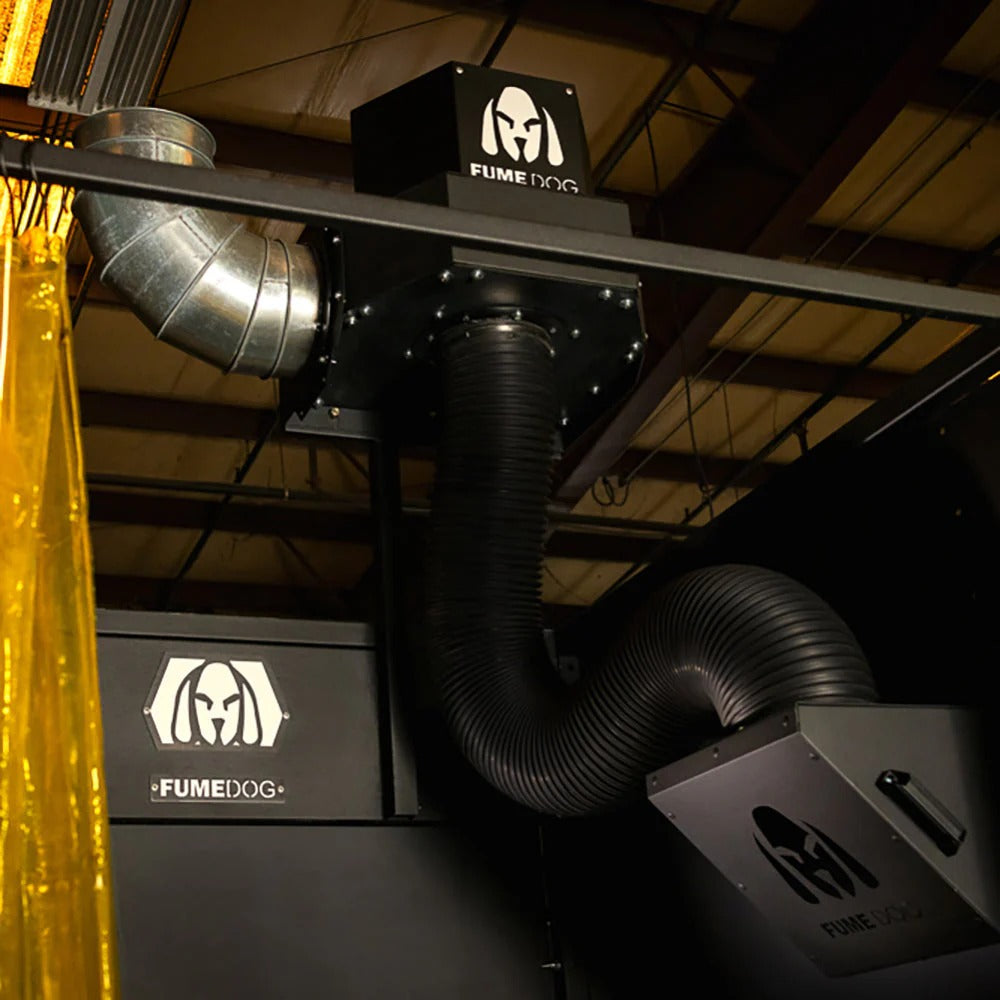

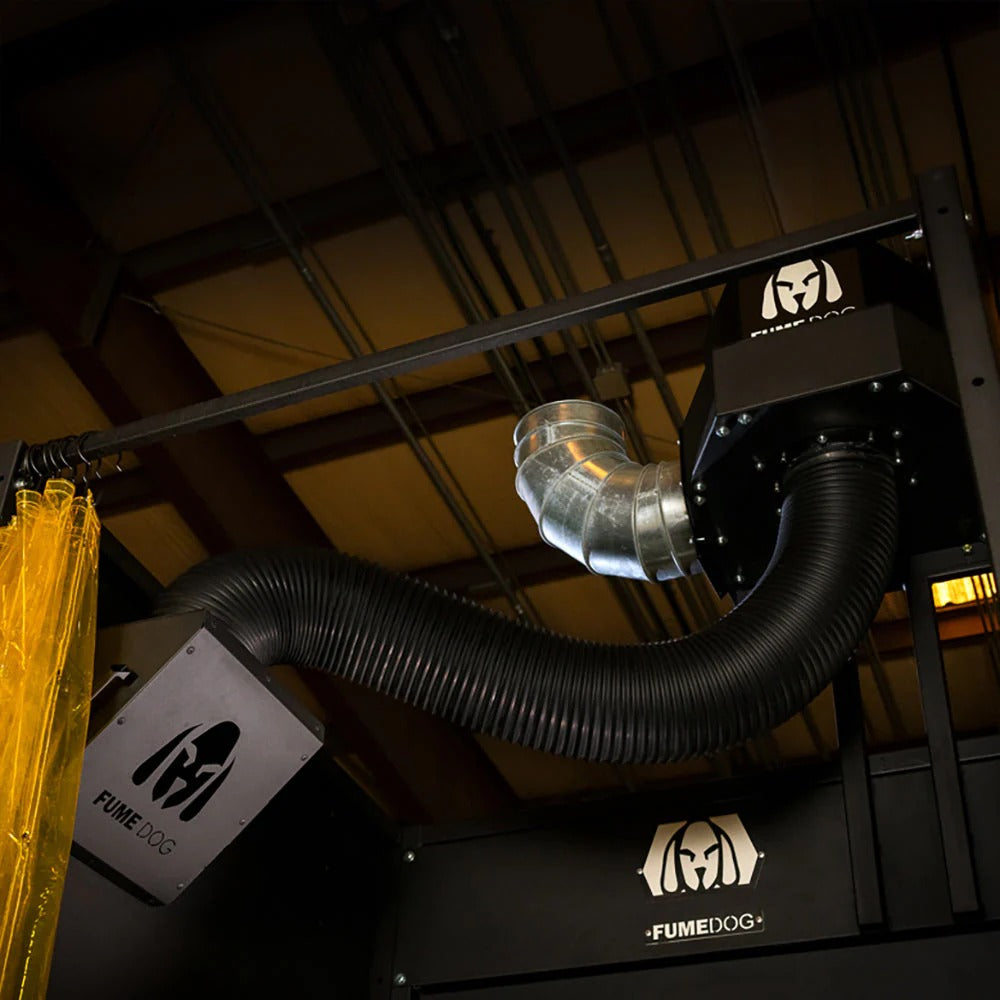

The exhaust outlet is field-configurable to exit from the left or right side of the unit housing, so you can route your duct run to whichever side fits your facility layout without repositioning the unit itself.

All Steel. Magnets. Zero Plastic.

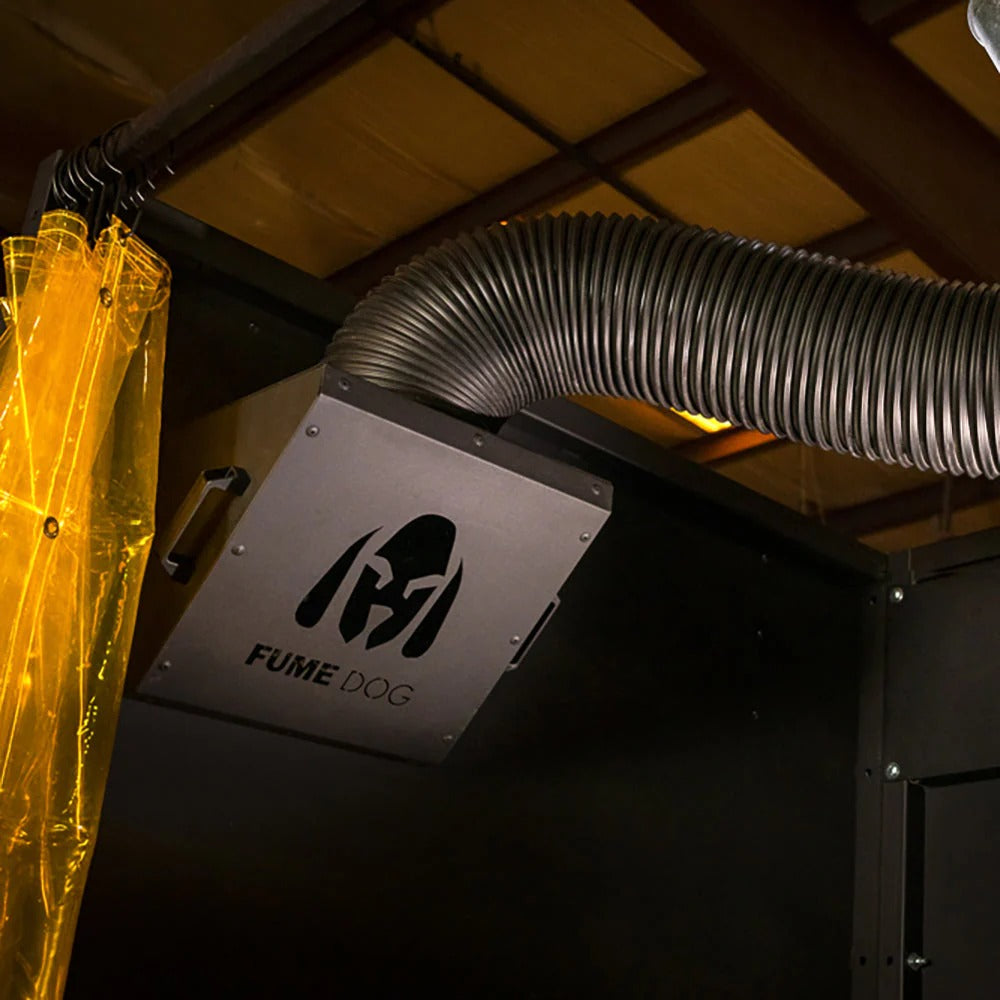

The Bulldog-EX-FLEX is constructed entirely from heavy-gauge steel with a powder-coat finish at the motor and housing. The magnetic hood is aircraft-grade aluminum with integrated magnets — lightweight enough to detach and reposition by hand in seconds, durable enough to withstand daily welding shop contact.

No plastic components. In an environment where the unit is pulling in hot metal fumes under continuous load, near active welding, this is the material standard that determines whether a unit lasts for years or needs replacing.

At 215 lbs without the arm, the wall-mounted base unit is a serious industrial installation. The integrated steel wall mount bracket is part of the housing, engineered for that load and for secure attachment to wall studs or a welded backing plate.

The optional 8-foot floor-mounted stand converts the base unit to a pedestal configuration — useful when wall mounting isn't structurally feasible, or when you want the freedom to reposition the base unit over time.

Built for Multi-Station Shops and Training Environments

The Bulldog-EX-FLEX is rated for one to two full shifts per day of MIG, TIG, and Stick welding. The magnetic hood makes it a natural fit for specific production environments:

Multi-station fabrication shops where one or two wall-mounted units serve adjacent stations — the magnetic hood repositions between stations in seconds, allowing one unit to cover a wider area efficiently.

Large assembly welding where a welder moves along an extended joint or works on multiple faces of a fixture — the magnetic hood follows the weld without the welder stopping to reposition the arm.

Welding schools and training centers with fixed student stations — instructors can quickly reposition the capture point for demonstrations at different heights and angles without interrupting the lesson flow.

Industrial facilities with ducting infrastructure — the exhaust-only design integrates cleanly into facilities already running centralized ventilation or outdoor exhaust ductwork.

The Maker's Chest Difference

The Bulldog-EX-FLEX is available from Fume Dog directly and through other distributors. Here's what changes when you order through The Maker's Chest:

• 🇺🇸 Expert USA-based technical support — our team can help you work through installation placement, arm reach and coverage for your specific station layout, duct sizing questions, and any issues that come up after delivery
• 📞 Dual lines of support — phone and email, so when you're mid-installation or mid-shift and need a real answer, you have a direct path to someone who knows this product
• 🔧 Straight pre-sale guidance — exhaust or filtered? Magnetic hood or standard arm? Wall mount or floor stand? Talk to us before you order if you're unsure. We'll help you get the right configuration the first time.

Frequently Asked Questions about Fume Dog Magnetic Wall Mount Weld Fume Extractor Exhaust

Q: What's the difference between the Bulldog-EX-FLEX and the standard Bulldog-EX?

A: Both are exhaust-only, 1,200 CFM wall-mount systems with the same motor, arm, and steel construction — and both require ducting to vent outside. The key difference is the capture hood. The standard Bulldog-EX has a fixed articulating arm with a traditional hood at the end. The Bulldog-EX-FLEX has a magnetic aluminum hood that detaches from the arm and repositions independently on any metal surface near the weld. If your welder stays in one position or adjusting the arm is practical, the EX is sufficient. If your welder moves around frequently, works on large assemblies, or needs to serve multiple nearby positions from one unit, the EX-FLEX is the better fit.

Q: What's the difference between the Bulldog-EX-FLEX (this unit) and the Bulldog-FILT-FLEX?

A: Both use the same magnetic hood and 1,200 CFM platform. The EX-FLEX is exhaust-only — it vents fumes directly outside through ducting, has no onboard filters, and requires a duct connection to an exterior exhaust point. The FILT-FLEX processes air through a multi-stage HEPA + carbon filter stack and returns clean air to the shop — no ducting required. Choose the EX-FLEX if you have or are building ducting infrastructure and want zero filter maintenance. Choose the FILT-FLEX if ductless installation is preferred or more practical for your space.

Q: Does ducting come with the unit?

A: No. Ducting is not included and must be purchased separately. The exhaust outlet on the unit accepts standard industrial ductwork and is configurable to exit from the left or right side. Contact our team if you need guidance on duct sizing or configuration for your specific installation.

Q: What surfaces does the magnetic hood attach to?

A: Any ferrous (magnetically responsive) metal surface — mild steel welding tables, steel fixtures, steel booth walls, steel shelving, and most steel workpieces. It will not attach to aluminum, certain grades of stainless steel with low magnetic permeability, or non-metal surfaces. In most standard welding environments, there are plenty of viable attachment points. If your setup relies heavily on aluminum fixtures or non-ferrous surfaces, contact us before ordering to confirm the magnetic hood will work for your application.

Q: What welding processes is it rated for?

A: MIG, TIG, and Stick welding at one to two full shifts per day. The internal airflow damper allows you to reduce extraction volume for TIG welding to avoid disturbing shielding gas. Not recommended for plasma cutting or carbon arc gouging, which generate fume volumes and spark concentrations beyond the unit's design parameters.

Q: How close does the magnetic hood need to be to the weld?

A: For optimal capture, position the magnetic hood 6 to 12 inches from the weld puddle, angled to intercept rising fumes. The 1,200 CFM airflow maintains effective draw at up to approximately 18 inches — but closer placement is always more effective. The magnetic hood's ability to attach directly to the workpiece or table surface near the weld makes this positioning significantly easier to maintain than with a standard arm hood.

Q: Can the unit be floor-mounted instead of wall-mounted?

A: Yes. An optional 8-foot floor-mounted stand is available as a configuration option at checkout, converting the unit to a pedestal setup with no modification to the machine itself. Useful when wall mounting isn't structurally practical or when you want the flexibility to reposition the base over time.

Q: What power does it require?

A: 120V, single-phase — standard shop outlet power. The 1.5 HP motor is appropriate for a standard 20A circuit. Other voltages are available; contact us before ordering if your facility operates on a different standard.

Q: Can one Bulldog-EX-FLEX serve multiple welding stations?

A: It depends on station proximity and arm reach. The 10-foot arm and the ability to reposition the magnetic hood quickly make the EX-FLEX capable of serving two adjacent stations that are within its reach range. For stations farther apart, a dedicated unit per station is the more practical approach. Contact our team with your station layout and we'll help you figure out the most efficient configuration.

Q: What is the Returns Policy on the Fume Dog?

A: Given the nature of how a fume extractor is used, it is no longer a "new" product after first use, given contaminants which enter the filtration system. As such, Fume Dog products are an exception to The Maker's Chest returns policy, and all sales are final.

However, this does not mean we do not have confidence in these products - in fact, the Fume Dog products come with a 10-year warranty on the major structural components of the goods, provided the products are properly installed, maintained, and operated under normal conditions. If any defects appear under normal usage, Fume Dog will repair or replace your product at no cost to you, within ten years of its original purchase.

Q: Why buy from The Maker's Chest instead of directly from Fume Dog?

A: Our USA-based support team is reachable by phone and email, knowledgeable about this product, and focused on making sure the machine works for your application — not just processing your transaction. If a question comes up after delivery, we're the call you want to have available.

Fume Dog Magnetic Wall Mount Weld Fume Extractor Exhaust Warranty Details:

• Fume Dog Magnetic Wall Mount Weld Fume Extractor Exhaust comes with a 10-year warranty on the major structural components of the goods, provided the products are properly installed, maintained, and operated under normal conditions.
• A limited 1-year cost of replacement warranty for any components manufactured or supplied by others, which typically includes ducting, spark arrestors, electric motors, capture arms, valves, gaskets, seals, fans, and control components
• Dedicated, local US-based support for quick answers to questions.
