Fume Dog Wall Mount Weld Fume Extractor / Exhaust

The Wall-Mounted Welding Exhaust System for Shops That Already Have Ventilation — or Plan to Do It Right.

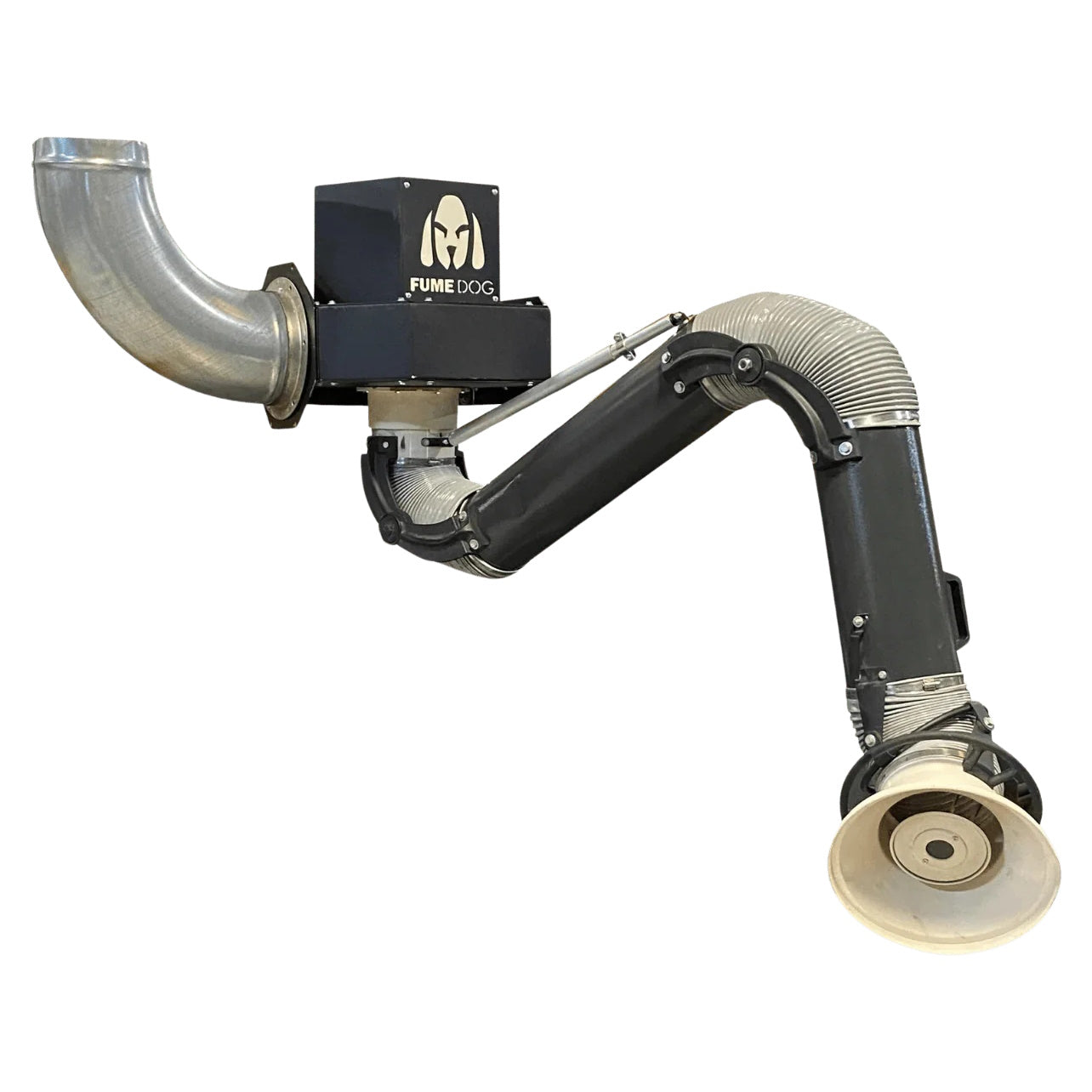

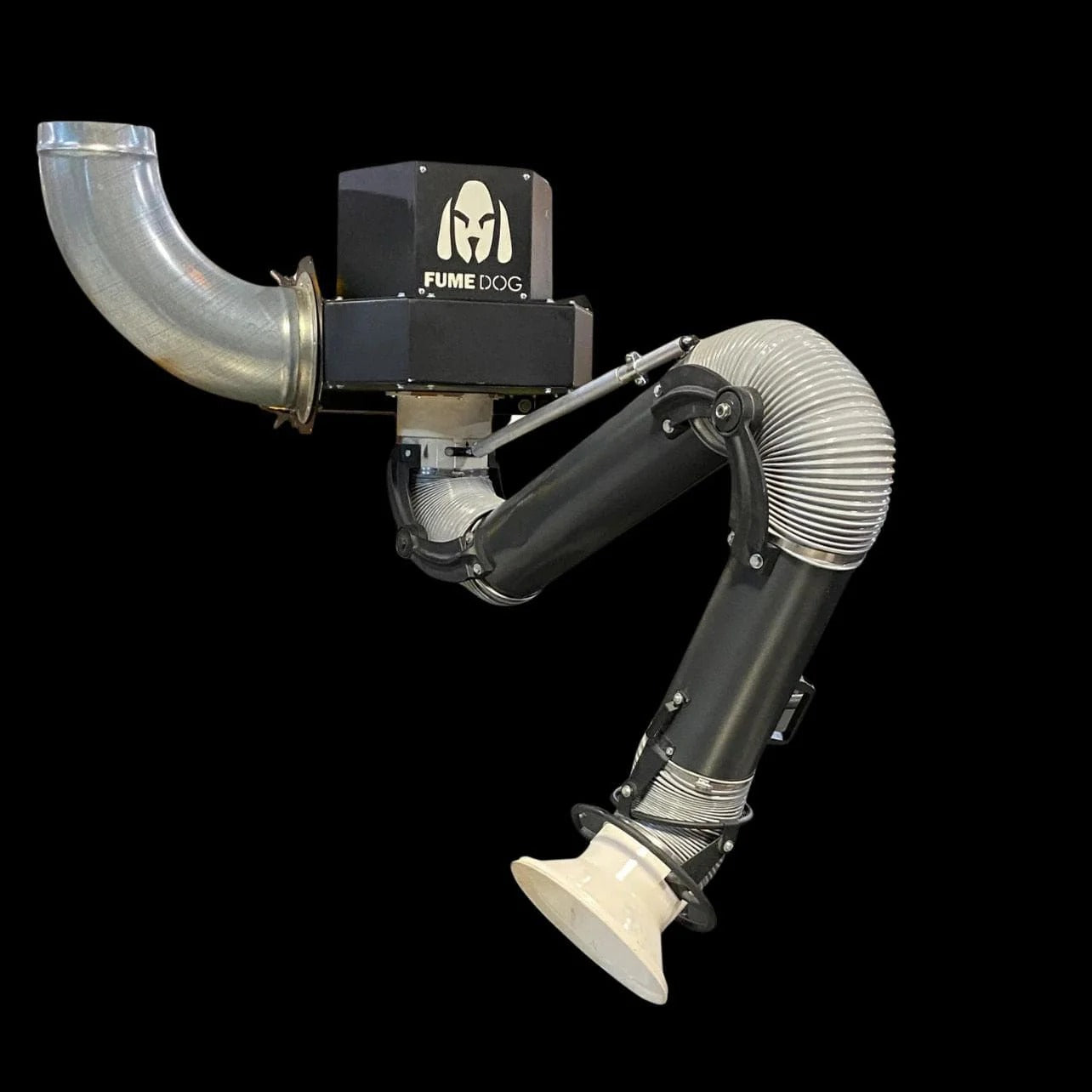

The Fume Dog Bulldog-EX is a 1,200 CFM wall-mounted welding fume exhaust system built to capture fumes at the source and vent them directly outside your facility. It's the right solution for shops with existing ducting, welding booths designed for outdoor exhaust, or facilities where local codes or air quality requirements call for direct venting rather than recirculated filtered air.

[Return Policy exception: Fume Dog products are an exception to The Maker's Chest standard returns policy, and all sales are final. However, this does not mean we do not have confidence in these products - in fact, the Fume Dog products come with a 10-year warranty on all major structural components.]

Filtered vs. Exhaust: Which System Is Right for Your Shop?

Before going further, it's worth being clear about this distinction — because it's the most important decision when choosing a wall-mounted fume extractor.

Exhaust-only systems (like the Bulldog-EX) draw fumes through the extraction arm, push the air out of the building through a duct connection, and require outdoor venting or connection to central facility ducting. There are no onboard filters to replace. This approach is ideal when you have — or are installing — a ductwork system, when local codes mandate outdoor exhaust, or when the simplicity and zero filter-maintenance of a direct vent setup fits your operation.

Filtered systems (like the Bulldog-FILT) process extracted air through HEPA and carbon filters and return clean air to the shop. No ducting required, but filters need periodic replacement.

If you have a welding booth already ducted to the outside, a central ventilation system to connect to, or prefer the exhaust approach for your facility type, the Bulldog-EX is the purpose-built solution. If you're not sure which is right for your shop, our team can help you think through it before you order.

1,200 CFM Through an Arm That Can Actually Deliver It

Like the filtered version, the Bulldog-EX is built around a 1.5 HP motor driving 1,200 CFM through an 8-inch diameter, 10-foot articulating arm. The 8-inch arm diameter is the minimum size needed to move 1,200 CFM without significant pressure drop — a specification that many lower-cost competing units miss, despite advertising similar CFM numbers.

The arm uses external joints for precise positioning and holds its set position throughout the welding run. A built-in internal airflow damper lets you dial back the extraction volume when needed — for TIG welding where shielding gas disruption is a concern, or for applications where maximum airflow isn't always required.

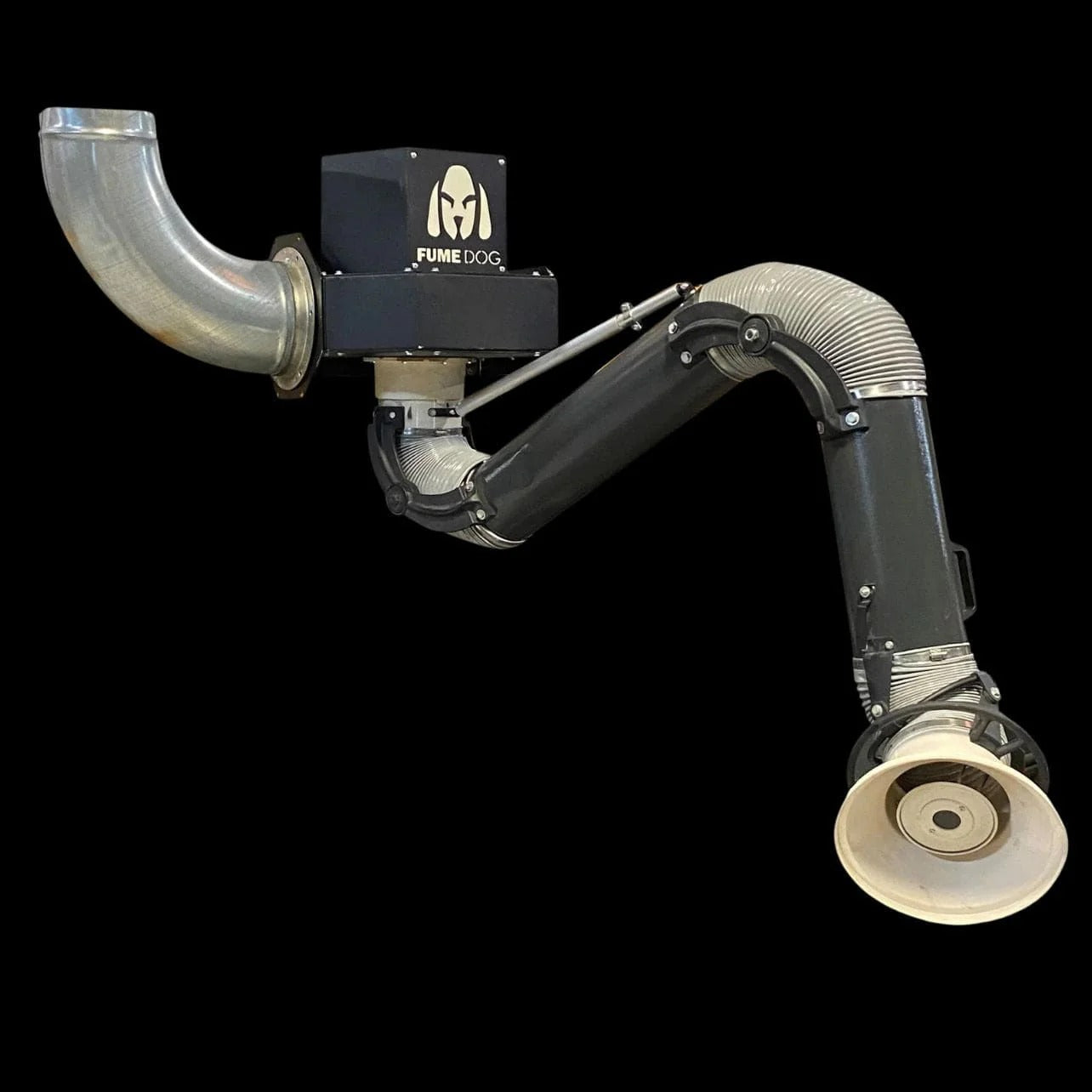

The exhaust outlet is field-configurable to exit from either the left or right side of the unit, so you can adapt the installation to your duct run without repositioning the unit itself.

All-Steel. No Plastic. No Compromises.

The Bulldog-EX is constructed entirely from heavy-gauge steel with a powder-coat finish. No plastic housing, no plastic arm components. In a welding environment — where heat, spatter, and physical contact are daily realities — steel construction isn't a premium feature, it's the baseline that makes a unit serviceable for years rather than months.

The integrated steel wall mount bracket is part of the unit, not a separate accessory. It provides a secure, stable mount to wall studs or a welded backing plate, and at 215 lbs (unit only, without arm), the installation needs to be solid. The bracket is engineered for that load.

Alternatively, the optional 8-foot floor-mounted stand converts the Bulldog-EX to a pedestal configuration — useful if your wall structure isn't suited for direct mounting, or if you want the flexibility to reposition the unit over time without new wall penetrations.

No Filter Costs. Ever.

One of the clearest operational advantages of an exhaust-only system is the complete elimination of filter replacement costs. The Bulldog-EX has no onboard filters — fumes go in the arm and out the duct to the exterior. There's nothing to replace, no filter schedule to maintain, and no risk of running degraded extraction because a filter is overdue.

For high-production shops running two shifts daily of heavy MIG or Stick welding — where filter consumption on a filtered unit would be significant — the exhaust-only approach delivers lower long-term operating costs, provided the ductwork infrastructure is in place.

The tradeoff is clear: you need to run ducting from the unit to an exterior exhaust point. Ducting is not included with the unit and must be purchased separately. If your facility doesn't have or can't run ductwork economically, the Bulldog-FILT (filtered return air version) is likely the better fit.

Built for Real Shift Work at Real Welding Stations

The Bulldog-EX is rated for one to two full shifts per day of MIG, TIG, and Stick welding. It runs on standard 120V / 1-phase power with a simple included on/off switch — no complex controls, no programming, no sensors to calibrate. The unit does one thing, it does it at industrial capacity, and it keeps doing it reliably.

Ideal installation environments include:

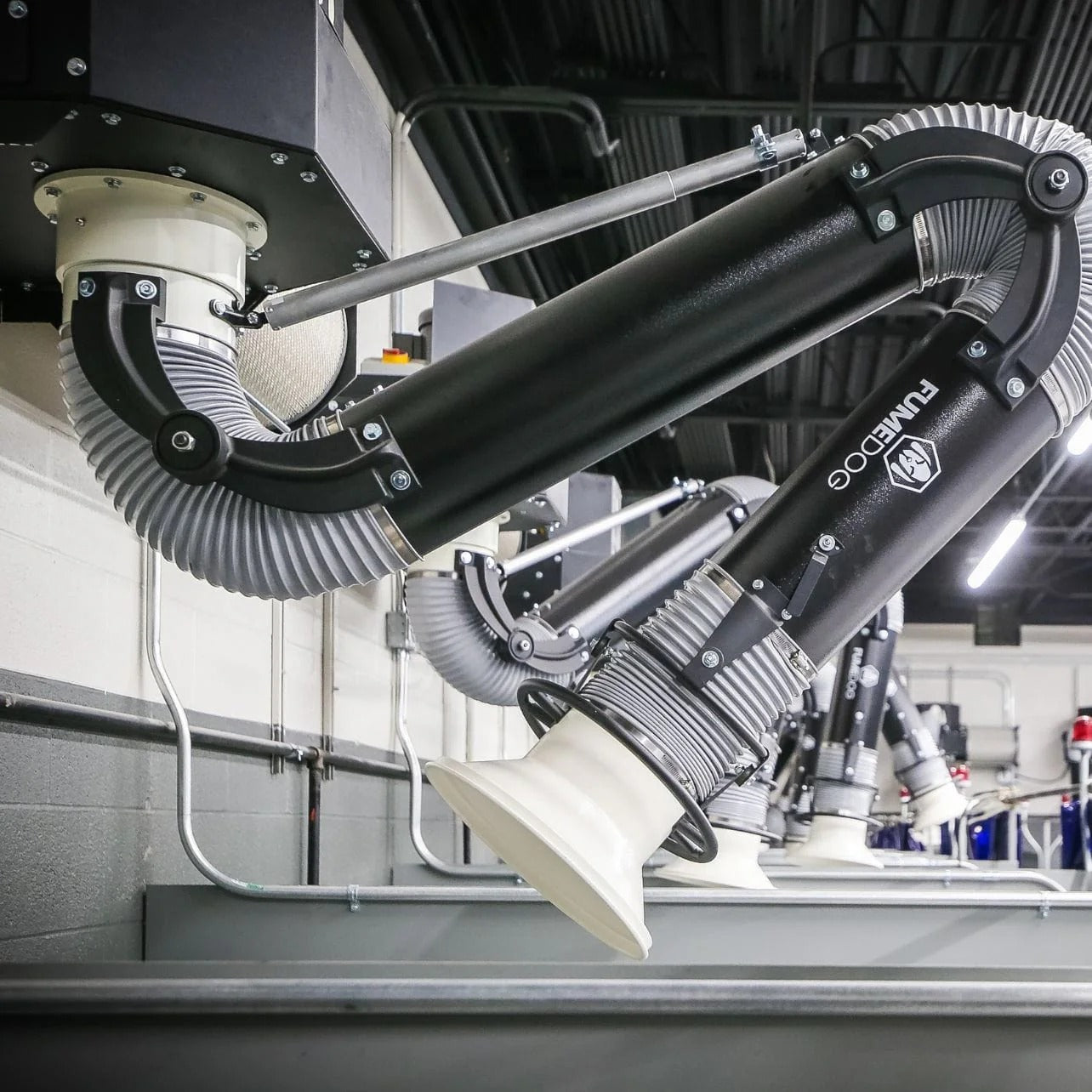

Dedicated fabrication shops with fixed welding stations where floor space is at a premium and consistent daily production demands a purpose-built extraction setup.

Welding booths in schools and training centers where students work at fixed stations and facility management prefers an exhaust-out approach for simplicity and zero ongoing filter costs.

Industrial facilities with central ventilation infrastructure where individual workstation extractors connect to an existing duct network rather than using standalone filtration.

The Maker's Chest Difference

The Bulldog-EX is available from Fume Dog directly and through other distributors. Here's what changes when you buy through The Maker's Chest:

• 🇺🇸 Expert USA-based technical support — our team can help you work through installation questions, duct sizing, arm positioning for your station layout, and any issues that come up after delivery
• 📞 Dual lines of support — phone and email, so when you're mid-installation and need a real answer, you have a direct path to someone who knows this product
• 🔧 Honest pre-sale guidance — exhaust or filtered? Wall mount or floor stand? Not certain which version fits your facility and workflow? Call or email us before you order. We'll help you get it right the first time.

Frequently Asked Questions about Fume Dog Wall Mount Weld Fume Extractor / Exhaust

Q: What's the core difference between the Bulldog-EX and the Bulldog-FILT?

A: The Bulldog-EX (this unit) is an exhaust-only system — it draws fumes through the arm and vents them directly outside via ducting. It has no onboard filters and zero filter replacement costs, but requires a duct connection to an exterior exhaust point. The Bulldog-FILT processes extracted air through HEPA and carbon filters and returns clean air to the shop — no ducting required, but filters need periodic replacement. Choose the EX if you have or are installing ductwork, or if your facility requires outdoor exhaust. Choose the FILT if you want a self-contained, ductless installation.

Q: Does ducting come with the unit?

A: No. Ducting is not included and must be purchased separately. The unit includes the extraction arm, wall mount bracket, and on/off switch. The exhaust outlet connection point is sized for standard industrial ductwork; contact our team if you need guidance on duct sizing and configuration for your specific installation.

Q: Can the exhaust outlet be positioned on either side?

A: Yes. The exhaust outlet is field-configurable to exit from the left or right side of the unit — so you can adapt the installation to your existing or planned duct run without moving the unit itself.

Q: What welding processes is it rated for?

A: MIG, TIG, and Stick welding at one to two full shifts per day. The internal airflow damper allows you to reduce extraction volume for TIG welding to avoid disturbing shielding gas. It is not recommended for plasma cutting or carbon arc gouging, which produce higher fume volumes and spark concentrations that can stress the system.

Q: How close does the arm need to be to the weld?

A: Position the 8-inch hood 6 to 12 inches from the weld puddle for optimal capture efficiency, angled slightly to intercept rising fumes. The 1,200 CFM airflow through the 8-inch arm maintains effective draw at up to approximately 18 inches, but closer is always better.

Q: Can the unit be floor-mounted instead of wall-mounted?

A: Yes. An optional 8-foot floor-mounted stand is available as a configuration option. Select it from the product dropdown at checkout, or contact us if you want to discuss which mounting approach makes more sense for your space before ordering.

Q: What power does it require?

A: 120V, single-phase — standard commercial and industrial outlet power. The 1.5 HP motor is appropriate for a standard 20A circuit. Contact us before ordering if your facility operates on a different voltage standard.

Q: How difficult is installation?

A: The unit includes an integrated wall mount bracket as part of the steel housing. Mounting requires securing to wall studs or a welded steel backing plate rated for 215+ lbs. Beyond the wall mount, you'll need to run ducting from the exhaust outlet to an exterior exhaust point — the complexity of that step depends on your facility layout. Our support team can walk you through installation considerations before your unit arrives.

Q: Does the exhaust-only design mean it's less safe than a filtered unit?

A: No — provided the ductwork is properly installed and venting to the exterior. An exhaust-only system removes fumes from the work environment entirely, which is equivalent in safety outcome to a filtered recirculating system. The key requirement is that the ducting actually terminates outside the building, not into a ceiling plenum or adjacent space. For applications involving stainless steel welding (hexavalent chromium), verify that your exhaust outlet placement meets applicable regulations for your jurisdiction.

Q: What is the Returns Policy on the Fume Dog?

A: Given the nature of how a fume extractor is used, it is no longer a "new" product after first use, given contaminants which enter the filtration system. As such, Fume Dog products are an exception to The Maker's Chest returns policy, and all sales are final.

However, this does not mean we do not have confidence in these products - in fact, the Fume Dog products come with a 10-year warranty on the major structural components of the goods, provided the products are properly installed, maintained, and operated under normal conditions. If any defects appear under normal usage, Fume Dog will repair or replace your product at no cost to you, within ten years of its original purchase.

Q: Why buy from The Maker's Chest instead of directly from Fume Dog?

A: Our USA-based support team is reachable by phone and email, knowledgeable about this product, and focused on making sure the machine works for your application — not just processing your transaction. If a question comes up after delivery, we're the call you want to have available.

Fume Dog Wall Mount Weld Fume Extractor / Exhaust Warranty Details:

• Fume Dog Wall Mount Weld Fume Extractor / Exhaust comes with a 10-year warranty on the major structural components of the goods, provided the products are properly installed, maintained, and operated under normal conditions.
• A limited 1-year cost of replacement warranty for any components manufactured or supplied by others, which typically includes ducting, spark arrestors, electric motors, capture arms, valves, gaskets, seals, fans, and control components
• Dedicated, local US-based support for quick answers to questions.
