One Machine for Welding, Cleaning, and Cutting — The Handheld Fiber Laser That Replaces Three Steps.

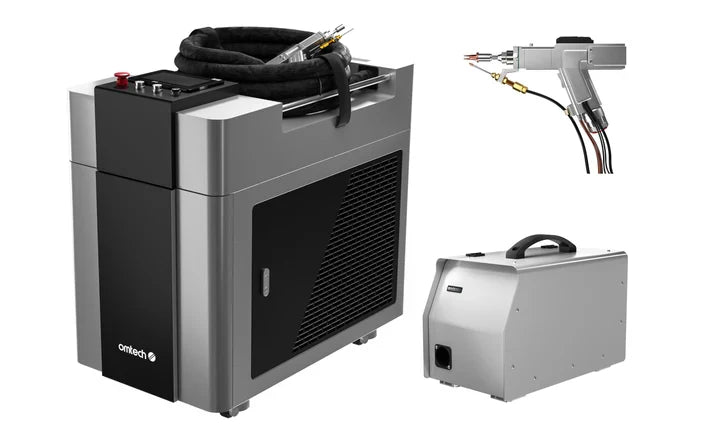

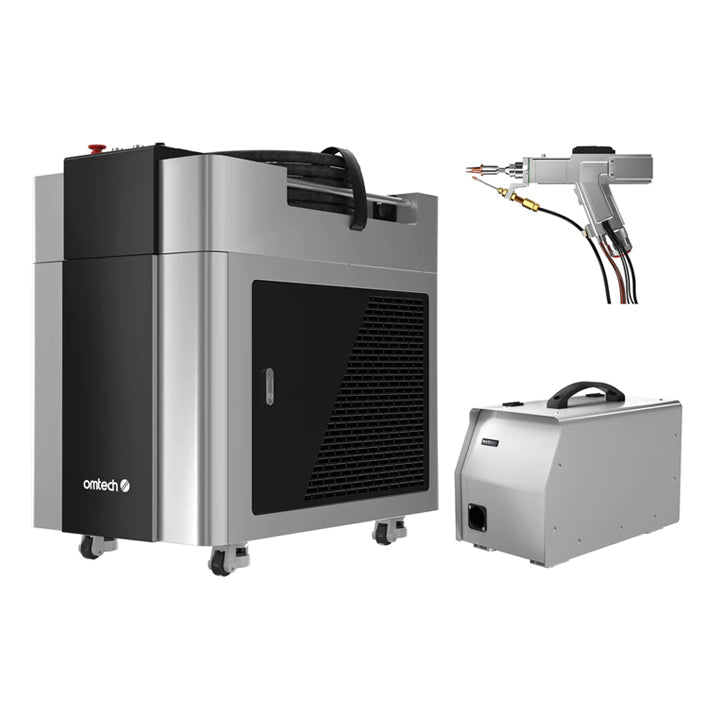

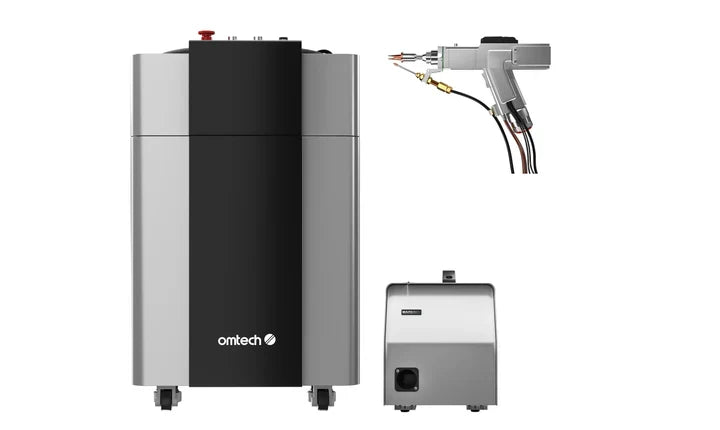

The OMTech 1500W Handheld Fiber Laser Welder is a 3-in-1 fiber laser welding system that welds stainless steel, carbon steel, galvanized steel, and aluminum; cleans the weld joint; and performs auxiliary cutting.
All from the same handheld gun, with automatic wire feeder support, touchscreen controls on both the machine and the gun, and a water-cooled system rated for 24-hour continuous operation.
![]()
![]()
Why Handheld Fiber Laser Welding Changes the Shop Workflow
Traditional MIG and TIG welding are proven processes — but they have real limitations for production environments where speed, heat management, and finish quality all matter simultaneously.
Fiber laser welding addresses those limitations directly:
Less heat input. The concentrated fiber laser beam creates a smaller, more focused weld pool than MIG or TIG at equivalent metal thickness — resulting in less heat-affected area and significantly reduced material deformation. For stainless steel fabrication where warp control matters, or for thinner-gauge assemblies where distortion is a production problem, this is the most immediate practical advantage.
Faster welding speed. Handheld fiber laser welding completes many standard weld joints significantly faster than conventional processes — particularly on continuous seams, cabinet and frame assemblies, and sheet metal work.
Better weld appearance. Fiber laser welds produce narrow, smooth seam profiles with minimal spatter — reducing or eliminating the grinding and polishing steps that TIG and MIG welds typically require.
Cleaning and cutting from the same gun. Switching from welding to weld-joint cleaning or auxiliary cutting is a nozzle swap — not a separate machine, not a separate process step.
The OMTech 1500W is positioned as a high-productivity alternative to traditional TIG and MIG workflows.
3-in-1 Functionality — What Each Mode Actually Does
The OMTech 1500W ships with 20 nozzles covering all three operating modes:
Welding: The primary function — producing clean, strong welds on stainless steel (up to 4mm), carbon steel (up to 4mm), galvanized/zinc plates (up to 4mm), and aluminum (up to 2mm). Four welding nozzle types (AS-12, BS-16, CS-12, FS-16) handle different joint geometries and welding approaches. Two additional no-wire-feed welding nozzles handle applications where filler wire isn't required.
Weld cleaning: After welding, weld joints on stainless steel often show oxidation marks and heat tinting that require removal for appearance or corrosion resistance. The included cleaning nozzle uses the same fiber laser — at different parameters — to clean and brighten the weld zone without mechanical grinding or chemical treatment.
Auxiliary cutting: Two cutting nozzles (2.0) support light-duty metal cutting tasks — trimming, slotting, and cutting thin material where the full setup of a separate laser cutter isn't practical.
The ability to handle all three workflows from a single handheld system eliminates the tool changes, workflow interruptions, and equipment sprawl that conventional multi-step metal finishing requires.
Wire Feeder + Touchscreen — Production-Ready Controls
Automatic wire feeder: Supports 0.8–1.2mm welding wire — the standard diameter range for most production metal welding applications. The wire feeder handles consistent feed rate throughout the weld without operator attention, maintaining weld quality across long seams and repetitive joints.
Touchscreen on the main machine body: Full parameter control — laser power, frequency, wire feed speed, pulse settings, and operating mode. Up to 50 working parameter sets can be stored and recalled — allowing operators to dial in settings for specific materials and joint types once, then recall them instantly for repeat jobs.
Touchscreen on the handheld gun: Real-time monitoring and quick parameter adjustment at the welding position — without returning to the main machine body between adjustments. For production operators moving the gun across a large workpiece or a series of assemblies, this means parameter tweaks happen without interrupting the workflow.
Materials and Welding Thickness
Stainless steel: Up to 4mm in a single pass under optimal conditions with argon shielding gas.
Carbon steel: Up to 4mm — nitrogen is sometimes used as shielding gas for carbon steel fabrication alongside argon.
Galvanized / zinc-coated steel: Up to 4mm — the laser welding process handles galvanized coatings more effectively than conventional welding processes, which can struggle with zinc outgassing.
Aluminum: Up to 2mm — the more reflective nature of aluminum requires careful parameter management; argon shielding gas is standard for aluminum applications.
Brass and highly reflective metals: The page notes compatibility — exercise caution and proper parameter configuration for high-reflectivity materials.
Shielding gas: Required during welding for all materials to protect the weld pool and maintain finish quality. Argon is the standard recommendation for stainless, aluminum, and copper. Nitrogen is sometimes used for carbon steel. You supply the shielding gas from standard industrial cylinders.
Built-In Safety Systems — For a Machine Running at 1500W
Operating a 1500W fiber laser system requires proper safety infrastructure. The FC-22 builds several protection layers into the machine:
Ground wire protection: The machine is designed not to emit laser light unless properly grounded to the work platform — a foundational protection against unintended laser activation.
Emergency stop button: Immediate power cutoff when activated.
Low-voltage, temperature, and short-circuit protection: Automatic protective responses when operating parameters fall outside safe ranges.
Buzzer alarm system: Audible alerts for pressure, temperature, and system status events.
Oil-water separator: Protects the focusing lens from oil and impurities in the cooling or shielding gas circuits.
Required PPE: Operators must use wavelength-specific laser safety glasses and full welding protective gear in a designated laser-safe workspace. A welding helmet, welding gloves, and safety glasses are all included in the package.
Water Cooling + 24-Hour Continuous Operation
The OMTech 1500W uses a water-cooling system for the fiber laser source — maintaining the thermal stability required for sustained high-power operation. The system is rated for 24-hour continuous operating time, making it appropriate for production environments where the welder runs throughout full shifts rather than occasional use.
Operating temperature range: 41–113°F (5–45°C) — broad enough for most shop environments.
Machine body: Compact 38" × 22" × 38" footprint with three-sided handles for workshop positioning and movement. The separate handheld laser module weighs 62 lbs. ± 4 lbs. — the module that travels to the weld position.
What's Included — Ready for Production
The package includes everything required to begin welding immediately:
Welding machine, welding gun, automatic wire feeder, welding helmet, welding gloves, safety glasses, wire feeder cable, RS232 data cables, wire feed tube, gas pipe, gas pressure gauge, 20 protective lenses, focusing lens, collimating lens, reflective mirror, 20 welding/cleaning/cutting nozzles, welding wire feed rolls, tool box, wrenches, and user manual.
The Maker's Chest Difference
The OMTech 1500W Handheld Fiber Laser Welder is available from OMTech directly and from other resellers. Here's what changes when you order through The Maker's Chest:
- 🛡️ 75-day returns — significantly longer than OMTech's direct return window. Enough time to receive and set up the machine, run it through your actual welding applications on your specific metals, confirm the 1500W fiber laser welder performs for your production requirements, and make a fully informed decision before you're committed
- 🇺🇸 Expert USA-based technical support — our team can help with initial setup, shielding gas configuration, parameter development for your specific metals and joint types, wire feeder calibration, and any issues that arise during ramp-up
- 📞 Dual lines of support — phone and email, so when production is running and something needs attention, you have a direct path to a real person
- 🔧 Straight pre-sale guidance — not sure if the 1500W configuration is right for your typical material thicknesses and welding volume? Talk to us before ordering. We'll give you a direct recommendation
Frequently Asked Questions About OMTech 1500W Handheld Fiber Laser Welder
Q: How does handheld fiber laser welding compare to TIG and MIG welding?
A: Fiber laser welding produces less heat-affected area and reduced material deformation compared to MIG and TIG at equivalent metal thickness — resulting in less warping, particularly on thinner gauges and stainless steel. Weld appearance is cleaner with less spatter. Speed on continuous seams and sheet metal assemblies is generally faster. The learning curve for basic handheld operation is lower than skilled TIG — though proper laser safety training, PPE, and shielding gas setup are all required. TIG and MIG still have advantages for certain joint geometries, filler wire volume, and very thick material — but for most production fabrication on stainless, carbon steel, and galvanized up to 4mm, fiber laser welding is faster and produces better cosmetic results.
Q: What shielding gas does it require?
A: Shielding gas is required during welding. Argon is standard for stainless steel, aluminum, and copper applications. Nitrogen is sometimes used for carbon steel fabrication. You supply the shielding gas from standard industrial cylinders available from welding supply vendors.
Q: What welding wire does it use?
A: The wire feeder supports 0.8–1.2mm diameter welding wire — the standard range for most production metal welding applications. Wire feed rolls are pre-installed in the wire feeder and additional wire is sourced from standard welding supply vendors matching your material (stainless steel wire for stainless work, ER70S wire for carbon steel, etc.).
Q: What safety equipment is required?
A: Wavelength-specific laser safety glasses (1080nm), full welding protective gear, and a designated laser-safe workspace are all required. The package includes a welding helmet, welding gloves, and safety glasses. Proper grounding of the machine to the work platform is required before the laser will activate.
Q: Can it weld aluminum?
A: Yes — up to 2mm aluminum plate under optimal conditions with argon shielding gas. Aluminum's high reflectivity requires careful parameter management. Results on aluminum depend significantly on material grade, surface condition, and settings. Contact our team for aluminum-specific parameter guidance.
Q: What is the maximum continuous operating time?
A: 24 hours — the machine is rated for continuous operation appropriate for full production shifts. The water-cooling system maintains thermal stability throughout extended operation.
Q: Does it need an external water chiller?
A: The machine includes an integrated water-cooling system. The system requires a clean water supply for cooling circuit operation — follow the setup instructions in the user manual. No separate external chiller purchase is required for standard operation.
Q: What is the power requirement?
A: AC 220–240V, 60Hz — a standard industrial single-phase circuit. Maximum input power draw is 5,000W (5kW). A dedicated 240V/30A or higher circuit is appropriate. Confirm your shop's electrical supply before ordering.
Q: Why buy from The Maker's Chest instead of directly from OMTech?
A: Our 75-day return window gives you real production evaluation time — enough to run the welder through your actual materials and joint types, confirm the 1500W system delivers at your required quality and speed, and make a fully informed decision before you're locked in. Our USA-based expert support team is reachable by phone and email for setup guidance, shielding gas configuration, and production troubleshooting throughout your ownership.
