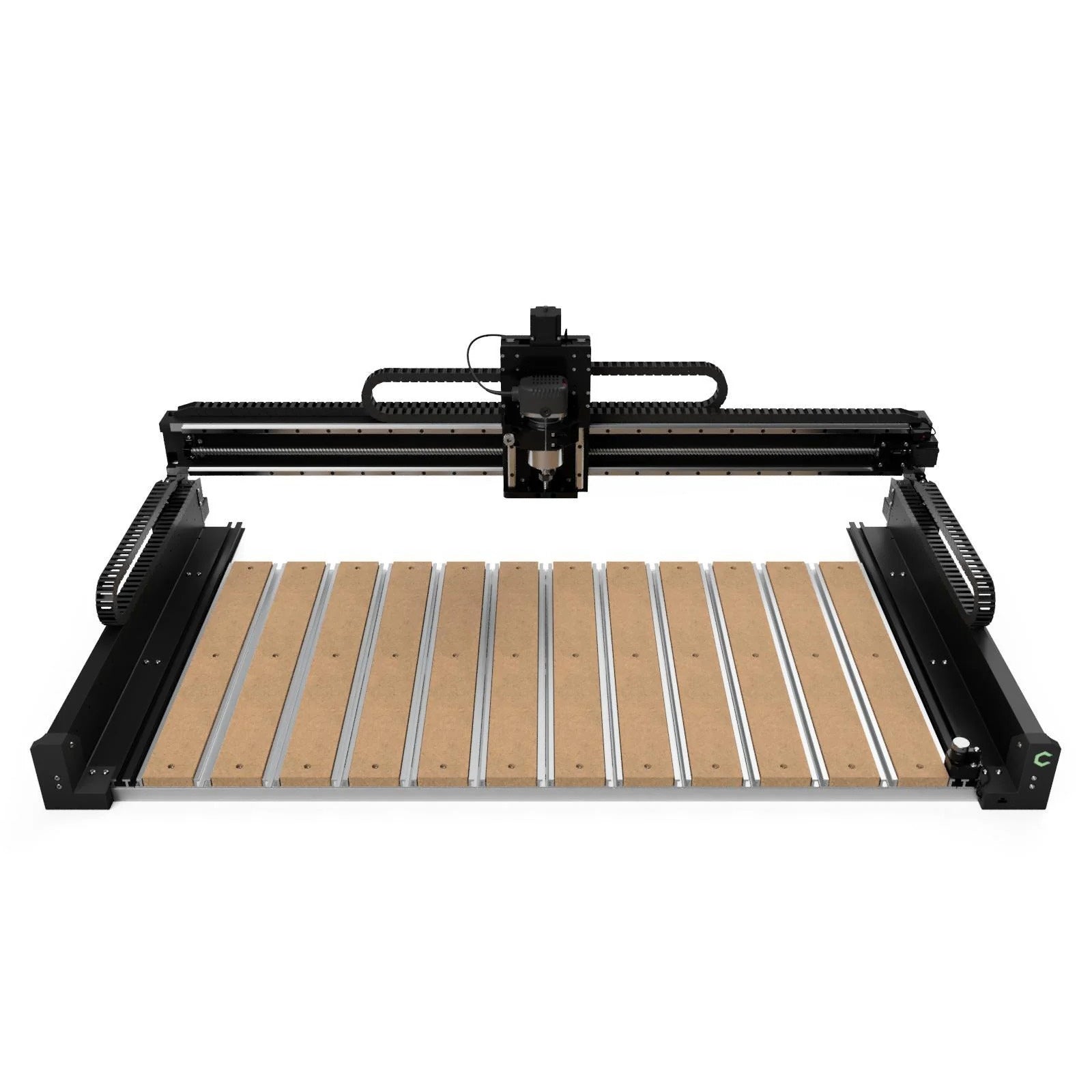

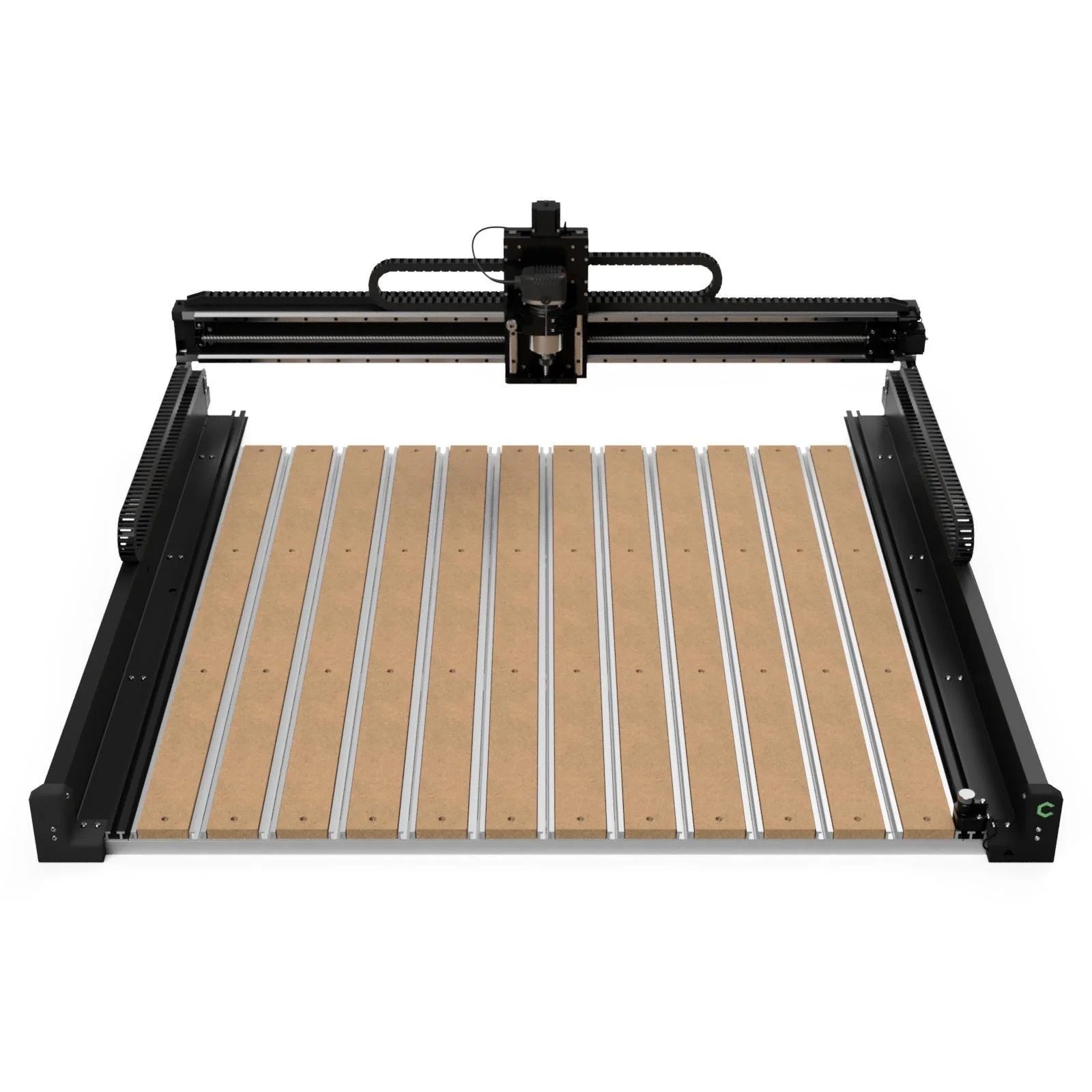

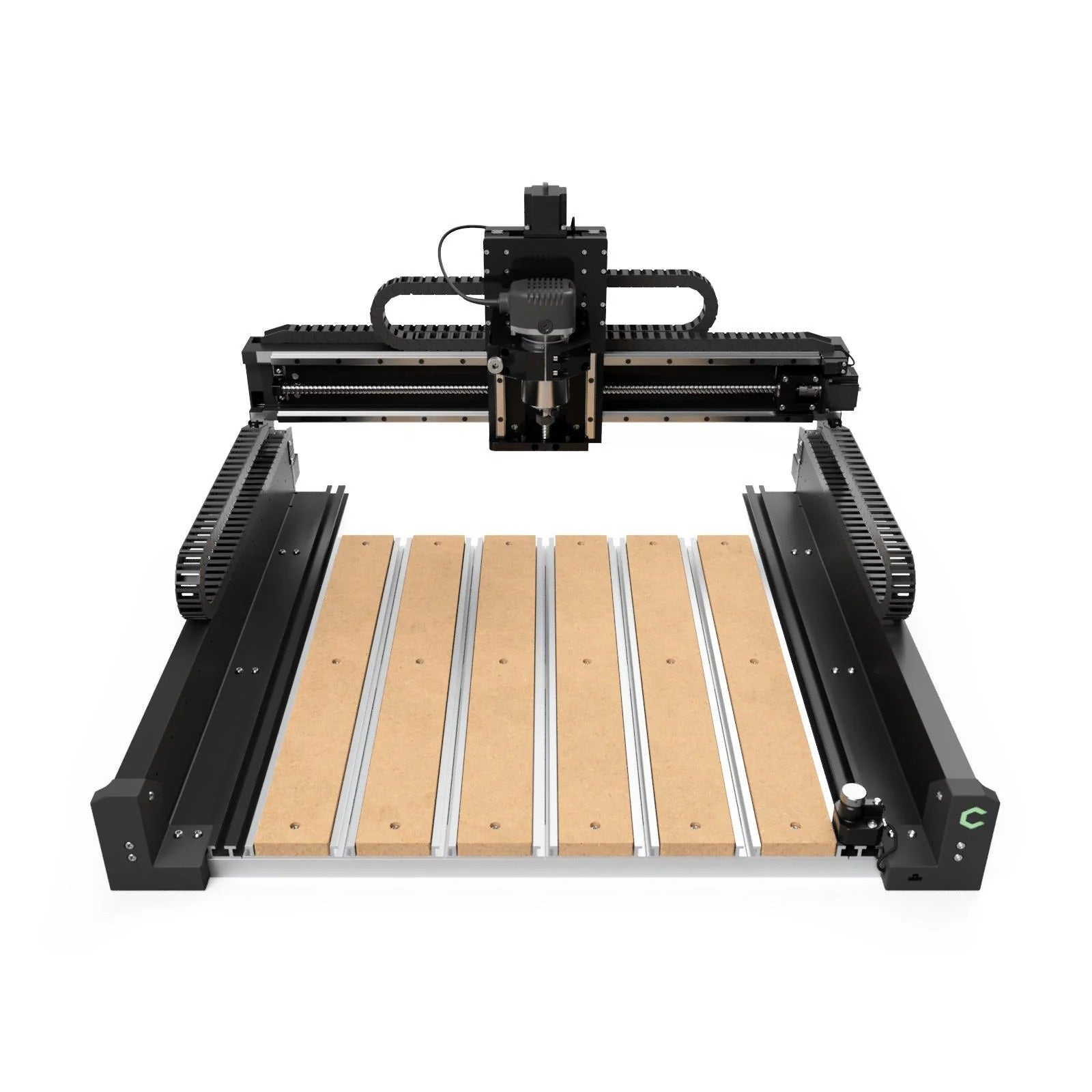

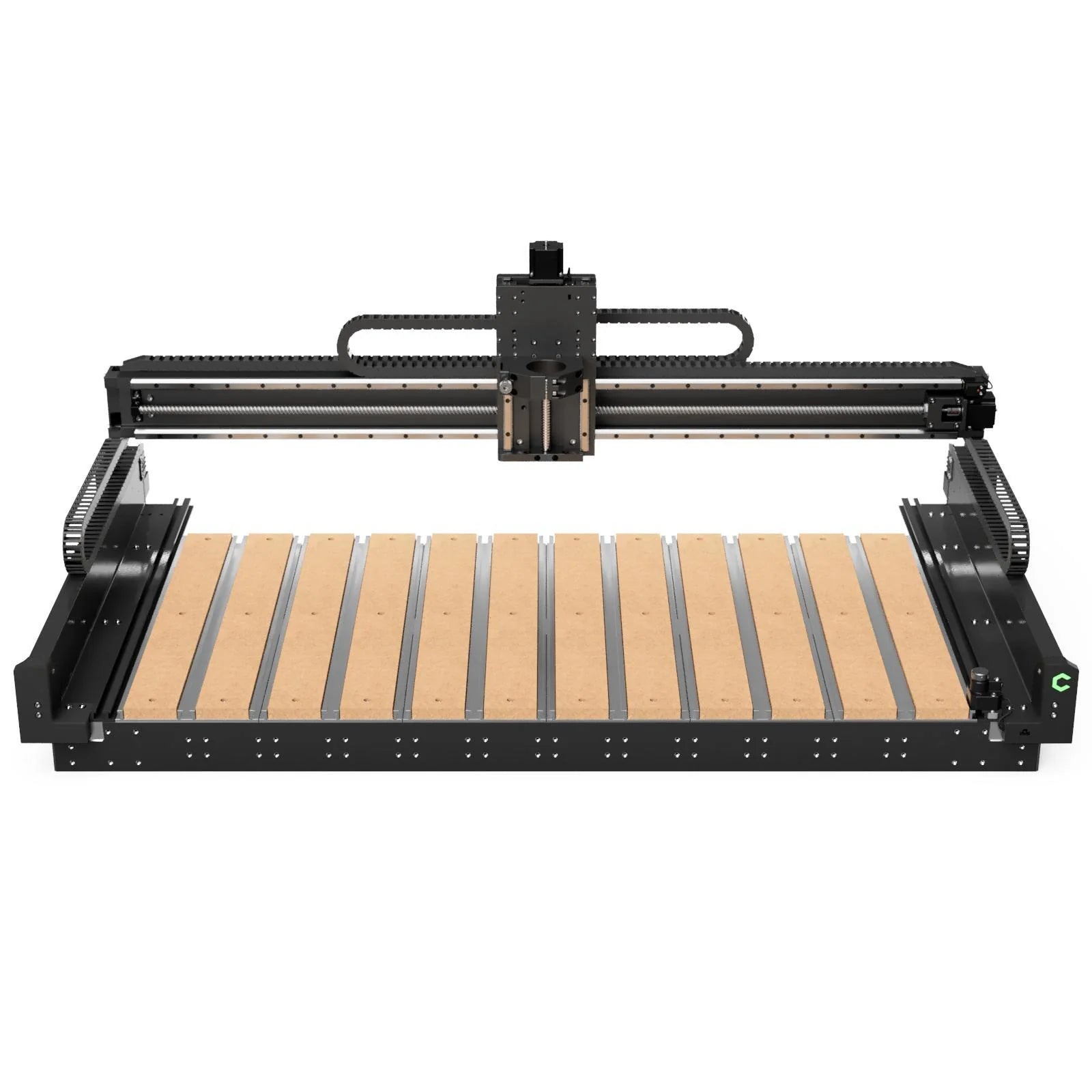

Shapeoko 5 Pro 4x2With HG-15 linear rails, 16 mm ball screws, and dual Y-axis inductive homing, the Shapeoko 5 Pro 4×2 delivers precision cuts and engravings across wood, plastics, composites, and soft metals. The 65 mm spindle mount supports your choice of routers or VFD spindles, giving you flexibility for both high-speed detail work and heavy cutting applications.
Designed for makers, engineers, and small production shops, the Shapeoko 5 Pro 4×2 transforms ambitious ideas into professional results—right from your workspace.
The Shapeoko 5 Pro 4×2 is the ultimate desktop-class CNC router for those who demand scalability, rigidity, and precision—all in one robust machine.
From fine woodworking to aluminum milling, the Shapeoko 5 Pro 4×2’s motion system is designed to deliver high-speed accuracy with industrial-grade reliability. The 16 mm ball screws on all axes provide rigid linear motion, while the custom wipers keep debris away from the screw threads, extending lifespan and maintaining precision.

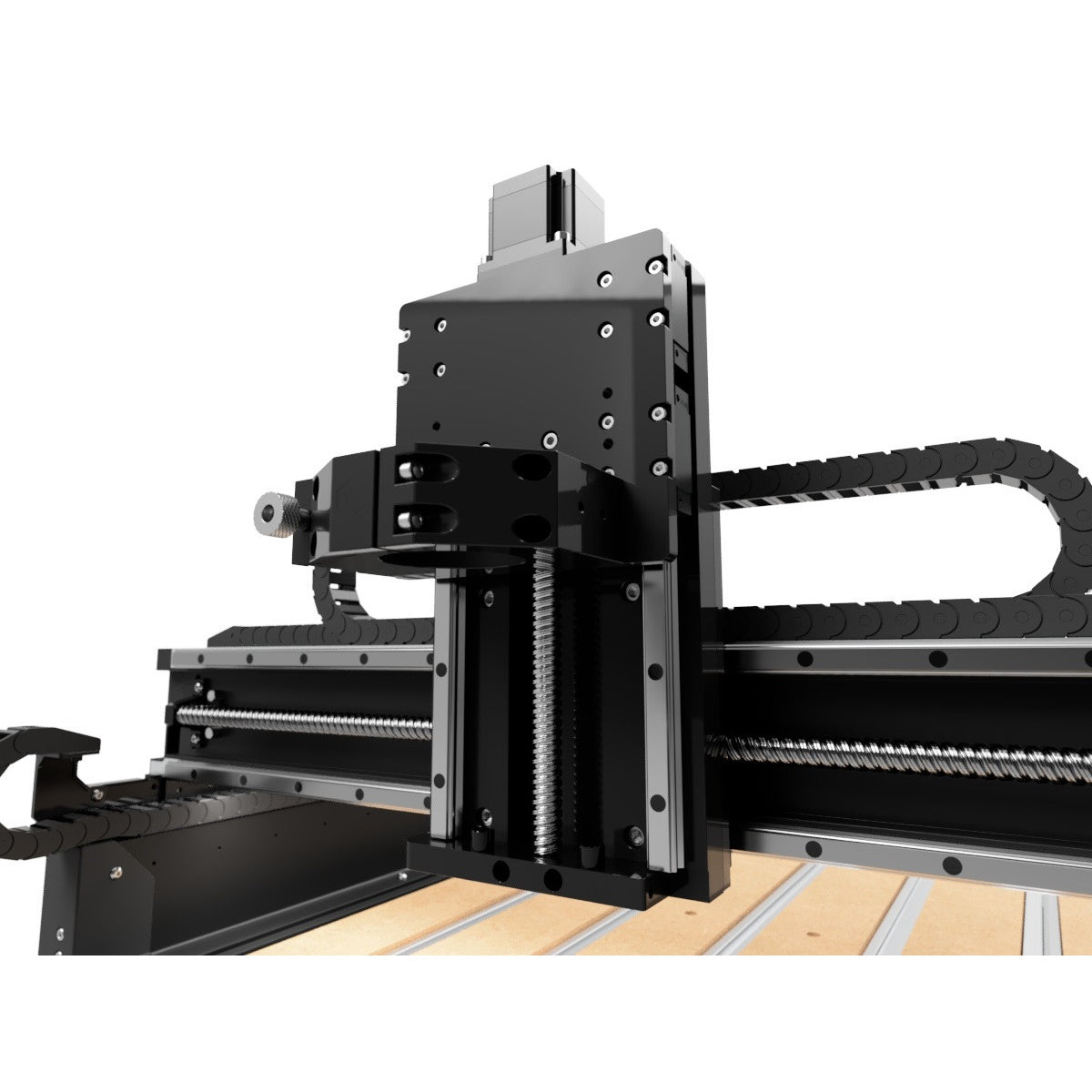

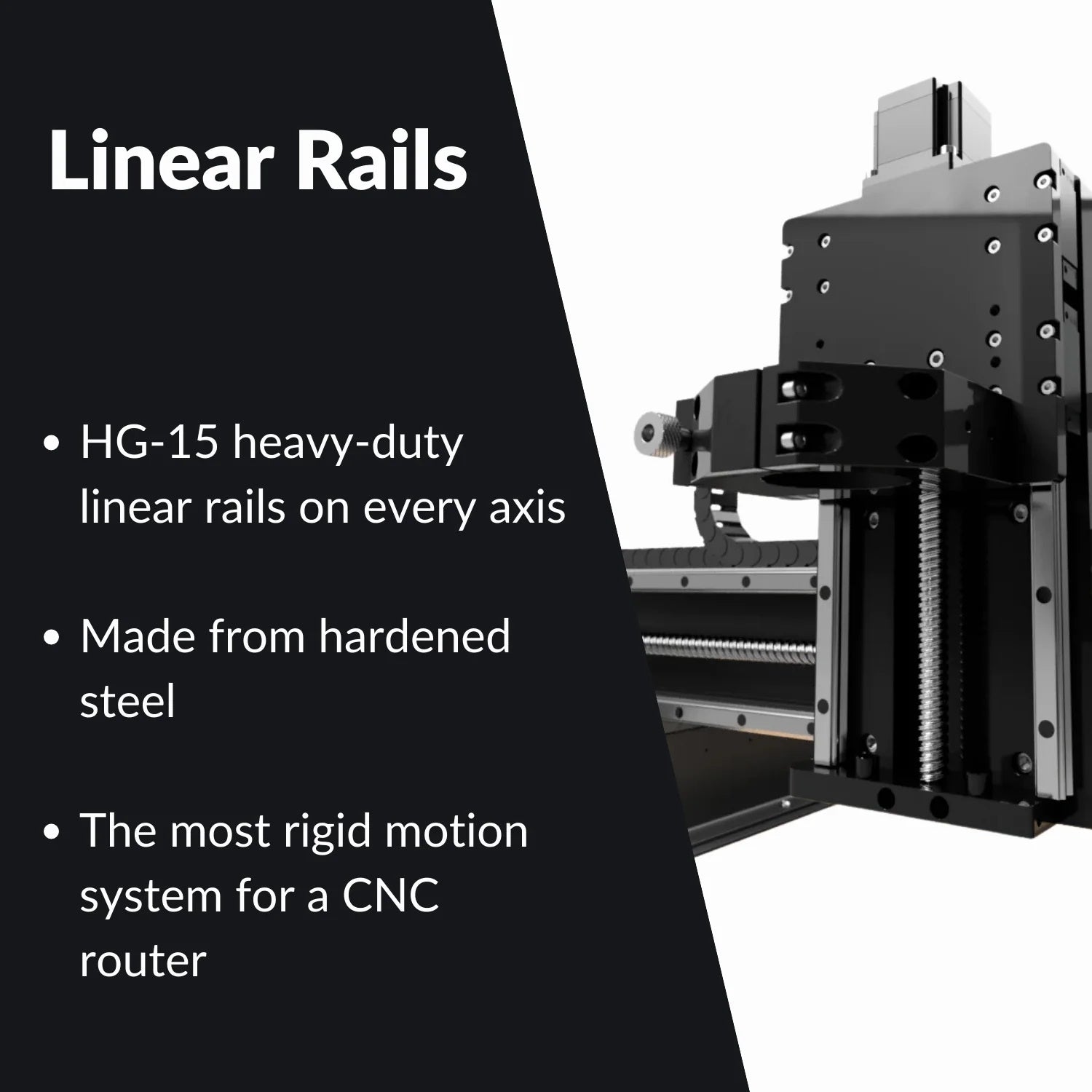

The HG-15 linear guides add another level of control, minimizing vibration and ensuring each toolpath follows perfectly—even at higher speeds or complex tool changes.
The included Sweepy 65 mm V2 Dust Boot captures debris at the source for a cleaner, safer workspace—especially essential for woodworking and composite machining.

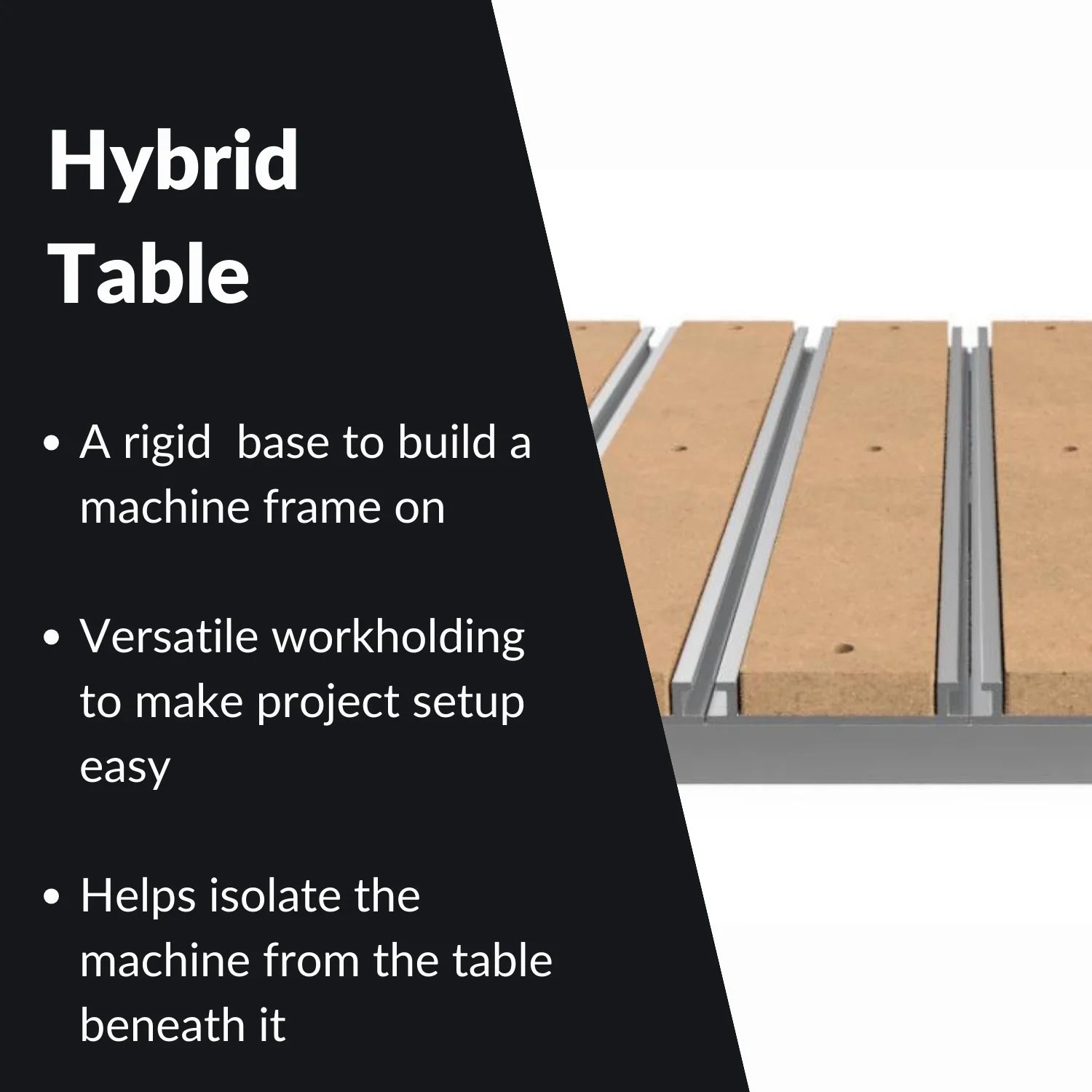

Its Hybrid T-slot Table provides versatile workholding with 4.04″ center-to-center spacing, giving you flexibility for clamping materials of any shape or size.
With up to 5 inches of Z-axis clearance, you can easily mount tall fixtures or stack workpieces for advanced setups.
Every component of the Shapeoko 5 Pro 4×2 is designed for durability and precision—from the inductive homing sensors and dual Y-axis synchronization to the ball screw drive system that delivers smooth, consistent motion.
The 3.15-inch gantry shift capability also provides additional clearance for joinery and edge machining, allowing users to work on materials that extend beyond the table’s edge.
Your Shapeoko 5 Pro 4×2 package includes everything required to get started immediately:
From assembly to your first cut, Carbide 3D provides all the tools, software, and support to get you up and running quickly.
1. What materials can it cut?
The Shapeoko 5 Pro 4×2 can cut a wide range of materials, including hardwoods, MDF, acrylic, plastics, carbon fiber, composites, PCBs, and non-ferrous metals like aluminum and brass.
2. How accurate is the Shapeoko 5 Pro 4×2?
With ±50 µm accuracy per 300 mm, ball screw drives, and rigid HG-15 linear rails, it delivers professional-level precision every time.
3. Does it support VFD spindles?
Yes. The 65 mm spindle mount supports trim routers (like Makita RT0701C) or aftermarket VFD spindles for higher power and quieter operation.
4. What operating systems are supported?
The Shapeoko 5 Pro 4×2 works with Windows 10 or 11 (64-bit) and macOS 10.14 or higher—no complicated setup required.
5. What training and support are included?
Carbide 3D provides four 30-minute 1-on-1 video training sessions with expert technicians to help you master setup, workflow, and advanced operation.
| Specification | Details |
|---|---|

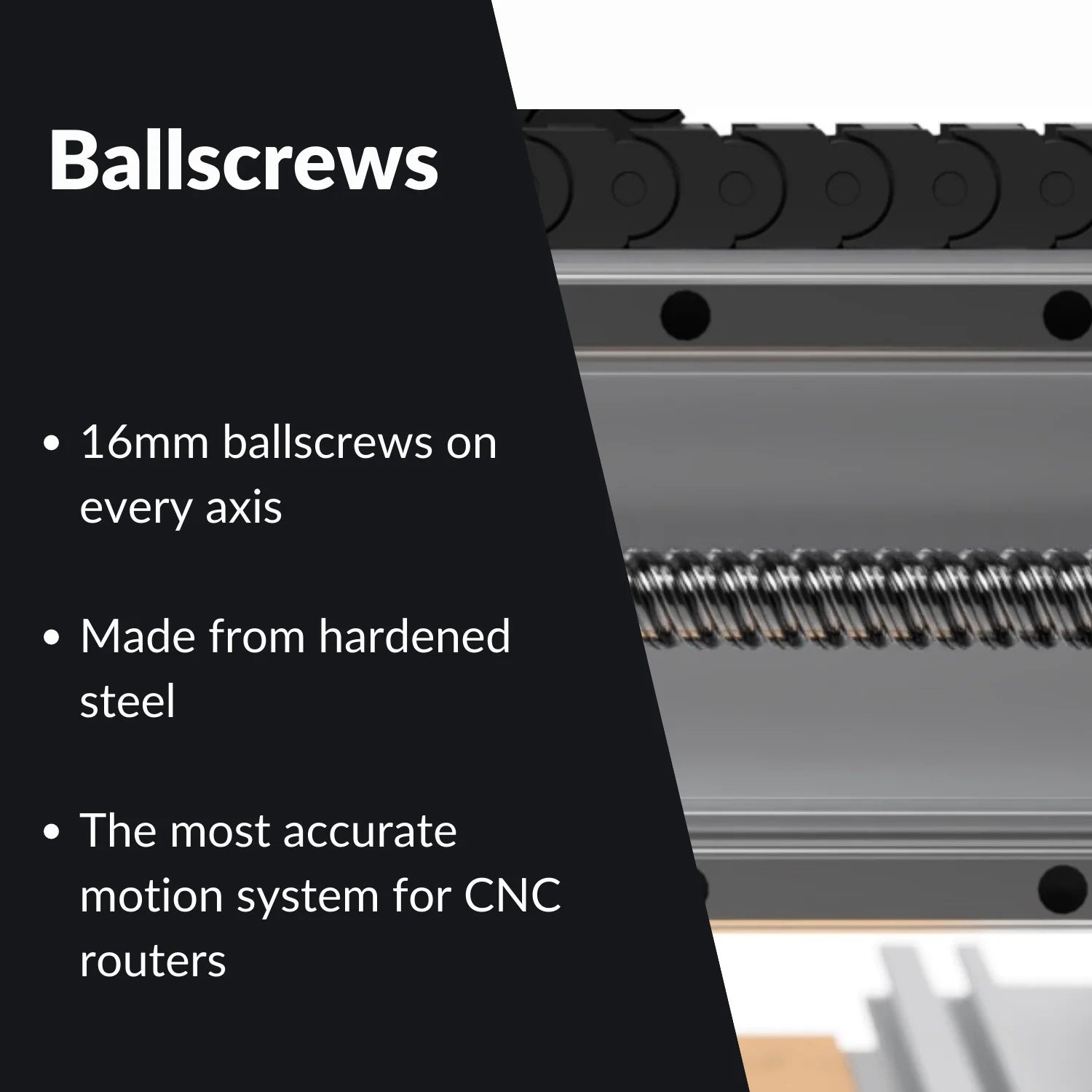

| Ballscrew X/Y | 16 mm diameter, 20 mm pitch (with custom wiper) |
| Ballscrew Z | 16 mm diameter, 10 mm pitch |
| Linear Rails | HG-15 industrial linear rails |
| Homing Switches | Inductive sensors, dual Y homing |
| Ballscrew Accuracy | ±50 µm per 300 mm |
| Step Length (X/Y) | 0.012 mm |
| Step Length (Z) | 0.006 mm |
| Spindle Mount | 65 mm diameter |
| Total Z Travel | 6.1 in (5.51 in with Sweepy Pro) |
| Clearance with Hybrid Table | 4 in |
| Clearance without Hybrid Table | 5 in |
| Gantry Shift (Joinery) | 3.15 in |
| T-Slot Spacing | 4.04 in center-to-center |
| Voltage | 110 V or 220 V (auto-switching) |
| Amperage | 4 A (machine only) |
| AC Plug | IEC C14 to NEMA 5-15P (standard U.S. plug) |
| Machine Travel | 48.7 in (X) × 24.53 in (Y) |
| Machine Footprint | 60 in (X) × 35 in (Y) × 23.25 in (Z) |
| Shipping Box 1 | 67 in × 17 in × 17 in — 100 lbs |
| Shipping Box 2 | 65 in × 16 in × 16 in — 93 lbs |
| Operating Systems | Windows 10/11 (64-bit), macOS 10.14+ |
