Fume Dog Fume Extractors

Welding fumes are genuinely dangerous — not just an annoyance. They contain a mix of toxic metals like manganese, hexavalent chromium, nickel, and lead, along with harmful gases like ozone and carbon monoxide. Long-term exposure has been linked to lung disease, certain cancers, Parkinson's-like neurological conditions, and a condition called weld fume fever. OSHA and health agencies in both the US and Canada have strict permissible exposure limits for these substances — and a fan or open door is rarely enough to meet them.

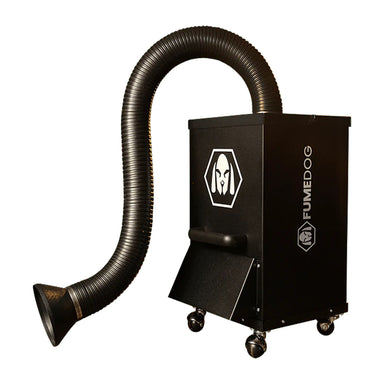

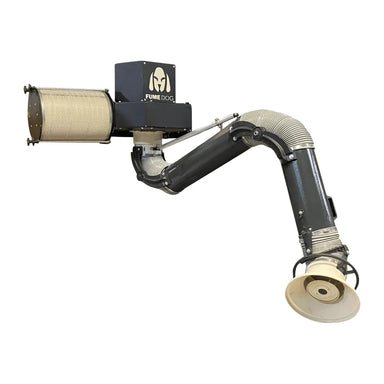

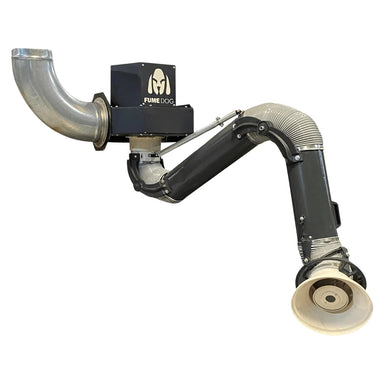

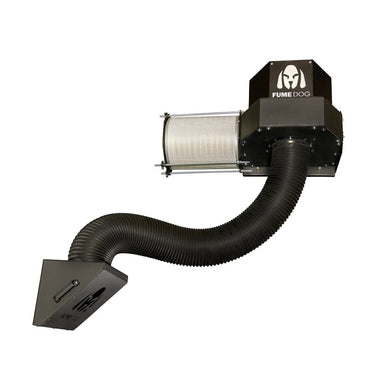

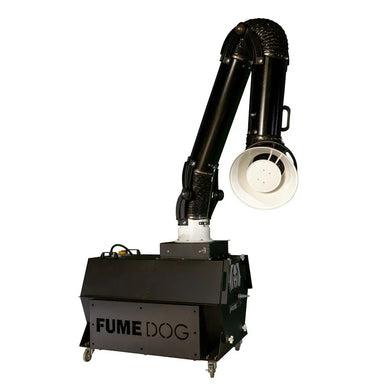

A portable fume extractor sits on wheels and can move anywhere in your shop, which makes it perfect if you weld in different spots or have one or two welders sharing a space. A wall-mounted fume extractor is fixed in place and serves a dedicated welding station — it takes up zero floor space and provides consistent, reliable extraction for a single bay. If your shop has multiple fixed welding stations, a wall-mount at each one is often the cleaner, more efficient setup.

General shop ventilation — like open doors, windows, or ceiling fans — moves air around the room, but welding fumes rise and spread fast. By the time ambient air circulation catches them, those fumes have already passed right through your breathing zone. A fume extractor captures smoke and particles at the source, right at the tip of the arc, before they get anywhere near your face. Ventilation is a helpful addition, but it's not a substitute.

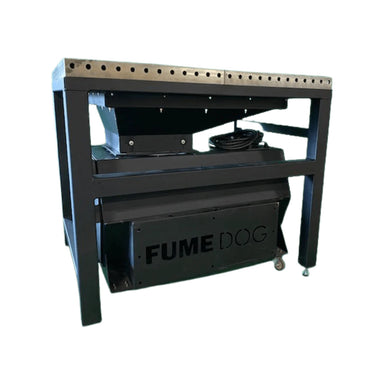

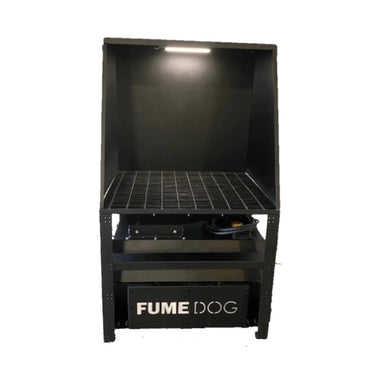

A downdraft table is a flat work surface with built-in suction that pulls fumes, smoke, and dust downward through the table and into a filtration system. Fume Dog's downdraft tables are ideal for grinding, plasma cutting, and light fabrication work where the source of fumes and dust is close to the table surface. For MIG, TIG, or stick welding, an extraction arm or portable unit is typically more effective since welding fumes rise quickly.

Filter life depends on several factors — what type of steel you're welding, the wire size you use, how many hours per day the machine runs, and whether the steel is clean or oily. As a general benchmark, you can expect roughly a year of filter life with clean mild steel, .045 wire, and one shift per day at about 35% arc-on time — as long as you're using the self-cleaning system at least once a week and emptying the dust tray regularly.

It depends on the system and the accessories. Some Fume Dog units can support multiple extraction arms, and the airflow to individual stations can be adjusted or shut off using the built-in airflow controls on the flex and articulated arm accessories. If you're running a high-volume shop with many simultaneous stations, a central system or multiple dedicated units is usually the better path — give us a call and we'll help you size it right.

Three things most buyers forget to ask: (1) How much do replacement filters cost? Some brands lock you into filters that run $400–$600 each — that adds up fast. (2) What diameter is the extraction arm? A 6-inch arm claiming 1,200 CFM is a red flag — the physics don't work. (3) What is it made of? Plastic housings near a welding arc are a safety and durability problem. Fume Dog units are built from heavy-gauge steel and engineered for shops where things get real.

Fume Dog systems are designed to help shops meet OSHA's permissible exposure limits (PELs) for welding fumes and specific toxic substances like manganese and hexavalent chromium. Compliance ultimately depends on how the system is set up and used in your specific environment, but Fume Dog units are built to the performance standards required for serious occupational safety — not hobbyist-grade air movers.
