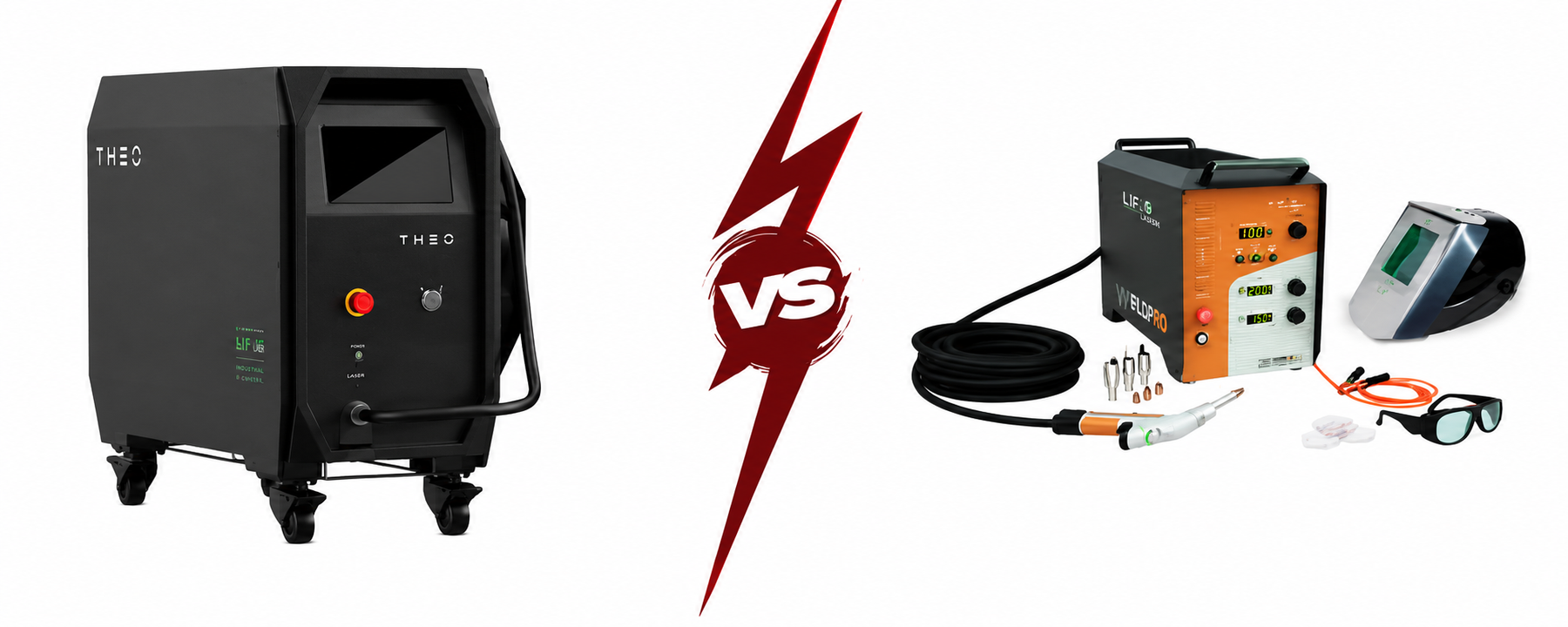

Theo MA1 vs. IPG LightWeld 1500 XR

The Core Question Every Serious Shop Is Asking

At 1500W, these two machines are putting the same number on the spec sheet. The IPG LightWeld 1500 XR is priced at $33,000 USD. The Theo MA1-65 comes in at around $20,000 depending on configuration and distributor. Both are air-cooled, both are handheld fiber laser welders, both handle the common fabrication materials.

So the core question is not "which welds better" — it's "what does the additional $10,000–$15,000 buy, and does my application require it?"

The answer is genuine: for some applications and buyer profiles, the LightWeld's premium is justified. For others, the Theo MA1 delivers equivalent or better welding performance for significantly less money. This comparison gives you the framework to decide which category you're in.

For context on how professional handheld laser welders compare to the TIG and MIG systems they're replacing, our laser welding vs TIG welding guide covers the technology transition argument.

---

IPG LightWeld 1500 XR: What You're Paying For

The IPG LightWeld is the machine that launched the handheld laser welding conversation in North America — it was the first professional-grade system to make the technology accessible outside of industrial automation, and it's still the benchmark against which every other handheld welder is measured.

IPG Photonics (Oxford, Massachusetts) is the world's largest manufacturer of high-power fiber lasers. When IPG puts a laser source in the LightWeld, they're using components built in-house by the company that supplies the laser industry's foundational technology. That matters — but what it means in practice for the LightWeld specifically is worth being specific about.

SmartWeld Preset System

The LightWeld 1500 XR launched with 74 stored preset parameters covering material type, thickness, and joint configuration combinations. The SmartWeld technology refers to IPG's system of pre-validated parameter sets that allow an operator to select material and thickness, and have a starting parameter set that produces acceptable results without manual calibration.

The value of this system is primarily in onboarding: an operator new to laser welding can achieve decent welds on their first day because the preset does the heavy lifting. The XR models have expanded and refined these presets since the original LightWeld launch.

For shops training multiple operators, or for shops with high staff turnover, the pre-validated preset library reduces training time and the risk of bad welds from inexperienced parameter entry.

---

Air-Cooled Design and True Portability

The LightWeld 1500 XR is air-cooled with no external chiller required. The power unit dimensions: 316mm × 641mm × 534mm (12.5 × 25.2 × 21 inches). IPG describes the housing as a fabricated steel structure with easy-carry handles. The unit integrates the 1500W average / 2500W peak Ytterbium fiber laser generator and system controller in one cabinet.

The 10-metre cable (standard on the XR) reaches most working positions from a stationary power unit. The XR adds cleaning modes (rust removal, post-weld cleaning, coating removal) to the LightWeld 1500's welding capability — hence "eXtended Range."

The XR package includes: LightWeld XR unit, 5m or 10m gun cable, workpiece clamp, user guide, welding helmet with IR shield, 3 cleaning nozzles, 4 welding nozzles, OD 6+ laser safety glasses, CAT 6 Ethernet cable (for network connectivity), and cover slides. The Ethernet connectivity enables remote monitoring and parameter management.

---

US-Made Build Quality and Compliance

IPG manufactures the LightWeld in the United States. The quality management, laser source fabrication, and assembly are domestic — relevant for US buyers dealing with defence, aerospace, and government procurement requirements where Buy American provisions apply.

The compliance and certification infrastructure that comes with an IPG product: the company is publicly listed (NASDAQ: IPGP), ISO certified, and their laser products carry all relevant safety certifications. For commercial operations that need to certify their welding equipment to customer or regulatory requirements, the IPG documentation and compliance chain is comprehensive.

---

Lifespan and Reliability Track Record

The LightWeld 1500 launched in 2021. As of 2025, there are four years of real-world production use data from fabrication shops across North America. The failure rate and long-term reliability picture is established — it's not a machine that has only been in production for months.

For shops buying primary production equipment that must perform reliably for years, the established track record carries genuine value. The IPG LightWeld review on The Maker's Chest site covers the performance assessment in detail — see our IPG LightWeld review for the full evaluation.

---

Theo MA1 Series: The Technical Challenger

The Theo MA1 comes from a different direction. Theo Laser Inc. is the North American distribution and product arm for Maxphotonics, a Shenzhen-based company that Theo's documentation describes as "a global leader in fiber laser source manufacturing." The MA1 series is built around Maxphotonics' proprietary components — and one component in particular is Theo's primary technical differentiator.

20µm Fiber Core and Energy Density

The MA1 Series is unique in the market as the only handheld laser welding system that employs a 20µm fiber core. This is Theo's technology claim that's worth understanding specifically before comparing to the LightWeld.

Standard handheld fiber laser welders — including Chinese-manufactured competitors in the $8,000–$15,000 range — typically use fiber cores in the 50–105µm diameter range. The IPG LightWeld uses a single-mode output fiber with high beam quality (IPG's documentation confirms this), but the delivered spot size at the working distance is determined by beam quality parameter M² and the optical configuration of the torch.

Theo's 20µm fiber core concentrates energy into a smaller cross-sectional area at equivalent power — higher energy density. The practical consequences documented by Theo: faster throughput speed at the same power, and deeper penetration capability.

This 20µm fiber core concentrates energy into a smaller area, resulting in faster throughput speed at the same power level. It facilitates deep weld penetration, with capabilities reaching as deep as 6.5mm at 1500W.

The IPG LightWeld 1500 XR at 1500W average / 2500W peak is a high-beam-quality system — IPG's laser source heritage is in single-mode high-brightness beams. But the LightWeld's torch is designed for broad material accessibility rather than maximum energy density, and at 1500W average output, the systems are delivering the same energy. The Theo's claim is that the 20µm core delivers that energy in a more concentrated spot, which translates to the weld efficiency advantage.

---

Weld Depth Capability Across Models

The MA1 series spans four configurations:

At the MA1-65 level (the Theo that competes with the LightWeld 1500 XR on power): 6.5mm maximum penetration depth at 1500W. The LightWeld 1500 XR at 1500W average (2500W peak) — IPG's published data for the standard LightWeld 1500 positions it for materials up to approximately 4–6mm depending on the material and configuration. The Theo's claimed 6.5mm at 1500W represents meaningful depth capability for structural applications.

Additional Theo MA1 specs: 0–4mm adjustable wobble width, 680g torch (industry's lightest), 5.6m fiber cable, 7-inch LED touchscreen with 32 preset parameters, double-secured contact sensor, 2-year warranty.

---

Duty Cycle and Production Volume

The MA1 is air-cooled, no external chiller, and documented for high duty cycle industrial use. Theo's positioning is production-oriented — the MA1 is not marketed as a light-use entry tool. The high duty cycle claim is relevant for shops doing long weld sessions without cooling interruptions.

The MA1 series includes the T1 wire feeder module as a separate attachment for automated filler wire feeding — equivalent capability to the LightWeld's optional wire feed package, at comparable additional cost.

---

Price-to-Performance

The MA1-65 at $19,800 versus the LightWeld 1500 XR at $33,000 is a $13,000 price gap at equivalent power levels. The MA1 series comes with a 2-year warranty. For the complete pricing context of professional laser welders at this tier, our how much does a laser welder cost guide covers the price landscape across all professional handheld laser welder tiers.

---

Side-by-Side: Where Each Machine Wins

Weld Quality and Precision

The IPG laser source doesn't deliver more watts — 1500W is 1500W — so the welding physics on mild steel at 2mm are essentially the same. Where LightWeld's beam quality advantage shows more clearly is at material extremes: thicker sections where keyhole stability matters, reflective materials like copper where single-mode beam characteristics improve coupling, and thin-gauge precision work where controlled energy density matters.

Theo's 20µm fiber core argument suggests the inverse: faster throughput and deeper penetration at equivalent power — claims supported by the 6.5mm depth specification.

For core sheet metal fabrication work in the 1–3mm range: both machines produce professional-quality results. The differences are most pronounced at the extremes — very thin or very thick material, and highly reflective metals.

---

Out-of-Box Usability

The LightWeld's 74+ SmartWeld preset system is the out-of-box usability advantage. An operator who has never used a laser welder can select material and thickness from the preset menu and begin welding without needing to understand parameter relationships. For shops training new operators regularly, this preset validation has real value.

The Theo MA1's 32 preset parameters also provide starting-point guidance, but the LightWeld's parameter library is more extensive and has more documented real-world validation behind it.

---

Portability and Setup

Both machines are air-cooled and self-contained — no chiller required. Both are in the 28–39kg range (MA1 series varies by model; LightWeld unit is approximately 36kg).

The LightWeld includes Ethernet connectivity for network integration and remote parameter management — relevant for shops integrating laser welders into quality management or production tracking systems. The Theo MA1's 7-inch touchscreen interface is the primary operator control system; there is no equivalent network connectivity documented.

---

Price Gap: What $13,000+ Buys You

The $13,000 premium for the LightWeld 1500 XR over the Theo MA1-65 buys:

1. IPG brand and compliance infrastructure — US manufacture, publicly listed company, comprehensive certification documentation, defence/aerospace vendor qualification
2. Extended SmartWeld preset library — 74+ pre-validated parameter sets vs 32 on the MA1
3. Four-year established reliability track record — documented production history vs Theo's more recent market presence
4. IPG North American service network — established distribution and service through Miller Welding/Illinois Tool Works infrastructure
5. 2500W peak power — the 2500W peak (vs 1500W average) enables specific welding modes and peak energy delivery that average power doesn't reflect

What the premium does NOT buy: meaningfully different welding physics at standard fabrication thicknesses, fundamentally better weld appearance on common materials (both produce professional results), or a longer warranty period (Theo offers 2 years, comparable to LightWeld's warranty terms).

---

Which Industries and Applications Favour Each Machine?

IPG LightWeld 1500 XR wins for:

• Aerospace, defence, and government contractors where IPG's compliance documentation, US manufacture, and certification chain are vendor qualification requirements
• Shops training novice operators frequently where the SmartWeld preset library reduces onboarding time and bad-parameter risk
• Facilities with established IPG vendor relationships — many fabrication shops already have IPG laser cutting systems and their service infrastructure covers the LightWeld
• Applications requiring maximum documentation for customer-facing quality management systems — IPG's process and certification documentation is comprehensive
• Copper and reflective metal welding where IPG's single-mode beam quality and peak power delivery provide an advantage

Theo MA1 wins for:

• Production fabrication shops where the primary concern is cost-per-weld performance — the MA1's lower price recovers in operating cost difference within the first 1–2 years vs LightWeld
• Applications requiring maximum penetration depth — the 6.5mm MA1-65 depth specification exceeds the LightWeld's typical 4–6mm documented range
• Shops that have separate brand preferences from their cutting equipment — no obligation to stay in the IPG ecosystem
• International buyers and multi-location facilities where the LightWeld's US-manufacturing premium isn't relevant to purchasing decisions

---

Who Should Buy the IPG LightWeld 1500 XR?

The LightWeld 1500 XR is the right choice for buyers where one or more of the following is true:

• Your facility or customers have vendor qualification requirements where IPG's US manufacturing, compliance documentation, and established track record are specific requirements — not preferences
• You are training new operators regularly and the SmartWeld preset library reduces training cost and weld quality variance during the learning period
• You are already operating IPG laser cutting equipment and your service infrastructure covers the LightWeld within existing contracts
• Copper, highly reflective metals, or precision thin-gauge work is a significant portion of your production — IPG's beam quality performance at material extremes is the demonstrable advantage
• Long-term reliability with documented track record from a financially stable public company is worth the premium for a machine that is primary production infrastructure

For the full detailed review of what the LightWeld system delivers in practice, see our IPG LightWeld review covering performance, presets, and the premium evaluation.

---

Who Should Buy the Theo MA1?

The Theo MA1-65 is the right choice when:

• Your application is standard fabrication on steel, stainless, and aluminum in the 0.5–5mm range — where both machines perform comparably and the MA1's $10,000–$15,000 lower price is direct cost savings
• Maximum weld depth in the 5–6.5mm range is required — the Theo's 6.5mm specification at 1500W exceeds the LightWeld's typical documented range
• The compliance and vendor qualification factors that justify LightWeld's premium don't apply to your operation
• High duty cycle production welding is the primary use case — the MA1's industrial production positioning matches
• You want a 2-year warranty from an established welding distributor network without paying the LightWeld's pricing premium

For the foundational investment decision — is any professional laser welder worth replacing your existing MIG/TIG setup — our is a laser welder worth it guide works through the ROI case before this tier comparison becomes relevant.

---

Verdict

The IPG LightWeld 1500 XR is the better machine in specific contexts: where vendor qualification requirements mandate US manufacture, where the SmartWeld preset library provides documented training value, or where IPG service infrastructure is already in place. The 2500W peak power also provides specific capability headroom that average power specs don't capture.

The Theo MA1-65 is the better value for most professional fabrication operations where vendor qualification isn't a constraint. The 20µm fiber core technology gives it a documented energy density advantage; the 6.5mm penetration depth exceeds what the LightWeld typically achieves; the 2-year warranty is competitive; and the $13,000 price difference is real money that buys additional equipment or overhead reduction.

The honest summary from the comparison: for standard fabrication on common materials at professional volume, the Theo MA1-65 delivers equivalent weld quality at significantly lower cost. The LightWeld 1500 XR's premium buys compliance infrastructure, brand track record, and preset library depth — which matter enormously for certain buyers and not at all for others.

---

Frequently Asked Questions

How does the Theo MA1 compare to the IPG LightWeld 1500 XR?

Both machines deliver 1500W of fiber laser power in a handheld format. The Theo MA1-65's primary differentiator is its proprietary 20µm fiber core — unique among handheld laser welders — which produces higher energy density for faster throughput and 6.5mm maximum penetration depth. The LightWeld 1500 XR's differentiators are its SmartWeld 74+ preset library, US manufacture by IPG Photonics (the world's leading fiber laser manufacturer), 2500W peak power capacity, and established four-year North American track record. For standard fabrication on steel and stainless at 1–4mm: both machines produce equivalent professional-quality welds. The differences are most pronounced at material extremes and in compliance/vendor qualification contexts.

Is the IPG LightWeld worth the price?

For buyers with specific vendor qualification requirements (aerospace, defence, government contracts requiring US manufacture), or for operations heavily invested in the IPG ecosystem (cutting equipment, service contracts), or for shops where the SmartWeld preset library significantly reduces operator training cost — yes, the LightWeld's premium is justified. For standard production fabrication shops where these factors don't apply, the $13,000 premium over a Theo MA1-65 is difficult to justify on weld quality grounds alone. The LightWeld produces excellent results; so does the Theo MA1, at substantially lower cost. See our detailed IPG LightWeld review for the full performance assessment.

What is the price of the IPG LightWeld 1500 XR?

The IPG LightWeld 1500 XR is priced at approximately $33,000 USD. The standard LightWeld 1500 (without XR cleaning modes) is approximately $22,500. The XR's cleaning capability — laser cleaning modes for pre-weld rust/oxide removal and post-weld cleaning — accounts for the approximately $10,500 price difference between the 1500 and the 1500 XR. Both include the full welding capability at 1500W average / 2500W peak.

What is the difference between the IPG LightWeld 1500 and the LightWeld 1500 XR?

The LightWeld 1500 is the welding-only configuration: 1500W average / 2500W peak fiber laser, SmartWeld presets, welding nozzles, approximately $22,500. The LightWeld 1500 XR (eXtended Range) adds integrated laser cleaning modes: pre-weld surface preparation (rust, oil, coating removal) and post-weld cleaning (discolouration and debris removal). The XR includes cleaning nozzles alongside welding nozzles, and the parameter system covers cleaning modes in addition to welding modes. Price: approximately $33,000. For shops doing significant pre-weld preparation work that currently requires separate cleaning steps, the XR's cleaning integration can reduce total process time enough to justify the premium.

How deep can the Theo MA1 weld compared to the IPG LightWeld?

The Theo MA1-65 (1500W) is specified for up to 6.5mm penetration depth. The MA1-45 (1200W) reaches 4.5mm. The IPG LightWeld 1500 at 1500W average (2500W peak) — IPG's documentation positions the system for materials up to approximately 4–6mm depending on material type and configuration. For applications requiring reliable penetration above 4–5mm on a regular basis, the Theo MA1-65's documented 6.5mm depth specification is the relevant technical advantage in this comparison.
