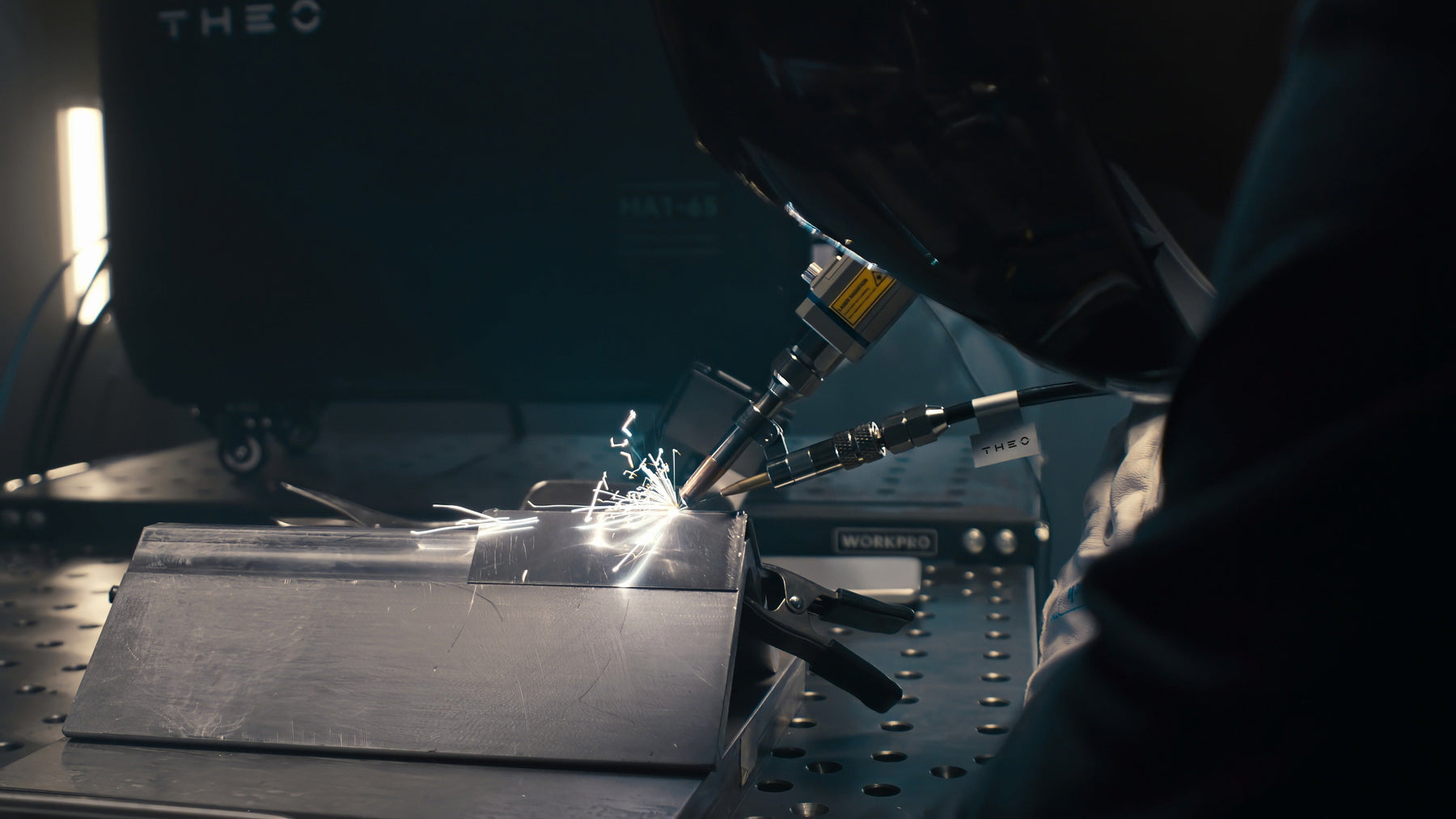

Designing a Safe Laser Welding Work Cell: Nominal Hazard Zone, Curtains and Laser Safety Officers
Handheld laser welding introduces a safety consideration that traditional arc welding doesn't: the laser itself is a Class 4 hazard capable of causing serious eye and skin injury not just from direct exposure, but from specular and diffuse reflections off the metal surfaces being welded — reflections that can travel well beyond the immediate work position and affect people who aren't even holding the torch. Our existing Laser Welding Safety: PPE, Fumes guide covers PPE and fume extraction; this one goes further into designing the actual work cell around that reflection risk, since PPE alone doesn't fully solve it.
Table of Contents
- Why Laser Welding's Reflection Risk Is Different From Arc Welding
- What Is a Nominal Hazard Zone?
- Laser-Rated Curtains and Enclosures
- Laser-Rated Viewing Windows
- Why Eyewear Alone Isn't Enough
- Do You Need a Laser Safety Officer?
- Can You Safely Run This in a Home Shop?
- Facility Checklist Before You Buy
- Frequently Asked Questions
Why Laser Welding's Reflection Risk Is Different From Arc Welding
Traditional arc welding's primary optical hazard — UV and intense visible light from the arc — is well understood and reasonably contained by standard welding helmets and shields, and the hazard is largely limited to line-of-sight exposure to the arc itself, a distinction covered further in our Laser Welding vs Arc Welding guide. A handheld laser welder operating at 1,070nm or 1,080nm presents a meaningfully different risk profile: the beam is invisible or near-invisible to the eye, and both specular reflections (a clean, mirror-like bounce off a polished or highly reflective surface) and diffuse reflections (scattered reflection off a rougher surface) can carry enough energy to cause eye or skin injury at real distances from the actual weld point — not just to the operator, but to anyone else in the surrounding area who isn't wearing appropriate protection. This is precisely why OSHA classifies Class IV lasers as hazardous from both direct and reflected exposure, and why the safety approach for laser welding needs to think about the whole room, not just the person holding the torch.
What Is a Nominal Hazard Zone?
A nominal hazard zone (NHZ) is the calculated area around a laser operation within which direct or reflected beam exposure could exceed safe exposure limits — essentially, the zone where appropriate eye protection or physical barriers are required, as opposed to areas far enough away that the beam energy has dropped below a hazardous level. Calculating an accurate NHZ for a specific handheld laser welder depends on the machine's wavelength, power (see our power requirements guide), and beam characteristics, along with the reflectivity of the materials being welded and the physical layout of the space. This isn't a rough guess exercise — for any shop running laser welding as a regular process, having a properly calculated NHZ, and designing the physical work cell around it, is the foundation the rest of your safety measures should be built on.
Laser-Rated Curtains and Enclosures
Laser-rated welding curtains and physical enclosures are purpose-built to absorb or block laser wavelengths at a specified optical density, containing reflected beam energy within the work cell rather than letting it travel to other parts of the shop where people without appropriate eyewear might be present. This is a meaningfully different product category from a standard opaque welding curtain or shop partition — a curtain rated for visible-light arc welding does not necessarily provide adequate protection against a 1,070nm laser wavelength, and using the wrong-rated barrier material creates a false sense of security that's arguably worse than having no barrier at all, since it invites complacency about an unaddressed real risk.
Laser-Rated Viewing Windows
If your work cell design includes a viewing window — for supervision, quality inspection, or simply allowing light into an otherwise enclosed space — that window needs its own laser-rated optical density specification matched to your machine's wavelength and power, distinct from the curtain or wall material surrounding it. A standard safety-glass window provides essentially no protection against the relevant laser wavelength, and this is a detail that's easy to overlook when focus goes primarily to the curtain or wall material rather than every point where the beam or its reflections could realistically escape the intended containment area.
Why Eyewear Alone Isn't Enough
A generic pair of "laser glasses" is not automatically adequate protection — correct eyewear needs to be rated for the specific wavelength your machine operates at and the optical density appropriate to your actual exposure conditions, and manufacturer documentation for handheld laser welding systems typically calls for both wavelength-specific eyewear and, in many operating conditions, a full protective helmet rather than glasses alone, given how reflections can approach the operator and bystanders from multiple angles rather than a single predictable direction. Anyone within the calculated nominal hazard zone during operation needs appropriately rated protection, not just the person holding the welding torch — this includes helpers, supervisors, and anyone passing through the area while welding is underway. Our PPE and fumes guide covers eyewear and respiratory protection selection in more depth.
Do You Need a Laser Safety Officer?
For shops running laser welding as a regular, ongoing process, designating a laser safety officer — someone responsible for understanding the equipment's hazard profile, maintaining the facility's safety controls, training other operators, and reviewing incidents or near-misses — is standard practice in more safety-mature operations and worth adopting even for smaller shops rather than treating laser safety as something that's handled adequately just because everyone owns a pair of the correct glasses. This doesn't need to be a full-time role or require outside certification in every case, but it does need to be a clearly assigned responsibility rather than an assumption that safety happens automatically without anyone specifically accountable for it.
Can You Safely Run This in a Home Shop?
It's possible, but it requires the same rigor as a commercial installation, not a scaled-down, casual version of it — a designated, enclosed work area with appropriately rated curtains or walls, controlled access so household members or visitors don't wander into an active nominal hazard zone without protection, and genuine commitment to wearing correct wavelength-rated eyewear every time the machine runs, not just when it feels like a "serious" job. Positioning handheld laser welding as a casual garage tool, the way a MIG welder is sometimes treated, understates the real hazard profile involved — this is equipment that deserves a deliberate, engineered safety approach in any setting, home shop included. Our starting a laser welding business guide covers facility planning for a home-based operation in more depth.
Facility Checklist Before You Buy
| Item | Why It Matters |
|---|---|
| Calculated nominal hazard zone | Defines the area requiring protection or containment; the foundation for the rest of your safety plan |
| Laser-rated curtains or enclosure walls | Contains reflected beam energy within the work cell; standard curtains are not adequate substitutes |
| Laser-rated viewing windows, if any | Standard safety glass does not block relevant laser wavelengths |
| Wavelength-specific eyewear and helmets for all present | Generic laser glasses may not match your specific machine's wavelength and exposure conditions |
| Controlled access to the work area | Prevents unprotected bystanders from entering the hazard zone during operation |
| Assigned safety responsibility | Ensures ongoing safety isn't left to assumption once initial setup is complete |
Frequently Asked Questions
Are laser welding glasses enough protection on their own?
Not always. Eyewear needs to be rated for your machine's specific wavelength and exposure conditions, and many operating conditions call for a full protective helmet rather than glasses alone, given how reflections can approach from multiple angles.
What is a nominal hazard zone?
The calculated area around a laser operation within which direct or reflected exposure could exceed safe limits. It depends on wavelength, power, material reflectivity, and room layout, and it's the basis for designing curtains, enclosures, and access controls.
Can I use a standard welding curtain for laser welding?
No — a curtain rated for visible-light arc welding doesn't necessarily block or absorb laser wavelengths like 1,070nm. You need a curtain or barrier specifically rated for your machine's wavelength and power.
Do I need a laser safety officer for a small shop?
It's not always a legal requirement depending on your jurisdiction and setup, but assigning clear safety responsibility to someone — rather than assuming it happens automatically — is good practice even for smaller operations running laser welding regularly.
Is it safe to run a handheld laser welder in a home garage?
Yes, with the same rigor as a commercial installation — a properly designed, enclosed work cell with rated curtains, controlled access, and consistent use of correct eyewear. It's not something to treat as a casual, scaled-down safety approach.
