IPG LightWELD 1500 XR Handheld Laser Welding & Cleaning System

By IPG Photonics

$33,000.00
Everything Included
75-Day Returns
No restocking fee
White Glove Onboarding
Beginner to expert
Dual-Support
From TMC and IPG Photonics
Free Shipping
To the Lower 48 (No duties)
Price Match Guarantee
Lowest prices
Buy Now, Pay Later
Flexible maker financing
1 Year Warranty 75-Day Returns USA Support

Notify me when back in stock

★★★★★
“The Maker’s Chest took the time to actually call me to check in… I’ve purchased some REALLY high-dollar equipment in the last 30 years. They will have my business forever.”
Todd · Branchout Wood, Metal and Laserworks Trustpilot review →

Discount available for Active-Duty, Veteran, Retired Military Personnel & First Responders.

Unlock Discount
Description

More Penetration From the Same 1,500 W — a 60 µm Spot With Over 6X the Energy Density

The LightWELD 1500 XR welds steels up to 0.234", aluminum up to 0.229", titanium and nickel alloys up to 0.203" and copper up to 0.081", and laser-cleans up to 15 mm wide at 2,500 W peak.

 

Power is only half the story in laser welding. What decides penetration on thick sections, and whether copper or titanium welds reliably at all, is how tightly that power is focused. The IPG LightWELD 1500 XR (eXtended Range) keeps the 1,500 W platform but shrinks the spot to 60 µm, versus 150 µm on the 1500 and 1500 XC, giving more than 6X the energy density.

That makes thicker steel and aluminum easier and faster to penetrate, adds finesse on thin material, and opens a wider process window on difficult metals. The XR also includes full laser cleaning, so it is a weld, prep and finish system in one air-cooled, made-in-USA unit.

Weld Thicker Sections With a Smaller, Hotter Spot

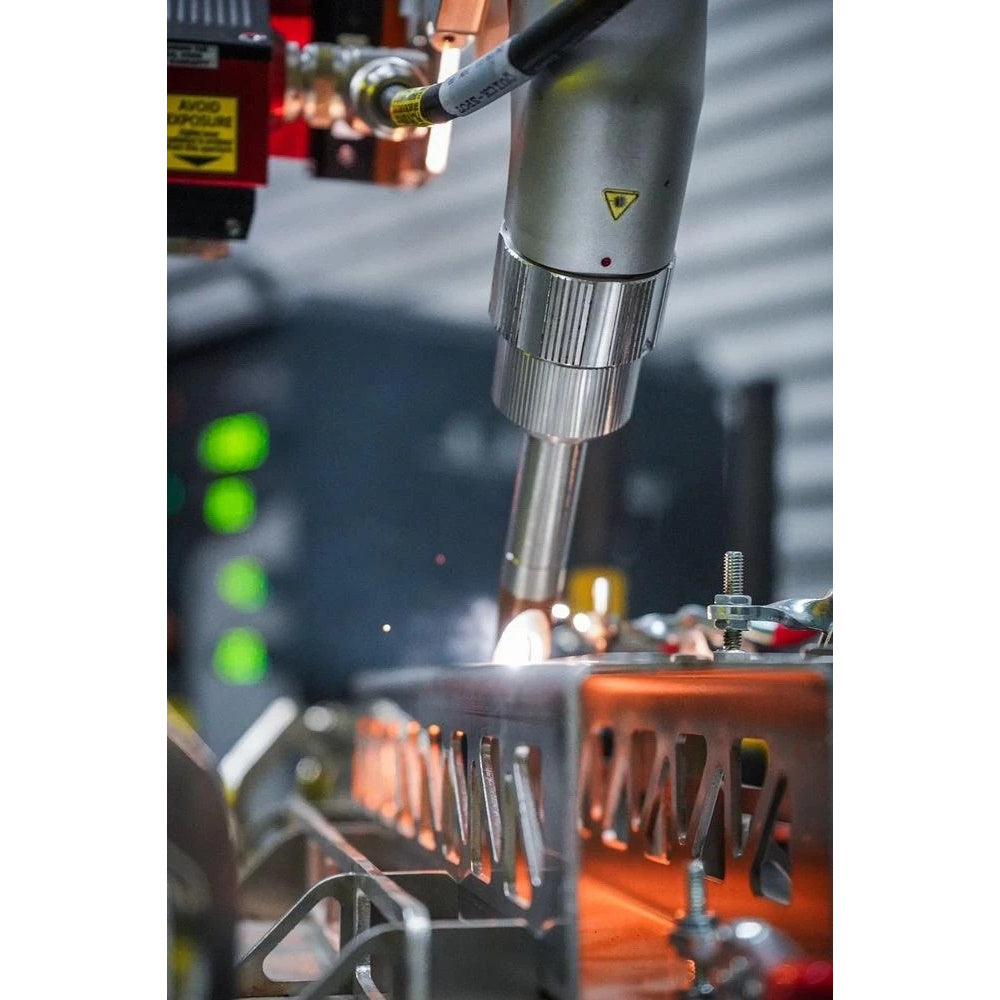

Laser welding a thick steel joint with the IPG LightWELD 1500 XR

Concentrating 1,500 W into a 60 µm spot drives a deeper keyhole than the same power spread over 150 µm. IPG rates the XR for single-sided welds in steels up to 0.234" (4 gauge), 3 and 5 series aluminum up to 0.229" (3 gauge) and 6 series aluminum up to 0.204" (4 gauge), well beyond the 4 mm limit of the 1500 and XC. The smaller spot also shrinks the heat-affected zone, so there is less distortion of the surrounding surface on both thick and thin parts.

Weld Copper, Titanium and Nickel Alloys

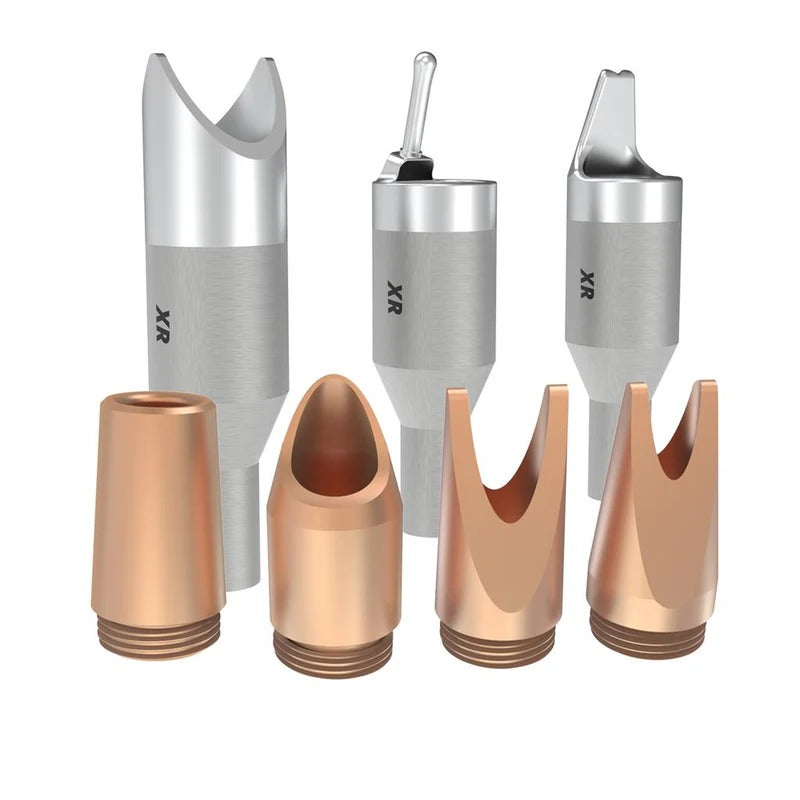

IPG LightWELD 1500 XR welding gun heads and nozzle tips

Copper reflects most laser light and pulls heat away fast; titanium and nickel alloys punish inconsistent heat input. The XR's higher energy density gives a wider process window on these materials. IPG rates it for titanium and nickel alloys up to 0.203" (6 gauge) and copper up to 0.081" (12 gauge). For shops doing busbars, heat exchangers, aerospace brackets or exhaust components, that capability is usually the reason to choose the XR over the 1500 XC.

Laser-Clean Before and After Every Weld

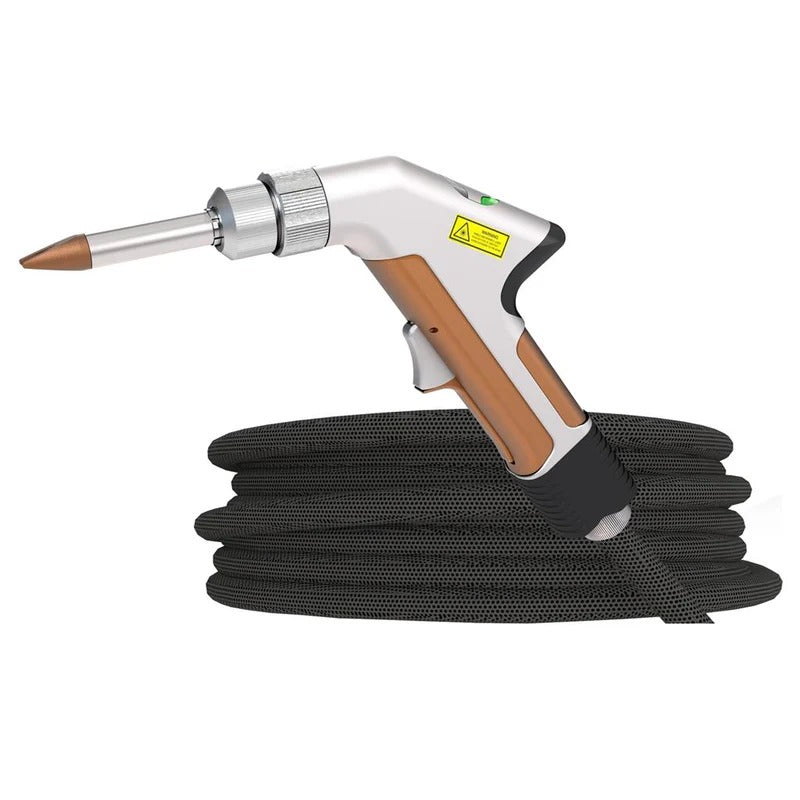

IPG LightWELD 1500 XR handheld laser welding and cleaning gun

The XR includes dedicated cleaning with 2,500 W high-frequency peak power and a cleaning width up to 15 mm (0.600"). Pre-weld cleaning removes grease, oil, rust and excess oxide from the joint; post-weld cleaning removes soot, weld debris and discoloration from the seam. Switching between welding and cleaning is as simple as changing the nozzle, and three cleaning nozzles plus preset cleaning modes are included.

Weld Up to 4X Faster Than TIG With Wobble and Presets

IPG rates LightWELD at up to 4X faster than TIG. The XR's wobble welding adds up to 0.200" (5 mm) of weld width to bridge fit-up gaps and produce smooth cosmetic beads, and factory presets for welding and cleaning give new operators a validated starting point for each material and thickness. Advanced users can customize and save presets so results stay consistent across shifts.

Air-Cooled, 220 V, and Ready to Automate

IPG LightWELD 1500 XR base unit front control panel

The XR base unit is air-cooled, measures 641 × 316 × 534 mm (25.2 × 12.4 × 21 in) and weighs 53 kg (118 lb). It runs on 220 V single-phase with standard argon, nitrogen or argon/CO2 gas, and one 10 m (32 ft) cable carries laser, gas and gun control. When volume justifies it, the XR is compatible with the LightWELD Cobot System, which IPG says can be taught by hand-guiding in minutes with no coding.

IPG's Layered Safety System

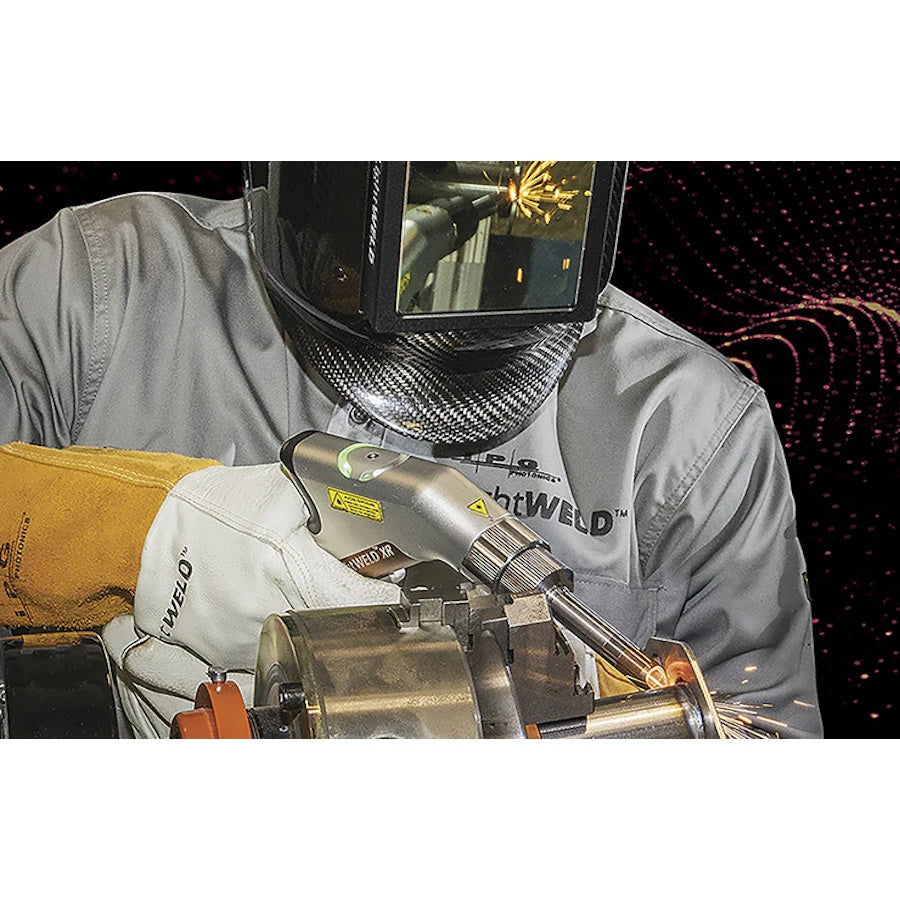

Operator laser welding with the IPG LightWELD 1500 XR

The XR uses the same Class 4 safety architecture as the rest of the line: key switch, E-stop, fiber delivery interlock, 2-step trigger, a part-contact interlock so the laser only fires with the nozzle on the part, plume detection that cuts power if no weld forms, and a door interlock circuit. A laser welding helmet with IR shield and OD 6+ glasses are included.

Who the LightWELD 1500 XR Is Built For

  • Fabricators welding 3/16" to 1/4" steel and aluminum by hand
  • Electrical and thermal manufacturers welding copper
  • Aerospace, motorsport and exhaust shops working in titanium and nickel alloys
  • Shops that clean and weld at one station to cut finishing time
  • Operations planning cobot automation on the LightWELD platform

What's in the Box

  • IPG LightWELD 1500 XR air-cooled base unit
  • 10 m (32 ft) IPG laser welding gun cable (laser, gas and gun control in one cable)
  • 10 m (32 ft) workpiece clamp
  • (4) welding nozzle tips
  • (3) cleaning nozzle tips and weld head nozzle cleaning attachment
  • Pre-set cleaning mode software
  • (5) cover slides
  • Laser welding helmet with IR shield
  • Laser safety glasses, OD 6+
  • 3 m (10 ft) CAT 6 Ethernet cable
  • Getting Started Guide

Specifications

Laser Power (Welding) Up to 1,500 W
Peak Power (Cleaning) Up to 2,500 W
Laser Type Air-cooled ytterbium CW fiber laser, 1070 nm
Spot Size 60 µm
Steels Up to 0.234" (4 gauge)
Aluminum 3 & 5 Series Up to 0.229" (3 gauge)
Aluminum 6 Series Up to 0.204" (4 gauge)
Nickel Alloy / Titanium Up to 0.203" (6 gauge)
Copper Up to 0.081" (12 gauge)
Wobble Welding Width Up to 0.200" (5 mm)
Cleaning Width Up to 0.600" (15 mm)
Wire Welding Yes, with optional IPG wire feeder
Input Power 220 V single-phase, 50/60 Hz, <30 A
Cooling Air-cooled (no chiller)
Process Gas Argon, nitrogen, or argon + CO2 mix
Gun Cable 10 m (32 ft), laser, gas and gun control in one cable
Connectivity Ethernet web interface for advanced parameter settings
Safety Key switch, E-stop, fiber delivery interlock, 2-step trigger, part-contact interlock, door interlock circuit
Base Unit (W × D × H) 316 × 641 × 534 mm (12.4 × 25.2 × 21 in)
Weight 53 kg (118 lb)
Laser Class Class 4
Origin Made in the USA by IPG Photonics
Warranty 1 Year (IPG standard)

The IPG LightWELD 1500 XR is made in the USA by IPG Photonics and ships with IPG's 1-year standard warranty. Purchases from The Maker's Chest include our 75-day return window.

The Maker's Chest Difference

  • 🇺🇸 Bought directly from IPG Photonics: The Maker's Chest holds a direct IPG account, so your LightWELD ships new from IPG with IPG's factory warranty
  • 🛠️ IPG's 1-year standard warranty, with The Maker's Chest coordinating warranty service with IPG's U.S. team in Massachusetts
  • ↩️ 75-day return window on every LightWELD bought through The Maker's Chest
  • 🔍 XR or 2000 XR? Tell us your thickest steel, aluminum and copper joints and we will tell you whether the 1500 XR covers them or whether the 2000 XR is worth the step up
  • 🔬 Copper and titanium setup help: nozzle selection, gas choice and preset starting points for reflective and reactive metals
  • 🧯 Laser-safe shop planning: we help you set up a controlled laser area, door interlocks, PPE and fume extraction before the machine arrives
  • 💬 U.S.-based support from The Maker's Chest by phone and email on setup, presets, consumables and nozzle selection

Compare IPG LightWELD Models

Spec LightWELD 1000 LightWELD 1500 LightWELD 1500 XC LightWELD 1500 XR LightWELD 2000 XR
Welding power 1,000 W 1,500 W 1,500 W 1,500 W 2,000 W
Peak power 1,250 W (cleaning option) 2,500 W 2,500 W 2,500 W 3,000 W
Dedicated laser cleaning Optional No Yes, up to 15 mm Yes, up to 15 mm Yes, up to 15 mm
Steels (single side) up to 0.156" (9 ga) up to 4 mm (0.157") up to 4 mm (0.157") up to 0.234" (4 ga) up to 0.313" (0 ga)
Aluminum 3 & 5 series up to 0.129" (8 ga) up to 4 mm (0.157") up to 4 mm (0.157") up to 0.229" (3 ga) up to 0.325" (0 ga)
Copper Not rated Not rated up to 1 mm (0.039") up to 0.081" (12 ga) up to 0.129" (8 ga)
Titanium / nickel alloy Not rated Not rated Not rated up to 0.203" (6 ga) Ti 0.234" / Ni 0.281"

Choose the LightWELD 1500 XR if you weld thicker sections, copper, titanium or nickel alloys, where the XR's 60 µm spot and higher energy density widen the process window.

Choose the LightWELD 1500 XC if you want 1,500 W welding plus dedicated pre- and post-weld laser cleaning in one unit, on material up to 4 mm. Choose the LightWELD 2000 XR if you regularly weld 5/16" steel or aluminum, or want the fastest travel speeds and the widest material range in the LightWELD line.

Frequently Asked Questions about the IPG LightWELD 1500 XR

Q: What does XR mean on the LightWELD 1500 XR?
A: XR stands for eXtended Range. The XR uses a 60 µm spot instead of 150 µm, giving more than 6X the energy density at the same 1,500 W, which extends thickness and material capability.


Q: What materials and thicknesses can the LightWELD 1500 XR weld?
A: IPG rates it for steels up to 0.234", 3/5 series aluminum up to 0.229", 6 series aluminum up to 0.204", nickel alloys and titanium up to 0.203", and copper up to 0.081".


Q: What's the difference between the 1500 XR and the 2000 XR?
A: The 2000 XR adds 500 W (over 30% more power) and 3,000 W peak, extending steels to 0.313", aluminum to 0.325", titanium to 0.234", nickel alloys to 0.281" and copper to 0.129". IPG positions the 1500 XR for longer welds on typically thinner material and the 2000 XR for thicker, deeper work.


Q: Does the 1500 XR include laser cleaning?
A: Yes. It cleans up to 15 mm wide at 2,500 W peak, with three cleaning nozzles and preset cleaning modes included.


Q: Is the LightWELD 1500 XR faster than TIG?
A: IPG rates LightWELD at up to 4X faster than TIG; IPG's XR launch video cites 3X to 5X faster than traditional techniques.


Q: Can the LightWELD weld with filler wire?
A: Yes. All LightWELD models support wire welding with IPG's optional wire feeder, which takes 0.030"–0.063" (0.8–1.6 mm) wire at 15–230 ipm. Wire adds bead size and bridges gaps on parts with poor fit-up.


Q: What power and gas does a LightWELD need?
A: LightWELD systems run on 220 V single-phase power and standard shielding gas: argon, nitrogen or an argon + CO2 mix. Laser power, gas and gun control run through a single cable from the base unit, so setup is plugging in power and gas and attaching the work clamp.


Q: Is the LightWELD safe to use in a shop?
A: It is a Class 4 laser, so it must be used inside a controlled laser area with laser-rated PPE. IPG builds in a key switch, E-stop, a fiber delivery interlock, a 2-step trigger, a part-contact interlock that only lets the laser fire when the nozzle touches the part, plume detection that shuts the laser off if no weld is forming, and a door interlock circuit. A laser welding helmet with IR shield and OD 6+ laser safety glasses are included.


Q: Can the LightWELD 1500 XR be automated?
A: Yes. It is compatible with the LightWELD Cobot System, which IPG says can be taught by hand-guiding with no coding.


Q: Is the IPG warranty valid when I buy through The Maker's Chest?
A: Yes. The Maker's Chest buys LightWELD systems directly from IPG Photonics, and every new unit carries IPG's 1-year standard warranty. IPG also offers an optional LightSHIELD one-year warranty extension.


Q: What is the return policy on a LightWELD?
A: Purchases from The Maker's Chest include our 75-day return window. If the LightWELD is not the right fit for your shop, contact us within 75 days to arrange a return.


Q: Why buy a LightWELD from The Maker's Chest?
A: You get a new, factory-warranted LightWELD sourced directly from IPG with a 75-day return window, plus a U.S. team that helps you pick the right model for your materials and thicknesses before you buy, and then supports laser-area setup, PPE, presets, nozzle selection and warranty coordination with IPG afterward.
