Filtrabox ExpandX-3 Laser Fume Extractor

When Two Blowers Aren't Enough, This Is the Answer.

The Filtrabox ExpandX-3 is the maximum-capacity configuration in the ExpandX platform — three digital blowers delivering 705 CFM (3 × 235 CFM) through a complete 4-stage filtration system with 99.999% HEPA and an expanded 110-lb activated carbon gas media load. Built for large industrial CO2 laser systems, high-wattage multi-shift operations, and production environments where extraction capacity has been the limiting variable in shop air quality.

Who Needs 705 CFM — and Why It Matters

Most laser fume extractor conversations start and end with the question "does it work?" The ExpandX-3 is for shops that have moved past that question and are asking a different one: "does it work at full capacity, all day, on a large machine, without compromising air quality as the workday progresses?"

705 CFM is the airflow rate that answers that question for large-format and high-wattage CO2 laser systems. Here's when it applies:

Large-format CO2 lasers (24" × 36" bed and above) — where 235 or 470 CFM creates adequate extraction at one end of the bed but insufficient draw on the far end, leaving fumes to escape before they reach the intake. 705 CFM maintains compliant capture velocity across the full cutting envelope.

150W+ CO2 systems running production shifts — at higher wattage, material processing is faster, fume generation is more intense, and extraction demand is continuous rather than intermittent. A single or dual-blower unit may handle casual use adequately but degrades under sustained high-output runs.

Three laser machines sharing one extractor — the ExpandX platform's logical maximum for a multi-machine setup where one extractor handles three positions simultaneously.

Industrial environments with strict air quality compliance — where the extraction specification is a documented safety requirement, not just a comfort preference.

The ExpandX-3 delivers maximum performance on large industrial laser systems, extracting, filtering, and recirculating clean air into the workspace.

4-Stage Filtration — The Highest Filter Specification in the ExpandX Line

The ExpandX-3 carries the same fundamental filter architecture as the ExpandX-1 and ExpandX-2, but with one meaningful step up: the 110-lb chemical gas cartridge replaces the 80-lb version in the smaller models — an increase scaled to the higher airflow volume and the longer sustained VOC load that large industrial laser systems generate.

Stage 1 — F9 Pre-Filter (15 m² + 1 spare, Rigid Aluminum Cartridge): Captures the majority of submicron respirable dust before it reaches the HEPA stage, protecting the downstream filters from premature loading. The included spare means you have a replacement ready at filter change time without ordering delays.

Stage 2 — HEPA H14 Filter (15 m², Rigid Aluminum Cartridge): Tested at 99.999% efficiency at 0.3 microns — removing 99.999% of the most aerodynamically penetrating particles, with smaller and larger particles captured at even higher rates, resulting in extremely clean air free of respirable dust.

At 705 CFM, the negative pressure differential across the filter stack at high loading is substantial. Cardboard-cased filters flex and crumple under the pressure load, leading to leakage of contaminants. All Filtrabox filter cartridges use a thick aluminum box structure that resists flex so rubber seals maintain contact with sealing surfaces. At triple-blower airflow, this design requirement is critical — not just good practice.

Stage 3 — Chemical Gas Filter (110 lbs Coconut Shell Carbon + KMnO4, Rigid Aluminum Cartridge): The blend of high-grade coconut-shell activated carbon and potassium permanganate removes the broadest spectrum of laser-generated VOC gases at the molecular level. At 110 lbs — a 37% increase over the ExpandX-2's 80-lb load — the ExpandX-3's gas filter is sized to handle the VOC generation of a large laser running at volume without the gas stage loading disproportionately fast relative to the HEPA and pre-filter stages.

Separated Filters — Why Every Stage Is Independent

Different materials produce different proportions of dust vs. VOC gases. Lasering acrylic produces 90% VOC gases and 10% dust. Lasering wood produces 10% gases and 90% dust. With individually separated filters, each filter can be replaced when it's actually spent — which varies with each material lasered. In contrast, in a combined filter, the barely-used HEPA portion may have to be sacrificed because the gas portion is spent, or vice versa. This is wasteful and less economic.

For a large-format production shop running the ExpandX-3, annual filter replacement costs are a real budget line. The separated architecture means the pre-filter, HEPA, and gas cartridge each get replaced on their own actual schedule — not on the schedule of whichever stage happens to exhaust first in a combined unit. At 705 CFM processing hours, the cost difference across a year of operation is significant.

Intelligent Flow Regulator — Triple-Blower Performance Maintained Automatically

At 705 CFM with three blowers, maintaining consistent extraction across the full filter lifecycle is a more complex management challenge than on single-blower units. The ExpandX-3's intelligent flow regulator handles it automatically.

As filters become loaded with contaminants and become more restrictive, the intelligent flow regulator proportionally increases power across the blowers to overcome restrictions and maintain consistent fume extraction. Just enter your flow setpoint and Filtrabox does the rest. The system also alerts you when it's time to change filters — based on actual loading, not a guessed schedule.

In a production environment where the laser runs multiple hours daily, this means the air quality in the workspace is maintained at the same level on day 90 of a filter set as on day 1 — without operator intervention or monitoring.

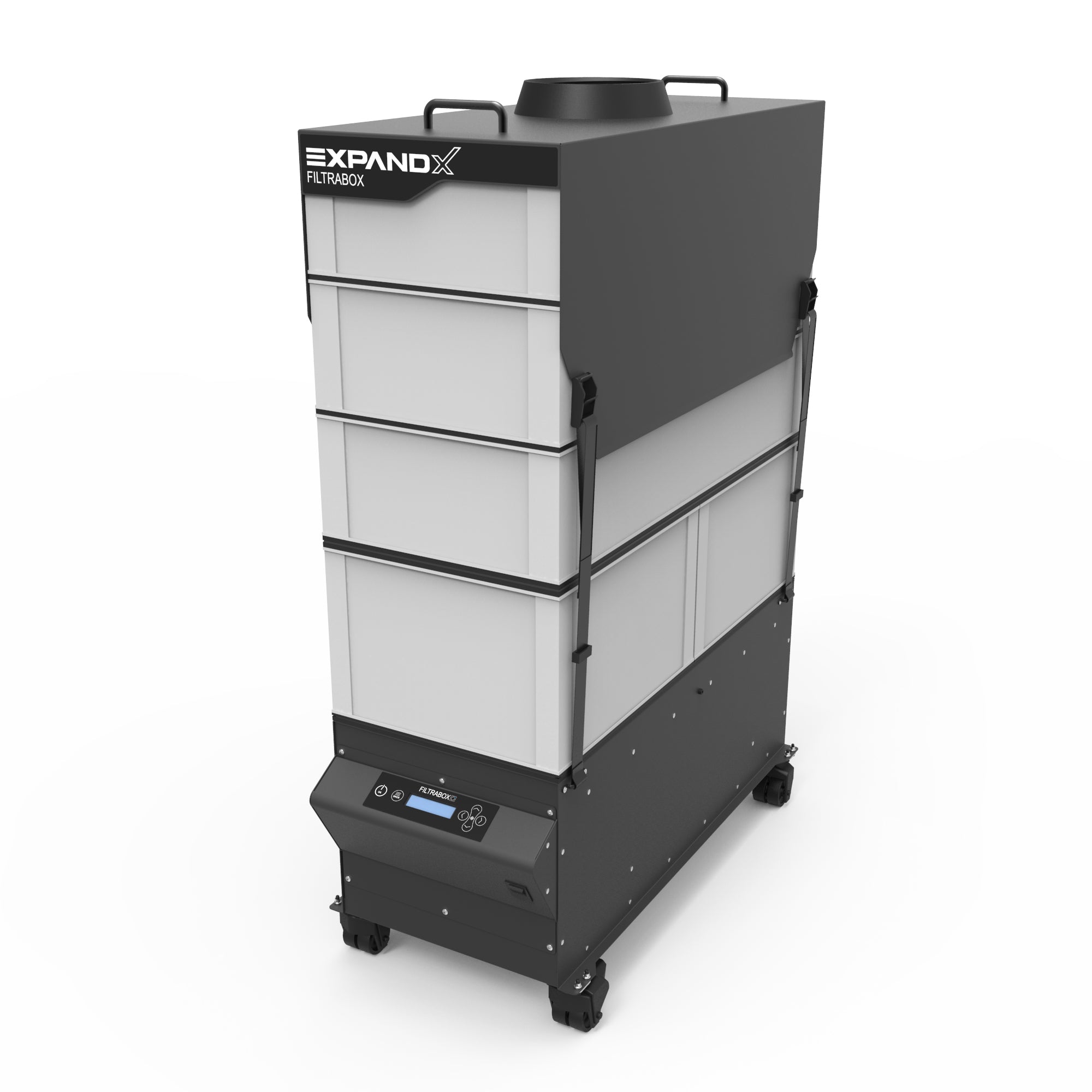

Slim-Line Cabinet. 705 CFM. No Compromise.

The ExpandX-3 is taller than the ExpandX-1 and ExpandX-2 at 44 inches — accommodating the third blower module — but maintains the same 15-inch width and 31-inch depth.

The slim-line design relocates critical performance features into the depth dimension, allowing maximum airflow, filter capacity, and noise reduction with no compromises. In contrast, other machines achieve space savings by making smaller units — resulting in less filter media, more noise, and less airflow.

The top-mounted air inlet keeps the hose connection from consuming lateral space beside the machine, exiting upward and keeping the floor and bench areas around the unit clear.

At 56 dB, the ExpandX-3 is operating at the noise level of a normal conversation. For a shop environment, three blowers at 56 dB is genuinely unobtrusive — no hearing protection required near the unit during operation.

The dustproof, splash-proof, and impact-resistant membrane touchpad is built for real industrial environments where contact with dust, moisture, and occasional physical impact are daily realities. The interface is canted for optimal viewing clarity during operation.

Digital Blowers With Hyper Bearings — Maintenance-Free at Maximum Output

Traditional brushed blowers inevitably wear out, lose suction, and need replacement. Filtrabox's combination of digital contactless rotors and contaminant-resistant hyper bearings allows for extreme rotational speeds and maintenance-free operation for years — more suction power, no maintenance.

Three blowers running continuously in a high-airflow, high-particulate environment are three potential failure points. The hyper bearing design eliminates the wear mechanism that causes suction loss and eventual failure on conventional blower technology — making the ExpandX-3 a machine you service on a filter schedule, not on a blower replacement schedule.

Modular Serviceability — Field Repairs Without Production Shutdown

The ExpandX-3 consolidates all components into two simple, removable modules: the Electronics Module (interface, control, and power systems) and the Blower Module (blower and flow sensor). In the event of a field issue, tech support diagnoses which module is involved and dispatches the appropriate replacement. The modules replace with only a few plug-and-play wire harnesses — no tech experience required.

For a production shop running a large laser at revenue-generating capacity, extended extractor downtime is measured in lost work. The modular design ensures that if an issue does arise, the diagnosis is fast, the replacement part arrives quickly, and the machine is back in service without requiring a service technician visit.

Technical Specifications:

• Max Airflow: 3 × 235 CFM (705 CFM total)
• Noise Level: 56 dB
• Height: 44"
• Width: 15"
• Depth: 31"
• Voltage: 220–240V
• Frequency: 50–60 Hz
• Rated Amps: 18A
• Pre-filter: Glass Fiber, 30 m² (15 m² installed + 15 m² spare)
• HEPA H14: Glass Fiber, 15 m², Rigid Aluminum Cartridge
• Chemical Cartridge: Coconut Shell Carbon + KMnO4, 110 lbs, Rigid Aluminum Cartridge
• Warranty: 1 year

The Maker's Chest Difference

The Filtrabox ExpandX-3 is available from Filtrabox directly and through other distributors. Here's what changes when you order through The Maker's Chest:

• 🛡️ 75-day returns — significantly longer than most distributor windows. Enough time to install the unit, run it through real production conditions on your specific laser system, and confirm 705 CFM is the right capacity for your application
• 🇺🇸 Expert USA-based technical support — our team can help with installation, configuration for multi-machine setups, filter replacement planning for your material mix, and any issues that arise after delivery
• 📞 Dual lines of support — phone and email, so when the machine is running production and something needs attention, you have a direct path to a real person
• 🔧 Straight configuration guidance — not sure if the ExpandX-3 is necessary versus the ExpandX-2, or whether your system actually needs triple-blower capacity? Tell us your laser model, wattage, bed size, and daily runtime. We'll give you a direct recommendation

Frequently Asked Questions

Q: When does a shop actually need the ExpandX-3 over the ExpandX-2?

A: The ExpandX-3 is the right choice when: your CO2 laser has a 24" × 36" or larger bed where 470 CFM doesn't maintain adequate extraction velocity across the full cutting area; you're running a 150W+ laser continuously across multiple shifts where sustained fume generation exceeds what dual blowers handle; you need one extractor to serve three machines simultaneously; or your workplace has documented air quality compliance requirements that specify extraction volumes the ExpandX-2 doesn't meet. If you're unsure, contact our team with your laser specifications and we'll help you decide.

Q: Can the ExpandX-3 serve three laser machines?

A: Yes — with appropriate hose configuration for three-machine intake distribution. The specific setup depends on your laser models, their intake sizes, and their physical positions relative to each other. Contact our team before ordering if three-machine configuration is your intended use and we'll confirm the setup.

Q: Does it require 220–240V? Can it run on 120V?

A: The ExpandX-3 requires 220–240V — it does not operate on 120V. At 18A draw on 220–240V, it requires a dedicated circuit. This is a standard industrial electrical specification. If your facility runs on 120V only, the ExpandX-3 is not appropriate — consider the ExpandX-2 which supports 120V at 20A. Contact our team before ordering if you have questions about your facility's electrical supply.

Q: What is the difference in carbon capacity between the ExpandX-3 and ExpandX-2?

A: The ExpandX-3 carries 110 lbs of activated carbon + KMnO4 versus 80 lbs in the ExpandX-2 — a 37% increase. This scales appropriately to the higher airflow volume and the longer sustained VOC load that larger laser systems at higher wattage generate. For a shop running 150W+ processing of acrylic or other high-VOC materials across full production shifts, the 110-lb carbon load ensures the gas filter stage doesn't exhaust disproportionately fast relative to the HEPA stage.

Q: How often will I need to change filters?

A: The intelligent flow regulator monitors system performance in real time and alerts you based on actual filter loading — not a guessed schedule. The pre-filter changes most frequently (protecting the HEPA). The HEPA lasts significantly longer. The gas cartridge's replacement interval depends heavily on VOC generation from your materials. A spare pre-filter is included so you have a replacement on hand at the first change. Annual filter costs vary by material mix; contact our team for estimates based on your specific processing profile.

Q: Does it need to be ducted outside?

A: No. The ExpandX-3 extracts, filters, and recirculates clean air into the workspace. All three filtration stages process the extracted fumes and return cleaned air into the shop — no wall penetrations, no exterior exhaust duct, no installation contractor required.

Q: What is the warranty, and how are service issues handled?

A: 1-year manufacturer warranty. In the event of a component issue, tech support diagnoses which module (Electronics or Blower) is involved and dispatches the appropriate replacement with plug-and-play wire harnesses — no tech experience required for the replacement. For ongoing support beyond the warranty period, our USA-based team is available by phone and email.

Q: Why buy from The Maker's Chest instead of directly from Filtrabox?

A: Our 75-day return window gives you real production evaluation time — enough to install the unit, run it through full production shifts on your large laser, and confirm it delivers the capacity your operation requires. Our USA-based expert support team is reachable by phone and email for installation planning, electrical configuration guidance, multi-machine setup, and ongoing production support. If the ExpandX-3 turns out to be more than your system needs, we'll work with you on the right configuration.

Filtrabox ExpandX-3 Manual:

Click the links below to download product manuals for the Filtrabox ExpandX-3.

Filtrabox ExpandX-3 Product Manual
