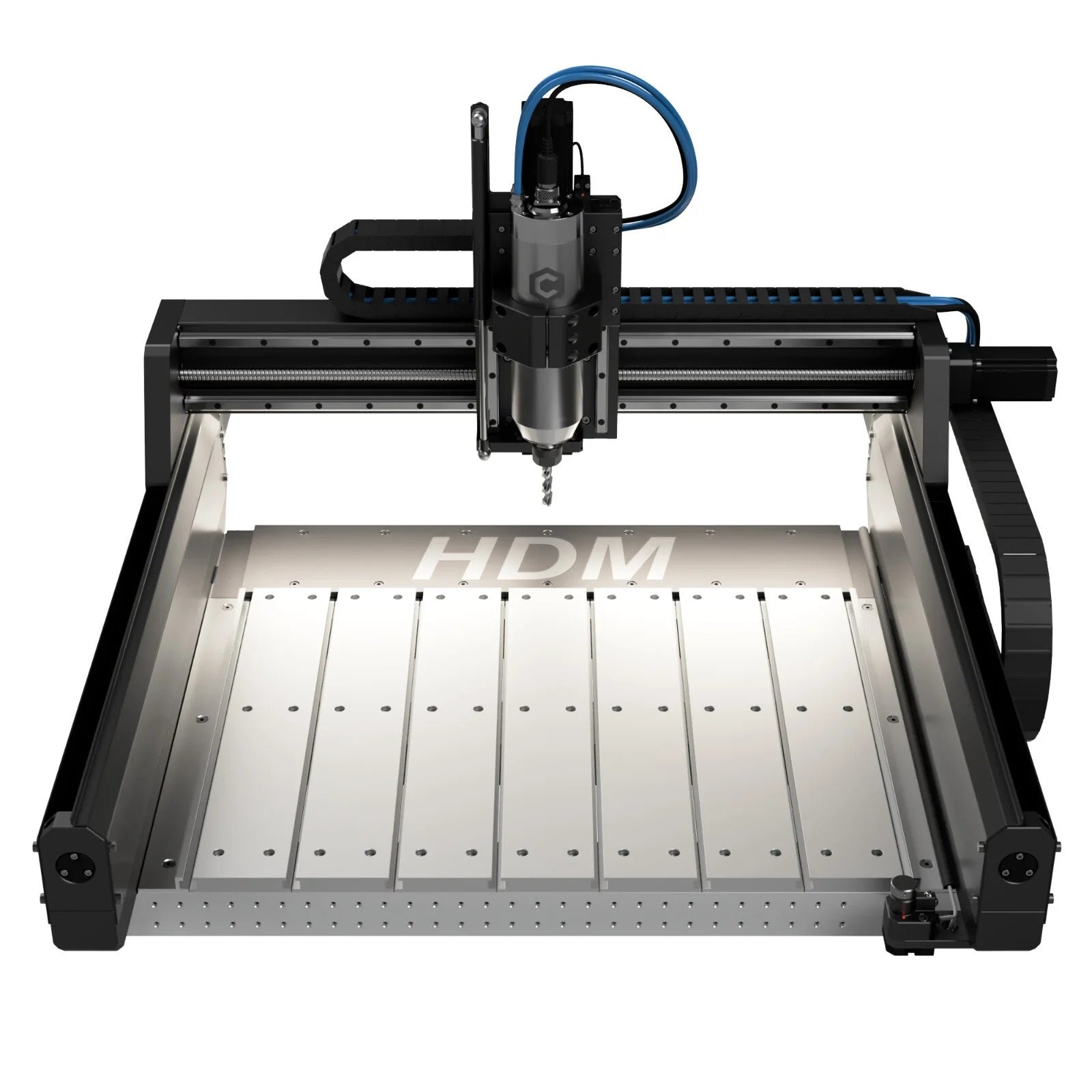

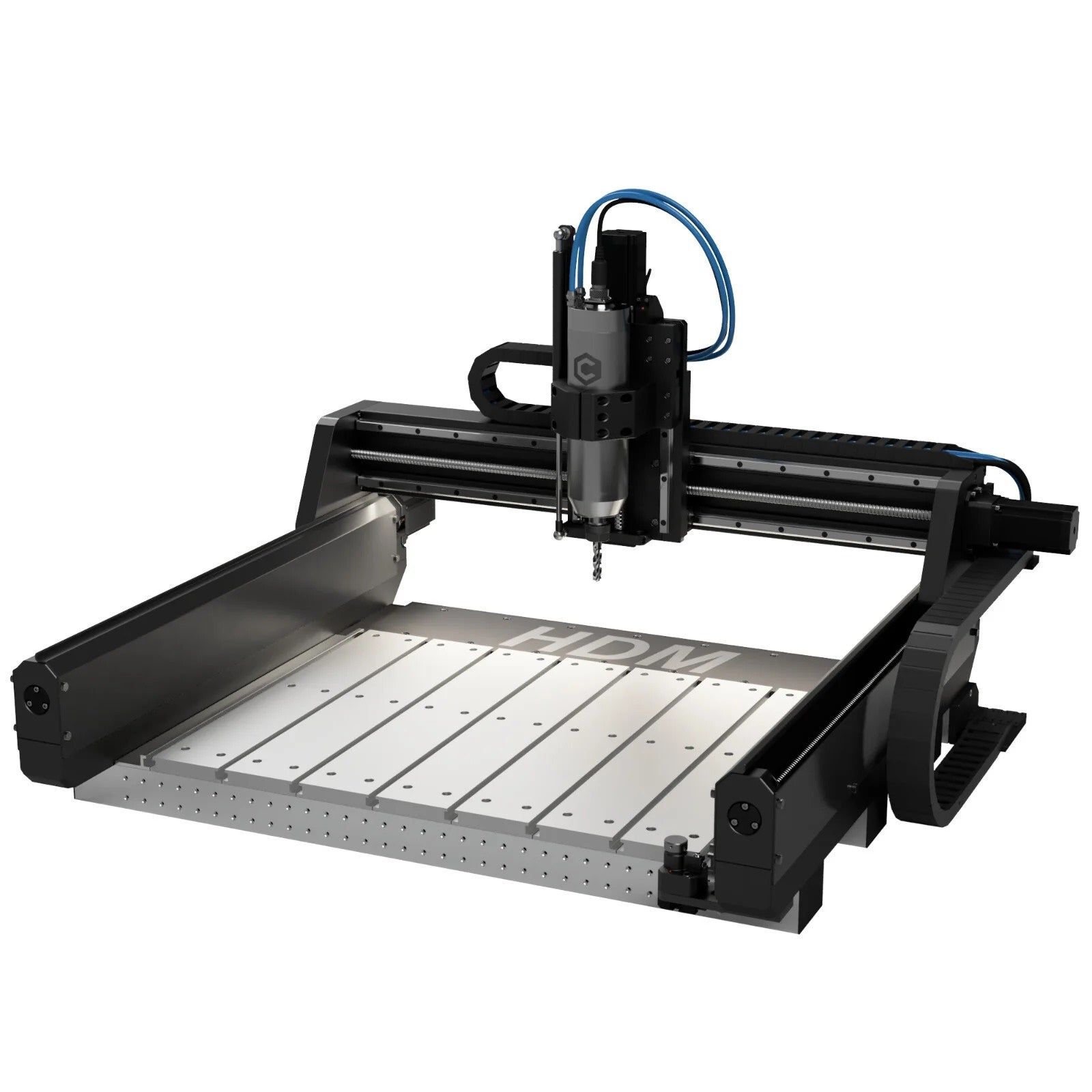

Shapeoko HDM CNC Router: Industrial-Grade Precision for Professionals and Makers Alike
The Shapeoko HDM CNC Router represents the peak of precision, performance, and reliability in the Shapeoko lineup.
Years of design, testing, and refinement have resulted in a machine that confidently cuts wood, plastics, composites, and non-ferrous metals like aluminum and brass with ease.
Engineered by Carbide 3D, the HDM combines industrial-grade rigidity with user-friendly operation. With its HG-15 linear rails, 16 mm ball screws, and 80 mm water-cooled VFD spindle, it delivers the power and accuracy demanded by professional shops and advanced makers alike. Designed to run all day without breaking a sweat, the Shapeoko HDM brings production-level performance to your workshop.
It’s a CNC router that doesn’t just perform — it endures. Whether you’re machining parts all day in a small shop or producing fine artistic engravings, the Shapeoko HDM runs continuously, reliably, and quietly without compromise.
Key Features of the Shapeoko HDM CNC Router:
-
All-Aluminum Hybrid Table with T-Slot Workholding: Provides a rock-solid foundation and versatile clamping system for flexible setups.
-
Heavy-Duty Custom Aluminum Extrusions: Precision-machined and anodized for strength, dimensional accuracy, and durability.
-
HG-15 Linear Bearings on Every Axis: Oversized industrial linear rails ensure smooth, accurate motion and long life.
-
16 mm Ball Screws with Dual Bearings: Zero-backlash motion and custom wipers for dust protection and long-term precision.
-
Water-Cooled 80 mm VFD Spindle: Automatically controlled spindle with 8 k–24 k RPM range, delivering 1.5 kW (110 V) or 2.2 kW (220 V).
-
CW-3000 Spindle Chiller System: Keeps your spindle temperature stable during long runs for consistent performance.
-

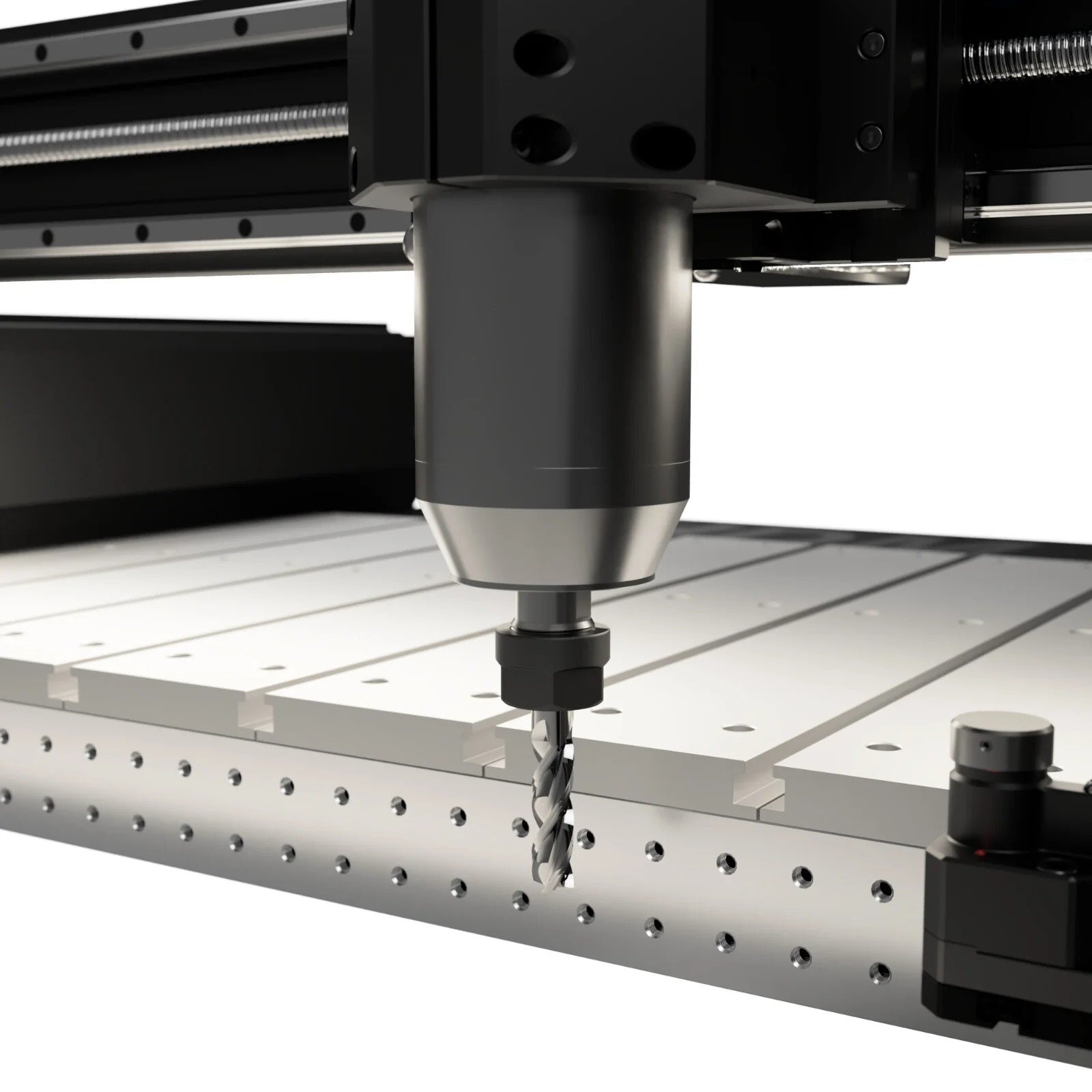

ER-20 Collet System (½" Max): Flexible toolholding for bits from 1/8" to ½" diameter.
-
LED Gantry Lighting: Integrated lighting beneath the gantry provides clear visibility of your work.
-
High-Speed Feed Rates: 5000 mm/min cutting and traverse speeds deliver smooth, efficient machining.
Built for Rigidity, Reliability, and Continuous Operation
From its solid Hybrid T-Slot Table to its custom aluminum frame, every detail of the HDM is optimized for strength and accuracy. Each extrusion is precision-machined and locally anodized for a perfect fit, while 30 mm thick aluminum end plates add further rigidity.
This robust construction eliminates flex and vibration, even under heavy cutting loads—ensuring clean edges, smooth finishes, and perfect repeatability.
Motion System: Industrial Precision at Every Step
The Shapeoko HDM’s motion system pairs HG-15 linear rails with 16 mm ball screws on every axis. Dual angular-contact bearings provide rigidity and low friction, while custom wipers keep dust and debris out of critical components.
This design results in extremely precise motion with virtually no backlash, letting you translate spindle power directly into material removal—ideal for detailed engraving, deep aluminum cutting, and professional-grade part production.
80 mm VFD Spindle: Quiet Power, Automated Control

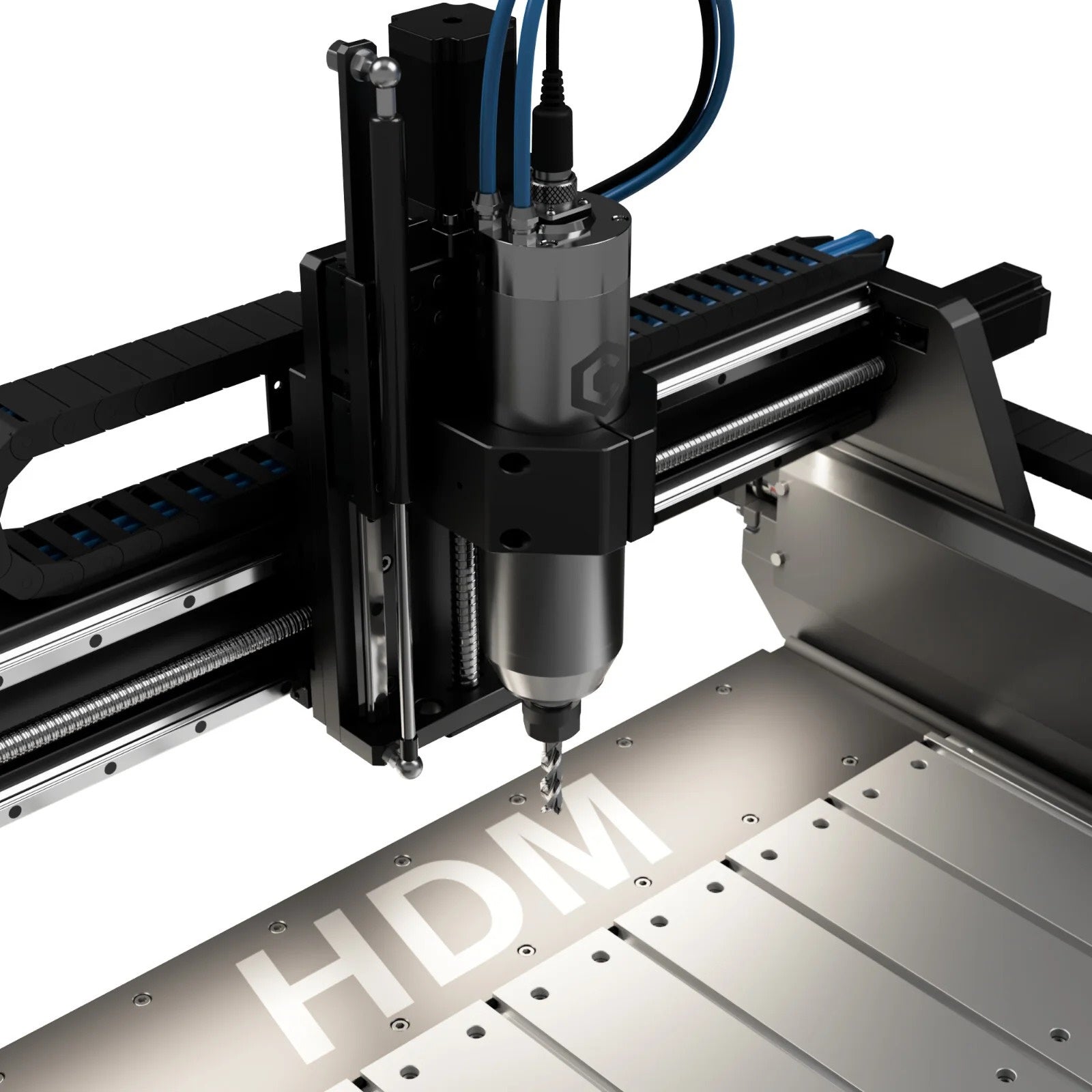

The HDM’s 4-pole, 80 mm water-cooled spindle delivers quiet, reliable performance hour after hour. Controlled by a custom VFD interface, the spindle automatically adjusts RPM via G-code, so there’s no need to manually start or set speeds.
-
RPM Range: 8,000–24,000 RPM
-
Power: 1.5 kW (110 V) / 2.2 kW (220 V)
-
Collet Type: ER-20 (supports up to ½″ tool diameter)
-
Runout: 0.01 mm
-
Cooling System: 9 L CW-3000 chiller for continuous cooling
This system ensures smooth operation, low noise, and long spindle life—ideal for both fine detail work and heavy-duty milling.
What’s Included with the Shapeoko HDM V3
- Shapeoko HDM V3 CNC Router
- 4-Pole 80 mm Spindle + VFD System
- CW-3000 Spindle Chiller
- Sweepy 80 mm Dust Boot
- Teez-Nutz (Qty 12)
- Shapeoko Essentials Clamps (Qty 6)
- #201 ¼″ Endmill
-
ER-20 Collets: 0.125″, 0.25″, 0.50″
- Collet Wrenches
- HDM Version of BitSetter
- Carbide Motion Control Software
- Carbide Create 2D CAD/CAM Software
-
4 × 30-Minute 1-on-1 Training Sessions with a Carbide 3D expert via video chat
- 12-Month Warranty
- 60-Day “Mistakes Are On Us” Guarantee
Everything you need for professional-grade CNC machining comes in one complete package — no add-ons required.
Frequently Asked Questions about Shapeoko HDM CNC Router
1. What materials can the Shapeoko HDM cut?
Hardwoods, MDF, plastics, acrylic, composites, carbon fiber, and non-ferrous metals such as aluminum and brass.
2. How accurate is the HDM?
With 0.01 mm runout and industrial-grade motion components, it delivers exceptional accuracy and repeatability across all materials.
3. Can it run continuously?
Yes — the HDM’s water-cooled spindle and ball-screw system are designed for long, uninterrupted operation.
4. What software is included?
You’ll receive Carbide Create (for CAD/CAM design) and Carbide Motion (for machine control), both optimized for Shapeoko machines.
5. Is training provided?
Yes — four personalized 30-minute sessions with Carbide 3D experts are included to help you start cutting confidently.
