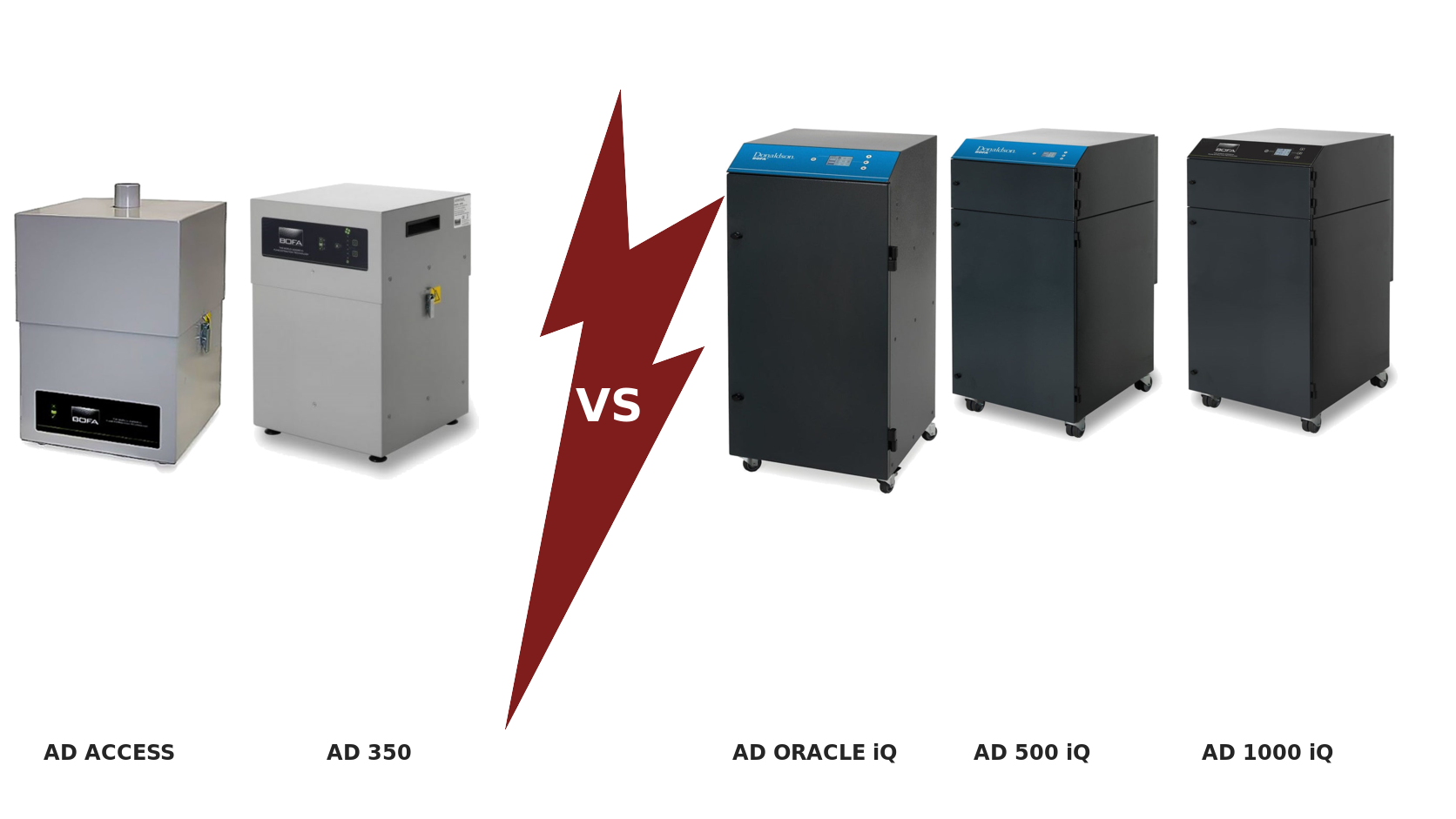

Which BOFA Laser Fume Extractor Fits Your Setup? AD Access, AD 350, Oracle iQ and More

Quick answer: BOFA AD Access and AD 350 are compact systems positioned by Donaldson BOFA for light-duty laser applications; AD 350 has a much higher published maximum airflow and pressure. AD Oracle iQ is a mid-sized option for varied laser processes when airflow control and separate filter-status information matter. AD 500 iQ and AD 1000 iQ move toward heavier particulate loads and higher flow. The correct choice depends on capture at the laser, the particles and gases produced, hours of operation, hose losses and the exact electrical/option configuration. A higher model number is not a substitute for a capture plan.

This guide covers the BOFA models sold by The Maker’s Chest as of September 2026. Compare the current listing and voltage/automation variant before buying; manufacturer maxima are not installed-flow guarantees.

Which BOFA extractor fits your process?

AD 1500 iQ and AD 2000 iQ are also listed in our BOFA collection for larger projects. Do not infer a duty classification solely from a CFM figure: pressure, filter loading, capture hood, duct geometry, materials and simultaneous machine count all change the result. Manufacturer references: AD Access, AD 350, Oracle iQ, AD 500 iQ, AD 1000 iQ.

Do not choose by laser wattage alone

A 30 W enclosed fiber marker may release a small but concentrated plume from coatings; a desktop CO₂ cutter may create large smoke and odor loads when cutting wood or acrylic. Output wattage does not tell you how efficiently the enclosure captures the plume, which gases the material produces or how much duct resistance the fan must overcome. Ask for the laser manufacturer’s required extraction flow and pressure at its exhaust port, and identify the normal and worst-case materials. Compare that to the BOFA performance data at the installed operating point. A nominal free-air CFM number is a screening value, not proof of capture.

For open galvo machines, bench marking, welding or laser cleaning, the extraction inlet needs to be close enough to intercept the plume as generated. A bigger box attached to a long hose far from the work will not compensate for a poor hood position. Where multiple machines share one extractor, size the system for simultaneous use and control inactive branches. Donaldson BOFA recommends selecting a size that matches throughput and filter life: undersizing a high-volume process can be a false economy even if initial capture seems adequate.

AD Access vs AD 350: two light-duty choices with different headroom

AD Access is the compact starting point for light-duty engraving, marking and cutting. Its published maximum is 106 CFM at 30 mbar, with a DeepPleat pre-filter, HEPA and advanced carbon stage. Donaldson BOFA lists optional system-OK, remote stop/start and VOC sensing; “optional” means these functions must be confirmed in the exact SKU, not assumed as standard. Choose Access when the machine has a controlled exhaust path and the required flow and pressure can be verified after installation.

AD 350 is still described as light duty, but its published maximum of 206 CFM and 96 mbar gives a different sizing envelope. It has a larger cabinet, variable airflow speed and available automation options. This can be the more appropriate choice for a restrictive hose, a more demanding enclosed cutter or a shop that expects to run a wider material mix. It does not automatically last twice as long on filters: particulate loading and chemical-media use determine replacement frequency. Compare the Access configuration and AD 350 configuration, including voltage and hose kit.

Where Oracle iQ changes the decision

The AD Oracle iQ offers 224 CFM / 96 mbar on Donaldson BOFA’s page—only a modest nominal-airflow increase over AD 350. The stronger argument for it is the system architecture: iQ displays real-time airflow and monitors filter condition independently; a large-capacity DeepPleat DUO pre-filter has a drop-out chamber for larger particles; automatic flow control is designed to maintain a set flow as filters load. Those features can matter for repeatable production, mixed material streams and planned maintenance.

Do not imply that optional functions are included in every Oracle iQ variant. Confirm whether the selected TMC configuration includes remote start/stop, system fault output, VOC sensor, an onboard compressor or other integration hardware. Ask whether the laser’s interface supports the signals. If your small system has low particulate loading and no need for these controls, the sophistication may not be worth the additional cost. If the job runs across shifts, filter-condition visibility can be more valuable than a narrow CFM difference.

When to look at AD 500 iQ, AD 1000 iQ and above

Donaldson BOFA positions AD 500 iQ for medium-duty processes that generate significant particulate. It lists 324 CFM / 100 mbar, a larger pre-separation/filter arrangement, automatic flow control and individual filter monitoring. The AD 1000 iQ is positioned for medium-to-heavy work with more airflow and filter capacity than AD 500 iQ; BOFA names laser welding among its applications. On a dense metal-fume or all-day cutting process, filter-loading economics and correct hood design usually matter more than selecting from a headline size ladder.

For a large format laser, multiple capture points or specialized process, send the laser's exhaust specification, material list, shift hours and a sketch of the duct route before ordering. The AD 1500 iQ and AD 2000 iQ should be assessed as engineered installations, not automatic upgrades whenever a smaller unit sells out of filters quickly.

What the filter stages do—and what they cannot establish

BOFA commonly pairs a pre-filter for larger particulate, a HEPA stage for fine particles and carbon media for gases and odors. Donaldson BOFA publishes a 99.995% at 0.3 microns rating for its HEPA filters on these model pages. That is a filter-media rating, not proof of complete exposure control at the workpiece or proof that a specific chemical vapor has been removed. Capture can fail before air reaches the filter, and carbon performance depends on the contaminant, concentration, contact time and remaining media capacity. Unknown plastics and coated materials require material identification and manufacturer review before processing.

A more useful maintenance budget separates pre-filter changes, HEPA changes and carbon changes. Wood and some composites may consume particulate media quickly; acrylic or coated materials can increase gas/odor loading. Log run hours, materials, airflow and changes, then estimate cost per productive hour from your own workload rather than promising a universal “six-month filter life.” Confirm authentic, model-specific replacement media and the selected unit’s change indicators.

Installation questions that prevent a costly mismatch

1. Capture source: What machine and material produce the fume, and is the work enclosed? Where is the takeoff or hood?
2. Required operating point: What flow and static pressure does the laser manufacturer require at the connection? What will the duct and loaded filters add?
3. Hose kit: What inlet diameter, length, adapter and number of elbows are proposed? Is a second station connected?
4. Electrical: Which 115 V or 230 V variant is in the order and what circuit does it need? Some larger units require much more current than a desktop laser accessory.
5. Controls: Is an interlock, fault signal, automatic stop/start, flow control or VOC indication required? Which are standard versus optional on the exact variant?
6. Discharge and policy: Will filtered air return to the room or be exhausted outdoors? Check manufacturer guidance and site requirements for the material and occupancy.
7. Service: How will filters be accessed, disposed of and reordered, and can the shop pause production for maintenance?

Send that checklist to The Maker’s Chest team to narrow a BOFA configuration. We carry Filtrabox as well, so we can compare filter architecture, packaging and fit across brands for your actual process. We will not label one brand universally “better” without the machine and material details.

Frequently asked questions

Is AD 350 more suitable than AD Access for a CO₂ cutter?

It may be when the cutter’s specified airflow/pressure, duct losses or material load exceed what Access can support. Both are described by BOFA as light-duty systems. Get the cutter’s exhaust requirement and compare the installed operating point before deciding.

Is Oracle iQ just an AD 350 with more CFM?

No. The published maximum airflow figures are relatively close, but Oracle iQ adds flow and filter-condition management and a larger pre-filter architecture. Decide based on workload and maintenance needs as well as capture.

Does a high HEPA efficiency rating mean no ventilation is needed?

No. HEPA addresses particles in air that reaches the filter, while capture efficiency, gases and the site’s ventilation requirements are separate questions. Confirm the material and local workplace requirements.

Can one unit serve several lasers?

Possibly, with a designed manifold, confirmed simultaneous flow at each machine and appropriate branch controls. Count the machines running at once; do not infer compatibility from the extractor’s catalog CFM alone.
