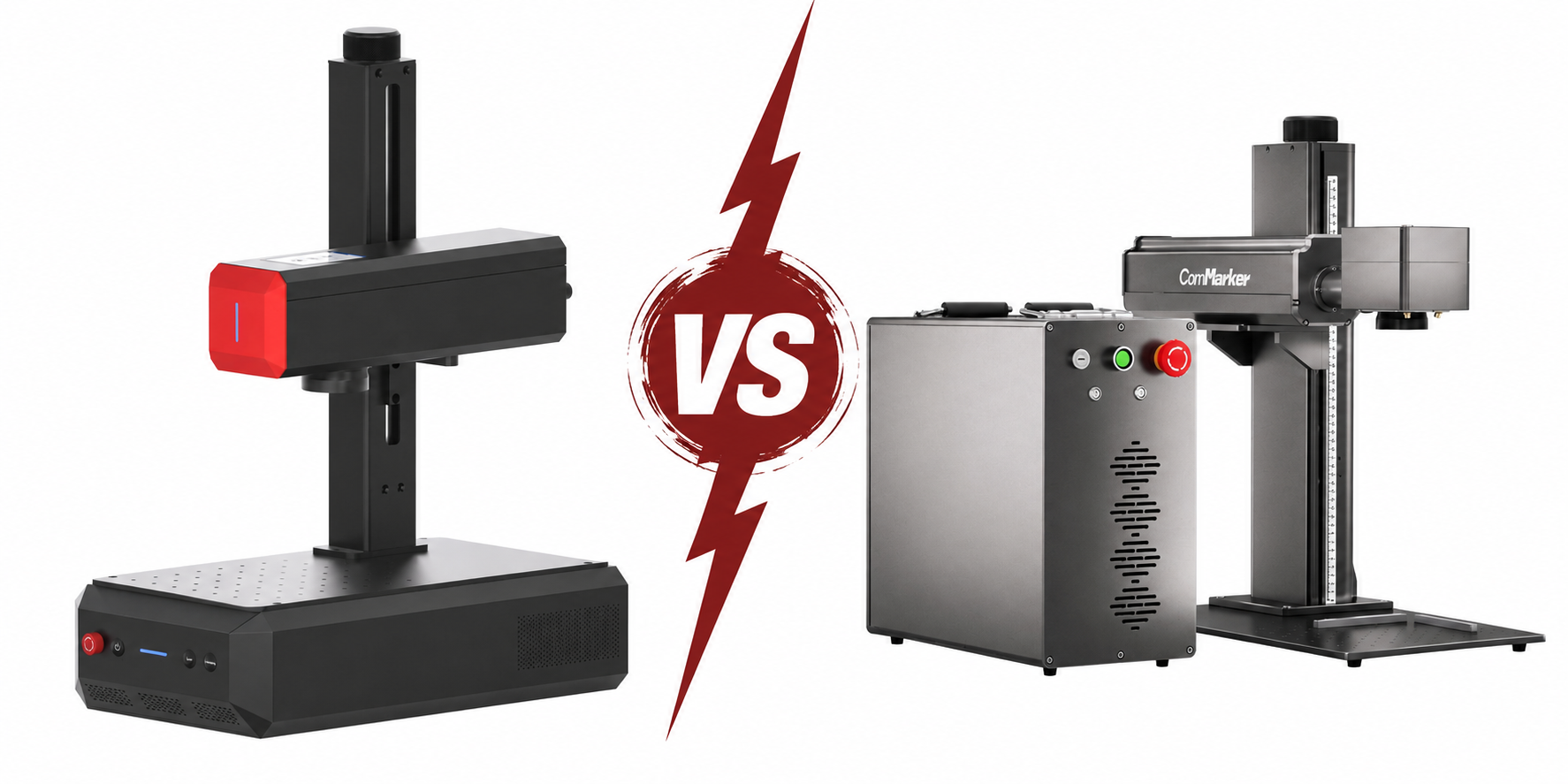

ComMarker B6 MOPA vs Titan 1: Which Fiber Laser Fits?

ComMarker B6 MOPA vs Titan 1 is not really a contest between a “beginner” machine and a “professional” one. Both are JPT MOPA fiber lasers built for metal marking, color work, deep engraving, and production jobs. The useful distinction is compact flexibility versus sustained power. The B6 MOPA is the better fit when space, mobility, autofocus, and a lower starting investment matter. The Titan 1 is the better fit when 100W or 200W output, deeper removal, and production throughput are what pay the bills.

Research note: This comparison uses current manufacturer specifications and the configurations sold by The Maker’s Chest as of September 2026. Published speed, lifespan, and cutting figures are manufacturer ratings, not a promise that every artwork, lens, alloy, or finish will produce the same result. Always run a material test grid before quoting customer work.

The Short Answer

For current configurations, accessories, and availability, see the ComMarker B6 JPT MOPA and ComMarker Titan 1 product pages. This article owns the comparison question; the product pages remain the source of truth for prices, bundles, and ordering.

B6 MOPA vs Titan 1 Specifications

Do not compare the two by maximum scan speed alone. Galvo speed is only one part of cycle time. Deep engraving depends on usable average power, pulse energy, hatch strategy, lens, alloy, number of passes, and how efficiently debris is cleared. A 15,000 mm/s headline does not make the 60W B6 remove metal faster than a properly tuned 100W or 200W Titan.

What the Shared MOPA Source Lets Both Machines Do

MOPA means the pulse generation and amplification stages are controlled separately. In practical terms, the operator has a much wider range of pulse durations and repetition frequencies than on a basic Q-switched fiber source. That control is what supports dark annealed marks, color development on suitable stainless steel and titanium, cleaner results on some anodized surfaces, and gentler marking on certain plastics.

The important caveat is that MOPA is not a one-click “color mode.” Color comes from controlled oxide formation and is sensitive to alloy, surface preparation, focus, lens, line spacing, pulse width, frequency, and power. A recipe that makes blue on one stainless blank may make gray on another. Both machines require a disciplined parameter library and consistent materials if repeatability matters.

• Both are fundamentally metal machines. They directly mark and engrave stainless steel, aluminum, brass, copper, titanium, precious metals, coated metals, and many engineering plastics.
• Neither replaces a CO2 laser. Wood, clear acrylic, leather, fabric, and most organic sheet work belong on a CO2 platform.
• Lens choice changes the result. A smaller field generally concentrates the beam more tightly; a larger field trades some energy density and fine detail for coverage.
• Extraction still matters. Metal dust, coatings, oils, and plastic fumes should not be treated as harmless simply because the machine is compact.

Where the B6 MOPA Is the Better Buy

1. Small products and varied custom work

The B6 is strongest when a shop changes jobs constantly: a batch of jewelry tags, a knife logo, coated tumblers on a rotary, serial numbers on components, then a color sample on stainless. One-touch autofocus and a compact work envelope reduce the friction between jobs. For low-to-medium batch sizes, saving setup time can matter more than owning maximum wattage.

2. A workstation that cannot become a permanent production cell

At roughly 13 kg, the B6 can realistically move between benches or travel to an event with appropriate safety controls. The Titan is transportable in the literal sense, but it is better planned as a dedicated machine with fixed extraction, fixturing, and operator clearance.

3. When 20W or 30W is enough

More power is not automatically better for fine surface marking. If most revenue comes from logos, barcodes, personalization, jewelry, and thin surface effects, a 20W or 30W MOPA can deliver excellent detail while keeping capital tied up in the business rather than in unused capacity. Choose 60W when you need a meaningful step up in removal, occasional thin-sheet work, or shorter cycles.

4. When scan speed helps more than removal power

For shallow graphics and marking, the B6’s published 15,000 mm/s ceiling can be useful. Real jobs may run far below that limit, especially with dense fills, small vectors, or conservative settings, but the compact platform is not inherently slow. The distinction is that high scan speed does not compensate for lower average power in deep engraving.

Where the Titan 1 Earns Its Cost

1. Deep engraving is a product, not an occasional experiment

Coin reliefs, molds, stamps, firearm components, deep logos, and aggressive texture removal consume passes. Moving from 60W to 100W or 200W can reduce the time spent removing the same volume of metal, although it also increases the importance of focus, debris removal, heat management, and robust fixturing. If customers pay for depth and throughput, the higher-power Titan configurations have a direct business case.

2. You need a growth path above 60W

The B6 tops out at 60W. The Titan begins there. A buyer who already knows that 100W production is the target should not buy a compact 60W unit merely to postpone the decision. Conversely, buying 200W “for the future” is poor planning if the shop has no validated work that benefits from it.

3. The machine will run as a dedicated cell

The Titan makes sense when the workflow includes repeatable fixtures, extraction that stays connected, established settings, and batches long enough to expose the cost of slower removal. Its value is less about a single impressive sample and more about producing the fiftieth part with the same process as the first.

60W B6 vs 60W Titan: The Most Difficult Choice

At the same nominal power, the decision is about platform and workflow rather than wattage. The B6 60W is the compact option with one-touch autofocus and a higher published maximum marking speed. The Titan 60W is the entry point into the heavier-duty family. If the work is mainly small, varied, and operator-attended, the B6 is usually the more efficient purchase. If the machine is the first step in a production cell and you value a chassis intended for sustained heavy work, the Titan can be justified even before moving to 100W.

Do not assume equal wattage means identical output. Confirm the exact source variant, lens, field size, controller, included rotary, enclosure, and bundle. A 60W source behind a 300 mm lens behaves very differently from the same source behind a 110 mm lens.

Choose Power by Work, Not by Ambition

Hidden Costs and Workflow Questions

• Enclosure: Both are Class 4 open galvo systems unless installed in a suitable interlocked enclosure. Eyewear alone is not a complete shared-space safety plan.
• Extraction: Budget for capture close to the marking point and filters appropriate to the material.
• LightBurn: A separate LightBurn Galvo license may be required. Confirm operating-system support and controller compatibility for the exact configuration.
• Rotary work: Check whether the chosen bundle includes the rotary style you need. Rings, mugs, irregular parts, and heavy chucks are not the same fixture problem.
• Lenses: Order the field you will use most. Constantly swapping lenses changes focus, calibration, spot size, and settings.
• Electrical and bench planning: Higher power does not eliminate the need for a stable bench, clean optics, correct grounding, and a reliable computer workflow.

Our Recommendation

Choose the ComMarker B6 MOPA if your business is built around personalization, jewelry, knives, tumblers, tags, small components, color work, and a flexible bench. The 30W is a sensible marking-first configuration; the 60W is the stronger all-rounder when depth matters but portability still has value.

Choose the ComMarker Titan 1 if deep engraving or batch production is already central to the plan. The 100W model is the meaningful step beyond compact 60W machines. The 200W model should be bought against measured demand, not because it is the largest number on the page.

If your workload crosses both categories, send The Maker’s Chest a few sample dimensions, materials, target depth, batch size, and expected daily run time before ordering. Those five facts are more useful than a generic “best fiber laser” ranking.

Frequently Asked Questions

Is the Titan 1 always better because it has more power?

No. Higher-output Titan configurations remove material faster, but they cost more and are less convenient as mobile or shared-bench tools. Fine marking, color development, and one-off personalization may not improve enough to justify the larger platform.

Can the B6 MOPA do stainless-steel color marking?

Yes, on suitable stainless steel with controlled settings. Results vary by alloy, finish, cleanliness, lens, focus, and parameter combination, so build and document a test grid.

Can the Titan 1 make color too?

Yes. It is also a MOPA fiber platform. The same warning applies: color is a process outcome, not a guaranteed preset.

Is 15,000 mm/s on the B6 faster than the Titan’s 10,000 mm/s?

It is the higher published scan-speed ceiling, but it does not prove a shorter total job. Acceleration, artwork, fill strategy, power, frequency, pulse width, and pass count determine real cycle time.

Which machine is better for deep coin engraving?

For occasional work, a 60W B6 or Titan can do it with enough passes. For repeat production where time matters, a 100W or 200W Titan is the stronger choice.

Which is better for jewelry?

The B6 MOPA is usually easier to justify because it is compact and offers lower-power options suited to fine marking. Choose the Titan when deep relief or batch throughput is more important than footprint.

Do either of these engrave wood or clear acrylic well?

No. Their 1064 nm fiber sources are optimized for metals and selected plastics. Use a CO2 laser for wood, clear acrylic, leather, and most organic materials.

Do I need LightBurn?

No; EZCad2 is a standard Windows workflow. Many operators prefer LightBurn Galvo, but confirm the exact controller, license, and computer support before purchase.

Is autofocus the same as automatic material settings?

No. Autofocus sets the surface at the focal distance. It does not choose power, speed, hatch, frequency, or pulse width, and it cannot compensate for the wrong lens calibration.

Can either machine safely run in a classroom or retail space?

Not as an open Class 4 system. A suitable interlocked enclosure, controlled access, extraction, training, and a documented operating procedure are the responsible baseline.

Should I buy 200W now so I do not outgrow the machine?

Only if your tested applications and sales volume benefit from it. Too much machine can mean higher capital cost, a steeper process-development burden, and unused capacity.

What information should I provide before asking for a recommendation?

List the material and alloy, part dimensions, desired mark or depth, batch size, daily operating hours, and whether the machine must move. Photos and a sample file make the recommendation more precise.
