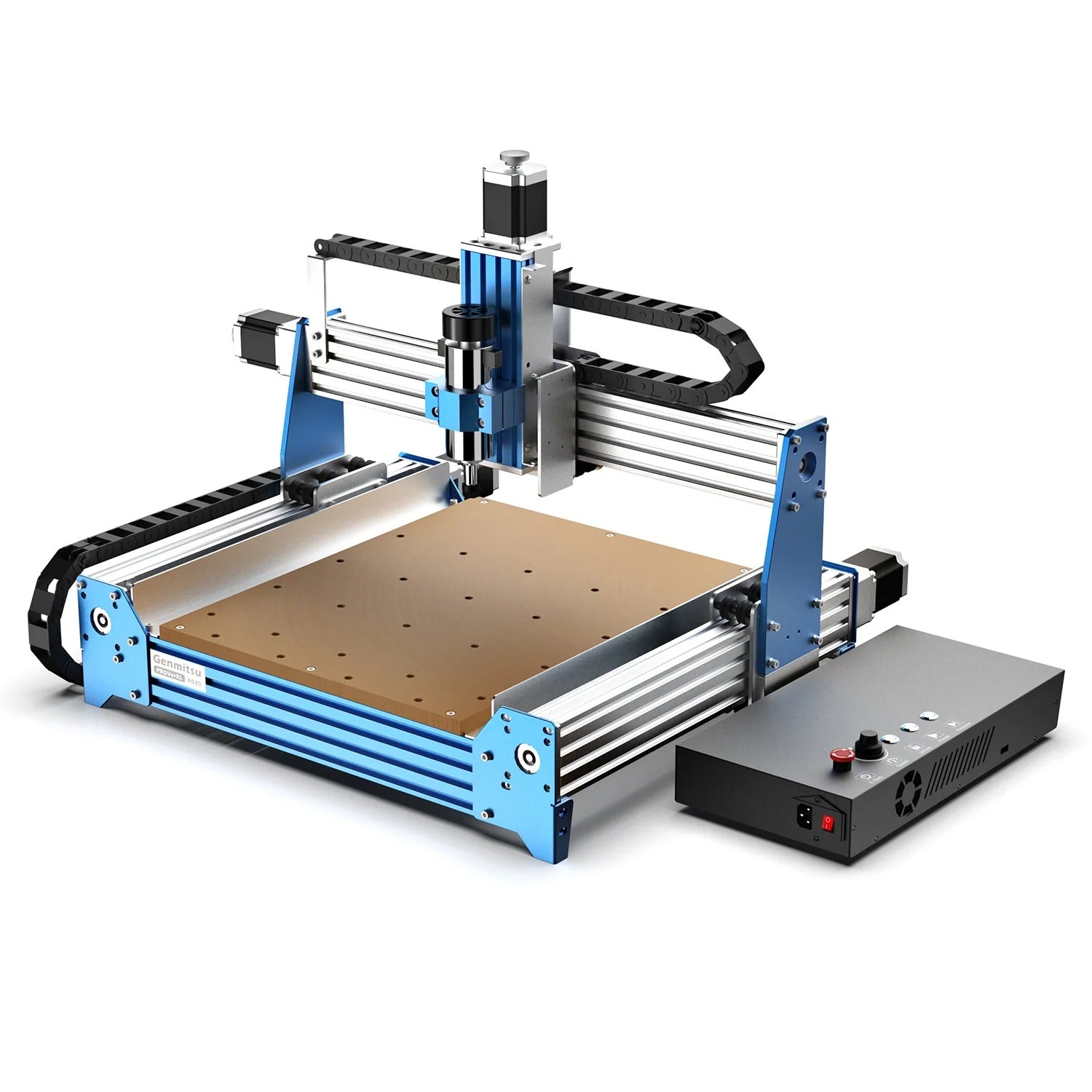

Genmitsu PROVerXL 4030 CNC Router

By Genmitsu

Save $300.00
Original Price $949.00
Current Price $649.00
Everything Included
75-Day Returns
No restocking fee
Lifetime Materials Discounts
At MakerStock & LoneStar Adhesive
Dual-Support
From TMC and Genmitsu
Free Shipping
To the Lower 48 (No duties)
Price Match Guarantee
Lowest prices
White Glove Onboarding
Beginner to expert
1 Year Warranty 75-Day Returns USA Support

Notify me when back in stock

★★★★★
“I have never experienced customer service at this level with ANY other company serving ANY other market. … Fellow business owners, buy from The Makers Chest with confidence.”
Jeff S. · Business owner · Haotian MOPA laser Google review →

Discount available for Active-Duty, Veteran, Retired Military Personnel & First Responders.

Unlock Discount
Description

Get NEMA 23 Power and a 400 × 300 mm Bed for $649

The PROVerXL 4030 pairs a rigid C-beam frame and NEMA 23 motors with a pre-installed 300W spindle and a mount ready for a DeWalt router upgrade.

 

Entry-level 3018 CNCs teach you the basics, then stall the moment you try a real cut: small NEMA 17 motors, a tiny spindle and a bed the size of a sheet of paper. The PROVerXL 4030 is the step up, with NEMA 23 stepper motors, a 400 × 300 mm bed and a frame stiff enough for hardwood and light aluminum.

With 150 owner reviews averaging 4.7 stars on SainSmart's store, it is a well-proven benchtop CNC, and at $649 it is the lowest-priced NEMA 23 Genmitsu we sell.

Genmitsu PROVerXL 4030 key metrics at a glance

Genmitsu PROVerXL 4030 key performance figures

Move Past the 3018 With a Bed Big Enough for Real Projects

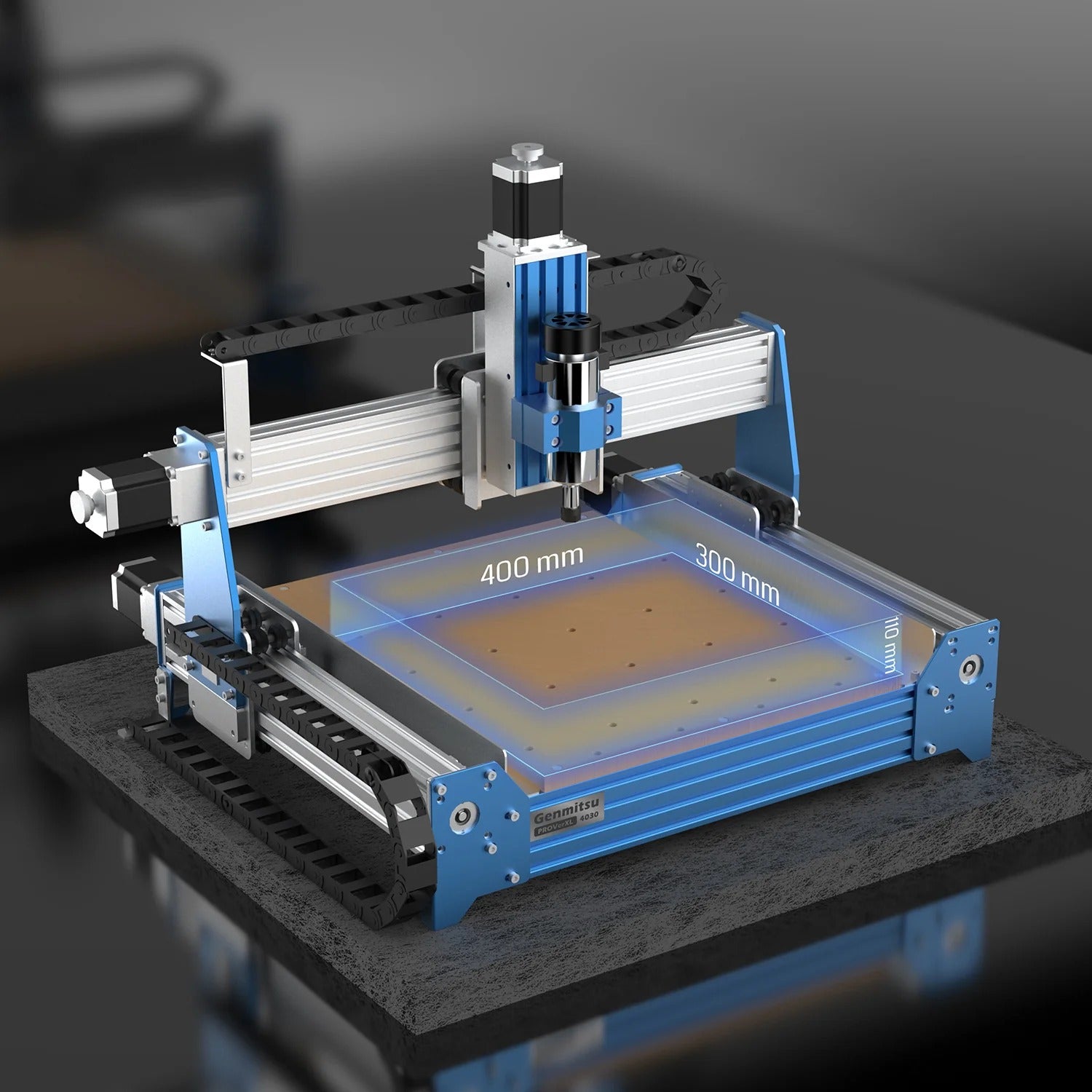

Genmitsu PROVerXL 4030 400 × 300 × 110 mm effective working area

The 400 × 300 × 110 mm work area is more than twice the cutting area of a 3018-class machine. It fits cutting boards, house numbers, small signs, guitar parts and molds, and 110 mm of Z travel handles thick slabs.

When you outgrow it, the same machine grows with you: 6060 and 1010 extension kits enlarge the bed to 600 × 600 mm or 1000 × 1000 mm without buying a new CNC.

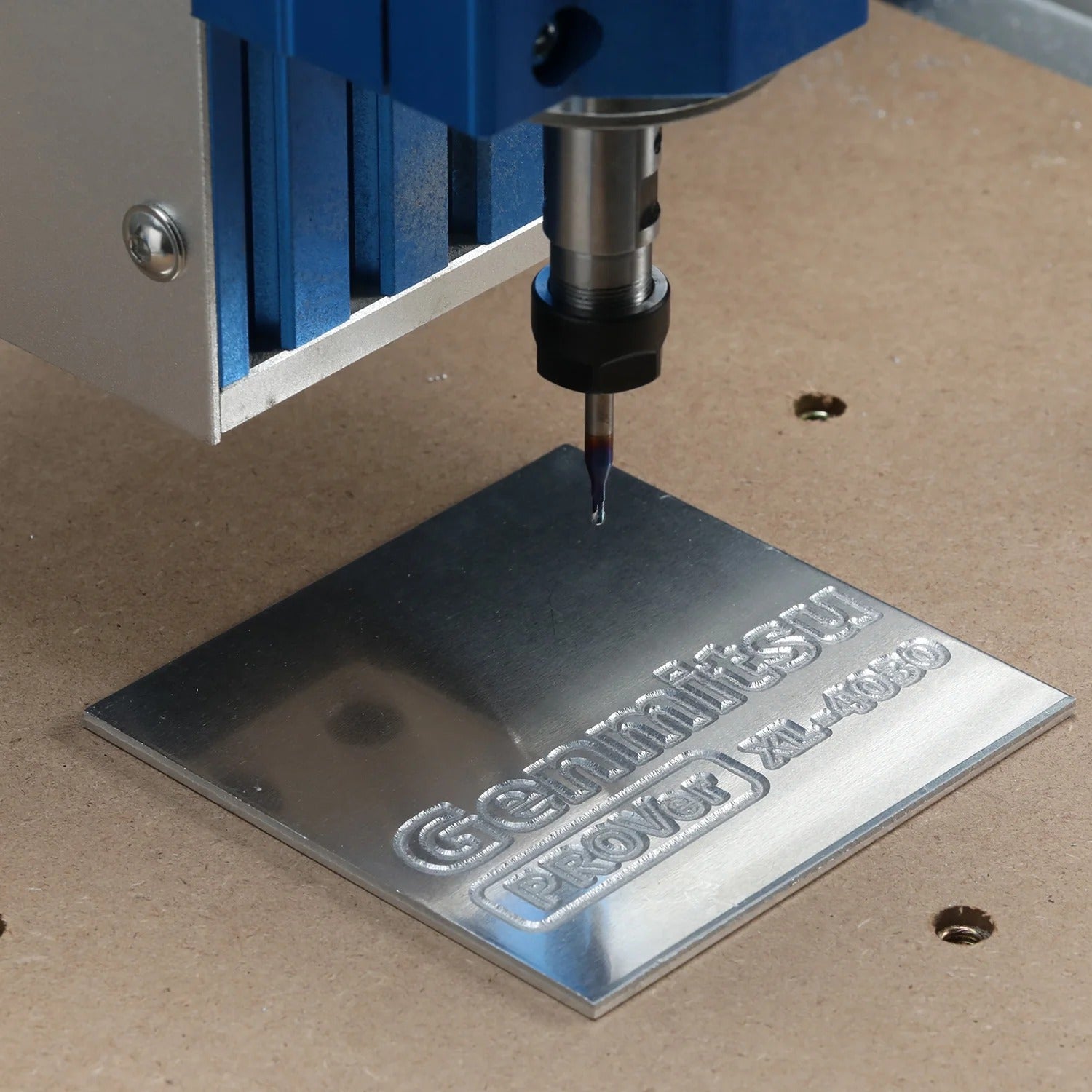

Cut Hardwood and Aluminum on a Rigid C-Beam Frame

Genmitsu PROVerXL 4030 rigid aluminum frame and spoilboard, left side view

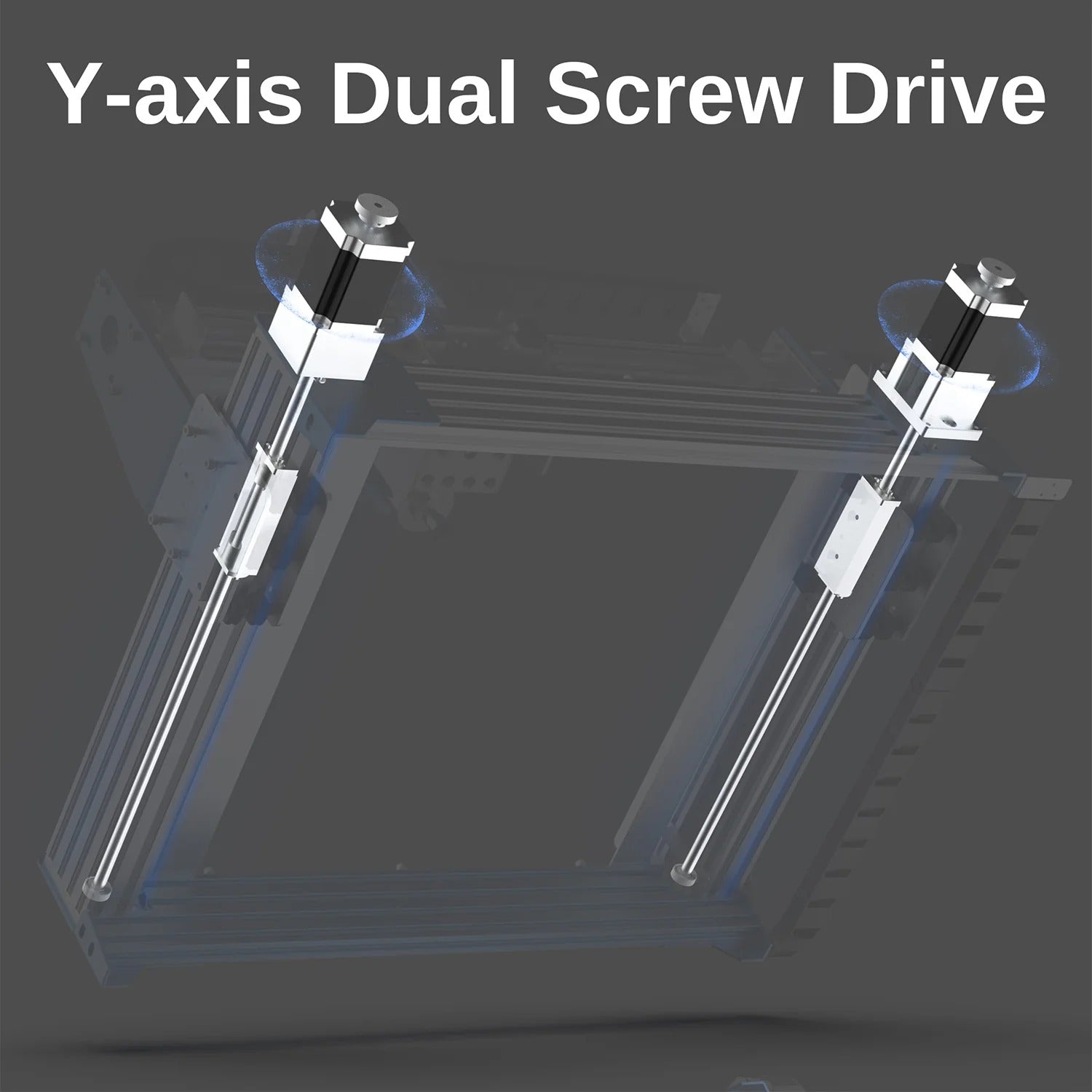

The 4030 is built on C-beam extrusions with a dual-screw Y-axis and an optical-axis Z drive, which SainSmart designed to be more stable than the V-slot wheels most budget machines use. That rigidity is what lets it cut wood, MDF, plastics, foam, vinyl and aluminum.

Rated running and repositioning accuracy is ±0.10 mm, which is ample for signs, V-carving, pockets and profile cuts in hardwood and plywood.

Drive Bigger Cuts With NEMA 23 Motors

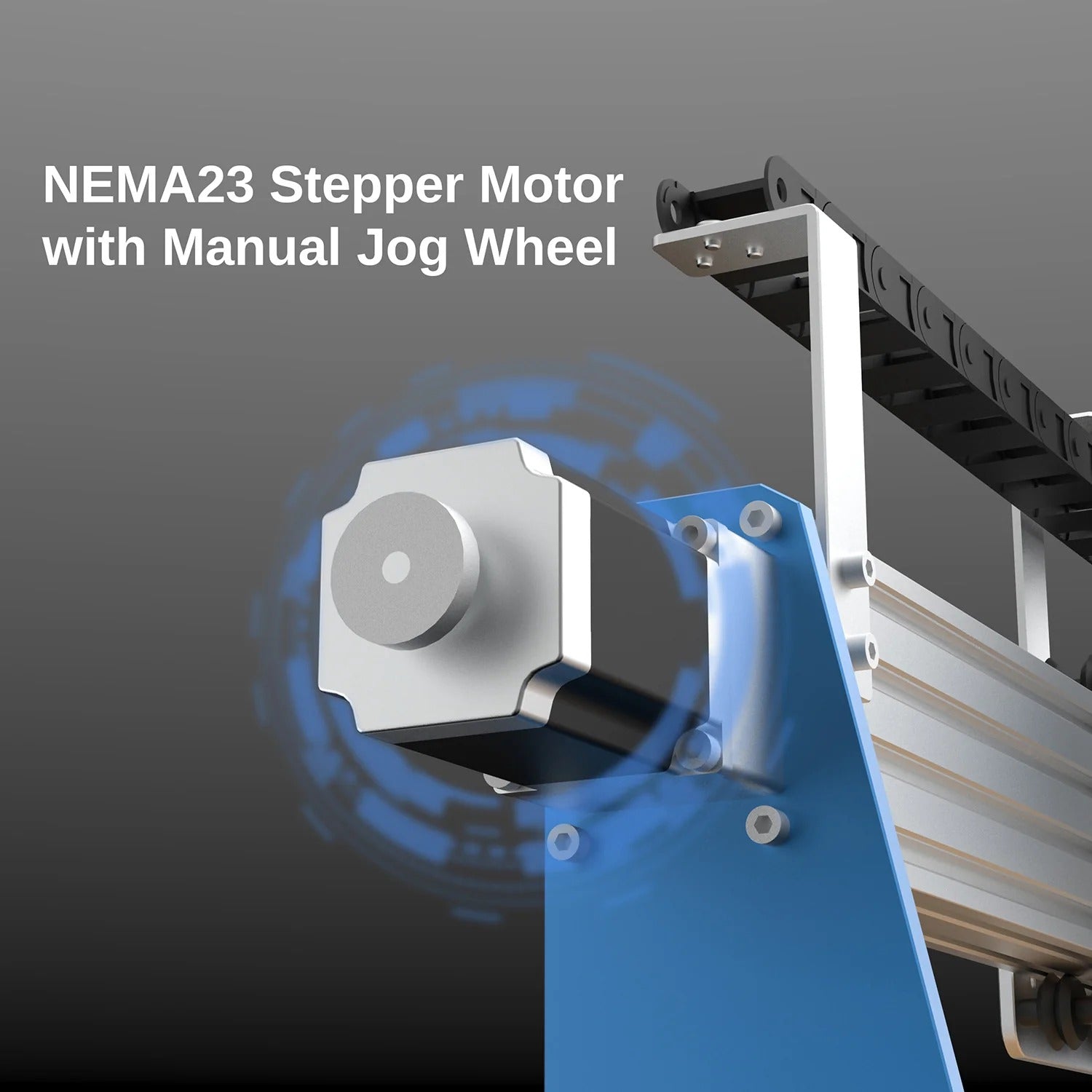

Genmitsu PROVerXL 4030 NEMA23 stepper motor with manual jog wheel

NEMA 23 stepper motors on all three axes deliver substantially more torque than the NEMA 17 motors on smaller hobby machines, so the 4030 can push a bit through deeper passes in hardwood without stalling.

Manual jog wheels let you fine-position the axes by hand, and the GRBL control box includes limit switches, an emergency stop, speed control and a Z-probe.

Start With the 300W Spindle, Then Drop In a DeWalt Router

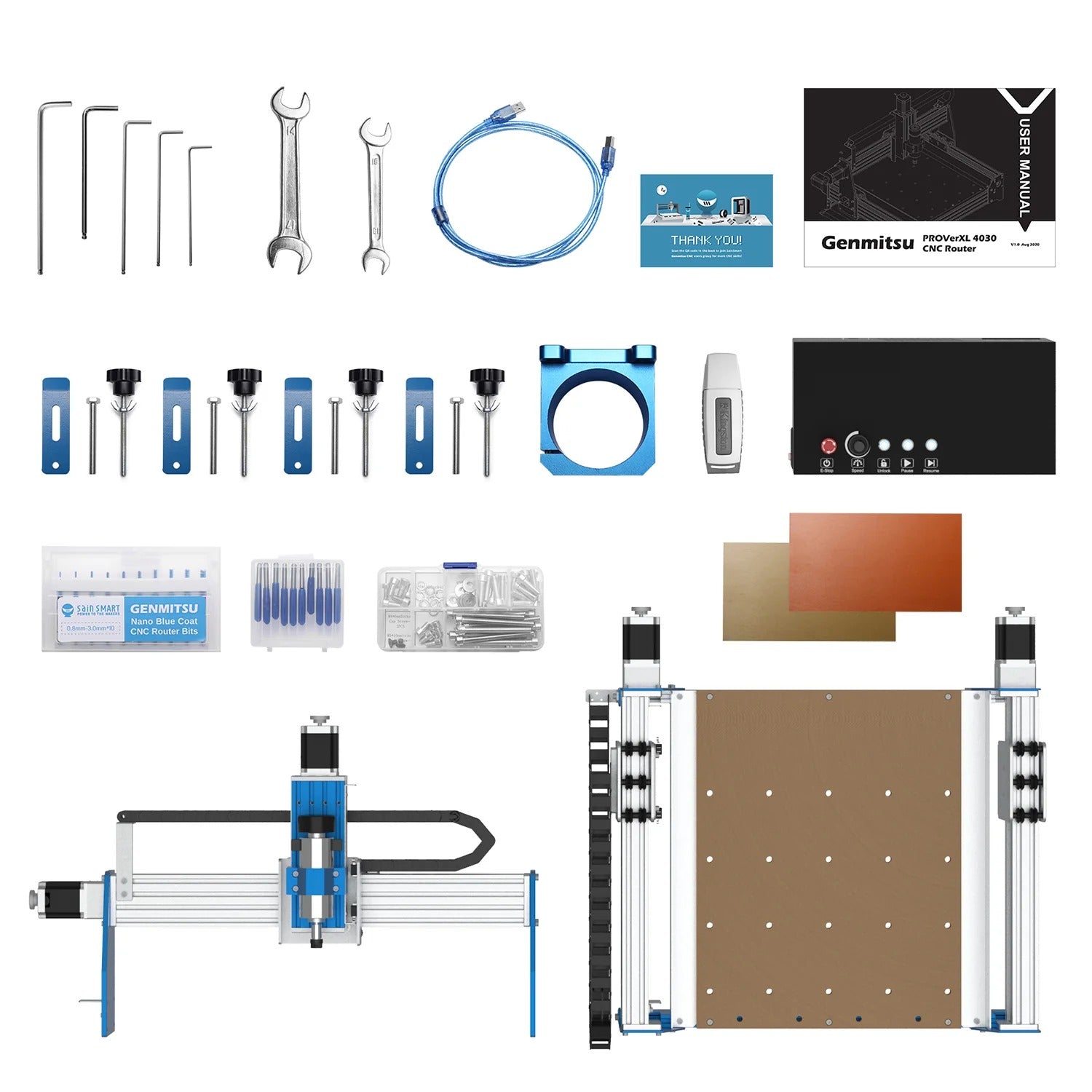

Genmitsu PROVerXL 4030 package contents including tools, clamps, bits, spindle holder, controller and spoilboard

A 300W, 12,000 RPM spindle comes pre-installed and handles most wood and plastic projects. For heavier cutting, the kit includes an aluminum DeWalt DWP611 mount, so upgrading to a 1.25 HP trim router is a bolt-on job rather than a custom fabrication.

Further upgrades are available as you grow: DM542 or closed-loop stepper motor sets, a rotary module, and laser modules of up to 15W for engraving.

Assemble the Pre-Built Modules in Under an Hour

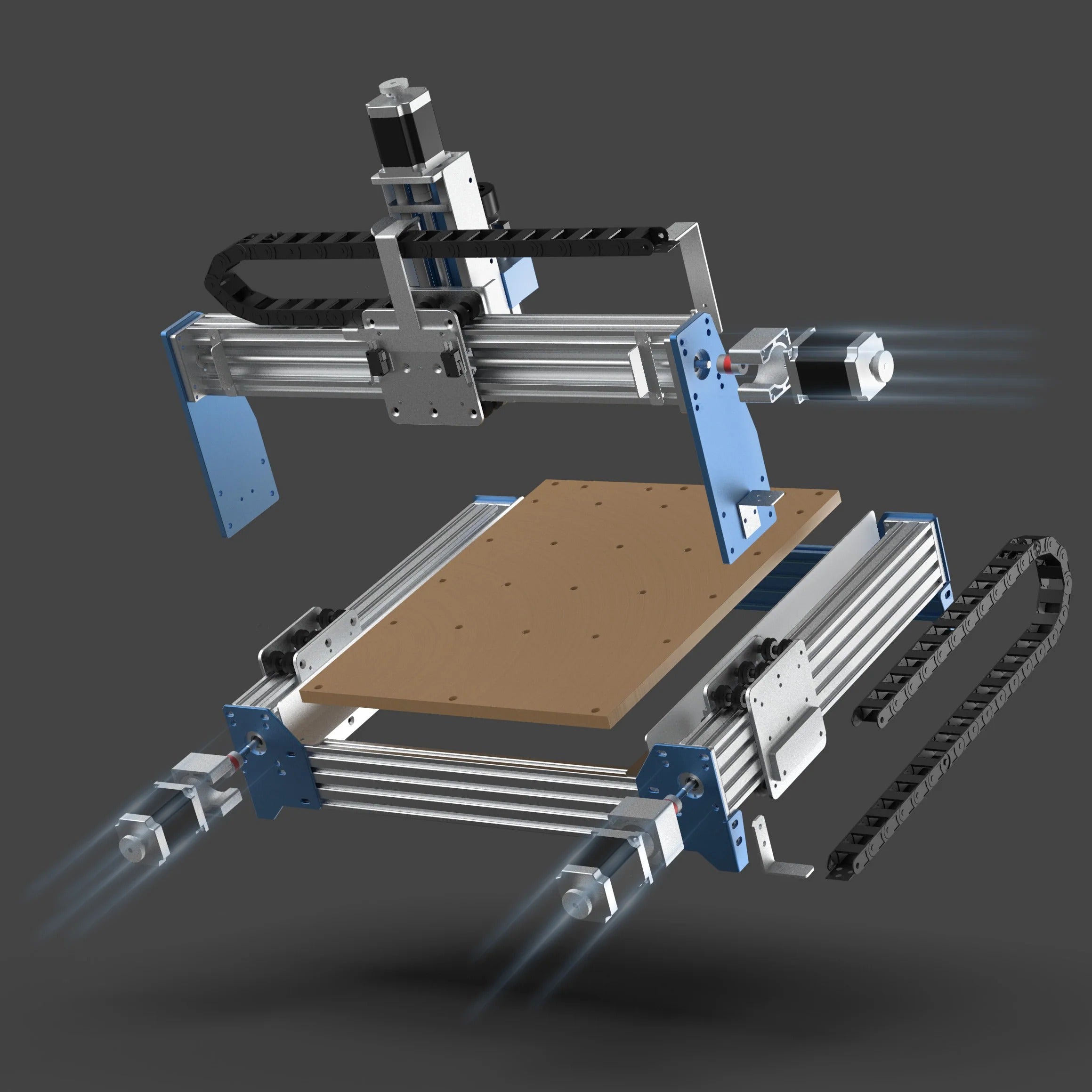

Genmitsu PROVerXL 4030 exploded view showing frame, spoilboard and motion components

The X, Y and Z axes and their wiring arrive as pre-assembled modules, so SainSmart quotes 30 to 45 minutes to build. The GRBL control box connects by USB to Candle or Universal G-code Sender on Windows or macOS.

Because it runs standard GRBL, the 4030 works with Carveco, Fusion, Easel and Vectric VCarve for design and toolpaths.

What's in the Box

  • Genmitsu PROVerXL 4030 CNC router (pre-assembled modules)
  • Pre-installed 300W spindle
  • Controller box and MDF spoilboard
  • Aluminum DeWalt DWP611 mount (router not included)
  • 10 Nano Blue Coat bits (1/8" shank, 0.8–3.0 mm) and 10 engraving bits (1/8" shank, 0.2 mm, 30°)
  • 4 clamps and a screw and nut accessory box
  • User manual

Specifications

Specification Details
Model Genmitsu PROVerXL 4030
Work Area 400 × 300 × 110 mm (15.8" × 11.8" × 4.3")

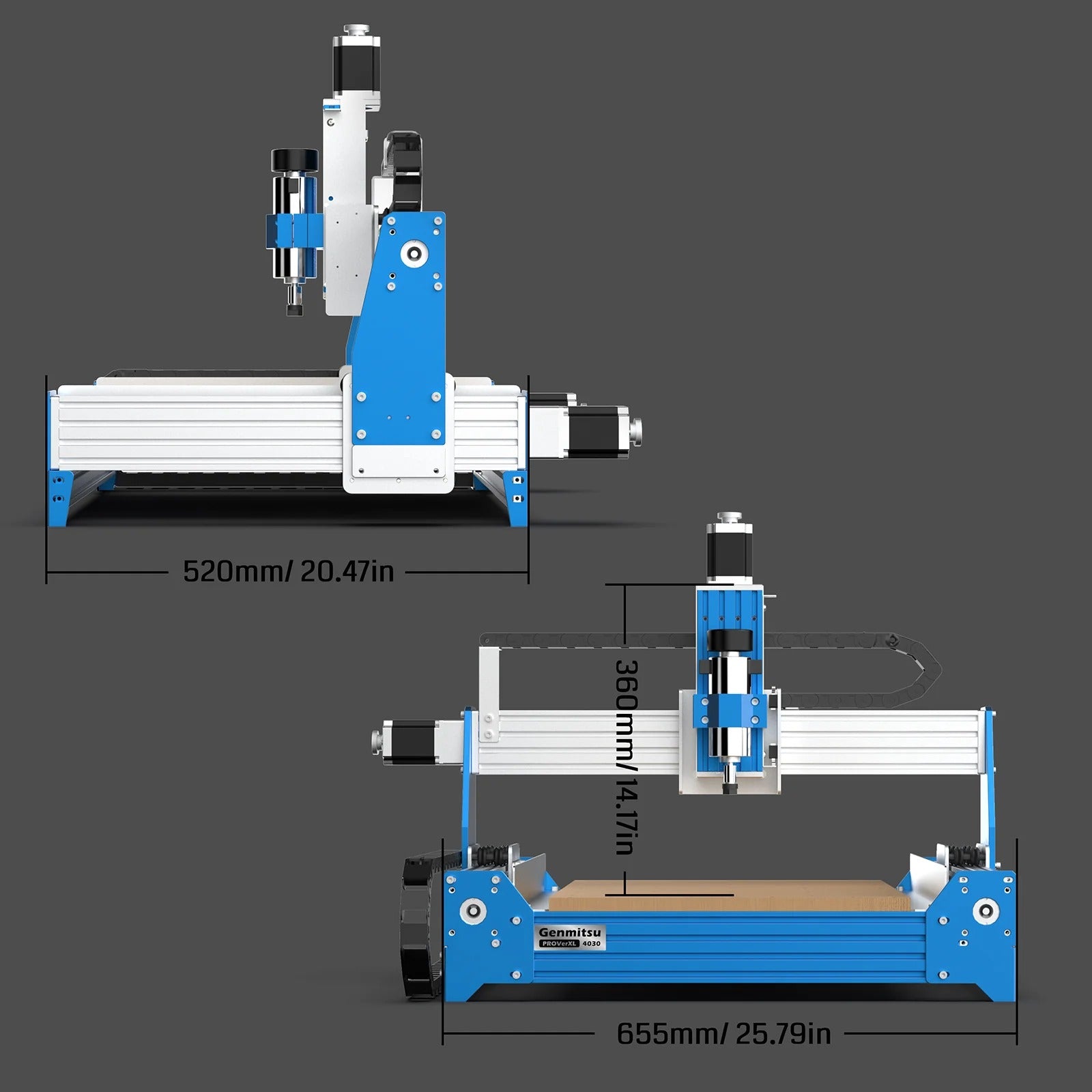

Overall Dimensions 776 × 641 × 580 mm (30.6" × 25.2" × 22.8")
Frame C-beam metal frame with MDF spoilboard
Drive System Lead screws; dual-screw Y-axis; Z-axis optical-axis drive
Stepper Motors NEMA 23, 57 mm, open-loop; TB6560 drivers
Max Speed 2,000 mm/min
Running Accuracy ≤ ±0.10 mm
Repositioning Accuracy ≤ ±0.10 mm
Spindle 300W DC (0–48V), 12,000 RPM, pre-installed; DeWalt DWP611 mount included (router not included)

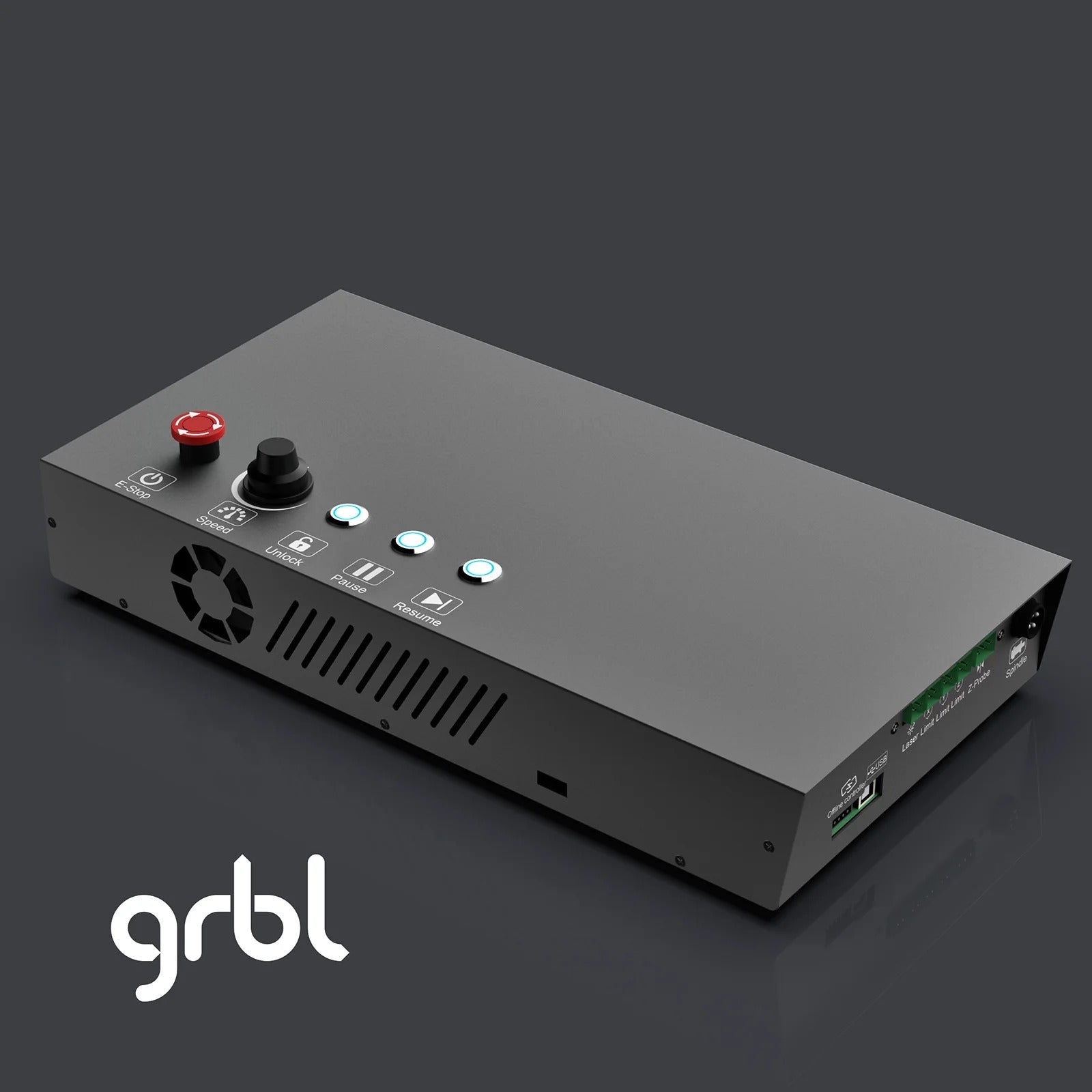

Controller GRBL 1.1h control box
Software GRBL-based software such as UGS and Candle
Power Supply 48V 7A and 24V 8A
Assembly Time 30–45 minutes
Expansion 6060 and 1010 extension kits, DM542 or closed-loop motor upgrades, rotary module, laser modules up to 15W
Warranty 1 Year (Genmitsu manufacturer warranty)

Warranty and support: the Genmitsu PROVerXL 4030 is covered by Genmitsu's 1-year manufacturer warranty, valid through The Maker's Chest, and every order includes our 75-day return window. Genmitsu is SainSmart's CNC brand.

PROVerXL 4030 vs. 4030 V2 vs. 6050 Plus

Attribute PROVerXL 4030 PROVerXL 4030 V2 PROVerXL 6050 Plus
Work Area 400 × 300 × 110 mm 400 × 300 × 110 mm 600 × 500 × 115 mm
Drive System Lead screws, C-beam frame 1204 ball screws Dual linear rails, lead screws
Stepper Motors NEMA 23 57 mm, open-loop NEMA 23 76 mm, closed-loop NEMA 23 3.1 N·m 100 mm, open-loop
Max Speed 2,000 mm/min 5,000 mm/min 2,000 mm/min
Running Accuracy ≤ ±0.10 mm Circular ≤ ±0.05 mm; rectangle ≤ ±0.02 mm ≤ ±0.05 mm
Included Spindle 300W, 12,000 RPM 400W max, 10,000 RPM 300W, 12,000 RPM
Spoilboard MDF Hybrid T-slot Hybrid T-slot
Assembly Time 30–45 min 25–30 min 25–30 min
Price (machine only) $649 $1,259 $1,599

Choose the PROVerXL 4030 if you want the lowest-cost way into a NEMA 23 benchtop CNC and plan to cut mostly wood and plastics.

Choose the 4030 V2 if the same 400 × 300 mm bed is enough but you want ball screws, closed-loop motors and 2.5× the rapid speed for cleaner, faster jobs.

Choose the 6050 Plus if your parts simply do not fit on a 400 × 300 mm bed and you want 2.5× the cutting area on linear rails.

The Maker's Chest Difference

  • ↩️ 75-day return window — assemble the Genmitsu PROVerXL 4030, run real cuts, and return it in like-new condition within 75 days if it is not the right machine for you.
  • 🇺🇸 US-based support you can call at 1-833-962-5377, before and after you buy, for setup, feeds-and-speeds and software questions.
  • 🔧 1-year Genmitsu warranty handled through us, so you have one point of contact if a part needs replacing.
  • 📐 Right-size advice — we will tell you whether the 4030 is enough or whether the ball-screw 4030 V2 is worth the extra for your projects.
  • 🔩 Upgrade path planning — which router, motor and extension upgrades make sense, and in what order.
  • 🏫 Experience equipping schools, universities and small businesses with CNC routers and lasers, including help planning a shop that runs both.

Frequently Asked Questions about the Genmitsu PROVerXL 4030

Q: What is the difference between the PROVerXL 4030 and the 4030 V2?
A: The 4030 uses lead screws, open-loop NEMA 23 motors and an MDF spoilboard, and runs at 2,000 mm/min with ±0.10 mm accuracy. The V2 adds ball screws, closed-loop motors, a hybrid T-slot table and 5,000 mm/min speed, for roughly double the price.


Q: What is the work area?
A: The work area is 400 × 300 × 110 mm (15.8" × 11.8" × 4.3"). The machine measures 776 × 641 × 580 mm.


Q: Can the PROVerXL 4030 cut aluminum?
A: Yes, with light passes. SainSmart lists aluminum among its materials, and fitting a DeWalt DWP611 router in the included mount makes metal cutting more practical.


Q: Can I upgrade the spindle?
A: Yes. An aluminum DeWalt DWP611 mount is included (the router is not), and motor, rotary and laser upgrades are available.


Q: Can I make the bed bigger?
A: Yes. The 6060 and 1010 extension kits enlarge the work area to 600 × 600 mm or 1000 × 1000 mm.


Q: How long does assembly take?
A: SainSmart quotes 30 to 45 minutes; the axes arrive pre-assembled.


Q: Is the warranty valid when I buy the Genmitsu PROVerXL 4030 from The Maker's Chest?
A: Yes. The Genmitsu PROVerXL 4030 carries Genmitsu's 1-year manufacturer warranty on the machine when purchased from The Maker's Chest, and we handle the claim with you rather than sending you to start from scratch with the factory.


Q: Can I return the Genmitsu PROVerXL 4030?
A: Yes. Every Genmitsu PROVerXL 4030 from The Maker's Chest includes our 75-day return window for machines returned complete and in like-new condition.


Q: Why buy the Genmitsu PROVerXL 4030 from The Maker's Chest instead of direct?
A: You get the same Genmitsu machine and warranty, plus a 75-day return window, a US-based team you can call, and advice from people who sell several sizes of Genmitsu CNC and can tell you honestly which one fits your work.

Specifications
Genmitsu PROVerXL 4030 Specifications:
Specification Details
Model Genmitsu PROVerXL 4030
Work Area 400 × 300 × 110 mm (15.8" × 11.8" × 4.3")
Overall Dimensions 776 × 641 × 580 mm (30.6" × 25.2" × 22.8")
Frame C-beam metal frame with MDF spoilboard
Drive System Lead screws; dual-screw Y-axis; Z-axis optical-axis drive
Stepper Motors NEMA 23, 57 mm, open-loop; TB6560 drivers
Max Speed 2,000 mm/min
Running Accuracy ≤ ±0.10 mm
Repositioning Accuracy ≤ ±0.10 mm
Spindle 300W DC (0–48V), 12,000 RPM, pre-installed; DeWalt DWP611 mount included (router not included)
Controller GRBL 1.1h control box
Software GRBL-based software such as UGS and Candle
Power Supply 48V 7A and 24V 8A
Assembly Time 30–45 minutes
Expansion 6060 and 1010 extension kits, DM542 or closed-loop motor upgrades, rotary module, laser modules up to 15W
Warranty 1 Year (Genmitsu manufacturer warranty)
Warranty & Manuals
Genmitsu PROVerXL 4030 Warranty and Manuals:
  • The Genmitsu PROVerXL 4030 carries Genmitsu's 1-year manufacturer warranty on the machine (consumables such as bits, collets and spoilboards excluded), valid when you buy through The Maker's Chest.
  • Every Genmitsu PROVerXL 4030 bought from The Maker's Chest includes our 75-day return window.
  • Dedicated US-based support from The Maker's Chest, plus Genmitsu's engineering team and resource library for firmware and parts.

Download the Genmitsu PROVerXL 4030 User Manual (PDF)

Shipping

We offer FREE Shipping* throughout the 48 contiguous United States! Yes, no hidden costs at checkout!

*This is with the exception of the following brands of products at the moment, on which we DO have to charge shipping:

  • BOFA Fume Extractor and Replacement Filters
  • Carbide 3D CNC Routers
  • Crio DTF Printers
  • Filtrabox Fume Extractors and Replacement Filters
  • FumeDog Fume Extractors
  • GravoTech Laser Engravers
  • Maxce IndexX Laser Marking Production Table
  • OneLaser XRF, Hydra, Cobra Series
  • PiBurn Laser Rotary Accessories
  • Sunstone Welders and Accessories
  • THEO Laser Welders
  • HantenCNC Laser Cleaners

Summary

  • Order cutoff: 5pm PST
  • Order handling: 1-3 days
  • Order transit: 3-7 days
  • Free shipping to the contiguous United States

Order Confirmation & Dispatch
As soon as you place an order with us you'll receive an order confirmation email, and we'll get working to have your order dispatched as soon as we can.

Typically, we'll dispatch your order within 1 business day, however this can vary depending on the product and our warehouses, so please allow up to 3 business days.

Once your order has dispatched from our warehouse, you'll receive shipping confirmation within 24 hours of your order leaving our warehouse.

General Delivery Timeframes
Delivery timeframes will vary dependent on your location and the items you've ordered.

In general, these are the delivery timeframes you can expect:

  • 1-7 Business Days - Delivery within the contiguous United States

The above is intended to be used as a guide, and may not apply in all cases. Some products may have specific 'Delivery Timeframe' information, which can be found on its own tab, or on the main 'Description' tab of the product.

Home Delivery (Bulky Items)

  • This service is generally for products over 40kg in weight, as it is a requirement for these products to be palletised for delivery.
  • This service utilises power tailgates with two-man crews or crane trucks when required and this is included in the quoted price.
  • The receiver will be contacted prior to delivery to arrange a suitable delivery date and time. Deliveries are scheduled for either an AM or PM slot on any given day.
  • Delivery is to front car port, driveway, doorstep or wherever practical depending upon site access. Drivers are not permitted to move item(s) within the residence or around the property due to OHS reasons.
  • This service assumes reasonable and safe access to the site is available. Overhanging trees, steep driveways, unsealed driveways, narrow driveways or streets or an unforeseen obstruction may deem the delivery unavailable.
  • If your delivery address is in a regional or remote location, we recommend shipping to the nearest depot as the most affordable option.

Other Terms & Conditions

If you happen to miss the delivery, you will be required to pick up your item(s) from the freight company's depot. Re-delivery can be arranged to your home, however this will incur extra costs.

We can't advise on the exact time and day the delivery will occur as this is not within our control, however you will be emailed the tracking details where you will be able to contact the freight company for more accurate timeframes.

It is your responsibility to advise us if:

  • someone will be available to sign for delivery.
  • there's somewhere safe the item can be left if no one will be home.
  • if the address is a business address, as we will require the business hours of the business and name of the building.
  • you notice any damage. If so, you should make note of it when signing for delivery or do not agree to accept the delivery. If you do accept delivery you are required to immediately take photos using your smart phone or camera of the damaged packaging or products inside the packaging. If your item(s) do arrived damaged please send photos to support@themakerschest.com, then visit our returns page and lodge your return claim online.

Trusted by Businesses, Cities, Colleges & Schools

Novo Nordisk logo with a stylized zebra on a white background
Georgia Tech logo with 'GT' in gold and 'Georgia Tech' in blue on a white background
Penn State logo with a blue shield and white panther on a white background
University of Wisconsin Madison Laser Cutter Customer
Brandeis University logo
MiraCosta College logo with blue, green, and gray design elements.
Carrollton Public Library logo with a colorful circular design on a white background
U.S. Naval Research Laboratory logo on a white background
Minnesota national guard
City of Pembroke Pines Laser Cutter Customer
Howmet Aerospace logo with a blue and black design on a white background
Aerospace customer logo
Shadow Systems laser customer
Genuity logo with a teal and gray design on a white background
Bravehawk Forge logo with an eagle holding a sword on a white background
Frostwork Laser Engraving Customer
Yakima Training Centre Firing Department logo
Skip the AI. Call an Expert. Skip the AI. Call an Expert.
Description

Get NEMA 23 Power and a 400 × 300 mm Bed for $649

The PROVerXL 4030 pairs a rigid C-beam frame and NEMA 23 motors with a pre-installed 300W spindle and a mount ready for a DeWalt router upgrade.

 

Entry-level 3018 CNCs teach you the basics, then stall the moment you try a real cut: small NEMA 17 motors, a tiny spindle and a bed the size of a sheet of paper. The PROVerXL 4030 is the step up, with NEMA 23 stepper motors, a 400 × 300 mm bed and a frame stiff enough for hardwood and light aluminum.

With 150 owner reviews averaging 4.7 stars on SainSmart's store, it is a well-proven benchtop CNC, and at $649 it is the lowest-priced NEMA 23 Genmitsu we sell.

Genmitsu PROVerXL 4030 key metrics at a glance

Genmitsu PROVerXL 4030 key performance figures

Move Past the 3018 With a Bed Big Enough for Real Projects

Genmitsu PROVerXL 4030 400 × 300 × 110 mm effective working area

The 400 × 300 × 110 mm work area is more than twice the cutting area of a 3018-class machine. It fits cutting boards, house numbers, small signs, guitar parts and molds, and 110 mm of Z travel handles thick slabs.

When you outgrow it, the same machine grows with you: 6060 and 1010 extension kits enlarge the bed to 600 × 600 mm or 1000 × 1000 mm without buying a new CNC.

Cut Hardwood and Aluminum on a Rigid C-Beam Frame

Genmitsu PROVerXL 4030 rigid aluminum frame and spoilboard, left side view

The 4030 is built on C-beam extrusions with a dual-screw Y-axis and an optical-axis Z drive, which SainSmart designed to be more stable than the V-slot wheels most budget machines use. That rigidity is what lets it cut wood, MDF, plastics, foam, vinyl and aluminum.

Rated running and repositioning accuracy is ±0.10 mm, which is ample for signs, V-carving, pockets and profile cuts in hardwood and plywood.

Drive Bigger Cuts With NEMA 23 Motors

Genmitsu PROVerXL 4030 NEMA23 stepper motor with manual jog wheel

NEMA 23 stepper motors on all three axes deliver substantially more torque than the NEMA 17 motors on smaller hobby machines, so the 4030 can push a bit through deeper passes in hardwood without stalling.

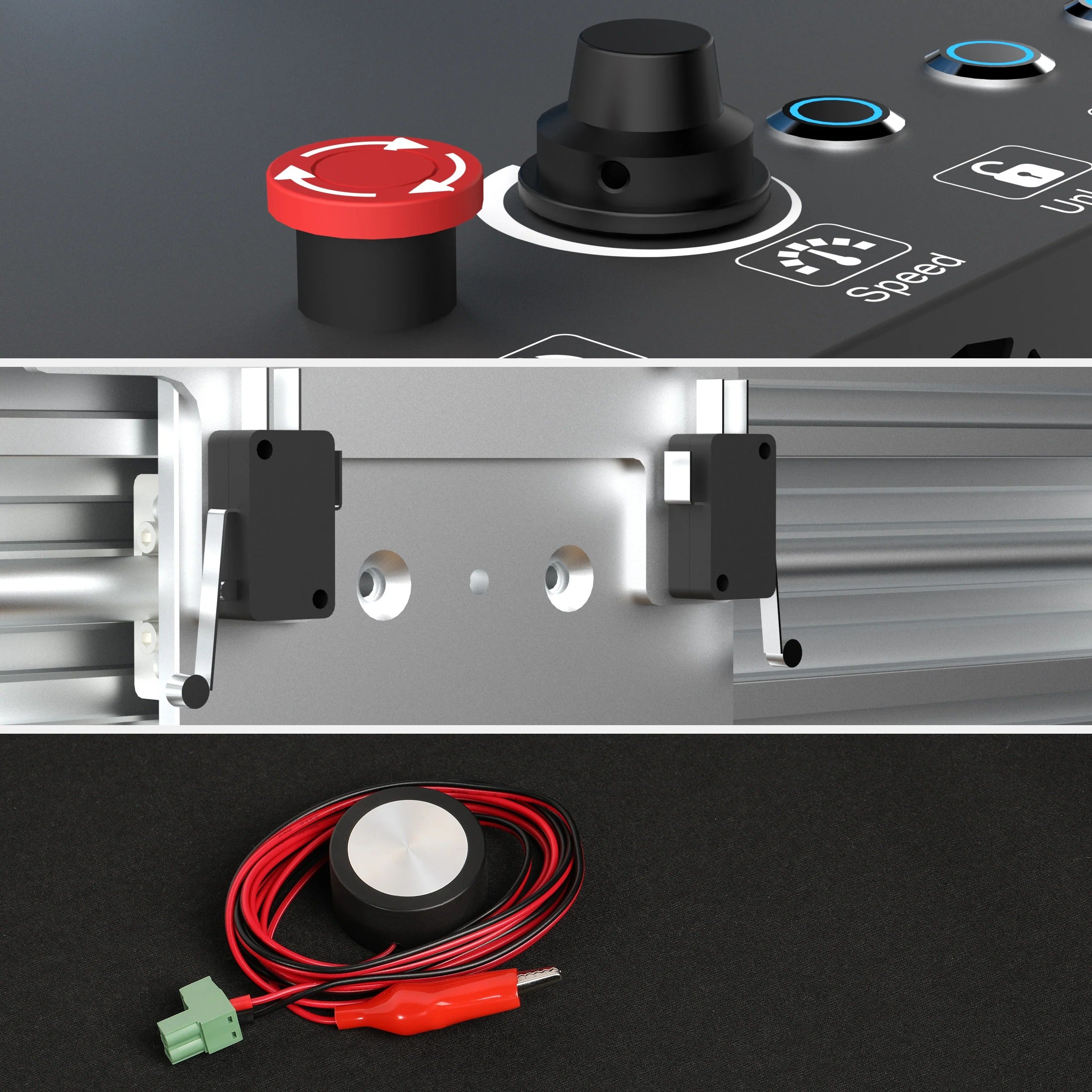

Manual jog wheels let you fine-position the axes by hand, and the GRBL control box includes limit switches, an emergency stop, speed control and a Z-probe.

Start With the 300W Spindle, Then Drop In a DeWalt Router

Genmitsu PROVerXL 4030 package contents including tools, clamps, bits, spindle holder, controller and spoilboard

A 300W, 12,000 RPM spindle comes pre-installed and handles most wood and plastic projects. For heavier cutting, the kit includes an aluminum DeWalt DWP611 mount, so upgrading to a 1.25 HP trim router is a bolt-on job rather than a custom fabrication.

Further upgrades are available as you grow: DM542 or closed-loop stepper motor sets, a rotary module, and laser modules of up to 15W for engraving.

Assemble the Pre-Built Modules in Under an Hour

Genmitsu PROVerXL 4030 exploded view showing frame, spoilboard and motion components

The X, Y and Z axes and their wiring arrive as pre-assembled modules, so SainSmart quotes 30 to 45 minutes to build. The GRBL control box connects by USB to Candle or Universal G-code Sender on Windows or macOS.

Because it runs standard GRBL, the 4030 works with Carveco, Fusion, Easel and Vectric VCarve for design and toolpaths.

What's in the Box

  • Genmitsu PROVerXL 4030 CNC router (pre-assembled modules)
  • Pre-installed 300W spindle
  • Controller box and MDF spoilboard
  • Aluminum DeWalt DWP611 mount (router not included)
  • 10 Nano Blue Coat bits (1/8" shank, 0.8–3.0 mm) and 10 engraving bits (1/8" shank, 0.2 mm, 30°)
  • 4 clamps and a screw and nut accessory box
  • User manual

Specifications

Specification Details
Model Genmitsu PROVerXL 4030
Work Area 400 × 300 × 110 mm (15.8" × 11.8" × 4.3")
Overall Dimensions 776 × 641 × 580 mm (30.6" × 25.2" × 22.8")
Frame C-beam metal frame with MDF spoilboard
Drive System Lead screws; dual-screw Y-axis; Z-axis optical-axis drive
Stepper Motors NEMA 23, 57 mm, open-loop; TB6560 drivers
Max Speed 2,000 mm/min
Running Accuracy ≤ ±0.10 mm
Repositioning Accuracy ≤ ±0.10 mm
Spindle 300W DC (0–48V), 12,000 RPM, pre-installed; DeWalt DWP611 mount included (router not included)
Controller GRBL 1.1h control box
Software GRBL-based software such as UGS and Candle
Power Supply 48V 7A and 24V 8A
Assembly Time 30–45 minutes
Expansion 6060 and 1010 extension kits, DM542 or closed-loop motor upgrades, rotary module, laser modules up to 15W
Warranty 1 Year (Genmitsu manufacturer warranty)

Warranty and support: the Genmitsu PROVerXL 4030 is covered by Genmitsu's 1-year manufacturer warranty, valid through The Maker's Chest, and every order includes our 75-day return window. Genmitsu is SainSmart's CNC brand.

PROVerXL 4030 vs. 4030 V2 vs. 6050 Plus

Attribute PROVerXL 4030 PROVerXL 4030 V2 PROVerXL 6050 Plus
Work Area 400 × 300 × 110 mm 400 × 300 × 110 mm 600 × 500 × 115 mm
Drive System Lead screws, C-beam frame 1204 ball screws Dual linear rails, lead screws
Stepper Motors NEMA 23 57 mm, open-loop NEMA 23 76 mm, closed-loop NEMA 23 3.1 N·m 100 mm, open-loop
Max Speed 2,000 mm/min 5,000 mm/min 2,000 mm/min
Running Accuracy ≤ ±0.10 mm Circular ≤ ±0.05 mm; rectangle ≤ ±0.02 mm ≤ ±0.05 mm
Included Spindle 300W, 12,000 RPM 400W max, 10,000 RPM 300W, 12,000 RPM
Spoilboard MDF Hybrid T-slot Hybrid T-slot
Assembly Time 30–45 min 25–30 min 25–30 min
Price (machine only) $649 $1,259 $1,599

Choose the PROVerXL 4030 if you want the lowest-cost way into a NEMA 23 benchtop CNC and plan to cut mostly wood and plastics.

Choose the 4030 V2 if the same 400 × 300 mm bed is enough but you want ball screws, closed-loop motors and 2.5× the rapid speed for cleaner, faster jobs.

Choose the 6050 Plus if your parts simply do not fit on a 400 × 300 mm bed and you want 2.5× the cutting area on linear rails.

The Maker's Chest Difference

  • ↩️ 75-day return window — assemble the Genmitsu PROVerXL 4030, run real cuts, and return it in like-new condition within 75 days if it is not the right machine for you.
  • 🇺🇸 US-based support you can call at 1-833-962-5377, before and after you buy, for setup, feeds-and-speeds and software questions.
  • 🔧 1-year Genmitsu warranty handled through us, so you have one point of contact if a part needs replacing.
  • 📐 Right-size advice — we will tell you whether the 4030 is enough or whether the ball-screw 4030 V2 is worth the extra for your projects.
  • 🔩 Upgrade path planning — which router, motor and extension upgrades make sense, and in what order.
  • 🏫 Experience equipping schools, universities and small businesses with CNC routers and lasers, including help planning a shop that runs both.

Frequently Asked Questions about the Genmitsu PROVerXL 4030

Q: What is the difference between the PROVerXL 4030 and the 4030 V2?
A: The 4030 uses lead screws, open-loop NEMA 23 motors and an MDF spoilboard, and runs at 2,000 mm/min with ±0.10 mm accuracy. The V2 adds ball screws, closed-loop motors, a hybrid T-slot table and 5,000 mm/min speed, for roughly double the price.


Q: What is the work area?
A: The work area is 400 × 300 × 110 mm (15.8" × 11.8" × 4.3"). The machine measures 776 × 641 × 580 mm.


Q: Can the PROVerXL 4030 cut aluminum?
A: Yes, with light passes. SainSmart lists aluminum among its materials, and fitting a DeWalt DWP611 router in the included mount makes metal cutting more practical.


Q: Can I upgrade the spindle?
A: Yes. An aluminum DeWalt DWP611 mount is included (the router is not), and motor, rotary and laser upgrades are available.


Q: Can I make the bed bigger?
A: Yes. The 6060 and 1010 extension kits enlarge the work area to 600 × 600 mm or 1000 × 1000 mm.


Q: How long does assembly take?
A: SainSmart quotes 30 to 45 minutes; the axes arrive pre-assembled.


Q: Is the warranty valid when I buy the Genmitsu PROVerXL 4030 from The Maker's Chest?
A: Yes. The Genmitsu PROVerXL 4030 carries Genmitsu's 1-year manufacturer warranty on the machine when purchased from The Maker's Chest, and we handle the claim with you rather than sending you to start from scratch with the factory.


Q: Can I return the Genmitsu PROVerXL 4030?
A: Yes. Every Genmitsu PROVerXL 4030 from The Maker's Chest includes our 75-day return window for machines returned complete and in like-new condition.


Q: Why buy the Genmitsu PROVerXL 4030 from The Maker's Chest instead of direct?
A: You get the same Genmitsu machine and warranty, plus a 75-day return window, a US-based team you can call, and advice from people who sell several sizes of Genmitsu CNC and can tell you honestly which one fits your work.

Specifications
Genmitsu PROVerXL 4030 Specifications:
Specification Details
Model Genmitsu PROVerXL 4030
Work Area 400 × 300 × 110 mm (15.8" × 11.8" × 4.3")
Overall Dimensions 776 × 641 × 580 mm (30.6" × 25.2" × 22.8")
Frame C-beam metal frame with MDF spoilboard
Drive System Lead screws; dual-screw Y-axis; Z-axis optical-axis drive
Stepper Motors NEMA 23, 57 mm, open-loop; TB6560 drivers
Max Speed 2,000 mm/min
Running Accuracy ≤ ±0.10 mm
Repositioning Accuracy ≤ ±0.10 mm
Spindle 300W DC (0–48V), 12,000 RPM, pre-installed; DeWalt DWP611 mount included (router not included)
Controller GRBL 1.1h control box
Software GRBL-based software such as UGS and Candle
Power Supply 48V 7A and 24V 8A
Assembly Time 30–45 minutes
Expansion 6060 and 1010 extension kits, DM542 or closed-loop motor upgrades, rotary module, laser modules up to 15W
Warranty 1 Year (Genmitsu manufacturer warranty)
Warranty & Manuals
Genmitsu PROVerXL 4030 Warranty and Manuals:
  • The Genmitsu PROVerXL 4030 carries Genmitsu's 1-year manufacturer warranty on the machine (consumables such as bits, collets and spoilboards excluded), valid when you buy through The Maker's Chest.
  • Every Genmitsu PROVerXL 4030 bought from The Maker's Chest includes our 75-day return window.
  • Dedicated US-based support from The Maker's Chest, plus Genmitsu's engineering team and resource library for firmware and parts.

Download the Genmitsu PROVerXL 4030 User Manual (PDF)

Shipping

We offer FREE Shipping* throughout the 48 contiguous United States! Yes, no hidden costs at checkout!

*This is with the exception of the following brands of products at the moment, on which we DO have to charge shipping:

  • BOFA Fume Extractor and Replacement Filters
  • Carbide 3D CNC Routers
  • Crio DTF Printers
  • Filtrabox Fume Extractors and Replacement Filters
  • FumeDog Fume Extractors
  • GravoTech Laser Engravers
  • Maxce IndexX Laser Marking Production Table
  • OneLaser XRF, Hydra, Cobra Series
  • PiBurn Laser Rotary Accessories
  • Sunstone Welders and Accessories
  • THEO Laser Welders
  • HantenCNC Laser Cleaners

Summary

  • Order cutoff: 5pm PST
  • Order handling: 1-3 days
  • Order transit: 3-7 days
  • Free shipping to the contiguous United States

Order Confirmation & Dispatch
As soon as you place an order with us you'll receive an order confirmation email, and we'll get working to have your order dispatched as soon as we can.

Typically, we'll dispatch your order within 1 business day, however this can vary depending on the product and our warehouses, so please allow up to 3 business days.

Once your order has dispatched from our warehouse, you'll receive shipping confirmation within 24 hours of your order leaving our warehouse.

General Delivery Timeframes
Delivery timeframes will vary dependent on your location and the items you've ordered.

In general, these are the delivery timeframes you can expect:

  • 1-7 Business Days - Delivery within the contiguous United States

The above is intended to be used as a guide, and may not apply in all cases. Some products may have specific 'Delivery Timeframe' information, which can be found on its own tab, or on the main 'Description' tab of the product.

Home Delivery (Bulky Items)

  • This service is generally for products over 40kg in weight, as it is a requirement for these products to be palletised for delivery.
  • This service utilises power tailgates with two-man crews or crane trucks when required and this is included in the quoted price.
  • The receiver will be contacted prior to delivery to arrange a suitable delivery date and time. Deliveries are scheduled for either an AM or PM slot on any given day.
  • Delivery is to front car port, driveway, doorstep or wherever practical depending upon site access. Drivers are not permitted to move item(s) within the residence or around the property due to OHS reasons.
  • This service assumes reasonable and safe access to the site is available. Overhanging trees, steep driveways, unsealed driveways, narrow driveways or streets or an unforeseen obstruction may deem the delivery unavailable.
  • If your delivery address is in a regional or remote location, we recommend shipping to the nearest depot as the most affordable option.

Other Terms & Conditions

If you happen to miss the delivery, you will be required to pick up your item(s) from the freight company's depot. Re-delivery can be arranged to your home, however this will incur extra costs.

We can't advise on the exact time and day the delivery will occur as this is not within our control, however you will be emailed the tracking details where you will be able to contact the freight company for more accurate timeframes.

It is your responsibility to advise us if:

  • someone will be available to sign for delivery.
  • there's somewhere safe the item can be left if no one will be home.
  • if the address is a business address, as we will require the business hours of the business and name of the building.
  • you notice any damage. If so, you should make note of it when signing for delivery or do not agree to accept the delivery. If you do accept delivery you are required to immediately take photos using your smart phone or camera of the damaged packaging or products inside the packaging. If your item(s) do arrived damaged please send photos to support@themakerschest.com, then visit our returns page and lodge your return claim online.
