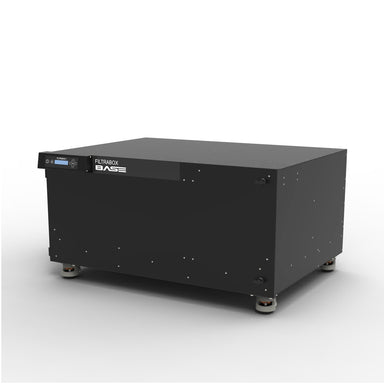

Filtrabox Laser Fume Extractors

A laser fume extractor works by creating negative pressure that draws smoke and particulates through the cutting chamber and into a filtration or exhaust duct before they can spread into the workspace. Most units combine a multi-stage filter — typically a pre-filter for large particulates, a HEPA stage for fine particles, and an activated carbon stage for odors and VOCs — with a fan rated in CFM (cubic feet per minute) that determines how quickly air moves through the chamber. The negative pressure is what keeps smoke contained, pulling air inward through any gaps rather than letting fumes drift out into the room. Underpowered units can still let smoke escape if the CFM doesn't match the enclosure size.

Even with an outside vent, a dedicated fume extractor still matters because any gap in the airflow path lets fumes escape into the room, and Filtrabox units are built so the entire enclosure stays sealed under negative pressure to prevent that leakage. A simple vent hose relies on the fan pulling harder than air can leak back in through door seams, cable ports, or an imperfect duct connection — gaps that are common on hobbyist enclosures and get worse over time as seals wear. Sealed negative pressure closes off those escape routes rather than just hoping the airflow wins the race. This matters most for materials like MDF, PVC, or resin-coated wood that release irritating or harmful fumes even in small amounts.

Fume extractor sizing is based on the volume of your laser's enclosure and how much airflow it needs per minute, so matching the extractor's CFM rating to your machine's chamber size is the key spec to check before buying. As a rule of thumb, the extractor should be able to fully exchange the air in the enclosure multiple times per minute — most desktop laser setups need somewhere in the 200-550 CFM range depending on chamber size and ducting length, since longer duct runs create more resistance and reduce effective airflow. Undersized units are the most common mistake buyers make, leaving lingering smoke smell even when the extractor is technically running. When in doubt, rounding up to the next CFM tier is generally the safer choice.
