The Handheld Laser Welder That Goes Where Traditional Fabrication Stops.
The THEO MA1-65 is a 1,500W handheld fiber laser welder capable of reaching 6.5mm weld depth on stainless steel, carbon steel, and galvanized sheet — in a portable, air-cooled cabinet that trains new operators in under an hour and ships complete with wire feeder, wobble welding, and everything needed to start from day one.
For fabrication shops that need professional-grade laser welding on heavier material without a water chiller, this is the machine.
The MA1-65 Is Not Just a Bigger MA1-35
There's a common assumption when looking at a product line that the mid-tier and top-tier models are essentially the same machine with a bigger number attached. The jump from the MA1-35 (800W / 3.5mm) to the MA1-65 (1,500W / 6.5mm) is more significant than that.
Power roughly doubles. Weld depth nearly doubles. But the meaningful difference isn't just about thickness — it's about what happens at materials that are near the ceiling of a lower-powered machine.
When a laser welder is working close to its rated maximum depth, it's operating at or near full power continuously. Travel speed drops. Heat input increases. The operator has less margin for variation in fit-up, surface condition, and technique. Pushing an 800W machine at 3.5mm is a different experience than running a 1,500W machine at 3.5mm — the higher-powered machine runs the same material faster, cooler, and with more operator headroom.
For shops regularly working between 3mm and 6.5mm — structural brackets, heavier stainless enclosures, frames, pipe flanges, aluminum extrusions — the MA1-65 handles the full range with power to spare, rather than operating near its limits.
1,500W Through a 20μm Fiber Core
The MA1-65 shares the same proprietary technology advantage as every model in the THEO MA1 series: a 20μm single-mode fiber core that concentrates laser energy into a smaller spot than any standard handheld laser welder on the market. The result is higher energy density per watt — which at 1,500W means:
Deep single-pass penetration to 6.5mm on stainless and carbon steel without preheating or multiple passes
5.5mm on aluminum — a thermally challenging material that benefits significantly from the MA1's energy density advantage over competing machines at equivalent wattage
Minimal heat-affected zone — distortion and burn-through risk stay controlled even at the full rated depth
Fast travel speeds — covering long welds and production runs without the pace limitations of TIG
The 14μm laser spot size at the torch nozzle translates the fiber core advantage into physical weld quality: tight, deep fusion with clean sidewall tie-in and consistent bead geometry run to run.
Front-Facing 7" Touchscreen. 32 Factory Presets.

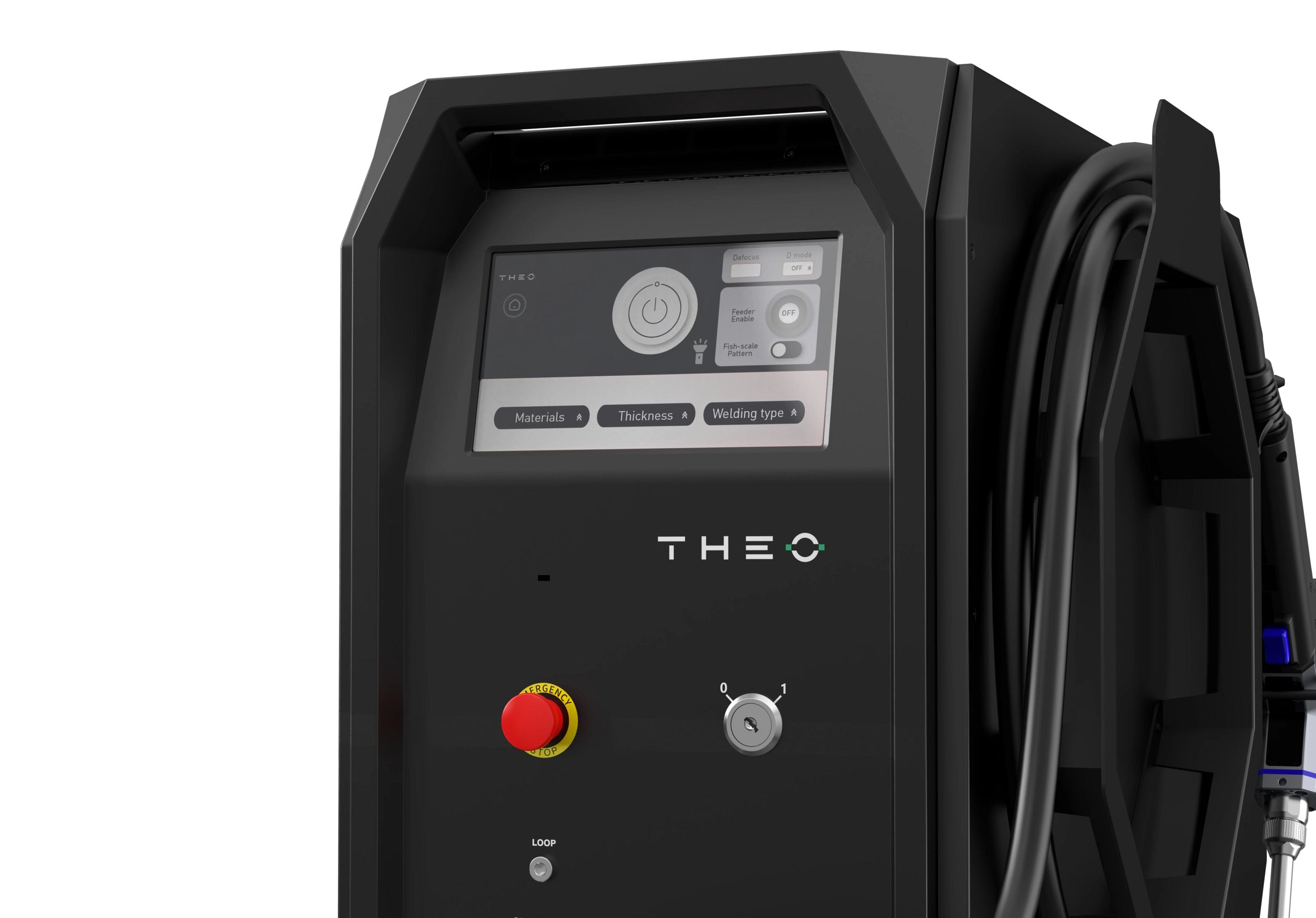

The MA1-65 uses a front-facing 7" LED touchscreen — positioned at eye level for easy access across welding positions, including overhead and vertical work where a top-mounted screen creates an ergonomic interruption.
The interface stores 32 factory preset programs calibrated for common materials and thicknesses. Select the correct preset for your joint and material, verify parameters, and begin welding. For shops running consistent production jobs, presets eliminate the parameter-setting step entirely between runs. Advanced operators can store 32 additional custom programs for specific jobs or material grades and recall them by name.
The system supports multiple languages, making it practical in mixed-language production environments without requiring translation support for operation.
Wobble Welding and Wire Feeder — Standard, Not Optional
Two features that directly expand what the machine can do ship in the box with every MA1-65.
Wobble Welding: The torch oscillates the laser beam laterally across the joint, widening the bead from the native 14μm spot to up to 4mm (0.16") in a single pass. At 1,500W, the wobble function is particularly effective for structural fillet welds and lap joints where a wider bead improves penetration into both faces of the joint. It also increases tolerance for imperfect fit-up — critical on heavier fabrications where perfect gap consistency is harder to maintain.
T1 Wire Feeder Included: Four wire feed nozzle diameters — 0.8mm, 1.0mm, 1.2mm, and 1.6mm — are all included. The feeder enables gap-bridging, buildup passes, root filling, and dissimilar thickness welding that autogenous laser welding cannot handle. For structural applications where joint geometry varies or gap control is imperfect, the wire feeder turns situations that would require rework into clean, first-pass joints.
Air-Cooled at 1,500 Watts. No Chiller, No Compromise.
At 1,500W of laser output, water cooling is standard on most competing industrial systems — adding a separate chiller unit, plumbing infrastructure, algae management, freeze risk, and ongoing maintenance to the operational burden of running the machine.
The MA1-65 uses phase-change air cooling that handles the full 1,500W output without any water circuit. Roll it to the job, plug into a 220V / 32A circuit, and it's operational. No chiller commissioning, no water lines, no freeze protocols for cold facilities.
At 86 lbs. (39 kg) on caster wheels, it's one person-portable within the shop. The 18 ft. optical cable from unit to torch gives the operator broad freedom around large assemblies and fixtures. The laser source carries an expected service life of up to 10 years.
Certified to Industrial Safety Standards
The MA1-65 carries full industrial safety certification: CE, FDA, ETL, ISO, and EN, with a PL-d safety rating per ISO 13849-1 — the performance level required for machinery in applications where a safety system failure could cause serious injury.

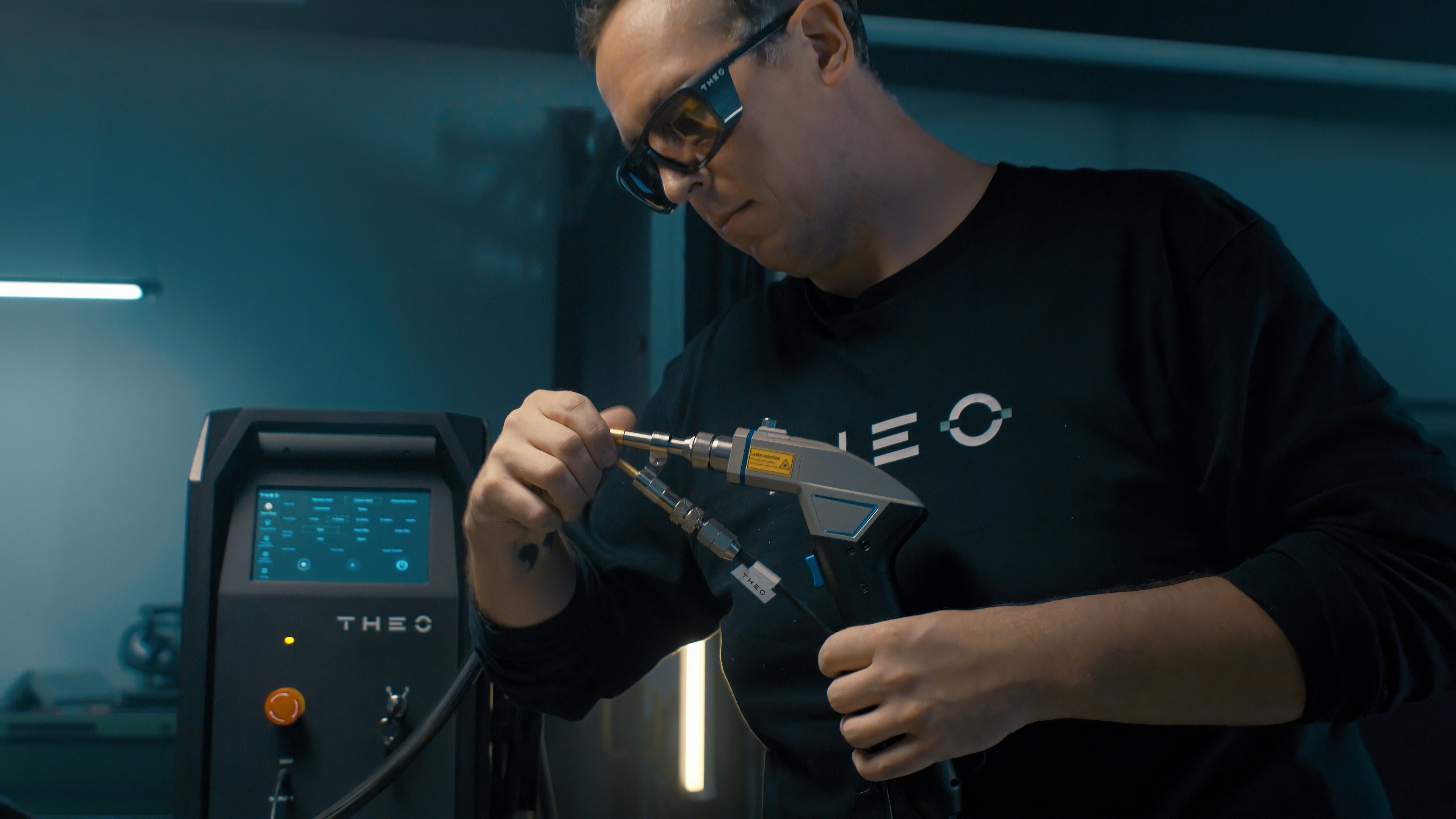

The torch's dual-interlock contact sensor physically prevents the laser from firing unless both the trigger is held and the nozzle is in contact with the workpiece simultaneously. Accidental activation is impossible. This design is especially important at 1,500W — where uncontrolled beam exposure carries significantly greater risk than lower-power systems.
Three pairs of laser safety glasses are included. The kit also includes safety return cable, ground wire, and standard PPE consumables. For shop environments, laser safety curtains are recommended when a dedicated room is not available.
What's in the Box
Everything needed to begin welding from day one:

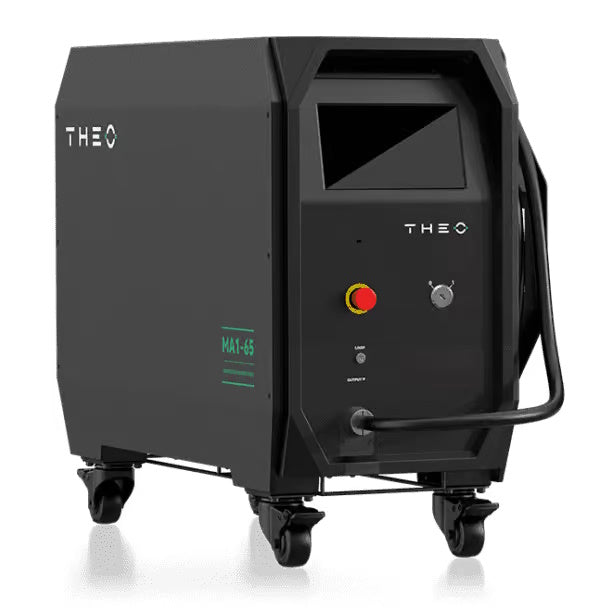

Air-cooled laser power source (MA1-65, 1,500W) with front-facing 7" LED touchscreen
Handheld laser welding torch with 18 ft. optical cable
T1 Wire Feeder
Wire feed nozzles: 0.8mm, 1.0mm, 1.2mm, 1.6mm
DN18G Nozzles: 2× Nozzle 1, 2× Nozzle 3, 2× Nozzle A, 2× Nozzle B
5× protective lenses
3× pairs laser safety glasses
Safety return cable and ground wire
Cotton swabs, ear plugs, disposable mask
The Maker's Chest Difference
The THEO MA1-65 is available from THEO directly and through other resellers. Here's what changes when you order through The Maker's Chest:
🛡️ 75-day returns — significantly longer than THEO's direct policy. Enough time to commission the machine in your shop, weld through your actual material mix at real production volumes, and confirm the MA1-65 is the right power level for your work before you're fully committed
🇺🇸 Expert USA-based technical support — our team understands the full MA1 lineup and can help with parameter setup, wobble and wire feeder configuration, material-specific dialing, and any production issues that come up after delivery
📞 Dual lines of support — phone and email, so when production is running and something needs attention, you have a direct path to someone who knows this machine
🔧 Honest pre-sale guidance — not sure whether the MA1-65 or MA1-45 is the right investment for your material range? Tell us what you're making and at what thicknesses. We'll give you a straight answer.
Frequently Asked Questions — THEO MA1-65 Handheld Laser Welder
Q: What's the practical difference between the MA1-45 and the MA1-65?
A: The MA1-45 runs 1,200W and welds to 4.5mm. The MA1-65 runs 1,500W and welds to 6.5mm — nearly 50% more depth capacity. Beyond the depth ceiling, the extra 300W of headroom means the MA1-65 runs in the 3–4.5mm range faster and with more operator margin than the MA1-45 operating closer to its limit. If your work regularly includes material in the 4–6.5mm range, or if you want a machine that handles everything the MA1-45 can do while also covering heavier structural sections, the MA1-65 is the better long-term investment. If your work consistently stays below 4mm, the MA1-45 is the more cost-appropriate choice. Contact us if you want to talk through the decision for your specific application.
Q: What materials does the MA1-65 weld, and to what thickness?

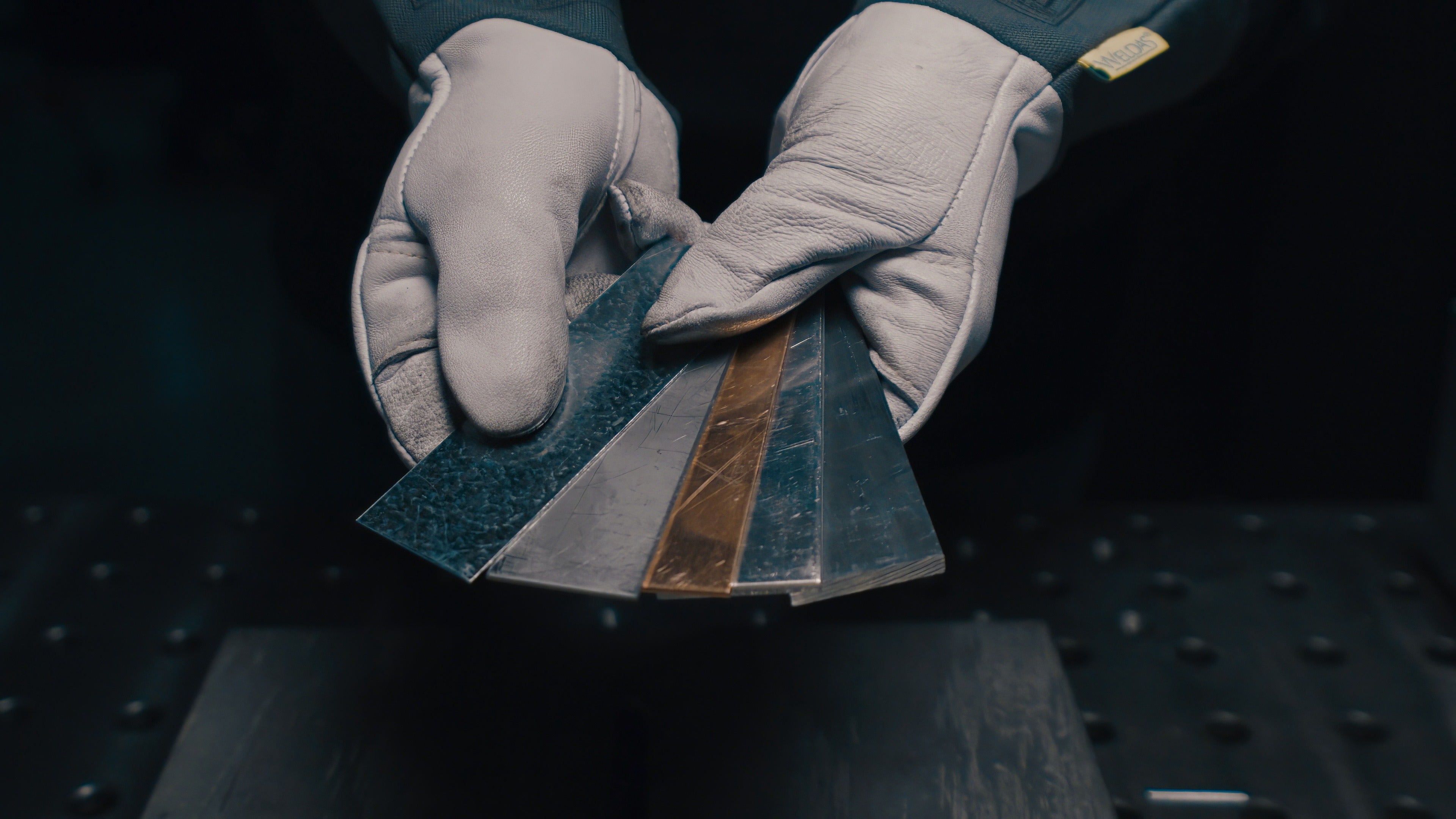

A: Stainless steel, carbon steel, mild steel, galvanized sheet, aluminum, nickel alloys, titanium, and copper. Rated weld depths: stainless steel and carbon steel to 6.5mm (1/4"), aluminum to 5.5mm, galvanized sheet to 6.5mm. For thermally conductive metals like aluminum and copper, the MA1-65's higher power and 20μm fiber core energy density provide noticeably better results than lower-wattage machines at the same thickness.
Q: Does the MA1-65 require a water chiller?
A: No. The MA1-65 uses phase-change air cooling and handles 1,500W without any water circuit. No chiller, no plumbing, no freeze risk. Plug into a 220V / 32A circuit and it's ready to weld. This is a meaningful operational advantage over competing 1,500W machines that require water cooling infrastructure.
Q: How does it compare to TIG welding on structural steel?
A: TIG welding 6mm carbon steel is slow, physically demanding, and requires years of skill to do consistently at quality. The MA1-65 welds the same material significantly faster — comparable to 4x TIG speed at this thickness — with less distortion from the lower heat input, no spatter, and consistent bead geometry that doesn't depend on the operator's arc control skill. Weld seams are typically ready for inspection or finishing without grinding. Training new operators takes hours, not years.
Q: What is the wobble function and when should I use it at this power level?
A: Wobble oscillates the laser beam across the joint, widening the bead to up to 4mm. At 1,500W, wobble is particularly effective for structural fillet welds and lap joints where broader fusion improves root penetration and tie-in on both faces. It also increases gap tolerance on heavier material where perfect fit-up is harder to achieve consistently. Factory presets include wobble parameters for common joint configurations.
Q: How long does operator training take?
A: Most operators are producing production-quality welds within their first hour using the factory preset programs. The 32 presets cover common materials and thicknesses — select the matching preset, verify parameters on the touchscreen, and begin welding. No arc welding experience is required. Advanced parameter customization and custom program saving are available for experienced operators who want to optimize for specific jobs.
Q: What power outlet does the MA1-65 require?
A: 220V / 32A single-phase — standard in most commercial and industrial shop environments. If your shop runs on 120V only, a dedicated 220V circuit needs to be installed before commissioning. This is a standard electrician job and common practice for most welding equipment at this power level.
Q: What safety certifications does the MA1-65 carry?
A: CE, FDA, ETL, ISO, and EN, with a PL-d safety rating per ISO 13849-1. The torch uses a dual-interlock contact sensor — the laser cannot fire unless both the trigger is held and the nozzle is physically contacting the workpiece. At 1,500W, this safety design is essential and is one of the features that distinguishes professional-grade laser welding systems from lower-spec alternatives.
Q: What's the expected service life of the laser source?
A: Up to 10 years under normal operating conditions. This is the Maxphotonics fiber laser source — the same manufacturer that supplies the core technology for the entire MA1 series, rated for a service life that far exceeds traditional arc welding consumables and most competing laser welder sources.
Q: Why buy from The Maker's Chest instead of directly from THEO?
A: Our 75-day return window gives you real production evaluation time — including time after installation to weld your actual materials at your actual volumes and confirm the machine is right before you're committed. Our USA-based expert support team is reachable by phone and email, understands the full MA1 lineup, and is available for commissioning support, parameter guidance, and ongoing production troubleshooting. If you're deciding between the MA1-65 and another model, talk to us first — we'll help you get it right.
Warranty & Manuals
THEO MA1-65 Handheld Laser Welder Warranty Details:
THEO MA1-65 Handheld Laser Welder comes with a 2-year warranty if registered and 1-year-warranty without product registration on Machine unit, except accessories and quick-wear parts.
100% money back guarantee (minus shipping and handling costs) if you return your unit in like-new condition within 30 days of the ship date.
Dedicated, local US-based support for quick answers to questions.
THEO MA1-65 Handheld Laser Welder Product Manuals:
Click the links below to download product manuals for THEO MA1-65 Handheld Laser Welder.
THEO MA1-65 Handheld Laser Welder Product Manual Downloads:
THEO MA1-65 Handheld Laser Welder Product Manual Download
