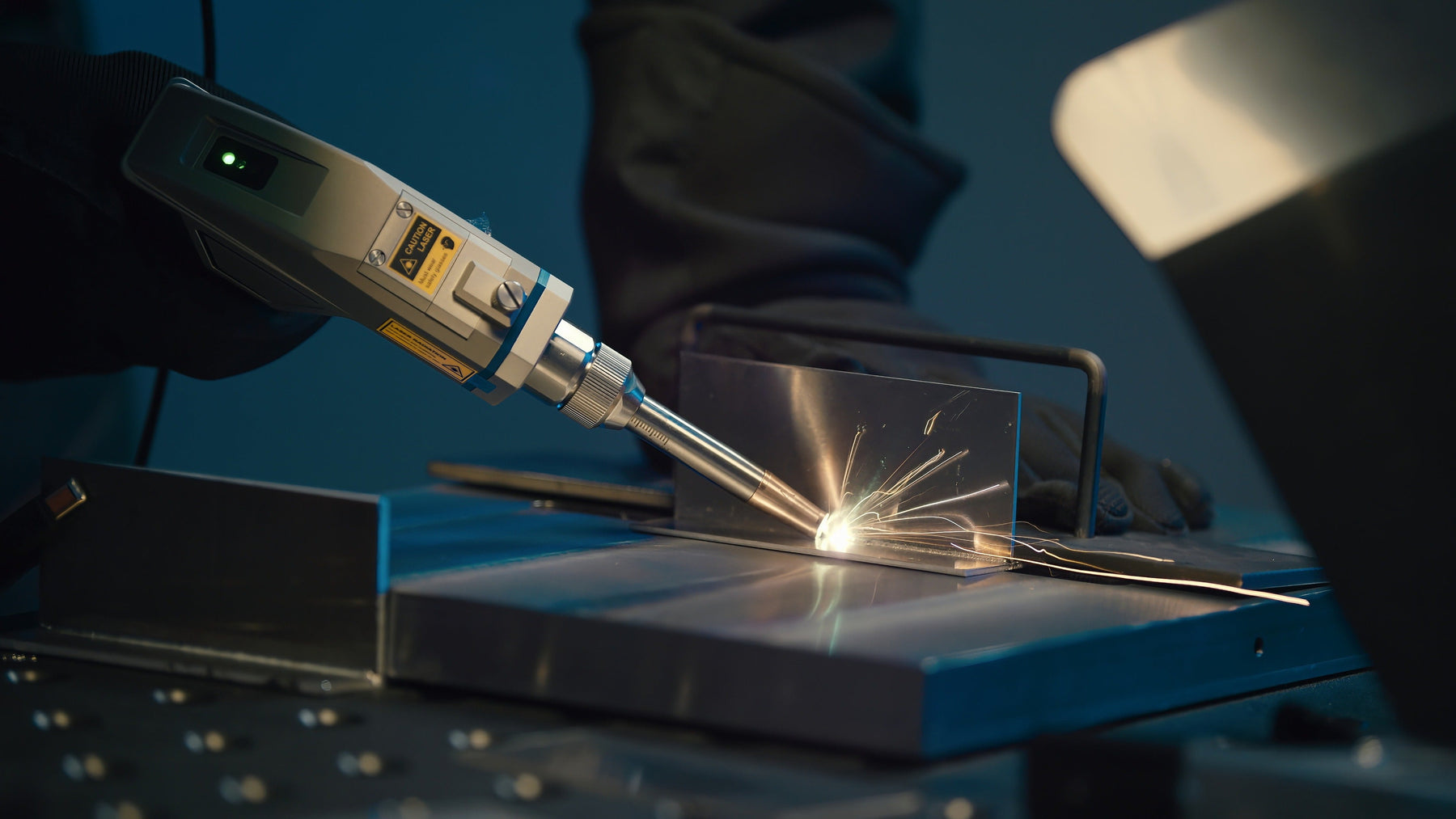

Laser Welding Fit-Up and Gap Tolerance: Why This Matters More Than Wattage
Ask experienced fabricators what actually determines whether a handheld laser welder succeeds or disappoints in a shop, and wattage comes up far less than one specific answer: fit-up. A laser beam is narrow and precise — exactly the quality that makes it fast and clean on well-fitted joints — and that same narrowness means it can't bridge irregular gaps the way a larger MIG puddle naturally can. Understanding this before you buy is more important than any spec on the machine's data sheet. Our guide to choosing a handheld laser welder covers the rest of the spec sheet in detail.
Table of Contents
- Why Fit-Up Matters More Than Wattage
- What Actually Happens When Fit-Up Is Poor
- How Tight Does Fit-Up Actually Need to Be?
- Joint Design and Fit-Up Tolerance
- How Fixturing Improves Real-World Results
- When Filler Wire Helps Bridge a Gap
- Preparing Sheet Metal for Tight Fit-Up
- Frequently Asked Questions
Why Fit-Up Matters More Than Wattage
A traditional MIG weld works partly because the wire feed and puddle physically fill gaps as the weld progresses — a certain amount of forgiveness for imperfect fit-up is built into the process itself, which is part of why our Laser Welding vs MIG comparison flags fit-up as a central tradeoff. A laser weld, particularly in fusion mode without filler wire, relies on the beam directly fusing two closely adjacent edges together with minimal added material.
When those edges aren't closely adjacent, the beam has nothing to bridge the distance with, and the result ranges from a weak, inconsistent fusion to the beam passing straight through the gap without joining the material at all. This is precisely why shop conversations about laser welders circle back to fit-up constantly: it's the factor most likely to determine whether a specific job is a great fit for the technology or a poor one, regardless of how much power the machine has.
What Actually Happens When Fit-Up Is Poor
When a gap exceeds what the laser and its wobble pattern can reliably bridge, a few failure modes show up in practice: the beam can pass through the joint with minimal fusion on either side, producing a weld that looks cosmetically acceptable from the top but has little to no actual joint strength underneath; the weld can show inconsistent penetration along its length as the gap width varies slightly from one section to the next; or burn-through can occur at points where the gap momentarily closes and concentrates heat into a smaller effective joint area than intended. None of these are software or operator failures in the usual sense — they're a direct, physical consequence of asking a narrow, low-forgiveness beam to do a job that needs a wider, more forgiving process instead. See our guide to verifying weld penetration for how to catch these failures before they become a real problem.
How Tight Does Fit-Up Actually Need to Be?
As a practical guideline drawn from fabricator experience, gaps under roughly 0.040 inches (about 1mm) are generally considered workable for fusion welding without filler wire, while gaps beyond that threshold increasingly benefit from — or outright require — filler wire to bridge reliably, and gaps significantly beyond that are usually better served by MIG or TIG entirely. This isn't a hard universal number; it varies with material thickness, joint type, and the specific machine's wobble parameters, but it's a far more useful mental benchmark than assuming any handheld laser welder can simply power through whatever gap you hand it.
If your fabrication process regularly produces variable, imperfect fit-up — hand-cut sheet metal, repair work on existing structures, irregular shapes — that reality needs to factor into whether a laser welder is genuinely the right tool before you invest in one. Our repair work guide covers this exact scenario.
Joint Design and Fit-Up Tolerance
Different joint types tolerate fit-up imperfection differently. Butt joints — two edges meeting flush — are the least forgiving and demand the tightest fit-up of any common joint type, since there's no overlap to fall back on if the edges don't meet precisely. Lap joints, where one piece overlaps another, are inherently more forgiving because the overlap itself provides margin even if the exact edge alignment isn't perfect. Fillet joints (typically at a corner or T-junction) and corner joints each have their own tolerance characteristics depending on the specific geometry, but as a general rule, any joint design that maximizes surface contact and minimizes reliance on a single precise edge-to-edge gap will perform more consistently on a laser welder than a tight-tolerance butt joint will.
How Fixturing Improves Real-World Results
Because fit-up tolerance is so unforgiving compared to MIG or TIG, fixturing matters more with laser welding than with almost any other joining process — a jig that holds parts in consistent, repeatable alignment before and during welding removes the single biggest variable in whether a job succeeds. This is particularly important for repetitive production work: a shop running the same joint geometry repeatedly benefits enormously from investing in a proper fixture upfront, since it turns a fit-up-dependent process into a consistent, repeatable one rather than hoping each individual part happens to fit as well as the last. Our sheet metal fabrication guide covers fixturing setup in more depth.
When Filler Wire Helps Bridge a Gap
Adding filler wire to the process gives the weld additional material to fill a gap that fusion welding alone couldn't reliably bridge, extending the range of workable fit-up beyond what a fusion-only process can handle. This comes with tradeoffs — wire-fed welding is generally slower than pure fusion welding, and it introduces its own variables (wire speed synchronized correctly with travel speed, correct wire diameter and alloy for the base material) that need to be dialed in properly, covered in full in our Fusion vs Wire-Fed Welding guide. For shops that can't guarantee consistently tight fit-up across every job, budgeting for a machine with a genuinely capable wire feeder — not treating it as an optional accessory — is often the difference between a laser welder that handles real-world work and one that only performs well in ideal demo conditions.
Preparing Sheet Metal for Tight Fit-Up
Achieving fit-up within the tolerances laser welding rewards generally means more attention to cutting and forming accuracy upstream of the weld itself — a clean, accurate cut (from a laser cutter, a well-calibrated CNC plasma table, or precise manual fabrication) produces edges that naturally sit closer together than a rough manual cut would. Deburring cut edges, confirming material isn't bowed or warped before welding, and using clamps or magnetic squares to hold pieces in position during tacking all reduce the gap the laser has to contend with. Shops moving to laser welding from MIG or TIG sometimes need to tighten their upstream cutting and prep tolerances specifically to get the full benefit the laser process offers — this is a real workflow change, not just a machine swap.
Frequently Asked Questions
How tight does fit-up need to be for a handheld laser welder?
As a practical guideline, gaps under about 0.040 inches (1mm) are generally workable without filler wire. Beyond that, filler wire helps bridge the gap, and significantly wider gaps are usually better served by MIG or TIG entirely.
What happens if fit-up is too loose for laser welding?
The beam can pass through with minimal fusion, produce inconsistent penetration along the joint, or cause burn-through where the gap momentarily closes — all physical consequences of the beam having no material to bridge the distance.
Does filler wire fix poor fit-up?
It extends the workable range meaningfully by giving the weld additional material to fill the gap, but it doesn't make fit-up irrelevant — very poor fit-up still exceeds what wire-fed laser welding can reliably bridge, and MIG or TIG may be the better tool at that point.
Which joint type is most forgiving for laser welding?
Lap joints, since the overlap itself provides margin even without perfect edge alignment. Butt joints are the least forgiving and demand the tightest fit-up.
Is fixturing really necessary for laser welding?
For repetitive production work, yes — it removes fit-up as a per-part variable and is often the single biggest factor in whether a laser welder performs consistently across a production run rather than only on carefully hand-fitted individual pieces.
