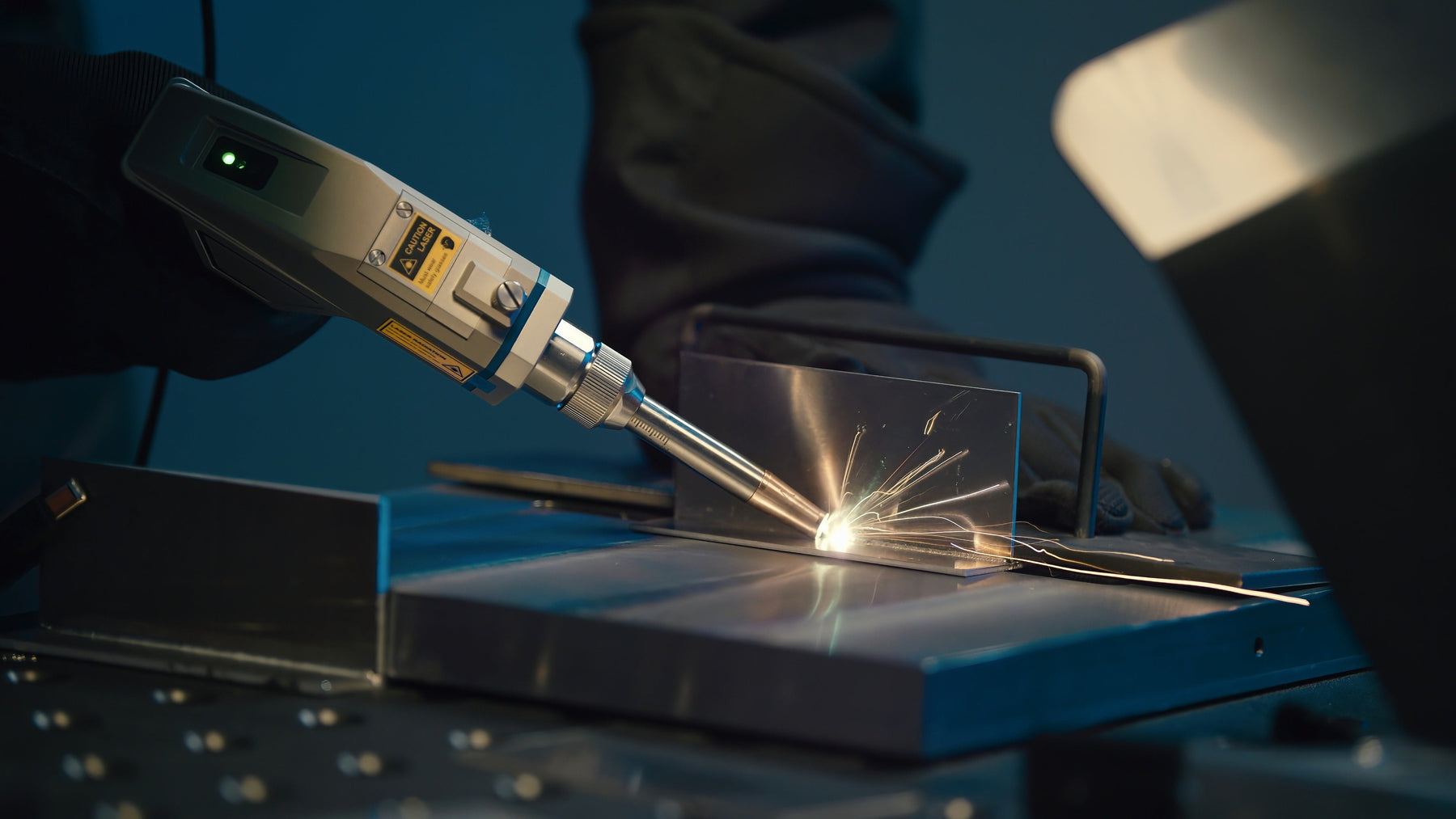

How to Verify Laser Weld Penetration: Bend Tests, Macro-Etch and NDT
Professional welders bring a healthy, well-earned skepticism to laser welding, and the core of it is simple: an attractive top bead doesn't prove a sound weld underneath. This is a real, important distinction, and it's one most retail sellers avoid discussing in detail because it complicates the sales pitch. We think the opposite is true — buyers who understand how to actually verify penetration make better decisions and get better results, and that's worth covering thoroughly rather than glossing over. This is a natural follow-on to our Fit-Up and Gap Tolerance guide, since poor fit-up is one of the most common causes of the hidden defects covered here.
Table of Contents
- Why a Good-Looking Weld Isn't Proof of Quality
- Penetration vs. Fusion: Two Different Failure Modes
- Macro-Etch Cross-Sections
- Bend Testing
- Tensile Testing
- Nondestructive Inspection Methods
- When Formal Testing Actually Matters
- Structural vs. Non-Structural Applications
- Frequently Asked Questions
Why a Good-Looking Weld Isn't Proof of Quality
Laser welding produces an unusually clean, narrow, cosmetically attractive top bead compared to MIG or TIG in many applications, and that visual quality is a genuine selling point — but it's also exactly why appearance-based judgment is riskier with laser welding than with more visually rough processes, a point our Laser Welding vs TIG comparison also touches on. A weld can look flawless from above while having incomplete fusion at the root, insufficient penetration depth for the joint's structural requirement, or hidden porosity that a surface glance simply can't reveal. Experienced welders know this instinctively from other processes too, but it's worth stating plainly for anyone newer to welding who might reasonably (and incorrectly) assume that laser welding's clean appearance is itself evidence of a sound joint.
Penetration vs. Fusion: Two Different Failure Modes
These terms get used interchangeably in casual conversation but describe distinct problems. Lack of penetration means the weld simply didn't reach the required depth into the joint — the fused zone is shallower than the application demands, even if what fusion did occur is sound. Lack of fusion is a different and often more insidious problem: the weld metal failed to properly bond to the base material at some point along the joint, even if overall depth looks adequate — this can happen at the root, along a sidewall, or between weld passes, and it's notoriously difficult to detect visually or even with some nondestructive methods, which is exactly why destructive testing on sample welds remains the gold-standard verification method for critical work. Poor fit-up, covered in our fit-up guide, is one of the most common root causes of both.
Macro-Etch Cross-Sections
A macro-etch test involves cutting a cross-section through a sample weld, polishing the cut face, and applying an etching solution that reveals the weld's internal structure — the fusion boundary, penetration depth, and any porosity or lack-of-fusion defects become visible under magnification. This is one of the most direct and informative ways to actually see what a specific machine, parameter set, and joint configuration produce beneath the surface, and it's a genuinely worthwhile investment of time before committing to production on any joint where structural integrity matters. Running a macro-etch on your first several production-representative welds, before you've committed to a full run, catches problems a visual inspection alone would miss entirely.
Bend Testing
A bend test involves mechanically bending a welded sample to a specified angle and inspecting the weld area for cracking, which reveals ductility and fusion quality in a way that's more accessible than lab-grade cross-sectioning for many shops — it requires a press or bend fixture but not specialized metallurgical equipment. A weld that cracks at the fusion line during a bend test is showing you a real fusion or embrittlement problem that a clean-looking top bead would never reveal on its own. This is a standard method in many welding qualification procedures precisely because it's a practical, repeatable way to verify ductility without requiring a full lab setup.
Tensile Testing
Tensile testing pulls a welded sample apart under controlled, measured load until failure, verifying that the joint meets a required strength threshold and — just as importantly — identifying where the failure actually occurs. A weld that fails in the base material rather than at the weld itself is generally a strong sign the joint isn't the weak point in the assembly; a weld that fails cleanly along the fusion line suggests the joint itself is the limiting factor and needs further parameter development before it's trusted for structural service.
Nondestructive Inspection Methods
For finished parts where destructive testing isn't an option, dye-penetrant inspection reveals surface-breaking defects by drawing dye into cracks or porosity that aren't visible to the naked eye, while X-ray or other radiographic methods can reveal certain internal defects without damaging the part — though radiographic inspection requires specialized equipment and expertise most small fabrication shops don't have in-house and would need to contract out. Nondestructive methods are valuable for verifying individual finished parts, but they generally complement rather than replace destructive sample testing (macro-etch, bend, tensile) during initial parameter development, since sample testing gives you confidence in the process itself before you're relying on nondestructive spot-checks of individual production parts.
When Formal Testing Actually Matters
Not every laser welding application demands this level of rigor, and it's worth being proportionate rather than treating every job as if it needs full destructive qualification. Cosmetic, non-structural work — decorative stainless trim, enclosures with no significant load-bearing requirement — reasonably relies on visual inspection and basic process control. Structural work, pressure-bearing components, safety-critical assemblies, or any application governed by a specific code or customer specification genuinely warrants sample testing before production and periodic verification during it — our food-safe fabrication standards guide is a good example of a code-governed application. Matching your testing rigor to what the application actually demands, rather than either skipping verification entirely or over-testing cosmetic work, is the practical middle ground most shops should aim for.
Structural vs. Non-Structural Applications
Being explicit about this distinction with customers and within your own shop processes protects you from a real liability risk: a laser weld that's cosmetically excellent but structurally unverified shouldn't be represented as meeting a structural specification it hasn't actually been tested against. If a welding procedure needs formal qualification for a specific code or customer requirement, that qualification process — not just "it looks like a good weld" — is what actually establishes the weld as fit for that purpose.
Frequently Asked Questions
Can a good-looking laser weld still be defective?
Yes — laser welding's clean cosmetic top bead can mask incomplete fusion, insufficient penetration depth, or hidden porosity that isn't visible from the surface. This is precisely why appearance alone isn't sufficient verification for structural work.
What's the difference between lack of fusion and lack of penetration?
Lack of penetration means the weld didn't reach adequate depth; lack of fusion means the weld metal failed to properly bond to the base material at some point, even if overall depth appears sufficient. Both are real defect types that require different diagnosis.
How do I verify a laser weld meets a structural requirement?
Through destructive sample testing — macro-etch cross-sections, bend tests, and tensile tests — on production-representative samples before committing to a full run, supplemented by nondestructive inspection on individual finished parts where appropriate.
Do I need to test every laser weld I make?
No — cosmetic, non-structural work reasonably relies on visual inspection and solid process control. Structural work, code-governed applications, and safety-critical assemblies warrant genuine sample testing before and during production.
Can laser welding meet formal welding codes?
It can, but meeting a specific code or customer specification requires a properly qualified welding procedure — documented testing establishing the process meets the requirement — not just a visually acceptable weld.
