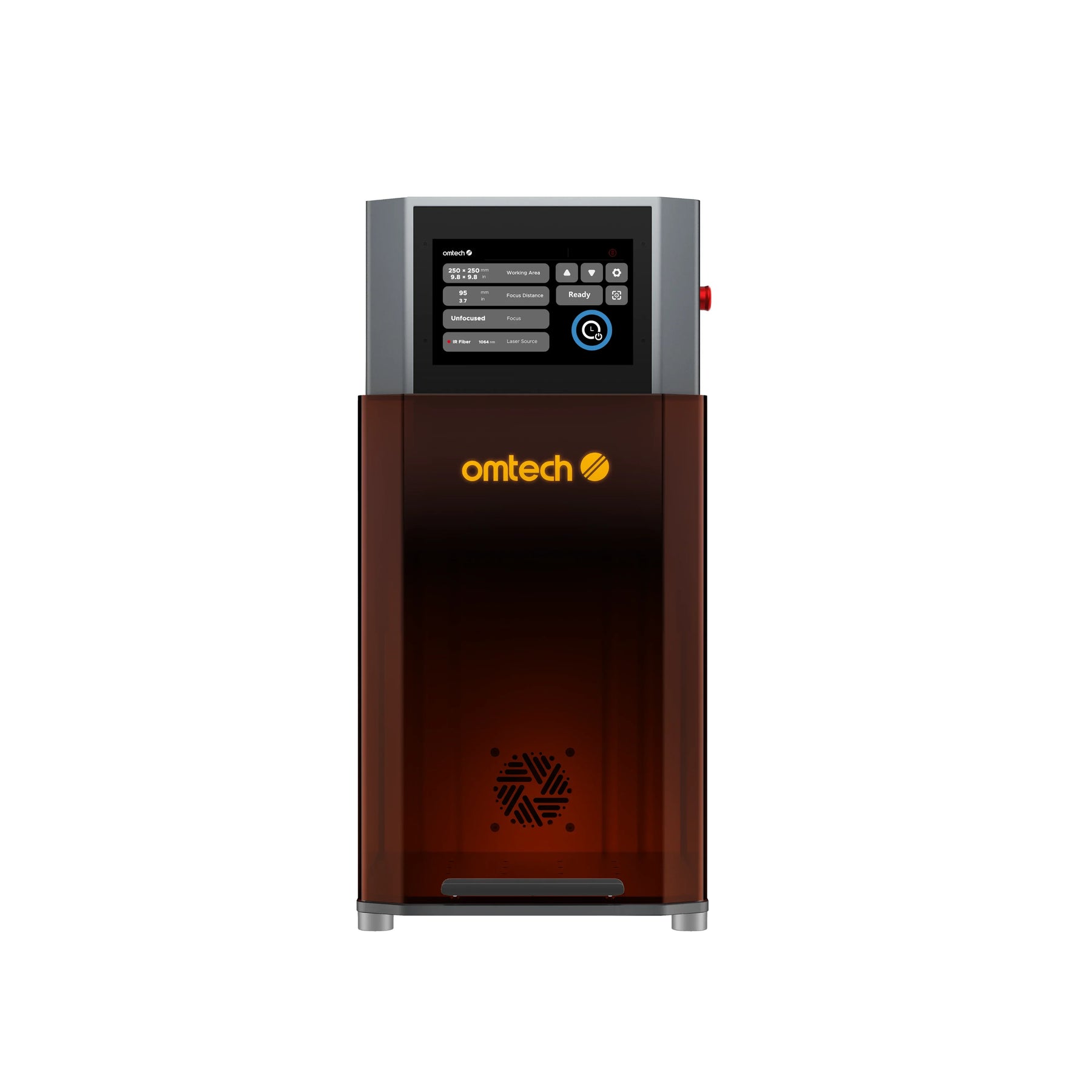

OMTech Solis Duo Review: One Machine for Metal and Non-Metal

Quick answer: The Solis Duo is a genuinely different category, not a marketing bundle — one enclosure housing a real fiber laser (for metal) and a real diode laser (for wood, leather, acrylic, and glass) that share the same focal length, so switching between material types doesn't require refocusing. It comes in three configurations — 20W/20W ($2,899.99), 30W/20W with autofocus ($2,999.99), and 50W/40W with autofocus ($4,199.99) — so the buying decision is really "which power tier," not "should I buy this at all."

Table of Contents

• Why Customers Choose Dual-Source Over Two Machines
• The Three Configurations
• The Camera and Batch Workflow
• Field Lenses: Production vs. Precision
• Safety and Where It Can Operate
• Honest Limitations
• Frequently Asked Questions

Why Customers Choose Dual-Source Over Two Machines

The core engineering decision that makes the Solis Duo work in practice: both lasers share the same focal length, so switching from a metal marking job to a wood engraving job doesn't require manually refocusing.

"The most common reason a customer decides to go with the Solis Duo is when they want to engrave not just organic materials like wood or leather, but also metal — stainless steel, aluminum, or jewelry items like gold and silver," says Shishir Nigam, Founder of The Maker's Chest. "The dual-source capability, with both a fiber and a diode laser source, dramatically widens the material capability of the machine without needing two separate machines."

The Three Configurations

The jump from base to mid is only $100 for a real capability gain (10W more fiber power plus autofocus) — worth treating as the practical starting point for most buyers rather than the true base config.

The Camera and Batch Workflow

On the autofocus configurations, the 16MP camera does real production work, not just placement preview.

"There have been businesses that require batch production — for example, producing multiple engraved dog tags for sale," Nigam says. "That's when the conveyor belt accessory, combined with the camera system, comes in very handy for batch production. It dramatically reduces the manual feed time that would otherwise slow down production rates."

Field Lenses: Production vs. Precision

The 30W and 50W configurations ship with two field lenses, not one: a 9.8" x 9.8" production lens for batch layouts, and a 5.9" x 5.9" precision lens that concentrates the beam into a smaller, higher-energy-density spot for fine jewelry text, small hallmarks, and dense QR codes where the larger lens would soften edge definition.

Safety and Where It Can Operate

Even at 50W of fiber output, the Solis Duo carries Class 1 laser safety certification through its fully enclosed cabinet and tinted window — reducing external exposure to Class 1 safe levels during normal closed-lid operation. That's what makes it viable in a retail personalization studio, a shared makerspace, or a home studio without dedicated laser safety infrastructure, which an open-frame machine at the same power would require.

Honest Limitations

"We specifically advise customers that the fiber laser on the Solis Duo is not meant for heavy-duty metal cutting or color marking, because it doesn't have a MOPA fiber source," Nigam says. "The fiber power levels max out at about 40-50W, which isn't sufficient for any meaningful capability to cut metals other than very thin metals under 1mm thick."

This is a genuinely important distinction to understand before buying. If color marking on stainless steel or titanium is part of your product plans, the Solis Duo's regular fiber source can't produce it — that requires a MOPA-equipped machine instead. It also doesn't publish cutting-depth specifications the way a dedicated cutting machine does, so it's positioned as a marking and engraving platform rather than a heavy-cutting one.

Frequently Asked Questions

Is the Solis Duo really two lasers, or one laser doing two things?

Two genuinely separate laser sources — a fiber laser for metal and a diode laser for non-metals — sharing one enclosure and one focal length, so switching between them doesn't require refocusing.

Which Solis Duo configuration should most buyers start with?

The 30W/20W autofocus configuration is only $100 more than the base 20W/20W model and adds both more fiber power and autofocus — a stronger starting point for most buyers than the true base config.

Can the Solis Duo do color marking on metal?

No — its fiber source is a regular (non-MOPA) source, capped at 40-50W, which The Maker's Chest specifically flags to customers as insufficient for color marking or cutting metal thicker than 1mm. Color marking on stainless steel or titanium requires a MOPA-equipped machine.

What's the batch production workflow actually like?

For businesses producing repeat items like dog tags, the optional conveyor belt accessory paired with the 16MP camera system significantly cuts manual feed time compared to loading and repositioning each piece by hand.

Have questions about which Solis Duo configuration fits your product line? Contact The Maker's Chest — we'll help you match the machine to the job.
