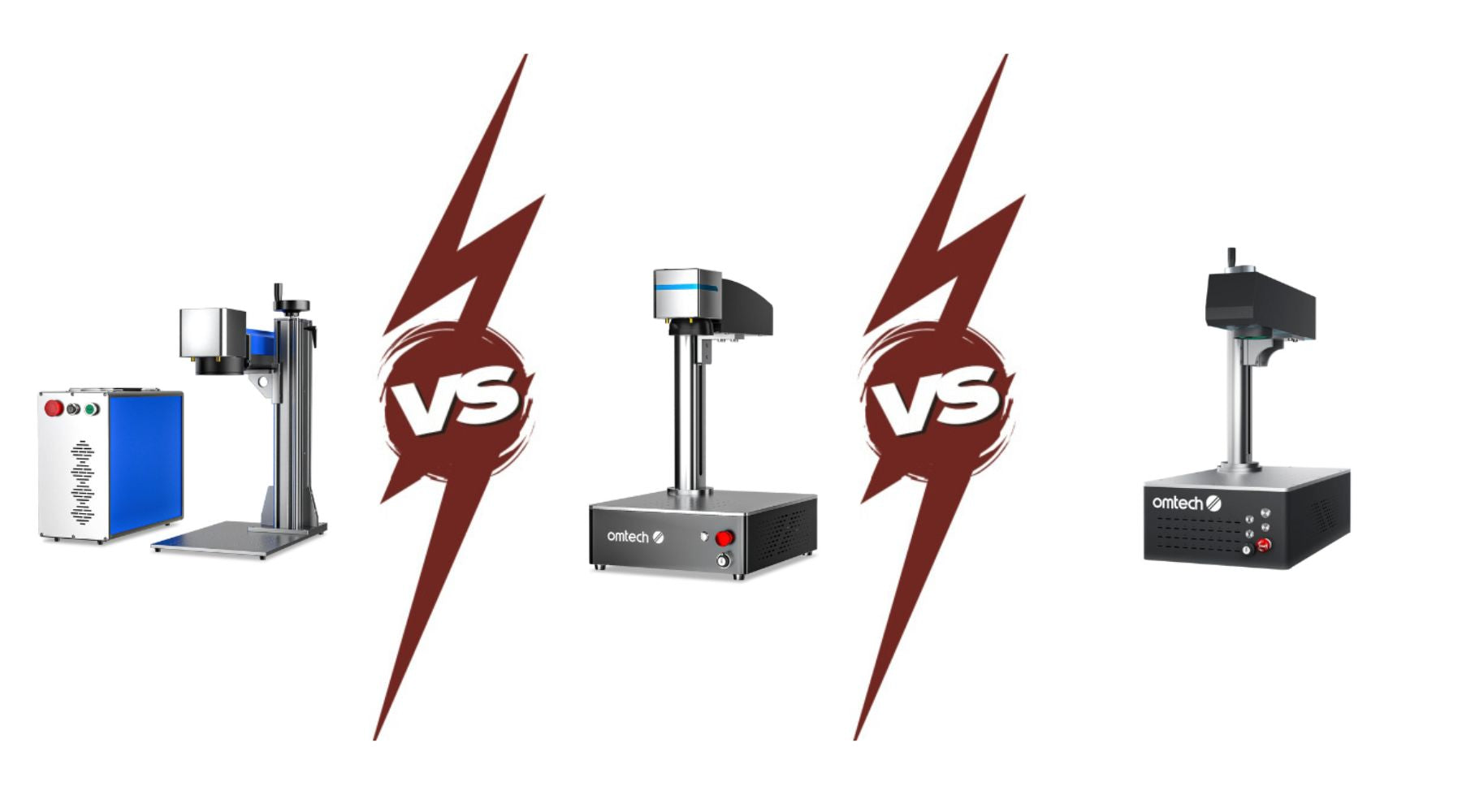

Split vs. Integrated vs. Autofocus Fiber Laser Marking Machines: OMTech Buying Guide

Quick answer: OMTech's Galvo and MOPA fiber lasers come in three physical formats, not two — Compact Integrated (36 lbs, all-in-one, manual focus, most portable), Autofocus Workstation (arm-and-column with motorized one-click autofocus), and Split (source and marking head physically separated into a dedicated production workstation with the largest fields). Which one you need depends on whether portability, focus convenience, or maximum field size and ergonomics matters most for your work.

Table of Contents

• Customers Usually Know the Job, Not the Format
• Compact Integrated: Portable, Manual Focus
• Autofocus Workstation: Convenience for Variable Materials
• Split: Production Workstation, Largest Fields
• Spec Comparison
• Choose Each If
• Frequently Asked Questions

Customers Usually Know the Job, Not the Format

"Customers typically only know their end use case, not necessarily which category of fiber laser will help them achieve it," says Shishir Nigam, Founder of The Maker's Chest. "In nearly all cases we have to walk them through the decision-making process based on which format would be the best fit for them."

His general guidance breaks down cleanly by workflow: autofocus is most relevant if you're always working on different heights, integrated formats are beneficial when space is at a premium and you want a single setup that doesn't take up much room, and split formats are recommended when space isn't an issue and you want a more open format with a bigger work area.

Compact Integrated: Portable, Manual Focus

The Compact Integrated format combines the laser source, galvo head, electronics, and workbed into a single self-contained unit. At 36 lbs and roughly 15.7" × 13.3" × 21.6", it's genuinely portable — one person can carry it, and it fits on the corner of a desk or stores in a cabinet when not in use. Focus is set manually using a reference spacer rather than motorized autofocus.

This is the format for jewelry studios, home workshops, part-time makers, and anyone who works at a fairly consistent material height and values compact size over autofocus convenience. Field size is the smallest of the three formats — 4.3" × 4.3" on the 20W Galvo configuration.

Autofocus Workstation: Convenience for Variable Materials

The Autofocus format is a larger arm-and-column machine with motorized one-click autofocus — the system measures distance to the workpiece and adjusts focal length automatically, cutting material-change setup time from several minutes to under 30 seconds. Processing area is larger than Compact Integrated (5.9" × 5.9" on the 50W Galvo, within a 9.8" × 13.4" workbed), though the machine itself is heavier — 62 lbs on the 50W Galvo Autofocus.

This format makes the most sense for shops switching frequently between materials of different heights throughout the day, where re-measuring and manually adjusting focus on every change would be a real time cost.

Split: Production Workstation, Largest Fields

The Split format physically separates the laser source unit from the marking column, creating a dedicated workstation rather than a self-contained machine. Parts load from an open platform below the galvo head instead of reaching into an enclosure — a real practical benefit for larger components and awkward shapes.

"The OMTech Split's open format is useful when engraving objects that are fairly large — tumblers, large knives, or firearms — that may not fit in a smaller work area," Nigam says. "The open format gives more flexibility with different workpieces."

Split also offers the largest fields in the lineup — up to 7.9" × 7.9" on the 50W Galvo Split, roughly 78% more marking area than a 5.9" field, which translates directly into more pieces per batch layout and fewer load/unload cycles per production hour. Several Split models ship with a monitor mount and an included foot switch for hands-free job triggering.

Spec Comparison

Choose Each If

Choose Compact Integrated if:

• Portability and desk footprint matter most — especially for a storefront jewelry business where floor space is limited
• You work at a fairly consistent material height
• You're a part-time maker, jewelry studio, or space-constrained shop

Choose Autofocus Workstation if:

• You switch frequently between materials of different heights
• You want the convenience of motorized focus without production-workstation scale
• You have desk or bench space for a larger, heavier unit

Choose Split if:

• You're marking larger objects — tumblers, knives, firearms — that don't fit smaller work areas
• You need the largest available marking field for batch production
• You're setting up a dedicated, ergonomic production workstation, not a shared-space machine

Frequently Asked Questions

Do all three formats mark at the same speed?

Yes — all three use the same galvo scanning technology and reach up to 10,000mm/s marking speed at equivalent wattage. The difference is field size, focus method, and physical format, not marking speed.

Which format is best for a jewelry business?

"For a jewelry-based business, I'd recommend the Integrated fiber systems," Nigam says, "because usually small businesses are using these lasers inside their shops for customization of jewelry for customers. They need a more compact setup that doesn't take up too much space in their storefront while still achieving the results their customers need."

What if I'm marking large items like tumblers or knives?

This is exactly where Split's open-platform format earns its keep — larger or oddly shaped workpieces that don't fit a smaller enclosed bed load easily onto Split's open platform, per real customer use cases The Maker's Chest has seen with tumblers, knives, and firearms.

Can I upgrade from Compact Integrated to Split later?

Not as an upgrade to the same unit — these are separate machines. Many shops start with Compact Integrated for lower cost and portability, then add a Split workstation once production volume justifies the larger footprint and field size.

Have questions about which fiber laser format fits your workflow? Contact The Maker's Chest — we'll help you match the machine to the job.
