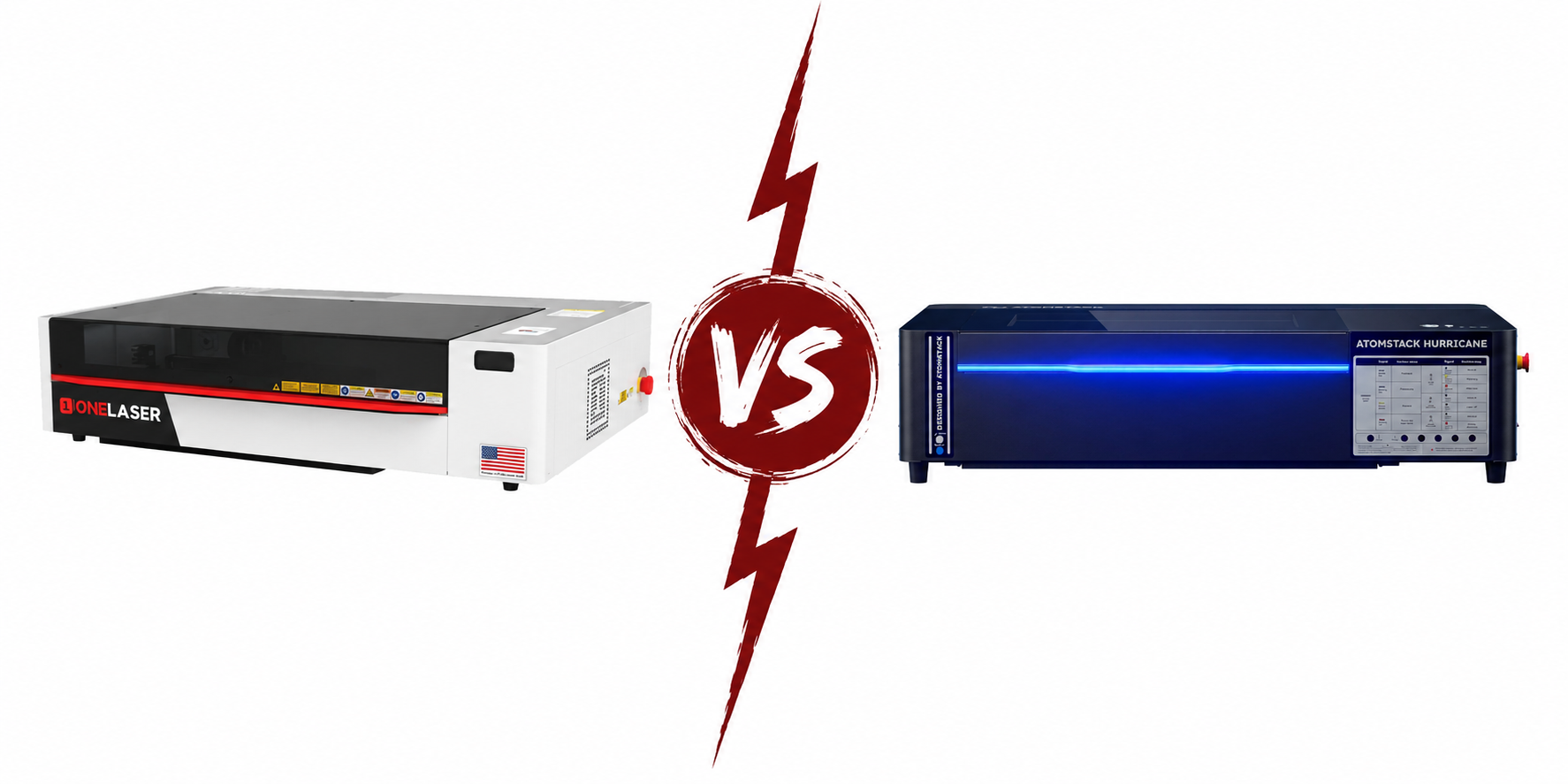

OneLaser XRF vs AtomStack Hurricane: Which CO2 Laser Fits?
Short answer: Choose the OneLaser XRF when fine engraving, speed, air cooling, a wider work area and long RF-tube life matter more than maximum cutting wattage. Choose the AtomStack Hurricane when a lower purchase cost, 55W glass-tube cutting power and its published Class 1 safety package are the stronger priorities. This is fundamentally an RF-versus-glass decision, not a simple 38W-versus-55W contest.
Research note: This guide uses current manufacturer-published specifications and the configurations sold by The Maker’s Chest as of September 2026. Speed, lifespan, thickness, resolution and output claims are manufacturer ratings, not independent TMC laboratory results. Real performance depends on material, optics, settings, cooling, fit-up, exhaust and job geometry.
Quick Decision
| If this describes your work | Better fit | Why |
|---|---|---|
| Fine text, photographs, stamps and detailed raster engraving | OneLaser XRF | Published 0.07 mm spot, up to 2,000 DPI and 1,200 mm/s. |
| Cutting-led maker work at the lowest entry cost | AtomStack Hurricane | 55W glass CO₂ and a lower-priced product family. |
| You want no water loop or chiller maintenance | OneLaser XRF | The RF metal source is air-cooled. |
| A school, shared studio or safety-led environment | AtomStack Hurricane | AtomStack publishes a Class 1 design plus fire detection and suppression features. |
| You need the wider standard bed | OneLaser XRF | 600 × 300 mm versus 500 × 300 mm. |
| You want conveyor expansion | Depends | Hurricane expands to a published 800 × 500 mm with its feeder; confirm XRF conveyor dimensions and workflow before buying. |
For live configurations and ordering details, use the OneLaser XRF product page and the AtomStack Hurricane product page.
OneLaser XRF vs AtomStack Hurricane Specifications
| Specification | OneLaser XRF | AtomStack Hurricane |
|---|---|---|
| Laser source | 38W RF metal CO₂ | 55W glass CO₂ |
| Cooling | Air-cooled; no water chiller | Water-cooled; distilled-water loop |
| Standard work area | 600 × 300 mm | 500 × 300 mm |
| Published speed | Up to 1,200 mm/s | Up to 600 mm/s |
| Published detail metric | 0.07 mm beam spot; up to 2,000 DPI | 0.01 mm engraving accuracy claim |
| Camera | 5MP | 5MP |
| Autofocus | Yes | Yes |
| Software | LightBurn and RDWorks | LightBurn and AtomStack Studio |
| Pass-through / expansion | Base Boost riser and optional conveyor workflow | Optional riser and conveyor to 800 × 500 mm |
| Published source life | Up to 30,000 hours | Not stated on the current TMC listing |
| Published warranty | 3 years, exclusions apply | 1 year, exclusions apply |
Do Not Compare 0.07 mm with 0.01 mm
The XRF’s 0.07 mm figure is presented as a beam-spot specification. The Hurricane’s 0.01 mm figure is presented as engraving accuracy. Those are different measurements and should not be placed in a “smaller number wins” contest. Beam diameter affects the smallest energy footprint; positioning or carving accuracy describes motion or result tolerance. Neither proves final image quality without matching material, optics, speed, power and line interval.
Where the XRF Has a Real Advantage
RF modulation and fine detail
RF metal tubes switch rapidly and produce a tighter published spot than the broad glass-tube figures normally associated with this class. That is valuable for rubber stamps, small type, detailed photographs, line art and repeated raster production. The advantage is output quality and repeatability, not merely a higher headline speed.
Speed with acceleration
OneLaser publishes 1,200 mm/s with roughly 3G acceleration for the current XRF. The Hurricane is rated to 600 mm/s. Fine engraving is the use case most likely to expose this gap, although actual cycle time still depends on overscan, artwork width, line interval and material response.
Air-cooled ownership
The XRF removes the water loop, chiller care and freeze risk associated with a glass tube. That simplifies installation and reduces one maintenance category. It does not remove the need for exhaust, air assist, lens cleaning, alignment checks or fire precautions.
Where the Hurricane Makes More Sense
Cutting power per dollar
The Hurricane’s 55W glass tube is a familiar platform for wood and acrylic cutting. A tighter RF beam can use power efficiently, but the claim that 38W RF universally equals a particular glass wattage should be treated as a rough application statement, not an engineering conversion. Buyers running thick cuts should validate their exact material rather than assume equal performance.
Integrated safety package
AtomStack publishes Class 1 status together with lid detection, tilt detection, emergency stop, fire detection and an automatic fire-extinguishing system. These features reduce risk but do not permit unattended operation or eliminate material-specific ventilation requirements.
Beginner software path
The Hurricane supports AtomStack Studio as well as LightBurn. A first-time user may value the simpler proprietary workflow, while an experienced production shop may prefer the XRF’s LightBurn/RDWorks orientation. Software preference should be tested before purchase because it shapes every job after unboxing.
Work Area and Expansion
The XRF starts with a 600 × 300 mm bed—100 mm wider than the Hurricane’s 500 × 300 mm area. That matters for batch layouts and signs that exceed half a meter. The Hurricane’s optional conveyor changes the comparison by expanding its published working area to 800 × 500 mm. Conveyor work is not identical to a fixed bed: registration, material flatness and feed repeatability become part of the process.
Total Ownership Questions
- Tube economics: compare the RF source’s higher initial cost and 30,000-hour rating against the glass tube’s replacement cycle and cooling requirements.
- Electrical load: confirm the exact circuit, plug and accessory loads for the shipped configuration.
- Exhaust: neither enclosure makes fumes disappear; vent outdoors or use filtration matched to the material.
- Fire risk: acrylic, wood and paper can ignite. Fire detection is a backup, not permission to leave a running laser unattended.
- Rotary clearance: compare the riser, tray removal and usable height with the actual tumbler plus rotary—not just the machine’s maximum empty height.
- Warranty scope: distinguish the machine warranty from consumable coverage, tube terms and shipping responsibility.
Our Recommendation
Choose the OneLaser XRF for an engraving-led business where fine detail, speed, wider standard bed space, long rated source life and chiller-free ownership justify the premium. It is especially compelling for stamps, photographs, small lettering and high-mix production.
Choose the AtomStack Hurricane for a budget-conscious maker or small business that wants 55W glass-tube cutting, a strong published safety suite and a simpler entry into enclosed CO₂ production. It is the more natural choice when cutting matters more than achieving the finest RF engraving detail.
Frequently Asked Questions
Is 38W RF weaker than 55W glass?
The XRF has less nominal wattage but a tighter, efficiently modulated RF beam. It can be competitive on some work, but the two ratings are not universally interchangeable.
Which produces finer engraving?
The XRF is the stronger specification-led choice for fine detail because of its RF source, published 0.07 mm spot and higher speed.
Which cuts thicker acrylic better?
The Hurricane’s 55W glass tube is the more direct cutting-led choice, but exact thickness and pass count should be tested on your acrylic.
Does the XRF need a water chiller?
No. Its RF metal source is air-cooled.
Does the Hurricane need water cooling?
Yes. The current listing describes an integrated water-cooling workflow using distilled water.
Which has the larger bed?
The XRF’s standard area is 600 × 300 mm versus 500 × 300 mm on the Hurricane. The Hurricane can expand with an optional conveyor.
Are both compatible with LightBurn?
Yes, according to the current listings. The Hurricane also supports AtomStack Studio; the XRF supports RDWorks.
Is the Hurricane safe to leave unattended because it has fire suppression?
No. Detection and suppression are backups. CO₂ laser cutting should be supervised with suitable exhaust and fire controls.
Which is better for tumblers?
Either can use a rotary with the correct clearance and riser. Choose based on the tumbler dimensions, rotary geometry and batch workflow.
Can either engrave bare metal?
A standard CO₂ wavelength generally marks coated or treated metal surfaces rather than directly engraving bare metal like a fiber laser.
Which warranty is longer?
Current TMC listings state 3 years for the XRF and 1 year for the Hurricane, with exclusions. Verify current terms before purchase.
What samples should I test before deciding?
Use your smallest text, most detailed photograph, thickest common acrylic, widest part and a representative batch layout.
