Laser Engraving on Slate: Coasters, Settings & Finishing

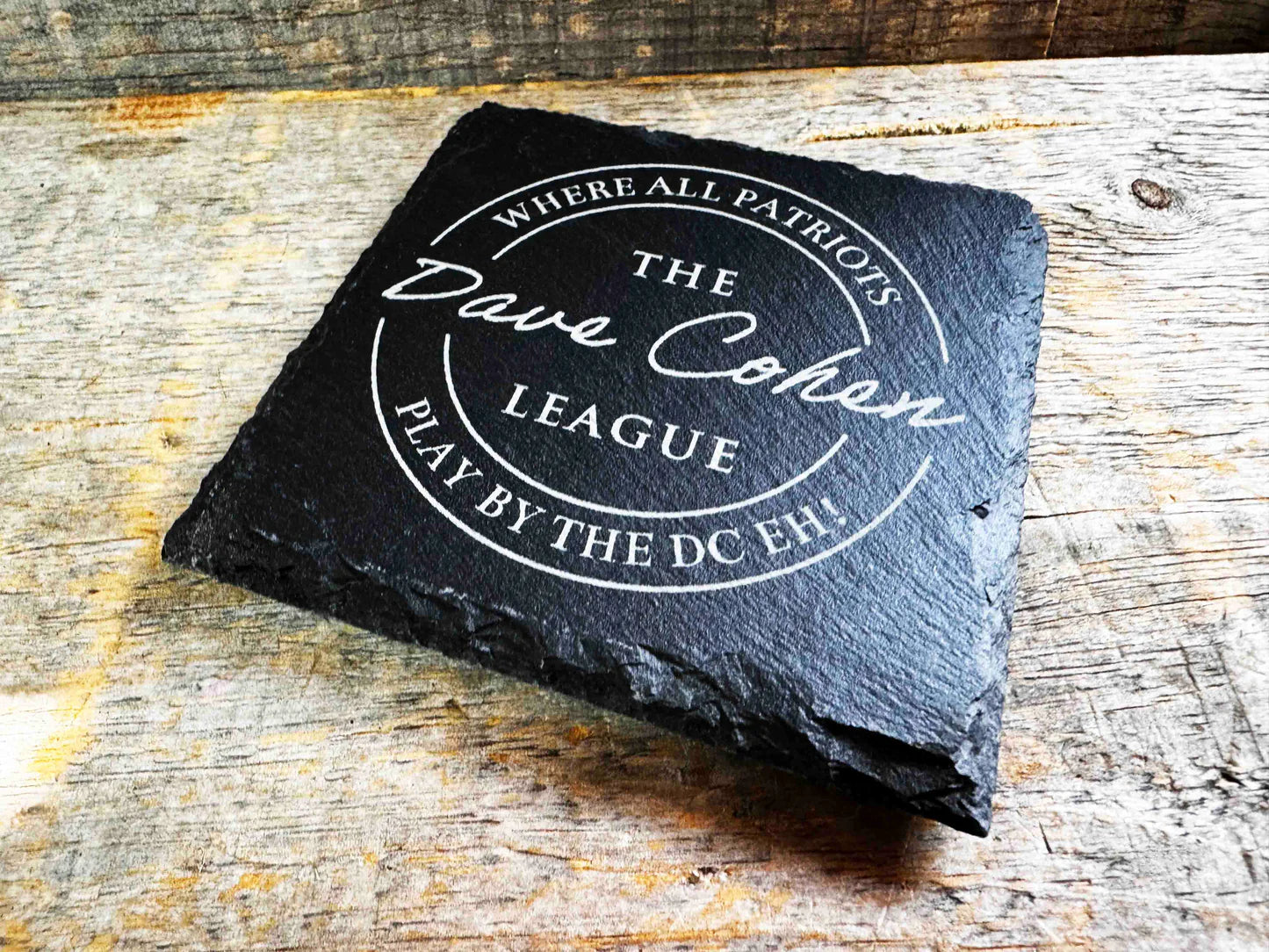

Laser engraving on slate works best when you aim for a clean, pale surface mark rather than maximum depth. Start with a dry, stable coaster, focus on its face, prepare the artwork for a dark background, and test on a spare blank from the same batch. Both blue diode and CO₂ lasers can be useful; their settings are not interchangeable.
This tutorial focuses on slate coasters, plaques, and small signs. For granite, marble, rotary carving, and other methods, read how to engrave stone. For equipment, shop laser engravers for stone.
In this guide
- Prepare slate coasters
- Diode versus CO₂ workflow
- Prepare logos and photographs
- Settings examples and calibration
- Engrave a coaster or batch
- Clean and seal
- Troubleshoot poor results
- Common questions
1. Prepare slate coasters before engraving
Check each blank for cracks, loose layers, coatings, and an uneven face. Natural edges vary, so measure the flat usable area rather than assuming every nominally 100 mm coaster has the same printable space. Reserve one spare coaster from each batch for tests.
- Wipe away grit with a damp cloth, then let the slate dry fully. Avoid dry sanding or compressed-air cleaning that disperses mineral dust.
- Begin with uncoated slate. If a supplier sells pre-sealed blanks, establish what the coating is and whether the laser manufacturer permits processing it.
- Place the blank on a stable support. Check that it does not rock, and that feet, pads, or uneven edges do not tilt the engraving face.
- Focus on the actual top surface. Confirm that the nozzle and head clear the blank and any fixture throughout the job.
- Leave an artwork margin inside chipped or irregular edges. Check the design with the machine's supported framing procedure.
Use the laser's required enclosure and extraction, and supervise engraving. Treat ventilation as part of the setup even when there is little visible smoke.
2. Diode versus CO₂: what changes in the workflow?
| Workflow | Blue diode | CO₂ |
|---|---|---|
| Good starting project | Small slate coasters and personal gifts using compatible blanks | Coasters, plaques, and batch work where the bed and clearance suit the pieces |
| Starting settings | Exact laser-module preset, followed by a material test | Exact machine/material baseline, within tube-current and cooling limits |
| Focus | Module's prescribed focus distance at the coaster face | Correct lens focus and nozzle clearance at the coaster face |
| Before increasing power | Check units, lens cleanliness, focus, and the selected module | Check optics, focus, alignment, and the manufacturer's power limits |
| Scaling up | Check engraving time on a full design and extraction capacity | Use a repeatable jig and confirm focus across the batch |
Do not copy a CO₂ percentage into a diode preset, or a 10W module preset into a 40W module. Optical power, spot size, controller behavior, and maximum travel speed all affect exposure. A practical equipment comparison includes a complete coaster sample and job time, not just rated wattage.
Compare diode laser engravers and CO₂ laser engravers, or browse the stone engraving collection for a broader shortlist.
3. Prepare the image for a pale mark on dark slate
Names, logos, and line art
Use clean vector artwork where possible. Filled letters or simple shapes generally survive the stone texture better than very fine outlines. Check for duplicate lines and accidental cut layers. A coaster outline used for positioning should not also run as a cutting operation.
Photographs
Crop to the subject first, simplify a distracting background, and resize to the intended engraving dimensions before judging detail. Preview both the highlights and shadows at coaster size: tiny facial detail in a large source image may disappear when reduced.
Check image polarity. A laser normally makes a pale mark on dark slate. In LightBurn, Negative Image can invert which tones are engraved. Avoid inverting once in an image editor and again in laser software. Verify the preview on a dark background and test a small crop before committing to the full photograph.
Compare a dithered photo with your software's other image modes on spare material. Keep the test image and dimensions constant. More DPI is not automatically more detail; closely overlapping scan lines can add exposure without resolving extra texture. LightBurn expresses the relationship as DPI = 25.4 ÷ line interval in mm.
4. Slate engraving settings: named examples and a calibration method
These are manufacturer references, not TMC test results. Slate composition and machine condition still require a local test.
Documented CO₂ example: Trotec Speedy 100 flexx, 40W
Trotec's slate-coaster project specifies a 2-inch lens and the following CO₂ engraving setup:
| Parameter | Trotec example |
|---|---|
| Machine / source | Speedy 100 flexx, 40W CO₂ |
| Power / speed | 60% / 100% in the Trotec workflow |
| Resolution | 500 DPI |
| PPI/Hz entry | 500, as listed by Trotec |
| Passes / air assist | 1 / on |
Source: Trotec slate-coaster application. Its percentage speed is not a mm/s value and is not a direct preset for an OMTech, xTool, or other machine.
Diode example: select the exact xTool S1 module preset
xTool's own S1 coaster walkthrough directs users to the Rock Coaster material entry and its material settings library. Select the actual laser module before loading a preset, then test it on your slate. The walkthrough does not provide one universal numeric diode recipe, so this guide does not present an invented one. See xTool's slate-coaster instructions.
Build a repeatable test for your machine
- Record the baseline. Write down machine, source and optical wattage, lens, preset, speed units, power, line interval, passes, focus, and air-assist state.
- Start from supported settings. Use a spare, uncoated coaster and the manufacturer's recommended operating range. Keep focus and resolution fixed while comparing a small speed/power grid.
- Check units before running. 100 mm/s equals 6,000 mm/min. Entering 100 mm/min instead is sixty times slower and dramatically changes exposure.
- Judge cleaned patches. Let the piece cool, remove loose dust with a damp cloth, and assess after drying. Choose crisp pale marks without crumbling or flaking.
- Test real detail. Run a small name, thin line, and photo crop using promising settings. Adjust one variable at a time.
- Save the result. Photograph the test and record the slate batch. Re-test when you change blanks, lenses, modules, or surface finish.
If a patch flakes or loses detail, increase speed or reduce power within the machine's supported range rather than adding passes reflexively. If it is faint, confirm focus, cleanliness, and image polarity before increasing exposure.
5. Engrave one coaster, then build a repeatable batch
Frame the finished design on one blank and check its orientation. Run the validated settings, supervise the job, and inspect it after cleaning. Do not move the coaster between passes if the tested process calls for another pass.
For a batch, use a jig that locates the blanks without stressing their irregular edges. Verify every coaster sits flat and frame the complete layout. Thickness variation can change focus, so a jig that positions well does not remove the need to check height. Approve a finished sample before engraving the whole order.
6. Cleaning and sealing: compare before committing
Wipe residue gently with a damp cloth and allow the slate to dry. Do not polish aggressively across the engraved face. Inspect under the same lighting used to judge the calibration samples.
Sealing is optional. An unsealed coaster can be a suitable finished product. A compatible sealer may change stain resistance, sheen, and color, but it can also darken the pale engraving and reduce contrast. Compare an untreated sample with a finished one before offering that finish to customers.
If you use a coating, follow its application and full-cure instructions. For food-contact pieces, confirm the specific product and use are approved by the coating manufacturer; a generic clear spray is not automatically suitable. Avoid machine oil. Do not engrave through unknown finishes, and do not assume oil or a clear coat is required to make a good slate mark.
7. Troubleshooting slate engraving
| Problem | Check first | Next test |
|---|---|---|
| Photo looks like a negative | Polarity and double inversion | Preview on dark material and engrave a small correctly inverted crop |
| Mark is faint after cleaning | Focus, module selection, coating, and speed units | Repeat a small grid on a spare blank before increasing exposure |
| Letters crumble or edges flake | Excessive exposure or loose slate layers | Reduce power or increase speed; reject defective blanks |
| Only part of the design is sharp | Tilt, uneven thickness, or a rocking blank | Level and refocus; test a smaller design area |
| Photos become pale, flat patches | Image contrast, overlap between scan lines, or excessive exposure | Compare an artwork crop at a different interval or exposure, changing one variable |
| Double edges or shifted second pass | Movement or a loose fixture | Secure a spare blank and verify the machine's alignment |
| Clear coat hides the image | Finish darkening the engraved area | Compare an unsealed sample or another compatible finish |
Frequently asked questions
Can a diode laser engrave slate coasters?
Yes, compatible blue diode machines can mark suitable slate. Start with the correct module's material preset and calibrate locally. A CO₂ recipe does not transfer directly.
What are the best LightBurn settings for slate?
There is no universal preset. Use a supported machine baseline, verify speed units and line interval, and test a spare blank. Check Negative Image for photographs that need a pale-on-dark result.
Should I coat slate before engraving?
Begin with uncoated slate unless you have a documented, compatible coated-material process. Unknown coatings complicate both processing and contrast. Test any optional finish after engraving on a spare piece.
Can the laser cut a coaster out of a slate sheet?
Do not treat this surface-engraving workflow as a slate-cutting process. Buy suitably sized blanks or use stone-cutting equipment appropriate to the material.
What if I want to engrave granite or marble instead?
Use the broader stone engraving methods and calibration guide. Changing the stone requires a new test, not just copying a slate preset.
