IPG LightWELD 2000 XR Handheld Laser Welding & Cleaning System

By IPG Photonics

$39,000.00
Everything Included
75-Day Returns
No restocking fee
White Glove Onboarding
Beginner to expert
Dual-Support
From TMC and IPG Photonics
Free Shipping
To the Lower 48 (No duties)
Price Match Guarantee
Lowest prices
Buy Now, Pay Later
Flexible maker financing
1 Year Warranty 75-Day Returns USA Support

Notify me when back in stock

★★★★★
“The Maker’s Chest took the time to actually call me to check in… I’ve purchased some REALLY high-dollar equipment in the last 30 years. They will have my business forever.”
Todd · Branchout Wood, Metal and Laserworks Trustpilot review →

Discount available for Active-Duty, Veteran, Retired Military Personnel & First Responders.

Unlock Discount
Description

The Most Powerful LightWELD — 2,000 W Air-Cooled Welding Through 5/16" Steel and Aluminum

The LightWELD 2000 XR delivers 2,000 W and 3,000 W peak, welding steels up to 0.313", aluminum up to 0.325" and copper up to 0.129", with 100 stored modes and 15 mm cleaning on 220 V single-phase.

IPG launched the LightWELD 2000 XR in May 2024 as the superior version of the 1500 XR, with over 30% more laser power. It was built for fabricators who need to weld thicker and deeper across the whole material range without moving to a water-cooled system, and it remains air-cooled, single-phase and made in the USA.

The 2000 XR keeps the XR series' small spot and high energy density, so it penetrates heavy sections, controls heat on thin parts, and handles copper, titanium and nickel alloys. More power also means more speed: IPG says the 2000 XR brings further speed gains over the 1500 XR, which was already up to 4X faster than TIG.

Weld Zero-Gauge Steel and Aluminum in a Single Pass

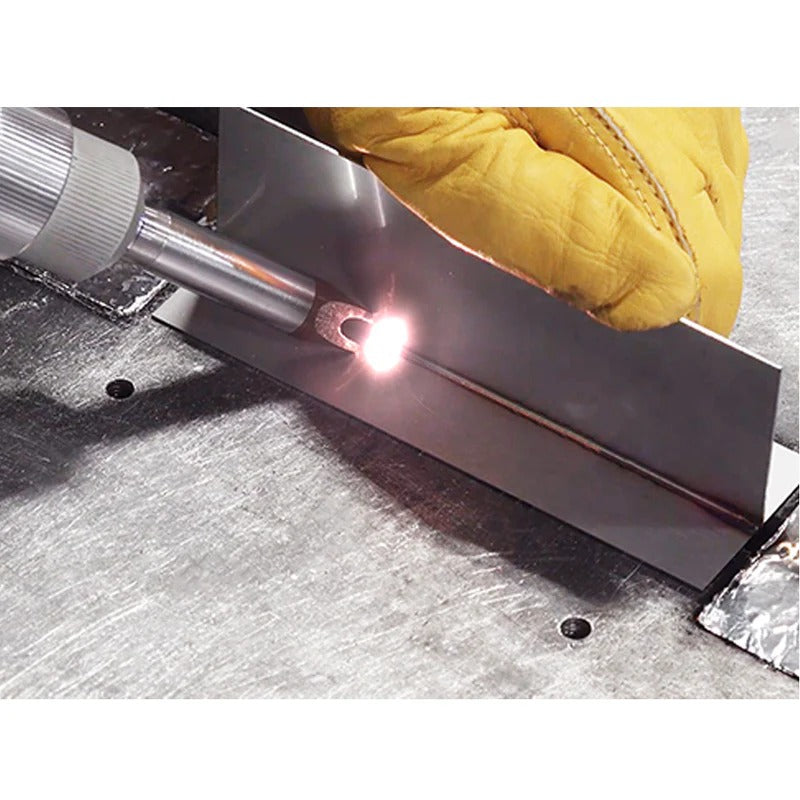

Laser-welded T-bar joint in thick plate made with the IPG LightWELD 2000 XR

IPG rates the 2000 XR for single-sided welds in stainless, galvanized and mild steel up to 0.313" (0 gauge) and 3 and 5 series aluminum up to 0.325" (0 gauge), plus 6 series aluminum up to 0.229". That moves handheld laser welding into light plate: structural brackets, trailer and truck components, thick aluminum enclosures and marine fabrications that previously needed multi-pass MIG or TIG. A single pass instead of several is a large saving in time, filler and distortion.

Weld Titanium, Nickel Alloys and Copper Thicker Than Any Other LightWELD

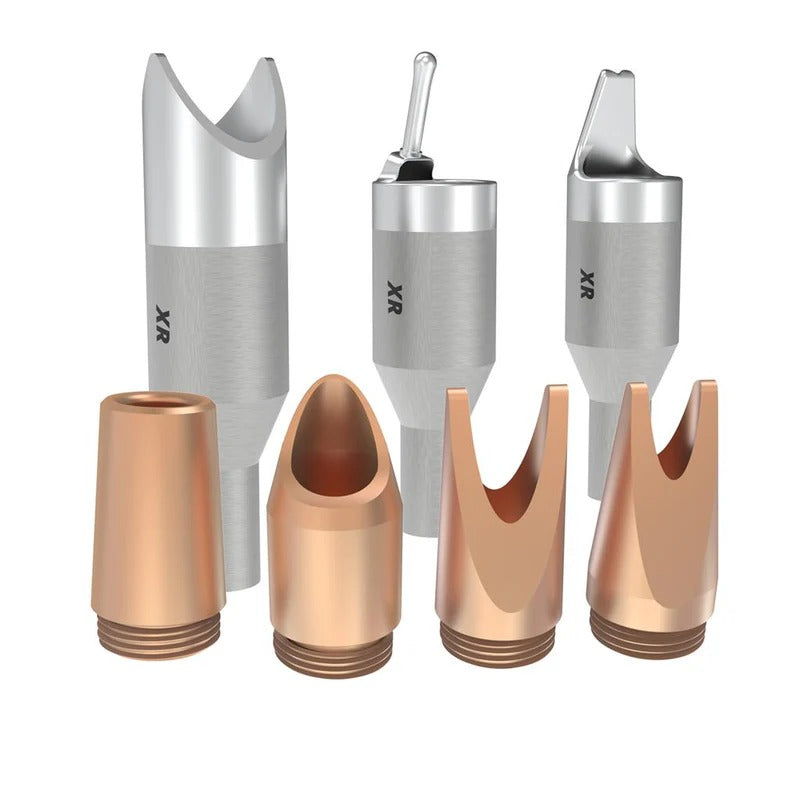

IPG LightWELD 2000 XR welding gun heads and nozzles

The XR series' small spot delivers more than 6X the energy density of the original LightWELD 1500 and XC, and the 2000 XR adds power on top. IPG rates it for nickel alloys up to 0.281", titanium up to 0.234" and copper up to 0.129" (8 gauge). A wider process window on these difficult metals means fewer rejects on high-value parts, and the smaller heat-affected zone limits distortion around the weld.

Move Faster on Long Welds With 2 kW

Operator laser welding a long seam with the IPG LightWELD 2000 XR

Extra power doesn't only add thickness; on the same material it lets the operator travel faster at full penetration. IPG positions the 2000 XR to give increased welding speeds without sacrificing quality compared with earlier models, and to let welders produce wider welds. With wobble up to 5 mm at 300 Hz, it bridges fit-up gaps and lays a smooth bead on long seams where throughput matters most.

Clean Every Thickness It Welds

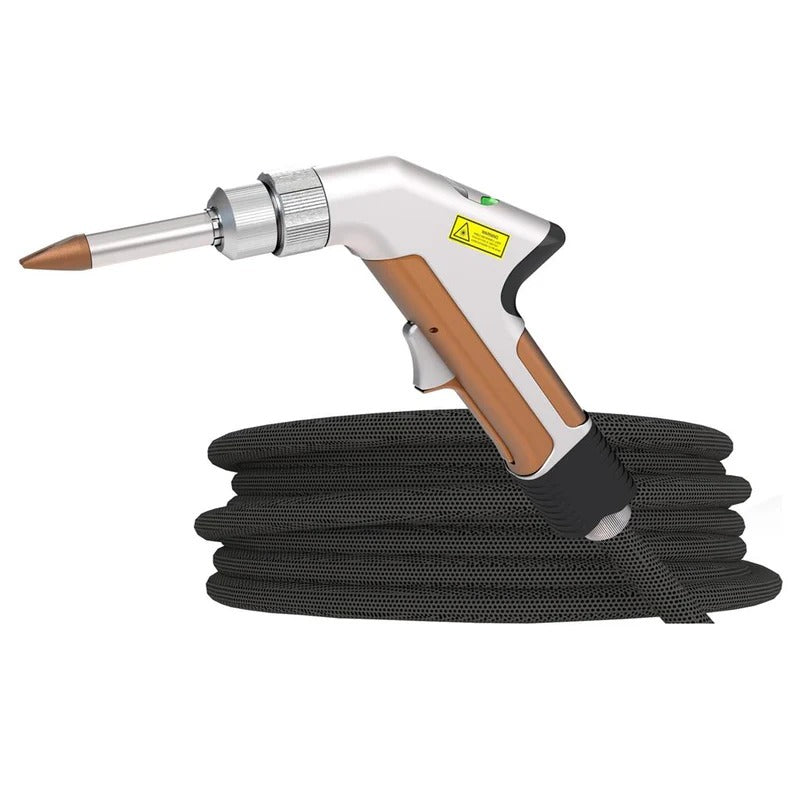

IPG LightWELD 2000 XR handheld welding and cleaning gun

IPG expanded the 2000 XR's built-in cleaning presets to cover its full thickness range. With up to 3,000 W high-frequency peak power and a 15 mm cleaning width, pre-weld cleaning removes grease, oils, rust and excessive oxide from the joint, and post-weld cleaning removes soot, debris and discoloration from the seam. That is prep and finishing at the same station, without grinders or chemicals.

Get Running Fast With 100 Updated Presets

The 2000 XR stores 100 modes, and IPG updated and optimized its welding and cleaning presets for the higher power so operators can make quality welds across the whole material range quickly. Novice operators start from validated settings; experienced users fine-tune and save their own. The 2000 XR is also fully compatible with the LightWELD Cobot System, which IPG says operators can teach by hand in minutes with no coding.

2 kW on 220 V Single-Phase, Still Air-Cooled

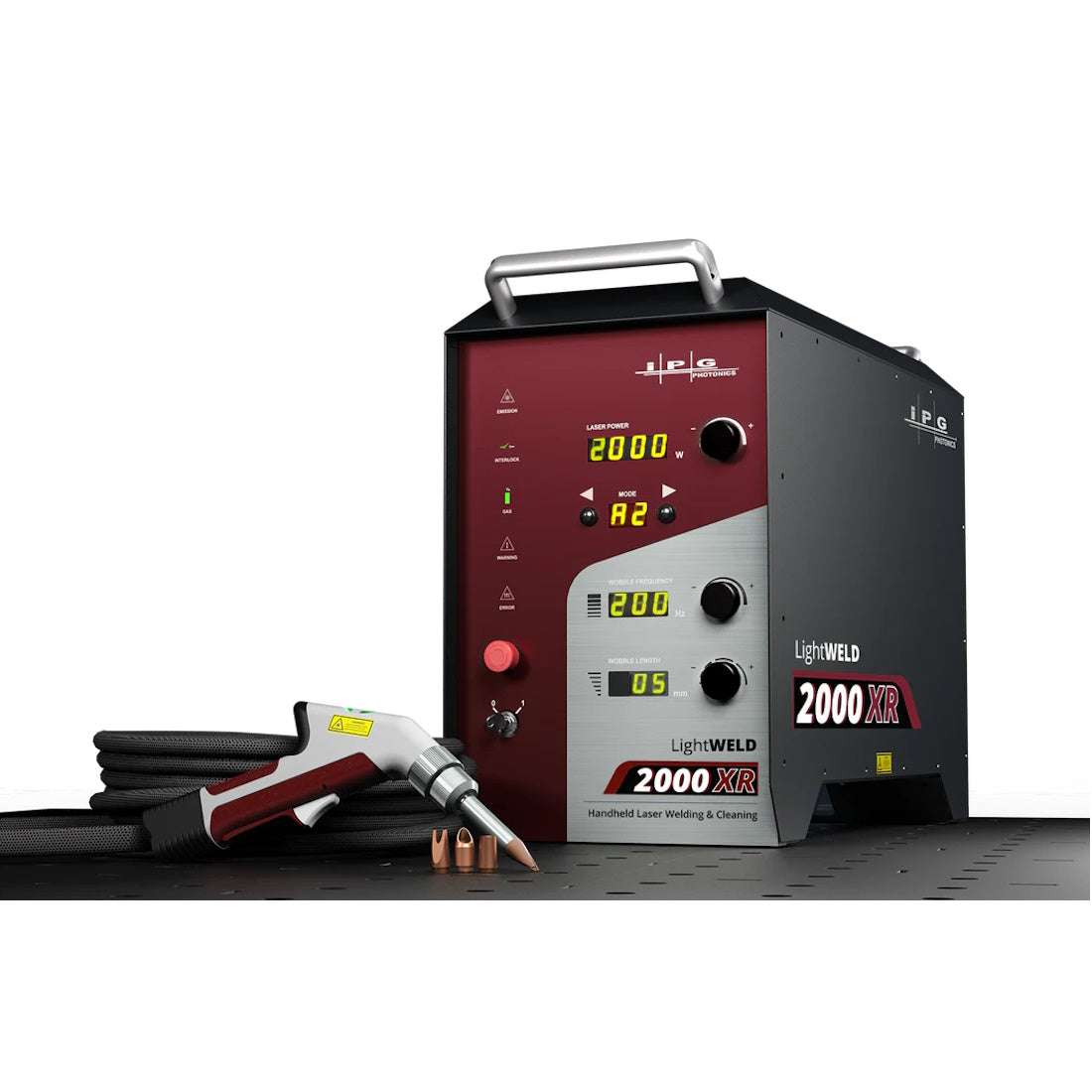

IPG LightWELD 2000 XR base unit front panel

Many handheld laser welders at 2 kW need a separate water chiller. The 2000 XR is air-cooled and runs on 220 V single-phase, 33 A. The base unit measures 641 × 316 × 534 mm (25.2 × 12.4 × 21 in) and weighs 60 kg (132 lb), and one 10 m (32 ft) cable carries laser, gas and gun control. Safety matches the rest of the line: key switch, E-stop, fiber interlock, 2-step trigger, part-contact and plume detection, and a door interlock circuit, with an IR-shielded helmet and OD 6+ glasses included.

Who the LightWELD 2000 XR Is Built For

  • Structural, trailer and truck fabricators welding up to 5/16" steel
  • Marine and aluminum fabrication shops working 1/4" to 5/16" aluminum
  • Aerospace, defense and energy suppliers welding titanium and nickel alloys
  • Electrical manufacturers welding copper up to 8 gauge
  • High-throughput shops where travel speed on long seams drives output

What's in the Box

  • IPG LightWELD 2000 XR air-cooled base unit
  • 10 m (32 ft) IPG laser welding gun cable (laser, gas and gun control in one cable)
  • 10 m (32 ft) workpiece clamp
  • (4) welding nozzle tips
  • (3) cleaning nozzle tips and weld head nozzle cleaning attachment
  • Pre-set cleaning mode software
  • (5) cover slides
  • Laser welding helmet with IR shield
  • Laser safety glasses, OD 6+
  • 3 m (10 ft) CAT 6 Ethernet cable
  • Getting Started Guide

Specifications

Laser Power (Welding) Up to 2,000 W
Peak Power Up to 3,000 W
Laser Type Air-cooled IPG ytterbium fiber laser
Steels Up to 0.313" (0 gauge)
Aluminum 3 & 5 Series Up to 0.325" (0 gauge)
Aluminum 6 Series Up to 0.229" (3 gauge)
Nickel Alloy Up to 0.281" (1 gauge)
Titanium Up to 0.234" (4 gauge)
Copper Up to 0.129" (8 gauge)
Wobble Up to 5 mm (0.200"), up to 300 Hz
Cleaning Width Up to 0.600" (15 mm)
Stored Modes 100
Wire Welding Yes, with optional IPG wire feeder
Input Power 220 V single-phase, 33 A
Cooling Air-cooled (no chiller)
Process Gas Argon, nitrogen, or argon + CO2 mix
Gun Cable 10 m (32 ft), laser, gas and gun control in one cable
Connectivity Ethernet web interface for advanced parameter settings
Safety Key switch, E-stop, fiber delivery interlock, 2-step trigger, part-contact interlock, door interlock circuit
Base Unit (L × W × H) 641 × 316 × 534 mm (25.2 × 12.4 × 21 in)
Weight 60 kg (132 lb)
Laser Class Class 4
Origin Made in the USA by IPG Photonics
Warranty 1 Year (IPG standard)

The IPG LightWELD 2000 XR is made in the USA by IPG Photonics and ships with IPG's 1-year standard warranty. Purchases from The Maker's Chest include our 75-day return window.

The Maker's Chest Difference

  • 🇺🇸 Bought directly from IPG Photonics: The Maker's Chest holds a direct IPG account, so your LightWELD ships new from IPG with IPG's factory warranty
  • 🛠️ IPG's 1-year standard warranty, with The Maker's Chest coordinating warranty service with IPG's U.S. team in Massachusetts
  • ↩️ 75-day return window on every LightWELD bought through The Maker's Chest
  • 🔌 Electrical planning: the 2000 XR draws 33 A on 220 V single-phase, and we help you confirm your circuit before delivery
  • 🔍 2000 XR or 1500 XR? Send us your thickest joints and we will tell you whether the extra 500 W pays off for your work
  • 🧯 Laser-safe shop planning: we help you set up a controlled laser area, door interlocks, PPE and fume extraction before the machine arrives
  • 💬 U.S.-based support from The Maker's Chest by phone and email on setup, presets, consumables and nozzle selection

Compare IPG LightWELD Models

Spec LightWELD 1000 LightWELD 1500 LightWELD 1500 XC LightWELD 1500 XR LightWELD 2000 XR
Welding power 1,000 W 1,500 W 1,500 W 1,500 W 2,000 W
Peak power 1,250 W (cleaning option) 2,500 W 2,500 W 2,500 W 3,000 W
Dedicated laser cleaning Optional No Yes, up to 15 mm Yes, up to 15 mm Yes, up to 15 mm
Steels (single side) up to 0.156" (9 ga) up to 4 mm (0.157") up to 4 mm (0.157") up to 0.234" (4 ga) up to 0.313" (0 ga)
Aluminum 3 & 5 series up to 0.129" (8 ga) up to 4 mm (0.157") up to 4 mm (0.157") up to 0.229" (3 ga) up to 0.325" (0 ga)
Copper Not rated Not rated up to 1 mm (0.039") up to 0.081" (12 ga) up to 0.129" (8 ga)
Titanium / nickel alloy Not rated Not rated Not rated up to 0.203" (6 ga) Ti 0.234" / Ni 0.281"

Choose the LightWELD 2000 XR if you regularly weld 5/16" steel or aluminum, or want the fastest travel speeds and the widest material range in the LightWELD line.

Choose the LightWELD 1500 XR if you weld thicker sections, copper, titanium or nickel alloys, where the XR's 60 µm spot and higher energy density widen the process window.

Frequently Asked Questions about the IPG LightWELD 2000 XR

Q: What makes the LightWELD 2000 XR different from other LightWELD models?
A: It is the most powerful model: 2,000 W and 3,000 W peak, over 30% more than the 1500 XR, with the XR series' small, high-energy-density spot. It welds the thickest material in the line and moves faster on long welds.


Q: What materials and thicknesses can the 2000 XR weld?
A: IPG rates it for steels up to 0.313", 3/5 series aluminum up to 0.325", 6 series aluminum up to 0.229", nickel alloys up to 0.281", titanium up to 0.234" and copper up to 0.129".


Q: Does the 2000 XR need a water chiller?
A: No. It is air-cooled and runs on 220 V single-phase power.


Q: What power does the LightWELD 2000 XR require?
A: 220 V single-phase at 33 A. Plan a circuit sized for that draw before installation.


Q: Can I use the LightWELD 2000 XR for cleaning?
A: Yes. It cleans up to 15 mm wide with presets that IPG expanded to cover the 2000 XR's full thickness range.


Q: How much does the LightWELD 2000 XR weigh?
A: The base unit weighs 60 kg (132 lb) and measures 641 × 316 × 534 mm (25.2 × 12.4 × 21 in).


Q: Can the LightWELD weld with filler wire?
A: Yes. All LightWELD models support wire welding with IPG's optional wire feeder, which takes 0.030"–0.063" (0.8–1.6 mm) wire at 15–230 ipm. Wire adds bead size and bridges gaps on parts with poor fit-up.


Q: Is the LightWELD safe to use in a shop?
A: It is a Class 4 laser, so it must be used inside a controlled laser area with laser-rated PPE. IPG builds in a key switch, E-stop, a fiber delivery interlock, a 2-step trigger, a part-contact interlock that only lets the laser fire when the nozzle touches the part, plume detection that shuts the laser off if no weld is forming, and a door interlock circuit. A laser welding helmet with IR shield and OD 6+ laser safety glasses are included.


Q: Can the 2000 XR be used with a cobot?
A: Yes. IPG says the 2000 XR is fully compatible with the LightWELD Cobot System, which is taught by hand-guiding and controlled from one interface with no coding.


Q: Is the IPG warranty valid when I buy through The Maker's Chest?
A: Yes. The Maker's Chest buys LightWELD systems directly from IPG Photonics, and every new unit carries IPG's 1-year standard warranty. IPG also offers an optional LightSHIELD one-year warranty extension.


Q: What is the return policy on a LightWELD?
A: Purchases from The Maker's Chest include our 75-day return window. If the LightWELD is not the right fit for your shop, contact us within 75 days to arrange a return.


Q: Why buy a LightWELD from The Maker's Chest?
A: You get a new, factory-warranted LightWELD sourced directly from IPG with a 75-day return window, plus a U.S. team that helps you pick the right model for your materials and thicknesses before you buy, and then supports laser-area setup, PPE, presets, nozzle selection and warranty coordination with IPG afterward.

Specifications
IPG LightWELD 2000 XR Specifications:
Laser Power (Welding) Up to 2,000 W
Peak Power Up to 3,000 W
Laser Type Air-cooled IPG ytterbium fiber laser
Steels Up to 0.313" (0 gauge)
Aluminum 3 & 5 Series Up to 0.325" (0 gauge)
Aluminum 6 Series Up to 0.229" (3 gauge)
Nickel Alloy Up to 0.281" (1 gauge)
Titanium Up to 0.234" (4 gauge)
Copper Up to 0.129" (8 gauge)
Wobble Up to 5 mm (0.200"), up to 300 Hz
Cleaning Width Up to 0.600" (15 mm)
Stored Modes 100
Wire Welding Yes, with optional IPG wire feeder
Input Power 220 V single-phase, 33 A
Cooling Air-cooled (no chiller)
Process Gas Argon, nitrogen, or argon + CO2 mix
Gun Cable 10 m (32 ft), laser, gas and gun control in one cable
Connectivity Ethernet web interface for advanced parameter settings
Safety Key switch, E-stop, fiber delivery interlock, 2-step trigger, part-contact interlock, door interlock circuit
Base Unit (L × W × H) 641 × 316 × 534 mm (25.2 × 12.4 × 21 in)
Weight 60 kg (132 lb)
Laser Class Class 4
Origin Made in the USA by IPG Photonics
Warranty 1 Year (IPG standard)
