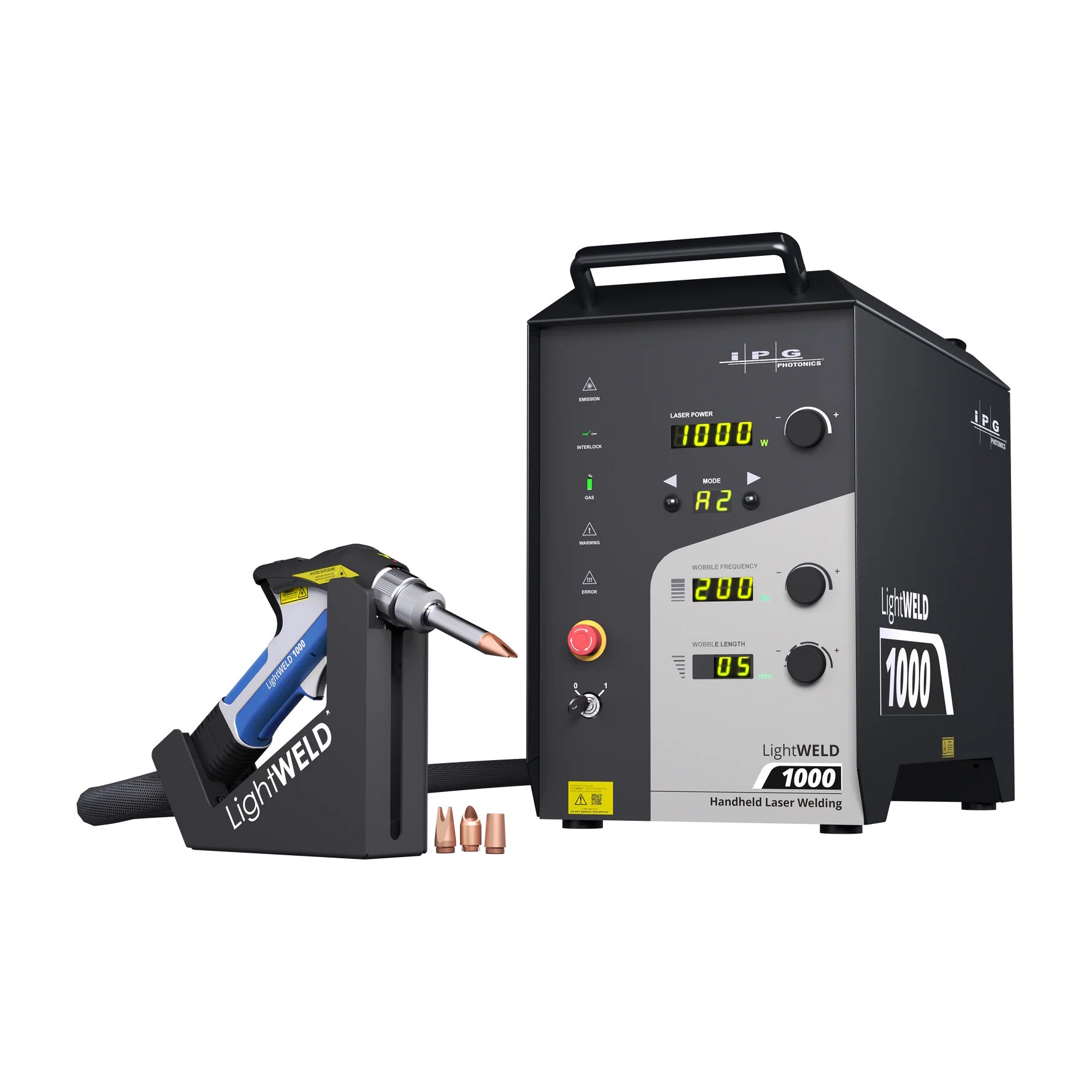

IPG LightWELD 1000 Handheld Laser Welding System
By IPG Photonics
“The Maker’s Chest took the time to actually call me to check in… I’ve purchased some REALLY high-dollar equipment in the last 30 years. They will have my business forever.”
“The Maker’s Chest took the time to actually call me to check in… I’ve purchased some REALLY high-dollar equipment in the last 30 years. They will have my business forever.”
Todd · Branchout Wood, Metal and Laserworks
By IPG Photonics
“The Maker’s Chest took the time to actually call me to check in… I’ve purchased some REALLY high-dollar equipment in the last 30 years. They will have my business forever.”
Discount available for Active-Duty, Veteran, Retired Military Personnel & First Responders.
Unlock Discount
Most fabrication shops don't need 2 kW to weld enclosures, brackets, frames and stainless sheet. They need clean, flat welds on 10- to 20-gauge material without the grinding, warping and slow travel of TIG. The IPG LightWELD 1000 is built for exactly that work: it brings IPG's fiber laser welding to the thinner end of the material range at the lowest price in the LightWELD family.
Like every LightWELD, the 1000 is made in the USA by IPG Photonics, the company that builds the fiber laser sources used across the industry. It is air-cooled, runs on 220 V single-phase power, and uses the same 2-step trigger, part-contact interlock and factory preset system as the larger models, so a shop can standardize on LightWELD and add a 1500 XR or 2000 XR later without retraining operators.

IPG rates LightWELD welding at up to 4X faster than TIG. On sheet metal, that speed comes from the laser's concentrated energy: the 1,000 W beam forms a narrow, deep weld pool and moves on before heat spreads into the surrounding panel. The LightWELD 1000 covers steels up to 0.156" (9 gauge), including stainless, mild and galvanized steel, and 3, 5 and 6 series aluminum up to 0.129" (8 gauge). For a shop welding 14- to 18-gauge stainless enclosures, that range covers nearly every joint, and the lower heat input means far less distortion to straighten afterward.

A TIG or MIG weld on thin sheet usually means grinding, blending and polishing before a part can ship. Laser welding produces a narrow, consistent bead with minimal spatter, undercut or burn-through, so visible seams often need little or no finishing. The 1000's wobble welding function oscillates the beam up to 0.200" (5 mm) wide, which smooths the bead, accommodates small fit-up gaps, and gives cosmetic seams on corners and edges. Cutting finishing time is often where the LightWELD pays for itself, more than the welding speed alone.
The LightWELD control panel loads factory presets for common material and thickness combinations, including wobble settings, so a new operator selects the job and starts from a validated setting instead of building parameters from scratch. Advanced users can customize presets, save them, and hand them to less experienced welders who then produce the same result. IPG positions this as a way to reduce training time and scrap, and it is why shops without a deep bench of TIG welders choose LightWELD: the skill moves into the preset, not the operator's hands.

Unlike the XC and XR models, the LightWELD 1000 is a welding-first system: dedicated laser cleaning is an optional package. With the option, IPG rates cleaning width up to 0.600" (15 mm) with 1,250 W of high-frequency peak power for removing oil, light oxide and post-weld discoloration. If pre- and post-weld cleaning is a daily step in your process, compare the 1000 with the cleaning option against the 1500 XC, which includes cleaning as standard at higher peak power.

The LightWELD 1000 is air-cooled, so there is no water chiller to fill, maintain or move. Setup is plugging into 220 V single-phase power, connecting standard argon, nitrogen or argon/CO2 shielding gas, and attaching the work clamp. Laser power, gas and gun control all run through one 10 m (32 ft) cable, which gives the operator a wide reach around large parts. An Ethernet connection gives access to advanced parameter settings.
The LightWELD 1000 carries the same layered safety system as the rest of the line. A key switch and E-stop control the laser, a fiber interlock verifies the laser delivery to the gun, and the 2-step trigger requires the operator to enable and then fire. The laser only fires while the nozzle is in contact with the part, shuts off if no welding plume is detected, and a door interlock circuit stops the laser if someone enters the welding area. An IR-shielded laser welding helmet and OD 6+ glasses are included.
| Laser Power | Up to 1,000 W |
| Laser Type | Air-cooled IPG ytterbium fiber laser |
| Steels (single side) | Up to 0.156" (9 gauge) |
| Aluminum 3, 5 & 6 Series | Up to 0.129" (8 gauge) |
| Wobble Welding Width | Up to 0.200" (5 mm) |
| Wire Welding | Yes, with optional IPG wire feeder |
| Laser Cleaning | Optional: up to 0.600" (15 mm) width, 1,250 W peak |
| Input Power | 220 V single-phase |
| Cooling | Air-cooled (no chiller) |
| Process Gas | Argon, nitrogen, or argon + CO2 mix |

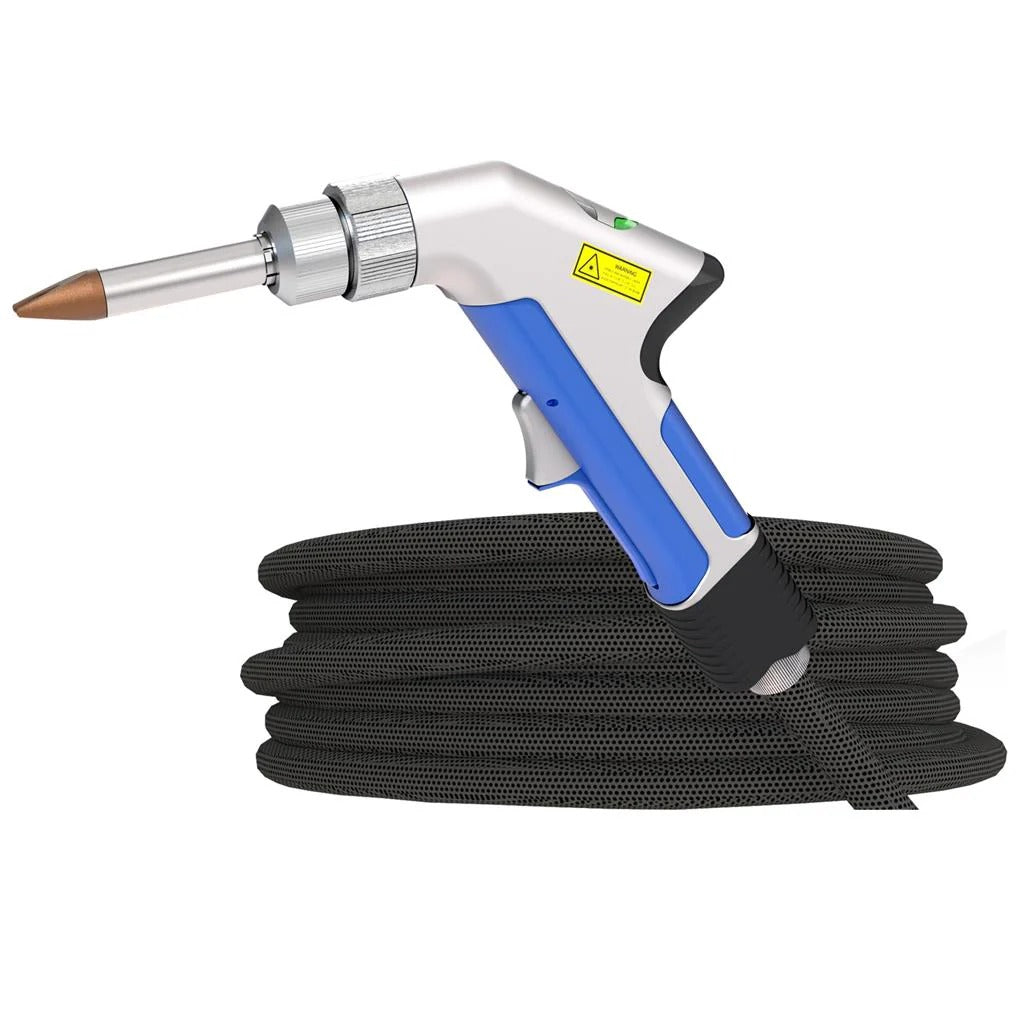

| Gun Cable | 10 m (32 ft), laser, gas and gun control in one cable |
| Connectivity | Ethernet web interface for advanced parameter settings |
| Safety | Key switch, E-stop, fiber delivery interlock, 2-step trigger, part-contact interlock, door interlock circuit |
| Laser Class | Class 4 |
| Origin | Made in the USA by IPG Photonics |
| Warranty | 1 Year (IPG standard) |
The IPG LightWELD 1000 is made in the USA by IPG Photonics and ships with IPG's 1-year standard warranty. Purchases from The Maker's Chest include our 75-day return window.
| Spec | LightWELD 1000 | LightWELD 1500 | LightWELD 1500 XC | LightWELD 1500 XR | LightWELD 2000 XR |
|---|---|---|---|---|---|
| Welding power | 1,000 W | 1,500 W | 1,500 W | 1,500 W | 2,000 W |
| Peak power | 1,250 W (cleaning option) | 2,500 W | 2,500 W | 2,500 W | 3,000 W |
| Dedicated laser cleaning | Optional | No | Yes, up to 15 mm | Yes, up to 15 mm | Yes, up to 15 mm |
| Steels (single side) | up to 0.156" (9 ga) | up to 4 mm (0.157") | up to 4 mm (0.157") | up to 0.234" (4 ga) | up to 0.313" (0 ga) |
| Aluminum 3 & 5 series | up to 0.129" (8 ga) | up to 4 mm (0.157") | up to 4 mm (0.157") | up to 0.229" (3 ga) | up to 0.325" (0 ga) |
| Copper | Not rated | Not rated | up to 1 mm (0.039") | up to 0.081" (12 ga) | up to 0.129" (8 ga) |
| Titanium / nickel alloy | Not rated | Not rated | Not rated | up to 0.203" (6 ga) | Ti 0.234" / Ni 0.281" |
Choose the LightWELD 1000 if you weld mostly sheet metal up to about 5/32" (4 mm) in steel and stainless and want the lowest-cost entry into IPG laser welding, with cleaning available as an option.
Choose the LightWELD 1500 XC if you want 1,500 W welding plus dedicated pre- and post-weld laser cleaning in one unit, on material up to 4 mm. Choose the LightWELD 1500 XR if you weld thicker sections, copper, titanium or nickel alloys, where the XR's 60 µm spot and higher energy density widen the process window.
Q: What's the difference between the LightWELD 1000 and the LightWELD 1500 XR?
A: The 1000 is IPG's lowest-cost model: 1,000 W, welding steels up to 0.156" and aluminum up to 0.129", with cleaning as an option. The 1500 XR adds 50% more power, a smaller 60 µm spot, built-in cleaning, and rated capability on copper, titanium and nickel alloys, with steels up to 0.234".
Q: What materials can the LightWELD 1000 weld?
A: IPG rates it for stainless, mild and galvanized steel up to 0.156" (9 gauge) and 3, 5 and 6 series aluminum up to 0.129" (8 gauge). IPG does not list copper, titanium or nickel alloy ratings for the 1000; those need a 1500 XR or 2000 XR.
Q: Does the LightWELD 1000 have laser cleaning?
A: Cleaning is an optional package on the 1000, rated up to 0.600" (15 mm) wide at 1,250 W peak. The 1500 XC, 1500 XR and 2000 XR include cleaning as standard.
Q: How much faster is the LightWELD 1000 than TIG?
A: IPG rates LightWELD welding at up to 4X faster than TIG, with less heat input, less distortion and less post-weld finishing.
Q: Is the LightWELD 1000 easy to learn?
A: Yes. Factory presets for material and thickness combinations let new operators start from a validated setting, and experienced users can save custom presets for others to reuse.
Q: Can the LightWELD weld with filler wire?
A: Yes. All LightWELD models support wire welding with IPG's optional wire feeder, which takes 0.030"–0.063" (0.8–1.6 mm) wire at 15–230 ipm. Wire adds bead size and bridges gaps on parts with poor fit-up.
Q: What power and gas does a LightWELD need?
A: LightWELD systems run on 220 V single-phase power and standard shielding gas: argon, nitrogen or an argon + CO2 mix. Laser power, gas and gun control run through a single cable from the base unit, so setup is plugging in power and gas and attaching the work clamp.
Q: Is the LightWELD safe to use in a shop?
A: It is a Class 4 laser, so it must be used inside a controlled laser area with laser-rated PPE. IPG builds in a key switch, E-stop, a fiber delivery interlock, a 2-step trigger, a part-contact interlock that only lets the laser fire when the nozzle touches the part, plume detection that shuts the laser off if no weld is forming, and a door interlock circuit. A laser welding helmet with IR shield and OD 6+ laser safety glasses are included.
Q: Where is the LightWELD 1000 made?
A: It is made in the USA by IPG Photonics, headquartered in Marlborough, Massachusetts.
Q: Is the IPG warranty valid when I buy through The Maker's Chest?
A: Yes. The Maker's Chest buys LightWELD systems directly from IPG Photonics, and every new unit carries IPG's 1-year standard warranty. IPG also offers an optional LightSHIELD one-year warranty extension.
Q: What is the return policy on a LightWELD?
A: Purchases from The Maker's Chest include our 75-day return window. If the LightWELD is not the right fit for your shop, contact us within 75 days to arrange a return.
Q: Why buy a LightWELD from The Maker's Chest?
A: You get a new, factory-warranted LightWELD sourced directly from IPG with a 75-day return window, plus a U.S. team that helps you pick the right model for your materials and thicknesses before you buy, and then supports laser-area setup, PPE, presets, nozzle selection and warranty coordination with IPG afterward.
| Laser Power | Up to 1,000 W |
| Laser Type | Air-cooled IPG ytterbium fiber laser |
| Steels (single side) | Up to 0.156" (9 gauge) |
| Aluminum 3, 5 & 6 Series | Up to 0.129" (8 gauge) |
| Wobble Welding Width | Up to 0.200" (5 mm) |
| Wire Welding | Yes, with optional IPG wire feeder |
| Laser Cleaning | Optional: up to 0.600" (15 mm) width, 1,250 W peak |
| Input Power | 220 V single-phase |
| Cooling | Air-cooled (no chiller) |
| Process Gas | Argon, nitrogen, or argon + CO2 mix |
| Gun Cable | 10 m (32 ft), laser, gas and gun control in one cable |
| Connectivity | Ethernet web interface for advanced parameter settings |
| Safety | Key switch, E-stop, fiber delivery interlock, 2-step trigger, part-contact interlock, door interlock circuit |
| Laser Class | Class 4 |
| Origin | Made in the USA by IPG Photonics |
| Warranty | 1 Year (IPG standard) |
