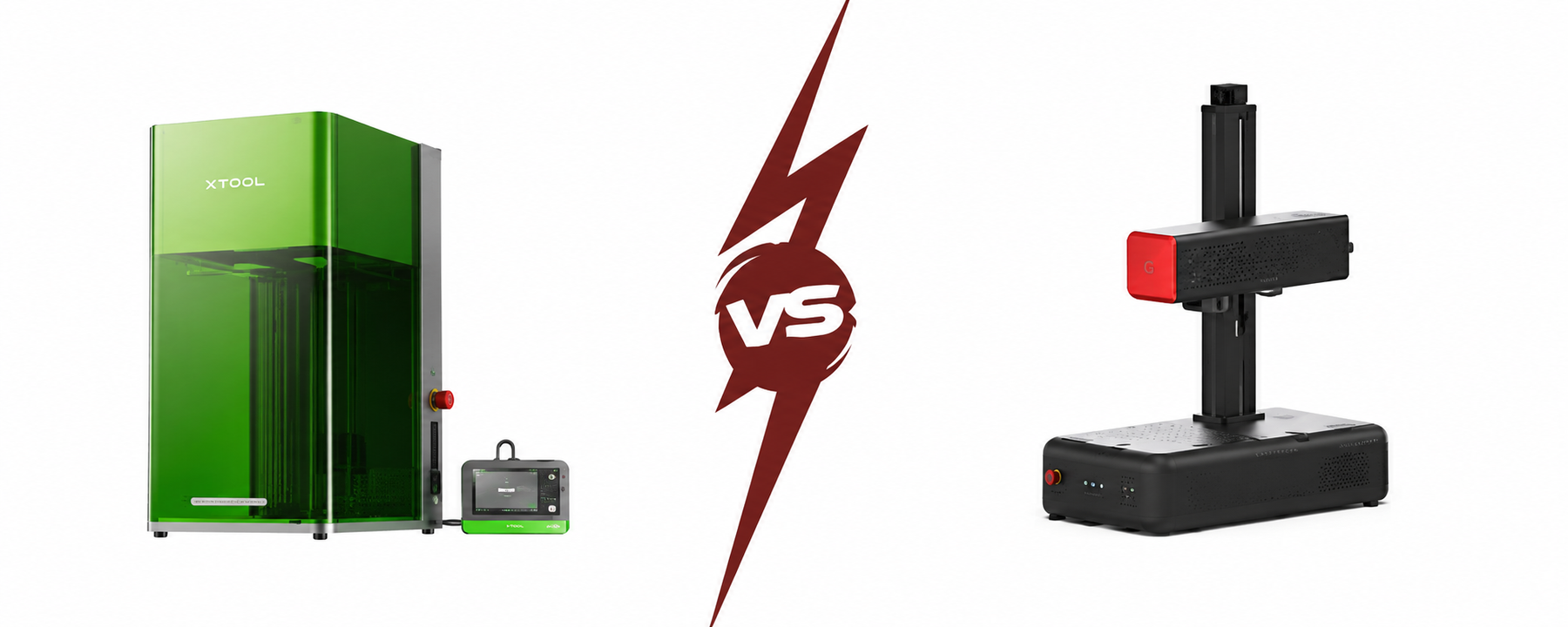

xTool F1 Ultra vs ComMarker B6 MOPA: Which Laser Is Right for You?

If you've been researching desktop laser engravers for any length of time, you've probably landed on these two machines more than once. The xTool F1 Ultra and the ComMarker B6 MOPA have both earned serious followings among makers, small business owners, and professional engravers — and for good reason. They're genuinely impressive machines.

But they are not the same machine. In fact, they represent two quite different philosophies about what a desktop fiber laser should do. Before you spend thousands of dollars, it's worth understanding exactly where each one shines and where it falls short.

This guide covers everything you need to know: specs, real-world performance, software, material compatibility, and value. By the end, you'll have a clear answer for your specific workflow.

Two Different Philosophies, One Purchase Decision

At a high level, the xTool F1 Ultra asks: what if one machine could do everything? It combines a 20W fiber laser and a 20W diode laser into a single enclosed unit, so you can engrave metal one minute and cut wood the next without changing machines.

The ComMarker B6 MOPA asks a different question: what if one machine could do one thing better than almost anything else at this price point? It's a dedicated fiber laser built specifically for metal work, and its MOPA (Master Oscillator Power Amplifier) technology gives you a level of pulse control that standard fiber lasers simply can't match.

Both are valid philosophies. The right one depends entirely on what you're making.

xTool F1 Ultra: Key Specs and Strengths

The xTool F1 Ultra is the world's first desktop machine to combine a 20W fiber laser and a 20W diode laser in a single enclosed galvo unit. That's not marketing fluff — it's a genuinely novel design that changes what a compact engraver can do.

Quick specs:

• Fiber laser: 20W (1064nm)
• Diode laser: 20W (455nm)
• Max engraving speed: 10,000 mm/s
• Working area: 220 × 220mm (expandable to 220 × 500mm with conveyor)
• Camera: 16MP built-in smart camera
• Software: xTool Creative Space (XCS) + LightBurn compatible

For a deeper look at how it performs across different materials, check out our full xTool F1 Ultra review.

Dual-Laser System (Fiber + Diode)

This is the F1 Ultra's defining feature. The fiber laser handles all metals — stainless steel, aluminum, brass, titanium, copper, gold, silver — with high-contrast engraving, deep marking, and even thin metal sheet cutting (up to 0.4mm brass, 0.3mm stainless steel, 0.2mm aluminum). The diode laser takes over for organic materials: wood up to 15mm thick, 12mm black acrylic, leather, glass, rubber, and fabric.

Switching between lasers is software-driven, meaning you can set up a file that uses both in the same job. For a small business running mixed-material orders, this eliminates the need to own two separate machines.

It's worth noting that the F1 Ultra's fiber laser is not a MOPA laser. It produces sharp, high-contrast blacks and detailed marks on metal extremely well, but it does not offer the pulse-width control needed for true spectrum color engraving on stainless steel. More on that in the head-to-head section.

Camera, Autofocus and Software Ecosystem

One of the most practical features on the F1 Ultra is its 16MP built-in smart camera. It automatically recognizes the shape and position of objects on the work surface, so you can place items by hand and let the machine do the alignment. Autofocus adjusts the lens height automatically as well — no manual cranking or measuring.

The xTool Creative Space (XCS) software has a reputation for being genuinely beginner-friendly. It includes a library of pre-built designs, AI-assisted layout tools, one-click material presets, and 3D embossing capabilities. For someone new to laser engraving, the learning curve is significantly flatter than with EZCAD2. The F1 Ultra is also LightBurn compatible for users who prefer that environment.

Working Area and Batch Production

At 220 × 220mm, the F1 Ultra has the largest working area of any desktop galvo laser on the market. Add the optional auto conveyor and that expands to 220 × 500mm. Combined with the smart camera's Auto Streamline Production feature, the machine can automatically identify items on the conveyor, fill the engraving pattern, and run batch jobs with minimal operator input. For Etsy sellers or small businesses running repeat orders, this is a genuine production tool.

ComMarker B6 MOPA: Key Specs and Strengths

The ComMarker B6 MOPA is a focused, purpose-built fiber laser engraver powered by a JPT M7 MOPA laser source. It's available in 20W, 30W, and 60W configurations, with the 20W and 60W being the most popular for small business use. If your primary work involves metal — especially stainless steel, titanium, anodized aluminum, or brass — this machine deserves serious attention.

Quick specs (20W version):

• Laser: 20W JPT M7 MOPA fiber (1064nm)
• Max engraving speed: 15,000 mm/s
• Working area: 150 × 150mm (standard field lens)
• Weight: 13kg
• Software: EZCAD2 + LightBurn compatible
• Autofocus: Electric, touchscreen-controlled

For a full breakdown of real-world performance, see our ComMarker B6 MOPA review.

MOPA Pulse Control and Color Engraving

MOPA technology separates the laser's oscillator from its power amplifier, allowing independent control over both pulse duration and pulse frequency. The ComMarker B6 uses a JPT M7 source with pulse width adjustable from 1 to 500 nanoseconds and frequency ranging from 1kHz to 4000kHz. That's a dramatically wider parameter range than a standard Q-switched fiber laser, which has a fixed, non-adjustable pulse width.

In practice, this means you can produce vivid color marking on stainless steel and titanium — blues, golds, purples, reds — by controlling the oxide layer thickness on the metal surface. You can achieve deep, high-contrast black annealing on stainless steel with no material removal. You can mark black on anodized aluminum without burning through the coating. These are capabilities that standard fiber lasers simply cannot replicate.

As one hands-on reviewer put it: "The pulse-width control lets you dial in vibrant blues, yellows, and even charcoal black" — results that make a real difference if color branding is part of your product line.

Compact Design and Rotary Compatibility

The B6 MOPA is notably compact for a fiber laser at its power level — just 13kg and designed to sit flat on a standard workbench. It also features a 2-in-1 design that allows vertical or horizontal positioning, which is useful when working with rotary attachments on tumblers, rings, and cylindrical items. Rotary engraving is a natural fit for the B6 MOPA's metal-focused skill set.

The standard 150 × 150mm field lens is suitable for most jewelry, coin, and small product work. A 300 × 300mm field lens is available for larger jobs (60W recommended at that size).

LightBurn and EZCAD Support

The ComMarker B6 MOPA ships with EZCAD2, the industry-standard software for fiber laser systems. It's not the most beginner-friendly interface, but it's powerful, stable, and widely supported — most professional fiber laser operators already know it. Crucially, the B6 MOPA is also LightBurn compatible, which opens it up to a much wider community of makers who prefer LightBurn's more intuitive workflow. This dual-software compatibility is a genuine differentiator at this price point.

Head-to-Head Comparison

Metal Engraving Performance

Both machines engrave metal well. The xTool F1 Ultra's 20W fiber laser produces clean, sharp, high-contrast marks on steel, aluminum, brass, and other metals at speeds up to 10,000 mm/s. It's fast and consistent, and handles production volume without breaking a sweat.

The ComMarker B6 MOPA matches or exceeds that on raw marking quality for dedicated metal work, particularly at the 60W level. Its 15,000 mm/s speed is faster on paper. More importantly, the MOPA source gives it finer control over depth and finish — you can dial in a polished surface mark on one job and a deep, matte black on the next, using the same machine with different parameter sets.

For deep engraving, annealing, and fine detail on metals, the B6 MOPA has the technical edge. For high-speed batch marking across a mix of metals and non-metals, the F1 Ultra's flexibility is hard to beat.

Color Engraving Capability

This is the clearest differentiator between the two machines. The ComMarker B6 MOPA produces true spectrum color marking on stainless steel and titanium through controlled oxide layer formation. With the right pulse and frequency settings, you can achieve reliable, repeatable color results for branded jewelry, custom tumblers, and artistic metalwork.

The xTool F1 Ultra can produce some color effects on metal — its fiber laser is capable of basic color marking — but without MOPA pulse-width control, achieving consistent, vivid color across a production run is significantly harder. If color metal engraving is central to your business, the B6 MOPA is the clear choice.

Material Versatility (Wood, Leather, Acrylic)

This round goes decisively to the xTool F1 Ultra. Its 20W diode laser handles wood, leather, acrylic, glass, rubber, fabric, and more — cutting and engraving with excellent results. The ComMarker B6 MOPA is a fiber-only machine. It can mark some plastics and leather, but it's not designed or optimized for organic materials. If your shop handles a mix of wood, leather, and metal projects, the F1 Ultra is built for your workflow and the B6 MOPA is not.

Software and Ease of Use

The xTool F1 Ultra's XCS software is notably more beginner-friendly. Smart camera alignment, AI design tools, and pre-built material presets mean you can be running your first job within an hour of unboxing. The enclosed design also makes it safer and more practical for storefront or shared studio use.

The B6 MOPA's EZCAD2 has a steeper learning curve. Getting the most out of MOPA color engraving in particular requires real experimentation with frequency and pulse width parameters. That said, once you have your settings dialed in per material, repeatability is excellent. LightBurn compatibility softens the learning curve considerably for users already in that ecosystem.

Price and Value

Pricing shifts with sales and bundles, so always check current listings — but as a general benchmark, the xTool F1 Ultra retails around $3,799 (with frequent promotional pricing), while the ComMarker B6 MOPA 20W comes in significantly lower, typically in the $800–$1,200 range depending on configuration and lens size.

The 60W B6 MOPA — which is the version recommended for serious production color engraving — sits closer to $1,500–$2,000. Even at that level, it's a lower entry point than the F1 Ultra.

However, the F1 Ultra is replacing two machines (a fiber laser and a diode cutter), which changes the value equation considerably for makers who need both. If you only need a metal engraver, the B6 MOPA offers outstanding capability per dollar. If you need a genuine all-in-one, the F1 Ultra earns its price.

Who Should Choose the xTool F1 Ultra?

The F1 Ultra is the right machine if you run a shop that handles a genuine mix of materials. If a typical week involves engraving metal tags, cutting leather patches, marking acrylic signs, and personalizing wooden gifts — all in the same studio — this machine replaces multiple tools and does it at production speed.

It's also the better fit if you're newer to laser engraving and want a more guided, software-supported experience. The smart camera, auto-alignment, and XCS software flatten the learning curve significantly. And for anyone running an Etsy or Shopify store with high order volumes, the auto conveyor and batch production features are hard to overlook.

In short: choose the F1 Ultra if versatility, speed, and ease of use are your priorities, and your budget allows for it. You can Buy the xTool F1 Ultra directly from our store.

Who Should Choose the ComMarker B6 MOPA?

The ComMarker B6 MOPA is the right machine if metal is your primary material and color engraving is either a current or future part of your product line. Jewelry makers, knife engravers, tumbler artists, and industrial branding specialists will find the MOPA's parameter control genuinely invaluable.

It's also a strong choice if your budget doesn't stretch to the F1 Ultra but you need professional-grade fiber laser output. The 60W version in particular punches well above its price class for deep engraving and color work on stainless steel and titanium.

If you're already comfortable with EZCAD2 or LightBurn and don't need to engrave wood or acrylic, there's no reason to pay for the F1 Ultra's dual-laser system. The B6 MOPA does one thing — metal engraving — at a very high level for a very competitive price. Buy the ComMarker B6 MOPA here and see what it can do for your workflow.

Verdict

Both machines are genuinely excellent. The comparison really does come down to your workflow, not just your budget.

Choose the xTool F1 Ultra if you need a true all-in-one system that handles metals, wood, leather, and acrylic with equal confidence — and you want the smartest, most automated production workflow available in a desktop galvo laser.

Choose the ComMarker B6 MOPA if metal engraving is your core business, color work on stainless steel or titanium matters to you, and you want maximum fiber laser capability at a lower price point.

If you're still weighing the options, both machines have full reviews on The Maker's Chest — our xTool F1 Ultra review and ComMarker B6 MOPA review go deep into real-world testing. Either way, you're investing in a machine that will define the output quality of your shop for years to come. Choose the one that matches the work you actually do.

Frequently Asked Questions

What is the main difference between the xTool F1 Ultra and the ComMarker B6 MOPA?

The core difference is laser architecture. The xTool F1 Ultra combines a 20W fiber laser and a 20W diode laser in one machine, making it versatile across metals, wood, leather, and acrylic. The ComMarker B6 MOPA is a single-source fiber laser with JPT MOPA technology, which gives it adjustable pulse width and frequency — capabilities that unlock true color engraving on stainless steel and titanium. The F1 Ultra is a generalist; the B6 MOPA is a metal specialist.

Can the xTool F1 Ultra do color engraving on metal?

Yes, but with limitations. The F1 Ultra's fiber laser can produce some color effects on metal, but it lacks the MOPA pulse-width control needed for consistent, vivid spectrum color marking. The ComMarker B6 MOPA's adjustable pulse width (1–500ns) and wide frequency range are specifically what make reliable color engraving possible. If color marking on stainless steel or titanium is important to your work, the B6 MOPA is the more capable choice.

Is the ComMarker B6 MOPA good for wood and leather?

Not ideally. The B6 MOPA is a fiber-only laser system. While it can mark some plastics and surface-treat certain materials, it's primarily designed and optimized for metal engraving and marking. For wood, leather, acrylic, and similar organic materials, a diode or CO2 laser — like the diode laser built into the xTool F1 Ultra — is a much better fit.

Which machine is easier to learn as a beginner?

The xTool F1 Ultra has the gentler learning curve, largely due to its xTool Creative Space (XCS) software. XCS includes beginner-friendly features like auto-alignment via built-in camera, material presets, AI design tools, and a library of pre-built projects. The ComMarker B6 MOPA uses EZCAD2 by default, which is more powerful but takes longer to master — especially when dialing in color engraving parameters. The B6 is also LightBurn compatible, which helps.

What materials can the xTool F1 Ultra engrave and cut?

The F1 Ultra handles an exceptionally wide range of materials. Its 20W fiber laser marks and engraves all common metals — stainless steel, aluminum, brass, titanium, copper, gold, silver — and can cut thin metal sheets. Its 20W diode laser engages wood up to 15mm, black acrylic up to 12mm, leather, glass, rubber, fabric, slate, ceramics, and more. It's one of the most material-versatile desktop laser systems available.

Is the ComMarker B6 MOPA worth it for a small jewelry business?

For most jewelry businesses focused on metal marking, annealing, and color branding, the B6 MOPA offers exceptional value. The 60W JPT M7 source delivers deep, precise engraving on gold, silver, stainless steel, and titanium. The MOPA's color capabilities let you differentiate your products with branded color marks that standard fiber lasers can't match. It's a professional-grade tool at a fraction of the cost of industrial systems.

Do I need an enclosure for the ComMarker B6 MOPA?

The ComMarker B6 MOPA is an open-frame machine by default. An optional enclosure is available and strongly recommended for safety, especially in shared studio or retail environments where eye exposure to laser scatter is a concern. The xTool F1 Ultra, by contrast, is fully enclosed as standard, making it inherently safer and more practical for in-store or open workshop use without additional accessories.

Which machine offers better value for money?

It depends on what you need. The ComMarker B6 MOPA (20W) costs significantly less than the F1 Ultra and delivers outstanding metal engraving performance — making it exceptional value for metal-focused shops. The xTool F1 Ultra costs more, but it effectively replaces both a fiber laser and a diode cutting machine, which changes the value calculation for makers who work across multiple material types. If you only work with metal, the B6 MOPA wins on value. If you need versatility, the F1 Ultra justifies its price.
