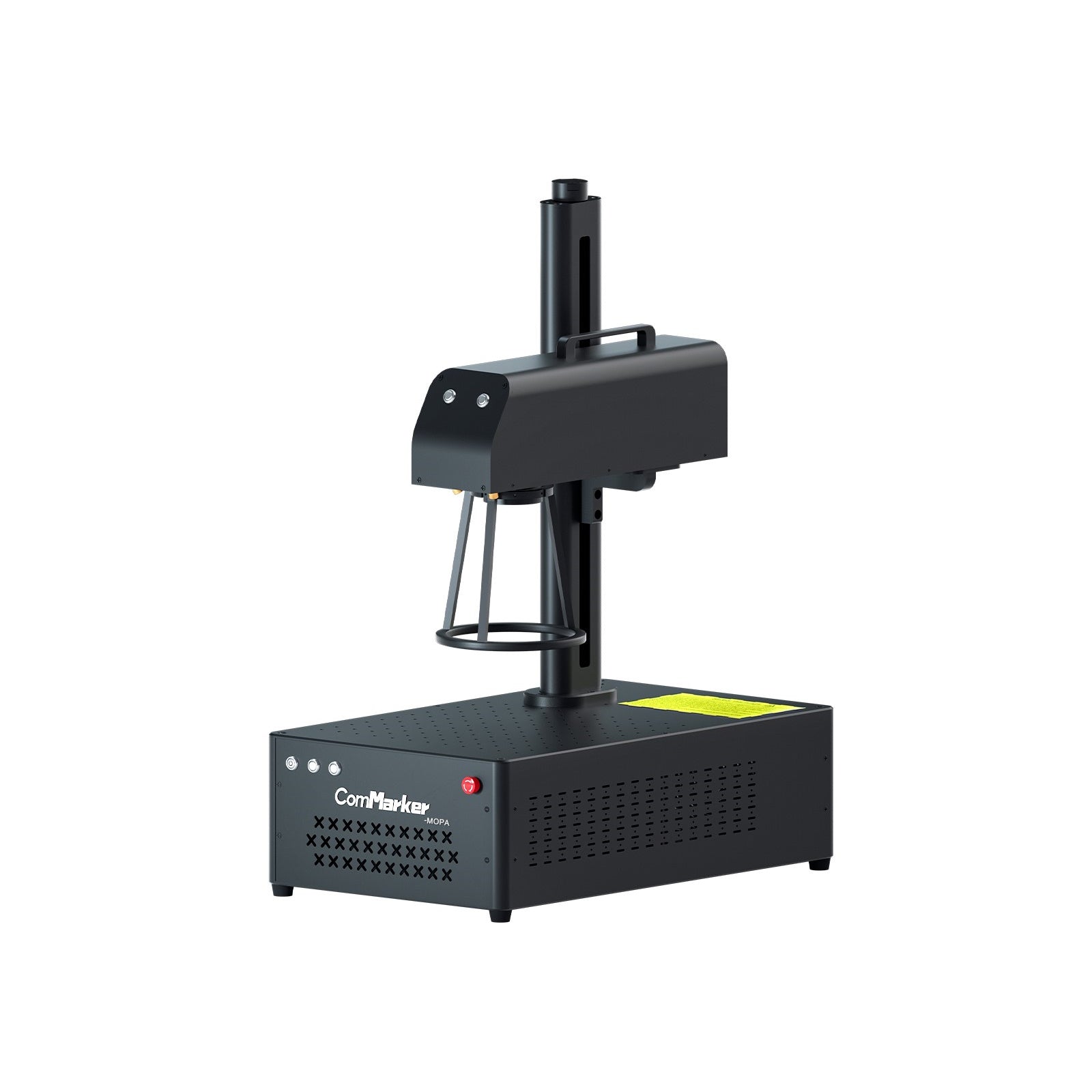

ComMarker B4 Review: The Entry Point for Serious Metal Engraving
Who the ComMarker B4 Is Built For
The ComMarker B4 (JPT MOPA version) is built for small business owners, jewellers, personalisation businesses, and serious hobbyists who want genuine fiber laser metal engraving capability at an accessible price point. Specifically: someone who wants to engrave and colour-mark stainless steel, aluminium, gold, silver, brass, and similar metals, and wants to do it at production speed with professional results.
Before going further: the B4 line has both a standard Q-switched fiber version and a JPT MOPA version. The machine sold at The Maker's Chest — and the subject of this review — is the JPT M7 MOPA version. The distinction matters because MOPA (Master Oscillator Power Amplifier) technology provides adjustable pulse width control that standard Q-switched fiber lasers don't have. That pulse width control is what enables colour engraving on stainless steel. For the full explanation of why MOPA differs from standard Q-switched fiber and when MOPA capability is worth the price premium, our MOPA vs standard fiber laser guide covers the technology in detail.
Watch this ComMarker B4 20W review and performance test:
Unboxing and Build Quality
The B4 ships with a comprehensive kit: the laser unit itself, 110×110mm lens, 200×200mm lens, adapter, foot switch, positioner, flash drive (with EZCAD2), rotary axis, ruler, data cable, Allen wrench, 1064nm OD6+ safety goggles, two sample steel plates, two paperboard samples, auxiliary holder, and a materials sample pack.
The inclusion of both lenses and a rotary axis in the base package at $1,499 is notable. Competing machines often charge $100–$200 extra for rotary attachments alone. The two-lens configuration (110mm for detail work, 200mm for larger pieces) covers most production scenarios without additional investment.
Build quality impressions match Hobby Laser Cutters' assessment: an industrial feel, the galvo head system is precise, the external chassis isn't exceptional but the internal components — the galvo system and JPT M7 source — are the quality drivers. At $1,499 you're not paying for premium external casing; you're paying for a professional laser source in a functional enclosure.
The B4 weighs 18kg. It's 336×555×635mm in dimension. Desktop-sized but substantial — designed to stay on a workbench rather than be moved frequently.
Key Specs Explained
20W JPT Laser Source
The JPT M7 MOPA is the core specification that separates this B4 from cheaper alternatives. JPT is a premium Chinese fiber laser manufacturer — specifically noted for MOPA technology with wider frequency ranges and pulse width control than standard Q-switched sources.
At 20W, the B4 handles all standard metal engraving, marking, and colour oxidation work. The 0.01mm engraving accuracy — confirmed from The Maker's Chest's product page — is at the high end of what this category claims, and reflects the galvo system quality rather than the laser source wattage alone.
The MOPA advantage: adjustable pulse width (typically 2–500ns range on JPT M7) means you can dial in the heat delivery profile per material. For colour engraving on stainless steel, different colours require different pulse widths — shorter pulses create blue/green, longer pulses create gold/orange — and MOPA control makes this accessible rather than being a lucky accident. Standard Q-switched fiber has fixed pulse width and cannot produce this range of colour.
Working Area: 110mm and 200mm Lenses
The B4 includes both lens configurations in the package:
110×110mm lens: Smaller field, smaller focused spot, higher effective resolution for detail work. Best for jewellery, small tags, small text, intricate patterns. Maximum detail quality.
200×200mm lens: Larger field for bigger plaques, larger tumblers, wide logos, and pieces that don't fit in the 110mm window. Some detail resolution trade-off versus 110mm, but adequate for most business applications.
Lens swapping is mechanical — loosen the retention ring, swap the lens, refocus. Allow 5–10 minutes for the changeover when switching between configurations.
Manual Focus and Foot Switch
The B4 features an electric lifting (motorised Z-axis) for focus adjustment — controlled from the machine or the accompanying software. This is a meaningful convenience feature: adjusting focus height without manually turning a column crank reduces setup time and improves repeatability between pieces.
The included foot switch enables hands-free triggering — both hands can hold or position the workpiece while the foot fires the engraving job. For production work engraving tumbler-by-tumbler or ring-by-ring with the rotary, hands-free triggering reduces awkward handling.
The handheld mode capability (2-in-1 desktop and handheld designation) allows the laser head to be used without the stand for on-piece marking where the object can't be brought to the machine.
LightBurn and EZCAD Compatibility
The B4 supports both EZCAD2 (included on flash drive, Windows) and LightBurn (separate $60 licence purchase, Mac and Windows). This dual software compatibility is commercially important.
EZCAD2: The industry-standard fiber laser software. More powerful for automation, scripting, serial numbering, and industrial batch marking. Interface is utilitarian and dated — an independent reviewer (Victorius Garage) specifically noted that the EZCAD bundled version can be limiting and recommended the LightBurn licence. Learning curve is steeper.
LightBurn: More intuitive visual interface, better for creative businesses coming from design backgrounds (Inkscape, Illustrator, Corel). Better for custom jewellery and one-off personalisation work where visual design preview matters. Works on Mac — the only fiber laser software option for Mac users.
For small businesses doing creative personalisation: LightBurn licence is worth the $60. For production serial marking and industrial batch work: EZCAD's scripting capabilities are better suited.
Real-World Performance
Stainless Steel and Aluminum
Stainless steel is where the B4 JPT MOPA genuinely delivers over standard fiber lasers. MOPA pulse width control enables:
- Black/dark grey marking: High-contrast permanent marks for logos, text, serial numbers, and data matrix codes — achieved with standard frequency and power settings
- White marking on stainless: Specific settings create bright white marks — useful for labels and barcodes where high contrast between mark and surface is needed
- Color annealing: Blue, green, gold, orange, and other tones achieved by adjusting pulse width and frequency to control the oxidation depth on the stainless surface
The color engraving on stainless is the capability that attracts jewellers and personalisation businesses — and it works. Settings require calibration per result (each color has a specific pulse width and frequency combination), but with the parameter grids that the community has documented for JPT MOPA machines, producing consistent colors is achievable within hours of initial setup.
On anodized aluminium: MOPA fiber is excellent — it removes the anodized coating cleanly to reveal bare aluminium underneath, creating high-contrast black-on-colour or white-on-colour marks that look engraved. Powder-coated steel and painted surfaces similarly remove coating to expose substrate for high-contrast marking.
On bare aluminium: Black marking is possible; silver-background shiny aluminium is more challenging for color — this is where more powerful MOPA systems (30W+) provide better results.
Deep Engraving and 3D Embossing
Beyond surface marking, the B4 20W can perform deep engraving and 3D embossing on metals through multiple passes at appropriate settings:
Deep engraving: Multiple overlapping passes remove metal progressively. At 20W this is slower than 30W or 60W machines, but achievable for production-volume deep marks on stainless, aluminium, and brass. Practical for serial numbers, part identification, and branded keepsakes.
3D embossing/relief engraving: Variable power passes create depth variation that produces a tactile raised appearance. Applied to jewellery blanks and decorative metal pieces, this produces effects traditionally requiring mechanical engraving equipment.
The B4 60W MOPA (also available at The Maker's Chest) handles deep engraving and embossing substantially faster. For businesses whose primary revenue is deep-engraved products at volume, the 60W tier is worth considering. For mixed businesses where deep engraving is occasional: the 20W covers it at slower speed.
Leather and Plastics
The 1064nm fiber laser is not optimised for organic materials like wood — the wavelength doesn't absorb efficiently in wood or paper. For leather: yes, fiber at 1064nm marks leather effectively at appropriate settings, producing dark marks on natural leather without burning through.
For plastics: many industrial plastics (ABS, nylon, certain polyamides) mark well with 1064nm fiber via laser-induced color change without material removal. Painted or coated products generally mark cleanly by coating removal.
For a multi-material business requiring wood, acrylic, and leather alongside metal: the xTool F1 Ultra's diode laser component handles non-metals better. For a business whose primary work is metal and industrial materials, the B4 JPT MOPA is the better-matched machine.
Rotary Engraving
The included rotary axis supports:
- Ring engraving: Jewellery rings with 360° barrel positioning
- Tumblers and cylindrical vessels: Rotary marking for personalised drinkware businesses
- Pens, rods, and cylindrical stock
The B4 is compatible with 95% of standard industrial rotary attachments — users can upgrade to more capable rotary systems (including the ComMarker D300) beyond the included unit. For businesses doing high-volume tumbler personalisation (a major small business application), the included rotary and 10,000mm/s marking speed provide production-scale throughput at a desktop cost.
What the B4 Does Well
Color engraving on stainless steel. MOPA pulse width control produces the full range of oxidation colors. For jewellers, personalisation businesses, and anyone selling colour-marked metal products, this is the primary competitive advantage over standard fiber machines in this price range.
Production-speed batch marking. 10,000mm/s galvo speed means production runs complete in seconds per piece. With EZCAD's scripting and batch features or LightBurn's batch mode, a small business can fulfill custom orders at commercial volumes.
All-metal material versatility. Stainless steel, aluminium, gold, silver, brass, copper, titanium, anodized surfaces — the B4 handles the full range of metals a jewellery or personalisation business works with.
Package value. At $1,499 with two lenses, rotary axis, foot switch, goggles, and sample materials included: the total package cost per capability is among the strongest in the sub-$2,000 fiber laser category.
Where It Shows Its Limitations
20W is the low end of production deep engraving. Deep engraving and embossing at 20W works but takes more passes and more time than 30W or 60W alternatives. For businesses where deep engraving is the primary revenue service, the 20W ceiling creates a production speed limitation.
Not for organic materials. Wood, paper, and cardboard are outside the B4's effective range. The 1064nm wavelength doesn't absorb well in these materials. A diode laser (or the xTool F1 Ultra's dual-laser system) is needed for non-metal material work.
Color engraving requires parameter knowledge. MOPA color engraving is powerful but requires learning the frequency/pulse width/power relationship for each color. There's an accessible community of B4 MOPA users who have documented settings grids, which flattens this curve significantly — but it's not point-and-click. Our how to laser engrave metal guide covers the settings framework for getting consistent results.
No enclosed safety lid (open-frame design). Unlike the enclosed xTool F1 Ultra, the B4 is an open-frame machine. Appropriate laser safety eyewear (included — 1064nm OD6+ goggles) is mandatory during operation, and the workspace needs to be controlled for laser safety during use.
ComMarker B4 vs ComMarker B6: Is It Worth Upgrading?
The B6 is ComMarker's step-up model with additional features over the B4. For the full specification comparison and decision framework, see our ComMarker B4 vs ComMarker B6 guide. Key decision points summarised:
Choose B4 if: Your primary work is standard metal marking, color engraving on stainless and aluminium, jewellery personalisation, and tumbler marking. The B4 JPT MOPA covers these applications fully at $1,499. The package value (two lenses, rotary, foot switch) is competitive.
Consider B6 if: You need the B6's additional features — specifically if the B6 offers higher resolution, extended automation capability, or physical features the B4 lacks that are relevant to your workflow. The B6 is positioned above the B4 at higher cost; the upgrade is justified if you identify specific B6 capabilities in your regular work.
Who Should Buy the ComMarker B4?
The B4 JPT MOPA is the right machine for:
Jewellers and accessories businesses — ring engraving, bracelet marking, colour engraving on precious metal surfaces, and the full range of jewellery personalisation work. The MOPA colour capability and included rotary are specifically matched to this use case.
Tumbler and drinkware personalisation — the most common small business application. The rotary attachment, 10,000mm/s speed, and LightBurn/EZCAD compatibility make the B4 a production tool for this high-demand market.
Custom gift and promotional businesses — engraving corporate gifts, promotional items, branded merchandise, and personalised products in metals.
Small businesses entering fiber laser engraving for the first time who want professional MOPA capability without the $3,000+ investment required for higher-tier alternatives.
You can get the ComMarker B4 directly at The Maker's Chest: Buy the ComMarker B4.
Final Verdict
The ComMarker B4 JPT MOPA is one of the strongest value propositions in desktop fiber laser engraving at the sub-$2,000 price point. The JPT M7 MOPA source provides the colour engraving capability that previously required much more expensive machines. The package — two lenses, rotary, foot switch, goggles, sample materials — is more complete than most competitors at this price.
Its limitations are real: 20W is slower on deep engraving than higher-power alternatives, organic materials need a different machine, and the open-frame design requires proper workspace safety management. For a business whose work is primarily metal marking, personalisation, and colour engraving: these limitations don't affect the core application.
For small businesses entering the fiber laser market with a budget under $2,000 and a focus on metal personalisation work: the B4 JPT MOPA is the most capable starting point available.
Frequently Asked Questions
What is the ComMarker B4 JPT MOPA?
The ComMarker B4 JPT MOPA is a 20W desktop fiber laser engraving machine using a JPT M7 MOPA (Master Oscillator Power Amplifier) laser source at 1064nm. MOPA technology provides adjustable pulse width control, enabling colour engraving on stainless steel by controlling oxidation depth. Specifications: 0.01mm engraving accuracy, 10,000mm/s galvo speed, 110×110mm and 200×200mm lens options, electric motorised Z-axis focus, rotary axis included, foot switch included, LightBurn and EZCAD2 compatible. Price: approximately $1,499 (sale price from $1,999). Available at The Maker's Chest.
Can the ComMarker B4 engrave in color on metal?
Yes — the JPT MOPA source enables colour engraving on stainless steel through laser oxidation. Different pulse width and frequency settings produce different oxide colours: blue, green, gold, orange, black, grey, and white are achievable. This requires MOPA technology (adjustable pulse width); standard Q-switched fiber lasers cannot produce this colour range. Color engraving requires parameter knowledge and a calibration grid for consistent results, but the B4 MOPA community has documented standard settings that provide a starting point for new users.
What is the difference between the ComMarker B4 and B6?
The B4 is ComMarker's entry-level professional fiber laser with a compact design, motorised Z-axis, and the JPT MOPA source option. The B6 is the step-up model with additional features and capabilities. For the full comparison of specific differences and which application justifies upgrading, see our ComMarker B4 vs ComMarker B6 guide. Both are MOPA-capable machines; the decision is whether the B6's additional features match your production requirements.
Is the ComMarker B4 compatible with LightBurn?
Yes. The B4 JPT MOPA supports both LightBurn (requiring a separate $60 licence) and EZCAD2 (included on flash drive). LightBurn provides a more intuitive visual interface suited for creative personalisation businesses and runs on both Mac and Windows. EZCAD2 provides more powerful scripting and industrial automation features suited for batch production and serial marking. For businesses doing custom jewellery and creative personalisation work: LightBurn is recommended. For high-volume industrial batch marking: EZCAD2's automation features are more capable.
Is the ComMarker B4 good for engraving jewellery?
Yes — jewellery is one of the B4 JPT MOPA's primary applications. The included rotary axis supports ring engraving with 360° barrel positioning. The 110×110mm lens provides the high-resolution detail quality needed for intricate jewellery designs. MOPA colour engraving enables decorative colour marks on silver, gold alloys, and stainless steel jewellery. The 0.01mm accuracy handles fine text and patterns on small surfaces. For a jewellery business adding in-house engraving capability or a custom jeweller offering personalisation services, the B4 is one of the most accessible professional options available.
