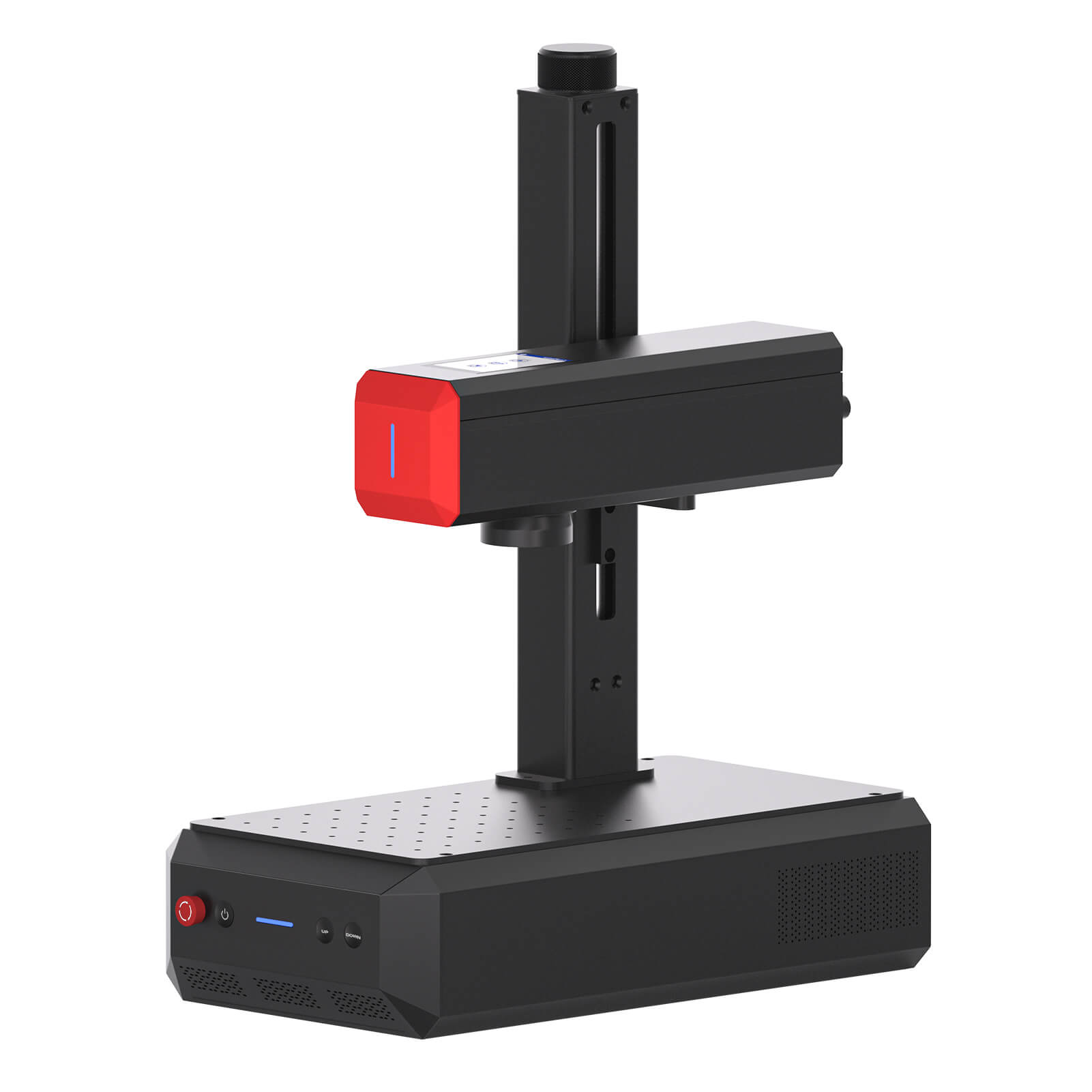

ComMarker B6 MOPA Review: Compact, Fast and Built for Production

If you've been researching fiber laser engravers for any amount of time, you've probably come across the ComMarker B6 MOPA more than once. It keeps showing up on best-of lists, forum recommendations, and YouTube review channels — and after a close look at the specs, the hands-on testing data, and how it holds up in real production environments, it's not hard to see why.

This is a machine that punches well above its price class. It delivers genuine MOPA pulse control, electric autofocus, and high-speed galvo engraving in a frame that weighs just 13.5kg and fits comfortably on a standard workbench. For small shops, jewelry businesses, custom engravers, and industrial marking operations, it's one of the most capable tools at this price point.

That said, it's not the right tool for everyone. This review covers what the B6 MOPA does exceptionally well, where it has real limitations, and who should — and shouldn't — buy one.

---

What Makes the B6 Different From the B4

The ComMarker B6 is the successor to the B4, and the improvements are more than cosmetic. The core laser source is the same — the proven JPT M7 MOPA fiber laser, available in 20W, 30W, and 60W configurations. But ComMarker made some meaningful engineering decisions with the B6 that change the day-to-day experience significantly.

The B6 is smaller and more compact than the B4, despite sharing the same 60W JPT M7 laser source. The headline improvement is the automatic focus adjustment capability — something that was notably absent on the B4 and required manual focusing that many users found fiddly and time-consuming.

The B6 also introduces a built-in touchscreen for machine control, a cleaner split-body design that gives you more flexibility in how you position the unit, and a refined overall build quality. If you've read our ComMarker B4 review and were interested but put off by the manual focusing, the B6 directly addresses that. For a full side-by-side breakdown, see our ComMarker B4 vs B6 comparison.

---

Build Quality and First Impressions

Out of the box, the B6 MOPA makes a solid first impression. The metal components feel sturdy and well-machined, and the overall assembly process is quick — just a few screws to mount the laser head to the gantry and connect the cables. The machine comes well-packaged with a USB drive containing a LightBurn parameter library, a foot pedal, allen keys, and safety glasses.

A couple of real-world caveats worth mentioning: the fans run louder than expected at around 56dB at 1 metre, which is worth knowing if you're in a shared space or customer-facing environment. And the open-frame design means the machine lacks a built-in enclosure — laser scatter is a real consideration, and an optional enclosure is strongly recommended for any environment where other people are present.

The B6's intuitive touchscreen, LightBurn compatibility, and auto-focus make it fast and easy to get high-quality results, and its compact, lightweight design with built-in handheld mode is practical for mobile jobs or tight workspaces.

---

Key Specs in Plain English

Here's what matters most, stripped of the marketing language:

MOPA Pulse Control and Color Capability

This is the B6's most important capability, and it's worth understanding properly. MOPA stands for Master Oscillator Power Amplifier — a laser architecture where the oscillator (which generates the pulse) is separate from the power amplifier. That separation means you can control pulse duration and pulse frequency independently of each other.

A standard Q-switch fiber laser has a non-adjustable pulse width and a frequency range of 20kHz–100kHz. The JPT MOPA offers pulse width adjustable from 1–500ns and a frequency range of 1kHz–4,000kHz. This wider range of adjustable parameters enables superior engraving results on certain plastics and metals, including color marking on stainless steel and titanium, black marking on aluminum, and engraving on plastics without burning or discoloration.

In practice, this means the B6 can produce vivid color marking on stainless steel by controlling the thickness of the oxide layer that forms on the metal surface. Blues, golds, purples, reds — the full spectrum is theoretically achievable, though some colors (particularly pure red) require more experimentation to nail consistently. For anyone building a product line around premium branding, custom jewelry, or decorative metalwork, this capability is a genuine differentiator. You can learn more about the settings and techniques in our guide to fiber laser color engraving.

Autofocus: The Biggest Upgrade Over the B4

The B6 features an auto-focus system with a Panasonic industrial measurement sensor, ensuring accuracy within 0.01mm. You trigger it from the touchscreen, the motor moves the laser head to the correct focal distance, and you're ready to engrave. No manual height gauge, no test burns to check focus — it just works.

This is the single change that most meaningfully improves the B6's usability over its predecessor. The B4 had some manual focusing procedures that could be a little tricky; the B6's automatic focusing system completely removes the need for manual adjustment, partnered with a built-in smart touchscreen that makes everything far easier to navigate.

One limitation to note: the autofocus requires pressing a touchscreen button to activate, which means — unlike some competitors — it cannot automatically step down the Z-axis during multi-pass engraving. For most marking and engraving jobs this doesn't matter, but for deep engraving work requiring progressive Z-axis stepping, it's worth knowing.

Compact Split Design

The B6 uses a modular two-part construction: the laser head assembly sits on a column above the base unit, with the control electronics housed separately. This split design lets you switch between a compact all-in-one desktop configuration and a split setup where the control box is stored out of the way — useful when your bench space is tight or when you're moving the machine between locations.

At 13.5kg, it's portable enough to transport to trade shows, client sites, or pop-up retail events without needing a dolly. That's a genuine practical advantage that heavier industrial units can't match.

Software: LightBurn and EZCAD2

The B6 MOPA supports both LightBurn and EZCAD2. EZCAD2 is the industry standard for fiber laser systems — powerful, stable, widely documented, and familiar to any professional who has worked with fiber lasers before. LightBurn support (via the Galvo plugin) opens the machine up to a much larger community of makers who prefer its more visual, intuitive interface.

The machine ships with a USB drive containing pre-built LightBurn parameter libraries for common materials, which gives new users a solid starting point rather than having to build settings from scratch. To unlock the full potential of the B6, the LightBurn Galvo plugin is worth the extra cost — it's essentially essential for getting the most out of this machine.

---

Performance Testing

Color Engraving on Stainless Steel

Color engraving is the B6's flagship capability, and it delivers. By adjusting pulse width and frequency, you can produce a range of oxidation-based colors directly on the steel surface — no coatings, no inks, no secondary processes. The colors are permanent and embedded in the metal itself.

The manufacturer includes a demo project for color engraving on stainless steel on the USB drive. Testing it as-is produces results far better than expected. Color engraving is a slow process that takes experimentation to find all the colors, but the results look exceptional. Blues and golds are the most consistent and repeatable. Getting to pure red is trickier — most settings land closer to brown or copper — but a full spectrum of commercially useful colors is achievable with practice.

The 60W version produces noticeably more vivid, saturated colors than the 20W, thanks to its higher peak pulse energy. If color work is central to your business model, the 60W is worth the additional investment.

Deep Engraving on Aluminum and Brass

For deep metal engraving, the B6 MOPA performs very well. The B6's maximum pulse energy of 1.5 mJ ensures deep engraving on a wide variety of materials, including metals like stainless steel, brass, and gold. At 60W, you can achieve aggressive material removal on brass and aluminum in fewer passes than a 20W system requires, which makes a real difference for production volume.

Aluminum testing consistently produces clean, high-contrast marks across all three common finishes: dark deep engraving, dark shallow engraving, and white-appearance shallow marks. The pre-loaded LightBurn library includes settings for all three, which makes it easy to start producing professional results without extensive parameter experimentation.

Anodized Aluminum Grayscale

Anodized aluminum is a particularly common material for custom products — phone cases, dog tags, drinkware lids, promotional items. The B6 MOPA handles it well, producing clean grayscale results across a useful range of tones. Settings made for the older B4 MOPA translate directly to the B6 with minimal adjustment, since both use the same JPT M7 laser source. This matters for anyone upgrading from a B4 — your existing parameter library transfers over with only minor tweaks.

Color anodizing (producing distinct hues on anodized surfaces rather than just grayscale) is also achievable and works reliably with settings carried over from the B4.

Speed in Batch Production

At 15,000 mm/s maximum speed, the B6 MOPA is genuinely fast for a machine in this class. Serial numbers, logos, and short text strings on metal tags are completed in seconds. For batch production of small items — keychains, name plates, knife blades, jewelry components — the throughput is competitive with machines costing considerably more.

The galvo scanning system is key here: rather than moving the entire laser head like a gantry machine, the galvo uses two small mirrors to redirect the beam across the work surface at extremely high speed. There are no heavy moving parts to accelerate and decelerate, which is what makes the 15,000 mm/s figure achievable in practice, not just on paper.

---

What the B6 MOPA Does Better Than Anything at Its Price

A few capabilities stand out as genuinely class-leading for the money:

Full-spectrum color engraving on stainless steel and titanium. No standard fiber laser at any price can do this — it requires MOPA pulse control. The B6 delivers it in a machine that starts well under $2,000 for the 60W version.

Electric autofocus on an industrial-grade platform. Autofocus is common on diode lasers but rare on fiber systems at this price. The B6's Panasonic industrial sensor implementation is reliable and accurate.

LightBurn + EZCAD2 dual software support. Most fiber lasers in this class are EZCAD-only. LightBurn compatibility broadens the B6's accessibility considerably, especially for makers already in that ecosystem.

Compact form factor with no compromise on laser power. The ComMarker B6 is one of the smallest, most compact fiber laser engravers on the market, and thanks to autofocus capability, also one of the easiest to use. Getting 60W of MOPA fiber in a 13.5kg package is a real engineering achievement.

---

Limitations Worth Knowing

No machine is perfect, and the B6 has some real-world constraints that are worth understanding before you buy.

No built-in enclosure. The B6 is an open-frame machine. An enclosure and fume extraction are strongly recommended to make it safe to use around other people. This adds cost and should be factored into your budget from the start, especially for shop or storefront use.

Standard working area is relatively small. The default 150 × 150mm field lens is fine for most jewelry, tags, and small product work. But if you regularly work on larger pieces, you'll need the optional 300 × 300mm lens — and 60W is recommended at that size to maintain quality.

Color engraving has a learning curve. The results are worth it, but dialing in repeatable colors takes real experimentation with frequency and pulse width settings. Expect to spend time on test grids before you're running production color jobs consistently.

No wood or acrylic cutting. The B6 is a fiber-only laser. It can mark some plastics and leather, but it's not designed to cut organic materials. If your shop handles wood, acrylic, or fabric alongside metal, this machine alone won't cover your full workflow.

---

ComMarker B6 vs xTool F1 Ultra: The Key Decision

These two machines come up together constantly, and the comparison is worth addressing directly. The short answer is that they're built for different workflows.

The xTool F1 Ultra combines a 20W fiber laser with a 20W diode laser in a fully enclosed unit, making it a genuine all-in-one system for shops that work across metal, wood, leather, and acrylic. Its fiber laser is not MOPA, which means color engraving on metal is limited compared to what the B6 MOPA can achieve — but its material versatility and beginner-friendly XCS software make it a stronger choice for mixed-material operations.

The B6 MOPA is the specialist. It produces better color results on metal, offers higher peak power at the 60W level, and costs considerably less than the F1 Ultra — but it won't cut your wood or engrave your leather well. If metal is your primary material, the B6 MOPA offers more laser capability per dollar. If you need to cover multiple material types from a single machine, the F1 Ultra is worth the premium.

We cover this comparison in full detail in our xTool F1 Ultra vs ComMarker B6 MOPA comparison guide.

---

Who Should Buy the ComMarker B6 MOPA?

The B6 MOPA is the right machine if your work is primarily or entirely metal-focused, and especially if color branding or high-contrast marking is part of what you're selling.

It's a strong fit for jewelry designers who need precise, permanent marks on gold, silver, titanium, and stainless steel — including color accents that standard fiber lasers can't produce. Custom knife engravers benefit from the deep engraving power at 60W and the fine detail achievable with MOPA pulse control. Industrial and commercial branding operations marking metal parts, tools, medical devices, or promotional products will find the throughput, reliability, and marking quality well suited to production volume work.

It's also a smart entry point for anyone upgrading from a standard fiber laser who wants to add color capability to their offering. The step up from a Q-switched system to a MOPA opens new product categories — color-branded jewelry, artistic metalwork, personalized tumblers with colored logos — that justify the investment relatively quickly.

If you're ready to add it to your shop, you can Buy the ComMarker B6 MOPA directly from The Maker's Chest, with US-based support and a 30-day return policy.

---

Final Verdict

The ComMarker B6 MOPA earns its reputation. It's a compact, production-capable MOPA fiber laser that delivers genuinely impressive results on metal — especially for color engraving on stainless steel and titanium, deep marking on aluminum and brass, and high-speed batch production of small metal components.

At the 60W level, it competes with machines at significantly higher price points. The electric autofocus removes the biggest friction point from the previous generation. LightBurn support makes it accessible to a much broader audience. And the compact, portable form factor means it fits into real-world workshops where space is a constraint.

The limitations are real: no enclosure out of the box, a small standard working area, and no capability for wood or organic materials. But for a metal-focused shop, none of those are deal-breakers — they're just things to plan for.

If you're looking for the best MOPA fiber laser engraver at this price point, the B6 is the benchmark to beat.

---

Frequently Asked Questions

What is the ComMarker B6 MOPA and what makes it different from a standard fiber laser?

The ComMarker B6 MOPA is a desktop fiber laser engraver powered by a JPT M7 MOPA (Master Oscillator Power Amplifier) laser source, available in 20W, 30W, and 60W versions. The key difference from a standard Q-switched fiber laser is that MOPA technology allows independent control over pulse duration (1–500 nanoseconds) and frequency (1kHz–4,000kHz). Standard fiber lasers have a fixed pulse width and a much narrower frequency range, which limits what they can do. MOPA's adjustable parameters unlock capabilities like full-color marking on stainless steel and titanium, clean black marking on anodized aluminum, and engraving on plastics without burning or discoloration.

Can the ComMarker B6 MOPA do color engraving?

Yes — color engraving on stainless steel and titanium is one of the B6 MOPA's defining capabilities. By adjusting pulse width and frequency, the laser controls the thickness of the oxide layer that forms on the metal surface, which produces different colors through thin-film interference. Blues, golds, purples, and a range of other hues are achievable. Getting consistent, repeatable colors takes experimentation with parameter settings, and some shades (particularly pure red) are harder to nail than others. The 60W version generally produces more vivid, saturated results than the 20W due to its higher pulse energy.

What is the working area of the ComMarker B6 MOPA?

The standard field lens gives the B6 MOPA a working area of 150 × 150mm, which is suitable for most jewelry, small product, and tag work. An optional 300 × 300mm field lens is available for larger pieces, though ComMarker recommends the 60W version to achieve optimal engraving quality at that size. Note that expanding the working area with a larger lens does involve some trade-off in resolution and power density at the focal point.

Is the ComMarker B6 MOPA good for beginners?

The B6 MOPA is more accessible than it might appear at first glance, particularly since it ships with a pre-built LightBurn parameter library that gives beginners working starting points for common materials. The electric autofocus removes one of the trickier manual steps, and the touchscreen interface simplifies machine control. That said, unlocking the full potential of MOPA color engraving does require meaningful experimentation with frequency and pulse width settings. Beginners who are patient and systematic about testing will get there, but those looking for a plug-and-play experience may find the learning curve steeper than with beginner-focused diode laser systems.

Does the ComMarker B6 MOPA work with LightBurn?

Yes. The B6 MOPA supports both LightBurn (via the LightBurn Galvo plugin, available separately) and EZCAD2, which ships with the machine. LightBurn is generally preferred by makers and creative users for its intuitive, visual workflow. EZCAD2 remains the professional standard for industrial fiber laser operations and offers deep parameter control. The machine ships with a USB drive containing a LightBurn material library for the B6, which provides ready-made settings for common metals to help you get started without building everything from scratch.

What materials can the ComMarker B6 MOPA engrave?

The B6 MOPA is primarily optimized for metals — stainless steel, aluminum, brass, titanium, copper, gold, silver, and other common metals. It also handles engineering plastics, some leathers, stone, and slate. It is not designed to cut or engrave wood, clear acrylic, or fabric, which require a diode or CO2 laser. For metal work specifically, it handles surface marking, deep engraving, annealing, and color marking with strong results across all common metal types.

How does the ComMarker B6 MOPA compare to the B4?

The B6 is smaller and lighter than the B4 despite sharing the same JPT M7 laser source at equivalent wattages. The headline upgrade is electric autofocus — the B4 required manual focusing, which many users found inconvenient. The B6 also adds a touchscreen for machine control and a refined modular design. Engraving performance on metal is essentially identical between the two at the same wattage, since the laser source is the same. If you already own a B4 and have built up a settings library, those parameters transfer to the B6 with minimal adjustment.

Do I need an enclosure for the ComMarker B6 MOPA?

The B6 MOPA is an open-frame machine and does not include an enclosure as standard. An optional enclosure is available from ComMarker and is strongly recommended for any shared workspace, studio with multiple people, or customer-facing retail environment. Fiber lasers operate at 1064nm, which is invisible and can cause serious eye injury without proper protection. A single pair of laser safety glasses is included, but for regular shop use an enclosure is the safer long-term solution. If you're planning to use the machine in a private, controlled space with proper eye protection, the open frame is workable — but factor the enclosure cost into your budget from the start.
