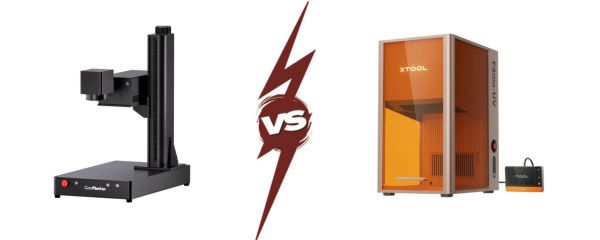

ComMarker Omni 1 vs xTool F2 Ultra UV: Entry UV vs Mid-Market UV

When you search for the best UV laser engraver for glass, plastics, and delicate materials, these two machines come up regularly — and they should. Both the ComMarker Omni 1 and the xTool F2 Ultra UV use 5W UV laser technology at 355nm, which means both deliver the cold-process photochemical engraving that no other laser type can match on glass and heat-sensitive substrates.

But they're not interchangeable choices. The Omni 1 is a proven, mature UV platform starting at around $999 — the most accessible entry point into professional UV laser engraving. The F2 Ultra UV starts at $4,999, packs in dual 48MP cameras with AI-powered positioning, a larger 200×200mm working area, and xTool's proprietary 3D inner glass engraving software. That's a $4,000 gap, and this comparison tells you exactly what it buys.

Why This Comparison Is the Right One for Most Buyers

Most people comparing UV laser engravers aren't trying to decide between the cheapest possible option and a $15,000 industrial machine. They're trying to decide between a capable entry machine and a significantly more automated mid-market system — and they want to know if the automation, cameras, and software of the premium option are actually worth the premium price for their specific workflow.

That's exactly what this comparison addresses. Both machines produce excellent UV engraving results on glass, acrylic, ceramics, plastics, and coated metals. The question is what surrounds that core laser capability: positioning automation, software sophistication, working area, and whether LightBurn support matters to your existing workflow.

One thing worth noting upfront: the xTool F2 Ultra UV does not support LightBurn officially. xTool dropped LightBurn compatibility across its newer machines in favor of its proprietary xTool Studio platform. The Omni 1 fully supports both LightBurn and EZCAD2. If your existing workflow or other machines are built around LightBurn, that's a meaningful practical difference.

ComMarker Omni 1: Specs and Strengths

For a complete hands-on breakdown of material performance, our ComMarker Omni 1 review covers testing on glass, plastics, metals, wood, and ceramics in full detail.

5W and 10W Power Options

The Omni 1 is available in 5W (air-cooled, ~$999) and 10W (liquid-cooled, ~$1,499) configurations. The xTool F2 Ultra UV is 5W only. This matters if your primary application involves thick material cutting — the 10W Omni 1 cuts basswood up to 12mm and acrylic up to 10mm in multiple passes, versus the 5W's 8mm and 6mm respectively. For glass engraving and most plastics work, the 5W is fully sufficient in both machines.

The Omni 1's spot size is listed at 0.0019mm (1.9 micrometers). The F2 Ultra UV is marketed as "under 10μm." In practice, the Omni 1's finer spot specification is a minor advantage on the very finest detail work — though both machines achieve results far beyond what's visible to the naked eye at normal viewing distances. Our guide to 5W vs 10W UV laser covers the power level decision in more depth if you're weighing the Omni 1's options.

Mature Multi-Generation UV Platform

ComMarker launched the Omni 1 ahead of xTool's UV galvo offerings, which means there's a larger body of community knowledge, tested parameter libraries, and real-world production experience around the Omni 1. LightBurn community forums, YouTube tutorials, and Facebook groups have extensive Omni 1 content. This matters practically: when you're calibrating settings for a new glass type at midnight before a production run, having thousands of community members who've done it before is genuinely valuable.

The Omni 1 ships with a pre-loaded USB drive containing EZCAD2 parameter libraries for common materials, including demo projects for color stainless steel and glass settings. You can be running production-quality jobs within hours of unboxing, even without prior UV laser experience.

LightBurn Compatibility

This is a genuine differentiator that deserves its own mention. The Omni 1 fully supports LightBurn via the Galvo plugin — the most widely used, community-supported laser software available. If you already own other LightBurn-compatible machines (a CO2 cutter, a diode laser), adding the Omni 1 to that workflow is seamless. Your existing LightBurn skills and design files transfer over.

The F2 Ultra UV uses xTool Studio (the newer Atomm platform) exclusively. xTool does not support LightBurn on the F2 Ultra UV, citing data security concerns with open protocols. For users committed to the xTool ecosystem this is no issue. For users with LightBurn-based workflows on other machines, it represents a workflow split.

xTool F2 Ultra UV: Specs and Strengths

5W UV With 48MP Camera System

The F2 Ultra UV's most distinctive feature is its dual 48MP camera system with 0.2mm automatic positioning accuracy. This means you can place a wine glass, crystal block, or acrylic piece on the work surface, and the machine identifies exactly where it is and places your design accordingly — no manual measurement, no jig setup, no test burns to check alignment.

For high-volume personalization work where you're engraving different items throughout the day, the camera-driven positioning saves significant setup time. It also enables the machine's batch automation — set up multiple items, and the cameras handle positioning for each one. xTool's auto-conveyor (sold separately) extends the working area and enables fully automated sequential batch engraving, the same conveyor belt system used on the F1 Ultra and F2 Ultra fiber machines.

The working area is 200×200mm — larger than the Omni 1's 150×150mm standard lens area. This accommodates larger glass pieces, bigger crystal blocks, and more items per batch layout. The F2 Ultra UV also supports a slide extension for widthways expansion, though the details of conveyor compatibility with the UV version differ slightly from the fiber models.

The 3D crystal engraving capability is backed by xTool Studio's AI-powered 2D-to-3D conversion, which automatically generates 3D depth maps from photos and text. The crystal engraving volume is up to 70×70×150mm depth — a meaningfully specified work zone for premium crystal gifts.

One important safety clarification: despite its enclosed housing design, the F2 Ultra UV is Class 4, not Class 1. Because it can be operated with the enclosure open, laser safety classification requires it to be rated Class 4. This means proper safety protocols including laser-rated eyewear are required during operation, the same as for the open-frame Omni 1.

xTool Software Ecosystem

xTool Studio is the most visually polished and beginner-friendly UV laser software available right now. It guides users through setup, offers smart parameter suggestions based on material selection, and handles the 3D inner engraving workflow with AI-assisted depth map generation that removes the need for manual 3D modeling skills. One reviewer described the software as focusing "on the outcome" rather than "throwing dozens of settings at you" — users pick a design, choose their material, and the software guides the process.

For experienced laser operators who prefer direct parameter control, xTool Studio is a different mental model than LightBurn. It's more guided and less open — which is excellent for beginners and high-volume workers who want reliability over flexibility, but can feel constraining to users who prefer granular parameter access. LightBurn compatibility is not officially supported; this is worth knowing before committing.

Enclosed Safety Design

The F2 Ultra UV ships with a protective enclosure that contains laser scatter during normal closed-lid operation. While still technically Class 4 (because the lid can be opened during operation), the enclosure provides meaningful protection for everyday enclosed use and makes the machine safer in studio environments where others are present during normal operation. It also handles fume containment better than a fully open-frame setup.

Head-to-Head Comparison

Glass Engraving Performance

Both machines produce excellent frosted glass surface engraving. The 355nm UV wavelength and cold ablation process are the same — neither machine has a meaningful quality advantage on standard wine glass or tumbler frosting. Where the differences show up:

Positioning accuracy: The F2 Ultra UV's dual cameras let you drop a glass onto the bed and have the design placed automatically. On the Omni 1, you position manually using the red-dot preview and your own measurement. Both methods produce accurate results; the F2 Ultra UV's camera method is faster and less prone to human error for irregular or varied items.

3D crystal engraving: Both machines support 3D inner engraving. The F2 Ultra UV's xTool Studio with AI 2D-to-3D conversion makes this workflow more accessible — it generates depth maps automatically from photos. On the Omni 1, 3D inner work is possible using the 70mm lens and manually prepared files, but requires more technical setup. The F2 Ultra UV's workflow for 3D crystal is meaningfully easier to execute at production volume.

Working area: The F2 Ultra UV's 200×200mm field is 78% larger than the Omni 1's 150×150mm standard lens. For larger crystal blocks, bigger glass pieces, or setting up more items per batch, the F2 Ultra UV has more room to work with.

Software and Workflow

The Omni 1 with LightBurn gives you the world's most-used laser engraving software, with the largest community, the most tutorials, and the deepest parameter control. For experienced users building complex jobs, LightBurn's layer management, node editing, and direct parameter access are hard to match. For users already in a LightBurn ecosystem, the Omni 1 slots in naturally.

The F2 Ultra UV with xTool Studio gives you a more guided, intelligent workflow — camera-assisted positioning, smart parameter suggestions, AI 3D generation, and an interface designed around outcomes rather than settings. For beginners, for high-volume personalization businesses running many item types per day, and for anyone who wants automation over manual control, xTool Studio's experience is genuinely better than LightBurn. The trade-off is loss of granular control and the LightBurn community ecosystem.

Best-lasercutter.com's independent assessment noted the F2 Ultra UV as a "specialist tool rather than an all-rounder" — specifically calling out its precision on glass and plastics as exceptional, while noting its price makes it a better fit for studios that can monetize that precision than for casual hobby use.

Safety and Enclosure

Neither machine is Class 1. The F2 Ultra UV has an enclosed housing that contains scatter during normal closed-lid operation — a meaningful practical difference for studio use. The Omni 1 is fully open frame, requiring disciplined PPE use at all times. An optional enclosure is available for the Omni 1.

For retail environments, shared spaces, and studios where safety compliance and professional appearance matter, the F2 Ultra UV's built-in enclosed design has a real practical advantage over the Omni 1's open frame, even without a Class 1 rating.

Price and Total Value

The Omni 1 5W is approximately $999. The F2 Ultra UV is approximately $4,999 — a $4,000 difference. That gap buys: dual 48MP cameras with auto-positioning, a 200×200mm working area (+33% each dimension), 15,000 vs 10,000 mm/s speed, an enclosed housing, xTool Studio's AI workflow, and official support for batch conveyors and the RA3 rotary system.

It does not buy: LightBurn support, a 10W power option, or an inherently finer spot size (the Omni 1's 1.9μm is comparable to or finer than the F2 Ultra UV's claimed <10μm specification).

For a glass and plastics personalization business generating enough revenue to justify camera automation and the larger work area, the F2 Ultra UV's value proposition is real. For a maker entering UV laser engraving or building toward it methodically, the Omni 1 provides professional results at a dramatically lower entry cost.

Who Should Choose the ComMarker Omni 1?

The Omni 1 is the right machine if you want to enter UV laser engraving with a proven, capable platform at the lowest justifiable cost — and if LightBurn compatibility matters to your workflow.

First-time UV laser buyers who want to establish a client base in glass personalization, ceramics, and plastics before committing to a $5,000 machine. The Omni 1 delivers professional-grade output. If you outgrow it, the upgrade path to the Omni X or F2 Ultra UV is well-defined.

LightBurn users with existing machines who want UV capability without switching software ecosystems. The Omni 1 slots into a LightBurn workflow seamlessly.

High-power cutters who need the 10W version's ability to cut thicker basswood (12mm) and acrylic (10mm) as part of their UV workflow. The F2 Ultra UV doesn't offer a 10W option.

Budget-conscious professionals building a glass engraving product line who want to validate market demand before the premium investment.

You can Buy the ComMarker Omni 1 directly from The Maker's Chest.

Who Should Choose the xTool F2 Ultra UV?

The F2 Ultra UV is the right machine if camera-assisted automation, a larger work area, and AI-guided 3D crystal workflow are central to how you want to operate — and if you're comfortable working within xTool's software ecosystem.

High-volume glass personalization businesses that need to process many different items per day without manual positioning for each one. The dual camera system and smart parameter suggestions reduce per-item setup time meaningfully at production scale.

Studios building a 3D crystal product line who want the most accessible workflow for AI-generated 3D inner glass engraving. xTool Studio's 2D-to-3D conversion removes the technical barrier to 3D crystal production that manual depth map preparation presents.

xTool ecosystem users who already own F1 Ultra, F2 Ultra, or other xTool machines and are comfortable in xTool Creative Space / Atomm. The software, accessories (conveyor, RA3 rotary), and workflow all connect cleanly.

Studio operators where the enclosed housing's practical safety advantage in a shared or professional workspace matters, without needing full Class 1 certification.

For a detailed look at how the F2 Ultra UV compares to the Omni X — ComMarker's premium UV competitor — our xTool F2 Ultra UV vs ComMarker Omni 1 guide covers that specific comparison in full.

Verdict

Both machines are genuinely excellent UV laser engravers. The core 355nm UV technology, cold processing, and material versatility are the same category of capability.

The Omni 1 is the right buy if you're building a UV laser business from the ground up, want LightBurn compatibility, have potential use for the 10W power option, or simply don't need the camera automation at $4,000 more than the base machine. It produces professional output that competes with machines at any price on the actual laser quality side of the equation.

The F2 Ultra UV is the right buy if the camera-driven workflow automation, larger work area, and xTool's AI 3D crystal software are workflow requirements rather than nice-to-haves — and if you're generating enough revenue from UV engraving to justify the investment. At $4,999 it's a serious business tool that needs a serious business case.

The gap between these two machines isn't really about UV laser quality. It's about automation, workflow, and working area. Know which of those things you need, and the decision is clear.

Frequently Asked Questions

What is the main difference between the ComMarker Omni 1 and xTool F2 Ultra UV?

Both are 5W UV galvo laser engravers at 355nm with cold-processing technology, but they differ significantly in automation and price. The Omni 1 is a manual-focus open-frame machine with no camera system, supporting LightBurn and EZCAD2, starting at $999. The F2 Ultra UV adds dual 48MP cameras with automatic positioning, a 200×200mm working area (versus 150×150mm), 15,000 mm/s speed (versus 10,000), an enclosed housing design, and AI-powered 3D crystal engraving software — all for $4,999. The F2 Ultra UV does not support LightBurn; the Omni 1 does.

Does the xTool F2 Ultra UV support LightBurn?

No. xTool dropped LightBurn compatibility across its newer machines including the F2 Ultra UV, citing data transmission security concerns with open protocols. The F2 Ultra UV uses xTool Studio (Atomm) exclusively. Some community members have explored workarounds, but official support doesn't exist. For users already invested in LightBurn workflows, the ComMarker Omni 1 is the better-fitting choice — it supports both LightBurn and EZCAD2.

Can both the Omni 1 and F2 Ultra UV do 3D crystal engraving?

Yes, both support 3D inner glass engraving. The ComMarker Omni 1 can create embedded marks inside glass using the 70mm small lens, focused below the glass surface — producing impressive effects in crystal blocks. The F2 Ultra UV's xTool Studio software adds AI-powered 2D-to-3D depth map generation, making it significantly easier to produce full sculptural 3D portraits and objects inside crystal at production scale without manual 3D modeling skills. Both enable the product category; the F2 Ultra UV's software makes the workflow much more accessible.

Is the xTool F2 Ultra UV Class 1 safe?

No, despite its enclosed housing the F2 Ultra UV is classified as Class 4, not Class 1. Under laser safety standards, a laser that can be operated with its enclosure open must be rated Class 4 regardless of its housing. Proper laser safety practices — rated eyewear, keeping the enclosure closed during operation, ventilation — are required for both the F2 Ultra UV and the Omni 1. The F2 Ultra UV's enclosed housing does provide practical safety benefits during normal closed-lid operation, but it does not achieve Class 1 certification.

Which machine is better for glass engraving quality?

At the level of pure laser output quality on glass — spot size, frosting clarity, and cold-processing precision — both machines produce results that are difficult to distinguish in finished products. The Omni 1's documented spot size (0.0019mm / 1.9μm) is comparable to or finer than the F2 Ultra UV's stated "<10μm." For standard wine glass and tumbler frosting, both machines produce professional results. The F2 Ultra UV's advantage on glass is in positioning automation (cameras), working area, and 3D crystal workflow software — not in the raw laser output quality.

What is the working area of each machine?

The ComMarker Omni 1 has a 150×150mm working area with the standard 150mm lens, and a 70×70mm area with the small 70mm lens (used for embedded glass and high-density work). The xTool F2 Ultra UV has a 200×200mm working area, which is 78% larger in area. Both support optional accessories to extend working area — the Omni 1 with the Omni X slide extension, the F2 Ultra UV with xTool's slide and conveyor system.

Should a beginner buy the Omni 1 or F2 Ultra UV?

For most beginners, the Omni 1 is the better starting point. It provides full professional UV laser capability across glass, plastics, ceramics, and metals at $999, with extensive community resources and LightBurn compatibility that make learning easier. The F2 Ultra UV's xTool Studio is beginner-friendly in its guided workflow, but at $4,999 it requires a clear business case — ideally validated revenue from UV engraving products — before the investment makes sense. Start with the Omni 1, build your client base, and upgrade to the F2 Ultra UV or Omni X when the volume and product mix justify the additional automation.
