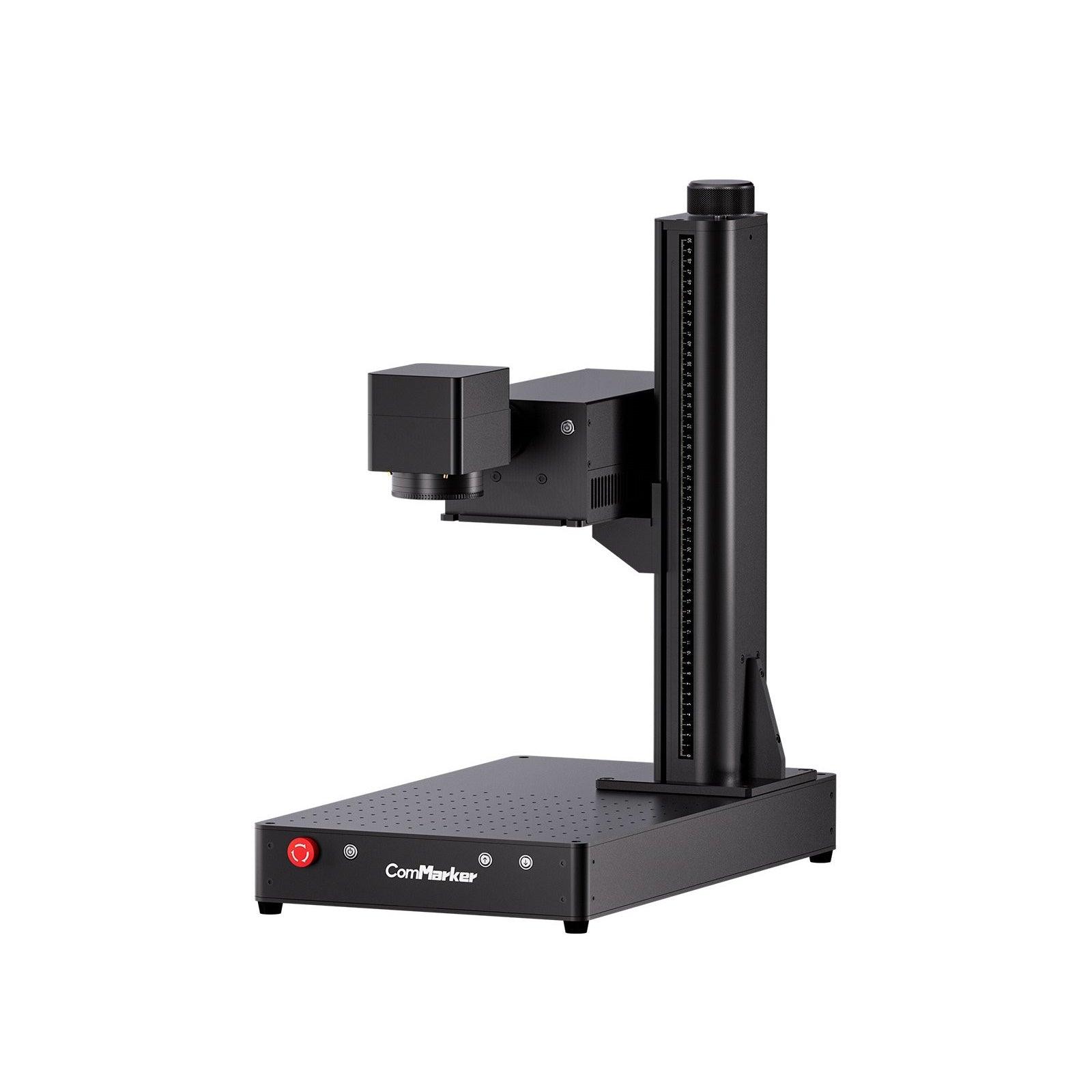

ComMarker Omni 1 Review: The UV Laser That Can Engrave Almost Anything

There's a laser technology that genuinely does something none of the others can: engrave glass cleanly, mark clear acrylic without coating, cut felt without charring edges, and produce deep black marks on stainless steel — all without preparation sprays, heat damage, or fumes. That technology is UV (ultraviolet) laser at 355nm, and the ComMarker Omni 1 is one of the most accessible ways to put it on your workbench.

This review is grounded in hands-on testing data from multiple independent sources, including Hobby Laser Cutters, ComMarker's own reviewer community, and Tom's Hardware's coverage of the broader Omni series. It covers what UV laser technology actually does differently, how the Omni 1 performs across its full material range, and where it has real limitations.

Who the Omni 1 Is Built For

The Omni 1 is built for makers who need to work across the widest possible material range from a single machine — and who specifically need to engrave materials that standard diode and fiber lasers handle poorly or not at all.

Glass engraving is the signature use case. If your business includes custom glassware, wine glasses, glass tumblers, crystal gifts, or glass ornaments, the Omni 1 is the most capable and accessible machine available for this work at a desktop scale. No CO2 laser is needed, no Cermark spray, no frosting compound — the UV beam creates a clean frosted mark directly on the glass surface.

It's also a strong fit for electronics and plastics work. PCB marking, coated component labeling, ABS and polycarbonate engraving, and marking heat-sensitive plastics that standard lasers melt or discolor all fall within the Omni 1's capability set. For small businesses that make custom 3D-printed products, the UV laser marks PLA and PETG cleanly in a way no other desktop laser can.

More broadly, if you've hit the ceiling of what a diode or fiber laser can do for your material range, and you want one machine that genuinely covers everything from metal to glass to leather to paper to ceramics — the Omni 1 is that machine. As one full-time laser engraving business owner described it: "The Omni 1 has quickly become a game-changer in my business. Its ability to engrave or mark almost any material blows me away every time I use it."

Unboxing and Setup: First Impressions

The Omni 1 ships in three main sections: the base, the tower column, and the laser head assembly. Assembly is just eight screws total — four for the column to the base, four for the laser head mount. Most users are set up and running their first test within 30–45 minutes of opening the box.

The included accessories are comprehensive: safety goggles, a foot pedal, a ruler for manual focusing, an electric lifting table, and two field lenses (150mm and 70mm). The USB drive includes EZCAD2 software and a pre-loaded parameter library for common materials. At 23.5kg, the machine is a dedicated desktop unit — not portable in the way a 6.5kg compact fiber laser is, but manageable on a standard workbench.

One important first-use note: UV lasers don't have a traditional power percentage setting like diode or CO2 lasers. Engraving power is controlled by frequency and Q-pulse parameters. A smaller Q-pulse value delivers stronger individual pulses; higher frequency emits more pulses per second. This is different from what most users expect, and a few test passes on scrap material to calibrate are essential before running your first real job. Once you understand the relationship between these two settings, it becomes intuitive quickly.

Key Specs in Plain English

5W vs 10W: Which Should You Choose?

This is the most common question for Omni 1 buyers, and the answer is more nuanced than "more power is always better."

For most glass engraving, standard plastics, coated metals, and wood — the 5W version is fully capable and easier to dial in. The 5W produces very smooth black marks and can achieve some color effects on metal. It's also air-cooled, which means a simpler, quieter machine.

The 10W version engraves significantly deeper and produces higher contrast on demanding materials. It also cuts thicker materials faster — 12mm basswood versus 8mm, 10mm acrylic versus 6mm, and up to 1.2mm stainless steel versus 0.6mm. For deep 3D wood engraving, thick acrylic cutting, and heavy production volume, the 10W advantage is real and visible.

One important counterintuitive finding from hands-on testing: the 5W sometimes produces smoother, more controlled marks on stainless steel because its lower minimum power is easier to calibrate for delicate surface work. The 10W has higher minimum pulse energy, which can make fine tuning on sensitive materials trickier. When defocused by about 10mm, the 10W's results on metal improve dramatically. For most buyers, the 5W is the recommended starting point. Our dedicated guide to 5W vs 10W UV laser covers the comparison in full if you want to go deeper before deciding.

Galvo Speed and Spot Size

The 10,000 mm/s galvo speed and 0.0019mm spot size are the Omni 1's precision credentials. That spot size is among the finest of any desktop laser engraver available — finer than most fiber galvo systems and dramatically smaller than diode or CO2 lasers. This is what enables the Omni 1 to engrave micro-text, fine-line photography, intricate patterns, and highly detailed logos that would be blurry or indistinct on other systems.

For photo engraving on glass, ceramic, and anodized aluminum, the 16K HD resolution and fine spot size produce results that hands-on reviewers consistently describe as exceeding their expectations — with detail normally associated with machines at two or three times the price.

Software: EZCAD and LightBurn

The Omni 1 supports both EZCAD2 (included on the USB drive) and LightBurn via the Galvo plugin. The pre-loaded EZCAD parameter library covers common materials and gives you working starting points without having to build settings from scratch.

Most users prefer LightBurn for its more intuitive visual interface, better community support, and more flexible design tools. The LightBurn Galvo plugin is a separate purchase but is widely considered essential for the best workflow experience. One reviewer noted that after switching to LightBurn, their "workflow became predictable and efficient" in a way that EZCAD hadn't achieved for them.

Real-World Material Testing

Glass: The Signature Application

Glass is where the UV laser does something no other affordable desktop laser can match. The 355nm wavelength is absorbed by glass rather than transmitted through it (which is what happens with CO2 and fiber lasers), allowing for direct engraving without thermal cracking. The result is a crisp, frosted mark on wine glasses, tumblers, glass ornaments, clear acrylic blocks, and crystal items.

With the 150mm lens, the Omni 1 produces excellent surface frosting on standard glassware. The 70mm lens with its shallower focus depth enables a particularly striking capability: embedded engravings — marks made inside the glass itself, below the surface, by focusing the beam at an internal point. This produces a 3D effect suspended within the glass that looks like it was made by industrial equipment costing tens of thousands of dollars.

In hands-on testing, the 5W Omni 1 successfully cut through thick glass (approximately 2.85mm) in multiple passes — a result that genuinely surprised reviewers. Cutting glass opens product categories like custom glass coasters with cut-out shapes and detailed silhouettes that were previously impossible without specialized equipment. Our guide to UV laser engraving on glass covers settings and techniques in depth.

Plastics and Electronics

This is the application category that makes UV lasers uniquely valuable for electronics and industrial users. Standard fiber lasers can mark hard plastics, but the heat from infrared wavelengths often causes discoloration, melting, or damage to heat-sensitive polymer materials. UV's photochemical "cold processing" breaks molecular bonds without generating significant heat, producing clean marks on ABS, polycarbonate, PET, nylon, silicone, rubber, and PCB substrates without any surface damage.

For 3D printed parts — which are increasingly popular as custom products — the Omni 1 marks PLA and PETG cleanly in a way no diode or fiber laser can. Clear and frosted acrylic engrave beautifully without marking spray or any preparation. One business owner testing the machine noted that stainless steel produced a "deep black mark I've never been able to get from my fiber laser" — a result of UV's photochemical interaction with the metal surface oxide layer rather than simple heat ablation.

Metals (Coated and Anodized)

The Omni 1's relationship with metals is nuanced and worth understanding clearly. For bare metal deep engraving, a fiber laser is still the better tool — the Omni 1 can mark bare stainless steel and aluminum, but it doesn't produce the same depth or speed on uncoated metals that a dedicated fiber laser achieves.

Where the UV laser genuinely excels on metal is coated, plated, and anodized surfaces. Painted metal, powder-coated items, anodized aluminum, gold-plated or chrome surfaces — all engrave cleanly and without the surface damage that can happen when a more powerful infrared laser is used. Wax tin lids, branded packaging, coated tool handles, and product labeling on finished metal products all fall into this category. The UV beam removes the coating precisely without affecting the underlying metal.

Wood and Leather

These materials are a pleasant surprise for UV laser users who expect the technology to be limited to glass and plastics. UV engraves wood with exceptional cleanliness — no smoke stains, no char halo, just crisp, clean detail. In birch plywood tests with photo engravings, reviewers consistently described results that looked like professional-grade output with zero smoke residue. The wood grain can cause minor depth variation in deep 3D engraving, but clean surface engraving and light cutting are very clean.

Leather is similarly clean. The UV laser produces no burn-through on the back side of thin leather pieces, no melting or discoloration at the edges, and cuts felt with precision described as scalpel-like in sharpness. For leather goods makers who also work with glass or plastics, the Omni 1 covers their full range from one machine.

What the Omni 1 Does Better Than Any Other Laser at Its Price

The Omni 1 occupies a unique position in the desktop laser market. No other laser type at this price does all of the following:

Direct glass engraving without thermal cracking. CO2 lasers crack standard glass. Diode and fiber lasers pass straight through it. The UV laser at 355nm is the only desktop option that engraves glass cleanly.

Clear acrylic and plastic marking without coating. Standard lasers require Cermark or marking spray to mark clear or reflective plastics. The UV beam marks them directly — no spray, no prep, no cleanup.

Heat-sensitive material marking. PCBs, flexible circuits, thin polymers, and coated medical or electronic components that fiber or CO2 lasers can damage are safely marked by the UV cold process.

Embedded glass engravings. Using the 70mm lens focused below the glass surface, the Omni 1 can create 3D internal engravings inside glass blocks — a capability normally associated with industrial 3D sub-surface laser systems costing $15,000 or more.

Clean wood engraving with zero smoke staining. For businesses producing high-end gift products where visual presentation matters, the UV laser's smoke-free wood output is a product quality advantage that customers notice.

Limitations to Know Before You Buy

No built-in enclosure. The Omni 1 is an open-frame machine. UV light at 355nm is particularly harmful to eyes and skin — more so than visible light, because it's invisible and the eye doesn't blink in response. Safety glasses are included and are essential, but for shared workspaces, customer-facing environments, or studios where others are present, an additional enclosure is strongly recommended. Budget for this from the start.

Weight and portability. At 23.5kg, the Omni 1 is a true desktop machine, not a portable one. It needs a dedicated spot on your workbench. If portability is important for your operation, this machine doesn't offer it.

Not ideal for deep bare metal engraving. For deep engraving on uncoated stainless steel, brass, or aluminum — the kind of work a 50W fiber laser does best — the Omni 1 is not the right tool. It marks bare metals, but without the depth and speed of a dedicated fiber system.

Power control learning curve. The frequency/Q-pulse control system instead of a standard power slider takes adjustment, particularly for users coming from diode or CO2 systems. It's not difficult, but it requires a few hours of parameter testing before you're running production jobs confidently.

Price. At $999–$1,299 for the 5W version, the Omni 1 is priced above entry-level diode machines. The capability it offers genuinely justifies the investment for the right buyer — but it's not a casual purchase.

ComMarker Omni 1 vs Omni X: The Key Upgrade Decision

The Omni X is ComMarker's follow-up to the Omni 1, and Tom's Hardware's review of it described several meaningful improvements. The headline changes are a fully integrated enclosure as standard (no additional purchase needed), LiDAR autofocus, a slide extension that expands the working area to 150 × 400mm, and new 3D crystal engraving capabilities via motorized Z-axis that allow internal engravings inside glass blocks with greater control.

The Omni X starts at around $4,600+ without the slider — a significant price jump over the Omni 1's $999–$1,299 starting point. For that premium you get a safer, more automated, more capable machine with an expanded work area. Tom's Hardware noted some early software teething issues and fan noise on pre-production units, with newer shipping versions addressing the latter.

For buyers who need the enclosed design, LiDAR autofocus, or the extended work area for longer pieces, the Omni X upgrade makes sense. For buyers building a glass and plastics engraving business who want the most cost-effective entry to UV laser technology, the Omni 1 delivers the core capabilities at a fraction of the cost.

For a detailed side-by-side breakdown, our ComMarker Omni 1 vs Omni X comparison guide covers both machines in full.

Who Should Buy the ComMarker Omni 1?

The Omni 1 is the right machine for any of the following:

Glassware engravers. If you personalize wine glasses, tumblers, glass ornaments, crystal blocks, or glass gifts — this is the most capable desktop tool available for that work at this price point, by a significant margin.

Custom gift businesses that work across multiple material types — glass, ceramic, wood, leather, acrylic, and metal — and want one machine to cover the full range rather than multiple specialized tools.

Electronics and plastics professionals who need to mark PCBs, flexible circuits, 3D-printed components, or heat-sensitive plastics cleanly and without surface damage.

Laser engravers upgrading from a diode or fiber laser who have hit the ceiling of what those machines can do and want to add glass, clear acrylic, and precision plastics work to their capabilities.

If the Omni 1 fits your workflow, you can Buy the ComMarker Omni 1 from The Maker's Chest with US-based support and a 30-day return policy.

Final Verdict

The ComMarker Omni 1 earns its reputation. For the specific materials it's built for — glass, clear plastics, coated metals, heat-sensitive electronics, and ceramic — it delivers professional-grade results that no other desktop laser type can match. The combination of 0.0019mm spot size, 16K HD resolution, and UV's cold processing technology produces engraving quality that regularly surprises users who are used to what diode and fiber systems can do.

The limitations are real: no enclosure, significant weight, and it's not the right tool for deep bare metal work. But for a business built on glassware personalization, multi-material custom gifting, or electronics marking, those limitations are either irrelevant or easily managed.

One full-time engraver summed it up well: "$4,000 might sound high, but considering it replaces the need for multiple machines — diode, fiber, CO₂ — it's actually a good deal." That framing is the right way to think about the Omni 1. It's not just a laser engraver. It's a machine that opens material categories that previously required multiple specialized tools.

Frequently Asked Questions

What is the ComMarker Omni 1 and what makes it different from other laser engravers?

The ComMarker Omni 1 is a UV (ultraviolet) galvo laser engraver operating at 355nm wavelength, available in 5W and 10W versions. Unlike diode lasers (450nm, primarily for wood), fiber lasers (1064nm, primarily for metal), or CO2 lasers (10,600nm, primarily for wood and organic materials), UV lasers interact with materials through photochemical "cold processing" — breaking molecular bonds rather than melting or burning them. This enables the Omni 1 to engrave glass without cracking, mark clear acrylic and plastics without marking spray, work on heat-sensitive electronics and polymers without damage, and produce very fine detail thanks to its 0.0019mm spot size. It's the most material-versatile desktop laser type available.

Can the ComMarker Omni 1 engrave glass?

Yes — glass engraving is the Omni 1's signature capability and the main reason most buyers choose it. The 355nm UV wavelength is absorbed by glass (unlike infrared fiber and CO2 lasers, which pass through it), enabling direct frosted surface engraving without thermal cracking. With the 150mm lens, it produces clean frosted marks on wine glasses, tumblers, and ornaments. With the 70mm lens focused below the surface, it can create embedded internal engravings inside thick glass blocks — a 3D effect normally associated with industrial systems costing far more. Our guide to UV laser engraving on glass covers settings and techniques in detail.

What is the difference between the 5W and 10W ComMarker Omni 1?

The 10W version engraves deeper and at higher contrast on demanding materials, cuts thicker materials (12mm basswood vs 8mm, 10mm acrylic vs 6mm, 1.2mm stainless steel vs 0.6mm), and is liquid-cooled versus the 5W's air-cooling. However, the 10W has higher minimum pulse energy, which can make fine-tuning on sensitive metal surfaces trickier. In head-to-head testing, the 5W produces smoother surface marks on stainless steel in some configurations. The 10W's results on metal improve significantly when defocused by about 10mm. For most glass, standard plastics, and wood work, the 5W is fully capable and easier to dial in. The 10W is recommended for production-volume work, deep 3D engraving, and thicker material cutting.

Does the ComMarker Omni 1 require an enclosure?

The Omni 1 is an open-frame machine and does not include an enclosure as standard. UV light at 355nm is invisible and more hazardous to eyes and skin than visible laser wavelengths — the eye doesn't blink reflexively at invisible light, so indirect exposure risk is higher. Safety glasses are included and are essential. For any shared workspace, studio with other people present, or customer-facing environment, an optional enclosure from ComMarker is strongly recommended and should be factored into your budget from the start. For a private, controlled workspace with proper PPE, the open frame is workable with disciplined safety practice.

What software does the ComMarker Omni 1 use?

The Omni 1 supports EZCAD2 (included on USB drive with pre-loaded material parameter libraries) and LightBurn via the LightBurn Galvo plugin (sold separately). Most users prefer LightBurn for its intuitive visual workflow, strong community documentation, and more flexible design tools. The LightBurn Galvo plugin is considered an essential addition by most serious users. EZCAD2 is available as a free alternative for basic workflows and industrial batch marking.

Can the ComMarker Omni 1 engrave metal?

Yes, with important caveats. On coated, plated, and anodized metals — painted metal, anodized aluminum, chrome or gold-plated surfaces, powder-coated items — the Omni 1 excels, removing coatings precisely without damaging the substrate. On bare stainless steel, it produces clean, high-contrast black marks that reviewers describe as better than standard fiber laser results. For deep engraving on bare metal, it's less effective than a dedicated fiber laser — the UV process is better suited to surface marking than aggressive material removal. For shops where metal marking is secondary to glass or plastics work, the Omni 1's metal capability is more than sufficient.

What is the working area of the ComMarker Omni 1?

The Omni 1 includes two field lenses with different working areas. The 150mm lens gives a 150 × 150mm working area, which covers most glassware, jewelry, small product, and tag work. The 70mm lens gives a 70 × 70mm area with a very shallow depth of field — primarily used for embedded glass engravings (focusing inside thick glass) and high-power-density work on demanding materials. The working area cannot be extended with a conveyor or slide on the base Omni 1; the Omni X adds an optional slide extension to reach 150 × 400mm for longer pieces.

How does the ComMarker Omni 1 compare to the Omni X?

The Omni X is ComMarker's upgraded model with several meaningful improvements: a fully integrated safety enclosure as standard, LiDAR autofocus (replacing manual focus), an optional slide extension expanding the working area to 150 × 400mm, motorized Z-axis for true 3D crystal engraving, and refined cooling. The Omni X starts at approximately $4,600 without the slide — roughly 3x the Omni 1's starting price. For makers who need the enclosed design for safety compliance, the LiDAR autofocus for precision consistency, or the extended work area for larger pieces, the Omni X justifies its premium. For buyers entering UV laser engraving with a primary focus on glass and multi-material work, the Omni 1 delivers the core capabilities at a much lower entry cost. Our ComMarker Omni 1 vs Omni X guide covers the full comparison.
