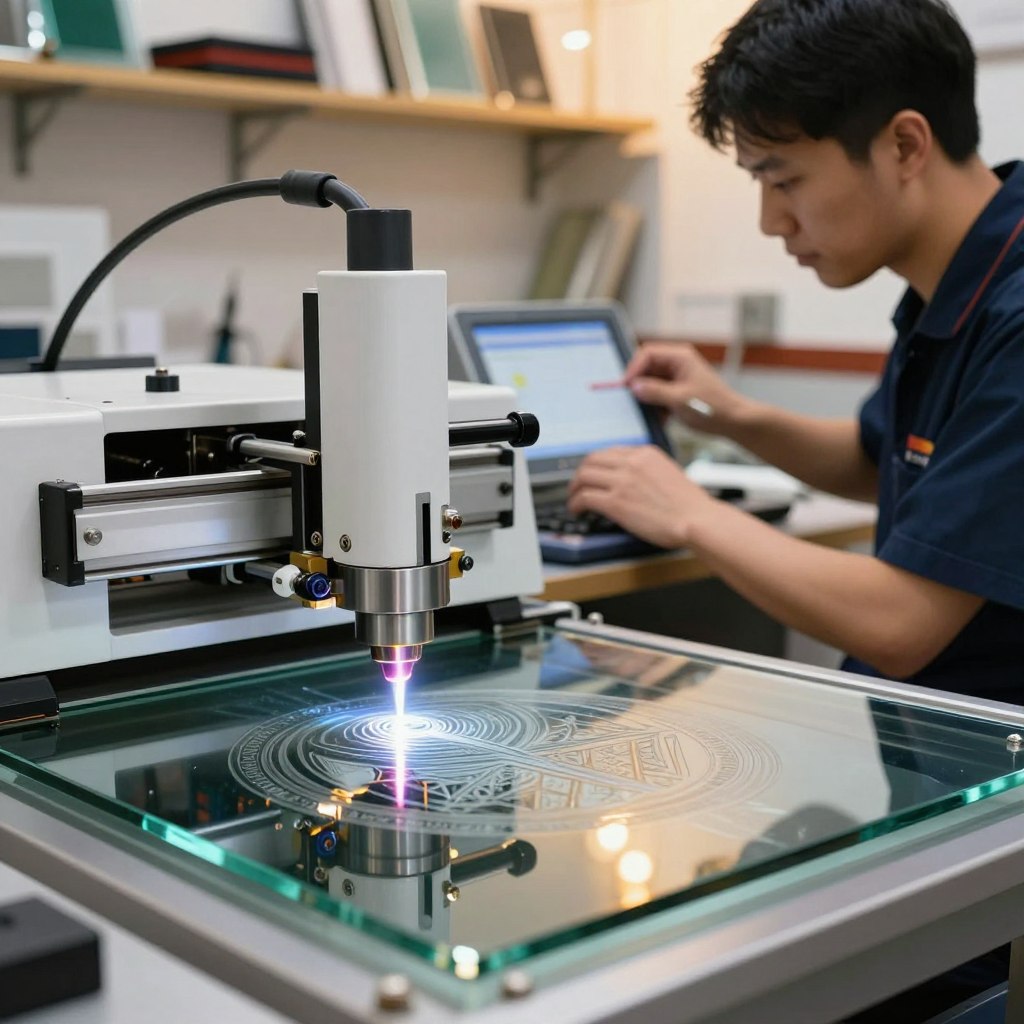

UV Laser Engraving on Glass: Settings, Results and What You Can Actually Achieve
Glass is one of the most commercially valuable materials a laser engraver can work with, and one of the most misunderstood. Most beginners try a CO2 or diode laser on glass, get frustrating results, and assume glass is just difficult. It's not difficult — it just requires the right laser type. The UV laser at 355nm is specifically suited to glass in a way that other wavelengths are not, and once you understand why, the results become consistently excellent.
This guide covers the science simply, the settings practically, and the real-world results honestly. Whether you have a ComMarker Omni 1 or Omni X and are engraving your first wine glass, or you're building a commercial glassware personalization business, this is the practical reference you need.
Why UV Is the Right Laser for Glass (And What Others Get Wrong)
The core problem with glass and standard laser types comes down to wavelength and how glass responds to it. CO2 lasers operate at 10,600nm — far infrared. Glass is largely transparent to visible light but absorbs strongly at CO2 wavelengths, which deposits heat into the material rapidly. That heat creates thermal stress and frequently causes micro-cracking, chipping, or outright shattering on thinner glassware. Fiber lasers at 1064nm largely pass straight through clear glass, which is why fiber engravers simply don't mark it. Diode lasers at 450nm are also largely transmitted.
The UV laser at 355nm occupies a different position. Glass absorbs UV photons more efficiently than visible light, and because UV photons carry more energy per photon, they interact with the material through a photochemical process rather than a thermal one. The high-energy UV pulses break molecular bonds directly, vaporizing material before heat has time to conduct into the surrounding glass. This is called cold ablation — and it's why UV engraving on glass produces clean frosted marks without the micro-cracking that plagues CO2 results on thin glassware.
The practical result: a UV laser can engrave wine glasses, beer mugs, shot glasses, glass tumblers, and ornaments cleanly and reliably, with no marking spray required on clear glass surfaces. For a deeper comparison of UV and CO2 approaches to glass and other materials, our UV laser vs CO2 laser guide covers both technologies side by side.
Types of Glass and How Each Behaves
Not all glass is the same, and the differences matter for your settings and expected results.
Borosilicate (Pyrex)
Borosilicate glass has high thermal resistance — it's the same material used in laboratory glassware and quality drinkware brands like Pyrex. Because it resists thermal expansion, it handles the brief thermal events in UV engraving better than soda-lime glass. Results are very good: clean frosting with minimal risk of cracking even at moderate power. The trade-off is that it absorbs UV energy slightly less efficiently than soda-lime, so you may need marginally higher power or more passes to achieve the same contrast. Borosilicate items are excellent candidates for high-value custom engraving — the material is durable and the mark will last.
Soda-Lime (Everyday Glassware)
This is the most common glass type — wine glasses, beer glasses, tumblers, most retail drinkware. Soda-lime has a lower melting point and absorbs UV energy readily, which means it marks easily and produces high-contrast frosted results at lower power settings. The downside is that it's also more sensitive to thermal stress, so careful settings are important. The good news is that UV cold ablation handles soda-lime glass well at sensible parameters. This is your everyday production material.
Crystal and K9 Glass
Crystal (lead crystal or lead-free crystal) and K9 optical glass are the materials used in premium drinkware, awards, trophies, and decorative pieces. They have excellent optical clarity and are highly valued for premium gift products. Both mark beautifully with UV engraving — the frosted mark contrasts strikingly against crystal's high refractive index, which makes the engraving catch and scatter light dramatically. K9 glass, specifically, is the material used for 3D crystal engraving blocks because of its optical purity and consistent transmission of UV at depth. If you're producing premium gift items or building toward 3D crystal work, K9 and crystal are your highest-value substrate.
Tempered Glass
Tempered glass is significantly stronger than standard glass due to internal stress introduced during manufacturing. This internal stress is also its vulnerability: if thermal input disturbs the stress equilibrium even slightly, the glass can shatter into small pieces instantly. This is not a theoretical risk — it's a real one, and most UV laser operators either avoid tempered glass entirely or test with extreme caution on small scrap pieces first. If you must work with tempered glass, use the lowest power settings possible, multiple fast passes rather than slow deep ones, and always test before touching a production piece.
Recommended Settings Starting Points
UV laser power control is different from diode or CO2 settings in one important way: UV lasers don't have a simple 0–100% power slider. Power is controlled through frequency (pulses per second, measured in kHz) and Q-pulse (the energy per individual pulse — lower Q-pulse value means more energy per pulse). Higher frequency means more pulses per second and therefore more total energy delivered over time. Lower Q-pulse means each pulse is stronger. The combination of these two variables, along with speed, determines the total energy per unit area.
This takes some adjustment if you're coming from a diode or CO2 workflow, but once you internalize the relationship it's quite controllable.
Power and Frequency
For surface glass frosting (the standard application — clean white marks on wine glasses, tumblers, etc.), a good starting point on a 5W UV laser is:
- Frequency: 30–50 kHz
- Q-pulse: 3–5 (lower value = more energy per pulse)
- Power: Full (UV lasers typically run at 100% rated output; power is varied by frequency and Q-pulse, not a direct slider)
Higher frequency (50–80 kHz) produces a smoother, more even frosted finish — ideal for large filled areas like logos with fill hatching. Lower frequency (20–30 kHz) delivers more energy per pulse and is better for fine line work and text where you want sharp definition. Start in the 30–50 kHz range for general glass work and adjust from there.
For embedded glass (subsurface focus below the surface), use lower frequency and reduce speed significantly — you're asking the laser to interact with the interior of the material rather than the surface.
Speed and Pass Count
For soda-lime glass at moderate complexity:
- Speed: 200–400 mm/s for filled areas; 100–200 mm/s for fine detail
- Passes: 1–2 passes for standard frosting; 3–5 passes for deeper contrast or dark glass
For borosilicate glass (higher thermal resistance, needs slightly more energy):
- Speed: 150–300 mm/s
- Passes: 2–3 for standard results; increase passes rather than power to avoid stress
For K9 crystal (surface frosting):
- Speed: 200–300 mm/s
- Passes: 1–2; K9 responds very well to UV and typically requires fewer passes than soda-lime
The general principle is this: multiple slow-low-power passes are always safer than one fast-high-power pass on glass. The photochemical process is more forgiving when energy is delivered incrementally. Always start conservatively and work up.
Focus Distance: The Critical Variable
Focus is the single most important variable in glass engraving quality, and it's where most beginners run into problems. UV lasers have a very shallow depth of field — the spot is only at the correct size and energy density for a narrow range of distances. If you're even 0.5mm off focus, results will be significantly softer, less contrasted, and less consistent.
For surface engraving, focus should be set precisely at the glass surface. On machines with manual focus (like the Omni 1), use the two red dot convergence method: when the two alignment dots merge into a single point on the surface, you're at correct focus. Build a simple focus stick or gauge from scrap material — a 3D printed or cut spacer that sits at the exact correct height — and use it consistently to avoid variance between jobs.
For embedded engraving (inside the glass), focus is intentionally set below the surface. The depth of focus determines where the internal mark forms. Using the 70mm lens on a UV galvo laser, you can focus inside a thick glass block and create a mark that appears to float inside the material. The exact focus depth controls where the mark sits inside the glass.
On machines with LiDAR autofocus (like the ComMarker Omni X), this process is automated with micron-level precision, which significantly improves consistency across curved surfaces and repeated jobs.
Surface Engraving vs 3D Subsurface Engraving
These are two distinct techniques that produce very different results and serve different product markets.
Surface engraving is the standard application — the laser focuses at the glass surface and creates a frosted white mark through cold ablation. This is what most glassware personalization businesses use. Results are crisp, high-contrast, and visible in normal light. A frosted logo on a wine glass, a personalized name on a tumbler, a monogram on a glass ornament — all surface engraving. It works on wine glasses, beer glasses, tumblers, glass plates, ornaments, mirrors, and any flat or gently curved glass surface.
3D subsurface engraving — sometimes called 3D crystal engraving — focuses the laser beam inside a glass or crystal block rather than on its surface. Because UV photons only interact with the material at the focal point (the energy density is too low anywhere else in the beam path), you can create marks inside the glass without damaging the surface. By stepping the focal point through a series of programmed depths using a motorized Z-axis, you build up a three-dimensional point cloud inside the material. The result is a floating 3D image, portrait, or sculpture visible inside the crystal block from all angles.
Surface engraving is achievable on any UV galvo laser including the Omni 1. Full 3D subsurface work requires motorized Z-axis control — the Omni X is specifically designed for this. The Omni 1 can perform basic embedded engravings (a flat mark below the surface using the 70mm small lens) but not the full progressive Z-axis work that produces true 3D crystal objects. Our dedicated guide to what is 3D crystal engraving covers the full workflow, required files, and commercial product categories in detail.
Common Problems and How to Fix Them
Chipping and Cracking
The most common glass engraving problem, and almost always caused by too much energy per unit area. This can happen through too-low speed, too-high frequency, too many passes without cooling time, or focusing errors.
Fix: Reduce power density — either increase speed, reduce frequency, or split the job into more lighter passes with time between them. Ensure the glass is at room temperature before starting (cold glass from a refrigerator is significantly more prone to thermal shock). For thin wine glass stems, avoid engraving close to structural weak points.
Blurry or Uneven Results
Usually a focus problem. If the mark looks soft, washed out, or inconsistent across the engraving area, the focal distance is off. This happens most often when the glass surface is curved and the focus was set at the center but the edges of the design are at a different height.
Fix: Recalibrate focus precisely at the actual engraving surface. For curved or irregular items, consider the rotary attachment (which keeps cylindrical objects at constant focal distance as they rotate) or use the machine's autofocus if available. Check that your focus jig or reference measurement hasn't drifted.
Focus Drift on Curved Surfaces
On curved surfaces — tapered wine glasses, goblets, anything that isn't a uniform cylinder — the focal distance changes across the design area even when using a rotary. The wider the taper, the more pronounced the drift.
Fix: For moderately tapered surfaces, accepting slight softness at the outer edges of a larger design is common. For high-precision work, limit your design to a zone where the taper is minimal (the central band of the glass). Some advanced setups use galvo correction files (corr files) that compensate for the changing focal geometry. The ComMarker Omni X's LiDAR autofocus addresses this more elegantly on machines that support it. For round tumblers and straight-sided cups, a standard rotary attachment keeps focus consistent.
Products You Can Make (And What They Sell For)
The commercial case for UV glass engraving is strong. Personalized glassware consistently performs well across gifting, wedding, corporate, and retail markets.
Custom wine glasses — personalized with names, wedding dates, monograms, or logos. Typical retail price: $20–$45 per glass depending on the glass quality and design complexity. Wedding sets of 4–6 glasses are popular at $80–$180 per set. The UV laser's clean frosted finish on clear glass looks significantly more premium than sand-carved or chemical-etched alternatives.
Personalized tumblers and pint glasses — sports team logos, bar names, corporate gifts. A simple logo on a standard pint glass takes 2–3 minutes and retails at $15–$30. In batches of 20–50, this becomes efficient production work.
Crystal awards and trophies — UV laser on K9 crystal or lead crystal produces high-contrast marks that catch light beautifully. Corporate recognition awards, sports trophies, and commemorative pieces sell at $40–$150+ depending on crystal quality and design.
3D crystal portraits — the premium tier. A 3D portrait inside a K9 crystal block takes 45–90 minutes of machine time and sells for $60–$200+ depending on size and detail level. High perceived value with strong gift market demand, particularly for memorial, wedding, and anniversary applications. This product requires motorized Z-axis control (Omni X).
Glass Christmas ornaments — seasonal but high-volume. Custom family name ornaments, frosted snowflake designs on glass balls. Fast to engrave, retail at $10–$25 each, and extremely popular October–December.
Which UV Laser Machines Handle Glass Best
Not all UV galvo lasers are equal for glass work, and the differences matter for production results.
The ComMarker Omni 1 (5W UV, 355nm) is the best value-for-money entry point for professional glass engraving. Hands-on testing confirms excellent frosted results on soda-lime wine glasses, K9 crystal surface frosting, and embedded glass engravings using the 70mm lens. The 0.0019mm spot size and 16K HD resolution produce fine detail that holds up at small scales. Manual focus requires practice but delivers consistent results once learned. Read our full ComMarker Omni 1 review for detailed material test results and settings data.
The ComMarker Omni X (5W UV, 355nm) adds LiDAR autofocus for more consistent results on curved and irregular glass surfaces, a fully enclosed Class 1 design for retail or shared environments, and motorized Z-axis control that enables full 3D crystal engraving. For professional studios and businesses offering the 3D crystal product category, the Omni X is the machine that makes it possible at desktop scale. Our ComMarker Omni X review covers the hands-on 3D glass results and what the upgrade actually delivers in practice.
The Omni 1 handles the vast majority of glass engraving applications — surface frosting, drinkware personalization, awards, and basic embedded work — at a fraction of the Omni X's price. The Omni X is the upgrade path when 3D crystal work, LiDAR consistency on curved surfaces, or enclosed studio operation are specific requirements.
Final Advice
Glass engraving with a UV laser rewards patience in the early calibration phase and becomes highly efficient once your settings library is established. A few principles that apply regardless of the machine or glass type:
Build a settings library, don't wing it. Keep a systematic record of every material test — glass type, frequency, Q-pulse, speed, pass count, result. Once you have reliable parameters for your most common glass types, jobs become fast and predictable. Don't rely on memory.
Use multiple light passes over one heavy pass. On glass especially, incremental energy delivery is more forgiving than trying to get full depth in one run. You can always add a pass; you can't undo a crack.
The 70mm lens is not just for embedded work. On a UV galvo with both 150mm and 70mm lenses, the 70mm lens's smaller spot size produces higher-contrast surface marks on demanding materials. If you're struggling to get contrast on a particular glass, try switching to the small lens before changing power settings.
Curved surfaces need either a rotary or constrained design placement. Focus drift on tapers is predictable — work with it rather than fighting it by keeping designs in the most consistent-depth zone of the glass.
Temperature matters more than people expect. Glass fresh from a dishwasher or refrigerator is more prone to cracking. Let items equilibrate to room temperature before engraving.
The UV laser is the right tool for glass. With the right settings and a disciplined testing approach, it produces results that genuinely can't be achieved any other way.
Frequently Asked Questions
Can you laser engrave glass with a UV laser without it cracking?
Yes — this is actually one of the main reasons UV lasers are preferred for glass over CO2 lasers. The 355nm UV wavelength enables cold photochemical processing (cold ablation), where the laser breaks molecular bonds directly without depositing significant heat into the surrounding glass. When properly focused and set at appropriate power levels, UV engraving produces clean frosted marks on soda-lime, borosilicate, crystal, and K9 glass without micro-cracking. The most common cause of cracking is too much energy per unit area — resolved by increasing speed, reducing frequency, or splitting the job into multiple lighter passes.
What settings should I use to engrave a wine glass with a UV laser?
For standard soda-lime wine glasses on a 5W UV laser (355nm), a reliable starting point is: frequency 30–50 kHz, Q-pulse 3–5, speed 200–400 mm/s, 1–2 passes, line spacing 0.05–0.08mm. Focus must be set precisely at the glass surface using either manual alignment (two-dot convergence method) or LiDAR autofocus if your machine supports it. Start at the lower end of power and add passes rather than increasing power aggressively. Always run a test on scrap glass of the same type before engraving production pieces.
What is the difference between surface engraving and 3D subsurface engraving on glass?
Surface engraving focuses the laser at the glass surface, creating a frosted white mark through cold ablation. This is the standard technique for wine glasses, tumblers, ornaments, and most glassware personalization. Subsurface engraving focuses the laser inside the glass — below the surface — at a depth controlled by the machine's Z-axis. Because UV photons only interact at the focal point, the beam passes through the surface without marking it and creates a mark at the programmed internal depth. By stepping the Z-axis through a series of depths, you can build a full 3D structure inside crystal blocks (3D crystal engraving). Surface engraving works on any UV galvo laser. Full 3D subsurface work requires motorized Z-axis control.
Do you need a marking spray to engrave clear glass with a UV laser?
No — this is one of the UV laser's key advantages over CO2 systems for glass work. UV at 355nm is absorbed by glass efficiently enough to produce high-contrast frosted marks directly on clear glass surfaces without marking spray, Cermark, or any preparation compounds. CO2 lasers often require a wet paper towel, dish soap, or specialized marking spray to prevent the beam from passing through clear glass. With a UV laser, clear wine glasses, crystal blocks, and glass ornaments mark directly and cleanly, which simplifies workflow and reduces per-item material costs.
What types of glass can a UV laser engrave?
UV lasers handle most common glass types: soda-lime (everyday glasses, wine glasses, tumblers), borosilicate (Pyrex, lab glass, quality drinkware), crystal and lead-free crystal (premium drinkware, awards), and K9 optical glass (crystal trophies, 3D engraving blocks). Tempered glass is possible but risky — the internal stress makes it prone to shattering if thermal input is misjudged, and most operators either avoid it or test very cautiously with minimal power. Mirrors (coated glass) can be engraved by removing the coating, which requires lower power settings than bare glass.
Can a CO2 laser engrave glass as well as a UV laser?
CO2 lasers can mark glass, but the results are typically lower quality than UV due to the thermal mechanism. CO2 at 10,600nm deposits heat rapidly into the glass surface, causing micro-fractures that produce a rough, "frosted sandblast" appearance. On thin glassware, CO2 frequently causes chipping and cracking, especially without a marking aid like a wet paper towel to slow thermal input. UV's cold ablation produces cleaner, more consistent marks with sharper edges and no micro-cracking risk at appropriate settings. For clear glass, thin-walled glassware, crystal, and any application where surface quality matters, UV is the clearly superior technology. For a full side-by-side breakdown of both approaches, see our UV laser vs CO2 laser comparison guide.
What is the best UV laser machine for glass engraving?
The ComMarker Omni 1 (5W, 355nm) is the best value entry point for professional glass engraving — it produces excellent frosted results on all common glass types, handles embedded engravings using the 70mm lens, and is available from around $999. The ComMarker Omni X (5W, 355nm) is the upgrade choice for shops needing LiDAR autofocus for consistent curved-surface results, a fully enclosed Class 1 design for shared-space operation, and motorized Z-axis control for true 3D crystal engraving. Both use the same core UV laser technology; the Omni X wraps it in a more automated, professional studio package at a significantly higher price point.
