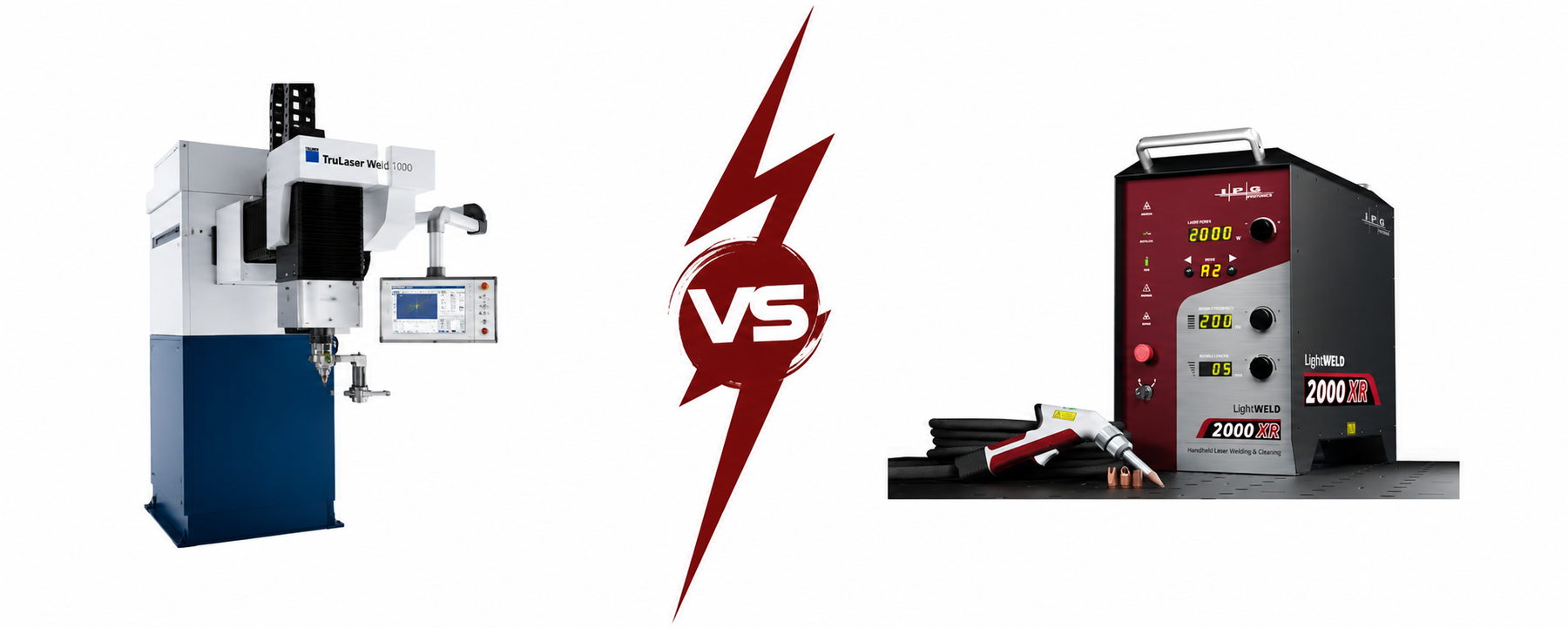

TRUMPF TruLaser Weld 1000 vs. IPG LightWeld 2000 XR

When You've Outgrown the Mid-Market

At the top of the laser welding market, two companies — TRUMPF and IPG Photonics — define the benchmark against which everything else is measured. Both have decades of laser manufacturing heritage, both serve industrial manufacturing clients, and both command price premiums that reflect genuine engineering investment rather than marketing positioning.

The TRUMPF TruLaser Weld 1000 and IPG LightWeld 2000 XR represent these two companies' approaches to production laser welding — but they're solving the problem from different directions, and it's important to understand this before comparing specifications.

The TRUMPF TruLaser Weld 1000 is an automated laser welding cell — a robotic system with a 6-axis articulated arm, 3kW solid-state laser, and a cobot-guided programming system that creates weld paths from manual operator guidance. It's a stationary production installation that occupies shop floor space and automates repetitive welding tasks.

The IPG LightWeld 2000 XR is a handheld laser welder — 2000W average / 3000W peak, air-cooled, portable, operated by a human with a welding torch. It's the highest-power unit in IPG's handheld LightWeld line.

These are not the same type of tool. A shop choosing between them isn't choosing between two welders; it's choosing between automated robotic welding and high-power handheld welding — a fundamentally different workflow decision.

For the complete review of the IPG LightWeld product line including the 1500 XR and 2000 XR in detail, see our IPG LightWeld review.

---

IPG LightWeld 2000 XR: The Established Premium Standard

The IPG LightWeld 2000 XR is the most powerful unit in IPG Photonics' handheld laser welding product line. Launched in May 2024 as the fourth product in the LightWeld family, it extends the established LightWeld platform to 2000W with additional material capability.

SmartWeld and Preset System

The LightWeld 2000 XR includes the full SmartWeld preset parameter system — the same validated parameter library that covers material type, thickness, and joint configuration combinations across the LightWeld range. The 2000 XR adds coverage for the material range the higher power enables.

Pre-validated parameter selection means an operator can select material and thickness from the menu and begin welding without understanding the underlying beam-material interaction physics. For shops training multiple operators, this parameter library reduces training friction and maintains quality consistency across different operators.

---

Air-Cooled Portability at High Power

The LightWeld 2000 XR is air-cooled — the same self-contained cabinet design as the 1500 XR, requiring no external chiller. Physical dimensions: 316mm × 641mm × 534mm (12.5 × 25.2 × 21 inches), with carry handles. The 10m gun cable reaches most working positions from the stationary power cabinet.

This portability at 2000W is distinctive. Most 2000W+ laser welding systems either require water cooling infrastructure or are fixed robotic installations. The LightWeld 2000 XR delivers this power level in a format that moves between workstations.

Material capability at 2000W: Steel and stainless steel up to 8mm (0.315"), aluminum up to 8mm, titanium and nickel alloys up to 7mm, copper up to 3mm. These specifications represent the upper material range of the handheld laser welding category.

Price: Approximately $39,250 USD.

---

Compliance and Certification Profile

IPG Photonics (Oxford, Massachusetts) is the world's largest manufacturer of high-power fiber lasers, publicly listed on NASDAQ (IPGP), ISO certified, with ETL and CE safety certifications across the LightWeld product line. The LightWeld 2000 XR includes Ethernet connectivity for remote parameter management and network integration.

For facilities requiring vendor qualification in aerospace, defence, government, and medical manufacturing: the IPG compliance documentation chain supports tier-1 procurement qualification. US manufacturing, public company financial disclosure, and comprehensive certification documentation are the compliance profile for this product.

---

TRUMPF TruLaser Weld 1000: The New Challenger

The TRUMPF TruLaser Weld 1000 is a fundamentally different product category — an automated laser welding cell designed to bring robotic welding within reach of smaller job shops. TRUMPF (Ditzingen, Germany) is one of the world's largest manufacturers of machine tools and laser equipment, with revenues exceeding €5 billion annually.

AI-Based Seam Tracking

The TruLaser Weld 1000's Smart Seam Tracking is the standout automation feature. With this intelligent online seam tracking, all you need to do is bring the welding torch to near the start position and the robot takes care of the weld distance and torch position. The welding torch remains perfectly set up across the entire seam and the welding path is adjusted live during welding.

This real-time seam tracking capability means the robot compensates for part variation, minor positioning errors, and weld distortion as the weld progresses. For production runs of varied parts where fit-up isn't perfectly consistent, Smart Seam Tracking provides quality consistency that a fixed robotic path cannot.

TRUMPF's 2025 LASER World of Photonics exhibition showcased their broader AI quality control integration: an integrated AI quality control system checks the weld seams, and OCT (optical coherence tomography) monitors the welding depth of the laser. Martin Stambke, TRUMPF Product Manager, described it as unique on the market — offering all components including beam source, sensors, and optics from a single source.

---

Beam Oscillation Technology

The TruLaser Weld 1000 incorporates TRUMPF's beam oscillation (pendulum welding) technology. Pendulum welding is particularly beneficial for thick sheet processing — it prevents lack of fusion with wide weld seams. The oscillating beam creates wider weld beads that bridge gap tolerances and ensure full fusion at the root of wider joints.

This is the same principle as wobble welding in handheld systems, but applied with robotic precision at production speed. The controlled oscillation parameters integrate with the Smart Seam Tracking for a combined system that adapts both position and beam path in real time.

---

Build Quality and Integration with Automated Systems

The TruLaser Weld 1000 dimensions: 5,200 × 2,200 × 2,800mm. It's a production installation, not a portable tool. The system incorporates a 6-axis articulated arm robot that operates at production speeds exceeding standard cobot velocity — TRUMPF specifically notes it enables it to move much faster and more precisely than a standard cobot, resulting in higher-quality weld seams and less non-productive time.

The dual-zone work area is a production efficiency feature: the work area is divided into two sections with a partition. While the robot welds on one side, the operator loads and unloads on the other — continuous production without cycle interruptions.

Programming: the operator manually guides the robot over the seam while pressing a button to mark waypoints. The software creates the welding program from this guided path. Programming a typical part takes minutes, not hours. The full system can typically be installed and commissioned in one day.

Laser source: 3kW solid-state laser. This high-power laser energy rapidly penetrates the sheet — welding thin sheets up to 4mm without distortion. Also handles thicker materials. The 3kW power level substantially exceeds the IPG LightWeld 2000 XR's 2kW average.

Digital integration: seamless integration of multiple TRUMPF machines into software environments via Oseon or connections to monitoring and analysis tools. OPC UA standard interfaces support third-party software systems.

Price: TRUMPF describes the TruLaser Weld 1000 as "at the lowest price ever offered for automated laser welding." While specific pricing requires contacting TRUMPF directly, robotic welding cells of this specification typically start at $150,000–$300,000+ depending on configuration.

---

Head-to-Head Comparison

Weld Quality and Precision

The TRUMPF's robotic consistency is its primary quality advantage: every weld on a production run of identical parts is deposited at the same position, speed, angle, and energy. Operator fatigue, day-to-day technique variation, and shift changeover don't affect the output.

The IPG's 2000W average (3000W peak) and 8mm steel capability exceed the TRUMPF's documented thin-sheet focus — the IPG handles thicker material in a handheld format.

---

AI and Automation Features

The TRUMPF's AI seam tracking, real-time path adjustment, and OCT weld depth monitoring represent capabilities unavailable in any handheld system. These aren't incremental improvements — they're architectural differences that only exist because the welding head is robotically controlled.

The IPG LightWeld's SmartWeld preset system is operator-assistance AI — it helps the operator choose correct parameters. The TRUMPF's seam tracking is process-control AI — it monitors and adjusts the weld in real time.

---

Portability and Form Factor

The IPG LightWeld 2000 XR: 316mm × 641mm × 534mm cabinet, 10m gun cable, air-cooled. Can be wheeled to the workpiece for large or awkward assemblies. One person can operate it anywhere within cord reach.

The TRUMPF TruLaser Weld 1000: 5,200 × 2,200 × 2,800mm installation. One-day installation process. The workpiece comes to the machine. Requires dedicated floor space and appropriate power infrastructure.

For applications requiring the welder to come to the workpiece (large assemblies, architectural installations, field repair, on-site fabrication): the IPG LightWeld is the correct tool. For applications where the workpiece comes to the machine in a production environment: the TRUMPF's stationary installation is appropriate.

---

Price and Total Cost of Ownership

IPG LightWeld 2000 XR: ~$39,250. Includes air-cooled unit, 10m cable, helmet, safety glasses, welding and cleaning nozzles, Ethernet cable. Standard electrical input.

TRUMPF TruLaser Weld 1000: TRUMPF positions this as the lowest price ever offered for automated laser welding — but robotic welding cell investments at this specification typically require significant capital. Pricing is quote-based through TRUMPF's sales organisation. Additionally: floor space, installation, programming training, and integration with existing shop workflow add to the total investment.

The TCO comparison diverges after initial investment. The TRUMPF's robotic operation eliminates operator labour cost on repetitive production welding — the ROI calculation depends on production volume. At high production volume of repetitive weld programs, the labour cost savings compound significantly.

For the foundational ROI framework on laser welding investments generally, our how to start a laser welding business guide covers the business case for laser welding adoption across different business models.

---

Which Industries Favour Each System?

Industries and applications where the IPG LightWeld 2000 XR is correct:

• Custom fabrication and job shop work with high variety and low volume per part — the handheld's flexibility across different parts, materials, and joint geometries outweighs robotic automation's efficiency advantage
• Aerospace and defence maintenance where the welding must come to the aircraft or equipment rather than the opposite
• Food and pharmaceutical equipment fabrication where the LightWeld's low HAZ and clean welds align with sanitary requirements — for the standards context, our laser welding standards for food-safe fabrication guide covers the regulatory framework
• Architectural metalwork and large-scale stainless fabrication where component size makes robotic fixturing impractical
• Field service and repair — the LightWeld's portability and air-cooled design enable on-site welding

Industries and applications where the TRUMPF TruLaser Weld 1000 is correct:

• High-volume repetitive sheet metal production — electrical cabinets, boxes, covers, and enclosures in production runs where the same weld program repeats hundreds of times
• HVAC and enclosure manufacturing where standardised components run in batch sizes that justify robotic programming time
• Automotive component fabrication where robotic consistency and cycle time per part matter at volume
• Facilities with dedicated production cells where floor space allocation for a robotic installation is appropriate

---

Who Should Choose the IPG LightWeld 2000 XR?

The LightWeld 2000 XR is the right choice for:

Job shops with high variety and moderate volume — diverse part geometries, frequent material changes, and mixed lot sizes that don't justify robotic programming. The handheld covers every configuration the operator can reach.

Shops needing maximum material thickness in a handheld — 8mm steel at 2000W average is the upper capability of the handheld category. The LightWeld 2000 XR's copper capability (3mm) and titanium/nickel alloy depth (7mm) extend the material range beyond the 1500 XR.

US-manufactured compliance requirements — IPG's manufacturing, certification documentation, and public company status support vendor qualification in regulated industries. For any facility that must qualify its welding equipment for defence, aerospace, or medical procurement, the LightWeld 2000 XR is the correct handheld choice.

Facilities without the production volume to justify robotic automation — the $39,250 entry investment for the IPG versus the six-figure investment for the TRUMPF robotic cell is a meaningful difference for shops that cannot achieve the production volume to amortise robotic capital efficiently.

---

Who Should Choose the TRUMPF TruLaser Weld 1000?

The TruLaser Weld 1000 is the right choice for:

High-volume production shops with repetitive weld programs — electrical cabinet manufacturers, enclosure fabricators, HVAC component producers, any shop running production lots of standardised sheet metal assemblies. The robotic consistency and dual-zone efficiency pay back the capital investment at production volume.

Shops committed to automation — the TruLaser Weld 1000 is an entry point into automated laser welding for shops that have identified automation as their strategic direction. The e-learning programming model and cobot-guided setup minimise the skilled automation engineer requirement that traditional robotic welding cells impose.

Facilities with available floor space and power infrastructure — the 5,200mm × 2,200mm footprint and production power requirements need to fit the facility before the automation investment makes sense.

Operations where labour cost reduction is the primary ROI driver — the productivity and labour cost advantage of robotic welding versus operator-dependent handheld welding compounds at production volume. Depending on the part and programme, automated welding of components can be 21–63% faster than manual welding, starting from surprisingly small lot sizes.

---

Verdict

These machines serve different production paradigms rather than competing for the same buyer.

Choose the IPG LightWeld 2000 XR if: your work is custom, diverse, or field-based — where human flexibility, material thickness above 6mm, or portability are governing requirements. At $39,250, it's the highest-power handheld laser welder available from the world's leading fiber laser manufacturer, with full compliance infrastructure for regulated industry procurement.

Choose the TRUMPF TruLaser Weld 1000 if: your work is repetitive production of standardised sheet metal components — enclosures, cabinets, boxes, covers — at volumes where robotic automation's cycle time and consistency advantage compounds into meaningful ROI. The Smart Seam Tracking AI and cobot-guided programming have specifically addressed the traditional barriers to small-shop robotic adoption: programming complexity and minimum lot size.

The budget difference is not marginal. The TRUMPF is a production facility investment; the IPG is a capital equipment purchase. Both are justified — for the right operation.

---

Frequently Asked Questions

What is the TRUMPF TruLaser Weld 1000?

The TRUMPF TruLaser Weld 1000 is an automated laser welding cell designed to bring robotic laser welding to smaller job shops. It uses a 3kW solid-state laser and a 6-axis articulated robot arm with cobot-inspired teaching — the operator manually guides the robot over the weld seam while marking waypoints, and the software creates the welding program. Features include AI Smart Seam Tracking (real-time seam path adjustment during welding), pendulum beam oscillation for wide weld beads, and a dual-zone work area for continuous load/unload efficiency. Dimensions: 5,200 × 2,200 × 2,800mm. Typical applications: electrical cabinets, sheet metal boxes, enclosures, covers.

How does the IPG LightWeld 2000 XR differ from the TRUMPF TruLaser Weld 1000?

The most fundamental difference is the operating mode: the IPG LightWeld 2000 XR is a handheld laser welder operated by a human with a welding torch; the TRUMPF TruLaser Weld 1000 is an automated robotic welding cell where a robot arm performs the weld. The IPG at $39,250 is portable, flexible, and suitable for custom work, field applications, and variable part geometries. The TRUMPF is a production installation requiring dedicated floor space, suited for repetitive high-volume production of standardised parts. The TRUMPF uses a 3kW laser source; the IPG uses 2kW average / 3kW peak.

How much does the TRUMPF TruLaser Weld 1000 cost?

TRUMPF positions the TruLaser Weld 1000 as the lowest-priced automated laser welding system they offer, specifically designed to make robotic laser welding accessible to smaller job shops. Pricing is quote-based through TRUMPF's sales organisation — contact TRUMPF directly for current pricing. Automated robotic welding cells of this specification typically represent a significantly larger capital investment than handheld alternatives, reflecting the engineering cost of the robotic arm, seam tracking system, safety enclosure, and control software.

What is Smart Seam Tracking on the TRUMPF laser welder?

Smart Seam Tracking is TRUMPF's AI-based online seam tracking system for the TruLaser Weld 1000. Rather than following a fixed pre-programmed path, the system tracks the actual weld seam in real time and adjusts the welding path live during the weld. The operator brings the torch near the start position; the system establishes weld distance and torch angle, then maintains correct positioning throughout the seam. This compensates for part variation, minor positioning error, and weld distortion, producing consistent results even when parts aren't perfectly positioned.

Which laser welder is better for a job shop — IPG LightWeld or TRUMPF TruLaser Weld?

For a job shop with high variety and mixed lot sizes: the IPG LightWeld 2000 XR's handheld flexibility is the appropriate choice. The operator adapts to every part geometry without programming setup time, handles diverse materials and thicknesses, and the $39,250 investment amortises efficiently across many different jobs. For a job shop that has identified a specific high-volume product line (enclosures, cabinets, standardised sheet metal) where the same weld programs repeat: the TRUMPF's automation pays back through labour cost reduction and cycle time improvement, even at surprisingly small lot sizes. The Fabricator has documented one-piece automation being 21% faster than manual welding for a five-seam component.
