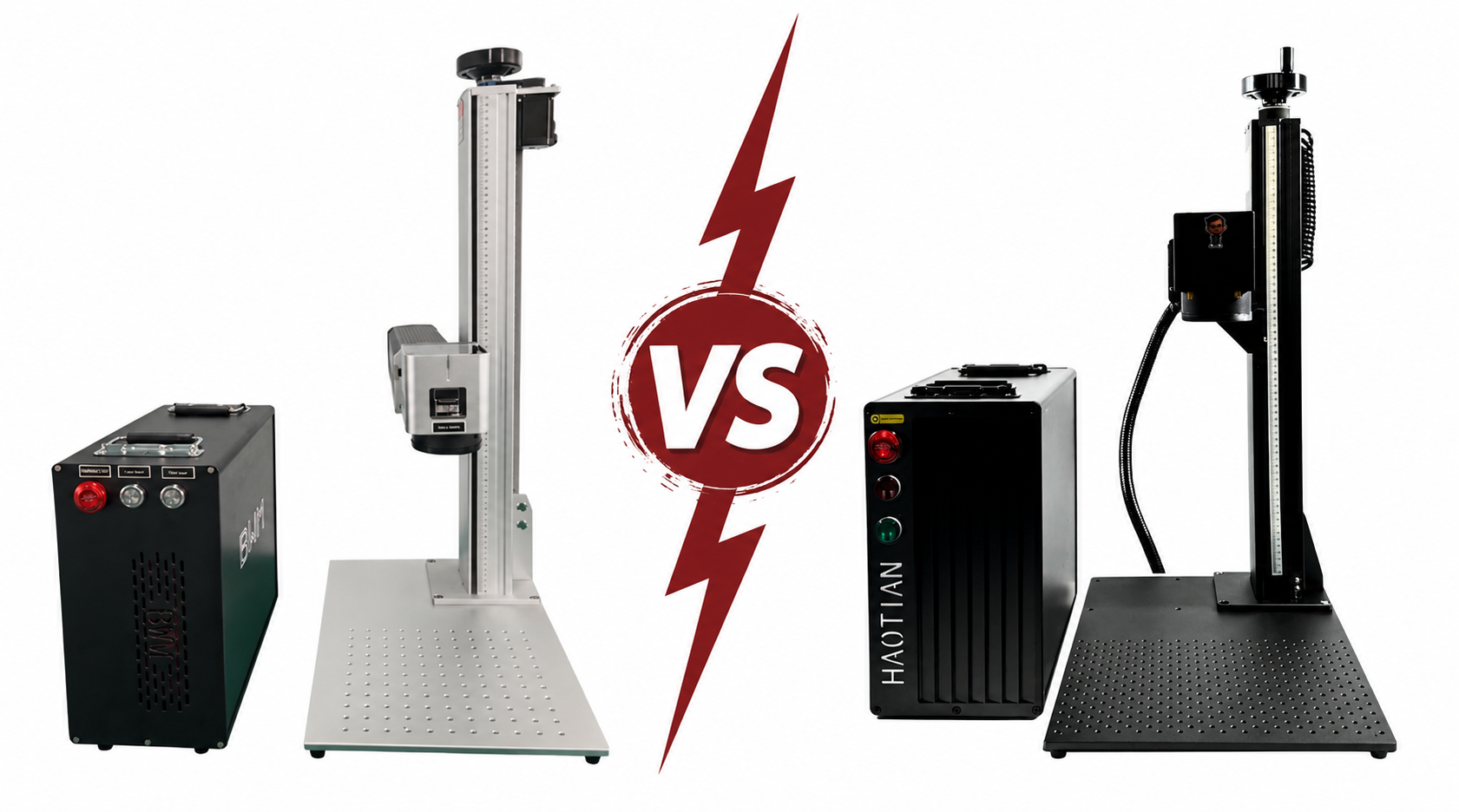

Haotian 60W MOPA vs BWM 60W MOPA: Which Should You Buy?

If you are comparing the Haotian 60W MOPA with the BWM 60W MOPA, the most important fact is also the easiest one to miss: these machines can be configured with essentially the same core laser source. Both are open, split-design galvo systems built around a 60W JPT M7 MOPA source, both include two field lenses and a rotary, and both are designed for color marking, deep engraving and production marking on metal.

The real choice is therefore not “Which brand has the better 60W beam?” It is whether you want BWM’s faster, simpler fixed package or Haotian’s greater source, lens and rotary flexibility. This comparison uses the current configurations and prices offered by The Maker’s Chest and compares the BWM JPT M7 E directly with the Haotian JPT M7 E wherever possible.

You can view the BWM 60W MOPA, the Haotian 60W MOPA, or compare the wider MOPA fiber laser range.

Table of Contents

• Quick Answer
• BWM 60W vs Haotian 60W Specifications
• How Similar Are the Actual Laser Sources?
• Configuration, Lenses and Rotaries
• Focus, Software and Daily Workflow
• Shipping, Warranty and Returns
• Which Is the Better Value?
• Final Verdict
• Frequently Asked Questions

Quick Answer

Choose the BWM 60W if you already know you want the JPT M7 E source and value fast delivery, a straightforward package and a slightly lower price. At the time of writing, it is $4,290 delivered, includes two lenses and a D80 rotary, and normally arrives by FedEx air freight in about seven business days.

Choose the Haotian 60W if you want to choose between JPT M7 E2, E and M source grades, select a D60, D80 or D100 rotary, or need lens sizes that BWM does not offer. The comparable M7 E configuration is $4,400, while the E2 starts at $4,100 and the higher-beam-quality M version is $6,400. Delivery is approximately 30 days because the machine is built to order.

For ordinary engraving quality, color capability and deep-engraving performance, the BWM M7 E and Haotian M7 E should be very close. They share the specifications that matter most: 60W average power, 2.0 mJ maximum pulse energy, 2–500 ns pulse-width control and a frequency range extending to 4,000 kHz.

BWM 60W vs Haotian 60W Specifications

Prices and configurations can change. Check the linked product pages for the current delivered price before ordering.

How Similar Are the Actual Laser Sources?

For an honest comparison, the BWM should be matched against Haotian’s JPT M7 E, not automatically against Haotian’s least expensive E2 option. Both M7 E configurations publish the same core output figures: 60W average power, 2.0 mJ pulse energy, 2–500 ns pulse-width control and M² below 1.5.

That means neither brand gains a fundamental wavelength or MOPA-control advantage. Both can create oxide colors on stainless steel and titanium, produce clean marks on anodized aluminum, mark many industrial plastics and remove material for deep engraving. Results will depend heavily on the field lens, focus, material alloy, hatch strategy and parameter development—not simply the badge on the cabinet.

Haotian’s advantage is choice. Its E2 version reduces the entry price and is positioned for moderate daily use. Its E version is the closest direct match to BWM. Its M version publishes tighter beam quality below 1.3 and is aimed at fine detail or sustained industrial use. BWM avoids that decision by selling one M7 E configuration.

This also changes how to interpret the headline prices. Haotian appears $190 cheaper at $4,100, but that is the E2 configuration. On an E-versus-E basis, BWM is currently $110 less than Haotian.

Configuration, Lenses and Rotaries

Both machines include two lenses, but Haotian offers more field-size increments. BWM lets you choose from 100 × 100, 150 × 150, 200 × 200 and 300 × 300 mm. Haotian lists 70 × 70, 110 × 110, 150 × 150, 175 × 175, 210 × 210 and 300 × 300 mm.

If you engrave jewelry, very small text or detailed linework, Haotian’s 70 mm option can provide a particularly tight field. If your work is more conventional—tumblers, business cards, plates, firearm components and batches of small parts—both brands cover the most useful field sizes. In either case, a smaller field generally gives a smaller focused spot, while a larger field sacrifices some fine resolution for coverage.

The rotary difference is clearer. BWM supplies a D80 rotary as standard, a practical general-purpose size for tumblers, bottles, pens and many cylindrical parts. Haotian lets you choose a D60 for rings and bracelets, a D80 for drinkware, or a D100 for larger cylindrical work. A jewelry-focused buyer may therefore prefer Haotian even when the laser source itself is equivalent.

Focus, Software and Daily Workflow

BWM uses a manual handwheel lift and dual red-light focusing. It is straightforward: raise or lower the head until the two red points converge. Haotian provides motorized height adjustment as well as manual control, which is more convenient when part heights change frequently or when moving between flat work and a rotary.

Both systems use JCZ-family control hardware, ship with EZCAD2 and are compatible with LightBurn’s galvo license. Both expose the frequency and pulse-width controls needed for MOPA color work. Buyers should budget for a LightBurn galvo license where it is not explicitly included in the current offer.

These are open galvo machines, not Class 1 enclosed appliances. A suitable enclosure, wavelength-rated eye protection and extraction should be part of the installation plan. Neither machine’s open architecture should be treated as safe for unprotected bystanders simply because the controller has an emergency stop.

Shipping, Warranty and Returns

Delivery time is one of the largest practical differences. BWM ships the 60W by FedEx air freight and quotes arrival in approximately seven business days. Haotian machines are built to order and typically take approximately 30 days. Both prices are DDP for eligible destinations, meaning listed shipping, customs duties and import taxes are included rather than billed later by a broker.

Both currently carry a three-year warranty on the complete machine, including the JPT source, with lifetime technical support. The service procedure differs by the specific failure, but both brands generally diagnose remotely and ship replacement parts where appropriate.

Neither BWM nor Haotian machines are covered by The Maker’s Chest’s standard return policy. These are factory-shipped international machines, and return freight, duties and build-to-order configuration make ordinary returns impractical. That makes pre-purchase confirmation of source grade, lens sizes, rotary type and working height especially important.

Which Is the Better Value?

If the comparison is strictly M7 E versus M7 E, BWM currently has the cleaner value proposition: it costs $110 less and arrives materially faster while matching the most important laser-source specifications. Its trade-off is reduced configuration flexibility and a manual rather than motorized lift.

Haotian can still be the better value for two different buyers. The E2 version saves $190 relative to BWM for shops that do not need the E-grade component specification. At the other end, the M version offers tighter published beam quality for customers whose fine-detail or multi-shift requirements justify a substantially higher price. Haotian also avoids forcing a jewelry buyer to accept a D80 rotary or a fine-detail buyer to start at a 100 mm field.

Final Verdict

Buy the BWM 60W if:

• You want a JPT M7 E source without comparing three internal source grades.
• Fast delivery matters to an operating business.
• A D80 rotary and conventional 100–300 mm field sizes suit your work.
• You prefer the lowest current price for the comparable E-grade configuration.

Buy the Haotian 60W if:

• You want to choose between E2, E and M source grades.
• You need a D60 jewelry rotary or D100 large-part rotary.
• You want a 70, 175 or 210 mm lens option.
• A motorized Z-axis will improve a workflow with frequent height changes.
• You can accommodate the longer built-to-order delivery time.

There is no honest basis for claiming that one brand’s M7 E source will automatically engrave better than the other. The decision is about configuration, workflow, delivery and price around the source. If you tell The Maker’s Chest what you engrave, the approximate part size and your daily run time, we can help determine which package—and which two lenses—fit the work.

Frequently Asked Questions

Is the BWM 60W better than the Haotian 60W?

Not universally. The BWM offers faster delivery and a slightly lower price than the comparable Haotian M7 E. Haotian offers more source grades, lens sizes and rotary choices, plus motorized height adjustment.

Does the cheaper Haotian E2 perform the same as the BWM M7 E?

Both publish the same 60W power, 2.0 mJ pulse energy and M² below 1.5. Haotian positions the E2 for moderate daily operation and the E for longer sustained use. For many small custom shops, practical engraving results may be indistinguishable; buyers running long production shifts may prefer the E-grade configuration.

Can both produce color on stainless steel?

Yes. Both are JPT M7 MOPA systems with adjustable pulse width and frequency. Repeatable colors still require material-specific testing because alloy, finish, focus and surface preparation affect the result.

Which is better for deep engraving?

The comparable 60W E configurations have the same published 2.0 mJ maximum pulse energy, so neither has an obvious source-level advantage. Lens choice, parameters, cooling intervals and workflow will affect throughput. Shops dominated by deep engraving should also compare 100W systems.

Which is better for jewelry?

Haotian has a configuration advantage because it offers a 70 × 70 mm lens and D60 rotary. BWM remains fully capable of jewelry work, but its standard choices begin at a 100 mm field and include a D80 rotary.

Do these machines require a chiller?

No. Both 60W MOPA configurations are air-cooled.

Can either machine be returned?

Neither is eligible for The Maker’s Chest’s standard return policy. Confirm the configuration and application before ordering. Warranty remedies remain available for covered defects and shipping damage.
