Full MOPA Control at 60W — Color Marking, Deep Engraving and a Rotary Included, Delivered in About a Week
The BWM 60W runs a JPT M7 (E) MOPA source with pulse width adjustable from 2 to 500 ns and 2.0 mJ of pulse energy. It ships complete with a rotary and two field lenses, air-freighted to your door for $4,290 with duties included.
Compatible Materials:
|
Metal
|
Plastics
|
Stone
|
Leather
|
Rubber
|
Most shops shopping for a fiber laser hit the same trade-off: a budget Q-switched machine that can only make one shade of gray, or a MOPA machine that arrives by ocean freight a month or more after you pay. The BWM 60W JPT MOPA Fiber Laser Engraver removes both problems. It's built around the JPT M7 MOPA platform that production shops rely on for color and fine-detail work, and BWM ships it by FedEx air freight, so it typically reaches a US address in around 7 business days.

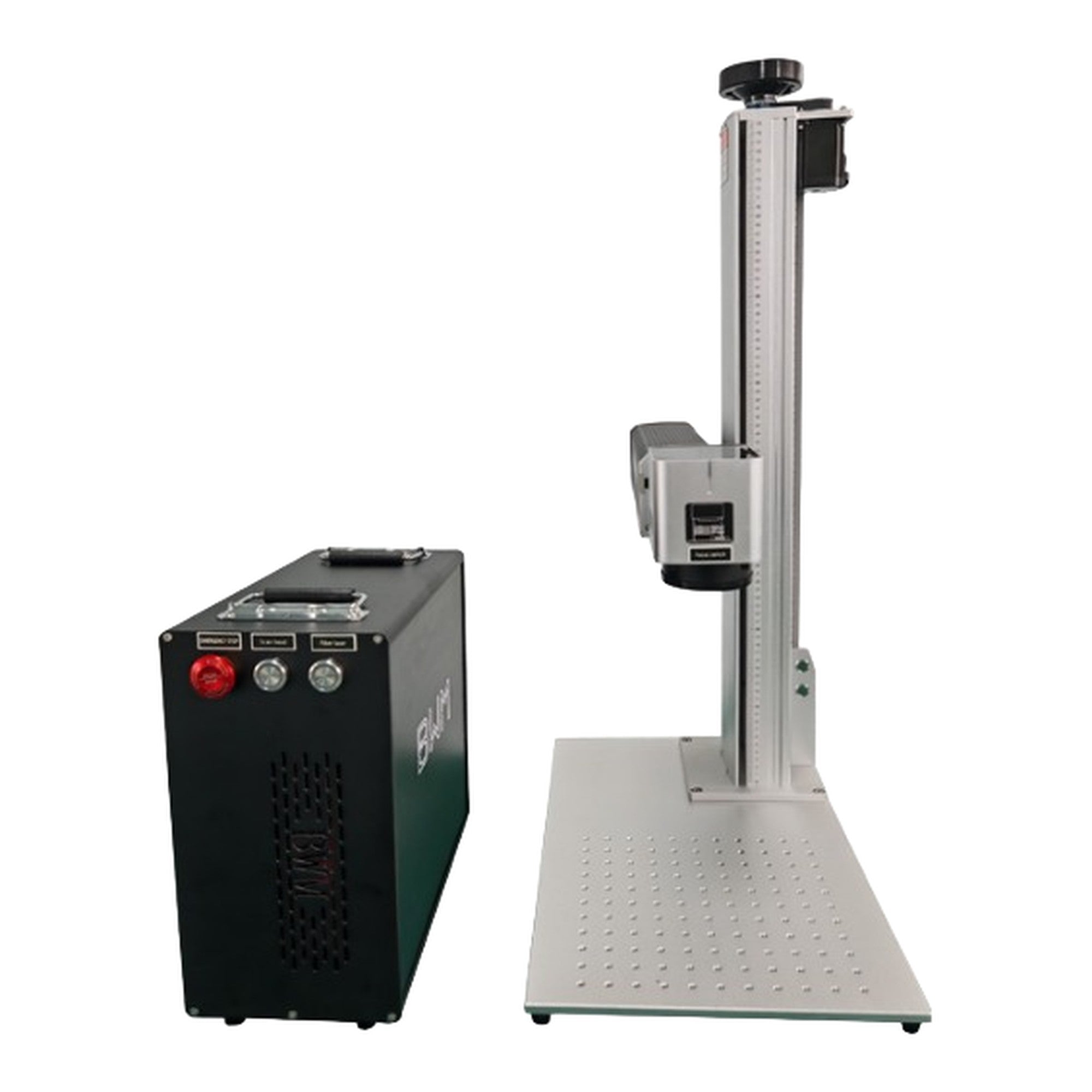

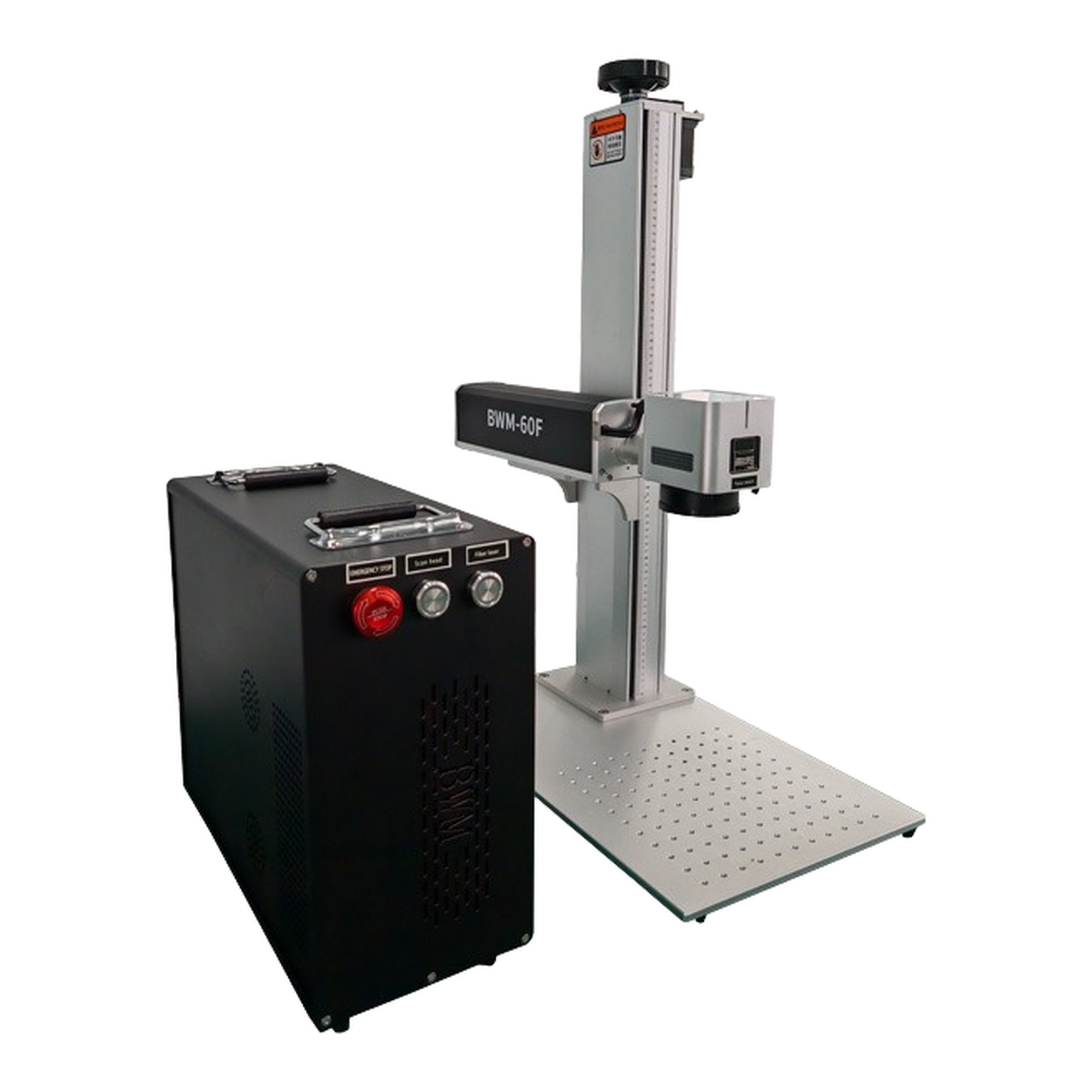

It's a split-design galvo system: a compact control cabinet with carry handles, and a marking tower with an aluminum work table. Nothing to assemble beyond connecting cables, and nothing to add before your first job, because the rotary and a second lens are already in the box.
Why the JPT M7 (E) Source Matters at 60W
JPT, the company that makes the laser source, builds its M7 MOPA sources in several internal grades. BWM specifies the (E) grade for this machine and advises against the cheaper E2 grade, which it considers to have a higher failure rate. The difference sits in the components you can't see: the seed and pump diodes. The (E) grade is built for more stable output over long daily run times, so the color or depth you dial in on Monday still matches on Friday.
On paper, the 60W source delivers 2.0 mJ maximum pulse energy, beam quality of M² below 1.5, and a 7.0 mm output beam. That pulse energy is higher than JPT's 100W M7 source (1.5 mJ), which is why 60W is a common starting point for shops that want strong marking and engraving performance without paying 100W prices.
2 to 500 Nanosecond Pulse Control: How MOPA Makes Color on Steel
A standard Q-switched fiber laser fires at a fixed pulse width, so it can mark metal but can't control how the surface oxidizes. A MOPA source lets you set pulse width independently from frequency (1 to 4,000 kHz). That independent control is what produces repeatable color marking on stainless steel and titanium: golds, blues, purples and reds created by building a controlled oxide layer, not by ink.
The same control helps elsewhere. Short pulses remove the dye layer of anodized aluminum cleanly for crisp black or bright-white marks, and give sharper edges on plastics that would melt or bubble under long pulses. Long pulses at high power drive heat into the part for deep engraving on tool steel, coins and knife blanks.
Rotary Attachment and Two Lenses Included — Not Upsold
Many fiber listings advertise a low price and then add the rotary and second lens at checkout. BWM includes one rotary attachment and two field lenses with the 60W at the listed price. The rotary lets you engrave tumblers, pens, rings, flashlights and firearm parts right out of the box. Two lenses mean you can switch between a smaller, tighter field for fine detail and a larger field for bigger parts or batch layouts, instead of compromising on one lens for everything.
The standard marking area is 110 x 110 mm, and BWM offers optional lenses up to 300 x 300 mm for larger plates and panels.
Manual Lift Tower with Dual Red-Light Focusing
The marking head rides on a handwheel-driven lift column, so you can raise it for tall parts or the rotary and lower it for flat stock in seconds. The galvo head uses dual red-light pointers: bring the two dots together and you're at focal height, with no guesswork or ruler needed. The red preview laser is coaxial with the marking beam, so the outline you frame is exactly where the laser will fire, which cuts setup time and wasted parts.
For flat parts, the aluminum work table is drilled for fixtures and hold-downs, so repeat jobs line up the same way every time.
7,000 mm/s Galvo Speed and ±0.006 mm Repeatability
A galvo laser doesn't drag a head across a gantry the way a CO2 or diode machine does. Two mirrors steer the beam at up to 7,000 mm/s, so a business card logo or serial number takes seconds, not minutes. BWM rates repeatability at ±0.006 mm and minimum line width at 0.015 mm, which is fine enough for micro-text on jewelry, UDI-style part marks, and QR codes that still scan after polishing.
EZCAD2 Included, LightBurn Compatible
The machine runs on a JCZ control card with EZCAD2, the industry-standard galvo software for Windows. It's also compatible with LightBurn, which many of our customers prefer for its cleaner interface, its layer-based workflow and native Mac support. LightBurn exposes the MOPA pulse-width and frequency settings you need for color work. A LightBurn galvo license is sold separately by LightBurn.
Air-Cooled, 110V and Built for a Small Shop Footprint
The 60W source is air-cooled, so there's no water chiller to buy, fill or maintain. It runs on a standard 110V / 60Hz outlet and draws under 800W. The rated source lifespan is 100,000 hours. The control cabinet carries an emergency stop plus separate key switches for the scan head and the laser source, and BWM states that its machines comply with FDA and CE standards.
Who the BWM 60W Is Built For
-
Custom product and gift businesses engraving tumblers, pens, keychains and jewelry, with color marking as an upsell
-
Jewelers and permanent jewelry studios that need fine, clean detail on gold, silver and stainless
-
Firearm and knife makers marking serials, logos and compliance text
-
Machine shops and manufacturers adding part numbers, QR codes and data plates in-house
-
Schools and makerspaces that want a metal-capable laser without a chiller or 220V circuit
What the 60W isn't for: fiber wavelength (1064 nm) doesn't engrave clear glass, most wood, fabric or clear acrylic well. If those are your main materials, look at a CO2 or UV laser instead.
What's in the Box
- BWM-60F marking tower with JPT M7 (E) 60W MOPA laser source and galvo scan head
- Control cabinet with emergency stop and key switches
- Rotary attachment
- Two field lenses
- JCZ control card with EZCAD2 software
- Power and connection cables
Specifications
| Parameter |
Value |
| Model |
BWM-60F |
| Laser Source |
JPT M7 (E) MOPA fiber, 60W |
| Average Output Power |
60W |
| Maximum Pulse Energy |
2.0 mJ |
| Beam Quality (M²) |
Less than 1.5 |
| Laser Type |
MOPA pulsed fiber laser |
| Central Wavelength |
1064 nm |
| Pulse Width Range |
2 to 500 ns (adjustable) |
| Pulse Repetition Rate |
1 to 4,000 kHz |
| Output Power Adjustment |
10% to 100%, continuously adjustable |
| Output Beam Diameter |
7.0 mm (±1.0 mm) |
| Max Marking Speed |
7,000 mm/s |
| Standard Marking Area |
110 x 110 mm (optional lenses up to 300 x 300 mm) |
| Included Lenses |
Two field lenses |
| Included Rotary |
Yes, one rotary attachment |
| Galvo Scan Head |
High-speed digital galvo with dual red-light focus and positioning |
| Controller / Software |
JCZ control card with EZCAD2; LightBurn compatible |
| Operating System |
Windows 7 / 10 / 11 (Mac via LightBurn) |
| Cooling |
Air-cooled (no chiller required) |
| Input Power |
110V / 60Hz single-phase (220V available) |
| Power Consumption |
Under 800W |
| Operating Temperature |
0 to 40°C |
| Rated Laser Source Lifespan |
100,000 hours |
| Safety |
Emergency stop, separate scan head and laser key switches; manufacturer states FDA and CE compliance |
| Package Size |
77 x 47 x 77 cm (30.3 x 18.5 x 30.3 in) |
| Warranty |
3 Years, complete machine |
| Repeatability |
±0.006 mm |
| Minimum Line Width |
0.015 mm |
| Z-Axis |
Manual handwheel lift |
| Net / Gross Weight |
50 kg / 60 kg (110 / 132 lbs) |
Warranty and Support
BWM covers the complete machine, including the JPT laser source, for 3 years, with lifetime technical support from its engineering team. Warranty parts ship directly from BWM, and if something has to be repaired, BWM pays freight both ways. BWM has been building fiber lasers for around 20 years.
The Maker's Chest Difference
- 🇺🇸 US-based pre-sale guidance — we sell fiber and UV lasers to small businesses, schools and universities every week, and we'll tell you plainly whether this machine, a different wattage, or a different laser type fits the materials and volumes you actually run.
- 🛠️ Two layers of support — our US team for day-to-day questions, backed by BWM's own engineers for remote diagnostics by phone, video or TeamViewer, with lifetime technical support after the warranty ends.
- ✈️ Fast, all-in delivery — shipped by FedEx air freight, typically arriving in around 7 business days, with duties, taxes and customs fees already included in the price. No broker invoices after delivery.
- 🧾 3-year complete-machine warranty — replacement parts ship directly from BWM, and the manufacturer covers two-way freight if a component needs repair.
- 🧰 Everything you need to start marking is included — the rotary and two lenses are in the box at $4,290, so the price you compare is the price you pay.
- 🎨 Setup and parameter help — we'll point you to starting settings for color marking, anodized aluminum and deep engraving, and help you choose between EZCAD2 and LightBurn.
BWM 60W vs. 100W: Which Should You Choose?
|
BWM 60W JPT MOPA |
BWM 100W JPT MOPA |
| Laser source |
JPT M7 (E) MOPA, 60W |
JPT M7 (E) MOPA, 100W |
| Max pulse energy |
2.0 mJ |
1.5 mJ |
| Pulse width / frequency |
2–500 ns / 1–4,000 kHz |
2–500 ns / 1–4,000 kHz |
| Z-axis |
Manual handwheel lift |
Motorized lift with up/down buttons |
| Best at |
Color marking, fine detail, jewelry, tumblers, serial plates |
Faster deep engraving, larger batch jobs, thin metal cutting |
| Net weight |
50 kg (110 lbs) |
60 kg (132 lbs) |
| Price (delivered) |
$4,290 |
$5,390 |
Choose the 60W if your work is mostly color marking, jewelry, tumblers and fine detail, and you want the higher 2.0 mJ pulse energy at the lower price.
Choose the 100W if deep engraving, large-area jobs or batch production take up most of your day, and you'd like a motorized Z-axis.
Frequently Asked Questions about the BWM 60W JPT MOPA Fiber Laser
Q: What's the difference between the BWM 60W and the BWM 100W MOPA fiber laser?
A: Both use JPT M7 (E) MOPA sources with the same 2–500 ns pulse width and 1–4,000 kHz frequency range, and both include a rotary and two lenses. The 100W puts out more average power, so it removes material faster on deep engraving and large fills, and it adds a motorized Z-axis. The 60W actually has higher maximum pulse energy (2.0 mJ vs. 1.5 mJ) and costs $1,100 less, which makes it the better value for color marking and detail work.
Q: Can the BWM 60W do color marking on stainless steel?
A: Yes. Because it's a MOPA laser, you can set pulse width and frequency independently, which is what creates repeatable oxide colors on stainless steel and titanium. Expect to spend some time building a color library for your specific material, since alloy and surface finish change the result.
Q: What materials can a 60W fiber laser engrave?
A: It marks and engraves bare metals (stainless steel, carbon steel, aluminum, brass, copper, gold, silver, titanium), anodized and coated metals, many plastics (ABS, nylon, PVC, PET and opaque acrylic), stone, leather and rubber. It isn't a good choice for clear glass, fabric, most wood or clear acrylic.
Q: How deep can the 60W engrave, and can it cut metal?
A: BWM rates marking depth at up to about 1.0 mm, with depth depending on material and the number of passes. It can cut very thin metal such as foil-gauge brass or stainless for small jewelry blanks, but it isn't a sheet-metal cutter.
Q: Is the rotary really included?
A: Yes. BWM includes one rotary attachment and two field lenses with the 60W at the listed price, so you can engrave tumblers, pens and rings from day one.
Q: Does it work with LightBurn?
A: Yes. It ships with EZCAD2 on a JCZ control card and is compatible with LightBurn's galvo module, including MOPA pulse-width control. LightBurn's galvo license is purchased separately. Avoid installing EZCAD2 and LightBurn drivers on the same computer, because the two can conflict. Uninstall one before switching to the other.
Q: Do I need a chiller or a 220V outlet?
A: No. The 60W source is air-cooled and the machine runs on a standard 110V / 60Hz outlet, drawing under 800W.
Q: How long does shipping take, and are there import fees?
A: BWM ships by FedEx air freight, typically arriving in around 7 business days. Duties, taxes and customs fees are included in the price, so there's nothing extra to pay on delivery.
Q: What does the warranty cover?
A: BWM provides a 3-year warranty on the complete machine, including the JPT source, plus lifetime technical support by phone, video or TeamViewer. Replacement parts ship directly, and BWM covers two-way shipping if a part needs repair.
Q: Can I return the BWM 60W?
A: BWM machines aren't covered by our standard return policy because they ship directly from the manufacturer by international air freight. If the machine arrives with serious shipping damage, BWM covers the freight both ways to repair or replace it. We're happy to answer every question before you order.
Q: Why buy the BWM 60W from The Maker's Chest instead of directly from BWM?
A: You get the same factory-direct air shipping and 3-year warranty, plus a US-based team for pre-sale advice, setup questions and a point of contact if anything comes up, all in US business hours.
