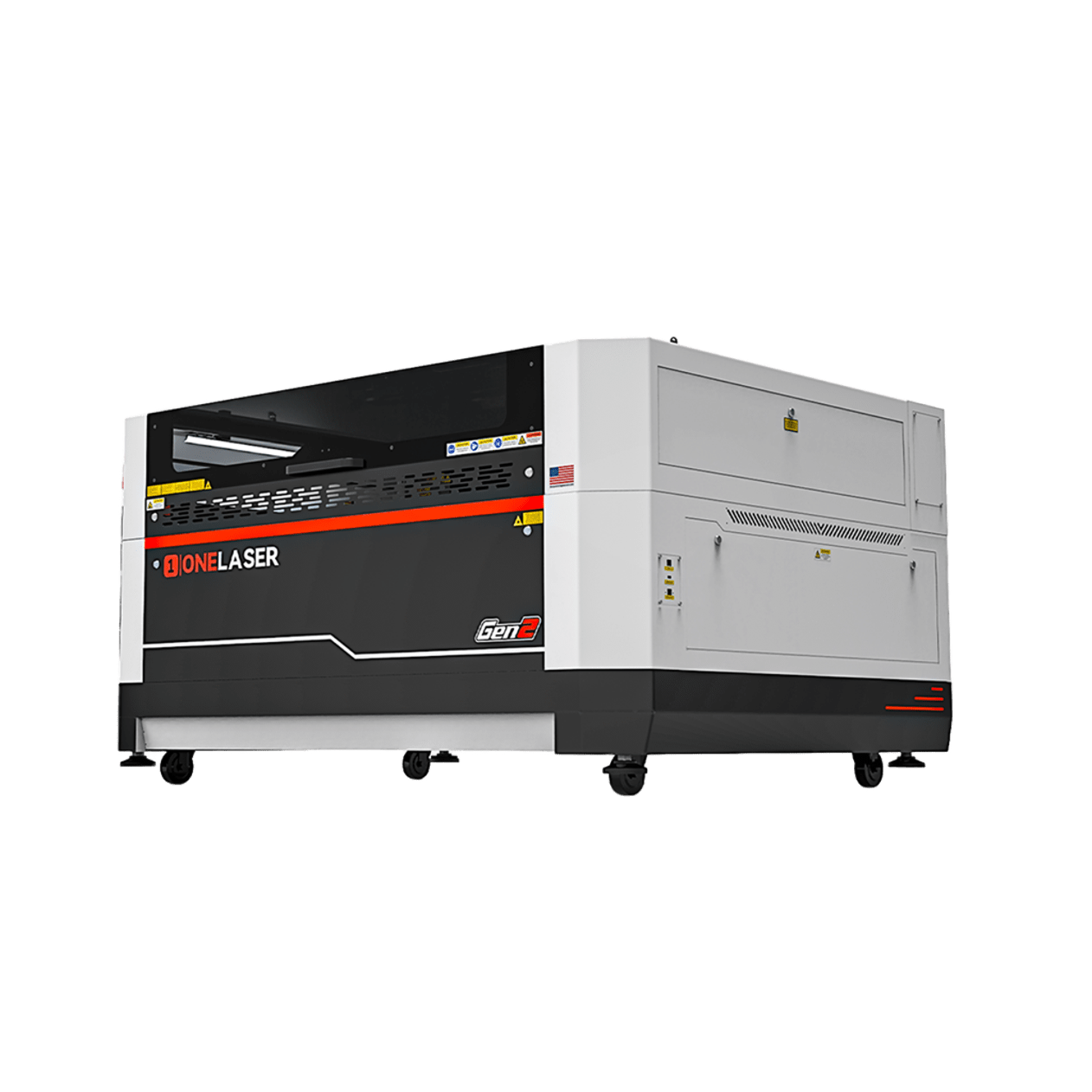

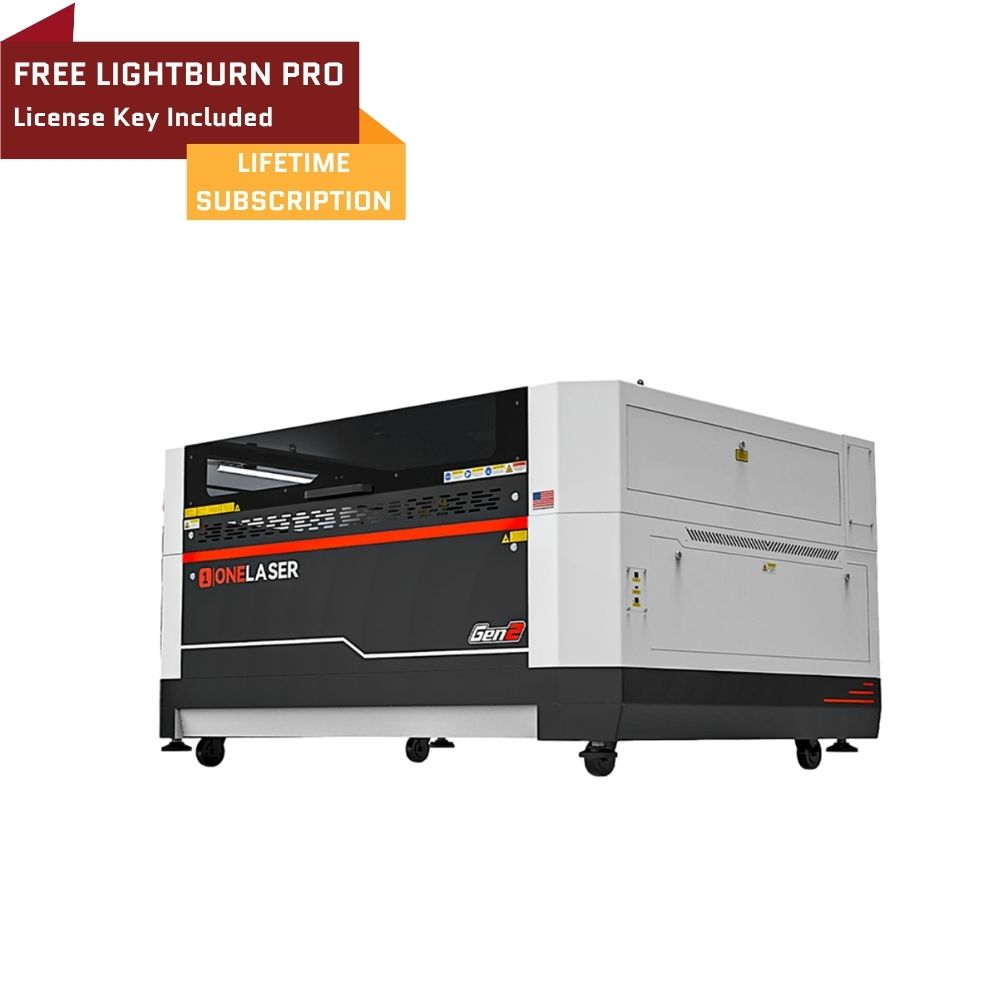

Batch-Production Bed Size. Boutique-Laser Precision.
The OneLaser Hydra 13 delivers 51.18" × 35.43" (1300 × 900mm) work area, 2,000 mm/s speed at 4G acceleration, and a choice between a pure 70W RF configuration or a 38W RF + 130W CO2 hybrid — the Hydra 13 Gen 2 is sized for shops running real batch production, not occasional custom orders.
Note: The OneLaser Hydra 13 "hybrid" configuration operates a glass CO2 laser tube which requires a water chiller for safe use. Please add it to cart along with the Hydra 13 from here.
Compatible Materials:
|
![]()
Wood
|
MDF / Plywood
|
Leather
|
Dark Plastics
|
Fabric
|
Stone
|

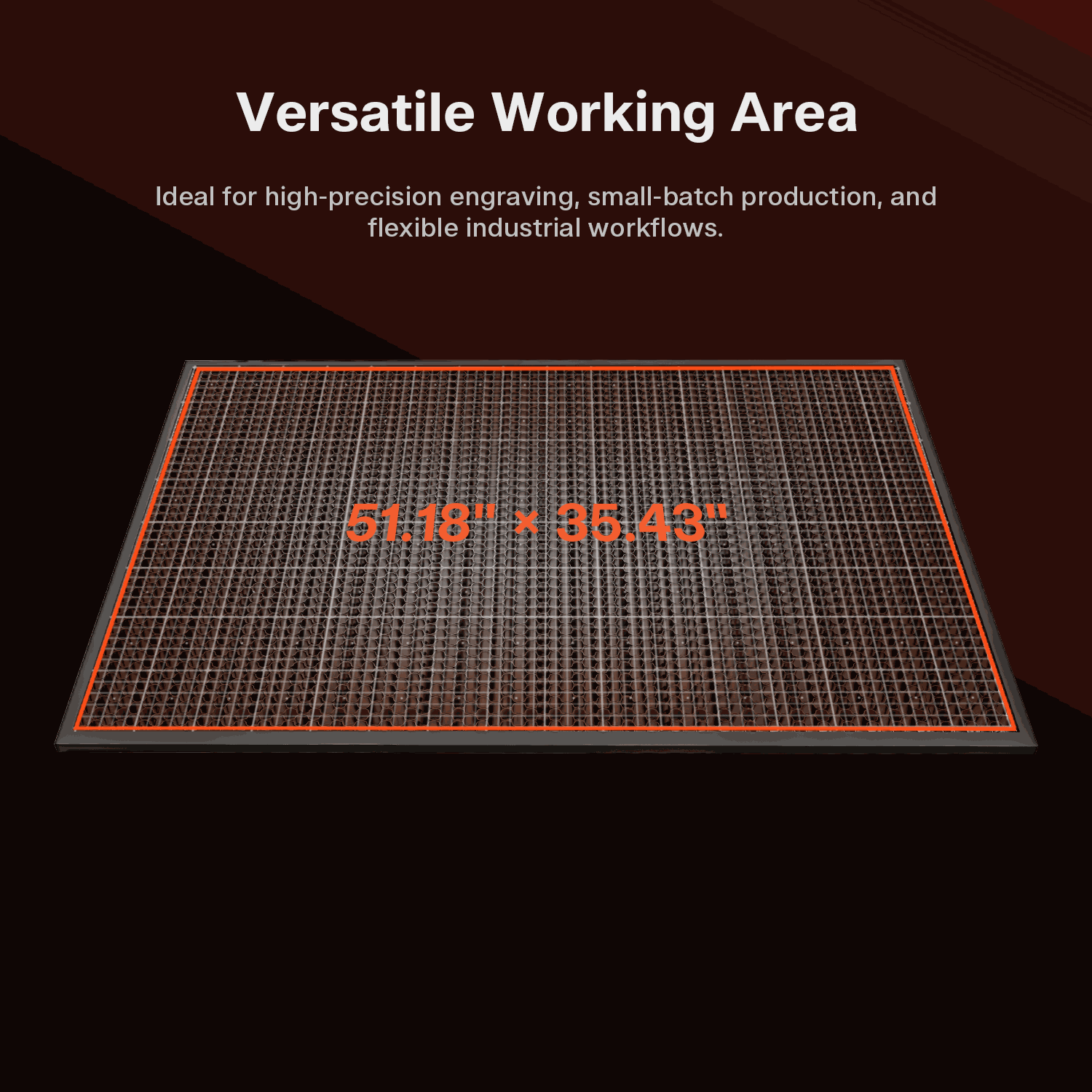

Once a shop is running batch production instead of one-off jobs, bed size and configuration flexibility both start to matter. The OneLaser Hydra 13 Gen 2 covers both: a 1300 × 900mm work area large enough for genuine batch runs and larger-format pieces, plus a choice between a 70W RF-only "Pro" configuration for pure precision work or a 38W RF + 130W CO2 "Hybrid" configuration that combines detail engraving and heavier cutting power in a single machine.
2,000 mm/s and 4G Acceleration — Speed That Doesn't Drop at This Bed Size
Larger beds usually mean slower realistic throughput, since a bigger gantry has to accelerate and decelerate across more distance. The Hydra 13 Gen 2 holds the same 2,000 mm/s top speed and 4G acceleration as the smaller Hydra models — roughly double the speed and acceleration of most CO2 glass-tube machines at this bed size — so stepping up to a bigger work area doesn't cost you throughput on smaller jobs.
Hybrid or Pro — Choosing Your Configuration
-
Hydra 13 Hybrid (38W RF + 130W CO2): OneLaser's multi-laser intelligent switching system lets a single job call on both laser sources within the same run — RF for sharp detail, CO2 for efficient cutting through thicker material. Well suited to shops producing mixed batches that combine fine engraving with heavier cutting.
-
Hydra 13 Pro (70W RF only): A pure RF configuration for shops that prioritize precision, chiller-free operation, and long tube life on a large bed, without needing CO2's added cutting power.
Both configurations run the same bed size and motion system — the decision comes down to whether your job mix needs CO2's cutting power alongside RF, not which one is "better."

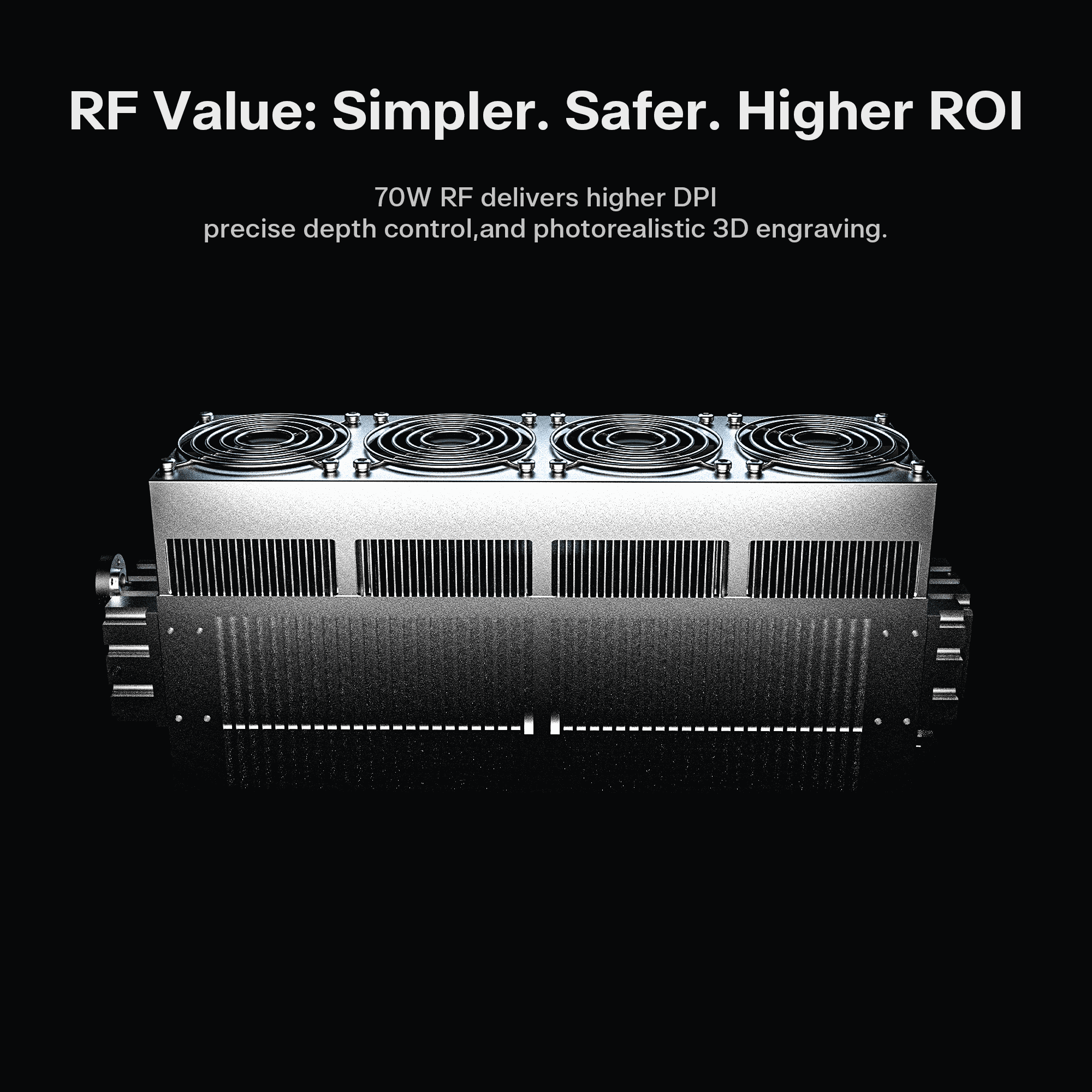

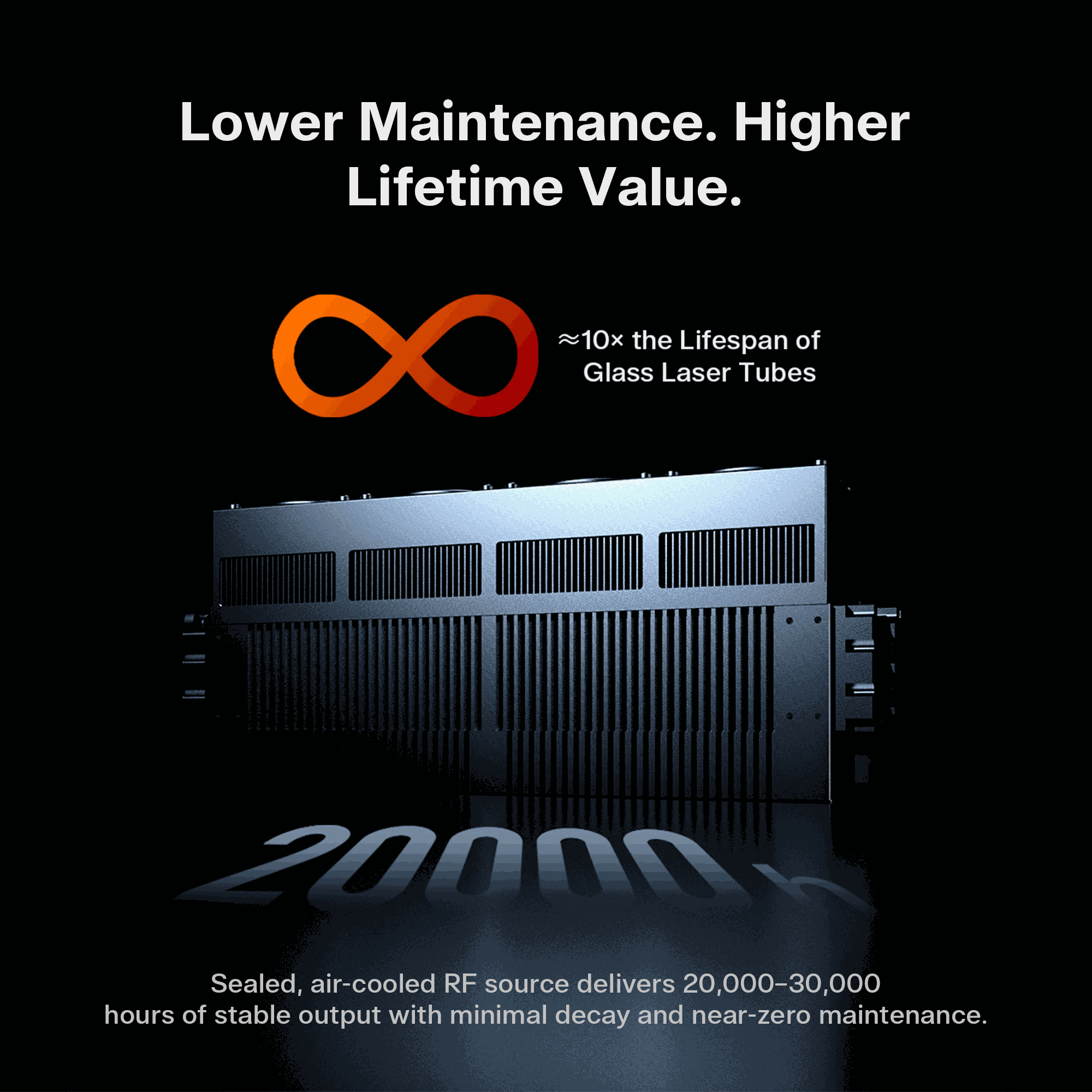

RF Clarity and Long Tube Life
The RF laser source in either configuration delivers ultra-sharp detail and consistent depth from a tighter beam spot than a comparable CO2 tube, rated for a 20,000–30,000 hour lifespan with no chiller required for the RF portion. The Hybrid configuration's CO2 laser source does require a water chiller; the RF-only Pro configuration does not.

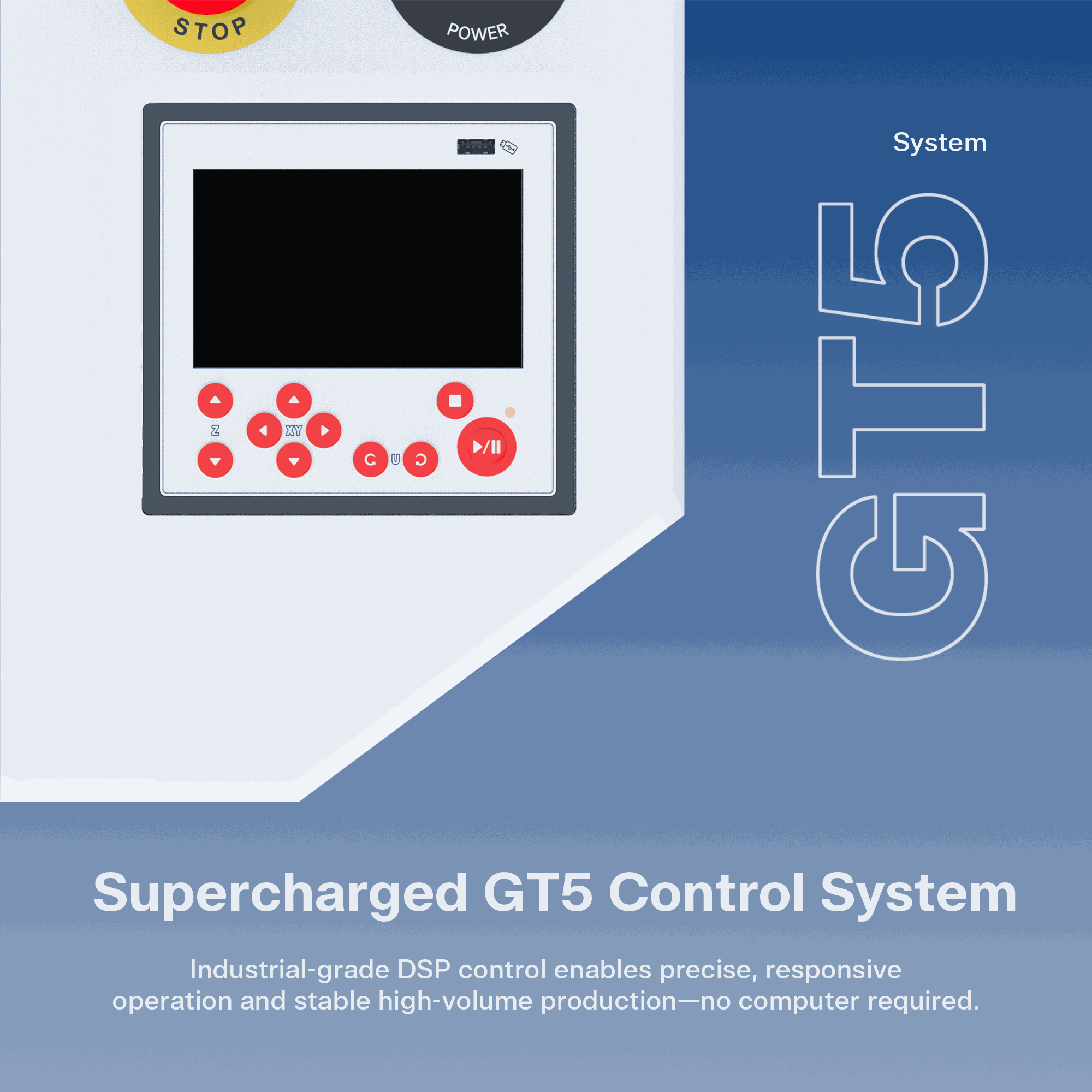

GT5 DSP Control System — Offline, Industrial-Grade Operation
The GT5 DSP control system gives the Hydra 13 Gen 2 an industrial touchscreen interface with offline operation, letting it run a production queue without staying tethered to a computer — useful on a machine built for batch runs.

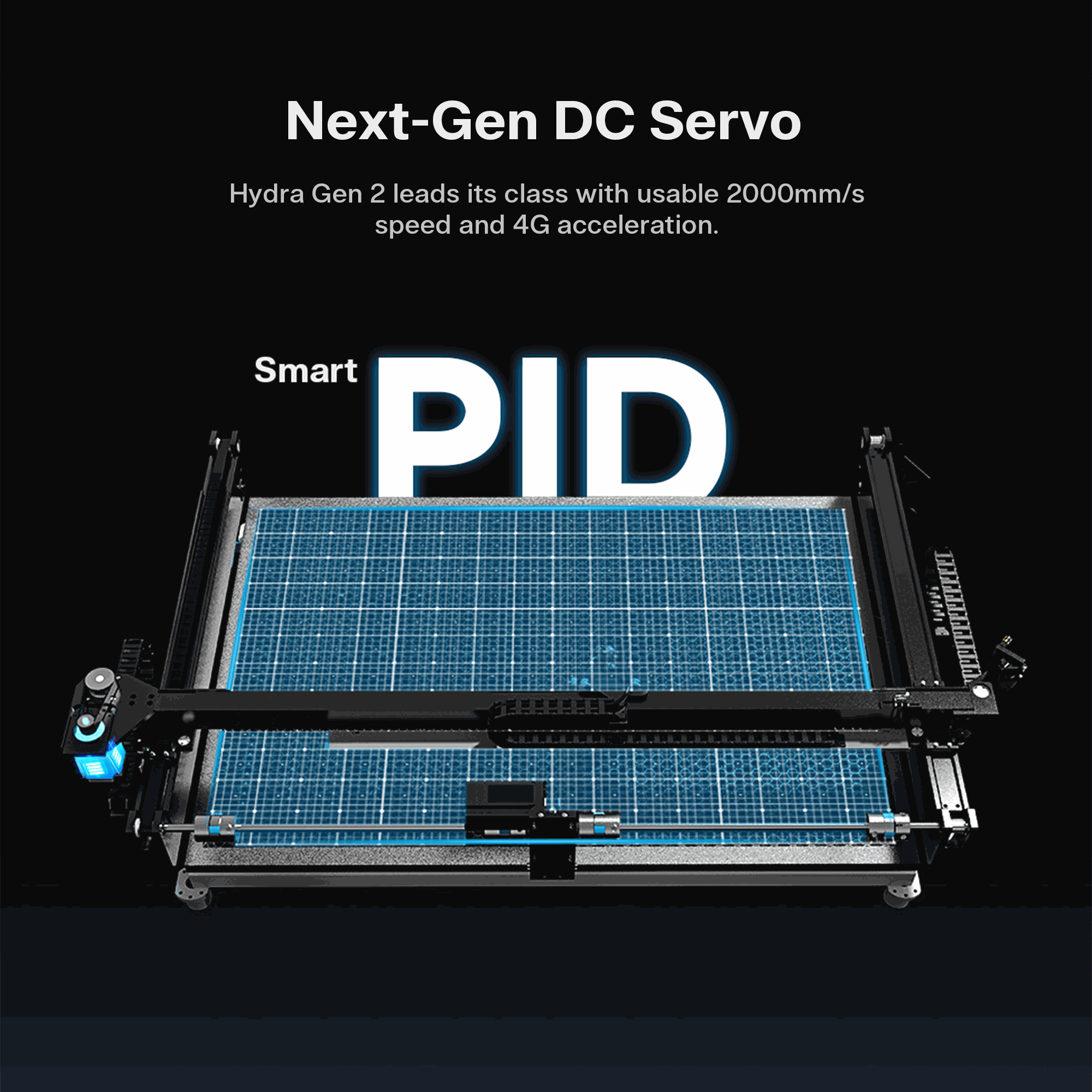

Autofocus, Red-Dot Positioning, and Servo-Driven Precision
-
Autofocus: Automatic Z-axis focusing across the full bed removes manual height adjustment between materials.
-
Red-Dot Positioning: Shows the exact optical path before the job starts, useful when lining up multiple pieces across a larger bed.
-
Servo-Driven Engraving: Closed-loop PID feedback prevents missed steps and distortion that can show up on longer, more detailed batch jobs run on open-loop stepper systems.

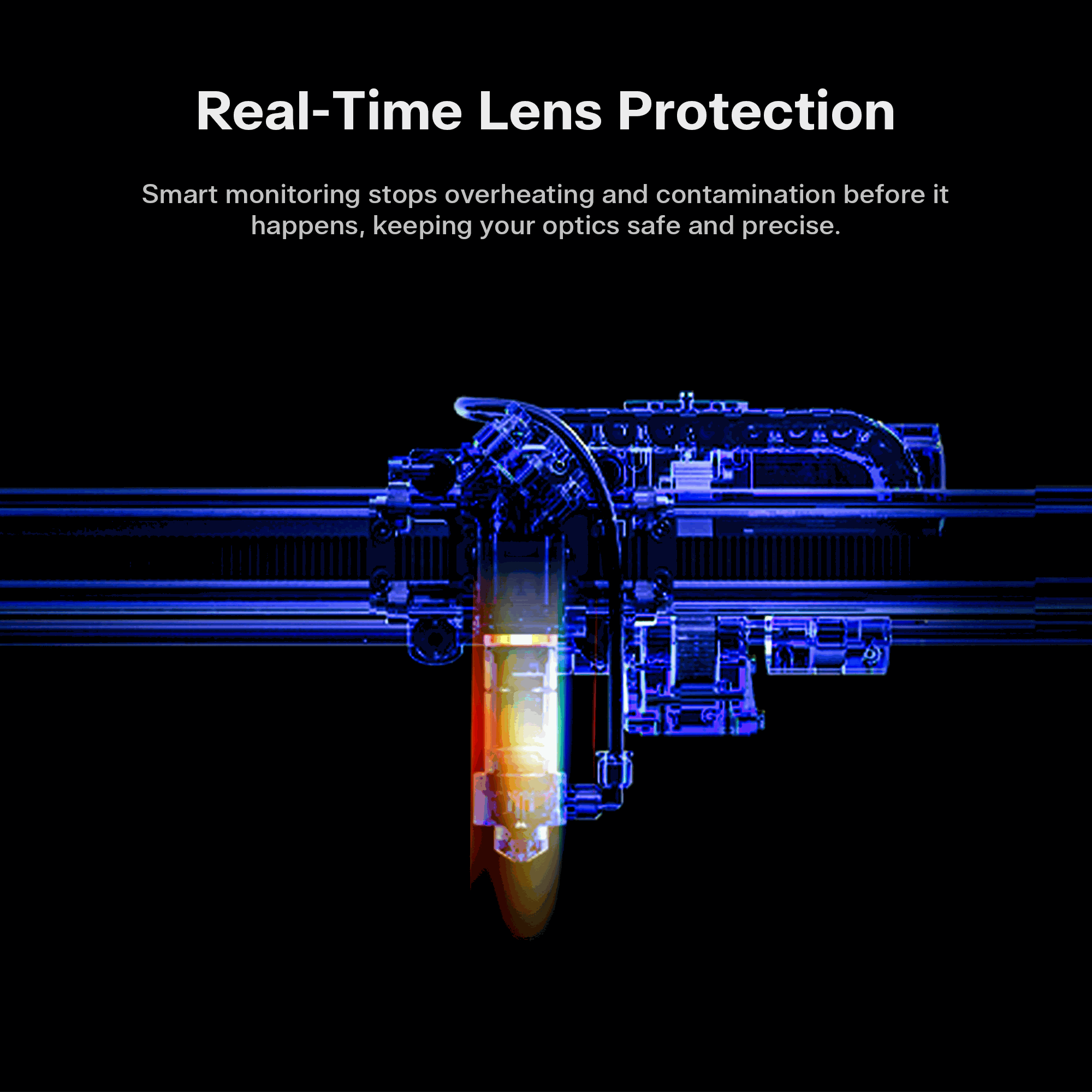

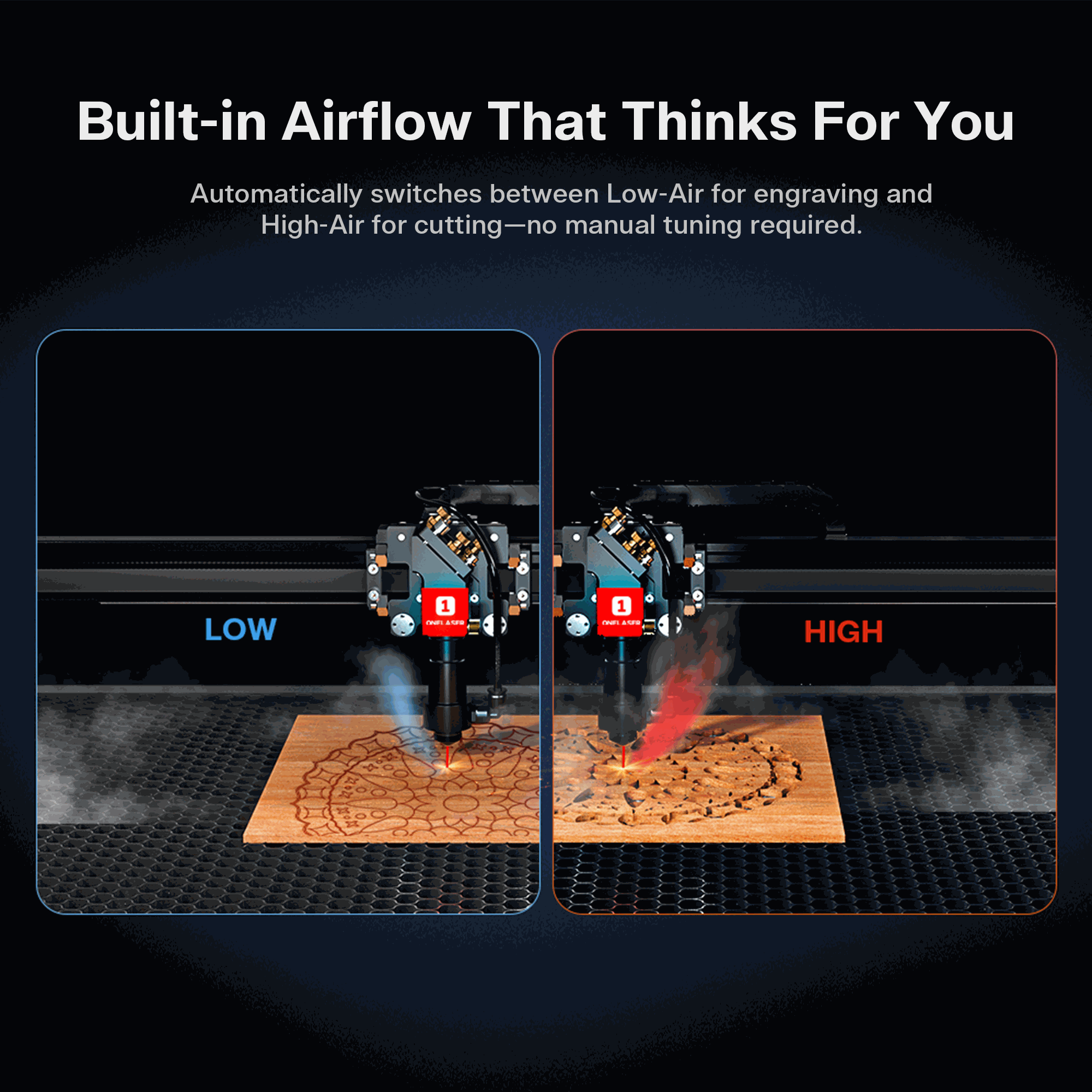

Smart Dual Air-Assist and Real-Time Lens Protection
The Smart Dual Air-Assist system automatically switches between gentle airflow for engraving and stronger airflow for cutting. Real-time lens protection monitors lens temperature to prevent overheating during longer production runs.

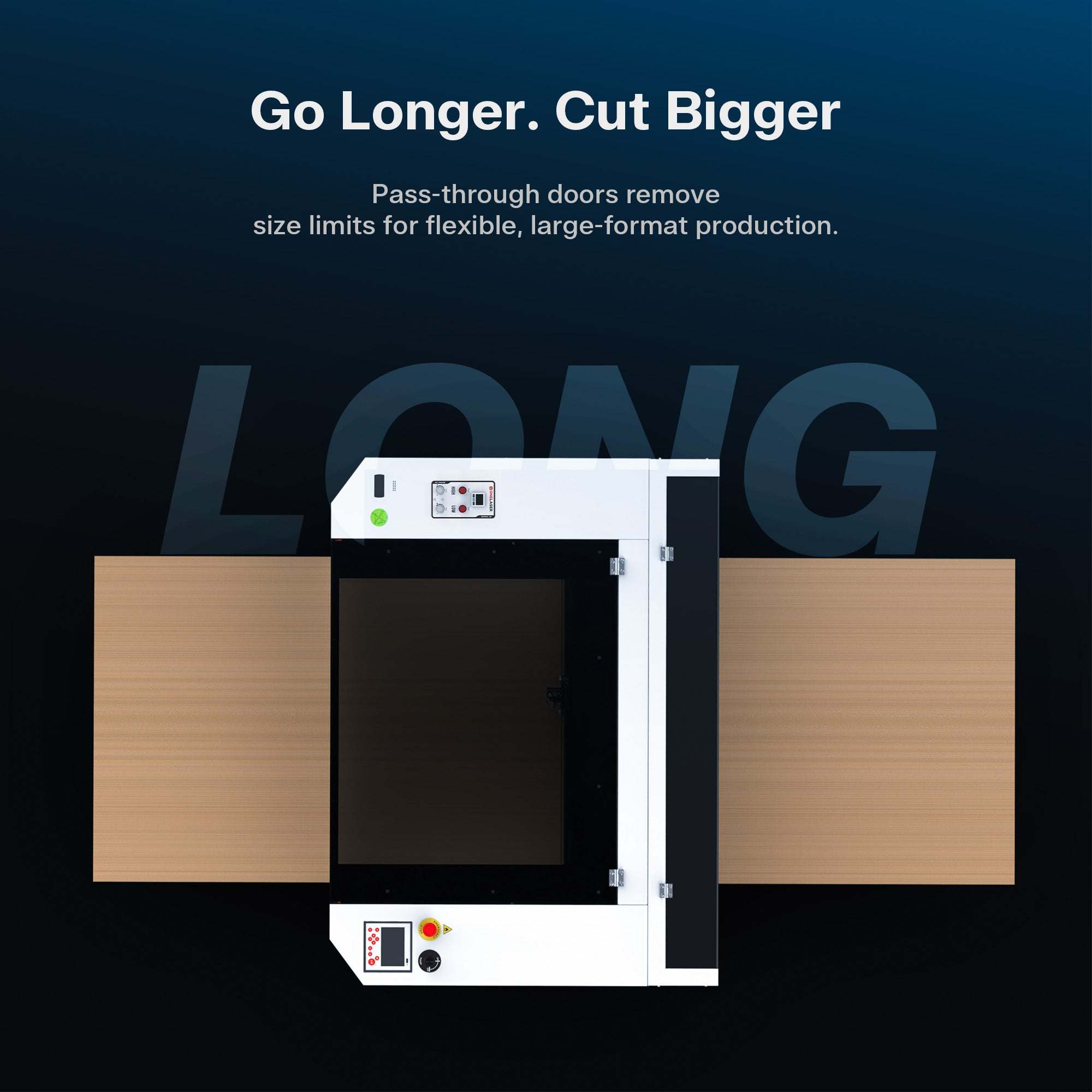

Front-to-Back Pass-Through for Long Material
A front-to-back pass-through design lets material longer than the 1300mm bed feed straight through the cabinet — useful for running long trim, panels, or signage blanks.

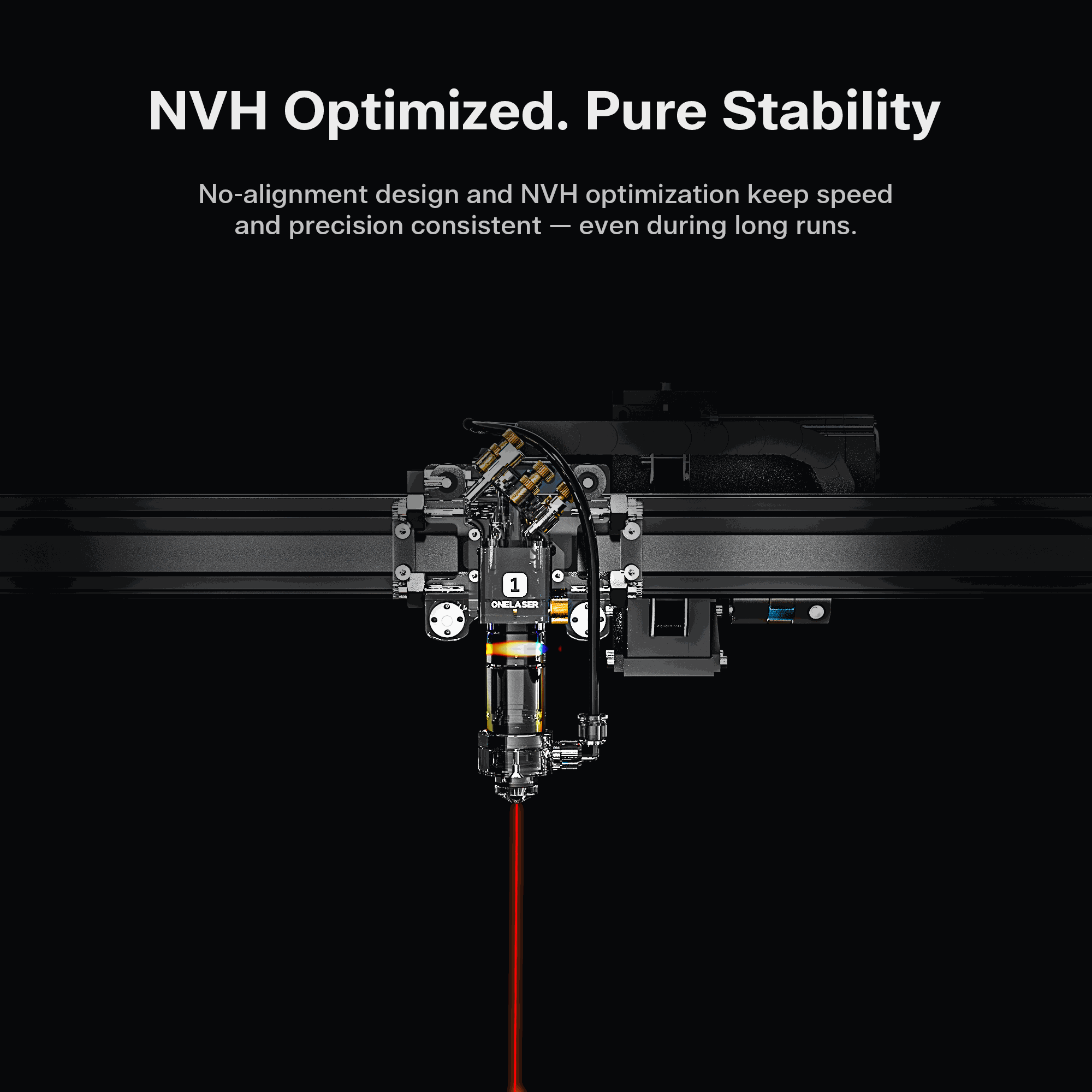

NVH-Optimized Frame and Real-Time Temperature Monitoring
The frame is NVH-optimized to hold stable, precise motion across the full bed width at speed, and a built-in temperature monitoring system triggers an alarm and automatic shutoff if conditions move outside safe parameters.
What's in the Box
- OneLaser Hydra 13 Gen 2 laser engraver/cutter unit (Hybrid or Pro configuration, per your selection)
- Fixed worktable
- Focusing lens
- Air-assist nozzle and accessories
- Power cord and setup documentation
Note: The RF-only Pro configuration does not require a water chiller. If you select the RF+CO2 Hybrid configuration, a water chiller is required for the CO2 laser source and is sold separately — confirm current chiller requirements with our team before ordering.
Warranty, Support & Made in USA Engineering
The OneLaser Hydra 13 Gen 2 is backed by a 3-year manufacturer's warranty on the laser engraving machine, covering defects in materials and workmanship under normal use. OneLaser's machines are engineered by a 100% U.S.-based team, with nationwide on-site service available across the U.S.
The Maker's Chest Difference
The OneLaser Hydra 13 Gen 2 is available directly from OneLaser and through other resellers. Here's what changes when you buy it through The Maker's Chest:
- 🛡️ 75-day returns — more than double OneLaser's standard 30-day direct return window. That's real time to run the Hydra 13 Gen 2 through actual batch production before you're locked in.
- 💻 A free LightBurn Pro license included — a $199 value, activated and ready to go. OneLaser doesn't include this when you buy direct, so you're not stuck running the 30-day trial or paying out of pocket to get the machine working.
- 🇺🇸 Expert USA-based technical support — our team can help with configuration questions, setup, and workflow, on top of whatever OneLaser's own support provides.
- 📞 Dual lines of support — phone and email, so you have a direct path to a real person when you need it.
- 🔧 Honest pre-sale guidance — not sure if Hybrid or Pro fits your job mix, or if the Hydra 13's bed size is right for your volume? Talk to us before you order and we'll help you decide.
As an industrial-scale machine, freight shipping for the Hydra 13 Gen 2 is calculated separately at checkout based on your delivery location — this is standard for machines of this size and weight class.
Hydra 7 vs. Hydra 9 vs. Hydra 13 vs. Hydra 16 — Choosing Your Bed Size
|
Hydra 7 |
Hydra 9 |
Hydra 13 |
Hydra 16 |
| Work Area |
27.56"×19.69" (700×500mm) |
35.43"×23.62" (900×600mm) |
51.18"×35.43" (1300×900mm) |
62.99"×39.37" (1600×1000mm) |
| Laser Configuration |
70W RF only |
70W RF or 38W RF + 100W CO2 hybrid |
70W RF or 38W RF + 130W CO2 hybrid |
70W RF or 38W RF + 150W CO2 hybrid |
| Max Speed / Acceleration |
2,000 mm/s / 4G |
2,000 mm/s / 4G |
2,000 mm/s / 4G |
2,000 mm/s / 4G |
| RF Tube Lifespan |
20,000–30,000 hrs |
20,000–30,000 hrs |
20,000–30,000 hrs |
20,000–30,000 hrs |
| Water Chiller Needed |
No (RF only) |
No, unless CO2 hybrid selected |
No, unless CO2 hybrid selected |
No, unless CO2 hybrid selected |
Choose the Hydra 13 if you're running genuine batch production or larger-format work and a 1300×900mm bed fits your typical job size.
Choose the Hydra 9 if a smaller bed covers your volume — you'll get identical speed and configuration flexibility in a smaller footprint. Choose the Hydra 16 if you need the largest bed in the lineup for full-scale production runs.
Frequently Asked Questions about the OneLaser Hydra 13 Gen 2
Q: What's the difference between the Hydra 13 Hybrid and Hydra 13 Pro configurations? A: The Pro runs a single 70W RF laser — simpler, chiller-free, precision-focused. The Hybrid adds a 130W CO2 laser alongside a 38W RF source, switching between them within a single job via OneLaser's multi-laser system. The Hybrid needs a water chiller for its CO2 side; the Pro doesn't need one.
Q: Does the Hydra 13 need a water chiller? A: Depends on configuration. The Pro (70W RF-only) doesn't need one. The Hybrid (RF+CO2) needs a chiller for its CO2 laser source, sold separately.
Q: How is the Hydra 13 different from the Hydra 9? A: Primarily bed size — 1300×900mm versus 900×600mm — and CO2 power in the Hybrid configuration (130W versus 100W). Everything else (speed, acceleration, control system, automation) is identical.

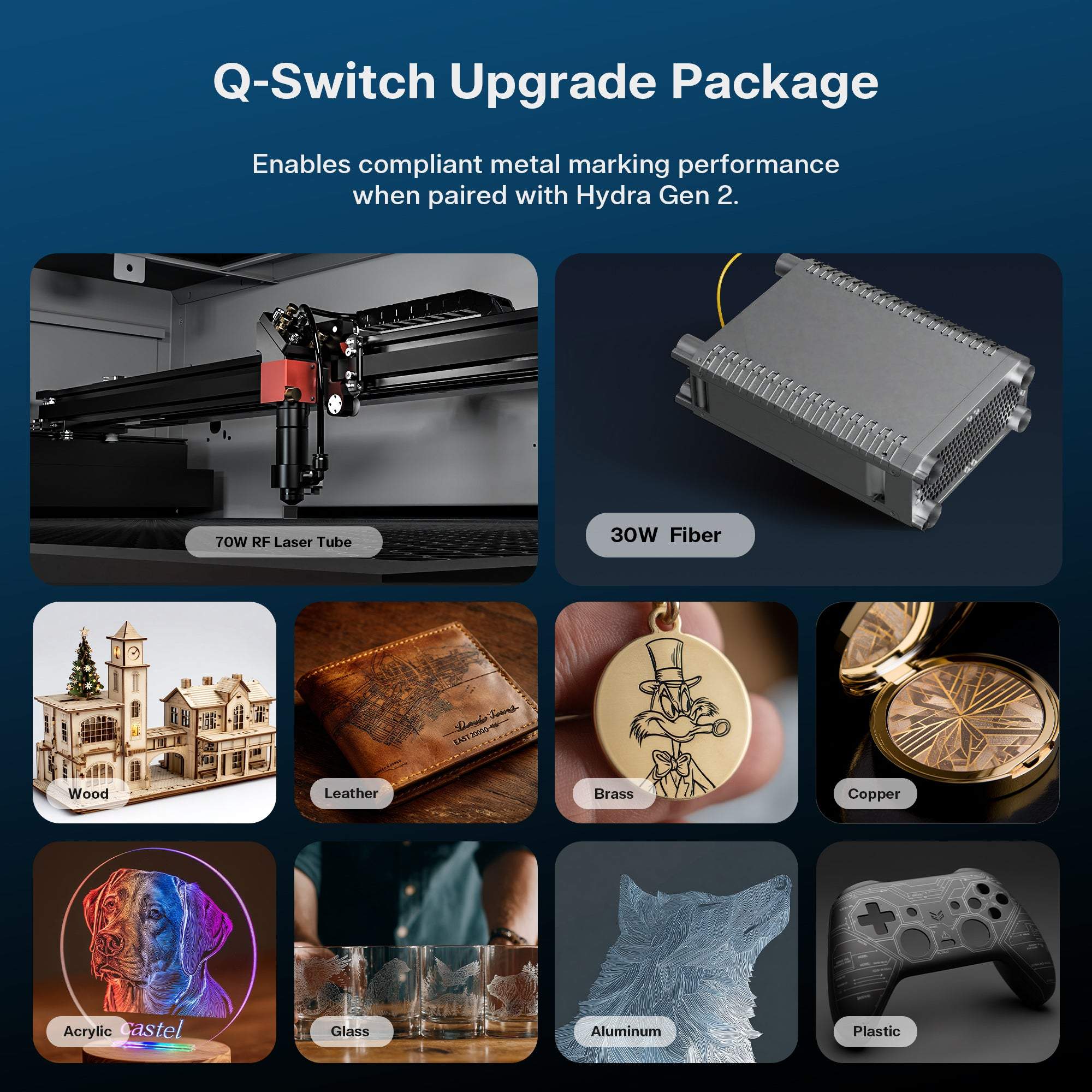

Q: What materials can the Hydra 13 handle? A: Wood engraving, acrylic cutting, leather patches, glass engraving, coated metal marking, signage production, and rotary engraving on tumblers and bottles with an optional rotary attachment. Bare, uncoated metal requires the separate Q-Switch Fiber upgrade, currently listed as a future release and not yet purchasable.
Q: Is 2,000 mm/s realistic on a bed this size? A: Yes — the Hydra 13 holds the same 4G acceleration as the smaller Hydra models, which is what actually lets it reach 2,000 mm/s on real detailed paths rather than losing time to deceleration across the larger bed.
Q: What's the Hydra 13's warranty, and what does it cover? A: 3 years on the laser engraving machine, covering defects in materials and workmanship under normal use and service. It doesn't cover damage from misuse, unapproved modifications, or normal wear on consumables.
Q: Why buy the Hydra 13 from The Maker's Chest instead of directly from OneLaser? A: Our 75-day return window is more than double OneLaser's 30-day direct policy — useful room to confirm the bed size and configuration actually fit your production before you're committed. You also get a free LightBurn Pro license (a $199 value) included at no extra cost — something OneLaser doesn't include when you buy direct — plus USA-based expert support by phone and email, and honest guidance on Hybrid vs. Pro.
Q: Is the Hydra 13 overkill for a smaller operation? A: It depends on your material sizes more than your business size. If you're regularly working with pieces or batches that need a 1300×900mm bed, it's the right tool regardless of order volume. If your jobs fit a smaller bed, the Hydra 9 or Hydra 7 will save floor space without sacrificing speed.
Q: What's in the box, and does it include a water chiller? A: The unit, worktable, focusing lens, and air-assist accessories ship standard. A water chiller is not included by default — it's required (and sold separately) only if you select the Hybrid configuration.
