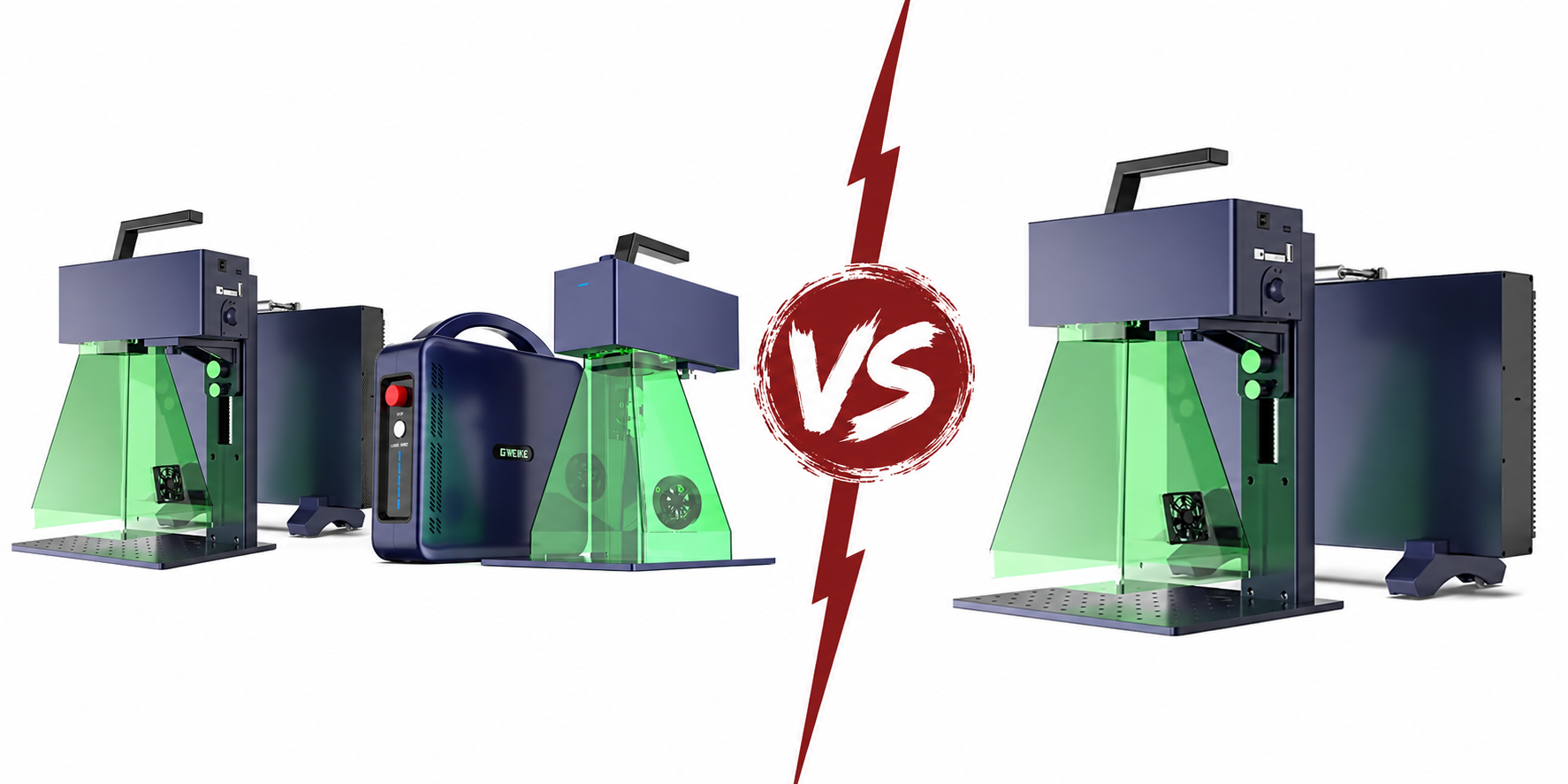

Gweike G2 20W vs Pro 30W vs Max 50W: Which One?

Gweike G2 20W vs G2 Pro 30W vs G2 Max 50W comes down to one question: how much of your workload is surface marking, and how much is metal removal? The three machines share the same portable 1064 nm fiber-laser idea, similar maximum marking speed, and a compact open-frame workflow. The extra wattage does not unlock a new material category. It mainly reduces cycle time and adds depth headroom.

Research note: This guide consolidates Gweike’s current published specifications, current Maker’s Chest configurations, and practical fiber-laser process logic as of September 2026. Manufacturer depth tests are useful comparisons, but they are not universal promises: alloy, lens, hatch, focus, artwork, heat, and cleanup all change the result.

Quick Recommendation

Check current pricing and configurations on the Gweike G2 20W, Gweike G2 Pro 30W, and Gweike G2 Max 50W product pages. Prices and bundles belong there; this page is deliberately focused on the choice between models.

Gweike G2 Family Specifications

The shared 15,000 mm/s figure does not mean equal productivity. A shallow logo may take nearly the same time on all three. A deep relief can require far fewer passes on the 50W. Galvo travel speed, laser power, and material-removal rate are different measurements.

What Stays the Same Across the Lineup

All three models use a 1064 nm Raycus fiber source suited to direct marking and engraving on metals and to marking many compatible plastics. They share the basic galvo advantage: mirrors steer a focused spot rather than moving a heavy gantry, so small-field marking can be extremely fast. They are also open Class 4 machines, which means the compact footprint should not be mistaken for desktop-appliance safety.

• Core materials: stainless steel, aluminum, anodized aluminum, brass, copper, titanium, gold, silver, coated metals, and many engineering plastics.
• Core jobs: serial numbers, logos, barcodes, data plates, jewelry, tools, knives, coated tumblers, tags, and small industrial components.
• Core limitation: a standard Q-switched source does not offer the wide independent pulse control of a JPT MOPA source.
• Field-size tradeoff: a larger marking field covers more area but usually gives up some spot density and energy at the work compared with a smaller lens.

G2 20W: Best for Marking-First Buyers

The 20W is easy to underestimate because fiber lasers deliver energy into a very small spot. For black or contrasting marks, serials, logos, QR codes, coated cards, and routine personalization, it is already a professional marking tool. If depth is secondary and the business is testing demand, spending more for unused removal capacity does not improve the customer experience.

The 20W becomes the wrong choice when deep engraving is part of the product promise. It can remove metal, but depth is accumulated pass by pass. What looks like a modest power difference becomes a meaningful labor and machine-time difference over a batch.

Choose the manual or electric lift?

Manual lift is the lower-cost, mechanically simple choice. Electric lift is more convenient when part thickness changes frequently and may be paired with the larger listed field. Do not confuse an electric Z lift with autofocus: an electric motor can move the head without automatically knowing where focus is. Confirm the exact focusing workflow on the configuration you buy.

G2 Pro 30W: The General-Purpose Sweet Spot

Thirty watts gives more removal capacity without moving into the price of the 50W Max. That makes the G2 Pro the most balanced choice for a maker who expects both surface personalization and some deeper work but does not yet have enough production volume to justify the top model.

The difference from 20W is not simply “50 percent faster.” Laser processing does not scale perfectly with nominal wattage because the usable result depends on pulse characteristics, overlap, heat, lens, material, and settings. Still, when a 20W job requires many passes, the 30W generally gives more room to trade speed, depth, and finish.

For a first commercial fiber laser, 30W is often easier to grow into than 20W and easier to pay back than 50W. The exception is a business already selling deep coins or reliefs; in that case, buying the 30W as an intermediate step can cost more than choosing 50W at the start.

G2 Max 50W: Pay for Throughput, Not a New Material List

The G2 Max does not suddenly become a CO2 cutter or a MOPA color machine. Its advantage is stronger energy delivery for removal. Deep logos, textured fills, coin relief, molds, stamps, and repeated passes are where 50W can change the economics. Gweike’s own comparative tests show the higher-power unit reaching similar depth with fewer passes, but treat those figures as controlled examples rather than guaranteed depth on your alloy and artwork.

A 50W source also makes process mistakes happen faster. Poor focus, an unsuitable hatch, excessive heat, or inadequate debris removal can spoil a part efficiently. Buyers should budget time for test grids, focus calibration, lens cleaning, and settings documentation—not only the machine.

Why Q-Switched vs MOPA Matters

The G2 family is commonly described as Raycus Q-switched fiber. A Q-switched source is excellent for fast, durable marks and capable engraving. A MOPA source adds a much wider range of pulse-width and frequency control, which is valuable for color development on stainless and titanium, low-heat marking on sensitive plastics, and finer control of surface effects.

Do not buy a G2 Max 50W expecting wattage to replace MOPA control. If your product catalog depends on repeatable color work or specialized plastic marking, compare these models with a MOPA machine. If the catalog is black marks, logos, serials, deep engraving, and metal removal, Q-switched simplicity may be exactly right.

Real-World Buying Scenarios

The Working-Area Trap

A 150 × 150 mm field sounds strictly better than 110 × 110 mm, but optics do not work that way. A larger field lens usually produces a larger spot and lower energy density at the material. For micro-text, jewelry, or deep removal, the smaller field may be preferable. For tumblers, larger tags, or fixture arrays, the larger field can reduce repositioning. Buy around the parts you sell most, not the largest number.

Field size is also not bed size. The laser can physically stand over a larger object, especially with risers or a rotary, but it marks only within the calibrated optical field at one time. Large graphics require repositioning, a slide/XY table, or another machine type.

Safety, Software, and the Costs Outside the Box

• Enclosure: These open fiber lasers require a suitable wavelength-rated, interlocked enclosure for responsible operation around other people.
• Extraction: Capture metal dust, coating residue, oil smoke, and plastic fumes close to the source.
• Software: Confirm whether the current controller supports the LightBurn Galvo workflow you want and budget for the appropriate license. EZCad remains a common Windows option.
• Rotary: Rings, chuck-held parts, and tumblers need different holding strategies. Verify connector, steps, clearance, and bundle contents.
• Computer and workflow: Keep a settings library tied to material, finish, lens, and batch. Generic internet settings are starting points, not production recipes.
• Inventory reality: A listed product can remain active while a specific variant is temporarily unavailable. Use the product page for live availability.

Our Verdict

Buy the G2 20W when the business is marking-first, price-sensitive, and not selling deep engraving as a core service. Buy the G2 Pro 30W when you want the most flexible entry point for mixed work. Buy the G2 Max 50W when metal removal and batch cycle time already have a revenue case.

The wrong way to choose is “more watts must be better.” The right way is to time a representative job, estimate monthly machine hours, and attach a dollar value to the saved passes. If the 50W does not save billable time, the 30W may produce the same customer value with less capital.

Frequently Asked Questions

Can all three engrave bare metal?

Yes. Their 1064 nm fiber sources directly mark and engrave many metals without marking spray.

Is the G2 Max 50W a MOPA laser?

No. The current G2 family is listed with Raycus Q-switched fiber sources. Choose a MOPA model when wide pulse control is essential.

Will the 50W mark three times faster than the 20W?

Not necessarily. Shallow marks can be limited by scanning and artwork rather than power. The benefit grows on jobs that require repeated material-removal passes.

Which model is best for a first business?

The G2 Pro 30W is the most balanced default. Choose 20W for a marking-only plan or 50W when deep work is already validated.

Can these cut metal sheet?

They can process very thin material under limited conditions, but they are marking and engraving machines, not substitutes for a dedicated sheet-metal cutter.

Can a G2 engrave wood or clear acrylic?

Not as a core application. Use a CO2 laser for wood, clear acrylic, leather, paper, and fabric.

Does electric lift mean autofocus?

No. Electric lift motorizes Z movement; autofocus requires a sensing and control system that finds focus. Confirm the exact model feature before ordering.

Should I choose a 110 mm or 150 mm field?

Use 110 mm for tighter spot performance and small-detail work; use 150 mm when coverage and fixture capacity matter more. The ideal choice follows your most common parts.

Do these work with LightBurn?

Compatibility depends on the controller and current configuration. Verify before purchase and budget for a LightBurn Galvo license if that is your preferred workflow.

Are these safe to use at craft fairs?

Only with a proper interlocked enclosure, controlled operating area, extraction, training, and compliance with venue rules. Safety glasses alone are not enough.

Which is best for deep challenge coins?

The G2 Max 50W. The G2 Pro can do the work, but the 50W is easier to justify when deep relief is sold repeatedly.

How should I compare ROI?

Use one representative job. Measure or estimate cycle time, multiply the time saved by monthly volume and labor value, then compare that benefit with the upgrade cost.
