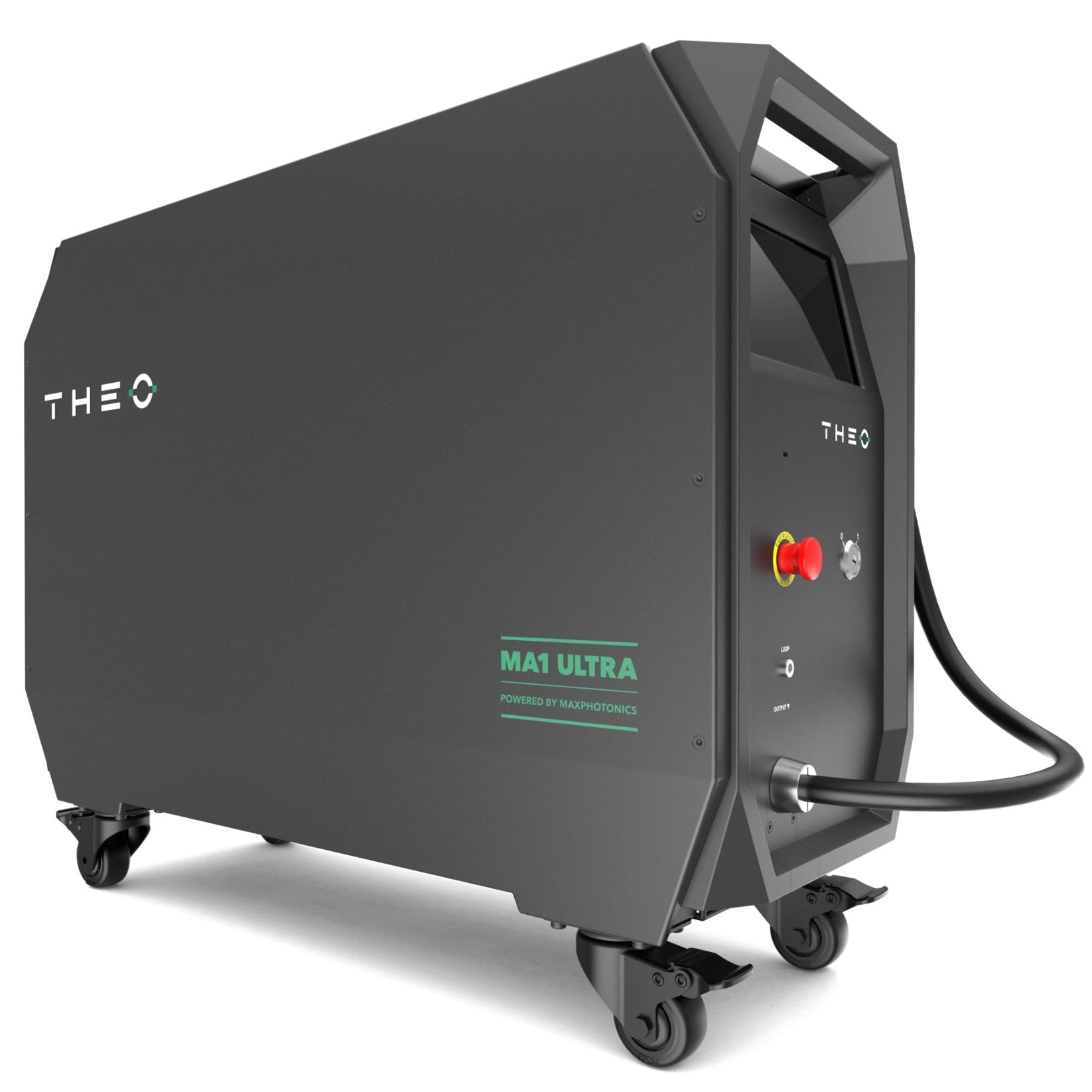

THEO MA1 Ultra Handheld Laser Welder - 2000W

The Handheld Laser Welder Built for Shops That Can't Afford to Stop.

The THEO MA1 Ultra is the top-tier model in the MA1 series — a 2,000W+ air-cooled handheld fiber laser welder with 100% duty cycle on material up to 4mm, 8.5mm boost mode depth, and next-generation gold-plated laser modules engineered for continuous production without downtime.

If you're running a shop where the welder needs to keep up with the work — not the other way around — this is the machine.

What "Ultra" Actually Means

Gold-Plated Laser Pumps: The Engineering Behind the Upgrade

Two Modes. One Machine. Every Thickness.

The MA1 Ultra operates in two distinct modes that together cover the full range from production sheet metal work to heavy structural fabrication:

Standard Mode — 100% Duty Cycle on Material Up to 4mm For production environments running long seams on thin-to-medium material — automotive panels, enclosures, tube and pipe, sheet metal assemblies — the MA1 Ultra sustains continuous output without any required rest intervals. For a shop doing production runs of long seam welds on 2–4mm material hour after hour, the 100% duty cycle eliminates the productivity interruptions that lower duty cycle machines create. This is a production infrastructure specification with direct impact on output capacity.

Boost Mode — Up to 8.5mm Penetration Depth When the job requires reaching deep into thick structural sections — 6mm plate, heavy wall tube, structural weldments that would previously require water-cooled industrial equipment — boost mode delivers. Stainless steel and carbon steel to 8.5mm (1/3"), aluminum to 6.5mm, galvanized sheet to 8.5mm. These are capabilities that no other model in the MA1 series offers, and that most competing handheld laser welders cannot approach without water cooling.

The Same 20μm Fiber Core Advantage — Amplified at 2,000W+

The MA1 Ultra carries forward the proprietary technology advantage shared across the entire MA1 series: the 20μm single-mode fiber core that concentrates laser energy into a smaller, higher-density spot than standard handheld laser welders at equivalent wattage.

At 2,000W+ through a 20μm core, this advantage compounds significantly compared to lower-power models. The energy density at the weld puddle enables:

• Single-pass penetration to 8.5mm without preheating or multiple passes on most structural materials
• Faster travel speeds at any given thickness compared to competing 2,000W machines using wider fiber cores
• Controlled, narrow heat-affected zone even at full power — maintaining dimensional accuracy on large assemblies where distortion would require costly correction

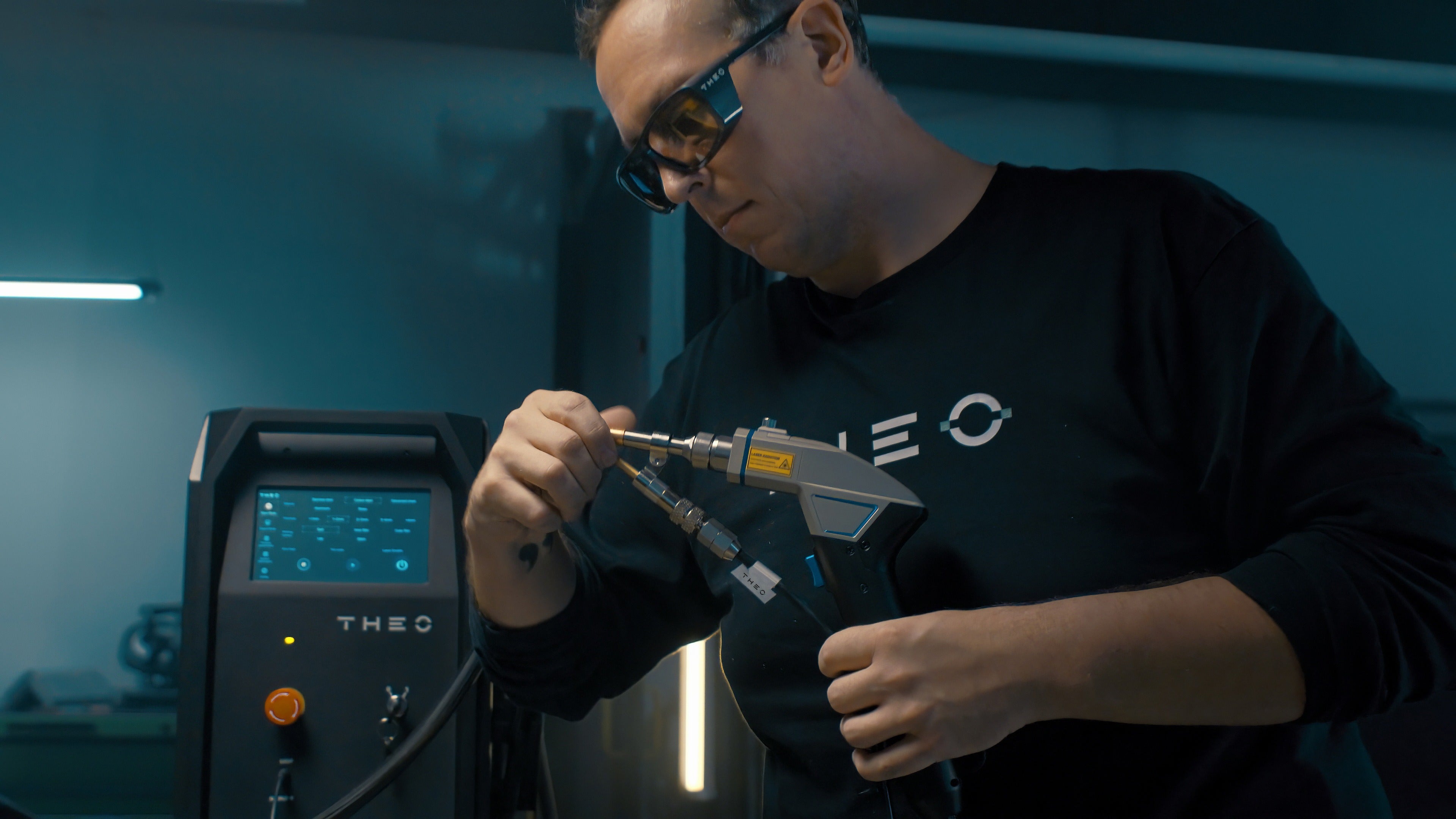

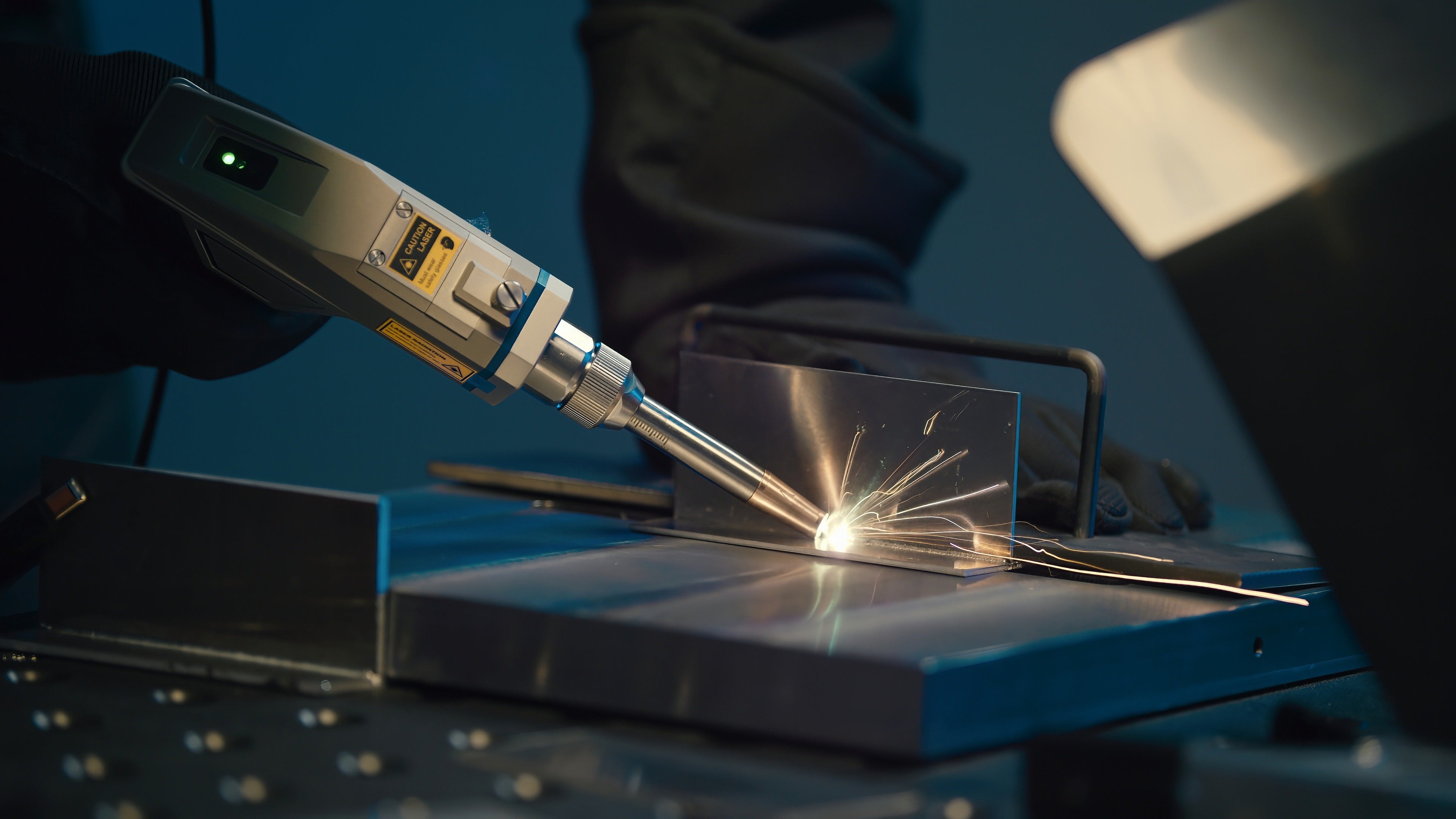

The same 1.5 lb. (680g) torch used across the MA1 series delivers this power. The machine gets heavier duty; the operator doesn't.

Upgraded Wire Feeder. Wobble. All Standard.

The MA1 Ultra ships with an upgraded wire feeder designed for smoother, more consistent wire delivery during high-speed production runs — an improvement over the T1 wire feeder included with lower MA1 models that reflects the Ultra's production-volume positioning.

Wire feed nozzles in 0.8mm, 1.0mm, 1.2mm, and 1.6mm are included, along with a DN18G flat nozzle that doesn't appear in the lower MA1 kit — useful for specific joint geometries and surface contact situations that arise in production work.

The torch's wobble function remains available at up to 4mm (0.16") bead width — for structural fillet and lap welds where broader fusion and gap tolerance are required. Factory presets cover common configurations. Custom programs can be saved and recalled by operators who want to optimize for specific recurring jobs.

Air-Cooled at 2,000 Watts. Still No Chiller.

The engineering achievement that often surprises buyers at this power level: the MA1 Ultra remains completely air-cooled. At 2,000W+ output, most competing industrial laser welding systems cross into water-cooled territory — requiring a separate chiller unit, plumbing installation, ongoing water quality management, and freeze-risk protocols for cold environments.

The MA1 Ultra's air-cooled design eliminates the need for an external chiller entirely, keeping installation simple and operational requirements low. Plug into a 220V circuit, connect the torch, and it's welding. At 86 lbs. (39 kg) with casters — the same footprint as the MA1-65 — it remains genuinely shop-mobile for a 2,000W production machine.

The operating temperature range extends to 104°F — a wider thermal envelope than lower MA1 models — confirming the Ultra's design for industrial production environments where ambient temperatures can run high.

The Maker's Chest Difference

The THEO MA1 Ultra is available from THEO directly and through other resellers. Here's what changes when you order through The Maker's Chest:

• 🛡️ 75-day returns — significantly longer than THEO's direct return window. Enough time to commission the machine in your production environment, run it through real sustained-duty cycles on your actual materials, and confirm the Ultra is the right investment before you're locked in
• 🇺🇸 Expert USA-based technical support — our team understands the full MA1 lineup and can help with commissioning, parameter optimization for production runs, boost mode configuration for your material range, and any issues that come up during sustained high-volume operation
• 📞 Dual lines of support — phone and email, so when production is running and something needs attention, you have an immediate path to someone who knows this machine
• 🔧 Honest pre-sale guidance — not sure whether the Ultra is the right investment versus the MA1-65 for your production volume and material range? For shops whose material range stays under 6mm and whose production volume doesn't demand sustained continuous operation, the MA1-65 is the better choice. We'll tell you that directly rather than default to the higher-priced model.

Frequently Asked Questions — THEO MA1 Ultra Handheld Laser Welder

Q: What is the primary difference between the MA1 Ultra and the MA1-65?

A: Two capabilities that the MA1-65 doesn't have. First, the 100% duty cycle — the Ultra sustains continuous full-power output on material up to 4mm with no required rest intervals, while the MA1-65 operates at a lower duty cycle suited to fabrication shop use rather than continuous production. Second, boost mode depth of 8.5mm — the MA1-65 reaches 6.5mm. For shops whose material range stays under 6mm and whose production volume doesn't demand continuous operation, the MA1-65 is the better choice. The Ultra is the production machine for shops that genuinely need 7–8.5mm depth or continuous operation at full power.

Q: What does "100% duty cycle" mean in practice?

A: Duty cycle describes what percentage of operating time a machine can sustain full-power output without requiring a cooling rest period. A 60% duty cycle means the machine runs at full power for 6 minutes out of every 10, then needs 4 minutes of reduced load or rest. For a shop doing production runs of long seam welds on 2–4mm material hour after hour, the 100% duty cycle eliminates the productivity interruptions that lower duty cycle machines create. On material up to 4mm, the MA1 Ultra runs without interruption.

Q: What is boost mode and how does it work?

A: Boost mode delivers ultra-deep penetration of up to 8.5mm, providing extra power for challenging jobs where standard mode cannot reach the required depth. It draws higher instantaneous power to achieve the depth ceiling. Boost mode is available on the relevant thick material applications — structural plate, heavy wall tube, and similar sections. Contact our team for guidance on when boost mode is appropriate for your specific materials.

Q: What are the gold-plated laser pumps, and why do they matter?

A: The laser pumps are the components that drive the laser source. Gold-plated pumps deliver maximum efficiency, extend service life, improve heat management, and reduce energy consumption by 10% compared to standard pump configurations. In production environments where the machine runs thousands of hours annually, both the energy savings and the extended service life have direct financial impact. The gold-plated pumps are also what enable the Ultra's 100% duty cycle — better heat management at sustained power is what allows continuous operation.

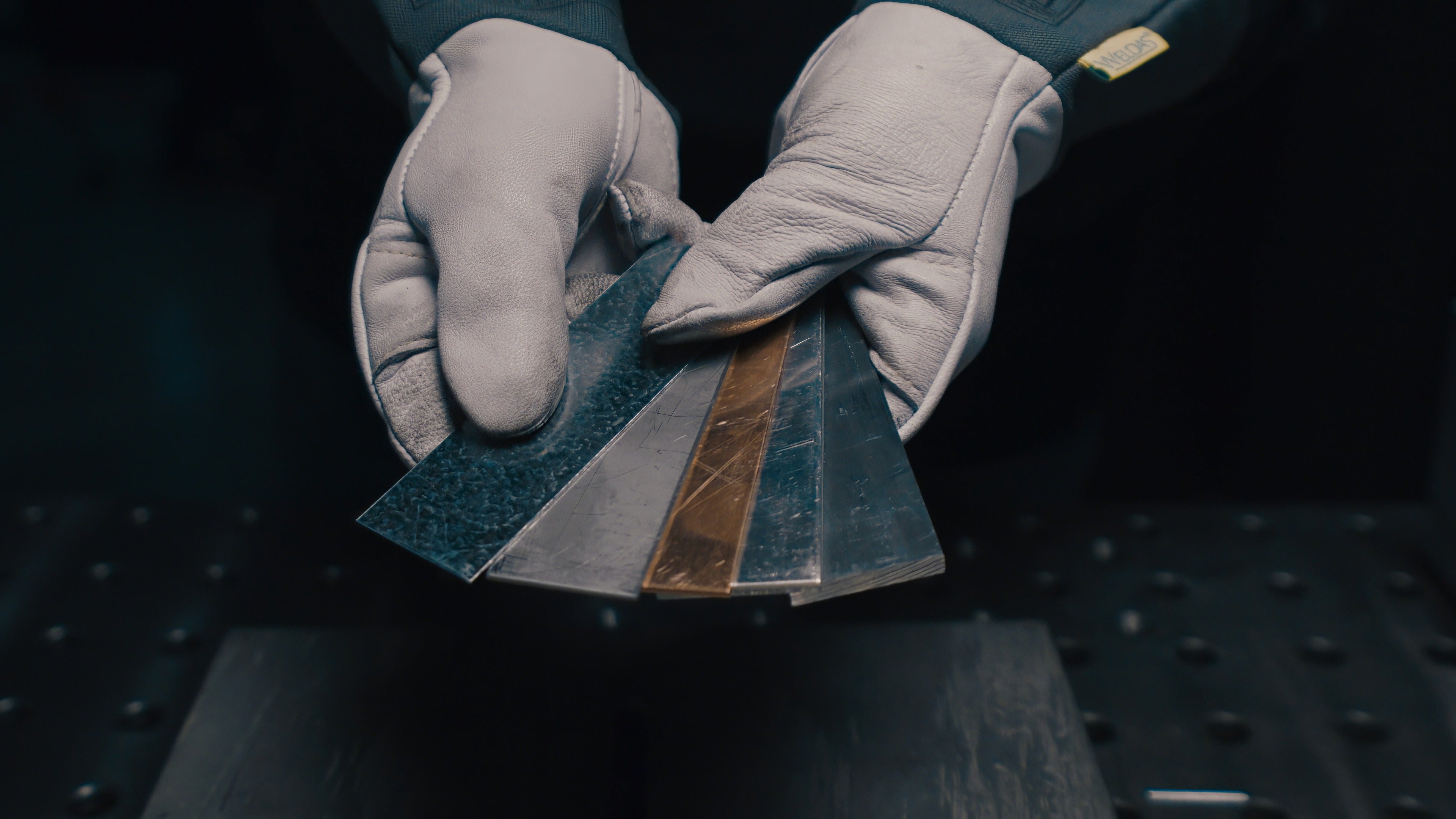

Q: What materials does the MA1 Ultra weld, and to what depth?

A: Stainless steel, carbon steel, mild steel, galvanized sheet, aluminum, nickel alloys, and titanium. Weld depth ratings: stainless steel, carbon steel, and galvanized sheet to 8.5mm (0.335") in boost mode; aluminum to 6.5mm. These ratings represent one-sided penetration limits.

Q: Does the MA1 Ultra require a water chiller at 2,000W?

A: No. The MA1 Ultra is completely air-cooled with no water circuit required. Despite its 2,000W+ output, the gold-plated pump technology and improved heat management allow the machine to operate without a chiller. Plug into a 220V / 32A circuit and it's operational. No plumbing, no chiller unit, no freeze risk.

Q: How long does operator training take?

A: The MA1 Ultra can be taught to a beginner within approximately 2 hours. The factory preset programs cover common materials and thicknesses. Select the appropriate preset, verify parameters on the front-facing 7" touchscreen, and begin welding. Advanced parameter customization and production-specific program saving are available for experienced operators.

Q: What additional nozzle does the Ultra include that lower MA1 models don't?

A: The MA1 Ultra kit includes two DN18G Flat Nozzles in addition to the standard Nozzle 1, 3, A, and B configurations. The flat nozzle provides better contact geometry for specific joint types and surface conditions that arise in production work and heavy structural fabrication.

Q: What power circuit does it require?

A: 220V / 32A single-phase — standard in commercial and industrial shop environments. The operating temperature range is 0–104°F, wider than lower MA1 models and appropriate for warmer industrial facilities and summer production environments.

Q: Is the MA1 Ultra right for my shop, or should I look at the MA1-65?

A: If your shop regularly welds above 6.5mm material, or if your production volume requires continuous 100% duty cycle welding hour after hour, the Ultra's capabilities are the correct fit. If your material range stays under 6mm and your volume doesn't demand sustained continuous operation, the MA1-65's 6.5mm coverage at a lower price is the better choice. Contact our team and describe your typical daily workload and material range — we'll give you a straight answer on which model fits your shop.

Q: Why buy from The Maker's Chest instead of directly from THEO?

A: Our 75-day return window gives you real commissioning and production evaluation time — not just an initial impression. Our USA-based expert support team is reachable by phone and email, understands the full MA1 lineup including the Ultra's specific production configurations, and is available throughout installation, initial production runs, and ongoing operation. For a machine at this investment level, having knowledgeable support available when you need it isn't a bonus — it's a requirement.
