THEO MA1-45 Handheld Laser Welder - 1200W

More Power. More Depth. The Same Ease of Use That Makes the MA1 Series Remarkable.

The THEO MA1-45 is a 1,200W handheld fiber laser welder that pushes weld depth to 4.5mm on stainless and carbon steel while keeping everything that makes the MA1 series easy to own and operate.

Air-cooling with no chiller, a 1.5 lb. torch, front-facing 7" touchscreen, wobble welding, wire feeder included, and operators trained in under an hour. It's the mid-series model built for fabrication shops whose material range regularly pushes past what an entry-level laser welder can handle.

Where the MA1-45 Sits in the Lineup — and Why It Matters

The THEO MA1 series spans four models based on laser output power and maximum weld depth:

The MA1-35 delivers 800W and welds up to 3.5mm. The MA1-45 delivers 1,200W and welds up to 4.5mm. The MA1-65 delivers 1,500W and welds up to 6.5mm. The MA1 ULTRA delivers 2,000W+ and reaches 8.5mm with 100% duty cycle capability.

The MA1-45 occupies a meaningful position in that lineup. The MA1-35 covers the majority of light fabrication and sheet metal work below 3mm — but if you're regularly welding structural brackets, frame components, thicker stainless enclosures, or aluminum sections in the 3–4.5mm range, the MA1-35's ceiling becomes a constraint. The MA1-45 clears that ceiling with headroom, while remaining significantly more accessible than the MA1-65 in both price and power draw.

The MA1-45 delivers up to four times higher welding speeds, higher weld strength, and less porosity than traditional methods. The 20µm spot size reduces the heat-affected area, weld distortion, and burn-through.

For shops whose work spans a genuine mix of thinner sheet metal and medium structural sections, the MA1-45 handles the full range from a single machine.

1,200W Through a 20μm Fiber Core — The Technology Advantage That Matters

Every model in the MA1 series shares a fundamental technology advantage over the broader handheld laser welder market: the MA1 is unique as the only handheld laser welding system employing a 20µm fiber core. This proprietary technology delivers a high energy density spot size, concentrating energy into a smaller area and resulting in faster throughput speeds at the same power level — enabling deeper weld penetration than equivalent-wattage competitors.

At 1,200W through a 20μm core, the MA1-45 doesn't just outperform competing 1,200W machines on paper — it outperforms them in the work, where the same power level produces more energy density at the weld puddle, deeper penetration, cleaner fusion, and faster travel speeds.

The result at the weld:

• Deep, consistent penetration to 4.5mm on stainless and carbon steel, 4mm on aluminum, without requiring multiple passes
• Minimal heat-affected zone — distortion and burn-through risk are dramatically lower than TIG or MIG at equivalent thicknesses
• Clean, spatter-free seams that typically require no post-weld grinding or cleanup

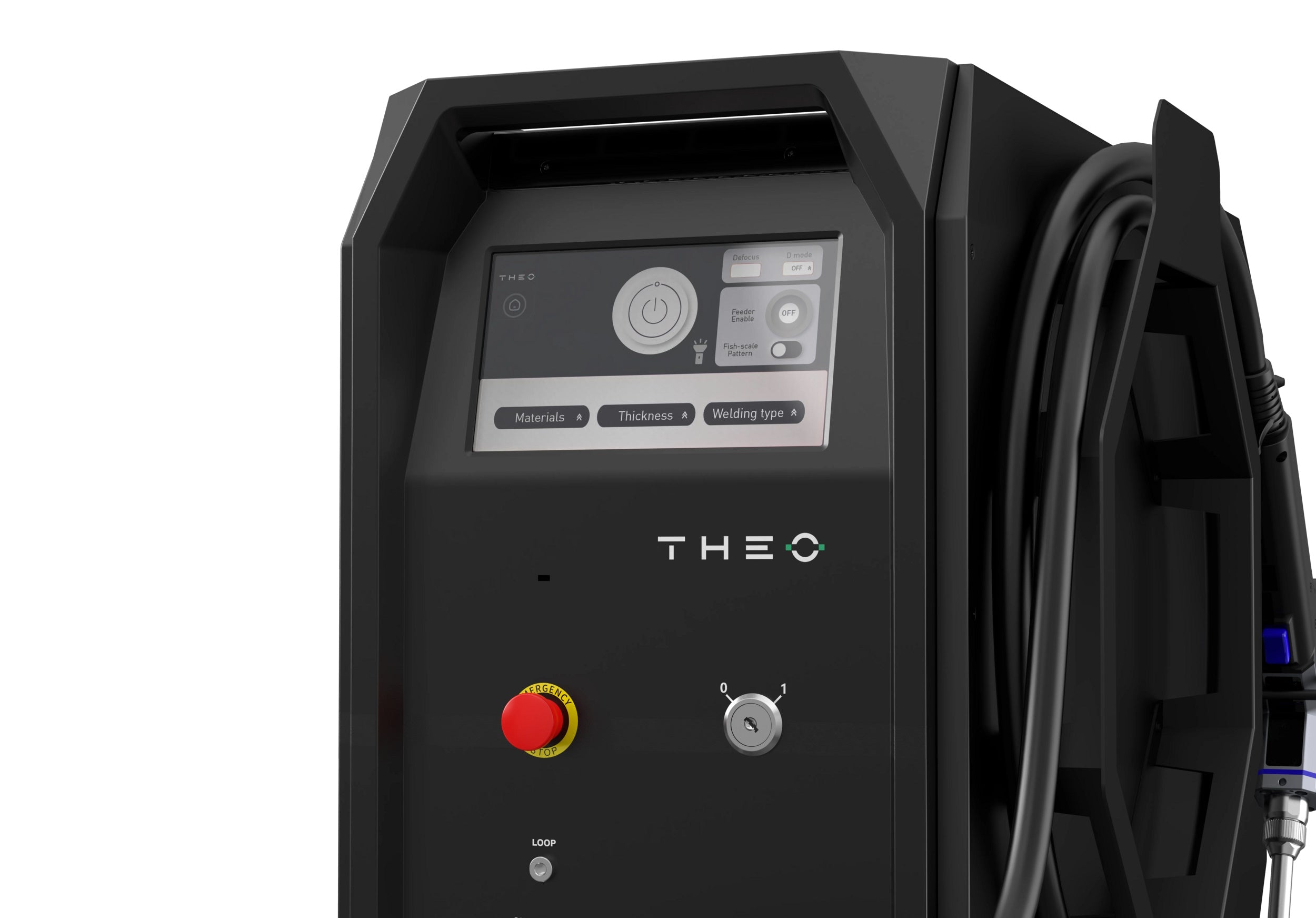

Front-Facing 7" Touchscreen — A Meaningful Upgrade From the MA1-35

One of the visible differences stepping up from the MA1-35 to the MA1-45 is the screen placement. The MA1-35 uses a top-mounted 7" touchscreen — practical for most positions, but less ideal for sustained overhead or awkward-angle welding where looking up at the panel interrupts focus on the joint.

The MA1-45 uses a front-facing 7" touchscreen, positioned at eye level when the machine is on its stand. For operators who move between positions frequently, or who spend time on work that requires unusual torch angles, this is a genuinely better ergonomic configuration.

The touchscreen interface gives access to 32 factory preset programs covering common material types and thicknesses — select the right preset, verify parameters, and start welding. Advanced operators can save 32 additional custom programs for specific jobs and recall them instantly between runs.

Wobble Welding and Wire Feeder — Both Standard Equipment

Both features that distinguish professional-grade laser welding from basic spot marking ship in the box with the MA1-45.

Wobble Welding: The torch's built-in oscillation function widens the weld bead up to 4mm (0.16") by sweeping the laser beam laterally across the joint. This improves fusion on lap and fillet welds, increases tolerance for fit-up gaps, and produces a smoother, more cosmetically consistent seam. At 1,200W, the wobble function is especially effective on thicker stainless and structural sections where a wider bead improves tie-in and overall joint strength.

T1 Wire Feeder Included: Feed filler wire into the weld pool for gap-bridging, buildup, dissimilar thickness work, and root pass filling. Wire feed nozzles in 0.8mm, 1.0mm, 1.2mm, and 1.6mm are all included. The feeder attaches to the torch and activates directly from the trigger system — no separate foot control or remote required.

Air-Cooled. No Chiller. 1,200 Watts.

At 1,200W of laser output, many competing systems require water cooling — an external chiller that adds equipment cost, installation complexity, plumbing, and ongoing maintenance. The MA1-45 uses phase-change air cooling that handles the full 1,200W output without any water circuit.

Plug into a 220V circuit, connect the torch, and you're welding. No chiller startup sequence, no freeze risk in cold environments, no water line routing. The fiber laser source carries an expected lifetime of up to 10 years under normal operating conditions.

At 84 lbs. (38 kg) with caster wheels, the MA1-45 is genuinely shop-portable — roll it between stations, position it at a fixture, or move it to a different bay as the job requires. The 18 ft. optical cable from unit to torch gives the operator substantial freedom of movement around the workpiece.

Certified to Industrial Safety Standards

The MA1-45 carries CE, FDA, ETL, ISO, and EN certifications and a PL-d safety rating per ISO 13849-1 — the performance level required for industrial machinery in high-consequence applications.

The torch's double-secured contact sensor prevents operation unless both the trigger is held AND the nozzle is in contact with the workpiece — accidental laser activation is physically impossible with this dual-interlock design.

Three pairs of laser safety glasses ship with the machine. The kit also includes a safety return cable, ground wire, and standard PPE consumables. For shop installation, laser safety curtains are recommended when a dedicated room is not available.

What's in the Box

Everything needed to begin welding ships with the MA1-45:

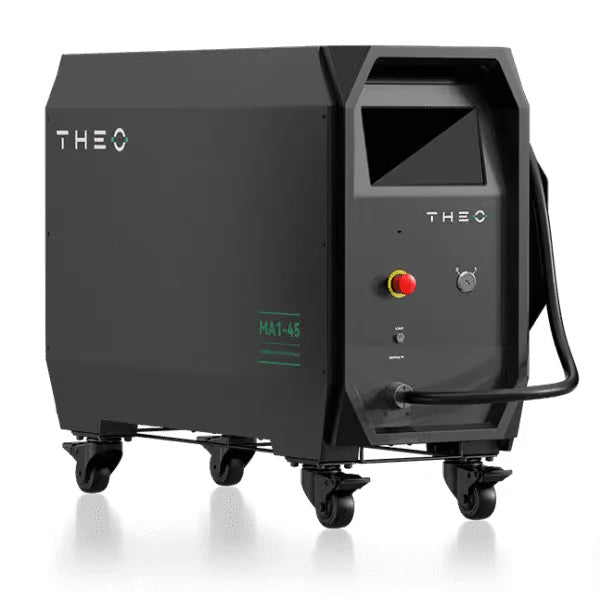

• Air-cooled laser power source (MA1-45, 1,200W) with front-facing 7" LED touchscreen
• Handheld laser welding torch with 18 ft. optical cable
• T1 Wire Feeder
• Wire feed nozzles: 0.8mm, 1.0mm, 1.2mm, 1.6mm
• DN18G Nozzles: 2× Nozzle 1, 2× Nozzle 3, 2× Nozzle A, 2× Nozzle B
• 5× protective lenses
• 3× pairs laser safety glasses
• Safety return cable and ground wire
• Cotton swabs, ear plugs, disposable mask

The Maker's Chest Difference

The THEO MA1-45 is available from THEO directly and through other resellers. Here's what changes when you order through The Maker's Chest:

• 🛡️ 75-day returns — significantly longer than THEO's direct return window. Enough time to receive the machine, weld through your actual material mix at real production volumes, and confirm the MA1-45 is the right power level for your shop before you're locked in
• 🇺🇸 Expert USA-based technical support — our team understands the full MA1 lineup at a hands-on level and can help with parameter setup, wobble configuration, wire feeder settings, and material-specific dialing for your applications
• 📞 Dual lines of support — phone and email, so when you're mid-production and need a real answer about settings or operation, you have a direct path to someone who knows this machine
• 🔧 Honest pre-sale guidance — not sure whether the MA1-45 or the MA1-65 is the right call for your material range? We'll walk through your specific applications with you and give you a straight answer, not a default upsell.

Frequently Asked Questions — THEO MA1-45 Handheld Laser Welder

Q: What's the practical difference between the MA1-35, MA1-45, and MA1-65?

A: The MA1-35 runs 800W and welds to 3.5mm. The MA1-45 runs 1,200W and welds to 4.5mm. The MA1-65 runs 1,500W and welds to 6.5mm. All three use the same 20μm fiber core, 680g torch, wobble function, and wire feeder. The MA1-35 is ideal for shops whose work is primarily sheet metal and fabrication below 3mm. The MA1-45 is the right step up for shops that regularly work in the 3–4.5mm range — structural brackets, heavier stainless, thicker aluminum sections. The MA1-65 is for shops where 4.5mm isn't enough — heavy fabrication, structural steel, and thicker material production. If you're uncertain which fits your work, contact our team and we'll help you decide.

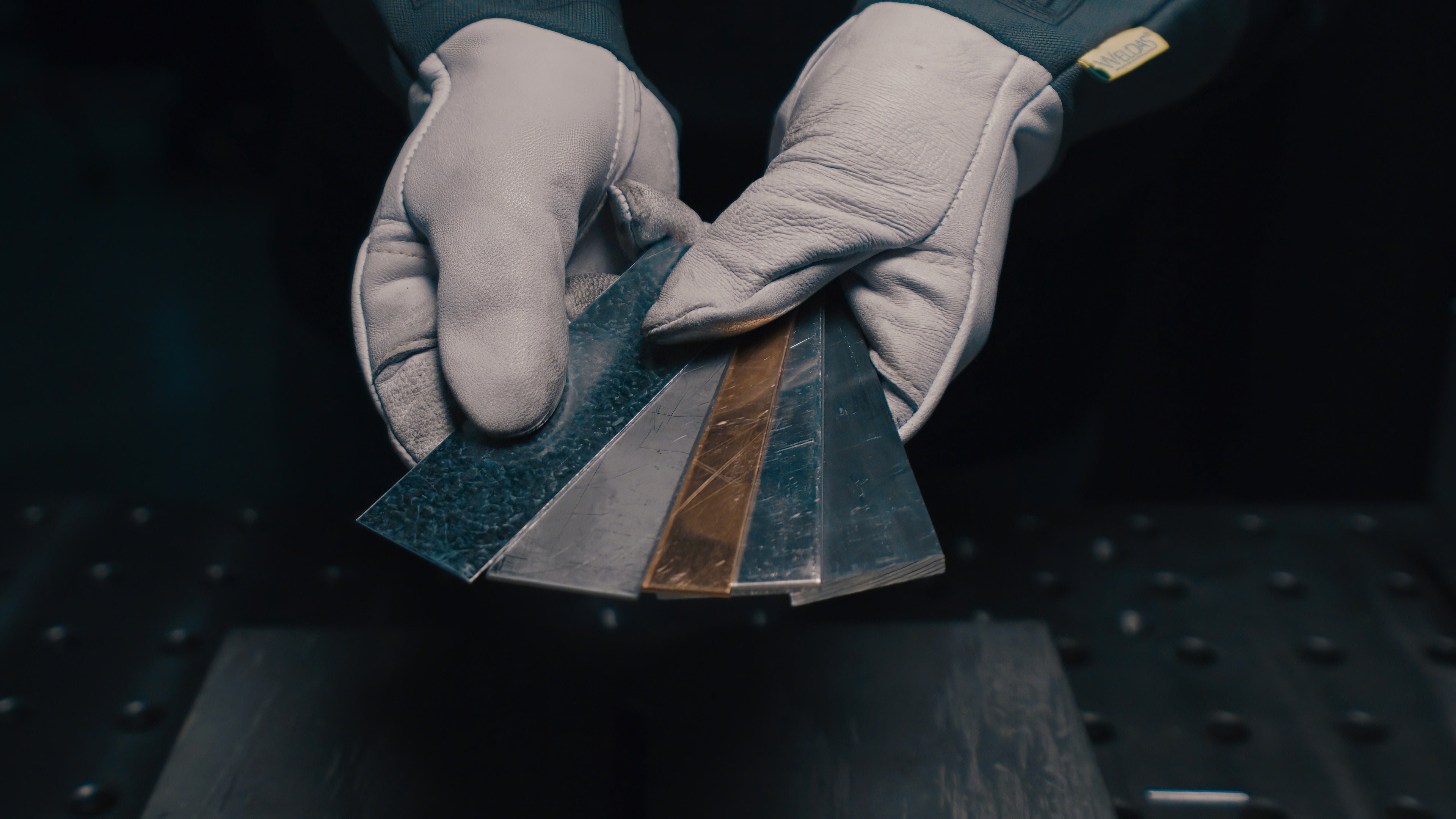

Q: What materials does the MA1-45 weld?

A: Stainless steel, carbon steel, mild steel, galvanized sheet, aluminum, nickel alloys, titanium, and copper (within its power range). Weld depth ratings: stainless steel and carbon steel to 4.5mm, aluminum to 4mm, galvanized sheet to 4.5mm. The 20µm spot size reduces heat-affected zone, weld distortion, and burn-through risk across all these materials.

Q: Why does the MA1-45 have a front-facing screen when the MA1-35 has a top-mounted one?

A: The MA1-35's smaller chassis uses a top-mounted screen. The MA1-45 and higher models use a front-facing 7" touchscreen, which is more ergonomic for sustained welding in positions where looking up at a top-mounted panel would interrupt focus on the weld joint. For most welding positions the difference is minor, but for overhead, vertical, or awkward-angle work, the front-facing screen is genuinely more practical.

Q: Does the MA1-45 require a water chiller?

A: No. The MA1-45 uses phase-change air cooling and runs at 1,200W without any water circuit. No external chiller, no plumbing, no freeze risk. Plug into a 220V / 32A circuit and it's operational.

Q: How does wobble welding work, and when should I use it?

A: The torch oscillates the laser beam laterally across the joint at an adjustable frequency and amplitude, widening the bead from the native spot to up to 4mm. Use wobble when you need a broader, flatter seam for cosmetic or structural reasons, when joint fit-up isn't perfectly tight, or when welding lap and fillet joints where wider fusion improves strength. Factory presets include wobble parameters for common applications.

Q: How long does operator training take?

A: Most operators are producing quality production welds within their first hour. The 32 factory preset programs cover common materials and thicknesses — select the matching preset for your joint and material, verify the parameters on the touchscreen, and begin. No arc welding background is required.

Q: What power outlet is required?

A: 220V / 32A single-phase — standard in most commercial and industrial shop environments. If your facility is 120V only, a dedicated 220V circuit will need to be installed before the machine can be commissioned.

Q: What safety certifications does the MA1-45 carry?

A: CE, FDA, ETL, ISO, and EN certifications. The safety classification is PL-d per ISO 13849-1 — the industrial performance level for machinery where safety failures could cause serious injury. The dual-interlock contact sensor on the torch prevents the laser from firing unless both the trigger is held and the nozzle is in contact with the workpiece.

Q: How does the MA1-45 compare to a 1200W generic handheld laser welder from other brands?

A: The MA1's 20μm fiber core is unique in the handheld laser welding market. This concentrates energy into a smaller spot than the 50μm cores used in most competing machines, delivering higher energy density per watt, faster throughput, and deeper penetration at equivalent power levels. Competing 1,200W machines with wider fiber cores operate at effectively lower energy density — the MA1-45's 1,200W delivers meaningfully more at the weld than a 1,200W competitor running a standard fiber.

Q: Why buy from The Maker's Chest instead of directly from THEO? A: Our 75-day return window gives you real production evaluation time — including time to weld through your actual material mix and confirm the power level is right for your work. Our USA-based expert support team is reachable by phone and email, knows the full MA1 lineup hands-on, and is available throughout commissioning and production. If the MA1-45 turns out not to be the right model for your application, we'll work with you on it — rather than leaving you with a machine that doesn't fit your shop.
