Orion LZR Eco Benchtop Laser Welder | 35J & 165J

The Sunstone Orion LZR ECO: Professional-Grade Benchtop Laser Welding at the Industry's Most Accessible Price Point

Precision laser welding for jewelry, dental, watch repair, and fine metalwork — without the premium price tag of higher-end models. The LZR ECO brings Sunstone's best-in-class optics, motorized spot size control, argon shielding, and a broad 180° open chamber to shops and studios that demand professional results and value every dollar invested.

What Makes a Laser Welder "Professional Grade"?

Not all benchtop laser welders are equal — and the differences aren't subtle. The critical factors are optics quality, spot size control, weld chamber access, cooling efficiency, and the software interface. Compromise any one of them and the experience suffers: difficult setups, inconsistent results, slow workflows, or operator fatigue.

The Orion LZR ECO was engineered to deliver on all five without requiring the investment of the Pro-level line. It is the right starting point for shops entering laser welding — and a serious production tool for established operations with moderate throughput needs.

Premium 10x Optics — Standard on Both Models

The first thing you notice when you look through an Orion LZR is the clarity. Both the 35J and 165J ECO models ship with premium 10x magnification optics — the same quality used in the higher-end Orion LZR Select and Pro lines. Competing entry-level laser welders frequently compromise on optics quality to hit a lower price point. Sunstone doesn't.

Through the 10x optics, the weld zone is brilliantly illuminated by cool LED lighting — not halogen. LED keeps the weld chamber meaningfully cooler than halogen-lit competitors, placing less thermal stress on components, reducing operator fatigue during long work sessions, and extending the life of the machine's key internal parts.

Motorized Spot Size — Controlled from the Touchscreen

Spot size control is where the LZR ECO visibly separates itself from competing economy laser welders. Most comparable machines use a manual mechanical adjuster — a physical knob or slider that the operator physically moves up and down, with no precise readout of where the spot size actually is. This is imprecise, slow, and frustrating in a production environment.

The LZR ECO uses a fully motorized spot size system, adjusted directly from the 7" touchscreen. The exact spot size is displayed digitally — you set 0.5mm, the machine is at 0.5mm. No guessing. No re-checking. No interruption to your work.

The adjustable spot size range spans 0.2mm to 2.0mm on both models — one of the widest ranges available at this price point, covering everything from ultra-fine wire welds to broader fill work on larger porosity repairs.

Broad 180° Open Weld Chamber

The LZR ECO's weld chamber opens 180° — wider than most comparable laser welders at this price tier. This matters practically: a larger opening means you can position bigger, more complex, or more awkwardly-shaped workpieces with room to maneuver. Rings, bracelets, watch cases, eyewear frames, and bulkier dental components all fit with less fuss than narrower-chamber alternatives.

The chamber is also sized larger than most competitors in the ECO category — giving you more workspace to position, adjust, and hold pieces in the correct orientation for the weld.

External arm rests on both sides of the chamber allow the operator to stabilize their hands during fine weld work — a significant ergonomic advantage for precision operations that require steady, controlled stylus movement.

Argon Shielding — Included as Standard

Argon gas shielding protects the weld zone from atmospheric oxidation, producing cleaner, stronger, higher-quality welds across virtually all metals. Most competing economy laser welders treat argon connectivity as a premium add-on or don't include it at all. On the Orion LZR ECO, the argon nozzle is standard on both models.

For precious metal work — gold, silver, platinum — welding with argon is not a luxury. It's the difference between a clean, professional weld and one that oxidizes, discolors, or requires additional cleanup. Getting argon included at the ECO price point is a meaningful advantage over the competition.

More Efficient Laser Optic Rail — More Energy Where It Counts

The Orion LZR's proprietary laser optic rail is engineered to deliver more energy to the weld point and less energy lost internally as heat. The practical result:

• More effective joules reaching the workpiece from a given energy setting
• Less thermal stress on internal components during operation
• Longer flash lamp life — the LZR ECO's durable flash lamp is rated at ±5 million shots, providing years of productive use before replacement

This efficiency advantage also means the LZR ECO runs cooler overall — a benefit compounded by the LED weld chamber lighting and the deionized water cooling system.

Water Cooling with Resin Sack Filtration — No Messy Filter Changes

The LZR ECO uses an efficient deionized water cooling system to manage the heat generated during laser operation. What makes Sunstone's implementation distinctively low-maintenance is the resin sack filtration technology — a sealed resin sack inside the cooling circuit that maintains water purity without the messy, time-consuming filter changes required on competitor machines.

Maintenance is a DIY process that takes under 20 minutes — no service call, no downtime for a technician visit. Replace the deionized water and resin sack on the recommended schedule and the machine continues performing at spec.

6 Wave Shaping Presets and 100 Memory Cells

The LZR ECO's software interface provides 6 wave shaping presets — different pulse shapes that change how laser energy is delivered during the weld cycle. Different metals respond differently to pulse shape: a wave profile that produces an excellent weld on gold may not be optimal for platinum or stainless. Having six presets available means you can configure the right energy delivery profile for every material you weld, rather than applying a single default to everything.

Up to 100 customized settings can be saved to memory — a full library of material and application-specific configurations that can be recalled with a single tap. For shops handling multiple metal types, repair categories, and product lines, this eliminates re-configuration time between jobs.

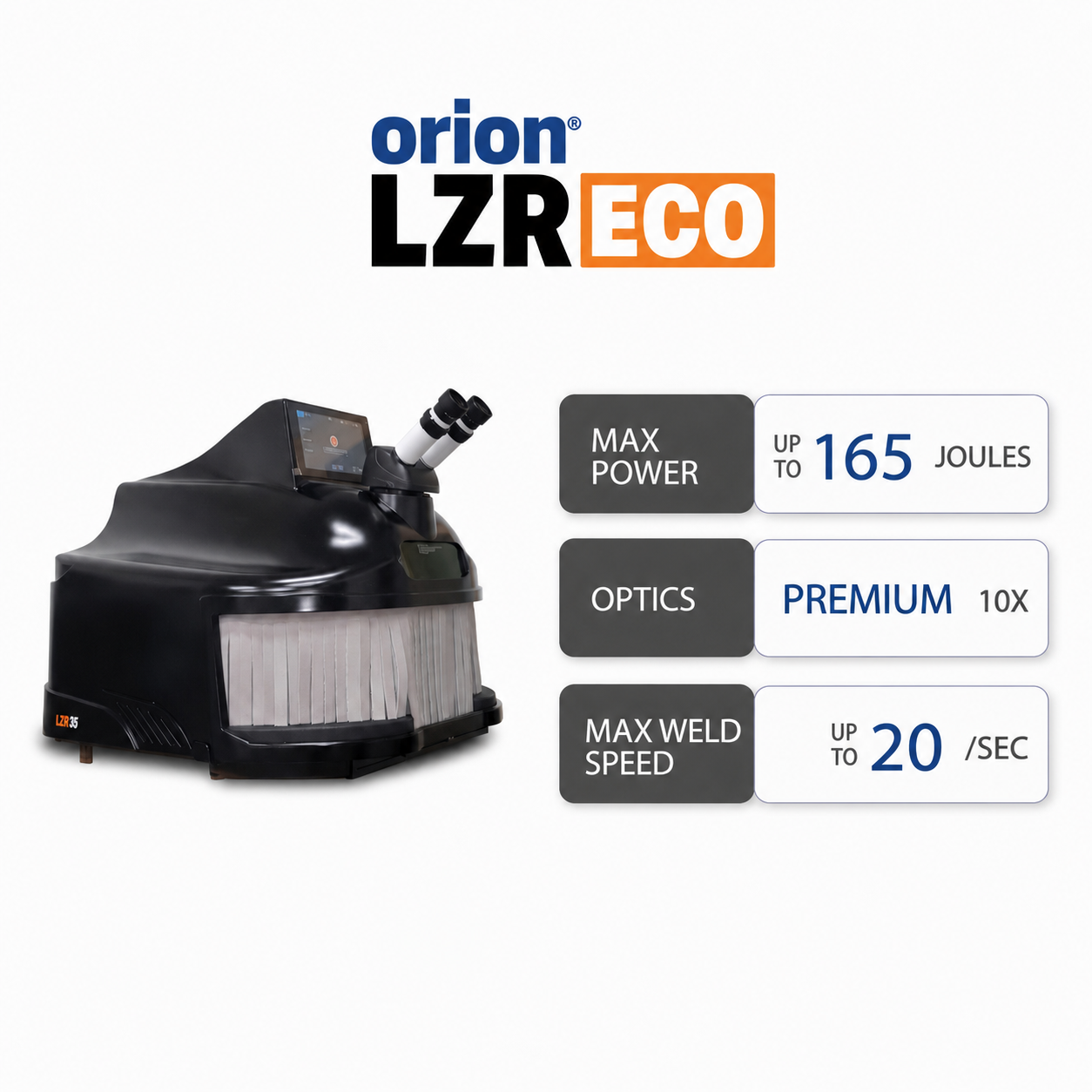

Choosing Your Model: LZR ECO 35J vs. LZR ECO 165J

Both models share the same physical footprint, the same premium 10x optics, the same motorized spot system, the same 180° open chamber, the same argon-standard configuration, and the same 7" touchscreen interface. The difference is energy output — which determines what materials and thicknesses you can weld, and how fast you can weld them.

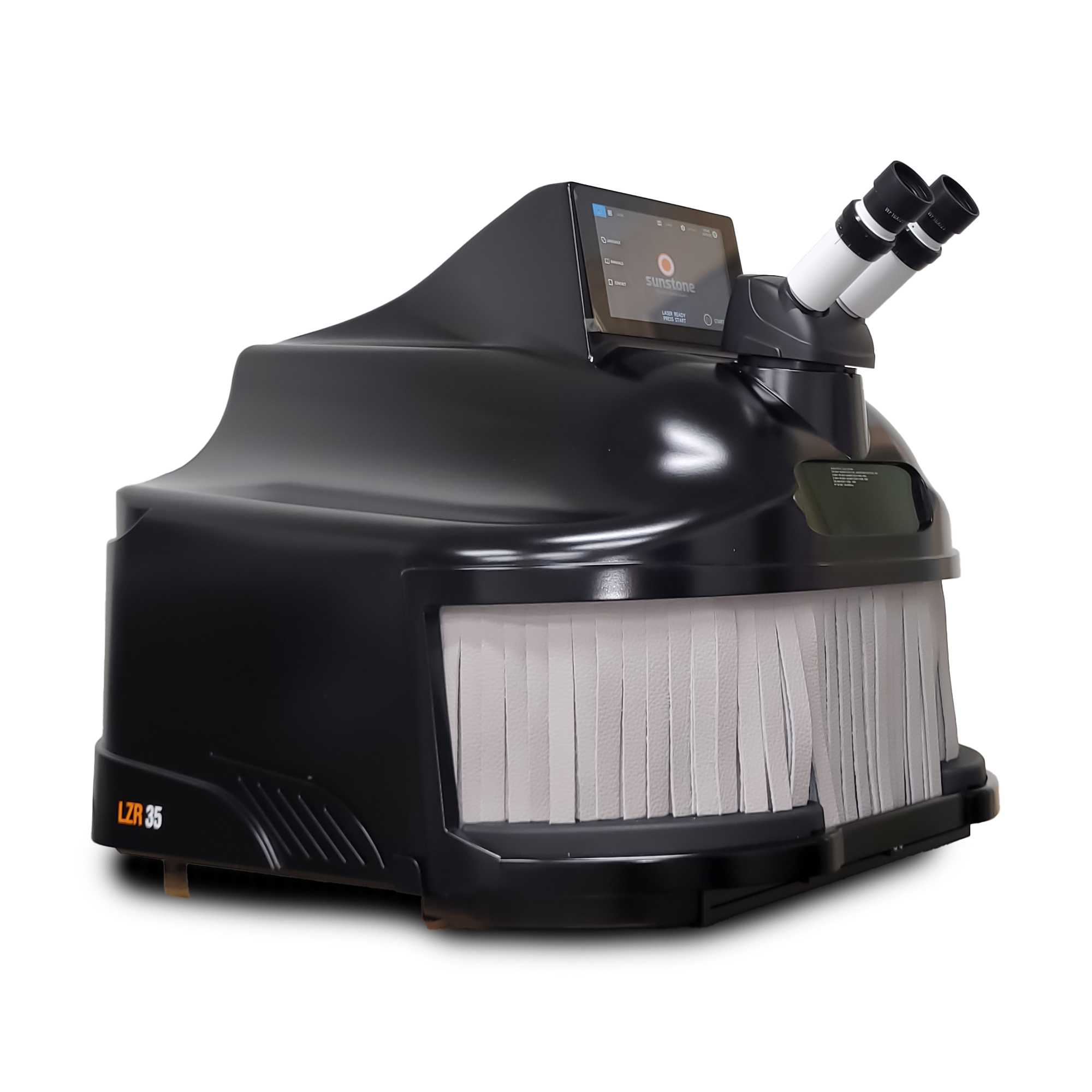

Choose the LZR ECO 35 if: your work is primarily fine, delicate, low-heat applications — thin wire welding, small jewelry repairs, chain repair, prong retipping, stone-adjacent work, watch components, and dental lab work where the priority is pinpoint energy delivery with minimal heat spread. Many common jewelry and dental repair applications fall comfortably within the 25–35 joule range. The 35J model produces the most controlled, conservative energy delivery in the ECO line and is an excellent entry point for shops new to laser welding.

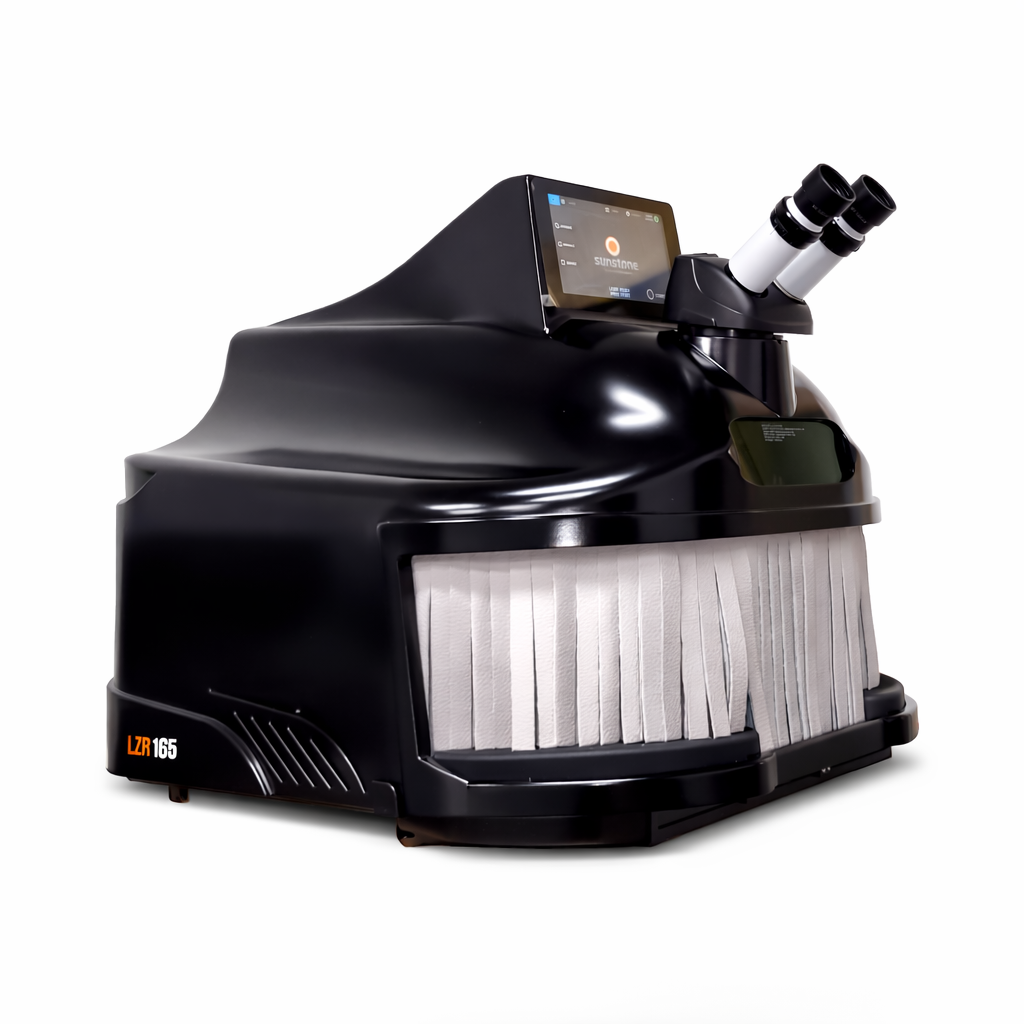

Choose the LZR ECO 165 if: you need meaningful reserve power for a wider range of materials and thicknesses — heavier gauge metals, larger fill work, broader porosity repair, or applications pushing beyond 35J. The 165J model also pulses up to 20 Hz versus 6 Hz on the 35, making it significantly faster for seam welding, joint sealing, and higher-volume production runs. If you're building a shop around laser welding rather than supplementing an existing repair workflow, the 165J is the stronger long-term investment.

When in doubt between the two: choose the 165J. You can always dial back energy on a more powerful machine; you cannot exceed the ceiling of the 35J when a job requires more.

What You Can Weld With the LZR ECO

The LZR ECO handles the full range of fine metalwork applications:

• Jewelry repair — ring sizing, prong retipping, porosity filling, crack repair, metal addition, chain repair, setting construction
• Weld next to stones — the laser's pinpoint precision and minimal heat spread allow welding adjacent to stones and settings that would be damaged by conventional methods
• Dissimilar metal bonding — joining different metal types in a single weld zone without the thermal incompatibility problems that challenge other processes
• Watch components — case repair, crown and button attachment, bracelet link repair in stainless and precious metal watches
• Eyewear frames — titanium, stainless, and precious metal hinge and frame repair
• Dental and ortho lab — crown and bridge work, clasp attachment, frame repair, prosthetic component bonding
• Fine wire welding — small gauge wire joining for electronics, sensors, and specialty fabrication
• Small component manufacturing — prototype and small-batch production of precision metal components

Why Buy the LZR ECO From The Maker's Chest?

75-Day Return Window — more than double Sunstone's 30-day return policy. At this investment level you deserve real time to evaluate the machine in your actual workflow. You have 75 days to do exactly that.

Expert USA-Based Technical Support — laser welder setup involves real application knowledge: wave shape selection, spot size calibration, energy settings by material, argon flow configuration. Our team can help you work through setup and application questions for your specific use case.

Dual Lines of Support — both our in-house technical team and Sunstone's own support resources are available to you on a single purchase. Two channels working for you.

Authorized Sunstone Reseller — genuine product, full progressive 3-year manufacturer warranty, backed by our additional support layer.

Progressive 3-Year Warranty — What That Means

The Orion LZR ECO carries a progressive 3-year manufacturer's warranty. Progressive means the warranty structure is tiered across the warranty period — providing strong protection in the early years and coverage for defined components thereafter. Contact our team for the specific warranty terms applicable to your model before purchasing.

Full Technical Specifications

👉 Download the Orion LZR ECO User Manual and Orion LZR ECO Datasheet for complete setup and specification documentation.

Frequently Asked Questions

What is the difference between a laser welder and a pulse arc welder — which do I need? Pulse arc welders (like the Orion 150x and 200x) use a TIG-style electrical arc to fuse metals, producing deeper penetration and stronger bonds on most materials — particularly reflective metals like silver. Laser welders use a focused light pulse to deliver highly localized energy with minimal heat spread, making them superior for work immediately adjacent to heat-sensitive stones and for the most precise, surface-level control. Many professional jewelers use both. If your primary need is stone-adjacent repair precision and non-contact energy delivery, a laser welder is the right tool. If strength of bond is the priority, pulse arc is stronger. If you're not sure, contact our team — we'll help you choose based on your specific application.

Can the LZR ECO weld next to stones? Yes — this is one of the laser welder's primary advantages. The focused, pinpoint laser beam delivers energy only at the exact weld point, with very limited heat spread to surrounding areas. This allows welding prongs, settings, and metalwork immediately adjacent to stones that could not survive a torch or other welding process. Proper technique and appropriate energy settings are required — our technical team can advise on specific stone and setting types.

What metals can the LZR ECO weld? The LZR ECO works on all precious and non-precious metals used in jewelry and fine metalwork: gold (all karats), silver, platinum, palladium, stainless steel, titanium, and most specialty alloys used in dental, watch, and medical applications. Specific wave shape presets help optimize the weld for different metal types. Aluminum welding depends on specific alloy and thickness.

Does the LZR ECO come with argon gas? The argon nozzle is standard on both ECO models. Argon gas itself (the cylinder) is not included — you'll need to source a supply from a local welding gas supplier. The machine connects directly to a standard argon regulator. Using argon for precious metal work is strongly recommended for cleaner, higher-quality welds.

What maintenance does the LZR ECO require? Primary maintenance involves the deionized water cooling system — water should be replaced on a regular schedule (Sunstone recommends purchasing deionized water directly from Sunstone for best results). The resin sack filtration system is a simple DIY replacement that takes under 20 minutes with no tools. The flash lamp is rated for ±5 million shots and will eventually need replacement — but at typical jewelry shop usage levels, this is a years-long interval.

Can I use the LZR ECO for seam welding? Yes. The 165J model's pulse frequency of up to 20 Hz allows rapid sequential welding along a seam at production speeds. The 35J model supports up to 6 Hz — suitable for slower seam work and shorter seam lengths. For high-speed continuous seam welding as a primary application, consider the LZR Pro line.

How does the LZR ECO compare to the LZR Select and LZR Pro? The ECO line is the entry point — excellent optics, motorized spot, argon standard, broad chamber, solid software. The LZR Select adds Leica 10x optics, a joystick for internal chamber control, an onboard HD camera, HDMI output, compressed air nozzle, 3 LED chamber lights, 7 wave shape presets, and a higher energy ceiling (225J). The LZR Pro adds a Gaussian smooth spot, a wider weld chamber, a double cooling system, higher energy (255J), and speeds up to 40 Hz. Choose the ECO for cost-effective professional capability; choose the Select or Pro when you need the specific features they add.

What is your return policy? 75-day returns. If the LZR ECO doesn't perform as expected in your studio or lab, reach out and we'll take care of you.

Brand: Sunstone | Models: LZR ECO 35 (35J), LZR ECO 165 (165J) | Power: 110 VAC | Optics: Premium 10x | Warranty: Progressive 3-Year
