The Sunstone Orion 200x: Sunstone's Flagship Pulse Arc Welder, Built for Professionals Who Want Maximum Precision and Control

The Orion 200x is the most capable pulse arc welder Sunstone has ever made — delivering 0.15 to 200 joules of digitally controlled weld energy with three distinct waveforms, three agitation modes, and the finest energy adjustment increment in the line. For jewelers, dental technicians, aerospace fabricators, and precision manufacturers who demand the absolute best, this is the tool that delivers it.

Why the 200x Is the Flagship

Both the Orion 150x and 200x share the same physical design, the same 8" touchscreen interface, and the same Tru-Fire Technology® arc ignition system. But the 200x is not simply a more powerful 150x — it is a more capable one. The additional features the 200x brings are not incremental upgrades; they are tools that unlock a qualitatively different level of control over how energy is delivered to the workpiece.

Three waveforms. Three agitation modes. Finer energy increments. Wider spot range. Higher weld speed. These are not specifications for their own sake — each one addresses a specific welding challenge that the 150x cannot fully resolve. If your work regularly involves complex alloys, persistent porosity, ultra-fine weld spots below 0.5mm, or high-volume sequential welding, the 200x is the correct tool.

0.15 to 200 Joules — In 0.05J Increments

The 200x delivers energy from 0.15 joules up to 200 joules, adjustable in 0.05 joule increments — the finest energy resolution in the Orion line. That granularity matters enormously at low energy settings, where the difference between 1.0J and 1.05J can determine whether a weld on a fragile stone setting is clean or causes damage.

The energy range spans:

• Weld spot sizes from approximately 0.1mm to 4.5mm — reaching down to near-microscopic weld points that the 150x cannot achieve
• Weld speeds up to 4 welds per second — double the 150x's rate, for joint sealing and high-volume sequential work
• Full WeldIQ™ energy management and Smart Energy Release on every weld — delivering only the energy requested, preventing overheating and reducing component stress

Three Waveforms: Choosing How Energy Reaches the Work

The defining capability of the Orion 200x — the feature that truly separates it from the 150x and from every competing pulse arc welder — is the ability to choose the waveform through which energy is delivered to the workpiece. Three options are available:

Classic Waveform The standard pulse arc waveform. Energy rises quickly to peak, then tapers in a smooth downslope. This is the default mode — excellent for the vast majority of welding applications and the right starting point for any new job. The length adjusts automatically as you change the power setting.

Triangle Waveform Energy peaks earlier in the weld cycle and decreases linearly to the end. The triangle waveform gives the operator independent control over weld time and peak power — useful when you need specific weld characteristics that classic mode doesn't deliver. Particularly effective when you want the smoothing effect of the classic downslope but need to tune the energy profile more precisely for a difficult alloy or geometry.

Square Waveform Energy delivers at a constant level for the full weld duration, then cuts off sharply. At higher power, the square waveform is forceful — capable of pushing metal aside to fill voids or create specific effects. At lower power and longer duration, it produces deep weld penetration with a controlled, consistent energy plateau. This is the waveform for applications where standard and triangle modes don't achieve the result you need.

No competing pulse arc welder offers this level of waveform control. It is exclusive to the Orion x-Series — and on the 200x, all three waveforms are available.

Three Agitation Modes: Shaping the Weld at the Molecular Level

Agitation adds energy peaks to the downslope of the weld current, creating a hammering and mixing effect at the weld zone. This has two primary benefits: driving out porosity that would weaken the bond, and focusing the electron stream for deeper penetration into the workpiece.

The 200x offers three agitation modes — compared to one on the 150x:

Sloped Agitation The standard agitation mode, available on both the 150x and 200x. Energy peaks taper in intensity over the downslope, adding heat and focus without overdriving the weld zone. Effective for general porosity removal and penetration improvement on most metals.

Sustained Agitation High-intensity agitation maintained consistently across the downslope. Produces the strongest hammering and mixing effect — ideal for metals where aggressive porosity removal is needed or where deeper penetration is critical. Note: sustained agitation adds energy to the weld, so slightly reducing the base energy setting is recommended when using this mode to avoid over-welding.

Negative Agitation Removes energy peaks from the downslope rather than adding them, producing a smoother, quieter weld tail. Used when the weld zone needs to cool in a controlled way — reducing spatter, minimizing surface disturbance, and producing a cleaner weld surface on delicate or highly polished workpieces.

The ability to select among three agitation modes gives the 200x operator a level of weld profile control that makes genuinely difficult metals — complex golds, platinum alloys, specialty aerospace materials — far more manageable.

Tru-Fire Technology®, WeldIQ™, and Smart Energy Release

The Orion 200x includes all three of Sunstone's core proprietary technologies — the same ones on the 150x, operating at the 200x's expanded energy range:

Tru-Fire Technology® detects electrode contact at the exact moment of workpiece touch and delivers a controlled ignition pulse — eliminating misfires that waste time and mark the workpiece. Exclusive to Orion welders.

WeldIQ™ continuously fine-tunes energy delivery to ensure what reaches the workpiece matches what was dialed in — for consistent, predictable results across different materials, positions, and weld sessions.

Smart Energy Release means the 200x delivers only the energy you set — no more. Unlike conventional welders that overshoot the requested energy level, Smart Energy Release keeps heat input exactly controlled, protecting stones, settings, and adjacent components from unintended thermal exposure.

An Integrated Workstation Designed for the Professional Bench

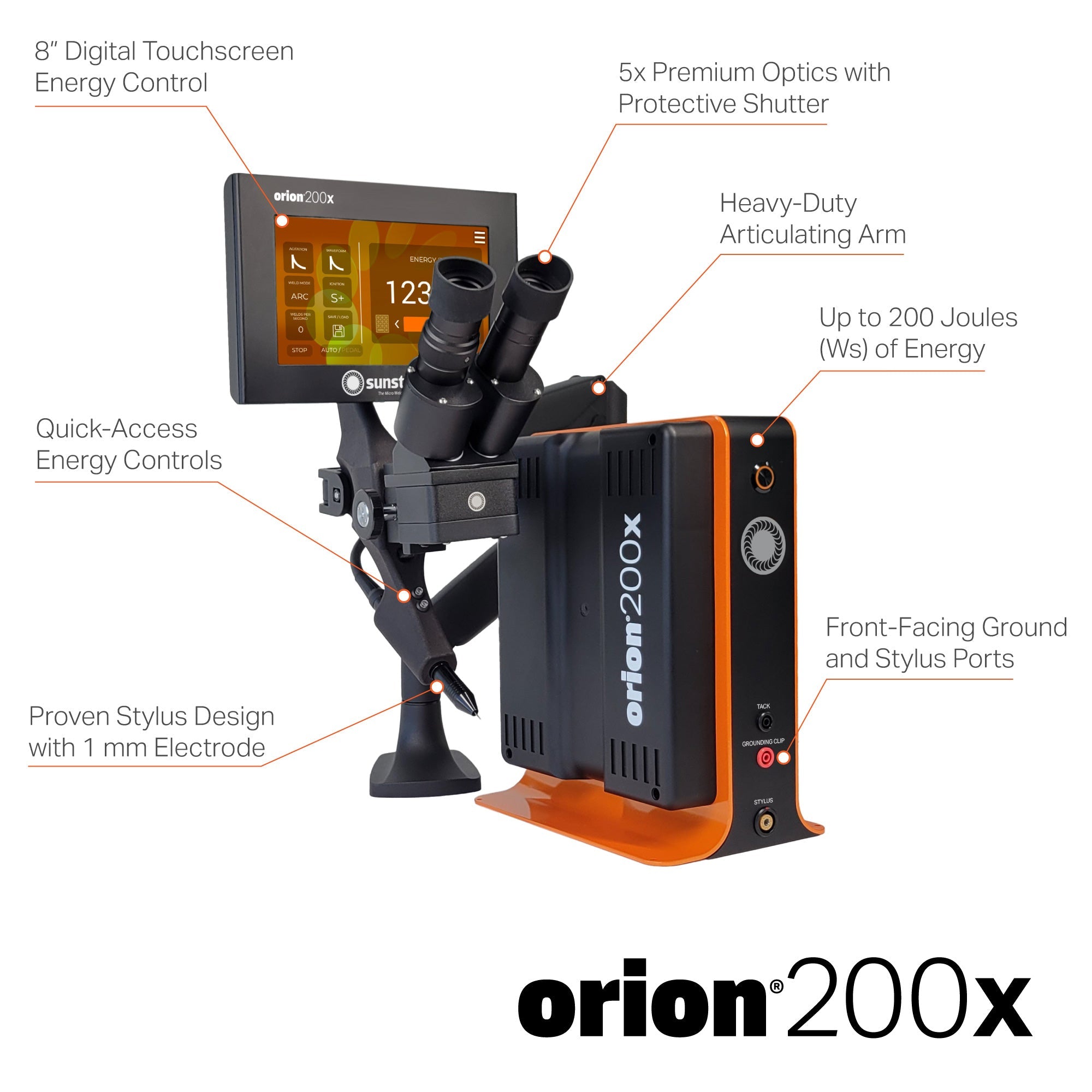

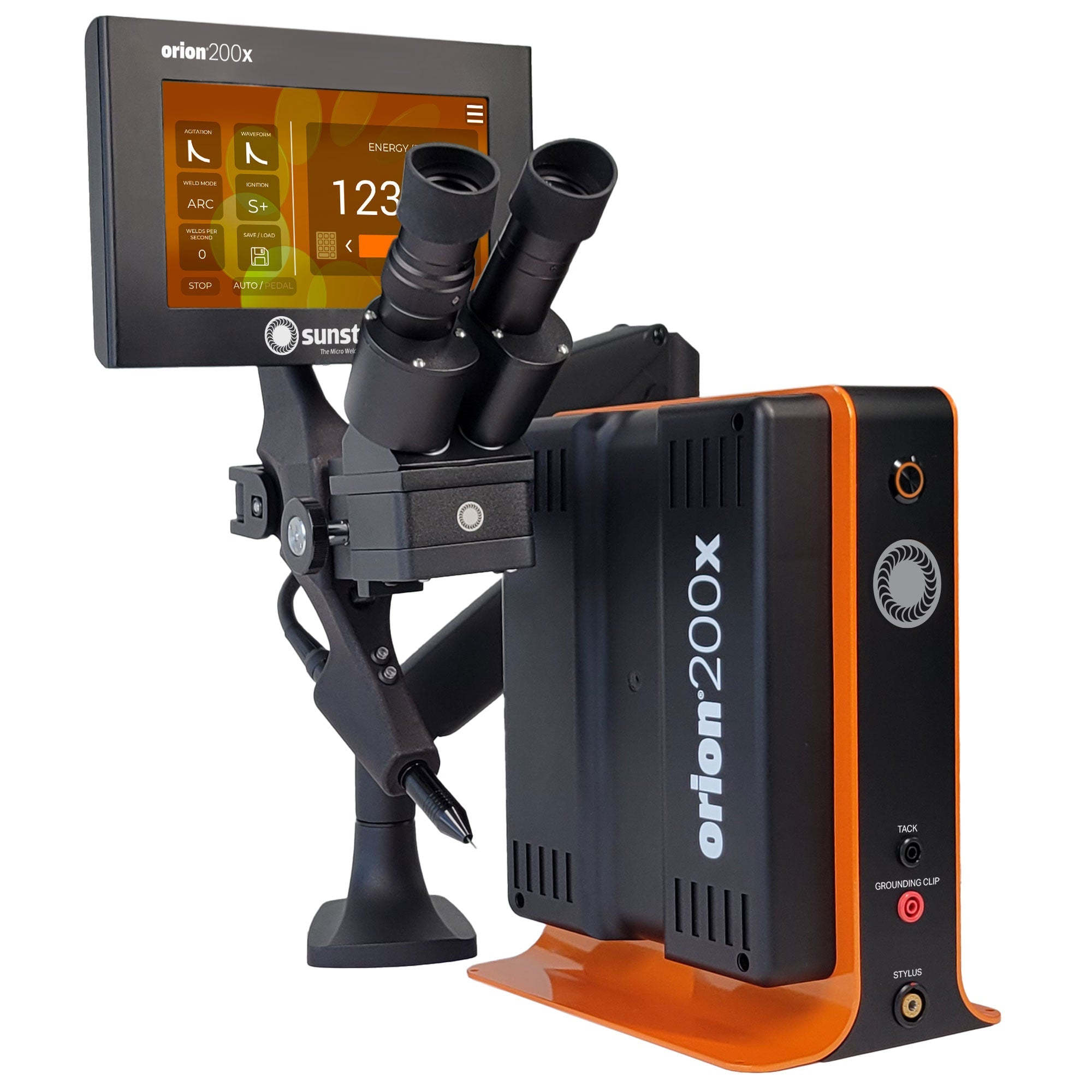

The Orion 200x mounts as a complete integrated unit — touchscreen, 5x premium microscope optics, articulating arm, and stylus — onto any bench or table. The arm swings away when not in use. The separate power supply tucks under the bench or mounts to a vertical surface, with rail attachment points for bins, tool holders, and 3D-printed organizers.

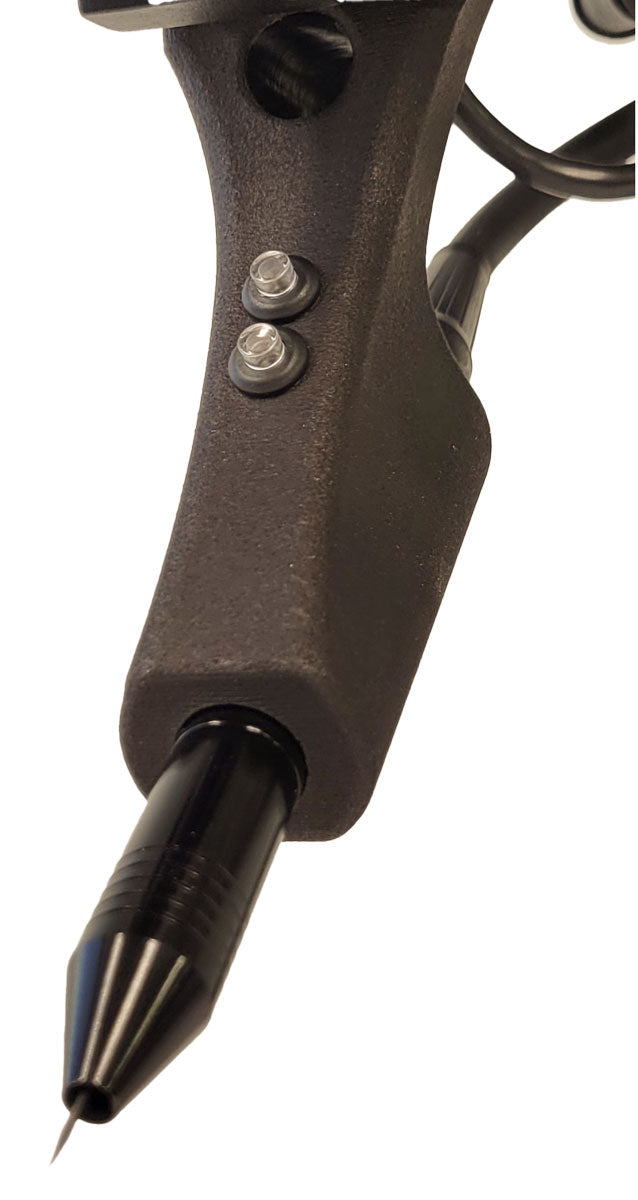

Stylus-mounted energy adjustment buttons let you increase or decrease energy without breaking your gaze from the workpiece — keeping your focus precisely where it needs to be throughout the weld sequence.

The software interface is fully customizable: pin up to 6 widgets to the home screen (double the 150x's 3), save weld schedules for every recurring application, access built-in training videos directly from the machine, choose from 20+ languages, and customize the interface background. Software is updatable via the rear USB port.

Who This Welder Is Built For

The Orion 200x is the right choice for professionals who encounter the full range of welding challenges daily — not just routine repair work. Specifically:

High-volume jewelry studios running sequential joint sealing at 4 welds per second, where throughput and consistency over a full production day both matter.

Fine art and precision metalworkers requiring weld spots below 0.5mm — the 200x reaches down to approximately 0.1mm, where the 150x cannot operate reliably.

Technicians working complex or unusual alloys — platinum, palladium, titanium, specialty aerospace materials — where waveform selection and multi-mode agitation make the difference between a clean weld and a failed one.

Dental lab professionals working on crowns, bridges, clasps, and precision frameworks where fine energy control and surface quality are non-negotiable.

Aerospace and defense fabricators working with specialized alloys and tight tolerances where every weld parameter must be precisely matched to the material.

Orion 200x vs. Orion 150x: The Decision

Choose the 150x if: your work is primarily everyday jewelry repair — ring sizing, prong retipping, metal addition, porosity filling — on standard precious metals. The 150x handles all of this with excellent precision at a meaningful price advantage.

Choose the 200x if: you need weld spots finer than 0.5mm, require waveform control for challenging alloys, need sustained or negative agitation for complex porosity or surface quality requirements, run high-volume sequential welding at 4 welds/sec, or simply want the maximum precision and control available in a pulse arc welder without compromise.

The 200x is not overkill for a professional studio — it is the right specification for a professional who takes their tools as seriously as their work.

Pulse Arc vs. Laser Welding

The Orion 200x complements a laser welder rather than replacing it. Pulse arc technology produces deeper energy penetration, creating stronger welds on most metals — particularly reflective metals like silver where laser energy tends to scatter rather than penetrate. Laser welders offer advantages in surface precision on extremely fine work and in welding through transparent materials.

Many serious studios operate both. But pulse arc welding delivers a faster return on investment than a comparable laser welder, and handles the majority of repair, fabrication, and assembly work professionals encounter daily. If you're choosing one, the Orion 200x covers more ground than any competing pulse arc welder in its class.

Made in the USA. 3-Year Warranty. Sunstone Circle Eligible.

The Orion 200x is built by American workers at Sunstone's facility and carries a 3-year manufacturer's warranty. It is eligible for the Sunstone Circle protection plan — a "forever" warranty program that includes free shipping, complimentary loaner units, and VIP service for a low monthly membership fee.

👉 Download the Orion 200x Data Sheet and Orion 200x User's Guide for full technical specifications and setup instructions.

Why Buy the Orion 200x From The Maker's Chest?

75-Day Return Window — nearly 2.5x Sunstone's own 30-day return policy. At this investment level, you deserve real time to validate the machine in your studio or lab. You have it.

Expert USA-Based Technical Support — waveform selection, agitation mode configuration, parameter optimization for specific alloys — our team knows the Orion line and can help you get the results you're after.

Dual Lines of Support — both our in-house technical team and Sunstone's own resources are available to you on a single purchase.

Authorized Sunstone Reseller — genuine product, full 3-year manufacturer warranty, backed by our additional support and return policy on top.

Frequently Asked Questions

What is the practical difference between the three waveforms on the 200x? Classic is the standard pulse arc waveform — fast rise to peak, smooth tapering downslope. It works well for most applications. Triangle peaks earlier and decreases linearly, giving independent control over weld time and peak power — useful for difficult alloys where classic mode doesn't produce the right result. Square delivers constant energy for the weld duration, then cuts off sharply — powerful at high energy for filling voids, and capable of producing very deep penetration at lower energy with longer duration. In practice, most welders start with Classic and reach for Triangle or Square when a specific material or application requires it.

What is the practical difference between the three agitation modes? Sloped agitation adds tapering energy peaks to the weld downslope — the standard mode for general porosity removal and penetration improvement. Sustained agitation maintains high-intensity peaks throughout the downslope for maximum hammering and mixing — used when a metal needs aggressive porosity treatment. Negative agitation removes energy from the downslope, producing a cooler, quieter weld tail — used for delicate or polished workpieces where surface quality matters more than penetration.

Why does the energy increment matter — 0.05J vs. 0.2J? At low energy settings, the difference between 0.05J steps and 0.2J steps is meaningful. On a 1J weld, 0.2J increments give you 5 possible settings. At 0.05J increments, you have 20. For work near heat-sensitive stones or on extremely delicate settings, that additional granularity lets you find the exact energy level that welds cleanly without thermal risk — a precision the 150x cannot provide at the fine end of the range.

Can the Orion 200x weld platinum? Yes. The 200x's waveform control and multi-mode agitation make it particularly well-suited to platinum, which is a more challenging weld metal than gold or silver. Square waveform at moderate power with sustained agitation is a common starting point for platinum work. Specific parameters depend on the alloy composition and geometry — contact our team for application-specific guidance.

Does the Orion 200x require argon gas? Argon is not required to operate the welder, but it produces significantly better results — shielding the weld zone from oxidation and producing a cleaner, stronger bond. The 200x is argon-ready with a direct connection point. For professional precious metal work, using argon is strongly recommended.

What is the Sunstone Circle and is it worth it? The Sunstone Circle is a monthly protection plan that converts the 3-year warranty into a "forever" warranty for as long as you remain a member, plus adds free shipping, complimentary loaner units, and VIP service. For a professional studio where the welder is in daily production use, the Circle plan provides meaningful protection against downtime.

What is the difference between the Orion 200x and the discontinued Orion 200i? The 200x is a complete redesign — not an incremental update. It adds the new 8" touchscreen interface, Tru-Fire Technology® arc ignition, stylus-mounted energy adjustment buttons, WeldIQ™ energy management, Smart Energy Release, the updated articulating arm design, software customization, and USB updateability. The 200i has been discontinued. If you're evaluating both, the 200x is materially more capable in every respect.

What is your return policy? 75-day returns. If the Orion 200x doesn't perform as expected in your studio or application, reach out and we'll take care of you.

Brand: Sunstone | Energy Range: 0.15–200 joules | Weld Spot: ~0.1–4.5mm | Weld Speed: Up to 4/sec | Warranty: 3 Years | Made in the USA
