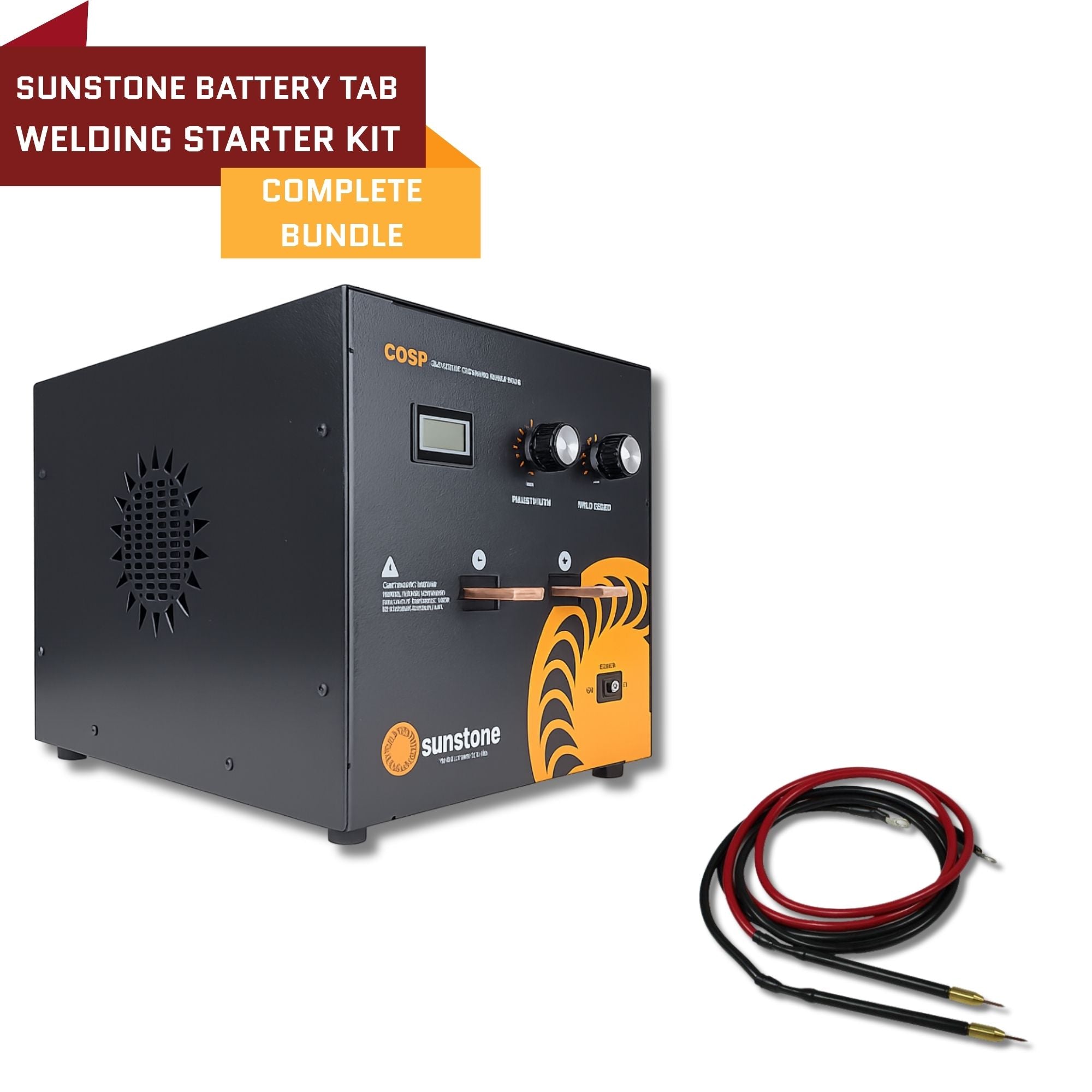

The Complete Entry-Level Battery Tab Welding Kit, Ready to Start Welding Right Out of the Box
Everything you need to begin spot-welding nickel strip battery tabs — without overbuilding for your stage of production. This bundle pairs the Sunstone CDSP single pulse capacitive discharge welder with the DPHP dual probe hand piece for a flexible, portable, and affordable battery assembly system.
Why This Bundle Exists
Buying a welder is one thing. Knowing exactly which attachment to pair with it — and why — is where most buyers lose time and money. That's the problem this bundle solves.
This combination was recommended directly by Sunstone's own team as the right starting point for battery welding. The CDSP power supply delivers precise, repeatable capacitive discharge weld energy. The DPHP hand piece delivers that energy to your workpiece through two copper electrodes placed side by side — exactly the configuration needed for parallel tab welding on battery cells.
Together, they form a complete, beginner-accessible system that's also capable enough to support genuine production work at lower volumes.
What's in This Bundle
Sunstone CDSP — Single Pulse Capacitive Discharge Spot Welder
The CDSP is the power supply at the heart of this kit. It stores electrical energy in internal capacitors and releases it in a fast, precisely controlled single pulse — independent of line voltage fluctuations. This means every weld gets the same energy, whether it's the first weld of the day or the five hundredth.
Key features:
-
Adjustable weld energy from 0.1 Ws to your model's maximum (100 Ws or 200 Ws), giving you fine-grain control over weld intensity
-
LCD display showing the exact energy setting for repeatable, documented processes
-
Audio confirmation beep when the unit is charged and ready to fire
-
Thermal protection monitoring to safeguard the unit during extended operation
- Up to 120 welds per minute throughput
- ETL, CSA, and CE safety certified
Sunstone DPHP — Dual Probe Hand Piece
The DPHP is the handheld welding attachment that connects to the CDSP and delivers weld current to your work. It features two copper electrodes mounted side by side, which means both electrodes contact the same surface — the top of your nickel strip tab. This is the standard configuration for battery tab welding: no need to access the underside of the cell, and no risk of shorting through the cell itself.
Key features:
-
Parallel electrode configuration — both probes on one side, ideal for tab-to-cell welding
- Handheld and fully portable — position it wherever you need to weld
- Includes shanks, cables, and a pair of copper electrodes
- Compatible with Sunstone CD, DC, and AC welders
Who This Bundle Is Built For
This is an entry-level system — which is not a limitation, it's a feature. Not every buyer needs a fully automated, high-volume production line. Many of the most serious users — engineers, R&D labs, universities, custom battery pack builders — need a system that's precise, controllable, and gets out of the way so they can focus on their work.
This bundle is the right fit if you are:
-
Prototyping a battery pack design and need repeatable welds to validate your assembly
-
Building custom battery packs in small to moderate quantities (power tools, EVs, energy storage, robotics)
-
Running an R&D or laboratory environment that requires a professional-grade welder without a production-scale price tag
-
New to battery tab welding and want a system that's straightforward to set up and use from day one
-
Cost-conscious and want to start with a capable foundation before scaling to more advanced equipment
Choosing Your Power Level: 100 Ws vs. 200 Ws
This bundle is available with either the 100 watt second or 200 watt second CDSP. Here's how to decide:
100 Watt Second — Best for welding thinner nickel strip tabs (approximately 0.1–0.15mm thickness) to standard 18650, 21700, or similar cylindrical cells. If your battery pack work involves light-gauge nickel strip in a prototyping or low-volume context, 100 Ws provides all the energy you need.
200 Watt Second — Best if you anticipate working with a wider variety of tab thicknesses, slightly heavier nickel strip, or want headroom to grow into more demanding applications without replacing your power supply. The 200 Ws covers everything the 100 Ws does — with more range when you need it.
Not sure which to choose? Our technical team is available to help you decide based on your specific materials and application.
What's Included
Every bundle ships tested, inspected, and ready to set up:
CDSP Welder includes:
- Foot pedal (hands-free weld trigger)
- Weld cable bolts
- Power cord
- User manual and safety manual
DPHP Hand Piece includes:
- Dual probe hand piece body
- Weld cables
- Copper electrode shanks
- One pair of copper electrodes
Choosing Your DPHP Hand Piece Variant
This bundle includes the DPHP in two configurations. Both are fully compatible with the CDSP welder — the difference comes down to your tab material and how hard you plan to run the system.
Standard — the default choice for most buyers in this bundle. Matched to the 100 Ws CDSP and standard nickel strip tab welding on cylindrical cells like 18650s and 21700s. If you're prototyping a battery pack design, building custom packs in small quantities, or simply getting started with tab welding, this is the right pick. It handles the most common tab materials and thicknesses without overbuilding for a setup at this power level.
Low Power — the right step up if you're pushing harder. A better fit if you're pairing with the 200 Ws CDSP, working with slightly thicker nickel strip, or anticipate running the system at higher duty cycles for sustained production. The heavier cable and larger shank handle more current without stress on the attachment.
Still not sure? Default to Standard. It covers the overwhelming majority of what this bundle is designed to do — and our technical team is available if you want to talk through your specific materials before ordering.
Why Buy This Bundle From The Maker's Chest?
You could purchase the CDSP and DPHP separately from Sunstone directly, or from another reseller. Here's what you get when you buy the bundle here:
Bundle pricing — buying these two components together through us is priced as a complete system, not two line items.
75-Day Return Window — one of the most generous return policies in the industry. If this system doesn't work for your application, you have 75 days to return it — more than double what Sunstone offers direct (30 days).
Expert USA-Based Technical Support — our team knows this equipment. When you have a setup question or a weld parameter challenge, you're talking to someone who can actually help.
Dual Lines of Support — you have access to both our in-house support team and Sunstone's own technical resources. Two channels, one purchase.
Authorized Sunstone Reseller — genuine product, full manufacturer warranty, backed by our additional support layer.
Frequently Asked Questions
What is battery tab welding and why do you use resistance spot welding for it? Battery tab welding is the process of bonding a thin metal strip (usually nickel) to the positive or negative terminal of a battery cell, connecting individual cells into a pack. Resistance spot welding — and capacitive discharge welding specifically — is preferred because the weld is made in milliseconds, delivering almost no heat to the cell itself. Soldering, by contrast, applies sustained heat that can degrade the cell's internal chemistry and shorten its life.
What does "dual probe" mean on the DPHP hand piece? The DPHP has two electrodes positioned side by side, both on the same side of the workpiece. When you press the hand piece onto a nickel strip tab sitting on top of a battery cell, both electrodes contact the top surface of the strip. Current flows from one electrode, through the strip, and back up through the other electrode — making two parallel weld spots simultaneously. This allows you to weld tabs without ever touching or accessing the bottom of the cell.
What thickness of nickel strip can this system weld? The 100 Ws CDSP is well-suited for nickel strip in the 0.1–0.15mm range, which covers the most common tab materials for 18650 and 21700 cell packs. The 200 Ws version handles a wider range. If you're unsure whether your material is within range, contact our team before purchasing.
Is this bundle appropriate for 18650 battery pack assembly? Yes. The CDSP + DPHP combination is one of the most common setups used for 18650 tab welding. The parallel electrode configuration of the DPHP is specifically designed for this type of application.
Can I upgrade this system later if my production needs grow? Yes. The CDSP is a standalone power supply compatible with a range of Sunstone weld heads and attachments. If you need to move to a weld head, a higher-energy power supply, or a more automated configuration later, the CDSP can be repurposed or traded up. Our team can advise on upgrade paths when you're ready.
Does this system work for welding lithium polymer (LiPo) or prismatic cells as well? The CDSP + DPHP setup can be used on various cell formats where the tab is accessible from one side. Cylindrical cells (18650, 21700, etc.) are the most common application. For pouch or prismatic cells, the geometry of the tab connection may affect the ideal electrode configuration — contact our team if you're working with a non-standard cell format.
What's the difference between this bundle and a more advanced Sunstone system? This bundle uses a single pulse power supply and a handheld attachment — ideal for flexible, lower-volume work. More advanced Sunstone systems (like the CDDP dual pulse welders paired with automated weld heads) add features like dual-pulse for cleaner welds on contaminated surfaces, weld monitoring, higher cycle rates, and PLC integration for full production automation. This bundle is the right starting point; those are the right next steps.
What's your return policy? 75-day returns. If the system doesn't work for your application, reach out and we'll take care of you.
Bundle includes: Sunstone CDSP Single Pulse CD Spot Welder + Sunstone DPHP Dual Probe Hand Piece Brand: Sunstone | Certifications: ETL, CSA, CE (CDSP welder)
