One Machine. Two Laser Technologies. Your Call.

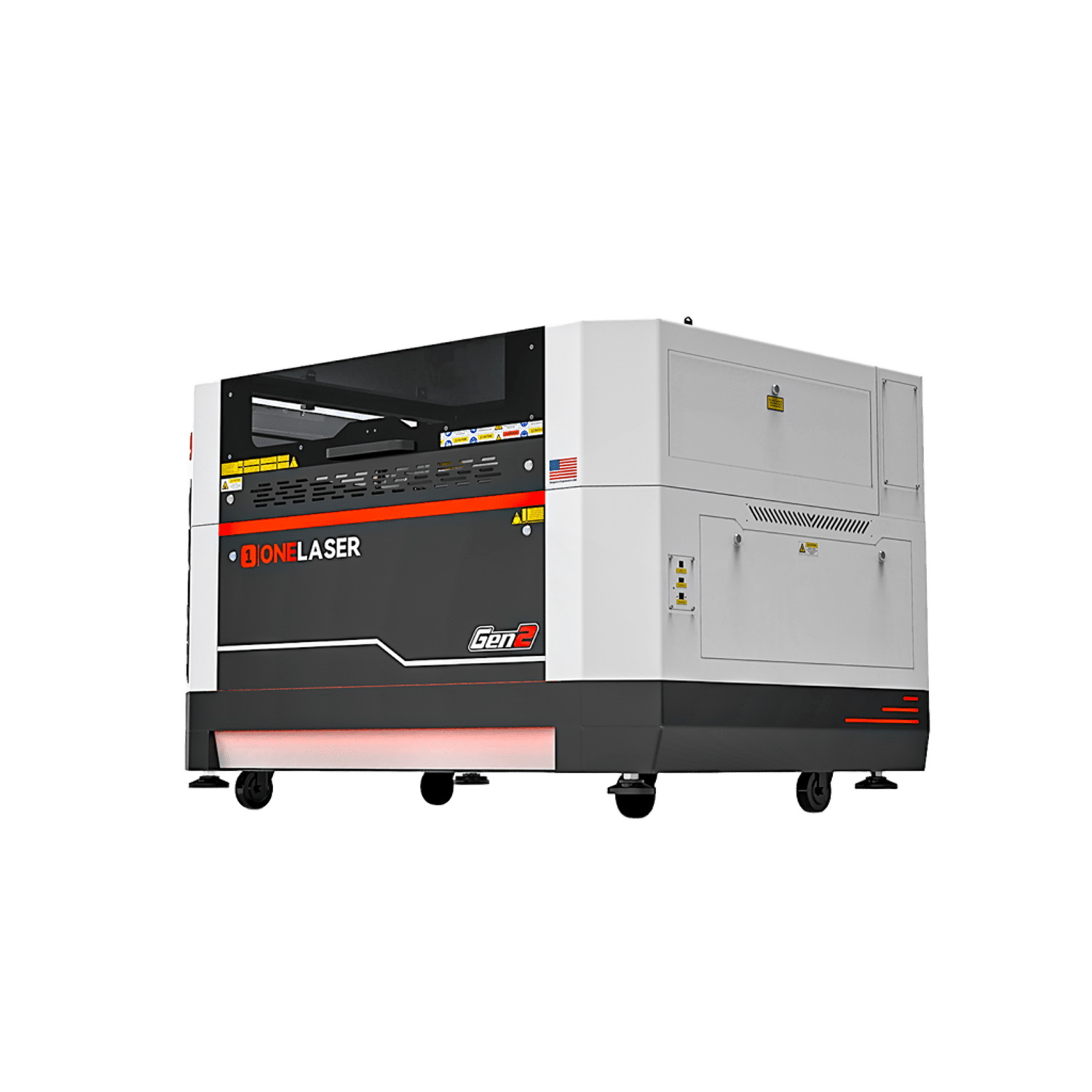

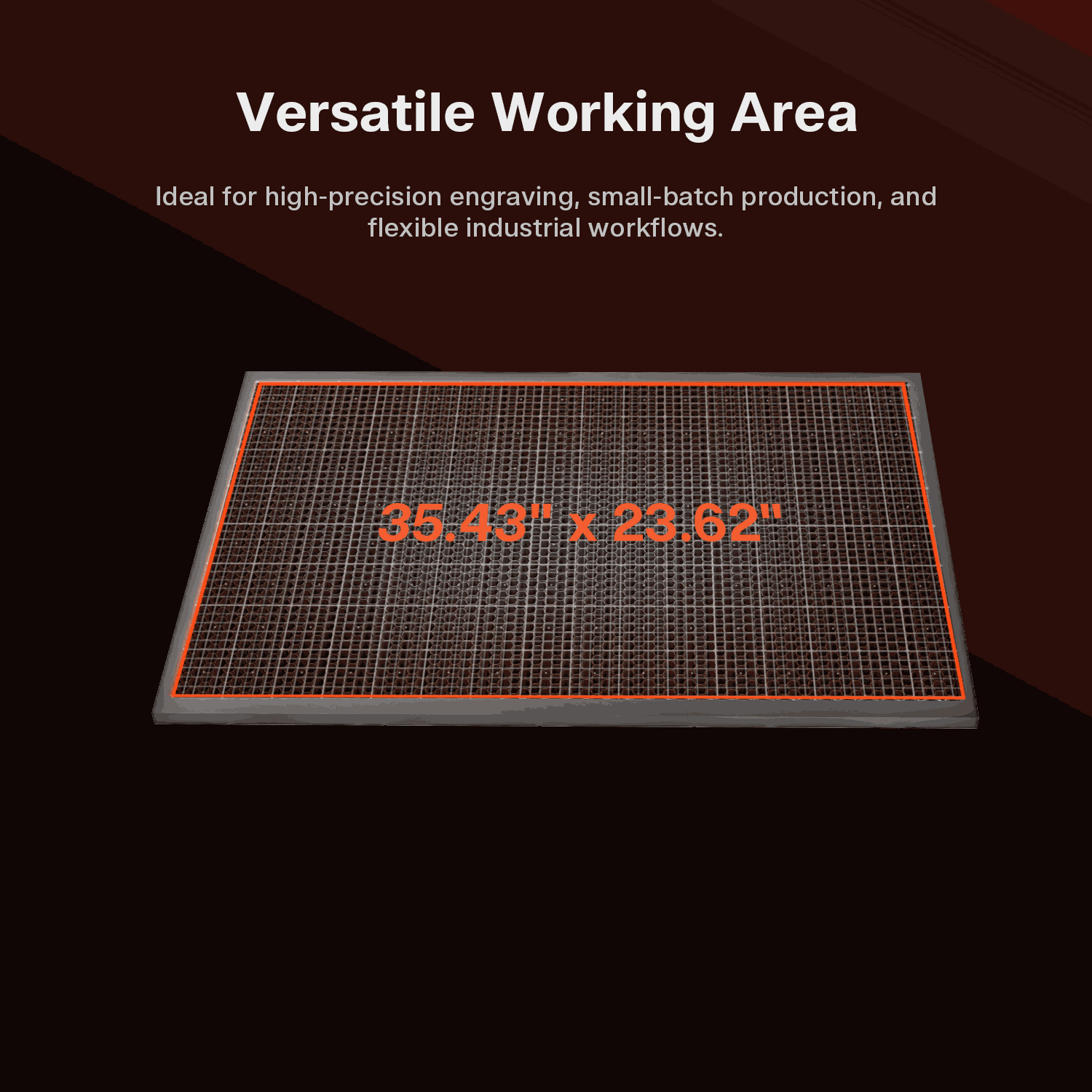

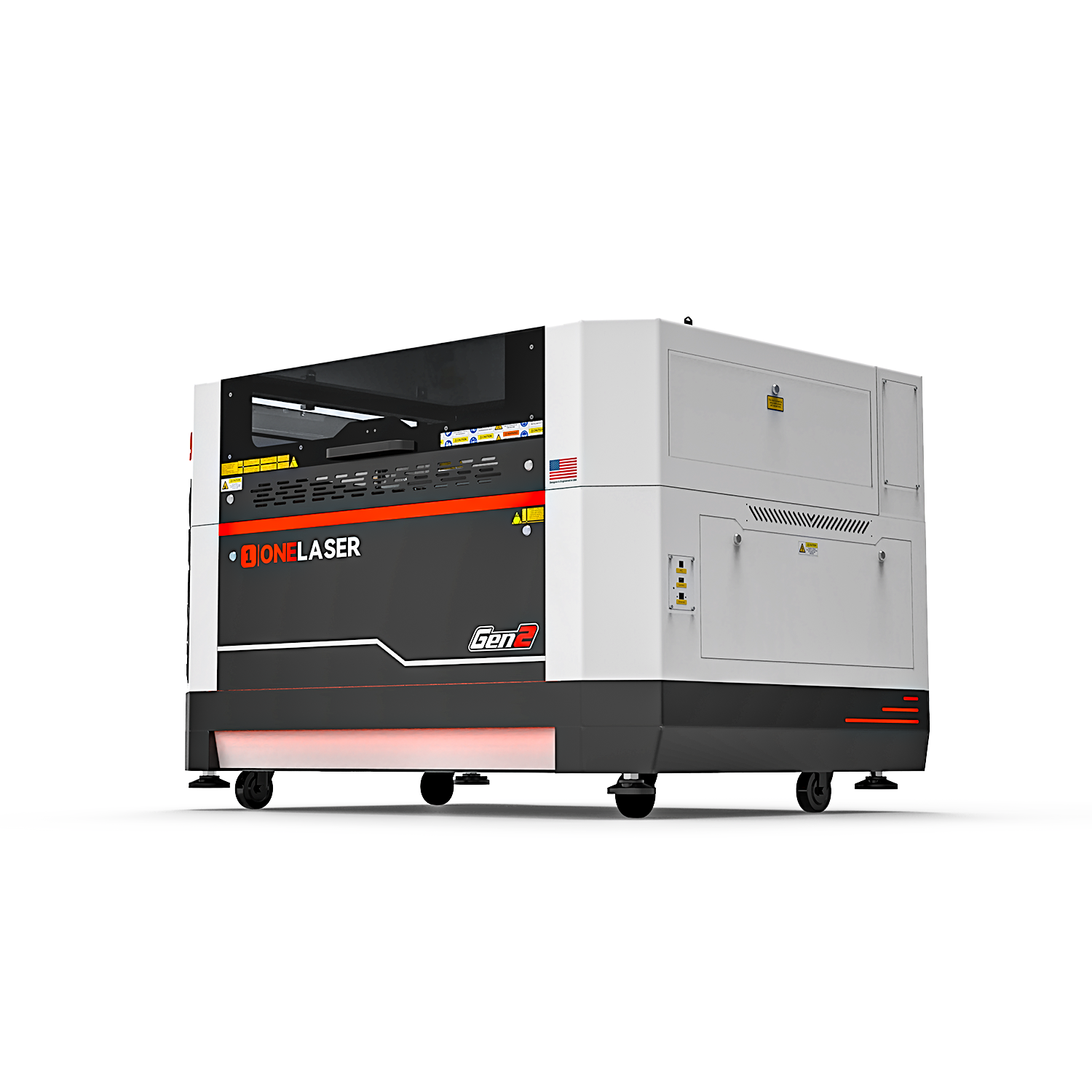

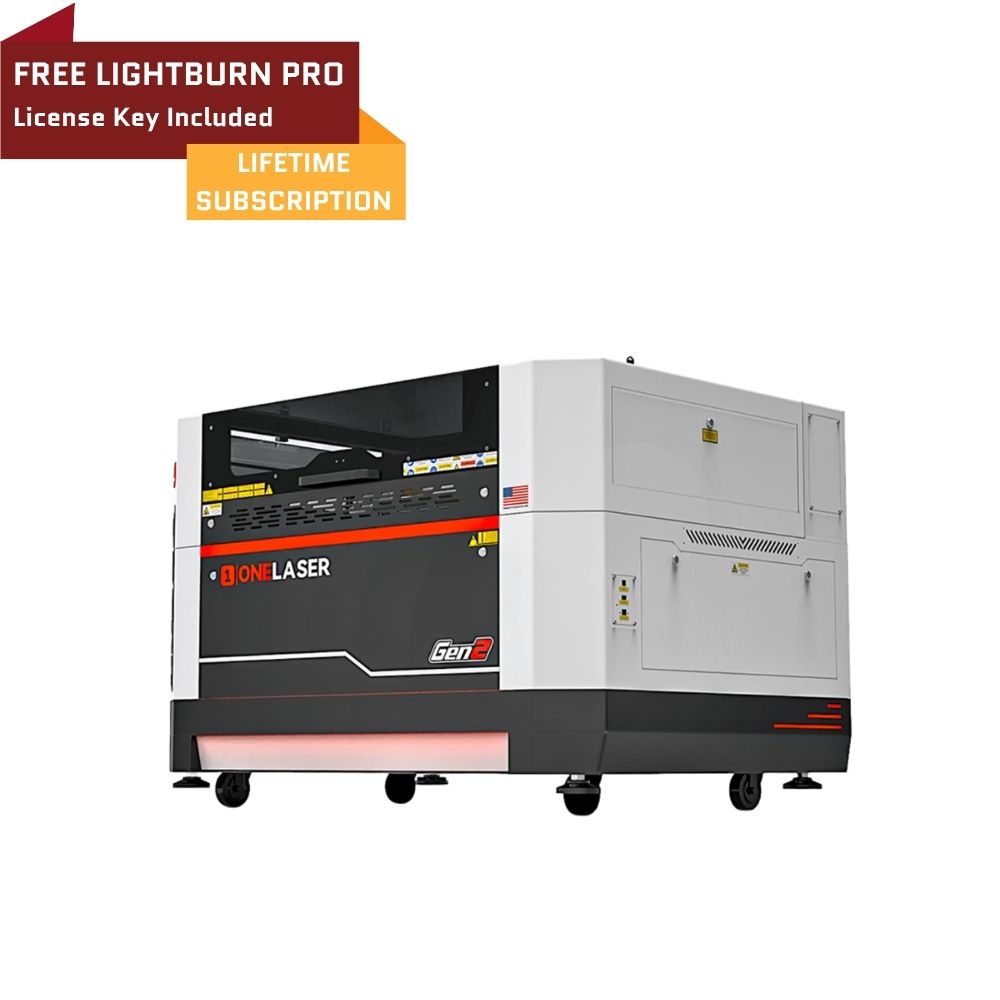

The OneLaser Hydra 9 delivers 35.43" × 23.62" (900 × 600mm) work area, 2,000 mm/s speed at 4G acceleration, and a choice between a pure 70W RF configuration or a 38W RF + 100W CO2 hybrid — the Hydra 9 Gen 2 is where growing shops stop choosing between engraving precision and cutting power and get both in one machine.
Compatible Materials:
|
![]()
Wood
|
MDF / Plywood
|
Leather
|
Dark Plastics
|
Fabric
|
Stone
|
Most laser buyers eventually hit a tradeoff: RF technology gives you sharper detail and no chiller to maintain, while CO2 gives you more raw cutting power at a given price point. The OneLaser Hydra 9 Gen 2 removes that tradeoff by offering both in a single chassis — a 70W RF-only "Pro" configuration, or a 38W RF + 100W CO2 "Hybrid" configuration that switches between the two laser sources within a single job, on a 900 × 600mm bed sized for real production runs.
2,000 mm/s and 4G Acceleration — Consistent Regardless of Configuration
Whichever configuration you choose, the Hydra 9 Gen 2 runs the same 2,000 mm/s top speed with 4G acceleration — roughly double the speed and acceleration of a typical CO2 glass-tube machine at this bed size. That acceleration is what lets the machine actually reach its rated speed on detailed, non-straight-line paths instead of spending most of the job decelerating and reversing.
Hybrid or Pro — Choosing Your Configuration
-
Hydra 9 Hybrid (38W RF + 100W CO2): OneLaser's patented multi-laser intelligent switching system lets a single job call on both laser sources — RF for sharp detail engraving, CO2 for efficient cutting — without manually swapping machines or setups. Useful for shops running mixed jobs that need both fine detail and thicker material cutting.
-
Hydra 9 Pro (70W RF only): A pure RF configuration for shops prioritizing engraving precision, chiller-free operation, and long tube life over CO2's raw cutting power.
Neither configuration is a "lesser" version of the other — they're built for different production priorities, and our team can help you figure out which one actually fits your job mix before you order.
RF Clarity and Long Tube Life

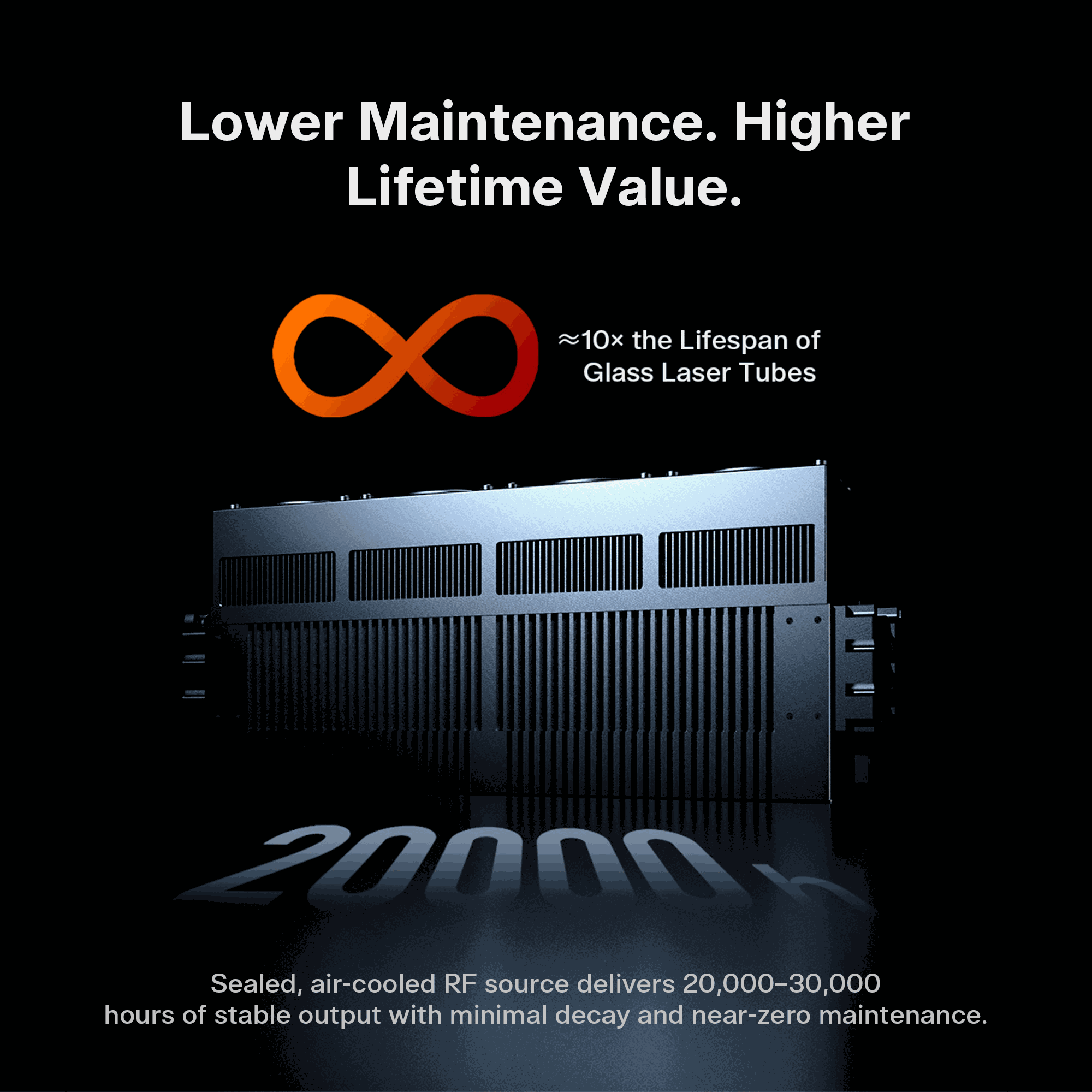

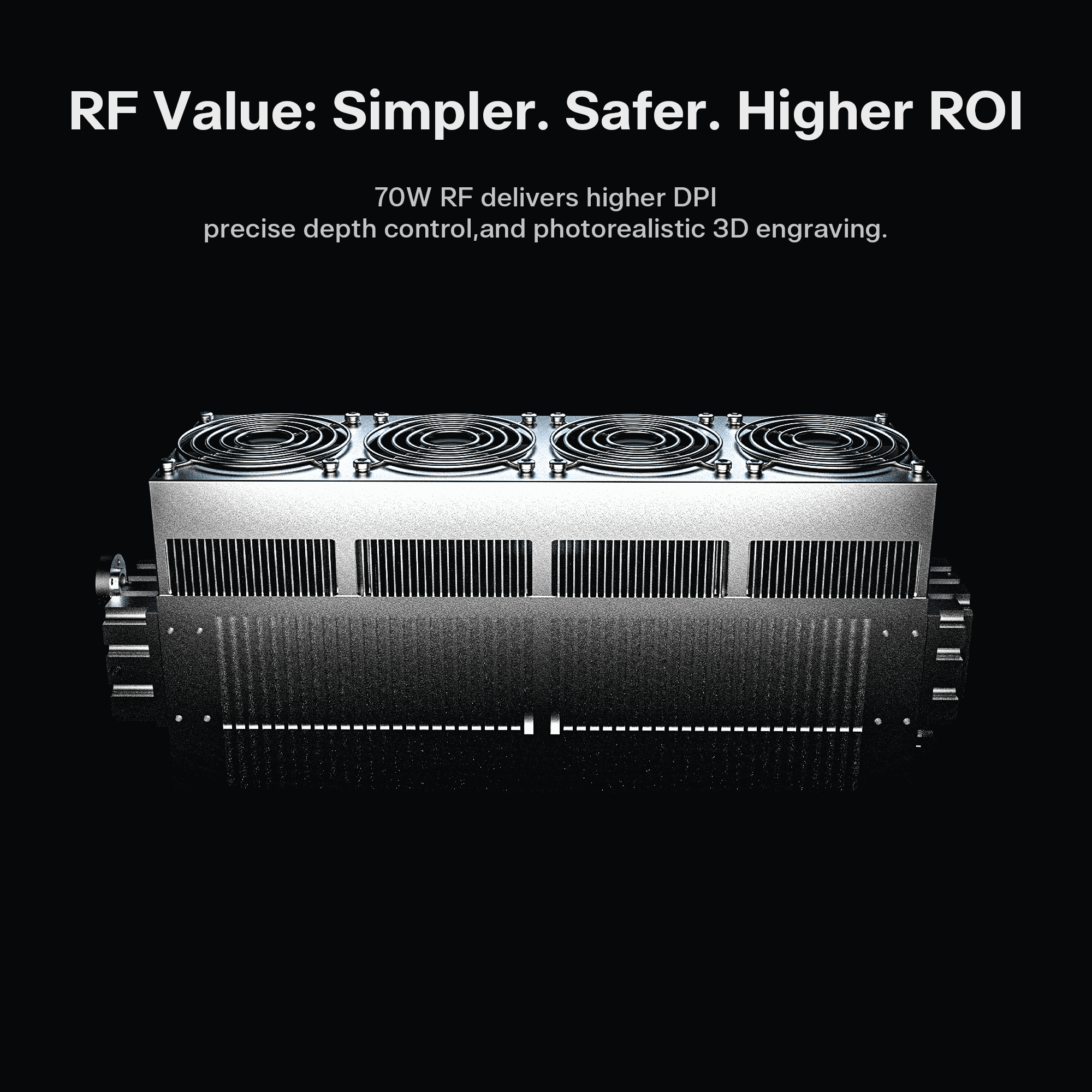

The RF laser source (standard on Pro, included in the Hybrid) delivers ultra-sharp detail and consistent depth thanks to a tighter beam spot than a comparable CO2 tube, and is rated for a 20,000–30,000 hour lifespan — no water chiller required for the RF portion of either configuration. If you select the Hybrid configuration, the CO2 side of the machine does require a water chiller; the RF-only Pro configuration does not.

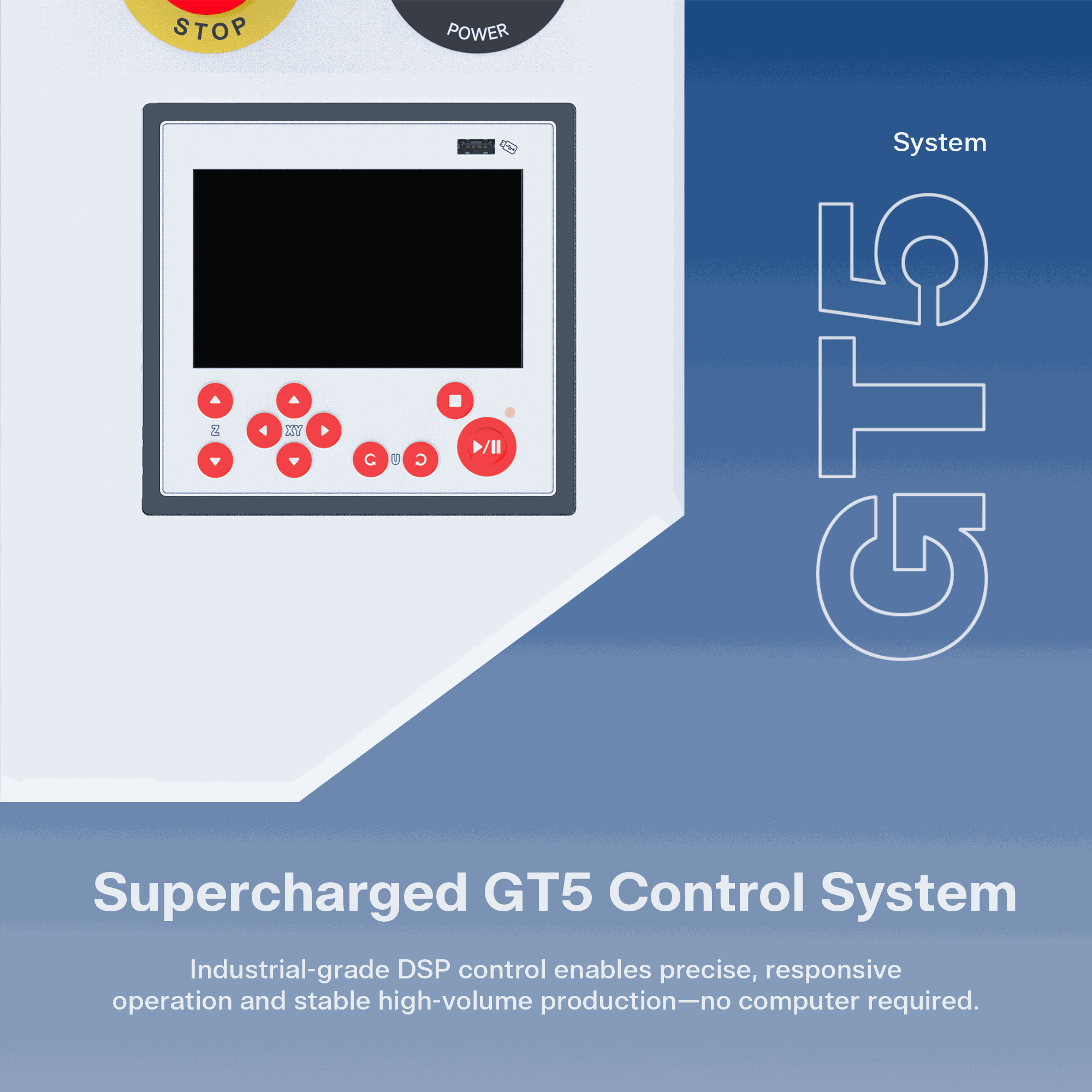

GT5 DSP Control System — Offline, Industrial-Grade Operation
The GT5 DSP control system provides an industrial touchscreen interface with offline operation, letting the Hydra 9 Gen 2 run a production queue without staying tethered to a computer.
Autofocus, Red-Dot Positioning, and Servo-Driven Precision
-
Autofocus: Automatic Z-axis focusing removes manual height adjustment between materials.
-
Red-Dot Positioning: Shows the exact optical path before the job starts for accurate alignment.
-

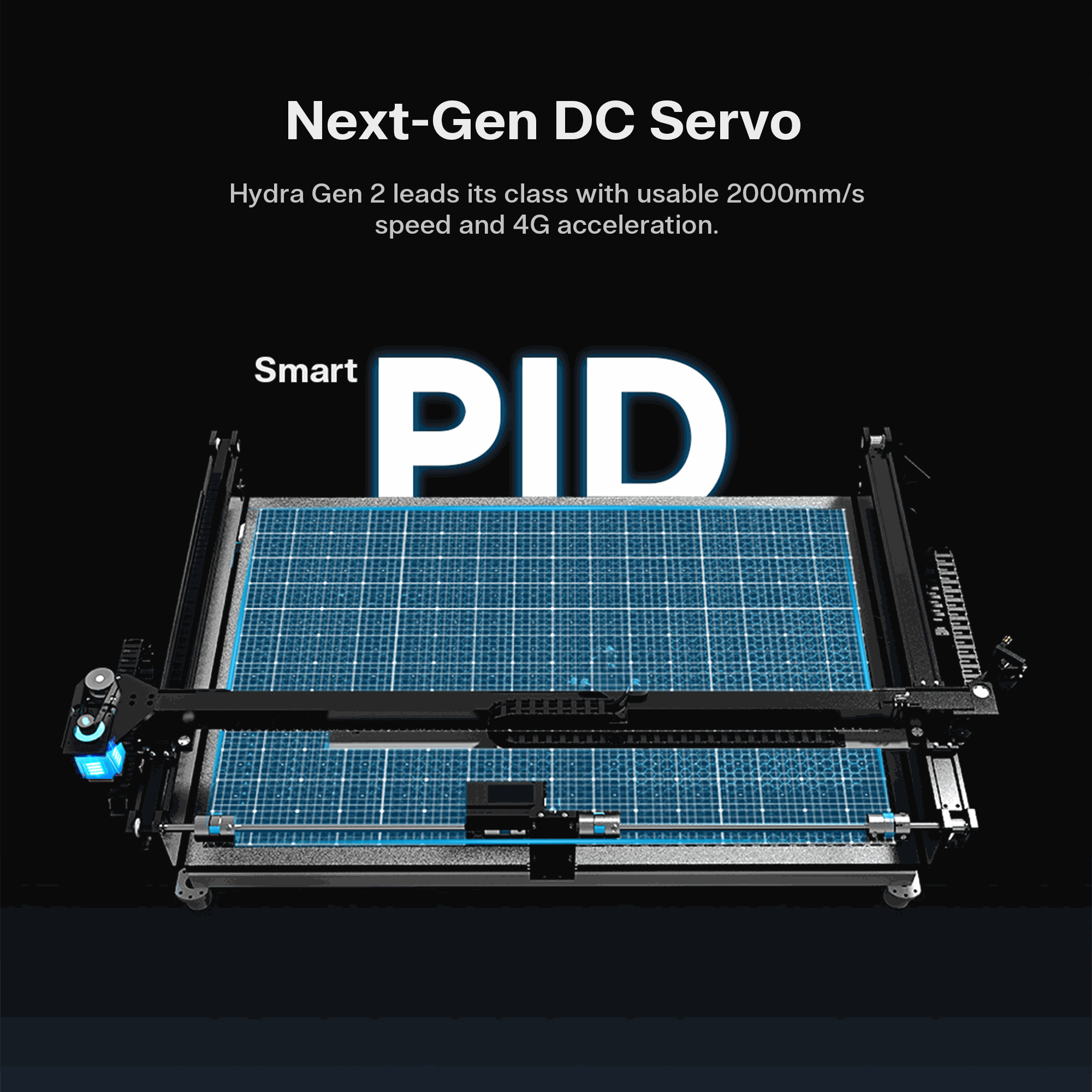

Servo-Driven Engraving: Closed-loop PID feedback prevents the missed steps and partial distortion that can occur with open-loop stepper motor systems, especially on longer or more detailed jobs.
Smart Dual Air-Assist and Real-Time Lens Protection

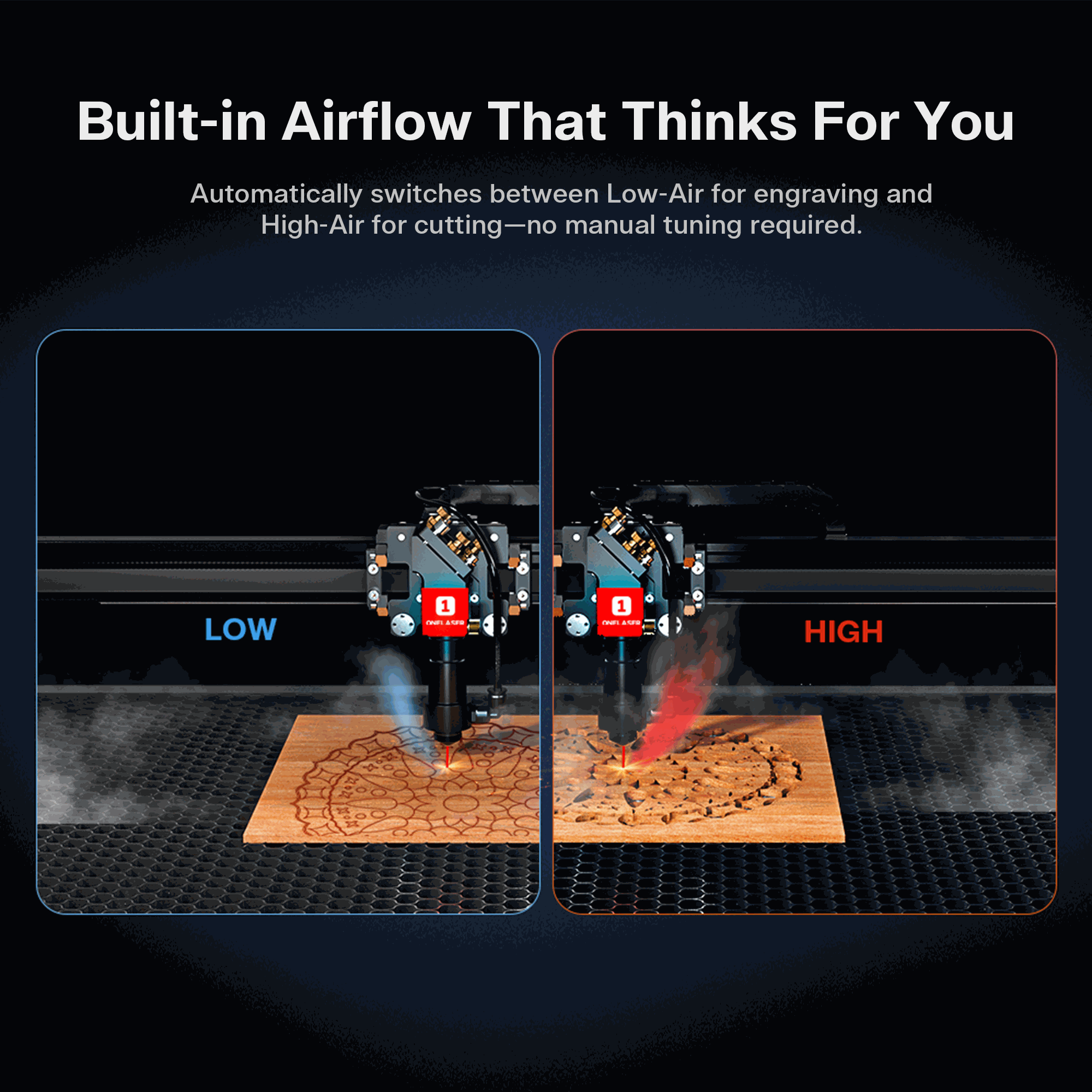

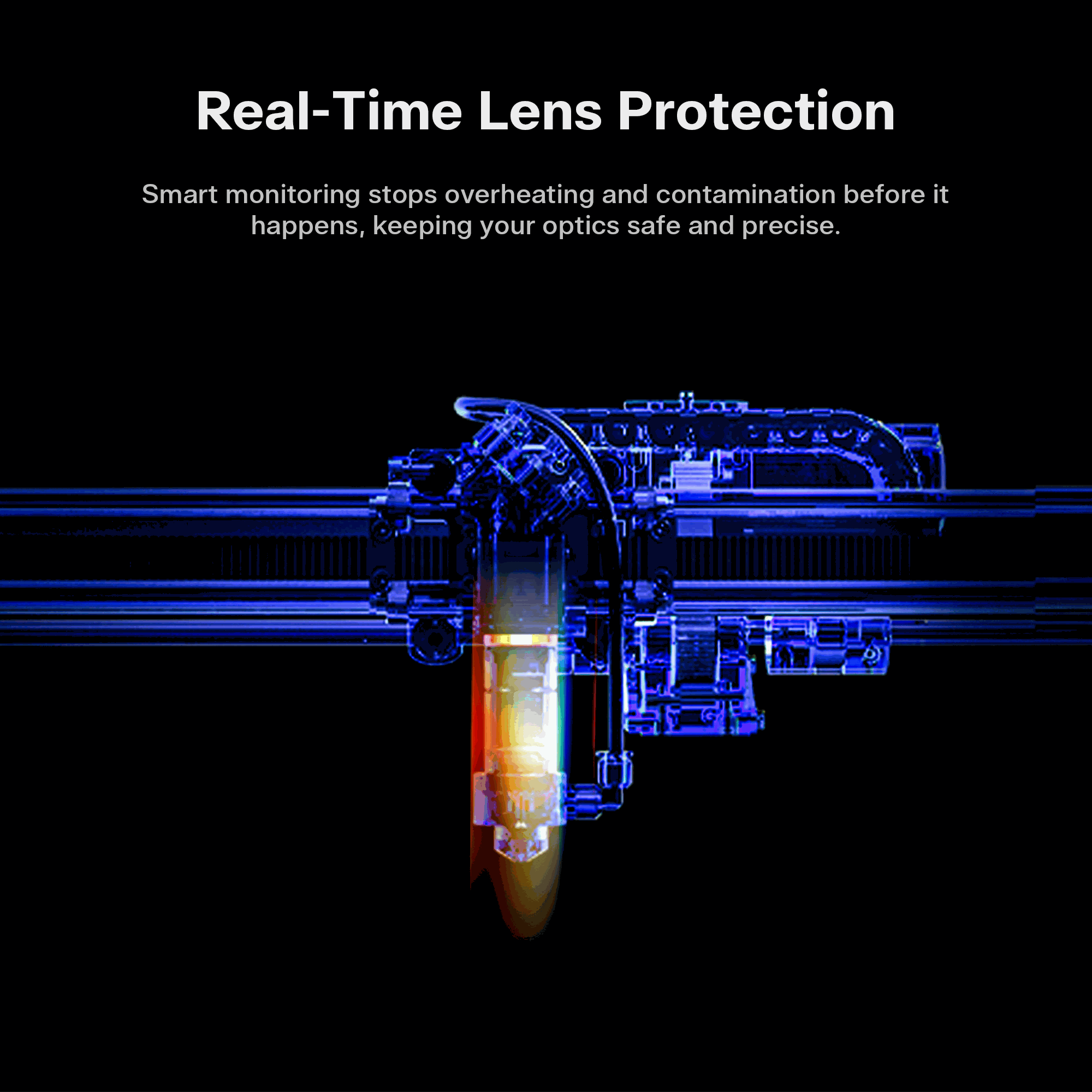

The Smart Dual Air-Assist system automatically switches between gentle airflow for detail engraving and stronger airflow for cutting, without manual adjustment. Real-time lens protection monitors lens temperature during operation to prevent overheating and extend optics life.

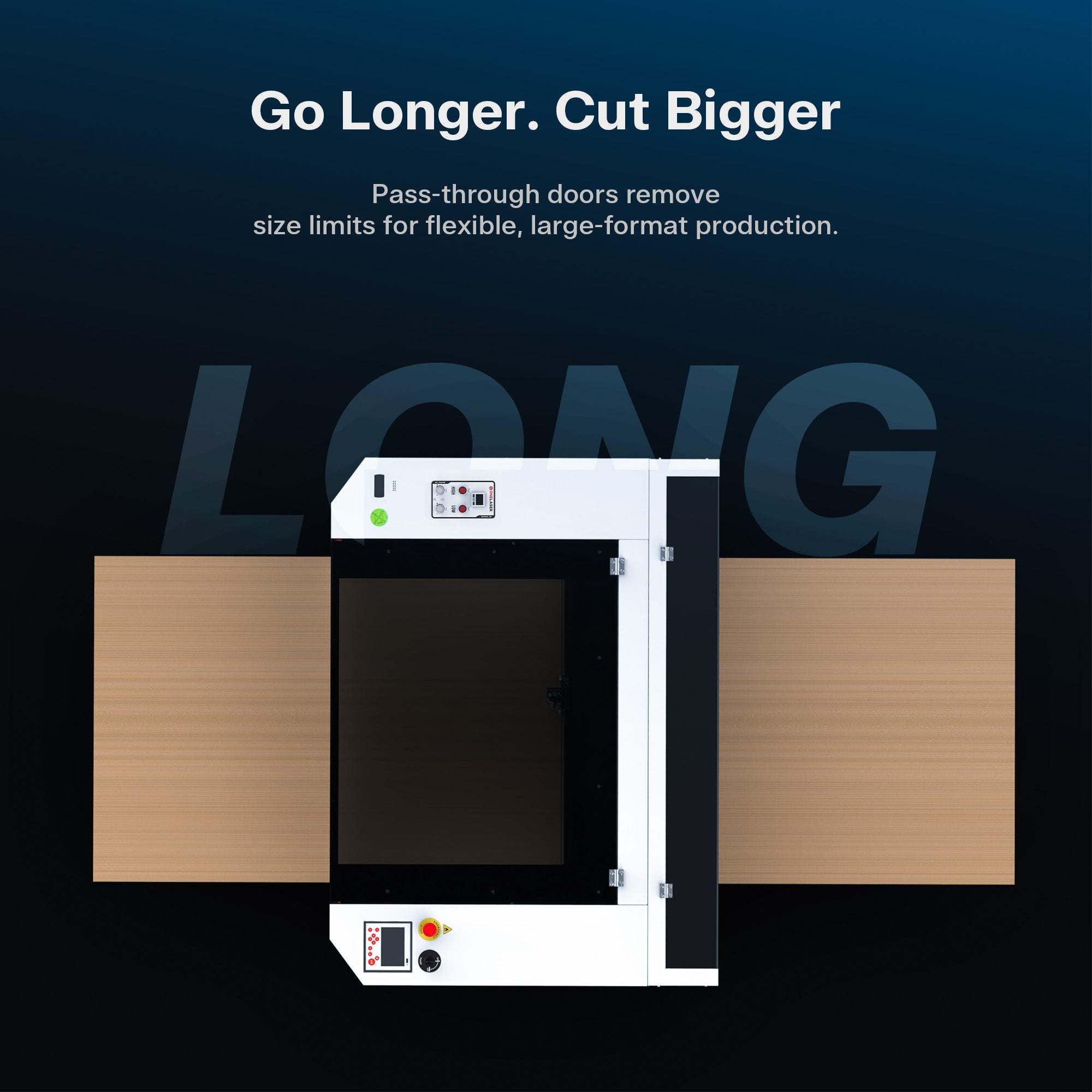

Front-to-Back Pass-Through for Long Material
A front-to-back pass-through design lets material longer than the bed feed straight through the cabinet, rather than being limited to the enclosed work area.

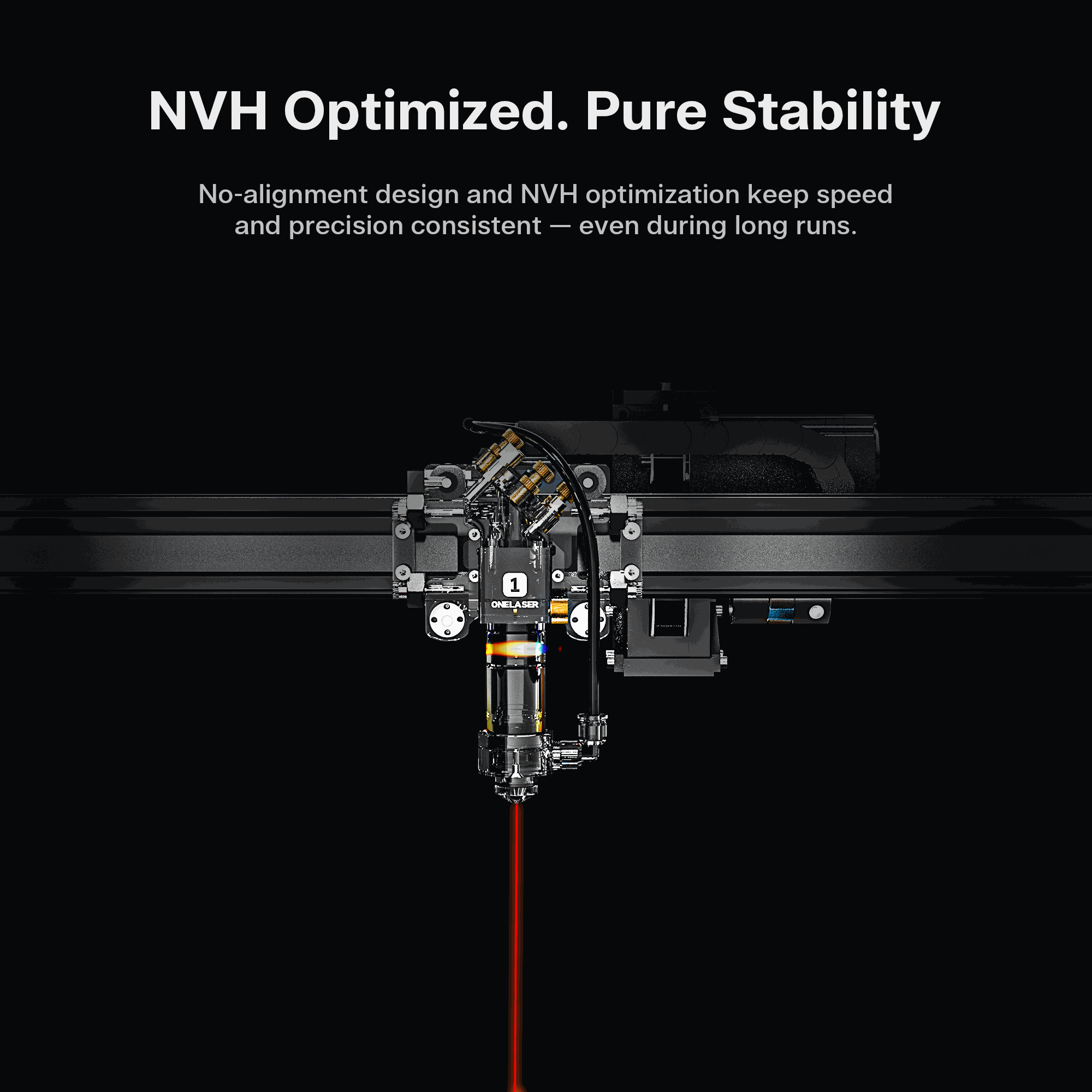

NVH-Optimized Frame and Real-Time Temperature Monitoring
The frame is NVH-optimized for stable motion at high speed, and a built-in temperature monitoring system triggers an alarm and automatic shutoff if operating conditions move outside safe parameters.
What's in the Box
- OneLaser Hydra 9 Gen 2 laser engraver/cutter unit (Hybrid or Pro configuration, per your selection)
- Fixed worktable
- Focusing lens
- Air-assist nozzle and accessories
- Power cord and setup documentation
Note: The RF-only Pro configuration does not require a water chiller. If you select the RF+CO2 Hybrid configuration, a water chiller is required for the CO2 laser source and is sold separately — confirm current chiller requirements with our team before ordering.
Warranty, Support & Made in USA Engineering
The OneLaser Hydra 9 Gen 2 is backed by a 3-year manufacturer's warranty on the laser engraving machine, covering defects in materials and workmanship under normal use. OneLaser's machines are engineered by a 100% U.S.-based team, with nationwide on-site service available across the U.S.
The Maker's Chest Difference
The OneLaser Hydra 9 Gen 2 is available directly from OneLaser and through other resellers. Here's what changes when you buy it through The Maker's Chest:
- 🛡️ 75-day returns — more than double OneLaser's standard 30-day direct return window. That's real time to run the Hydra 9 Gen 2 through your actual production before you're locked in.
- 💻 A free LightBurn Pro license included — a $199 value, activated and ready to go. OneLaser doesn't include this when you buy direct, so you're not stuck running the 30-day trial or paying out of pocket to get the machine working.
- 🇺🇸 Expert USA-based technical support — our team can help with configuration questions, setup, and workflow, on top of whatever OneLaser's own support provides.
- 📞 Dual lines of support — phone and email, so you have a direct path to a real person when you need it.
- 🔧 Honest pre-sale guidance — not sure if Hybrid or Pro is right for your job mix, or whether the Hydra 9's bed size fits your production? Talk to us before you order and we'll help you decide based on your actual materials and volume.
As an industrial-scale machine, freight shipping for the Hydra 9 Gen 2 is calculated separately at checkout based on your delivery location — this is standard for machines of this size and weight class.
Hydra 7 vs. Hydra 9 vs. Hydra 13 vs. Hydra 16 — Choosing Your Bed Size
|
Hydra 7 |
Hydra 9 |
Hydra 13 |
Hydra 16 |
| Work Area |
27.56"×19.69" (700×500mm) |
35.43"×23.62" (900×600mm) |
51.18"×35.43" (1300×900mm) |
62.99"×39.37" (1600×1000mm) |
| Laser Configuration |
70W RF only |
70W RF or 38W RF + 100W CO2 hybrid |
70W RF or 38W RF + 130W CO2 hybrid |
70W RF or 38W RF + 150W CO2 hybrid |
| Max Speed / Acceleration |
2,000 mm/s / 4G |
2,000 mm/s / 4G |
2,000 mm/s / 4G |
2,000 mm/s / 4G |
| RF Tube Lifespan |
20,000–30,000 hrs |
20,000–30,000 hrs |
20,000–30,000 hrs |
20,000–30,000 hrs |
| Water Chiller Needed |
No (RF only) |
No, unless CO2 hybrid selected |
No, unless CO2 hybrid selected |
No, unless CO2 hybrid selected |
Choose the Hydra 9 if a 900×600mm bed fits your typical job size and you want the flexibility to choose between RF-only simplicity and RF+CO2 hybrid power.
Choose the Hydra 7 if your bed needs are smaller and RF-only simplicity is enough. Choose the Hydra 13 or 16 if you need a larger bed for bigger batch runs or large-format work.
Frequently Asked Questions about the OneLaser Hydra 9 Gen 2
Q: What's the difference between the Hydra 9 Hybrid and Hydra 9 Pro configurations? A: The Pro configuration runs a single 70W RF laser source — simpler, chiller-free, and focused on precision engraving. The Hybrid configuration adds a 100W CO2 laser alongside a 38W RF source, using OneLaser's multi-laser switching system to call on either source within the same job. The Hybrid needs a water chiller for its CO2 side; the Pro doesn't need one at all.
Q: Does the Hydra 9 need a water chiller? A: Depends on configuration. The Pro (70W RF-only) doesn't need one. The Hybrid (RF+CO2) does need a chiller for its CO2 laser source, sold separately — confirm current chiller requirements with our team before ordering.
Q: What's the actual difference between the Hydra 7 and Hydra 9? A: Bed size mainly — 700×500mm on the Hydra 7 versus 900×600mm on the Hydra 9 — plus configuration flexibility. The Hydra 7 is RF-only with no hybrid option, while the Hydra 9 lets you choose between RF-only (Pro) and RF+CO2 (Hybrid) at the time of purchase.
Q: What materials can the Hydra 9 handle? A: Wood engraving, acrylic cutting, leather patches, glass engraving, coated metal marking, signage, and rotary engraving on tumblers and bottles with an optional rotary attachment. Bare, uncoated metal requires the separate Q-Switch Fiber upgrade, currently listed by OneLaser as a future release and not yet purchasable.
Q: Is 2,000 mm/s achievable in real production, not just on a spec sheet? A: Yes — backed by 4G acceleration, which is what lets the machine reach that speed on real, detailed paths rather than spending most of a job decelerating and re-accelerating. That's roughly double the speed and acceleration of typical CO2 glass-tube machines at a comparable bed size.
Q: What's the Hydra 9's warranty, and what does it cover? A: 3 years on the laser engraving machine, covering defects in materials and workmanship under normal use and service. It doesn't cover damage from misuse, unapproved modifications, or normal wear on consumables.
Q: Why buy the Hydra 9 from The Maker's Chest instead of directly from OneLaser? A: Our 75-day return window is more than double OneLaser's 30-day direct policy — meaningful here given you're also deciding between two configurations. You also get a free LightBurn Pro license (a $199 value) included at no extra cost — something OneLaser doesn't include when you buy direct — plus USA-based expert support by phone and email, and honest guidance on whether Hybrid or Pro actually fits your job mix.
Q: Can I switch from Pro to Hybrid (or add CO2) after I buy the RF-only version? A: Configuration is selected at time of purchase and reflects a different hardware build (the Hybrid includes a second CO2 laser source and chiller connection). If you're unsure which you'll need long-term, talk to our team before ordering rather than assuming you can upgrade later.
Q: What's in the box, and does it include a water chiller? A: The unit, worktable, focusing lens, and air-assist accessories ship standard. A water chiller is not included with either configuration purchase by default — it's required (and sold separately) only if you select the Hybrid configuration's CO2 laser source.
