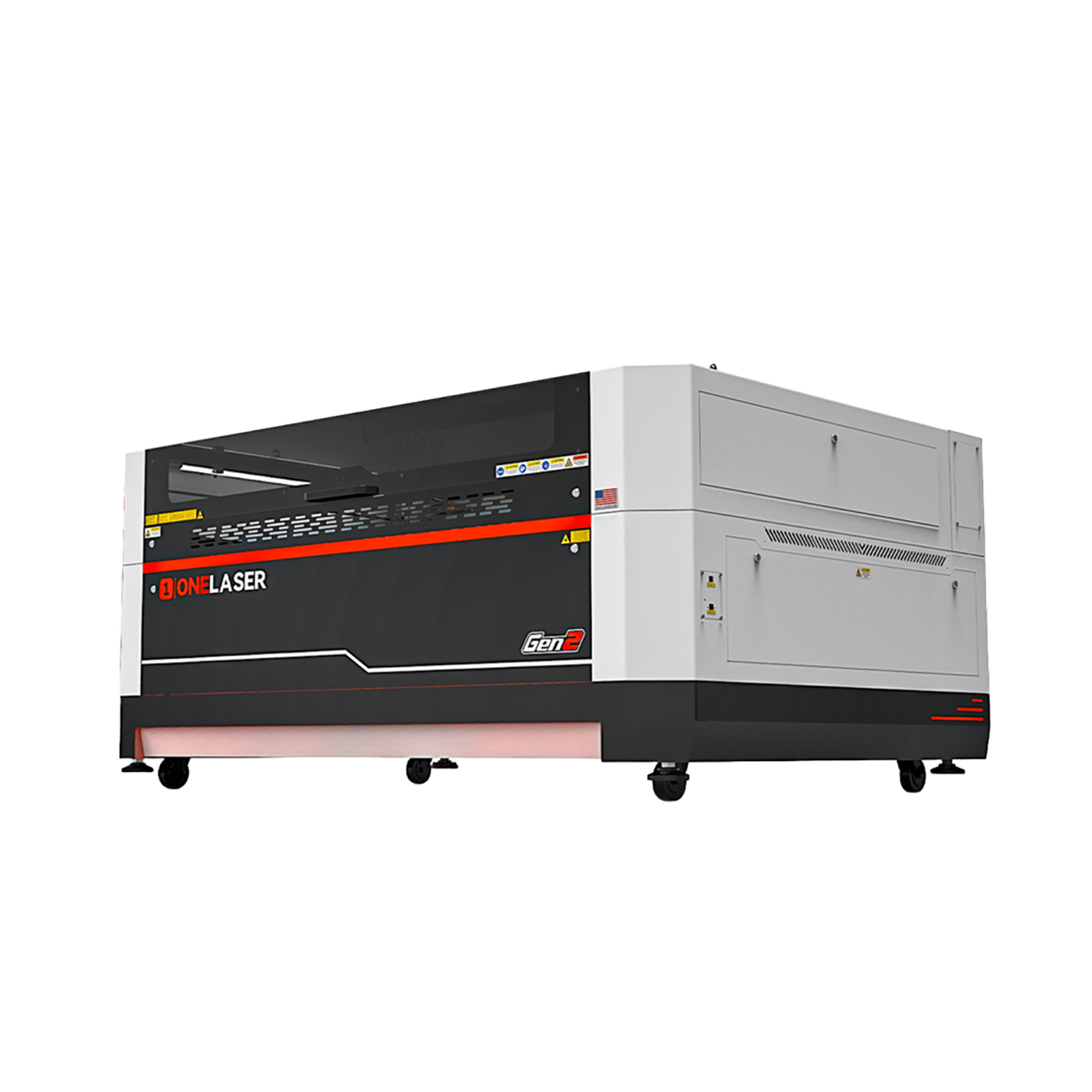

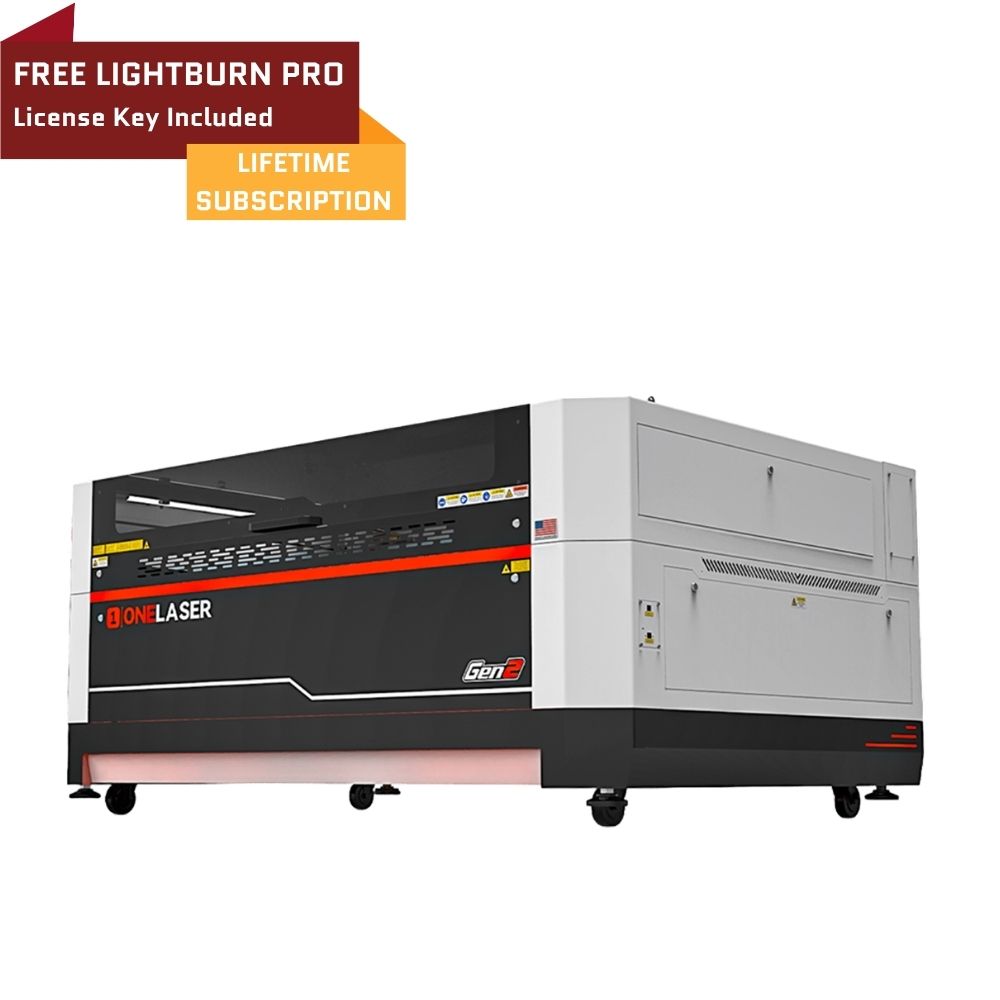

Go Bigger Without Going Slower.

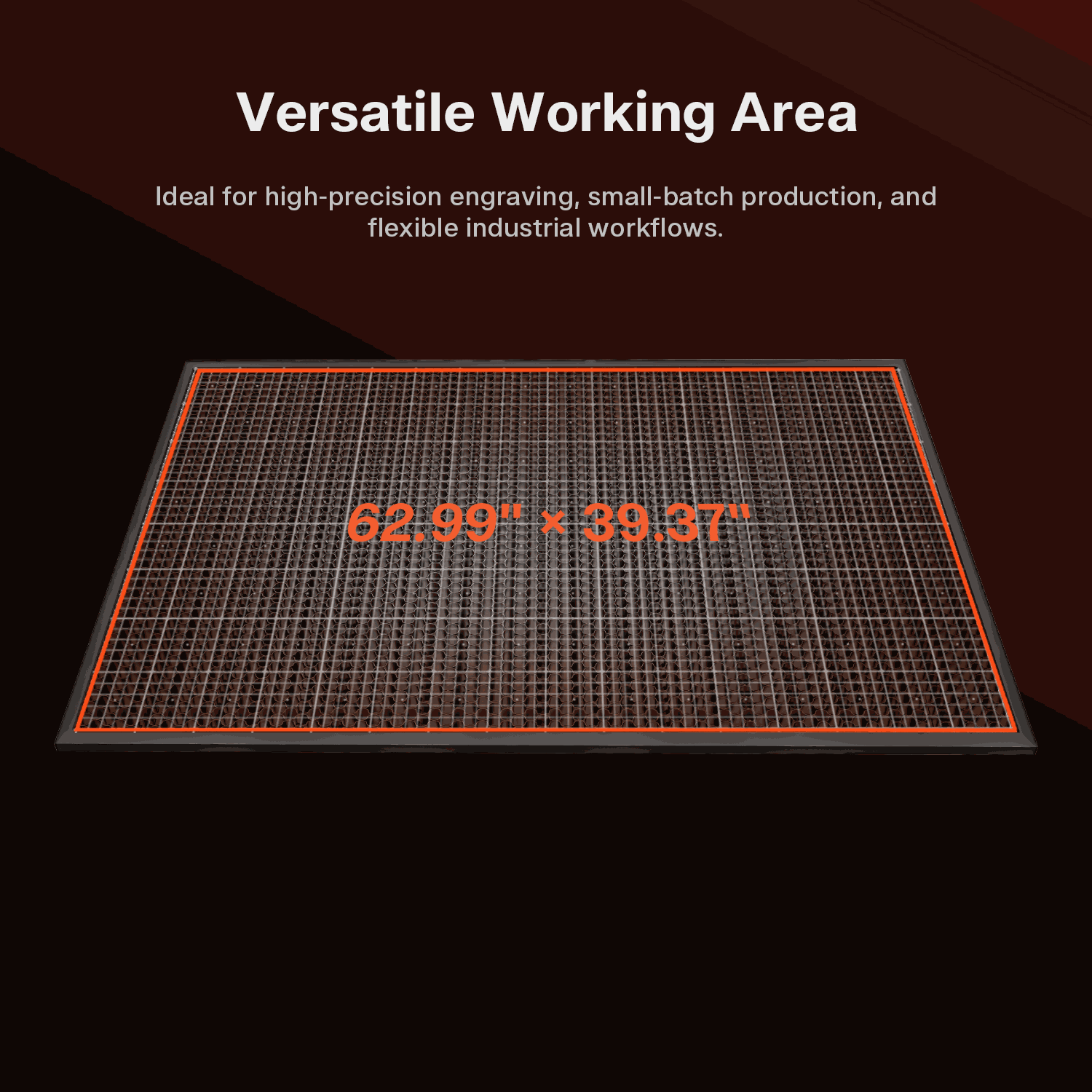

The OneLaser Hydra™ 16 delivers a 62.99" × 39.37" (1600 × 1000mm) work area, 2,000 mm/s speed at 4G acceleration, and a choice between a pure 70W RF configuration or a 38W RF + 150W CO2 hybrid — the Hydra 16 Gen 2 is built for shops running full-scale production, not scaling into it.
Note: The OneLaser Hydra 16 "hybrid" configuration operates a glass CO2 laser tube which requires a water chiller for safe use. Please add it to cart along with the Hydra 16 from here.
Compatible Materials:
|
![]()
Wood
|
MDF / Plywood
|
Leather
|
Dark Plastics
|
Fabric
|
Stone
|
Some jobs simply need the room — full sheet stock, large-format signage, high-volume batch runs that fill an entire bed at once. The OneLaser Hydra 16 Gen 2 is the largest machine in the Hydra lineup, with a 1600 × 1000mm work area and the choice between a 70W RF-only "Pro" configuration or a 38W RF + 150W CO2 "Hybrid" configuration that combines precision engraving and heavy-duty cutting power on a single production-scale machine.
2,000 mm/s and 4G Acceleration — No Speed Penalty at Full Scale
The largest bed in a product line usually comes with the biggest speed compromise, since a longer gantry has more distance to accelerate and decelerate across. The Hydra 16 Gen 2 holds the line at 2,000 mm/s and 4G acceleration — identical to the smaller Hydra models, and roughly double the speed and acceleration of typical CO2 glass-tube machines at a comparable bed size — so scaling up to full production capacity doesn't come at the cost of throughput on smaller jobs.
Hybrid or Pro — Choosing Your Configuration
-
Hydra 16 Hybrid (38W RF + 150W CO2): OneLaser's multi-laser intelligent switching system combines both laser sources within a single job — RF for sharp detail, and 150W CO2, the most cutting power in the Hydra line, for thicker material and full-sheet cutting.
-
Hydra 16 Pro (70W RF only): A pure RF configuration for shops that need the largest bed but prioritize precision and chiller-free operation over CO2's raw cutting power.
At this scale, the choice usually comes down to whether your production mix genuinely needs 150W of CO2 cutting power alongside RF precision, or whether RF alone covers your material range.

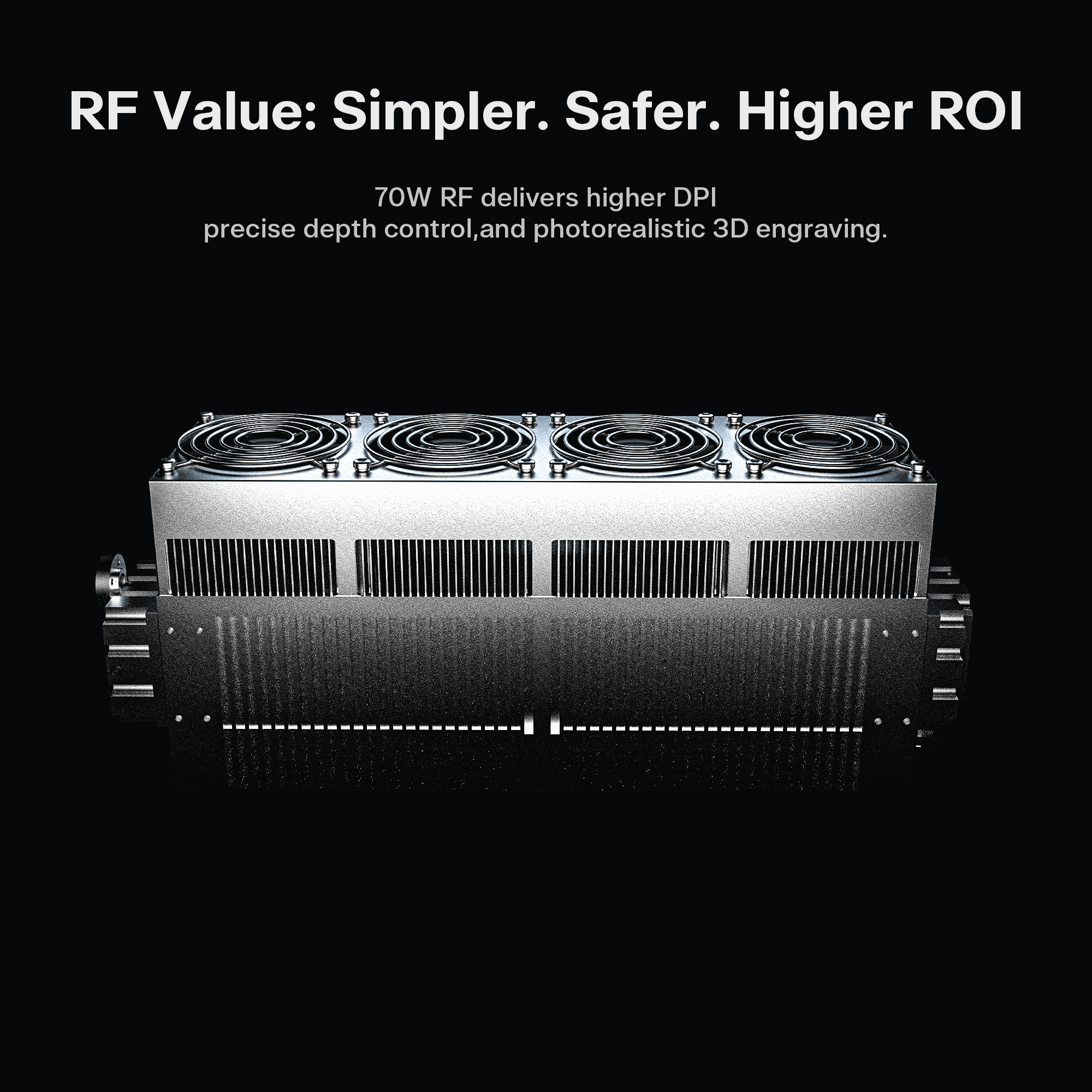

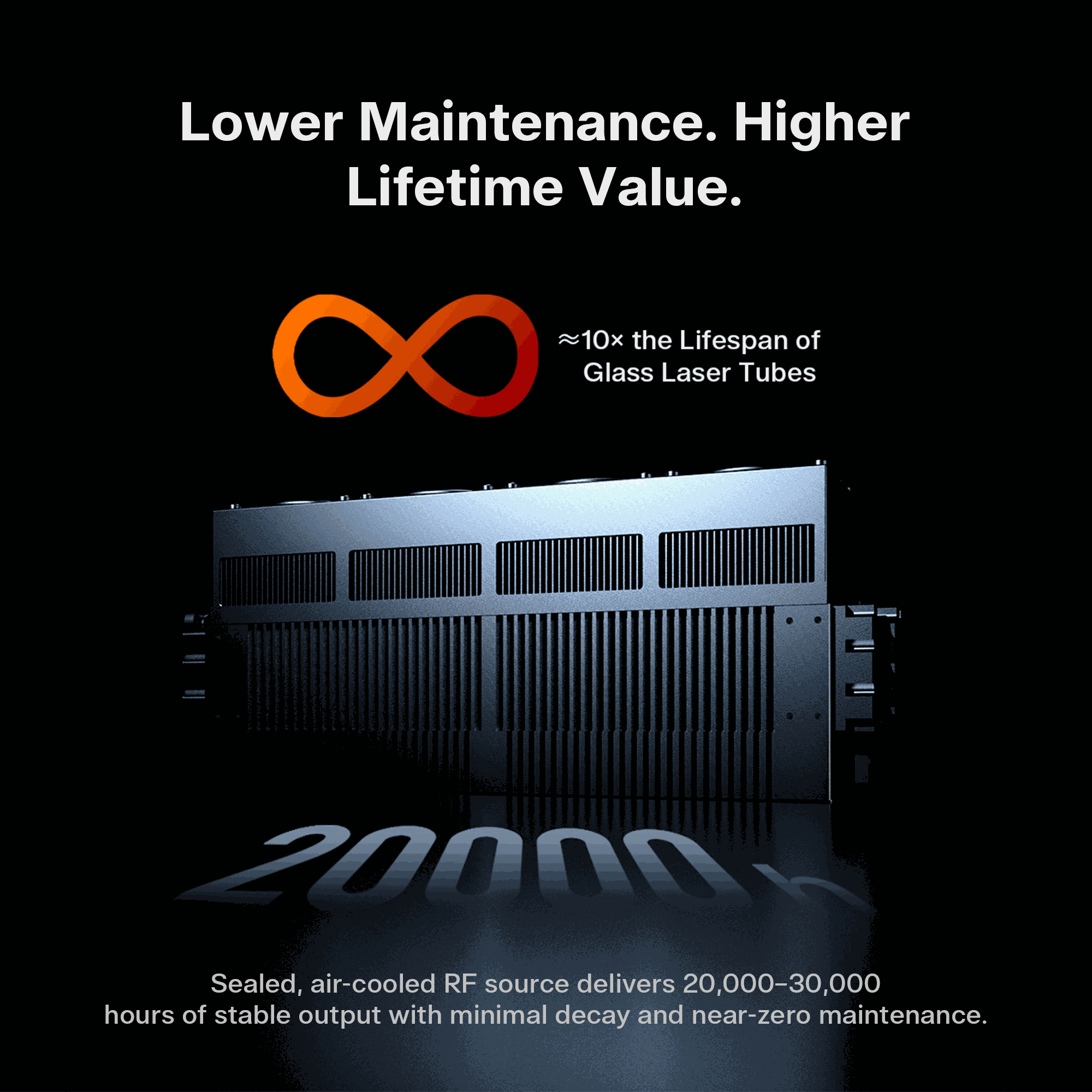

RF Clarity and Long Tube Life
The RF laser source in either configuration delivers ultra-sharp detail and consistent depth, rated for a 20,000–30,000 hour lifespan with no chiller required for the RF portion. The Hybrid configuration's CO2 laser source requires a water chiller; the RF-only Pro configuration does not.

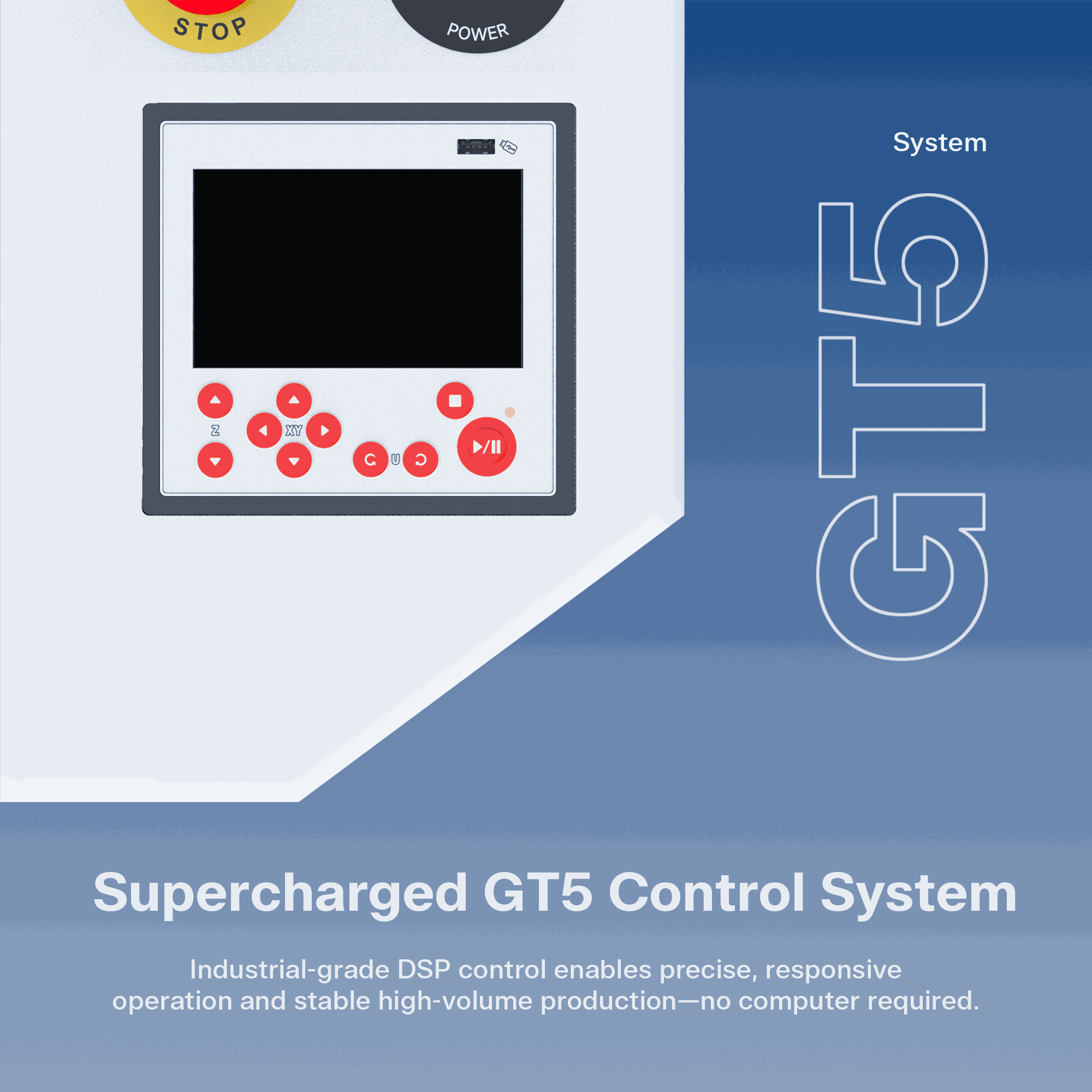

GT5 DSP Control System — Offline, Industrial-Grade Operation
The GT5 DSP control system provides an industrial touchscreen interface with offline operation, letting the Hydra 16 Gen 2 run a full production queue without staying tethered to a computer — built for a machine intended to run extended production cycles.

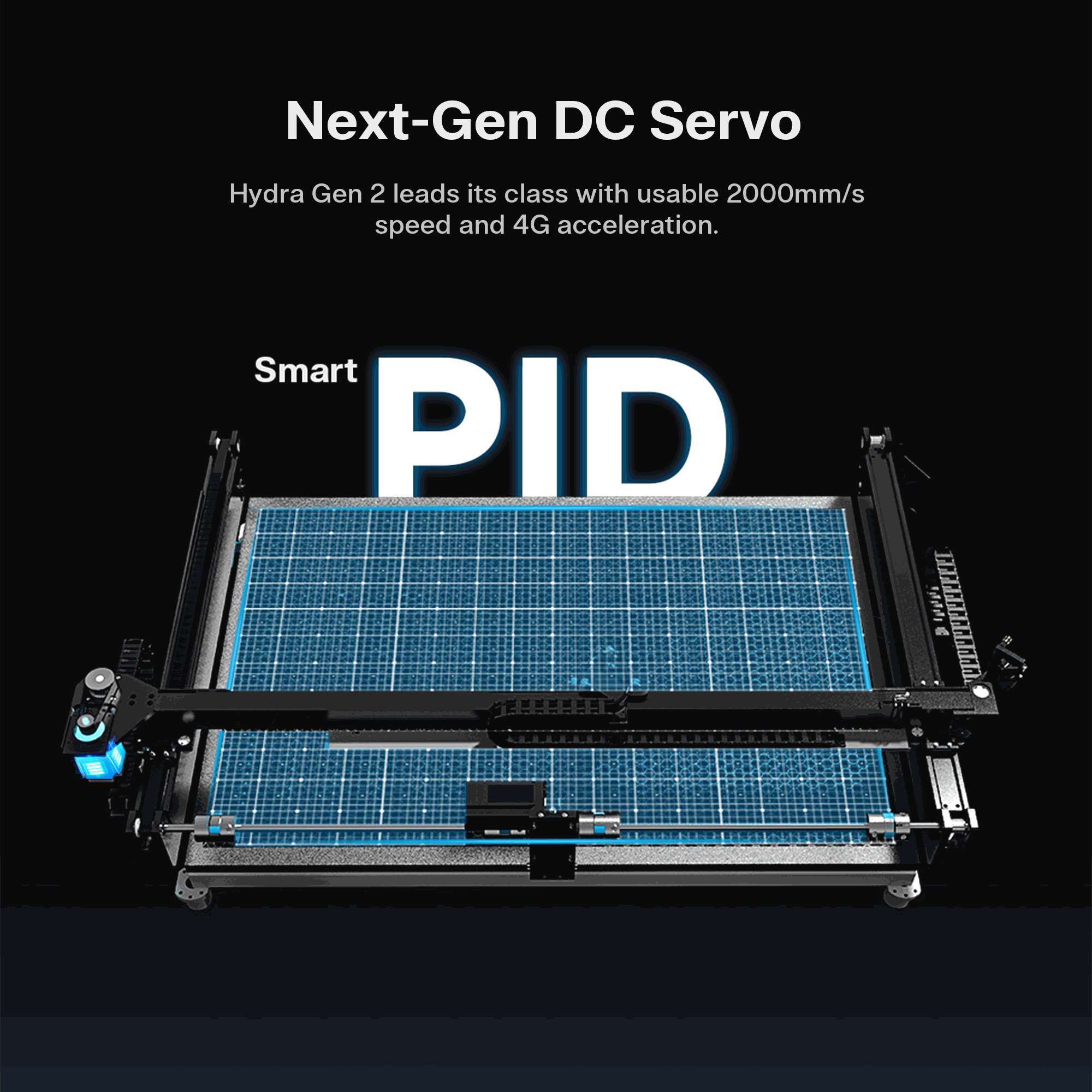

Autofocus, Red-Dot Positioning, and Servo-Driven Precision
-
Autofocus: Automatic Z-axis focusing across the full 1600mm bed removes manual height adjustment between jobs.
-
Red-Dot Positioning: Shows the exact optical path before the job starts, useful for lining up multiple large pieces or nested batch files.
-
Servo-Driven Engraving: Closed-loop PID feedback prevents the missed steps and distortion that open-loop stepper systems can produce on long, detailed production runs.

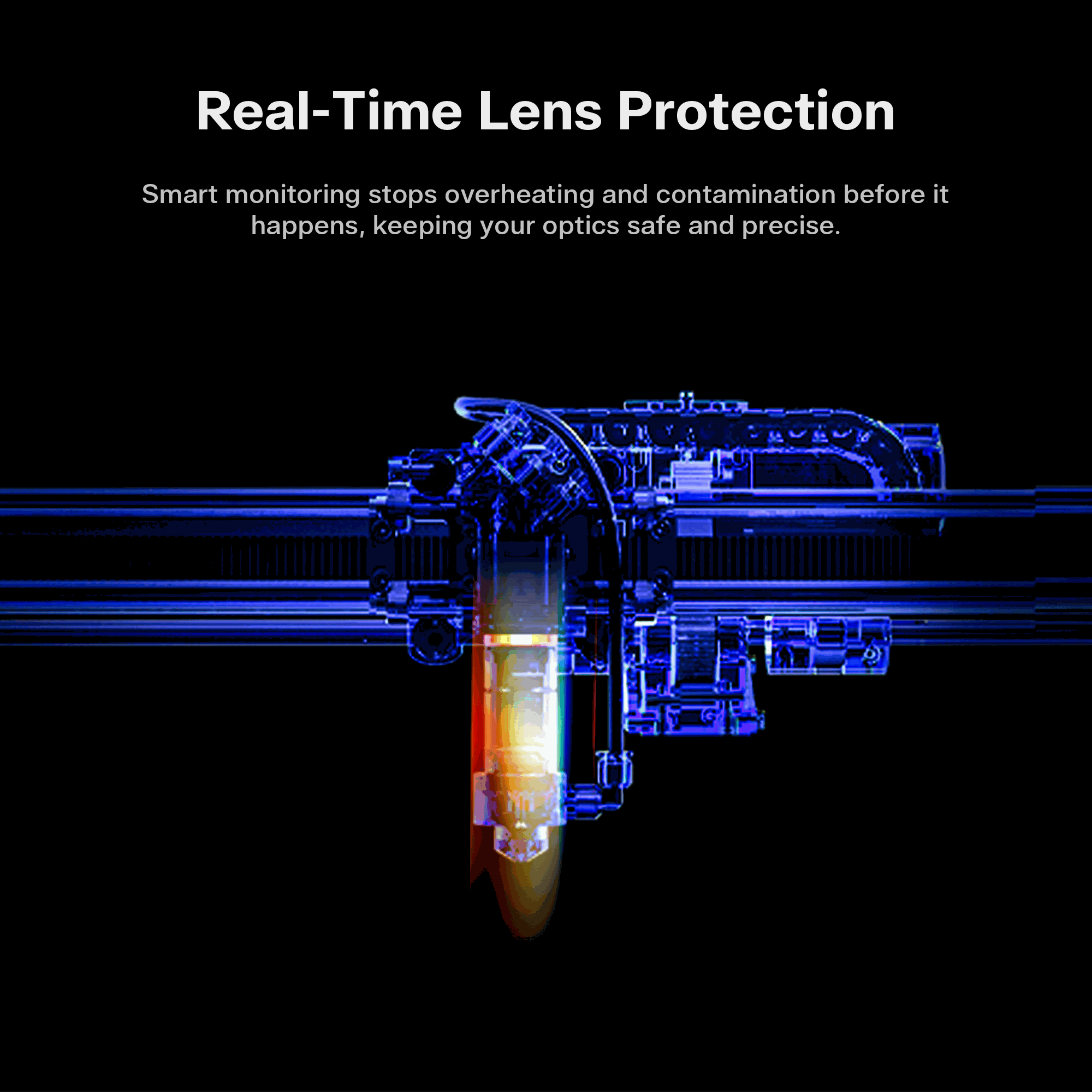

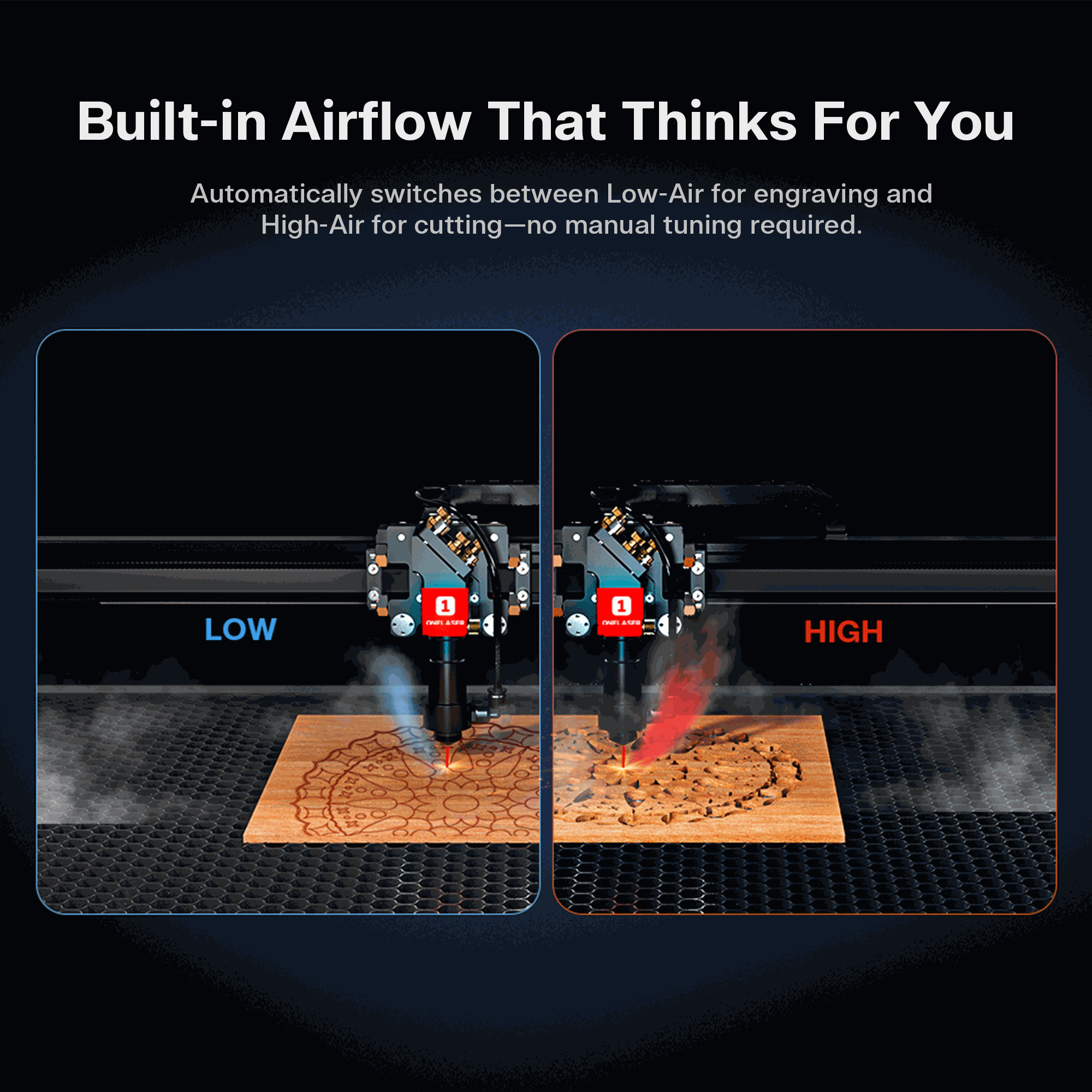

Smart Dual Air-Assist and Real-Time Lens Protection
The Smart Dual Air-Assist system automatically switches between gentle airflow for engraving and stronger airflow for cutting across larger cut areas. Real-time lens protection monitors lens temperature to prevent overheating during extended production cycles.

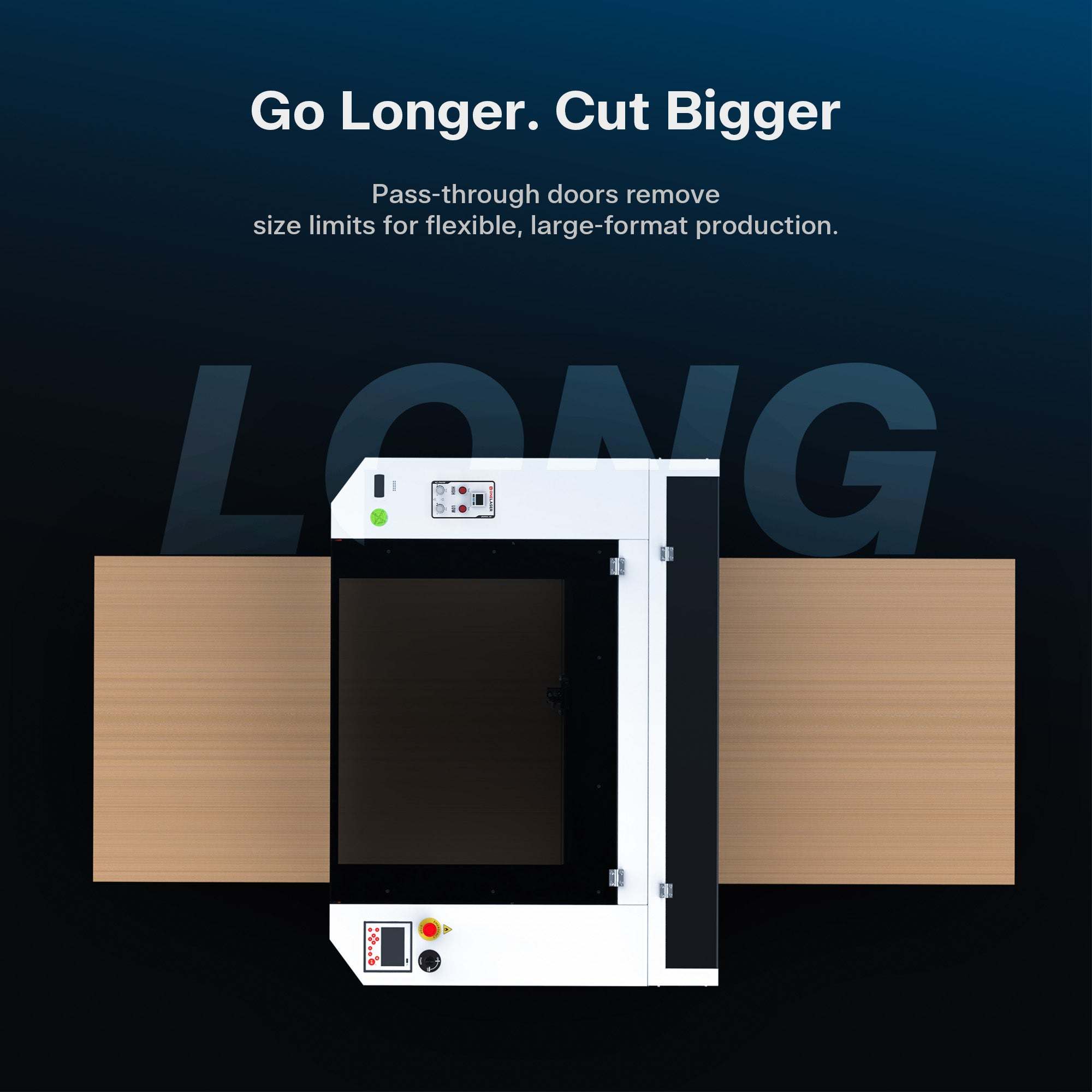

Front-to-Back Pass-Through for Long Material
A front-to-back pass-through design lets material longer than the 1600mm bed feed straight through the cabinet — useful for oversized panels, trim, or signage blanks that exceed even this bed's length.

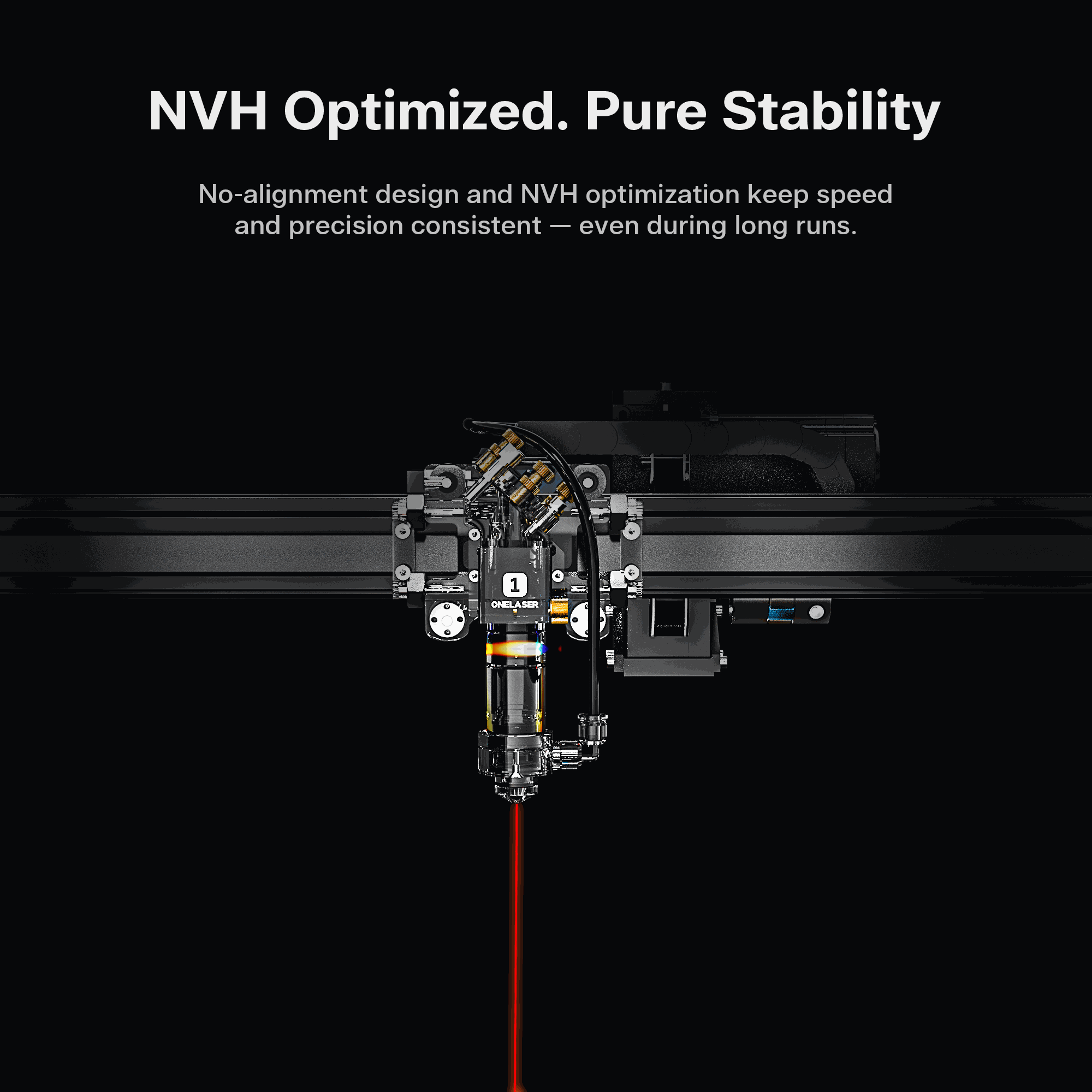

NVH-Optimized Frame and Real-Time Temperature Monitoring
The frame is NVH-optimized to hold stable, precise motion across the full width of the largest bed in the line, and a built-in temperature monitoring system triggers an alarm and automatic shutoff if conditions move outside safe parameters — important on a machine built for continuous production.
What's in the Box
- OneLaser Hydra 16 Gen 2 laser engraver/cutter unit (Hybrid or Pro configuration, per your selection)
- Fixed worktable
- Focusing lens
- Air-assist nozzle and accessories
- Power cord and setup documentation
Note: The RF-only Pro configuration does not require a water chiller. If you select the RF+CO2 Hybrid configuration, a water chiller is required for the CO2 laser source and is sold separately — confirm current chiller requirements with our team before ordering.
Warranty, Support & Made in USA Engineering
The OneLaser Hydra 16 Gen 2 is backed by a 3-year manufacturer's warranty on the laser engraving machine, covering defects in materials and workmanship under normal use. OneLaser's machines are engineered by a 100% U.S.-based team, with nationwide on-site service available across the U.S.
The Maker's Chest Difference
The OneLaser Hydra 16 Gen 2 is available directly from OneLaser and through other resellers. Here's what changes when you buy it through The Maker's Chest:
- 🛡️ 75-day returns — more than double OneLaser's standard 30-day direct return window. Meaningful on a machine this size, where you want to confirm fit against real full-scale production before you're committed.
- 💻 A free LightBurn Pro license included — a $199 value, activated and ready to go. OneLaser doesn't include this when you buy direct, so you're not stuck running the 30-day trial or paying out of pocket to get the machine working.
- 🇺🇸 Expert USA-based technical support — our team can help with configuration questions, setup, and workflow, on top of whatever OneLaser's own support provides.
- 📞 Dual lines of support — phone and email, so you have a direct path to a real person when you need it.
- 🔧 Honest pre-sale guidance — not sure if you need the full 1600×1000mm bed and 150W of CO2 power, or if the Hydra 13 covers your actual volume? Talk to us before you order.
As an industrial-scale machine, freight shipping for the Hydra 16 Gen 2 is calculated separately at checkout based on your delivery location — this is standard for machines of this size and weight class.
Hydra 7 vs. Hydra 9 vs. Hydra 13 vs. Hydra 16 — Choosing Your Bed Size
|
Hydra 7 |
Hydra 9 |
Hydra 13 |
Hydra 16 |
| Work Area |
27.56"×19.69" (700×500mm) |
35.43"×23.62" (900×600mm) |
51.18"×35.43" (1300×900mm) |
62.99"×39.37" (1600×1000mm) |
| Laser Configuration |
70W RF only |
70W RF or 38W RF + 100W CO2 hybrid |
70W RF or 38W RF + 130W CO2 hybrid |
70W RF or 38W RF + 150W CO2 hybrid |
| Max Speed / Acceleration |
2,000 mm/s / 4G |
2,000 mm/s / 4G |
2,000 mm/s / 4G |
2,000 mm/s / 4G |
| RF Tube Lifespan |
20,000–30,000 hrs |
20,000–30,000 hrs |
20,000–30,000 hrs |
20,000–30,000 hrs |
| Water Chiller Needed |
No (RF only) |
No, unless CO2 hybrid selected |
No, unless CO2 hybrid selected |
No, unless CO2 hybrid selected |
Choose the Hydra 16 if you're running full-scale production, full sheet stock, or the largest-format work in the lineup, and need the most CO2 cutting power (150W) available in a Hybrid configuration.
Choose the Hydra 13 if a 1300×900mm bed already covers your production needs — you'll get identical speed and configuration flexibility with a smaller footprint.
Frequently Asked Questions about the OneLaser Hydra 16 Gen 2
Q: What's the difference between the Hydra 16 Hybrid and Hydra 16 Pro configurations? A: The Pro runs a single 70W RF laser — simpler and chiller-free. The Hybrid adds a 150W CO2 laser (the most CO2 power in the Hydra lineup) alongside a 38W RF source, switching between them within a job. The Hybrid needs a water chiller for its CO2 side; the Pro doesn't need one at all.
Q: Does the Hydra 16 need a water chiller? A: Depends on configuration. The Pro (70W RF-only) doesn't need one. The Hybrid (RF+CO2) needs a chiller for its CO2 laser source, sold separately.
Q: Is the Hydra 16 overkill for most shops? A: For many, yes — it's built for shops running full sheet stock, large-format signage, or genuinely high-volume production. If your typical job fits a smaller bed, the Hydra 13, 9, or 7 will save significant floor space without giving up speed, precision, or configuration flexibility.
Q: How does the Hydra 16 compare to the Cobra 14 for large-format work? A: They solve different problems. The Cobra 14 is a straight 130W CO2 glass-tube machine with a 1400×900mm bed at a lower price point. The Hydra 16 offers a larger 1600×1000mm bed, nearly double the speed (2,000 mm/s vs. 1,200 mm/s), and the option to add RF precision alongside CO2 power — at a correspondingly higher price. If raw cutting power and budget are the priority, the Cobra 14 is worth a look; if speed, bed size, and RF/CO2 flexibility matter more, the Hydra 16 is the stronger fit.
Q: What materials can the Hydra 16 handle? A: Wood engraving, acrylic cutting, leather patches, glass engraving, coated metal marking, large-format signage, industrial parts, and rotary engraving on tumblers and bottles with an optional rotary attachment. Bare, uncoated metal requires the separate Q-Switch Fiber upgrade, currently listed as a future release and not yet purchasable.
Q: What's the Hydra 16's warranty, and what does it cover? A: 3 years on the laser engraving machine, covering defects in materials and workmanship under normal use and service. It doesn't cover damage from misuse, unapproved modifications, or normal wear on consumables.
Q: Why buy the Hydra 16 from The Maker's Chest instead of directly from OneLaser? A: Our 75-day return window is more than double OneLaser's 30-day direct policy — real time to validate a machine this size against your actual full-scale production before you're committed. You also get a free LightBurn Pro license (a $199 value) included at no extra cost — something OneLaser doesn't include when you buy direct — plus USA-based expert support by phone and email, and honest guidance on whether the Hydra 16 or a smaller Hydra model actually matches your volume.
Q: What's in the box, and does it include a water chiller? A: The unit, worktable, focusing lens, and air-assist accessories ship standard. A water chiller is not included by default — it's required (and sold separately) only if you select the Hybrid configuration.
