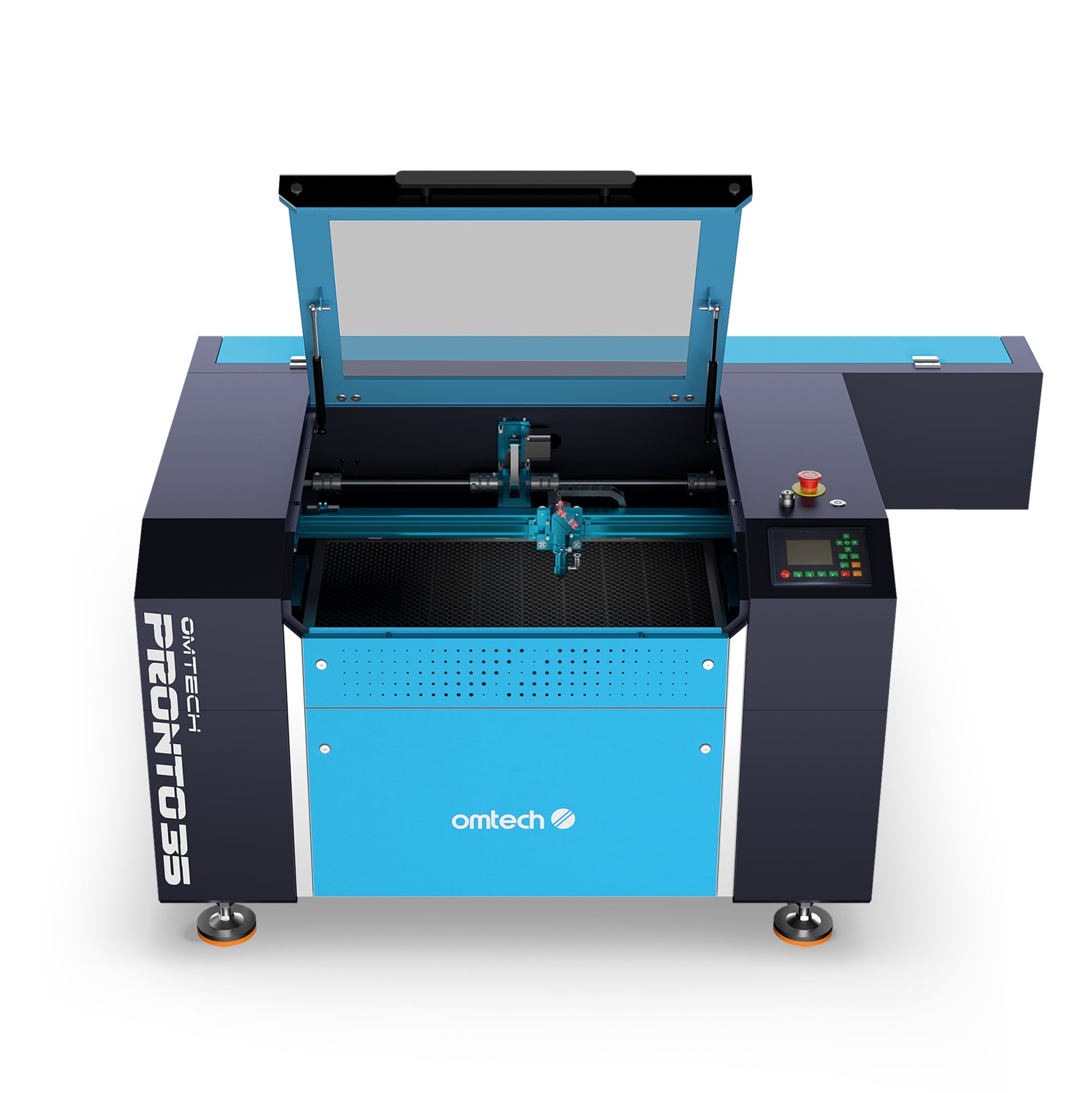

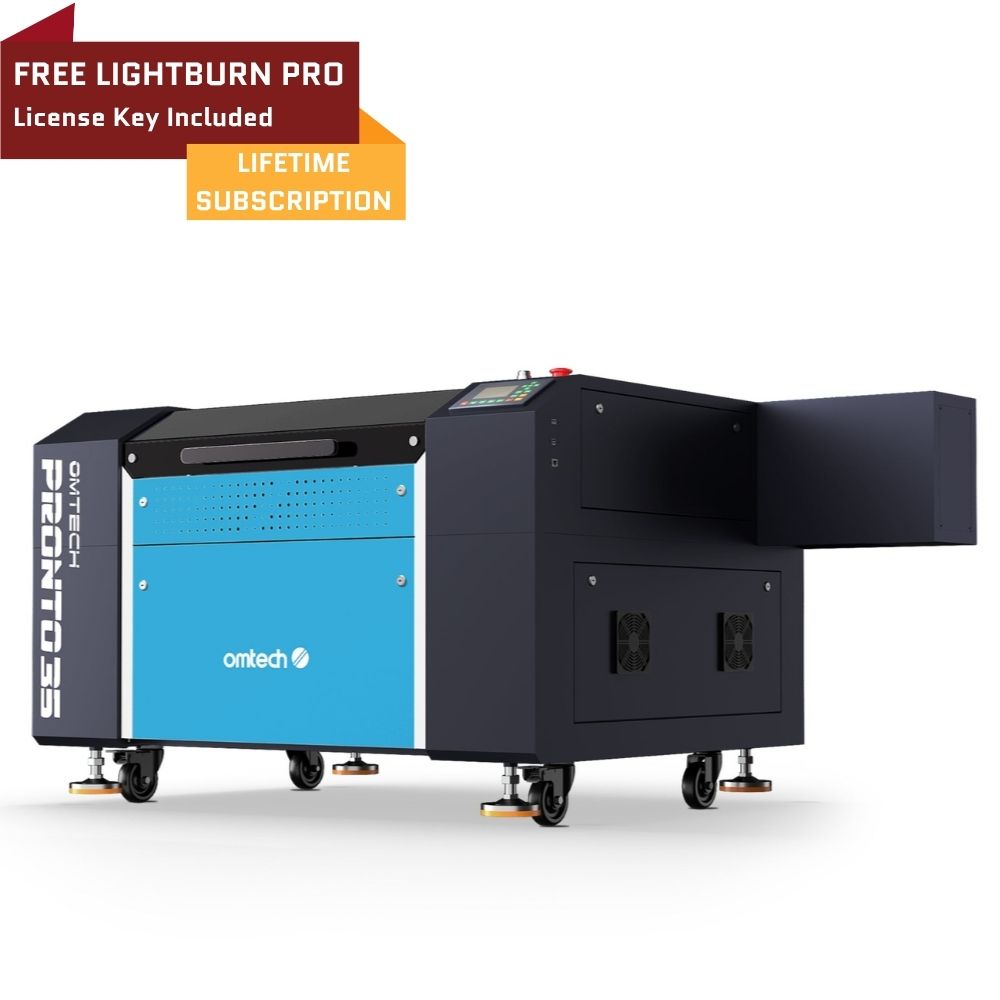

The Most Powerful Pronto 35 — Maximum Cutting Output at Production Engraving Speed.
The OMTech Pronto 35 100W is the highest-power configuration in the Pronto 35 series — a 100W CO2 laser cutter and engraver delivering 1000 mm/s maximum engraving speed, autofocus with red dot indicator, an upgraded X/Y/Z transmission system, and 8.7" maximum workpiece height — combining the speed-focused Pronto platform with the highest wattage available in the Pronto lineup..
For production shops, sign businesses, and custom product makers who want the Pronto's workflow advantages with maximum cutting headroom on the thickest and densest CO2-compatible materials in their daily mix, the 100W is the definitive configuration.
Compatible Materials:
Wood
MDF/Plywood
Leather
Plastics
Fabric
Stone
Coated Metals
Glass
100W in the Pronto 35 Context — Who Needs the Maximum Configuration
The Pronto 35 series offers 60W, 90W, and 100W configurations. All three share the same production-focused platform: same upgraded X/Y/Z transmission system, same 1000 mm/s maximum engraving speed, same autofocus with red dot indicator, same 8.7" workpiece height, same pass-through, same 318 CFM fan, and same overall workflow design.
The 100W is the right configuration when power is the primary production constraint:
Maximum single-pass cutting capability on the Pronto platform. At 100W, the machine handles thick-material cutting at the ceiling of the Pronto 35's design parameters. Dense hardwood panels, heavy MDF, and thick acrylic stock that require multiple passes or reduced speed at 60W or 90W clear faster and more consistently at 100W.
Maximum operating headroom. A 100W tube running at 65–70% output produces the same result as a 60W tube running at its ceiling — but with significantly less thermal stress on the tube and more consistent beam quality across a full production day. For shops running the machine at near-continuous production volume, this reserve matters.
The largest tube in the Pronto 35 lineup. The 100W CO2 tube is 57" long and 70mm in diameter — larger physical dimensions than the 60W (39.3" × 50mm) and 90W (49.2" × 60mm) versions, supporting the stable resonant cavity required for consistent high-power output under sustained operation.
For shops whose engraving throughput is the primary daily constraint rather than cutting power, the 60W or 90W are efficient configurations that don't require the 100W's investment. Contact our team — we'll tell you honestly which configuration fits your actual daily workload.

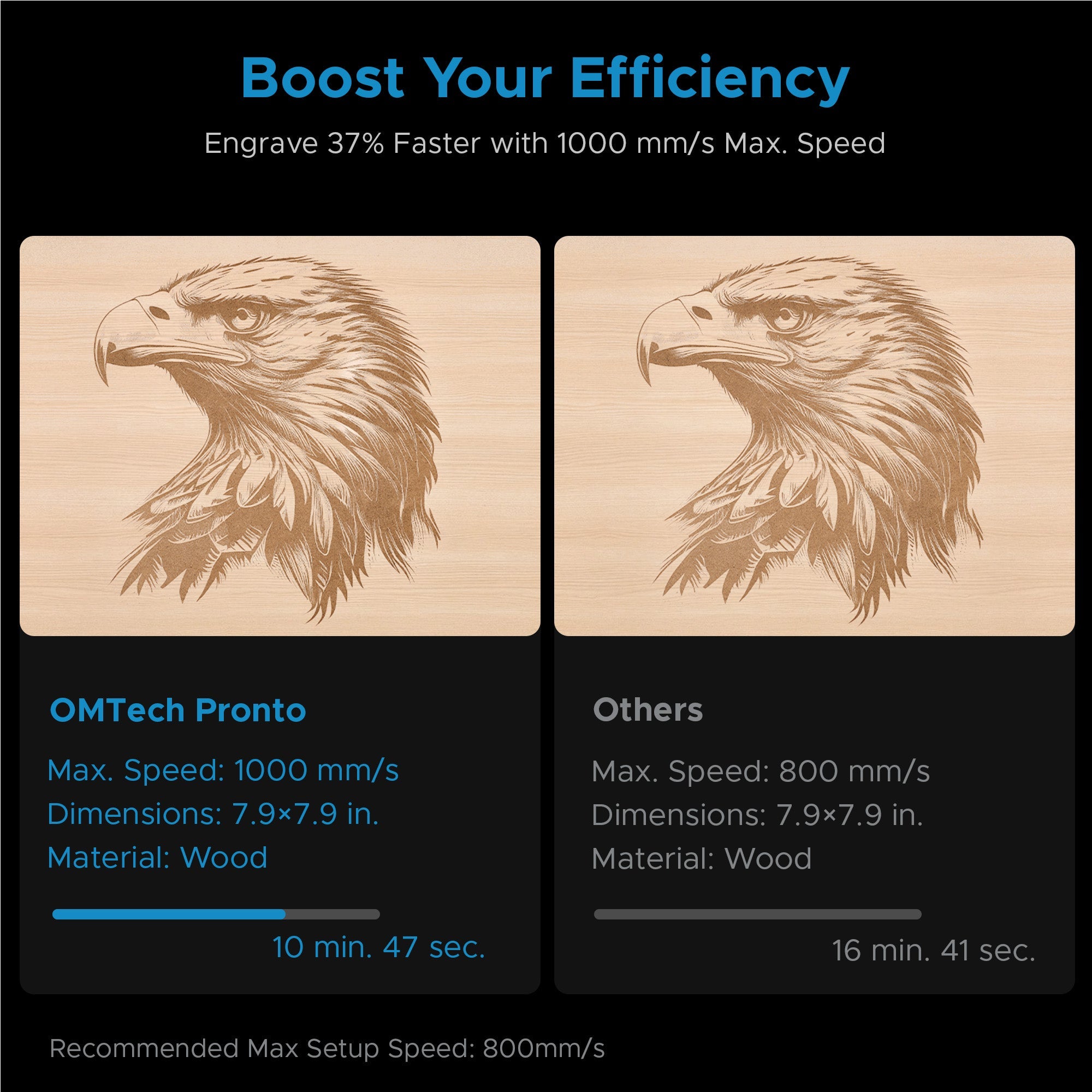

1000 mm/s — The Pronto's Production Speed Advantage Over Standard CO2 Machines
Standard 60W CO2 laser engravers in the Maker series operate at up to 600 mm/s. The Pronto 35 100W reaches 1000 mm/s — a 67% higher maximum engraving speed on the same bed class.
This speed is achievable and sustainable on the Pronto 35 because of the upgraded transmission system that underlies the entire Pronto platform:
X-axis V-wheel design: Reduces friction on the primary engraving axis for smooth, fast, repeatable direction changes across thousands of cycles in a production session.
Y-axis high-precision belt: Provides accurate positioning and consistent tension under rapid acceleration and deceleration — maintaining mark quality across high-speed passes without the positional drift that standard belt systems show when pushed to production speeds.
Z-axis ball screw: Delivers precise, stable workbed elevation — the mechanical accuracy that makes autofocus reliable and supports accurate Z-axis positioning for varied material heights and 3D workpieces.
Solid frame with aluminum plate brackets: The structural rigidity that allows 1000 mm/s to produce accurate marks rather than creating resonance-induced errors across the working area.
For a custom product business producing 500+ items per week, or a sign shop with a continuous backlog, the difference between 600 mm/s and 1000 mm/s isn't marginal — it's the difference between a machine that keeps up and one that becomes the bottleneck.
Autofocus + Red Dot — Every Material, Every Time
Production efficiency at 1000 mm/s starts before the laser fires — in how quickly the machine is configured for the next job.

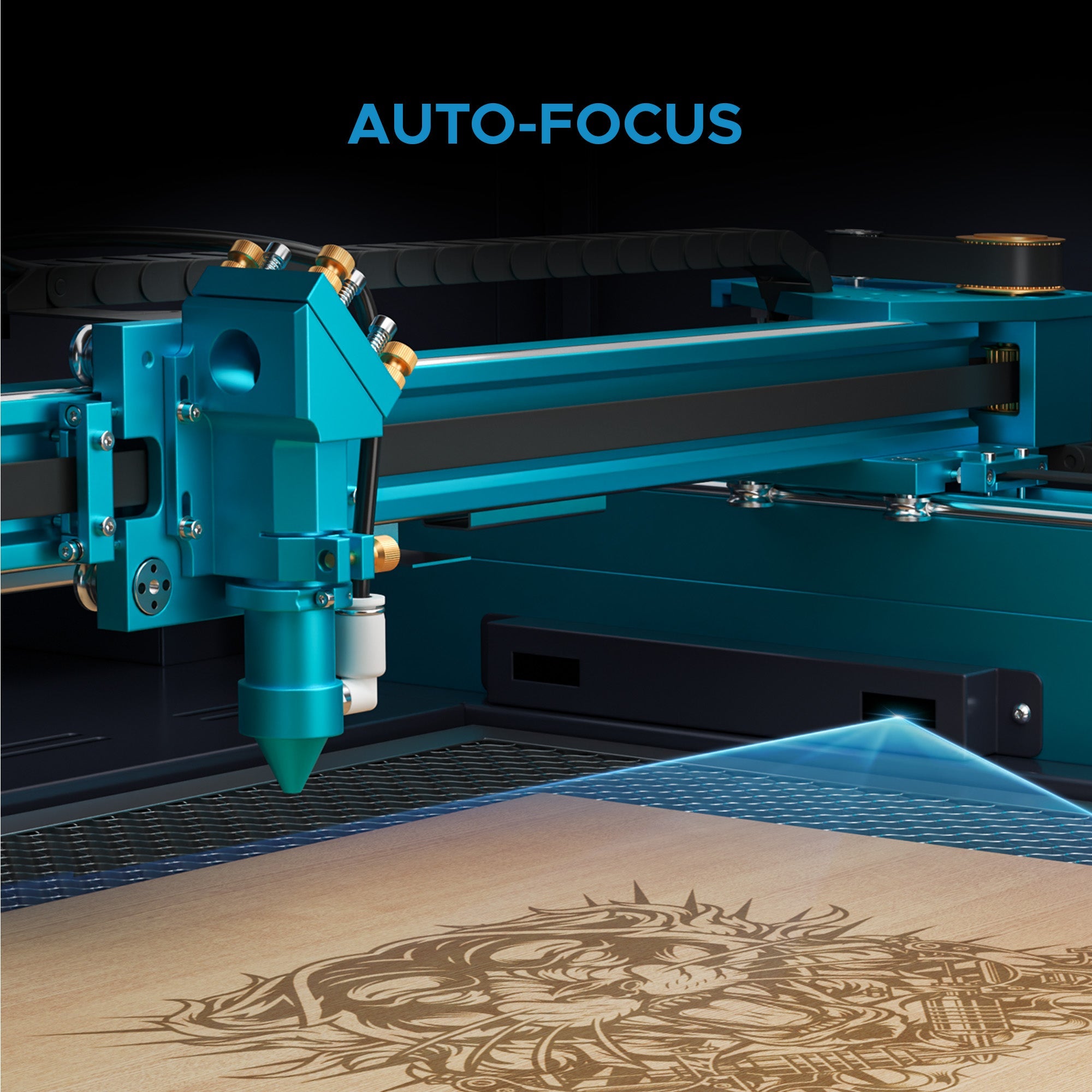

Autofocus: Detects material height and adjusts the focal distance automatically. For a production shop at 100W cycling between thick plywood, dense acrylic, and thin leather throughout the day, autofocus removes the manual focusing step on every material height change — converting a 2–3 minute manual process into a button press.
Red dot indicator: Makes the optical path visible before the job starts, providing precise origin positioning and alignment confirmation before laser energy is applied. For batch setups where every piece needs to land in the same position, the red dot is what makes repeatability achievable without test burns.
At 100W, where material is more expensive and every misfired job costs more, the setup accuracy that autofocus and red dot provide has direct financial value — not just workflow convenience.
8.7" Workpiece Height + Pass-Through — The Pronto's Versatility Advantage

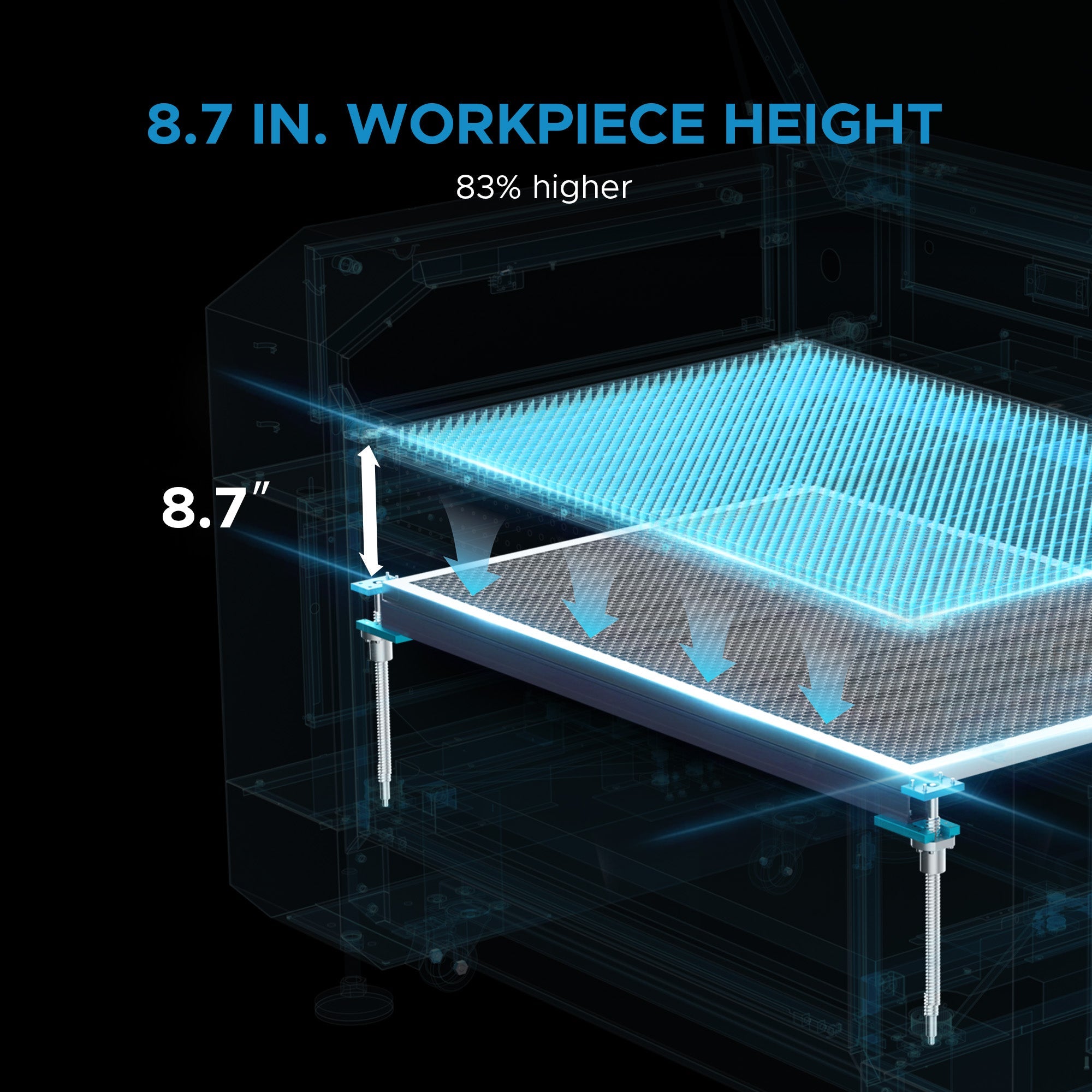

8.7" (220mm) maximum workpiece height — the clearance that allows the Pronto 35 to handle applications that standard 60W CO2 laser cabinets physically cannot:
Assembled trophies and awards, thick dimensional lumber, heavy acrylic blocks, and large cylindrical objects all fit within the Pronto's 8.7" envelope without modification. For a shop producing custom awards, this means engraving finished assemblies rather than disassembling and reassembling every piece — a significant labor cost reduction across a high-volume product line.

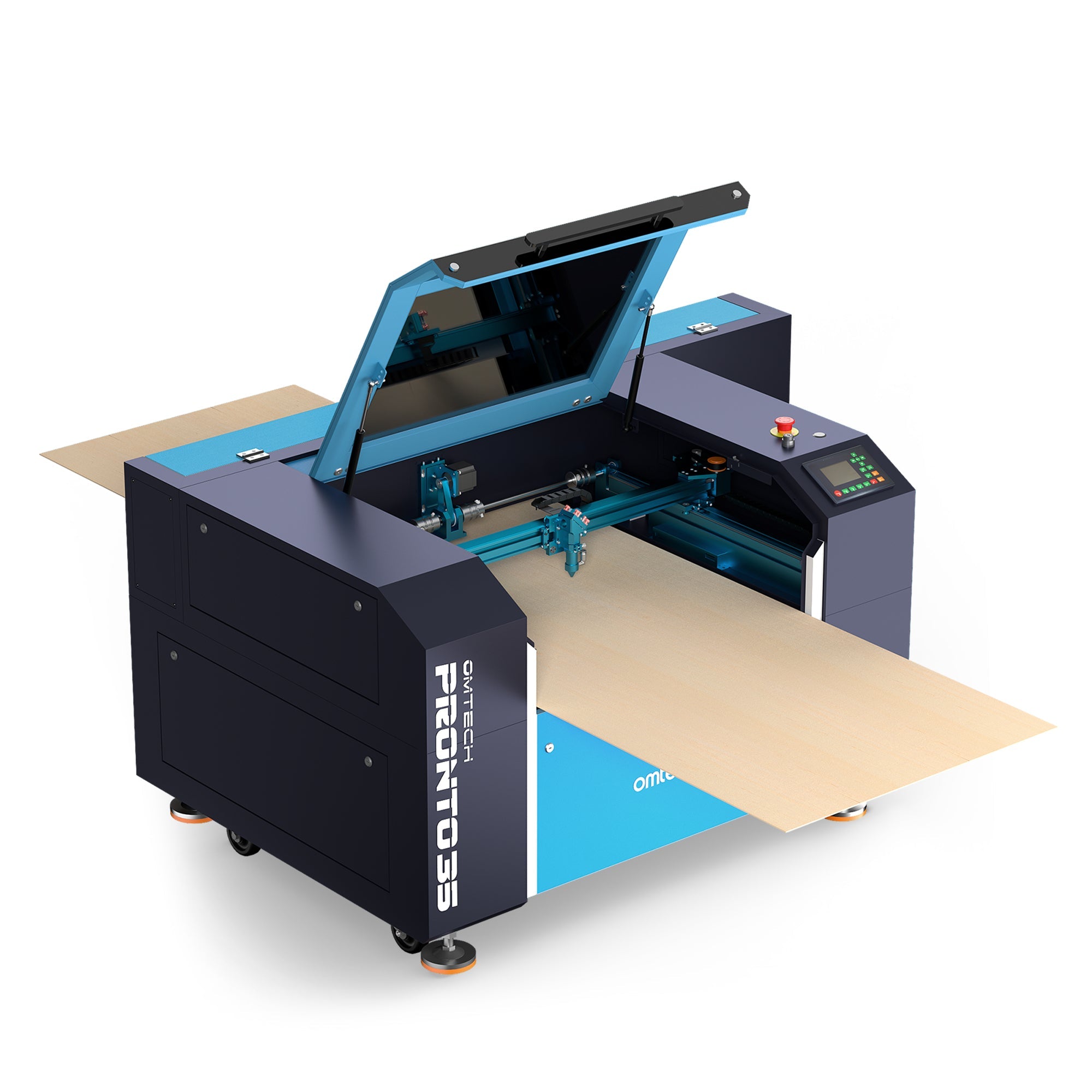

Front and back pass-through (up to 0.75" / 19mm thick flat stock) extends the effective length beyond the 27.6" engraving area for boards, strips, and panels that exceed the bed length — process sequentially through the pass-through opening without removing the material.
WiFi + Ethernet + USB — Connect the Way You Work
The Pronto 35 100W adds WiFi connectivity in addition to USB and Ethernet — giving this configuration a connectivity advantage over the 90W variant, which supports USB and Ethernet only.
WiFi connection allows flexible machine placement in the shop without routing a cable from the design workstation to the laser — relevant for shops where the machine footprint and the design computer position don't align for a convenient wired run.

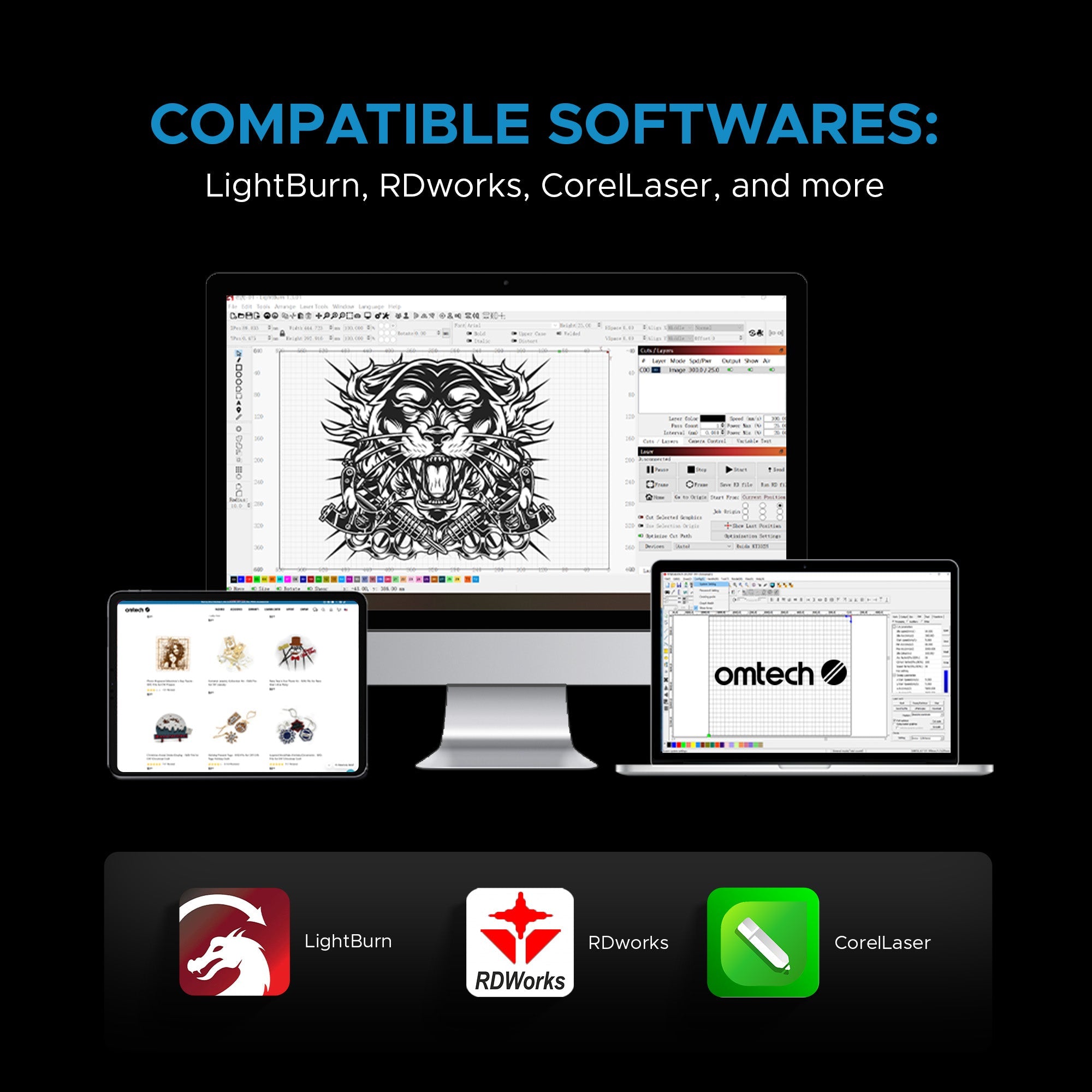

RDWorks is bundled on USB flash drive. LightBurn and CorelLaser are compatible (a LightBurn license is included free with this machine, courtesy of The Maker's Chest — Windows, macOS, Linux).
Water chiller required: The 100W CO2 tube requires active water cooling for production use. A compatible water chiller (CW-5200 series or equivalent for 100W) is required and should be budgeted alongside the machine. Contact our team for compatible chiller guidance before ordering.
Safety Systems Built for Production Volume
Class-1 safety positioning: Professional production environment positioning.
Real-time temperature monitoring: If the machine overheats, it stops, resets, and alerts the operator — protecting both the 100W tube and the workpiece from thermal damage.
Built-in pressure sensors: Monitor air assist pressure continuously; if pressure drops below the set threshold, an alarm triggers before a cut quality issue affects the production batch.
Flame-retardant PC board: Reduces fire risk during sustained high-power operation.
3-color indicator light: Blue standby, green active, red error — status visible from across the shop without approaching the machine.
The Maker's Chest Difference
The OMTech Pronto 35 100W is available from OMTech directly and from other resellers. Here's what changes when you order through The Maker's Chest:
🛡️ 75-day returns — significantly longer than OMTech's direct return window. Enough time to set up the machine, run it through your actual production materials and volume, confirm the 100W power delivers what your business requires, and make an informed decision before you're committed
🇺🇸 Expert USA-based technical support — our team can help with LightBurn and RDWorks setup, water chiller selection and configuration, autofocus calibration, air assist and exhaust setup, and any production issues during ramp-up
📞 Dual lines of support — phone and email, so when production is running and something needs attention, you have a direct path to a real person
🔧 Straight configuration guidance — 100W Pronto or 90W Pronto? Or does your operation scale to the Pro 2440 with a built-in chiller? Tell us your materials, cutting thicknesses, and daily volume and we'll give you a direct recommendation before you order
Frequently Asked Questions About OMTech Pronto 35 100W CO2 Laser Cutter and Engraver
Q: What's the specific difference between the Pronto 35 100W, 90W, and 60W? A: All three share the same platform: 1000 mm/s speed, upgraded X/Y/Z transmission, autofocus with red dot, 8.7" workpiece height, 318 CFM fan, 3.2X air pump, and same software compatibility. The 100W adds the highest laser power for maximum single-pass cutting capability on thick materials, the most comfortable operating headroom during sustained production sessions, and the largest tube (57" × 70mm). The 60W is right for engraving-focused shops with lighter cutting needs. The 90W handles most cutting applications efficiently. The 100W is the configuration for shops where thick-material cutting and maximum operating headroom are daily requirements.
Q: Does the 100W require a water chiller? A: Yes — a water chiller is required for optimal cooling and tube longevity at 100W sustained production output. It is not included in the standard package. A CW-5200 series or higher-capacity chiller is appropriate for 100W operation. Budget the chiller alongside the machine and contact our team for compatible options before ordering.
Q: Why does the 100W add WiFi when the 90W only has USB and Ethernet? A: OMTech has configured the 100W Pronto 35 with WiFi, USB, and Ethernet connectivity — an additional connection option versus the 90W's USB and Ethernet only. WiFi allows flexible machine placement without a cable run from the design computer to the laser.

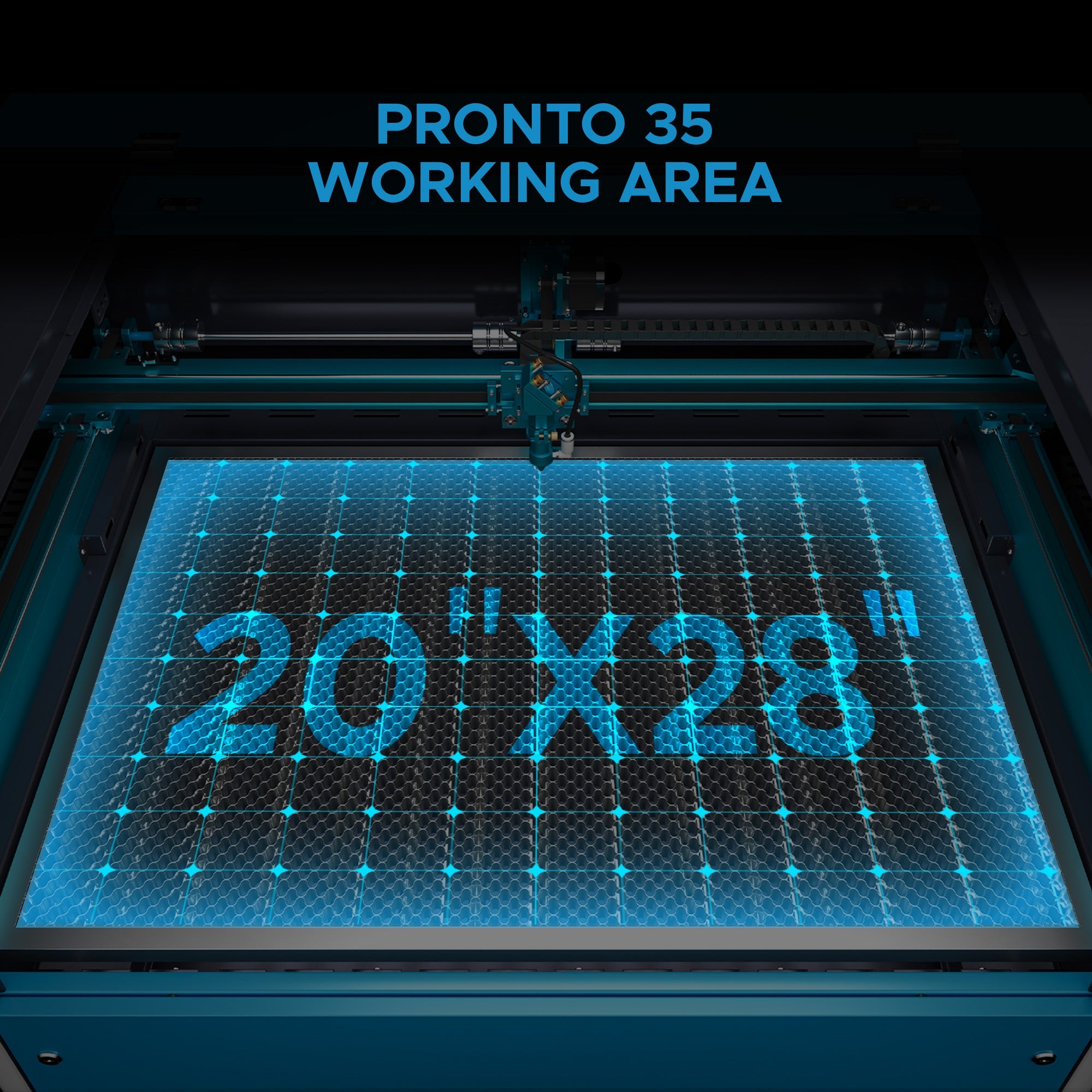

Q: What is the actual working area? A: 27.6" × 19.7" (700 × 500mm) — the specification table's engraving area. The product title references a "20" × 28" class" working area, reflecting the bed class category.
Q: What is the 100W laser tube's service life? A: 12,000 hours estimated at under 40% power — at 8 hours daily, 250 working days per year, that's approximately 6 years of rated tube life when the machine is run at moderate power settings. The larger 57" × 70mm tube supports stable 100W output over extended periods.
Q: Is LightBurn compatible? A: Yes — LightBurn is compatible and is the preferred production software for most users. A LightBurn license is included free with this machine, courtesy of The Maker's Chest. Runs on Windows, macOS, and Linux. RDWorks is bundled on USB flash drive.
Q: How does the Pronto 35 100W compare to the Pro 2440 80W? A: The Pronto 35 100W has more engraving speed (1000 mm/s vs standard speeds on the Pro 2440) and 100W output, but the Pro 2440 80W includes a factory-integrated TEYU water chiller and a larger 24" × 40" bed. For shops where engraving speed is the primary bottleneck and cutting needs stay within the Pronto's material range, the 100W Pronto is the efficient choice. For shops where bed size is a constraint and total installation simplicity matters, the Pro 2440 with built-in chiller is worth considering. Contact our team and we'll help you decide.
Q: Why buy from The Maker's Chest instead of directly from OMTech? A: Our 75-day return window gives you significantly more evaluation time than OMTech's direct return policy — enough to run the 100W Pronto through your actual production workloads and confirm it performs before you're locked in. Our USA-based expert support team is reachable by phone and email for LightBurn and RDWorks setup, water chiller configuration, autofocus calibration, and production troubleshooting. If you're deciding between the 100W Pronto and another configuration, we'll give you a straight recommendation.

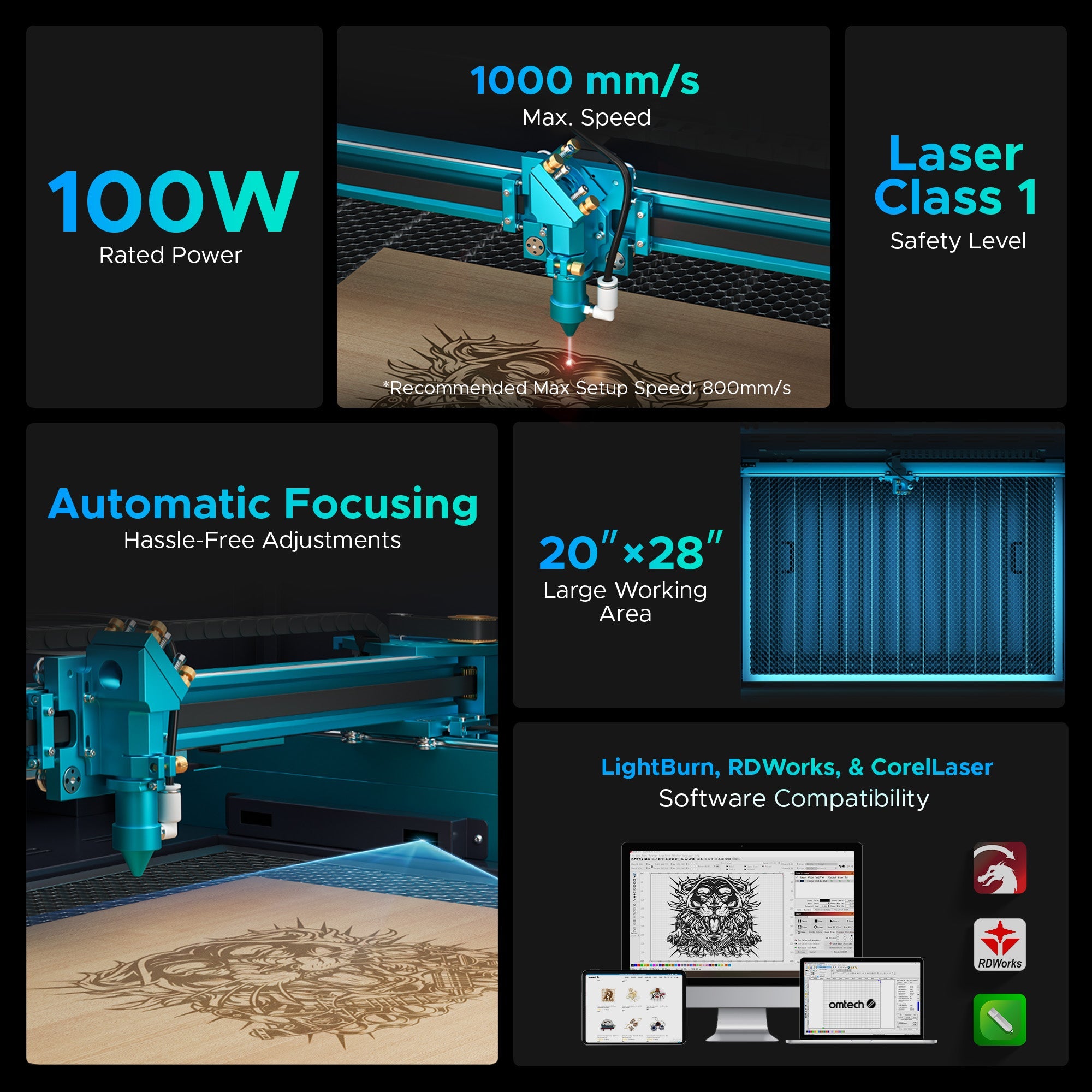

Specifications
OMTech Pronto 35 100W CO2 Laser Cutter and Engraver Specifications:
Specification
Official Information
Color
Blue, Gray
Rated Power
100W
Product Title Work Area
20" × 28" working area
Engraving Area
27.6 × 19.7 in. / 700 × 500 mm
Front & Back Pass-Through
Supports long materials up to 0.75 in. / 19 mm thick
Max. Engraving Speed
39.4 ips / 1000 mm/s
Est. Service Life (at <40% Power)
12,000 hr
Laser Tube Length
57 in. / 1450 mm
Laser Tube Diameter
2.7 in. / 70 mm
Product Dimensions
67.3 × 39.8 × 32.3 in. / 1710 × 1010 × 820 mm
Package Dimensions
71.7 × 44.5 × 40.2 in. / 1820 × 1130 × 1020 mm
Net Weight
492 lb. / 223 kg
Compatible Operating Systems
Windows 2000, XP, Vista, 7, 8, 10
Bundled Software
RDWorks
Compatible Software
LightBurn (included free by The Maker's Chest), CorelLaser, RDWorks
Requires water chiller for optimal cooling and stability
