A Full-Featured Desktop CO2 Laser With Everything Built In — No Extra Equipment Required.

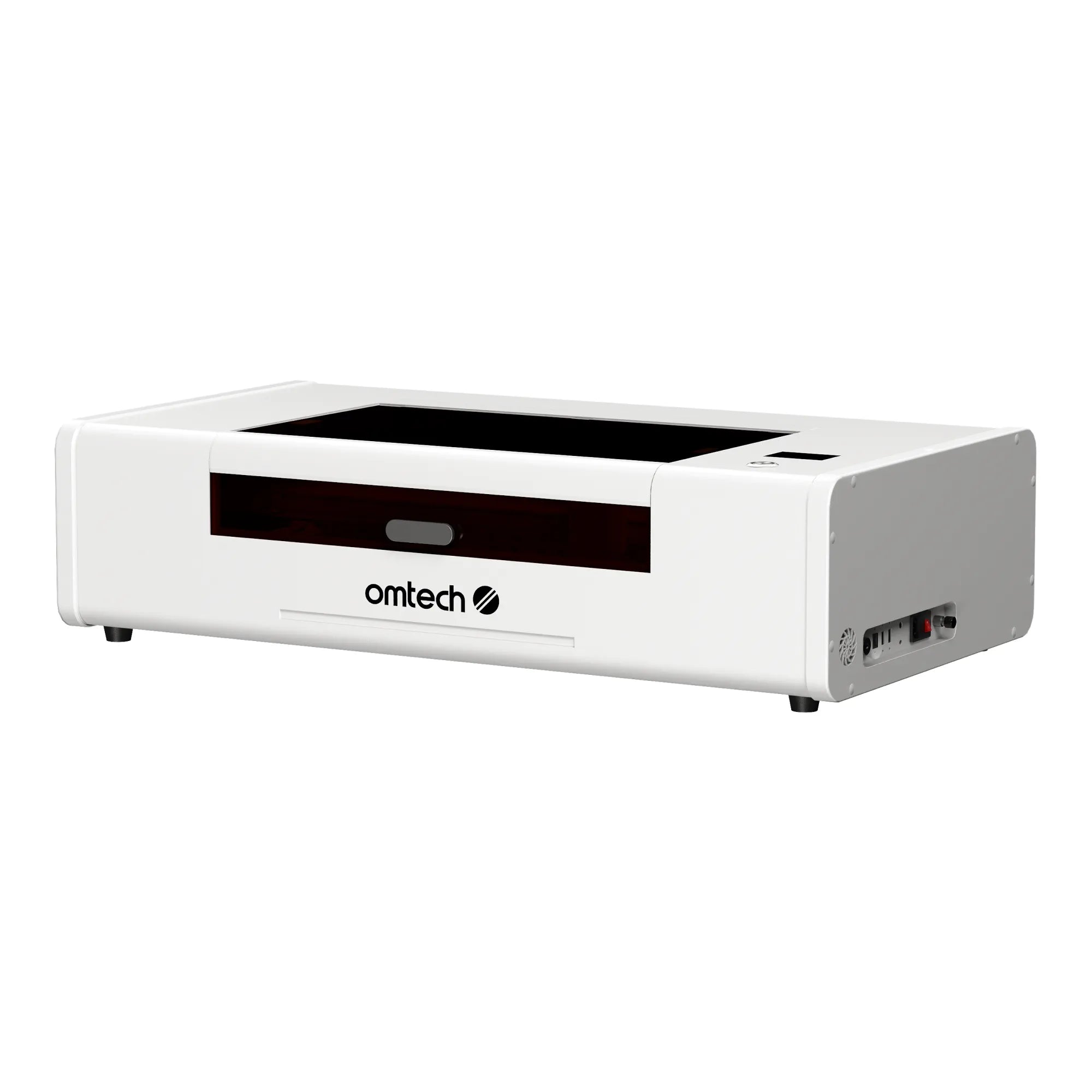

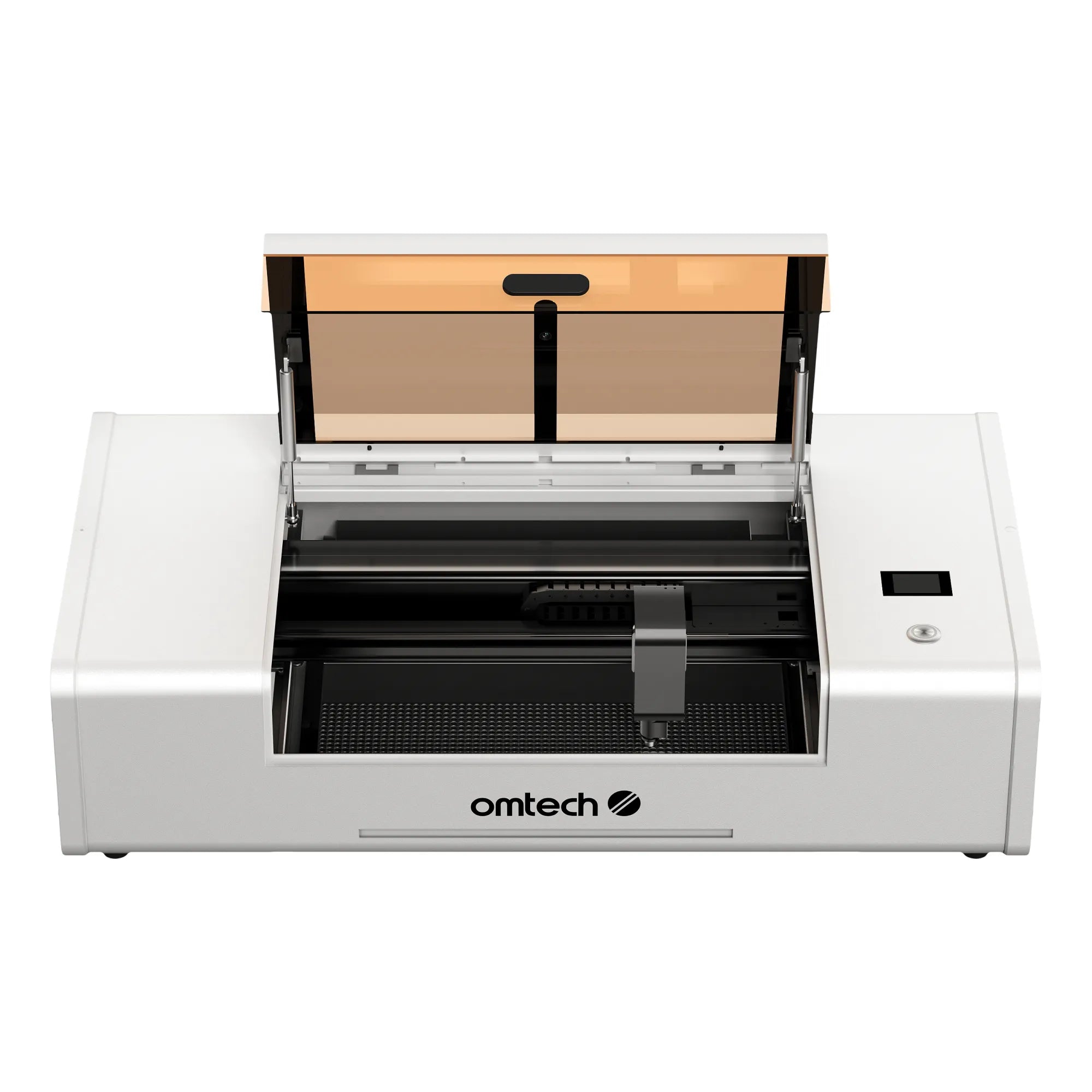

The OMTech Polar Lite 55W is a 55W Class 1 enclosed desktop CO2 laser engraver and cutter with a 20.1" × 11.8" working area, one-click autofocus, 5MP camera, front and rear pass-through, and a built-in water tank, air pump, and exhaust fans — everything integrated into a single machine so you don't need a separate chiller, external pump, or supplemental exhaust to operate it out of the box..
For makers, custom gift businesses, craft studios, and small shops that want a real CO2 laser without the setup complexity, the Polar Lite 55W is the complete package.
Compatible Materials:
Wood
MDF / Plywood
Leather
Plastics
Fabric
Stone
Coated Metals
Glass
What "Everything Built In" Actually Means
Most CO2 laser engravers are sold as a machine body — and then the operational requirements pile on. A separate water chiller (often $300–600 more) to cool the laser tube. An external air pump for smoke removal. An exhaust duct or filtration system. All of it requires additional bench space, additional connections, and additional things that can fail or need maintenance.
The Polar Lite 55W integrates everything that makes a CO2 laser operational into the machine itself:
Built-in 2L water tank (0.5 gal.) — with 33% more water capacity than comparable machines, handling laser tube cooling without an external chiller. A water temperature alert warns you if the water exceeds 107°F, protecting the tube automatically.
Built-in 18.8 CFM air pump — 36% more airflow than previous configurations, providing rapid smoke removal from the cutting zone during operation.

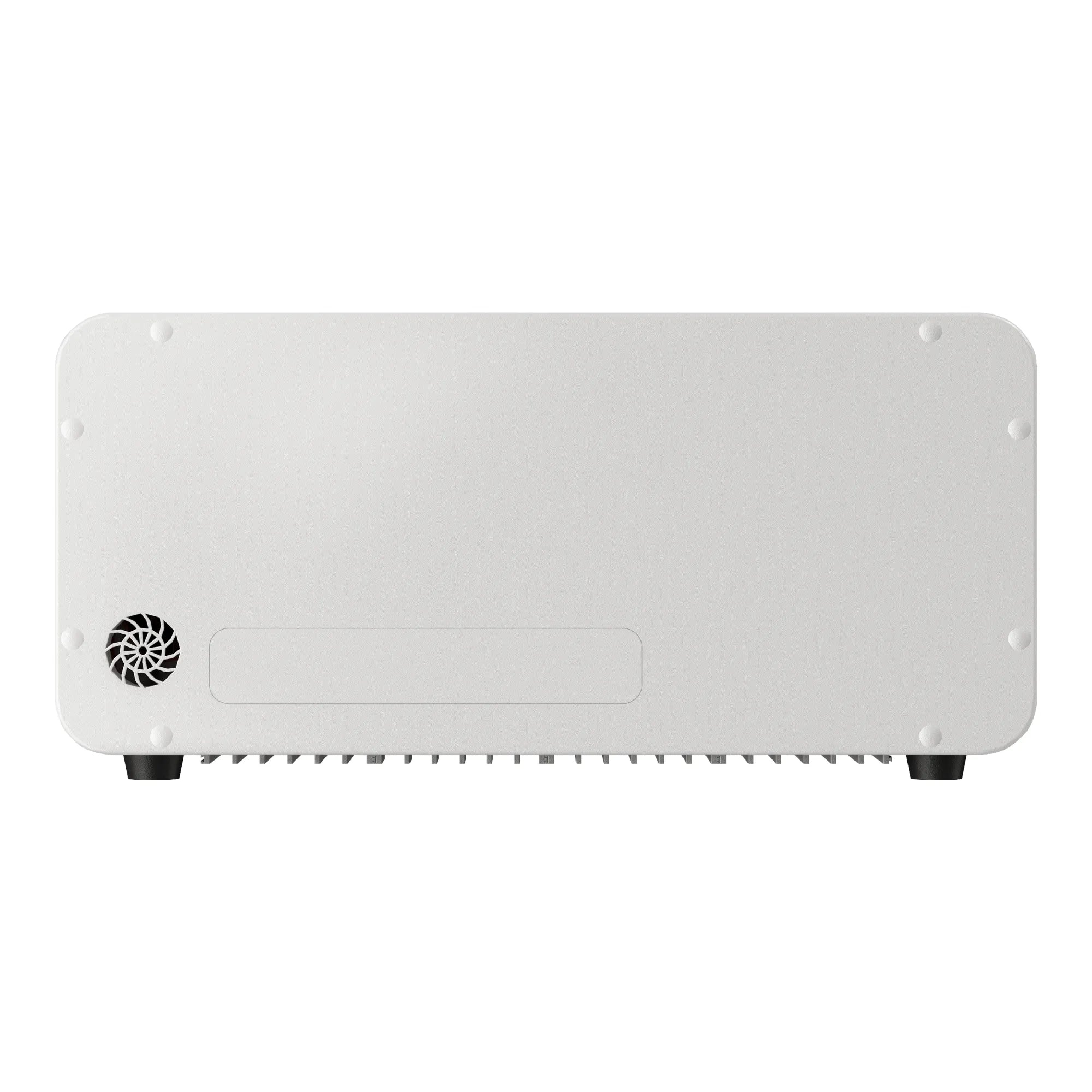

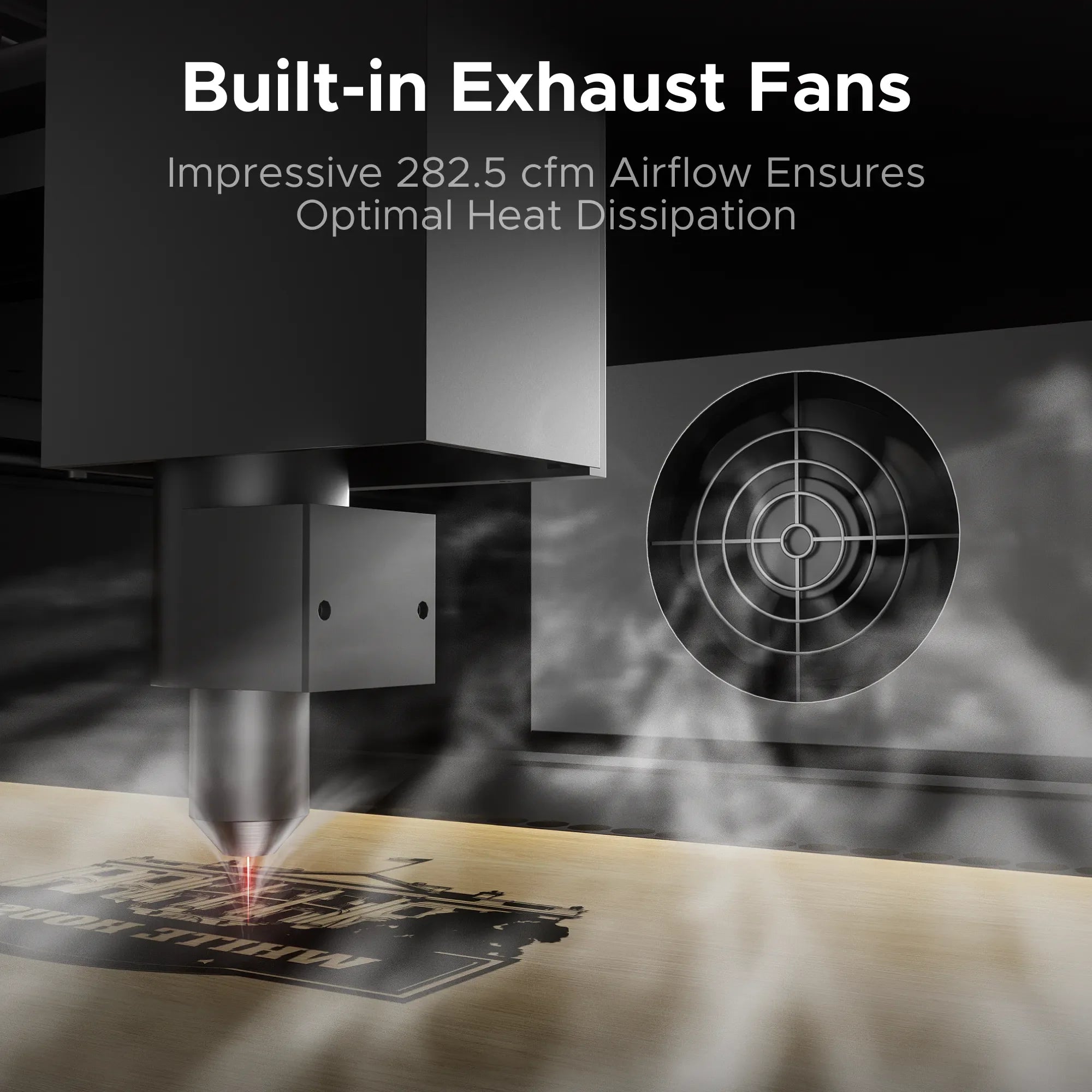

Built-in 282.5 CFM exhaust fans — for heat release and overall airflow management within the enclosed cabinet.
For a home workshop, classroom, or small studio where floor space is at a premium, the elimination of three separate external devices isn't just a convenience — it's a material difference in whether the setup is practically achievable at all.

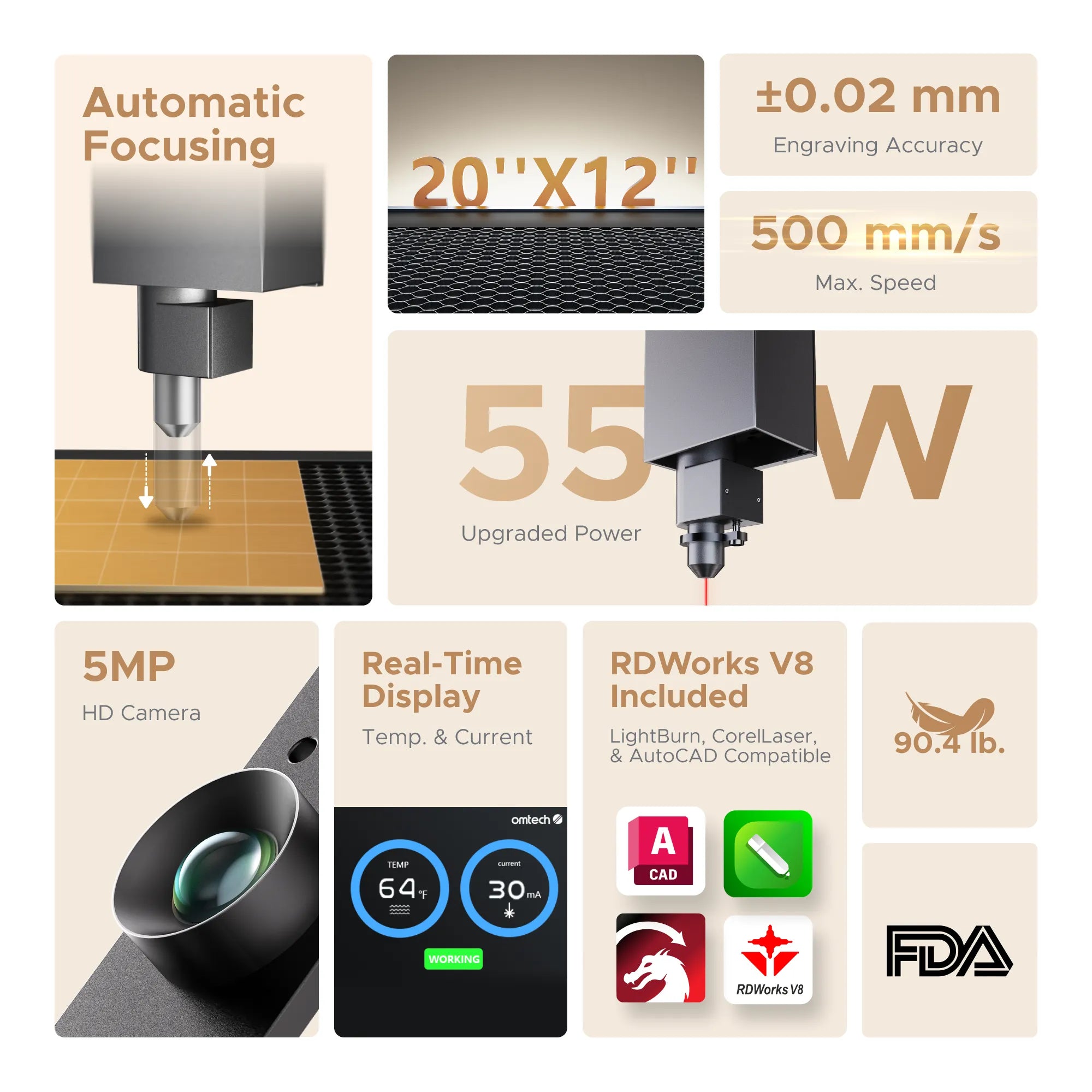

One-Click Autofocus + 5MP Camera — Professional Workflow in a Desktop Machine
Two features on the Polar Lite 55W that usually appear only on more expensive CO2 laser systems:

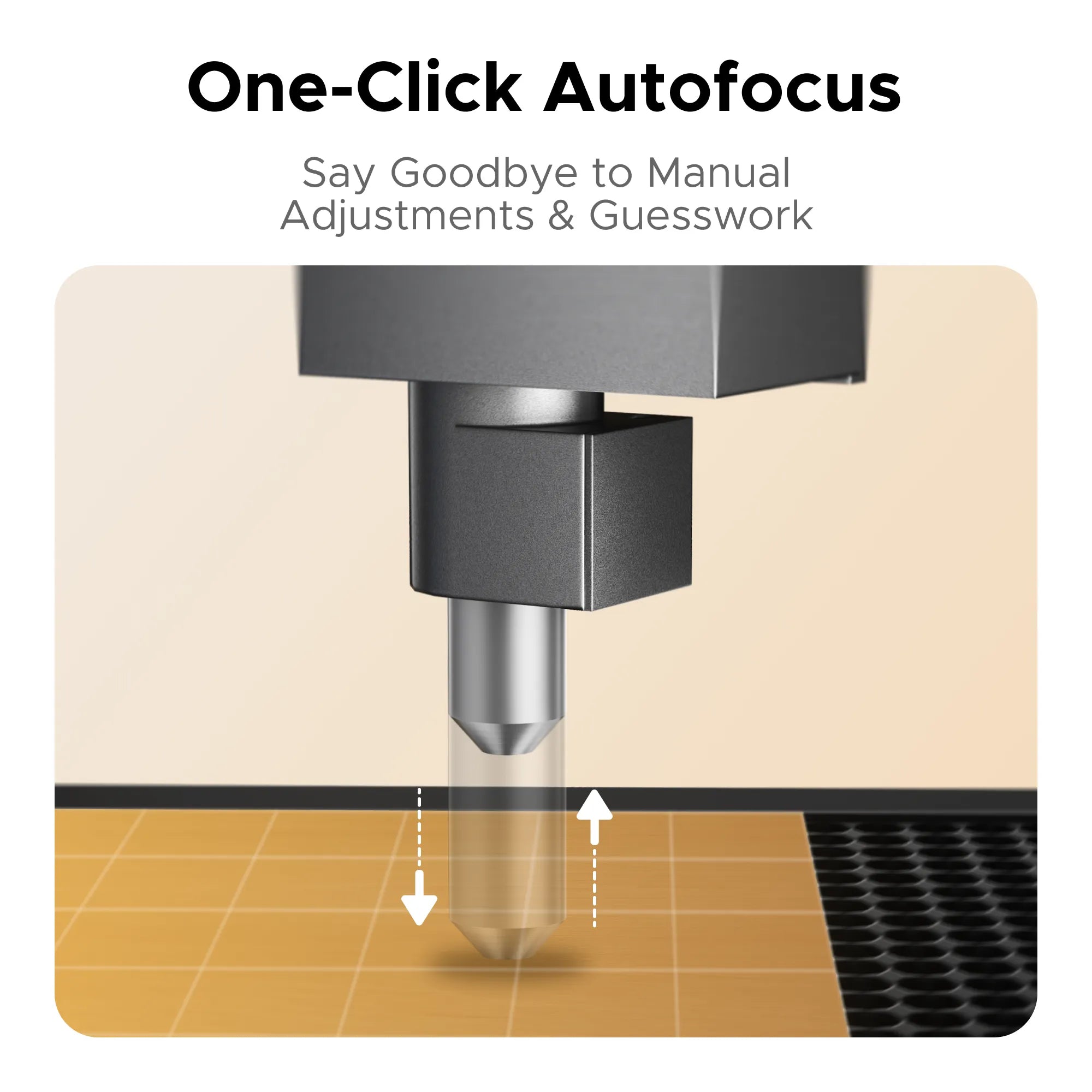

One-click autofocus: Focus is handled by the software — the Polar Lite adjusts the focal height automatically with a single click. For a home user or small business operator who isn't a seasoned laser technician, this eliminates the most technical and error-prone step in the pre-job setup process. Consistent, accurate focal height every time, without test burns or manual measurement.
5MP camera: The camera renders the full working area in LightBurn or RDWorks, allowing you to visually position your design over the actual material before the laser fires. For personalization businesses marking individual blanks where exact placement matters, or for setting up batch layouts across the working area, the camera preview replaces the guesswork and test-cut cycle that non-camera machines require.
Together, these features bring the setup experience of a professional production machine to a desktop format — making the Polar Lite 55W genuinely accessible to operators who haven't spent years learning CO2 laser operation.
20.1" × 11.8" Work Area — Plus Pass-Through for Long Materials
The 20.1" × 11.8" (510 × 300mm) standard processing area handles the majority of everyday CO2 laser work: cutting boards, ornaments, sign panels, acrylic pieces, leather accessories, and fabric designs — all in the standard field.

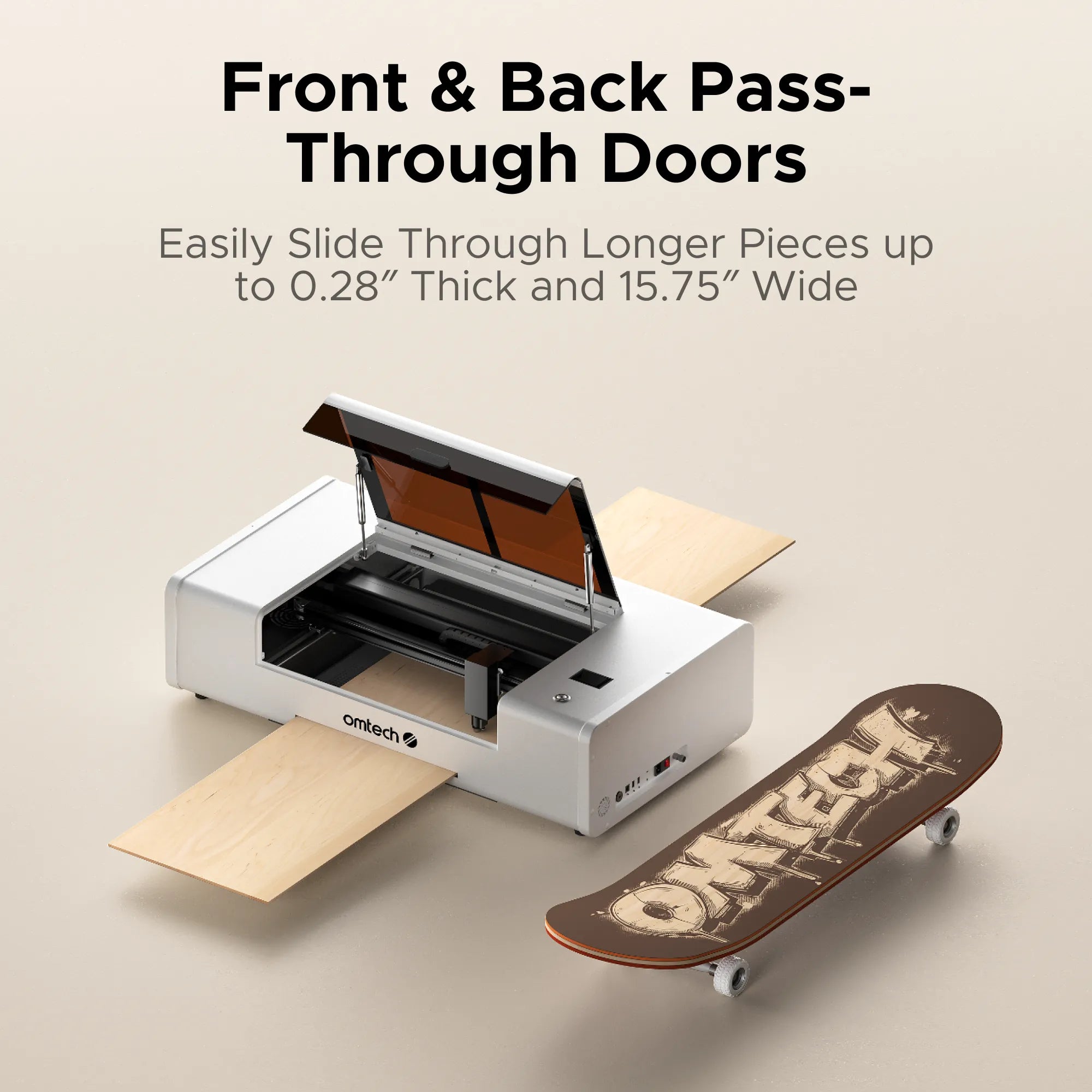

For projects that exceed the bed length, the front and rear pass-through (15.8" × 0.3") allows longer flat materials to feed through the machine — enabling continuous-run engraving on boards, strips, and panels that exceed the standard bed length. This is the feature that turns the Polar Lite from a small-format machine into a versatile production tool for longer format work.
Maximum material thickness is 0.7" (17mm) with the workbed and 2" (51mm) without the workbed — accommodating thicker stock for woodworking applications where depth matters.

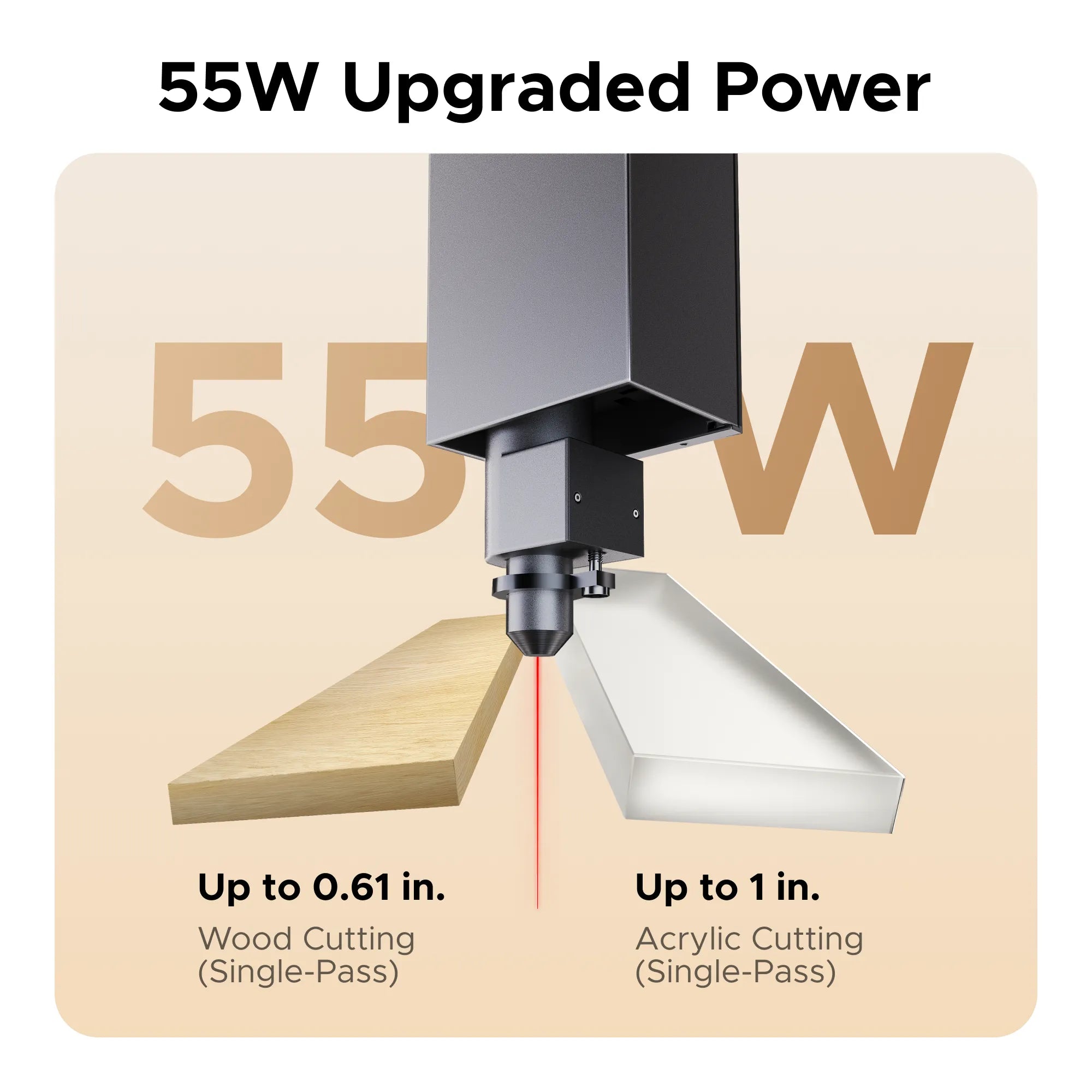

55W CO2 Tube — What It Cuts and Engraves
The 55W CO2 laser tube operates at 1000 DPI maximum resolution and processes at up to 500 mm/s, with ±0.02mm accuracy. The 10.6µm CO2 wavelength is the right technology for organic and polymer materials:
Wood and plywood: Clean engraving with natural contrast, single-pass cutting on sheet material at appropriate thicknesses.
Acrylic: Clear fire-polished cut edges, crisp surface engraving without masking.
Leather and leatherette: Precise engraving with clean edges, no melting on properly tuned materials.
Fabric: Surface marking and light cutting on appropriate fabrics.
Coated and painted metal: Engraving through powder coating, paint, and anodized surfaces where the CO2 wavelength interacts with the coating layer.
What CO2 cannot do: Bare metal engraving and cutting. For bare metal marking (stainless steel, aluminum, brass), a fiber laser is the appropriate technology. For mixed-material shops, the Polar Lite handles the non-metal work while a separate fiber laser handles bare metal.
Class 1 Enclosed — Safe for a Studio, Classroom, or Home Workshop
The Polar Lite 55W carries Class 1 laser safety certification (FDA certified) — the highest laser safety classification, achieved through its fully enclosed design that contains laser light and smoke within the machine during normal closed-lid operation.
Additional safety features:
Cover protection: The laser halts operation when the cover is opened — no laser exposure from accidental lid opening during a job.
E-Stop button: Immediately stops laser operation — accessible on the machine exterior without needing to open the software.
Water temperature alert: Notifies the operator when water temperature exceeds 107°F, protecting the laser tube from thermal damage.
CE and FDA certified. For classrooms, shared studios, home workshops, and any environment where the Class 1 certification provides the safety foundation for safe shared operation — the Polar Lite meets the standard.

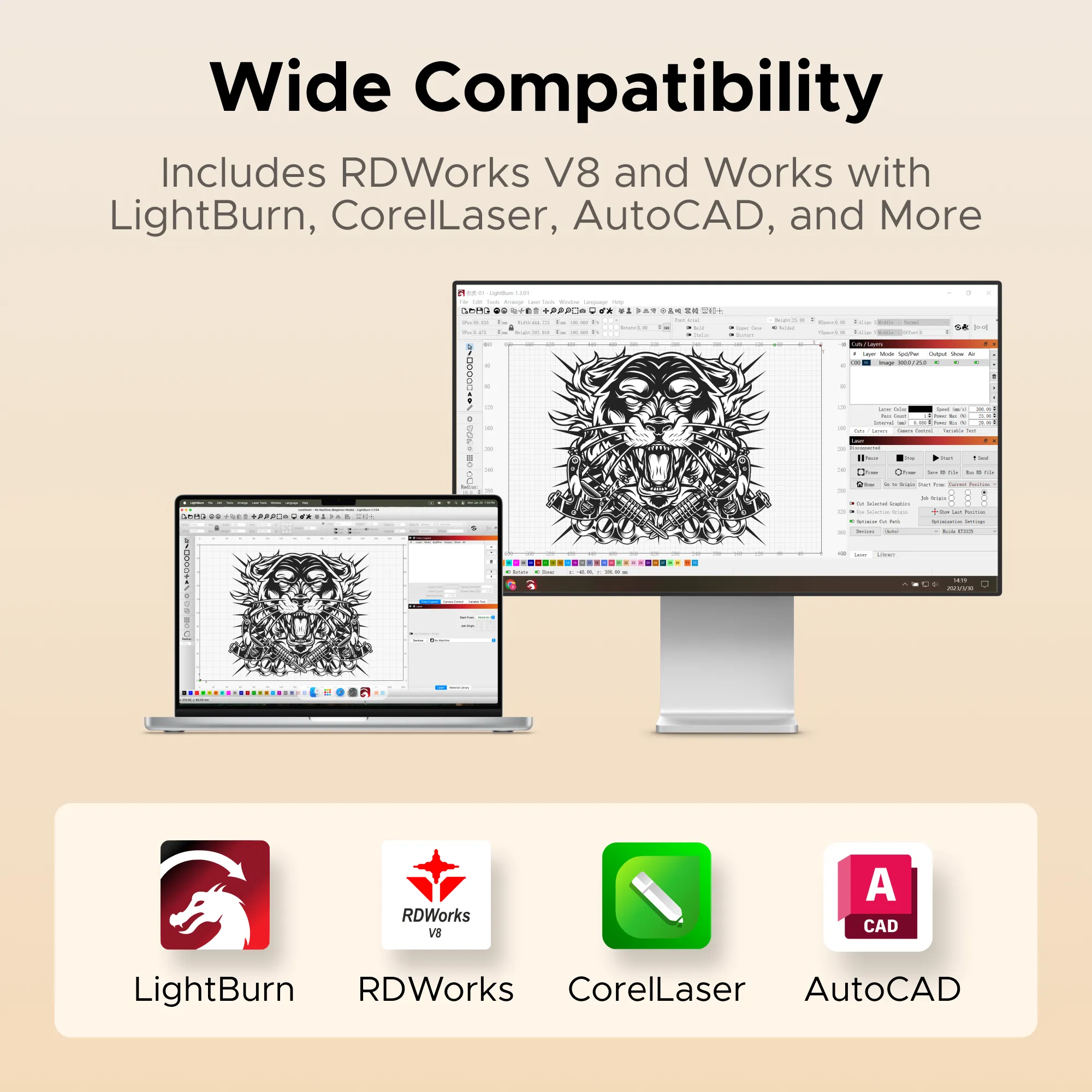

Connect the Way You Work — WiFi, USB, or Ethernet

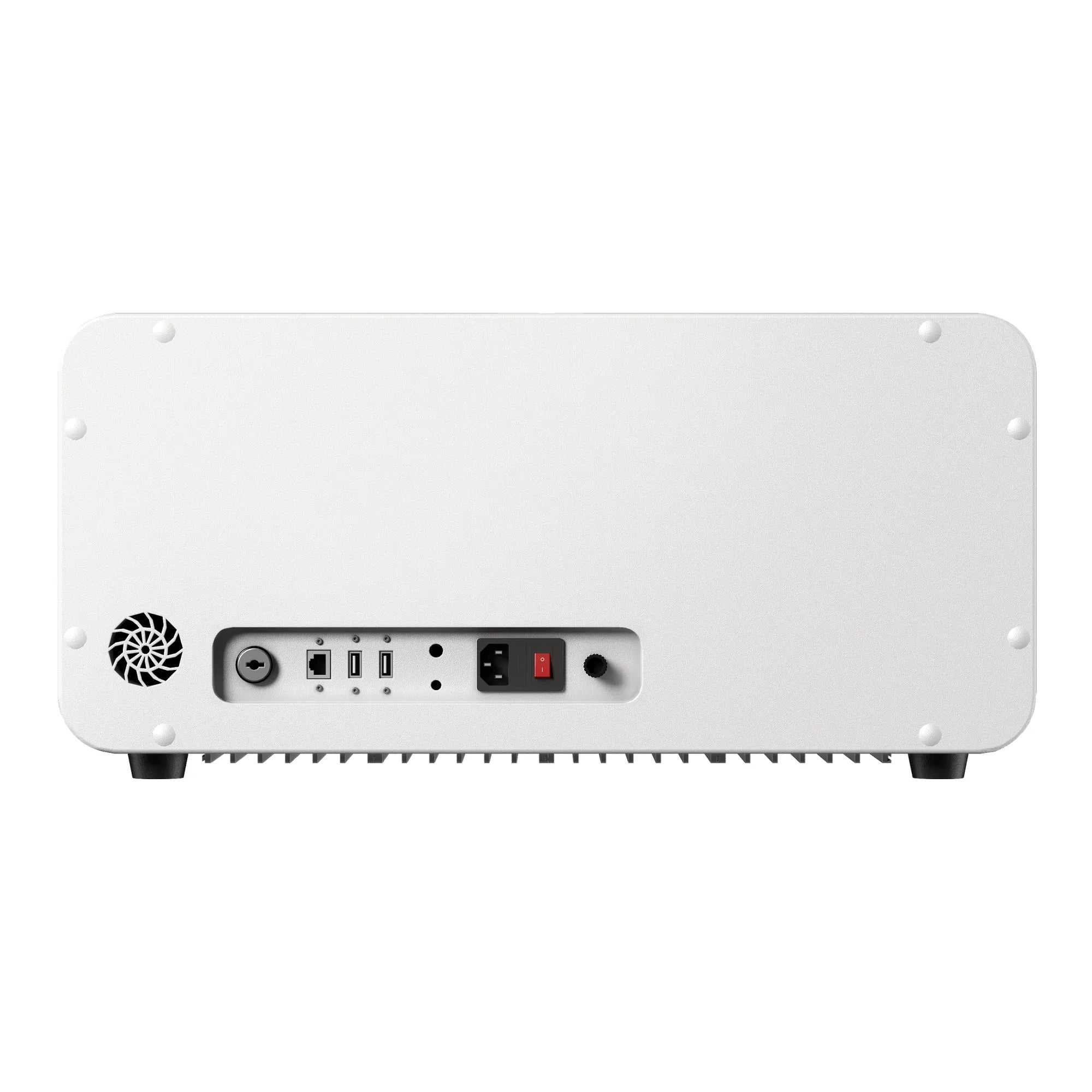

The Polar Lite 55W supports three connection methods: WiFi, USB cable (1.5m included), and Ethernet cable (5m included). For a home workshop where the machine is near a router, WiFi eliminates cable runs. For a production studio where reliable high-throughput connection is preferred, Ethernet provides the stable wired link.
Provided software: RDWorks (included on USB drive). Compatible software: LightBurn — the industry-standard design and control software for CO2 lasers, with a large community, extensive material settings databases, and compatibility across most CO2 laser hardware. LightBurn runs on Windows and macOS.

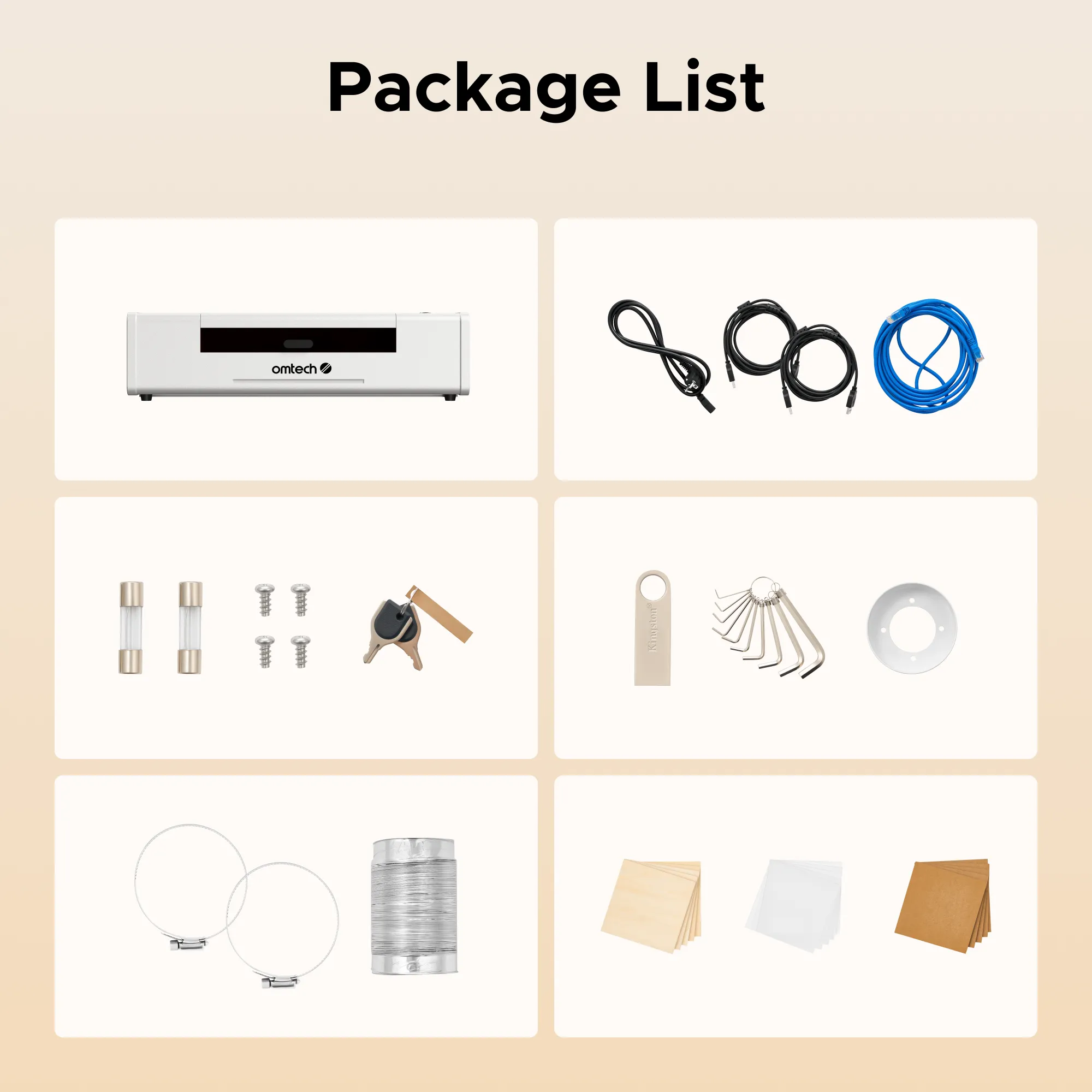

The machine comes with two laser keys for controlled access, wood and acrylic sample blanks to start testing from day one, and a complete tool set.
The Maker's Chest Difference
The OMTech Polar Lite 55W is available from OMTech directly and from other resellers. Here's what changes when you order through The Maker's Chest:
🛡️ 75-day returns — significantly longer than OMTech's direct return window. Enough time to set up the machine, run it through your actual materials and projects, confirm the performance and workflow fit your needs, and make an informed decision before you're committed
🇺🇸 Expert USA-based technical support — our team can help with LightBurn and RDWorks setup, material parameter dialing, camera alignment workflow, and any issues that arise during your first months of operation
📞 Dual lines of support — phone and email, so when a question comes up mid-project, you have a direct path to a real person
🔧 Straight pre-sale guidance — not sure if the Polar Lite 55W or the Polar 2 RF is the right fit for your materials and production needs? Talk to us before ordering. We'll give you an honest recommendation
Frequently Asked Questions About OMTech Polar Lite 55W Desktop CO2 Laser Cutter and Engraver
Q: Does it need an external water chiller or external air pump? A: No — both are built into the machine. The Polar Lite 55W includes a built-in 2L water tank for laser tube cooling and an 18.8 CFM air pump for smoke removal. No external chiller purchase, no external pump, no additional connections. You do need to periodically top up the water tank and add antifreeze for cold-environment use.
Q: Does it need to be ducted outside? A: An exhaust connection to the outside or to a fume filtration system is strongly recommended. The machine includes built-in 282.5 CFM exhaust fans and an exhaust pipe for connection to an external duct. For a home workshop or shared studio, connecting the exhaust to a window duct or inline filter is the correct setup for managing fumes from wood, acrylic, and leather cutting.
Q: What materials can it cut and engrave? A: Wood, plywood, MDF, acrylic, leather, leatherette, fabric, cork, rubber, cardboard, coated metals (powder coat, paint, anodizing), and most organic and polymer materials. The CO2 wavelength cannot engrave or cut bare metal — for bare metal marking, a fiber laser is required.
Q: How does the pass-through work? A: The front and rear pass-through slots (15.8" × 0.3" each) allow flat material longer than the standard bed to feed through the machine. You engrave or cut one section, advance the material, align the next section in the software using the camera, and continue. For boards, planks, and long strip material that exceeds the 20.1" bed length, the pass-through makes continuous-run processing practical.
Q: Is it compatible with LightBurn? A: Yes — LightBurn is compatible and is the preferred software for most users. The machine ships with RDWorks on the USB drive. LightBurn requires a separate license purchase from Lightburn. It runs on Windows and macOS, includes extensive community-shared material settings, and is the software most experienced CO2 laser users prefer for its workflow and feature set.
Q: What is the laser tube lifespan? A: 11,000 hours estimated service life — at 4 hours daily use, 250 working days per year, that's approximately 11 years of rated tube life. The machine includes a 24-month warranty on the complete system including the tube.
Q: Can it engrave cylindrical objects like tumblers? A: Yes, with a compatible rotary axis attachment (not included). The Polar Lite supports 360° cylindrical engraving when used with a compatible rotary accessory. Rotary attachments are available as optional add-ons — contact our team for guidance on which rotary configuration works with this machine.
Q: How does the one-click autofocus work? A: One-click autofocus is triggered from within the software — LightBurn or RDWorks sends the autofocus command and the machine adjusts the laser head to the correct focal height automatically. No manual measurement, no test burns to confirm focus. For beginners and experienced users alike, this eliminates the most common source of early-stage engraving errors.
Q: Why buy from The Maker's Chest instead of directly from OMTech? A: Our 75-day return window gives you real evaluation time — significantly more than OMTech's direct return policy — enough to set up the machine, run your actual project types, and confirm it performs the way your business needs before you're locked in. Our USA-based expert support team is reachable by phone and email for LightBurn and RDWorks setup, material parameter guidance, and production troubleshooting. If you're deciding between the Polar Lite and another OMTech CO2 model, we'll give you a straight recommendation.
Specifications
OMTech Polar Lite 55W Desktop CO2 Laser Cutter and Engraver Specifications
Specification
Official Information
Rated Power
55W
Standard Processing Area
20.1 × 11.8 in. / 510 × 300 mm
Front & Rear Pass-Through
15.8 × 0.3 in. / 400 × 7 mm
Max. Material Thickness
0.7 in. / 17 mm
Max. Material Thickness Without Workbed
2 in. / 51 mm
Estimated Laser Service Life
11,000 hr
Product Dimensions
41.1 × 22.2 × 11.0 in. / 1045 × 565 × 280 mm
Package Dimensions
46.5 × 25.6 × 14.8 in. / 1180 × 650 × 375 mm
Max. Processing Speed
19.6 ips / 500 mm/s
Max. Resolution
1000 dpi
Minimum Letter Size
0.04 × 0.04 in. / 1 × 1 mm
Water Chiller Capacity
0.5 gal. / 2 L
Flow Rate
142 gph / 540 L/h
Camera Resolution
5MP
Accuracy
±0.0008 in. / ±0.02 mm
Air Assist Port Diameter
0.3 in. / 8 mm
Air Flow
282 cfm / 480 m³/h
Data Transmission
WiFi, USB Cable, Ethernet Cable
Provided Operating Software
RDWorks
Compatible Operating Software
LightBurn, RDWorks
Certification
CE, FDA
Net Weight
90.4 lb. / 41 kg
Warranty
24 Months
