Full-Sheet Processing, 150W Power, and Autofocus — This Is What a Production Laser Looks Like.

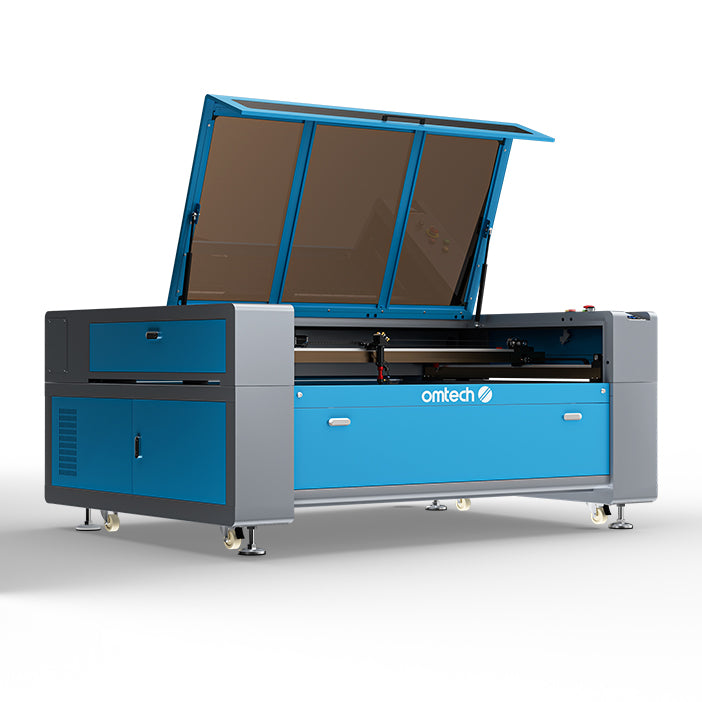

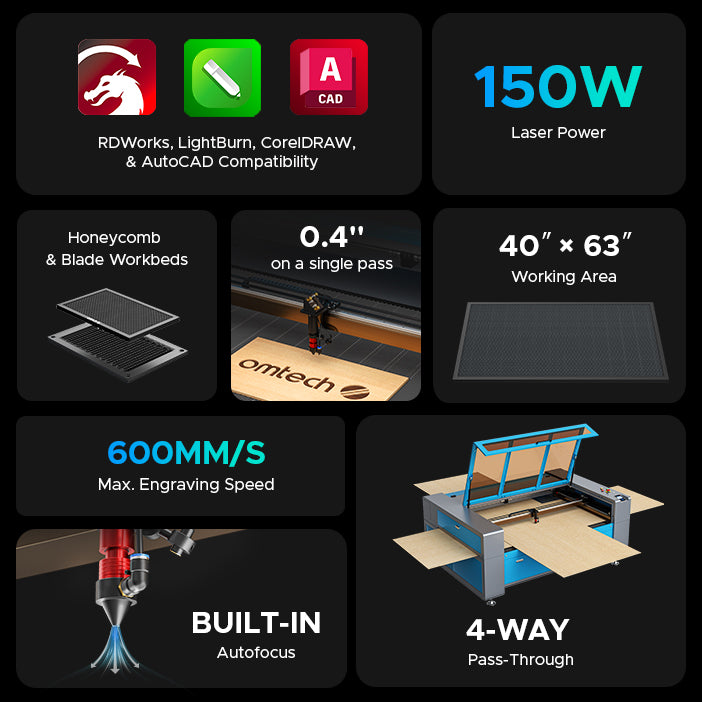

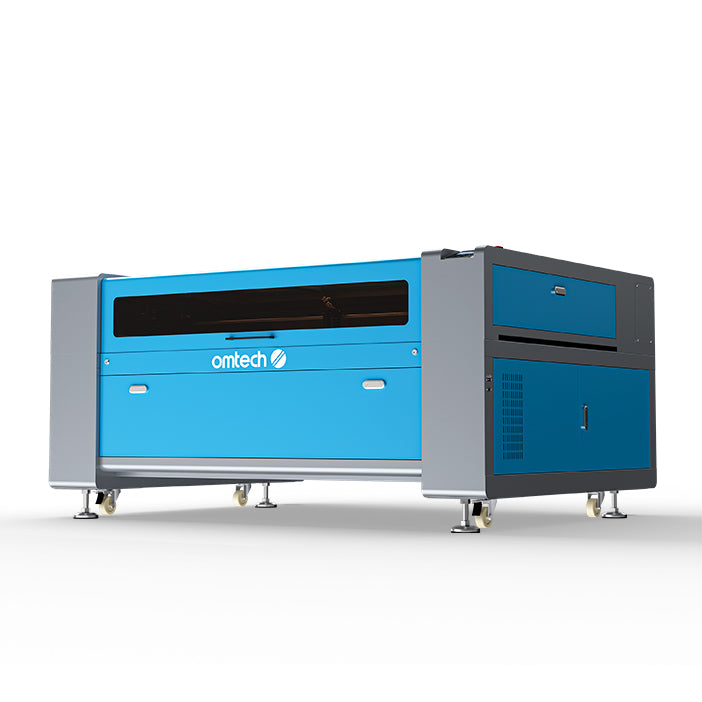

The OMTech Maker AF4063-150 is a 150W Yongli A8s CO2 laser cutter and engraver with a 40" × 63" (1000 × 1600mm) working area, built-in autofocus and air assist, 4-way pass-through, and dual motorized workbeds that raise and lower at the touch of a button.
A production-scale machine built for woodworking shops, acrylic fabrication studios, signage businesses, and high-volume creative operations where full-sheet material processing, sustained cutting capacity, and large-format engraving are daily requirements.
Compatible Materials:
Wood
|
MDF / Plywood
|
Leather
|
Plastics
|
Fabric
|
Stone
|
Coated Metals
|
Glass
|
What 40" × 63" at 150W Actually Changes
The step from a 20" × 28" machine to the AF4063-150 isn't just about a bigger bed — it's a categorical shift in what's producible in a single workflow.
Full-sheet processing without repositioning. Standard 4-foot × 8-foot plywood, MDF, and acrylic sheets fit within the 40" × 63" working area in two indexed passes at most — and with the 4-way pass-through, even longer material processes continuously. For a woodworking shop or acrylic fabrication business, eliminating the repositioning and re-alignment required on smaller machines directly reduces setup time per job and accumulated error across multi-pass workflows.
Larger individual pieces in one setup. Sign panels up to 40" × 63". Architectural model components. Full decorative wall panels. Oversized award plaques. Projects that require splitting across multiple setups on a 20" × 28" machine complete in a single setup on the AF4063.
Higher batch capacity. More area means more parts nested per job file. Fewer load-unload cycles. More output per shift without additional labor.
At 150W powering that 40" × 63" field, cutting speed and penetration on thick material match the scale of the working area — so the large bed doesn't create a bottleneck at the laser source.
Yongli A8s 150W — An Industrial-Grade Tube at Production Scale
The Yongli A8s CO2 laser tube is one of the most respected production glass tube sources in the industry — a 150W high-output tube with specifications that place it in a different class from the H2 and H4 tubes used in smaller Maker configurations:
72.8" (1850mm) tube length and 80mm diameter — the largest tube dimensions in the Maker series. These physical dimensions support the stable optical resonant cavity required for consistent 150W output over sustained production operation without the output drift that shorter, smaller tubes show under heavy use.
12,000-hour estimated service life — particularly when consistently operated at lower power settings. For a production shop where the machine runs daily, tube replacement is a planned maintenance event measured in years rather than months.

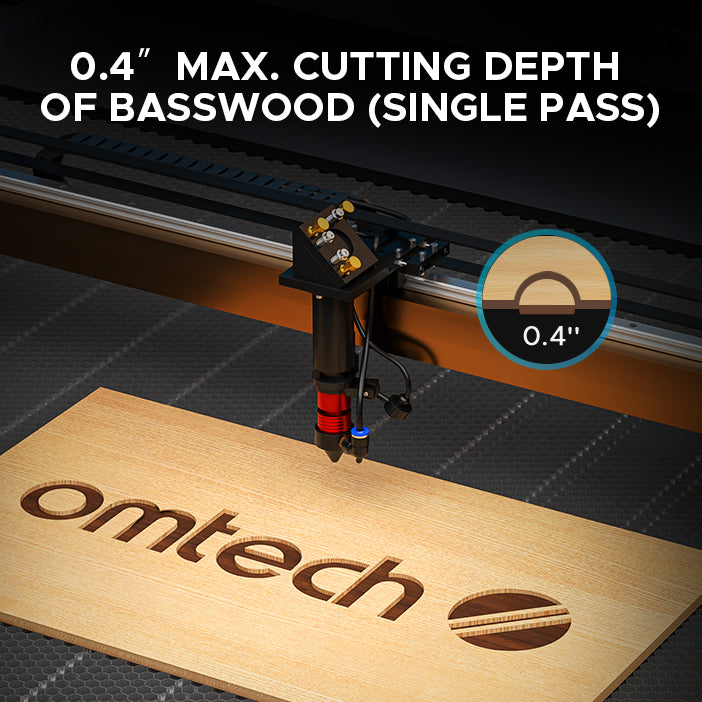

150W output for genuine thick-material performance. The product page specifically references 0.4" single-pass basswood cutting as a performance benchmark — material that would require multiple passes on 60W or 90W machines cuts cleanly in a single pass at 150W.

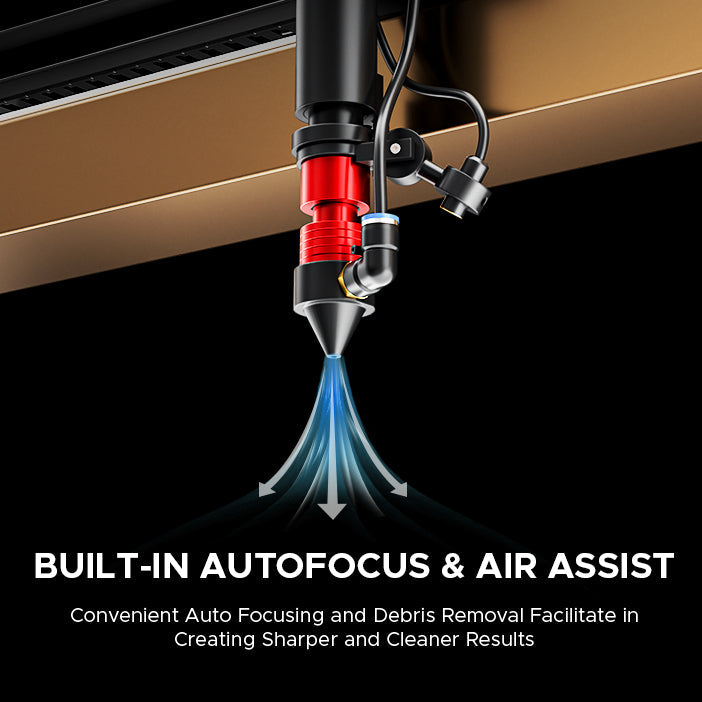

Built-In Autofocus + Air Assist — Production Quality on Every Job
Two features that compound significantly in large-format production workflows:
Built-in autofocus: For a machine processing sheets of varying material thicknesses throughout a production day — one job on 6mm plywood, the next on 10mm MDF, then 3mm acrylic — autofocus eliminates the manual focal calibration step on every material change. The sensor measures the surface, adjusts the head height, and the machine is ready to engrave or cut — no ruler, no test burn, no manual adjustment. On a 40" × 63" machine where material setup is already a time investment, removing focus calibration from that process makes a meaningful difference in daily throughput.
Built-in air assist: The integrated air assist delivers continuous airflow to the cutting zone — clearing smoke, debris, and vaporized material from the cut path as the laser runs. This serves two production purposes: keeping the lens clean during extended cutting sessions (protecting the optic and maintaining beam quality), and suppressing scorching on wood and acrylic surfaces that would require post-processing cleanup. At 150W on thick material, the air assist is particularly important for edge quality on acrylic cuts.
Dual Motorized Workbeds — Raise and Lower With a Button
Most CO2 laser workbeds require manual height adjustment — loosening bolts, repositioning, re-tightening. The AF4063-150's dual motorized workbeds change this entirely: press a button on the control panel and the bed rises or lowers to the correct height for the material being processed.
On a machine with a 40" × 63" work surface and 816 lbs. of total weight, manual workbed height adjustment would be a significant physical task every time material thickness changes. The motorized system makes it a 10-second operation.
Honeycomb workbed: The standard configuration for engraving and cutting lighter to medium material. Supports the workpiece while allowing laser energy pass-through without solid-surface reflection.
Blade workbed: For thick-material cutting where drop-through clearance is critical. Raised blade tips minimize bottom-face contact, allowing cut pieces to clear cleanly with polished edge finish. At 150W cutting thick sheet material, blade workbed configuration is the production standard.
Both workbeds are included. Motorized height adjustment serves both.

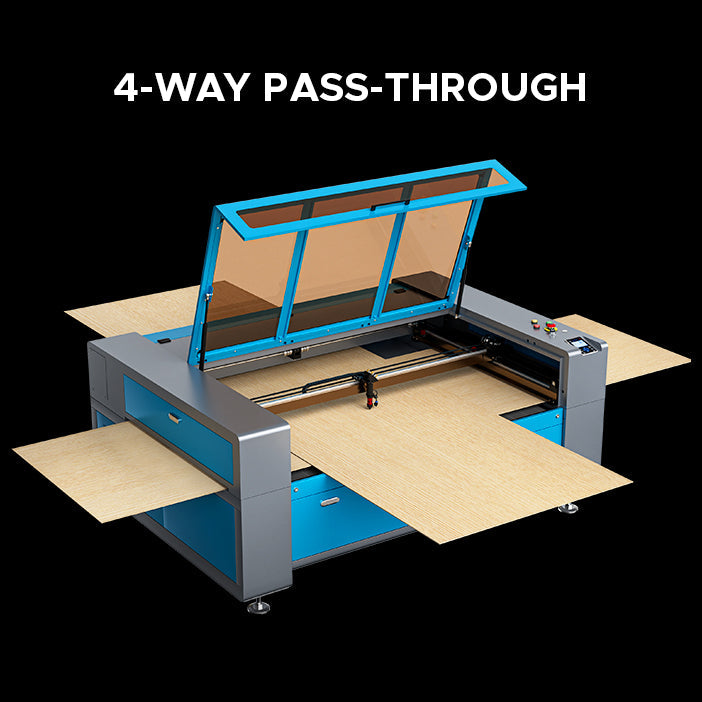

4-Way Pass-Through — No Material Is Too Long or Too Wide
The AF4063-150's 4-way pass-through is scaled for its work area:
Front and back pass-through (67" × 2"): For material longer than 63" — full-length 8-foot lumber, extended sign boards, continuous panel strips. Feed the material through front-to-back, process sections sequentially, advance without removing the material. At 67" wide, the front/back opening accommodates boards and panels at their full width.
Side pass-through (42.1" × 0.8"): For material wider than 40" that needs lateral extension beyond the working area.
For a woodworking shop processing standard 8-foot lumber at full length, or a signage business working with oversized sign blanks — both pass-through directions together mean neither dimension of flat sheet material is a hard production limit.
Ruida Controller + LightBurn + Four Connection Methods

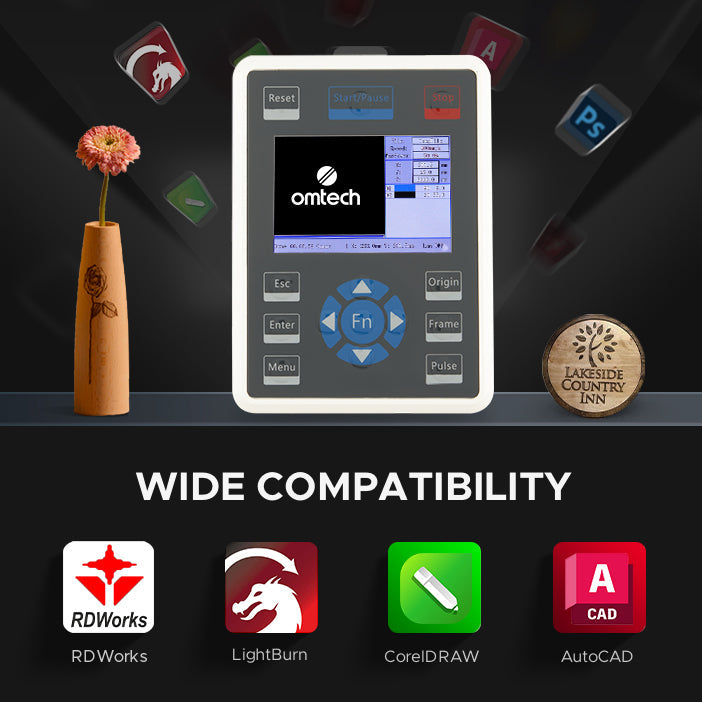

The AF4063-150 uses a Ruida digital control panel — one of the most trusted production CO2 laser controllers in the industry. From the Ruida, operators can adjust power and speed, frame projects before firing, manage files from a USB flash drive, and run jobs fully offline without a connected computer.

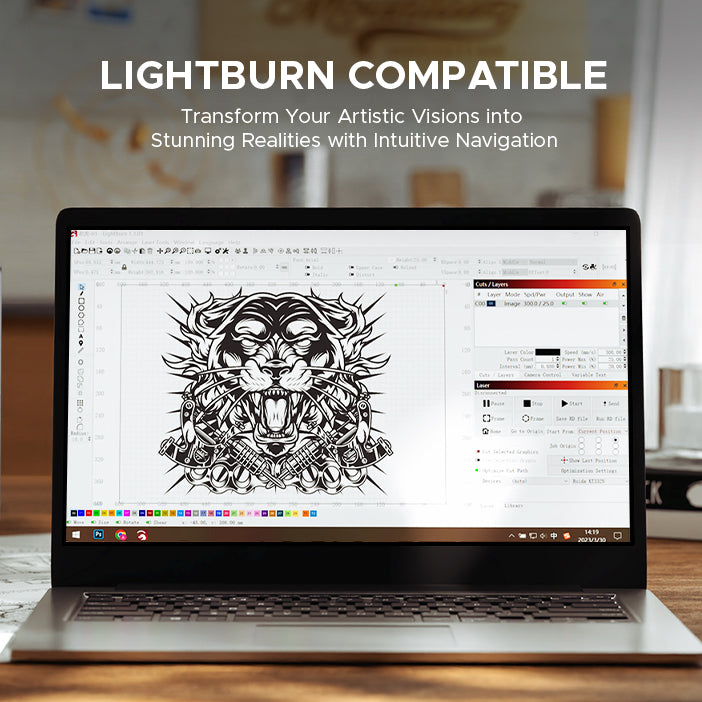

RDWorks is bundled on USB flash drive. LightBurn is compatible (separate license from Lightburn required) and is the preferred production software for Ruida-equipped machines — better interface, stronger material libraries, and native macOS/Linux support in addition to Windows.
Connection methods: USB cable, Ethernet cable, and USB flash drive — standard for a large production machine where the design station may be across the shop from the laser.
CE and FDA certified. 2-year machine warranty (1 year on parts).
Water Chiller Required — Budget Accordingly

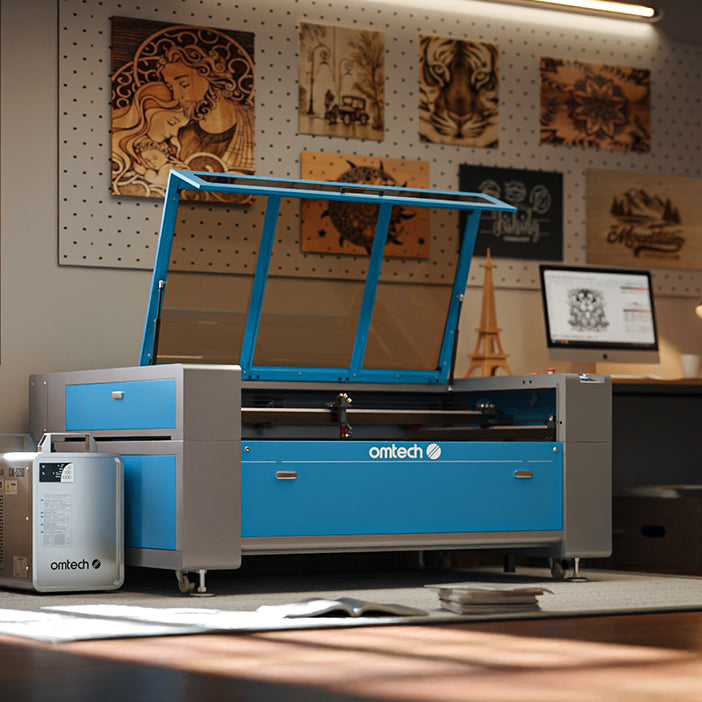

At 150W sustained output, a dedicated water chiller is required for stable operation — not optional. The included water pump is not sufficient to maintain safe operating temperature during production use at this power level. A CW-5200 or higher-capacity chiller is appropriate. Contact our team before ordering for compatible chiller specifications and guidance on sizing for 150W production operation.
The Maker's Chest Difference
The OMTech Maker AF4063-150 is available from OMTech directly and from other resellers. Here's what changes when you order through The Maker's Chest:
- 🛡️ 75-day returns — significantly longer than OMTech's direct return window. Enough time to receive the machine, complete installation, run it through your actual production materials, and confirm it performs at the scale your business requires before you're committed
- 🇺🇸 Expert USA-based technical support — our team can help with Ruida controller setup, LightBurn configuration, water chiller selection, exhaust setup, autofocus calibration, and any production issues that arise during the ramp-up phase
- 📞 Dual lines of support — phone and email, so when production is running and something needs attention, you have a direct path to a real person
- 🔧 Straight pre-sale guidance — not sure if the 40" × 63" bed and 150W output is the right configuration for your current production volume? Or whether the 20" × 28" machines cover your needs at a lower investment? Talk to us before ordering. We'll give you an honest recommendation based on your actual job types and material sizes
Frequently Asked Questions About OMTech Maker AF4063-150 150W CO2 Laser Cutter and Engraver
Q: What types of businesses actually need the 40" × 63" bed?
A: The 40" × 63" bed is the right choice for businesses where material size or batch capacity is regularly a production bottleneck on smaller machines. Sign shops cutting or engraving full-size sign blanks, woodworking shops processing 4-foot-wide sheet goods, acrylic fabrication studios cutting full-sheet display components, and high-volume creative businesses producing large batches that consistently fill a 20" × 28" machine multiple times per job. If most of your projects fit within a 20" × 28" bed, the smaller Maker configurations are more cost-appropriate.
Q: Does a water chiller come included?
A: No — a water chiller is required but not included in the standard package. At 150W sustained output, the included water pump cannot maintain safe operating temperature during production use. A CW-5200 or higher-capacity chiller is appropriate. Contact our team before ordering for compatible chiller options and sizing guidance.
Q: What is the Yongli A8s tube's service life?
A: 12,000 hours estimated service life — particularly when operated consistently at lower power settings. At 8 hours daily, 250 working days per year, that's approximately 6 years of rated tube life. The 2-year machine warranty (1 year on parts) covers the initial ownership period.
Q: What materials can it cut at 0.4" depth?
A: The product page specifically references 0.4" (10mm) single-pass basswood cutting as a benchmark. At 150W, single-pass cutting capability on compatible wood, acrylic, leather, foam, and MDF at appropriate thicknesses is the production standard. Actual results vary by material species, density, moisture content, and laser settings.
Q: Is LightBurn compatible?
A: Yes — the Ruida controller has excellent LightBurn support. LightBurn requires a separate license from Lightburn and runs on Windows, macOS, and Linux. RDWorks is bundled on USB flash drive.
Q: How does the motorized workbed work?
A: Both the honeycomb and blade workbeds are motorized — press a button on the control panel and the bed raises or lowers to accommodate different material thicknesses. For a 40" × 63" machine where manual bed adjustment would be physically demanding, the motorized system makes height changes a 10-second operation between material types.
Q: What are the shipping and installation requirements?

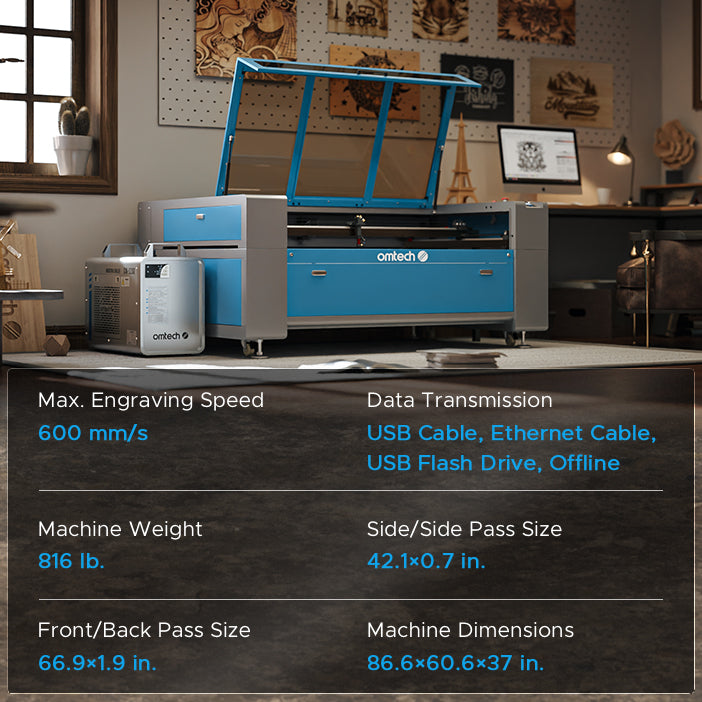

A: The machine weighs 816 lbs. and ships via freight. Liftgate delivery service is required — confirm availability at your delivery address before ordering. The machine's footprint is approximately 86.6" × 60.6" × 37.8". Confirm floor load capacity, clearance for pass-through material, operator movement space, and a location for the external water chiller. Contact our team before ordering for delivery logistics guidance.
Q: Can it engrave cylindrical objects?
A: Yes, with a compatible rotary axis attachment (optional add-on). The Ruida controller supports rotary axis configuration for 360° cylindrical engraving on cups, bottles, tubes, pipes, and similar objects. Contact our team for compatible rotary guidance.
