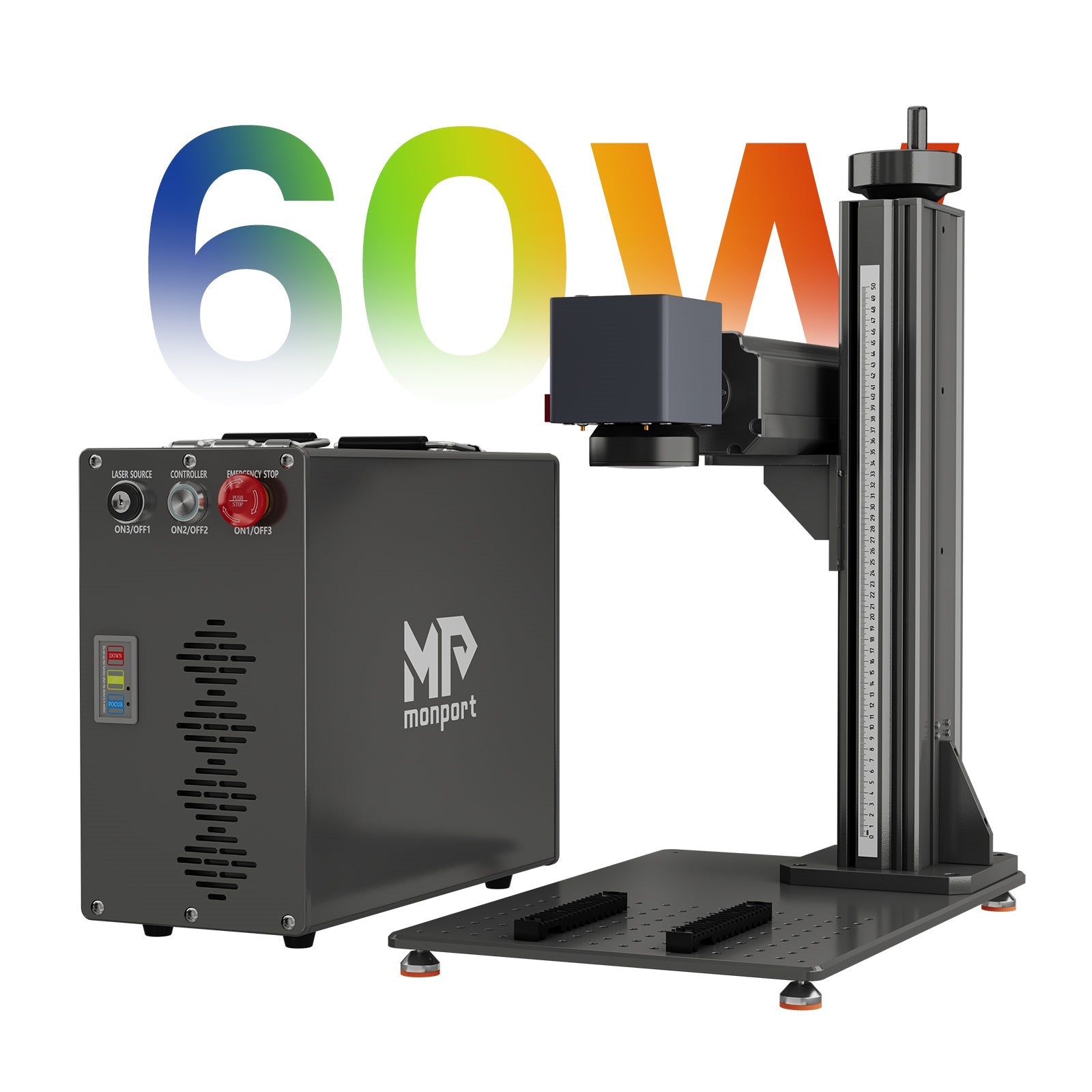

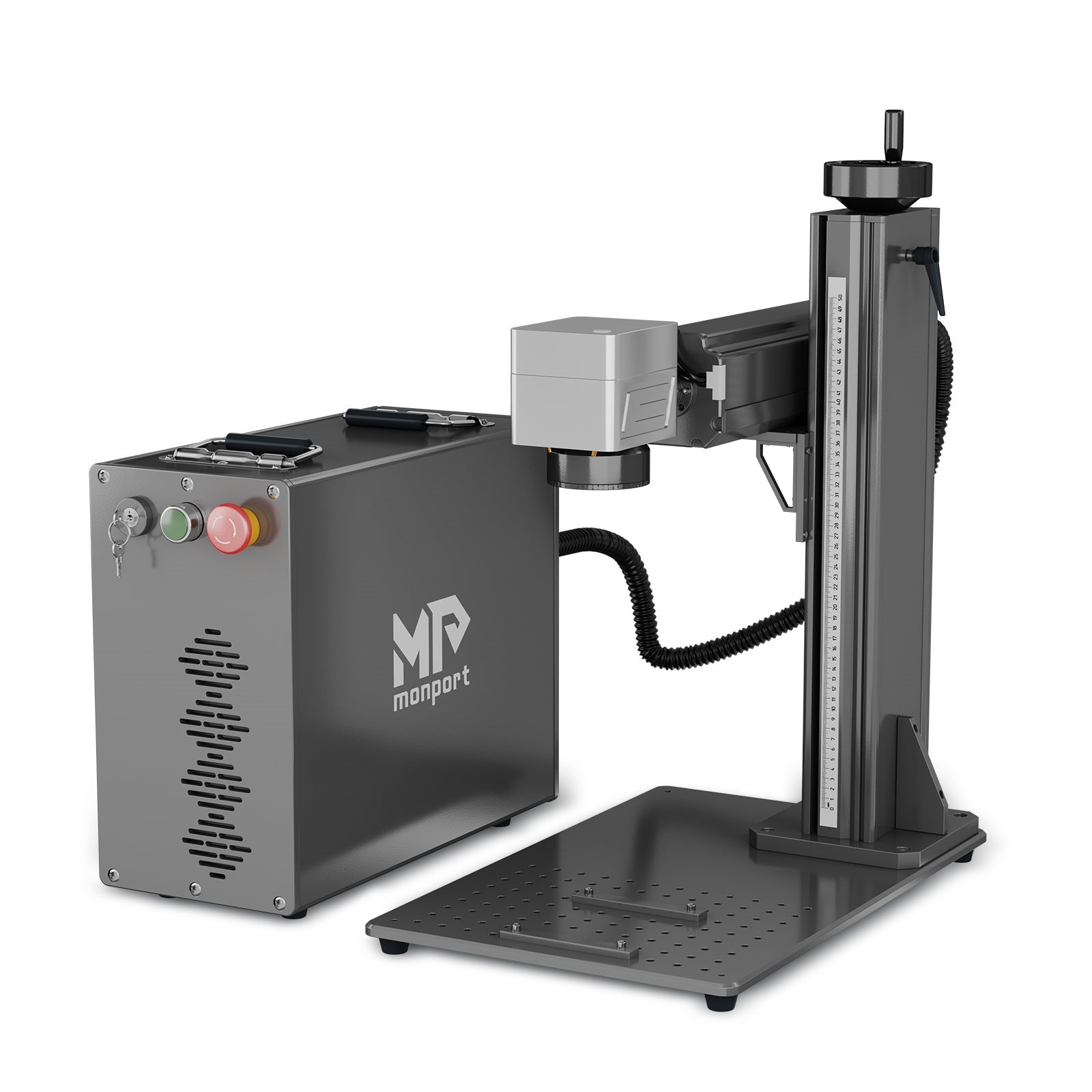

Introducing the Monport GT 60W Split MOPA: The Ultimate Precision Powerhouse for Professional Metal Engraving.
Unlock next-level engraving performance with the Monport GT 60W Split MOPA Fiber Laser Engraver—a high-precision, industrial-grade machine engineered for creators, manufacturers, and businesses that demand flawless results. With its exceptional speed, deep engraving capability, and advanced color-marking performance, this powerhouse elevates productivity and precision across every project.
Compatible Materials:
|
Metal
|
Plastics
|
Stone
|
Leather
|
Rubber
|
![]()
![]()
Elevate Your Craft with the Monport GT 60W MOPA Fiber Laser Engraver
Meet the Monport GT 60W Split MOPA, a professional fiber laser system built to deliver unmatched speed, precision, and engraving clarity. Powered by advanced MOPA technology, it effortlessly engraves, etches, textures, and color-marks metals with incredible control and consistency.
Featuring a robust 10,000 mm/s engraving speed, 0.01 mm accuracy, and remarkable 0.004 in (0.10 mm) marking depth in a single pass*, this machine is designed for high-detail work, industrial production, and premium customization.
- Powerful 60W MOPA fiber laser for high-speed, color-capable metal engraving
-
10,000 mm/s maximum engraving speed for ultra-efficient workflows
- Exceptional 0.01 mm engraving accuracy and ±0.1 µm positioning precision
-
Deep engraving capability with up to 0.004 in (0.10 mm) single-pass depth
-
Autofocus & electric lifting system for fast, effortless setup
- Long-life 100,000-hour MTTF fiber laser source
- Engraves metals, stone, plastics, ceramics, and more with professional consistency.
Whether you're running a custom shop, manufacturing operation, jewelry studio, aerospace workshop, or industrial marking line, the Monport GT 60W delivers superior power and precision—project after project.

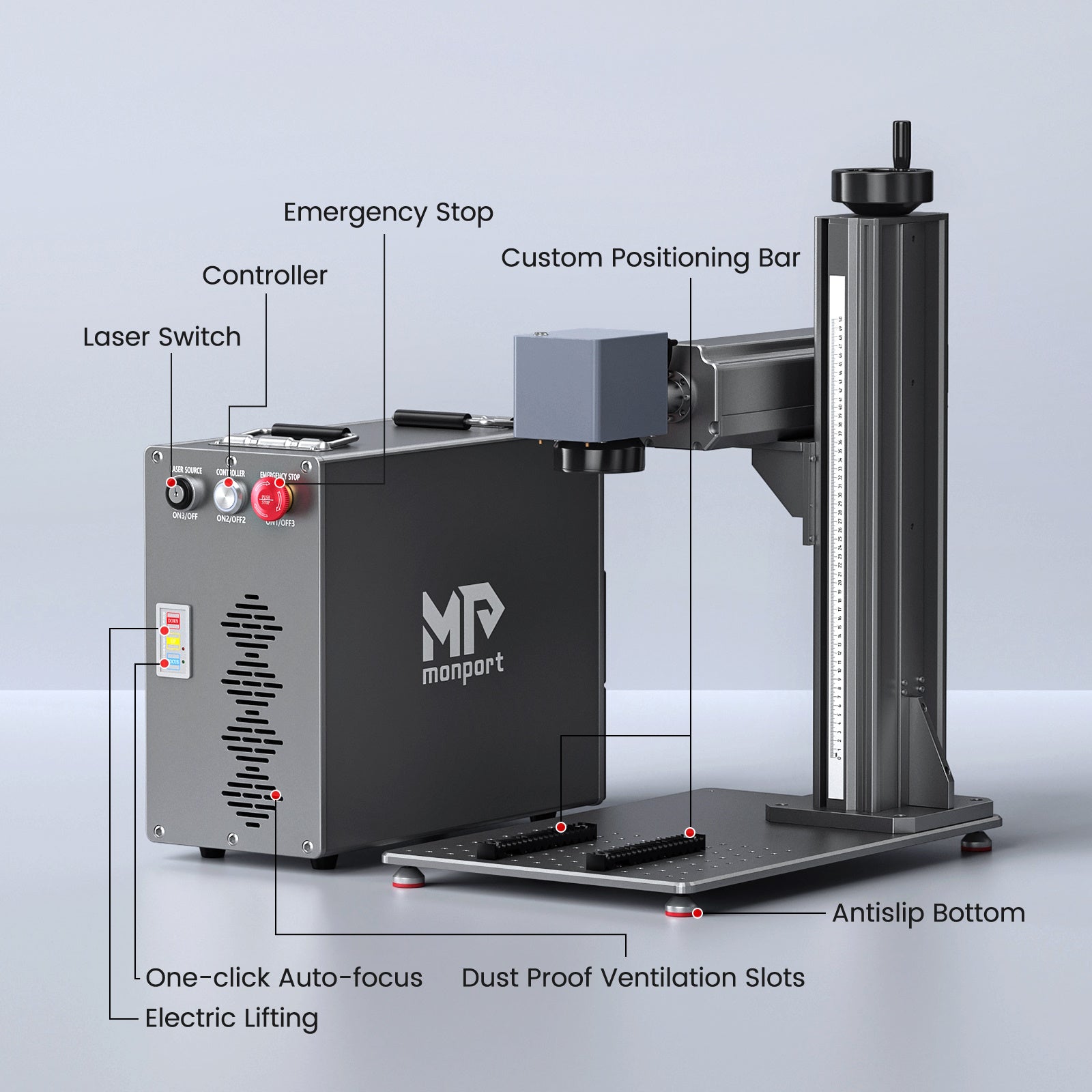

Compact Split-Body Design for Professional Flexibility
The GT 60W features a split MOPA architecture, giving you the freedom to position the head and controller independently. This makes it ideal for large, heavy, or irregular objects while keeping your workspace efficient and adaptable.
Plus, its 550 mm max Z height supports large workpieces, giving you greater freedom to engrave items that standard desktop machines cannot accommodate.
Blazing Speed and Industrial-Grade Precision

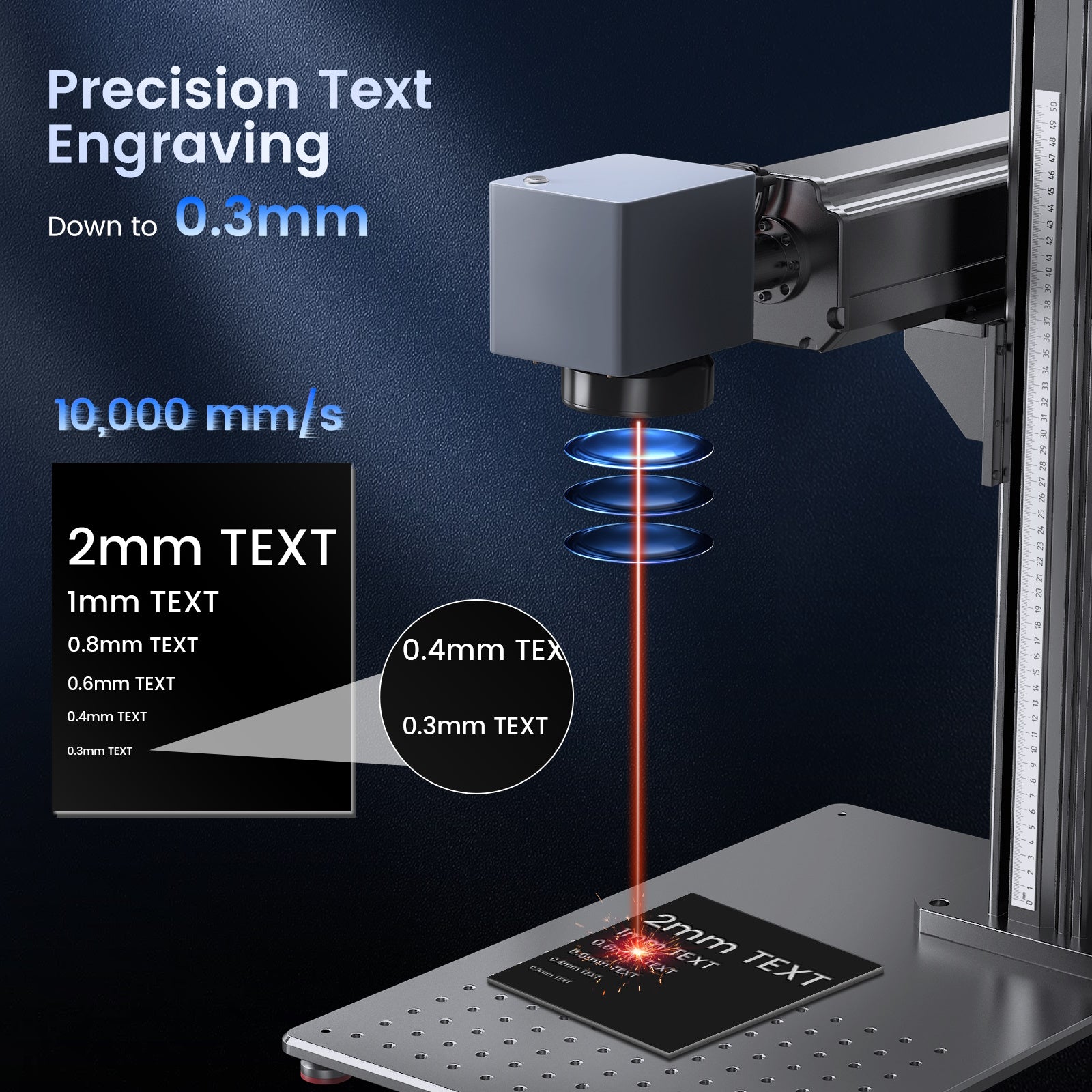

Harness speeds up to 10,000 mm/s with stunning 0.01 mm engraving accuracy, making the GT 60W perfect for detailed logos, serial numbers, artwork, textures, and micro-marking. The M² < 1.8 beam quality ensures crisp, sharp lines and uniform results—whether you're engraving jewelry, tools, aerospace components, firearms, or custom metal goods.
Its 1–3,000 kHz frequency range and 2–500 ns pulse width give you complete control over engraving depth, contrast, and color-marking effects.
Advanced Features for True Professional Performance
With its cutting-edge MOPA laser source, the GT 60W can produce vibrant color engravings on stainless steel, highly detailed etchings on tools, and deep engravings in metals and stones—including gold, silver, brass, titanium, tungsten, carbide, granite, marble, and more.

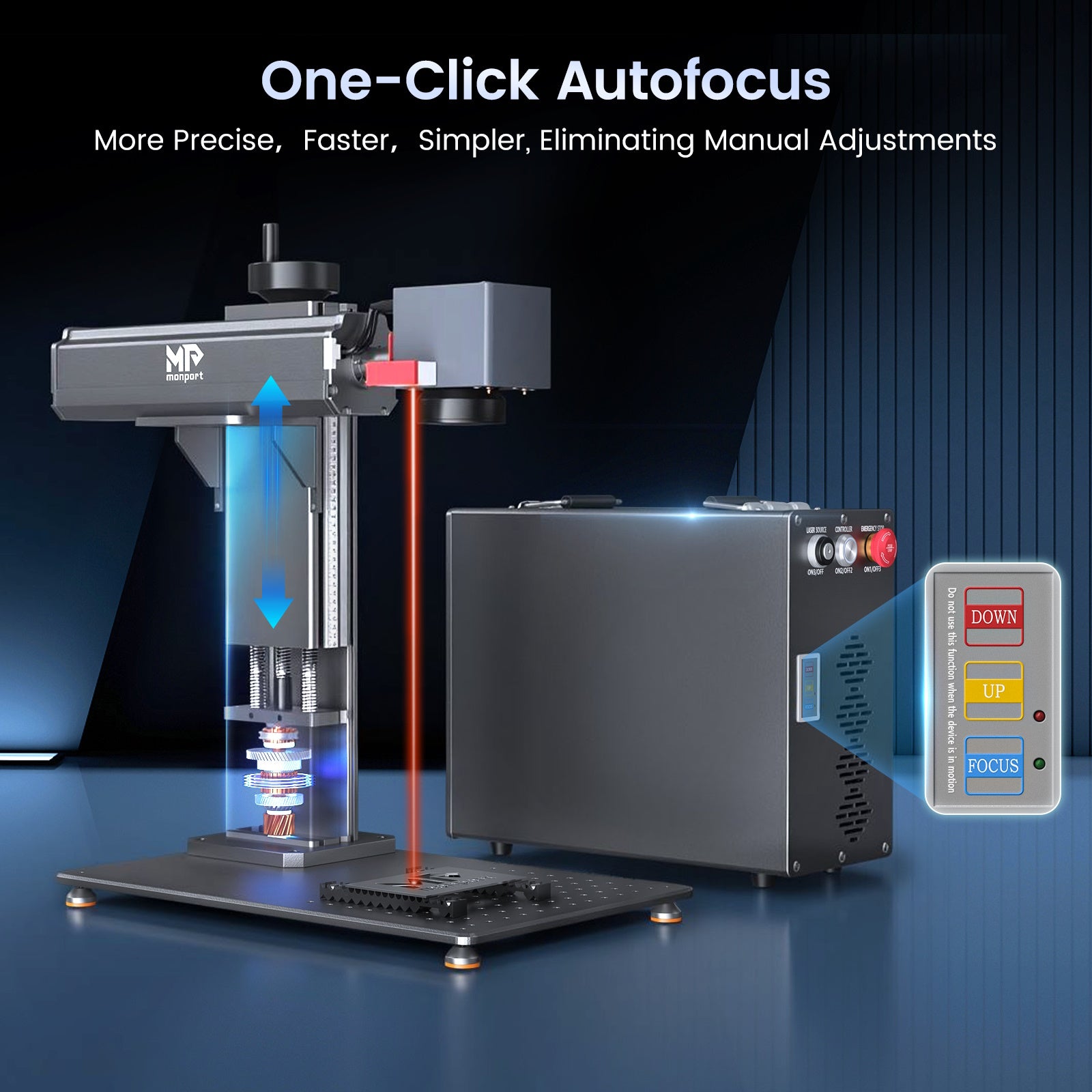

Autofocus, electric Z-axis lifting, and an intelligent optical system ensure fast, accurate setup with minimal effort. It's a powerful solution for rapid production environments where precision and repeatability are essential.
Industrial Strength Meets Ease of Use

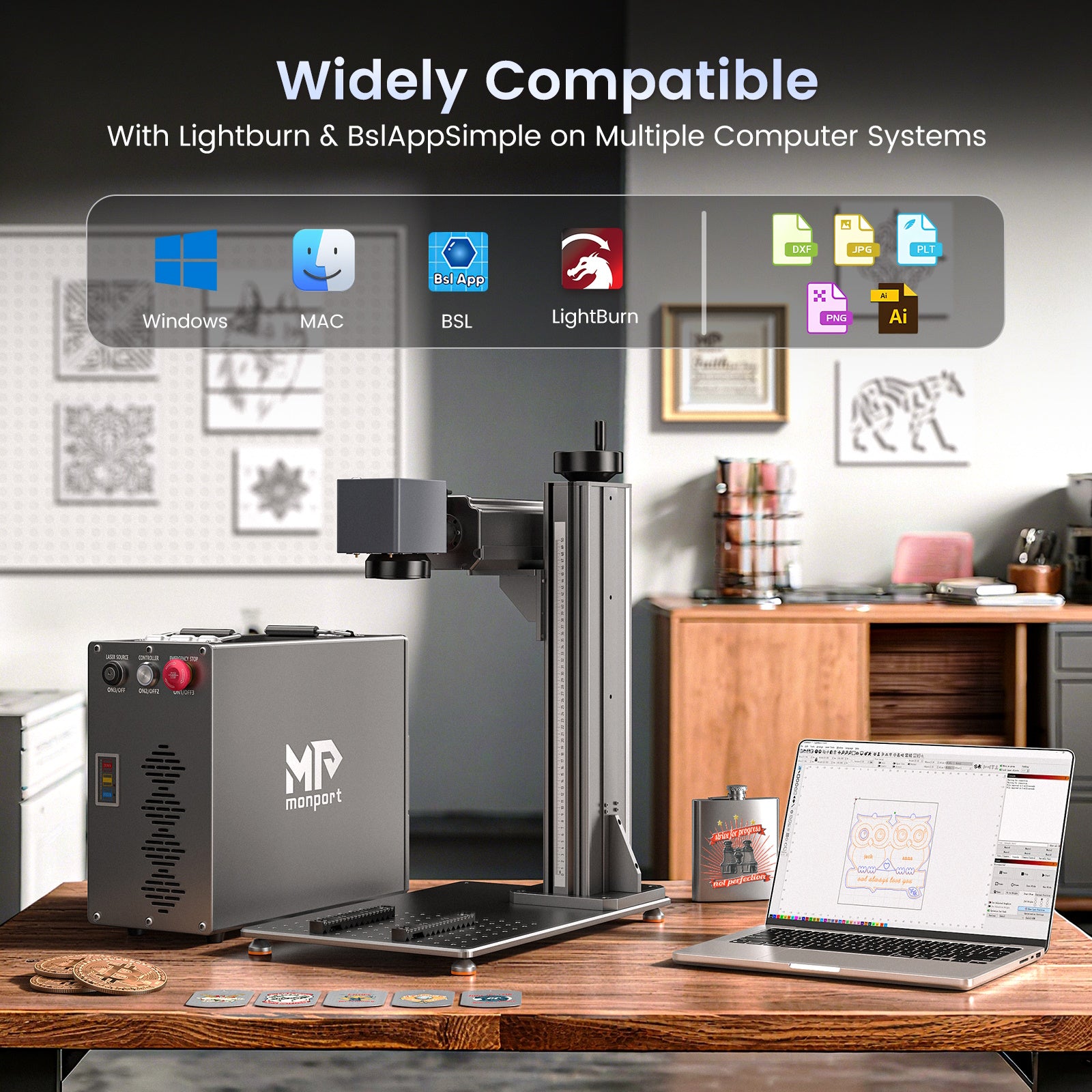

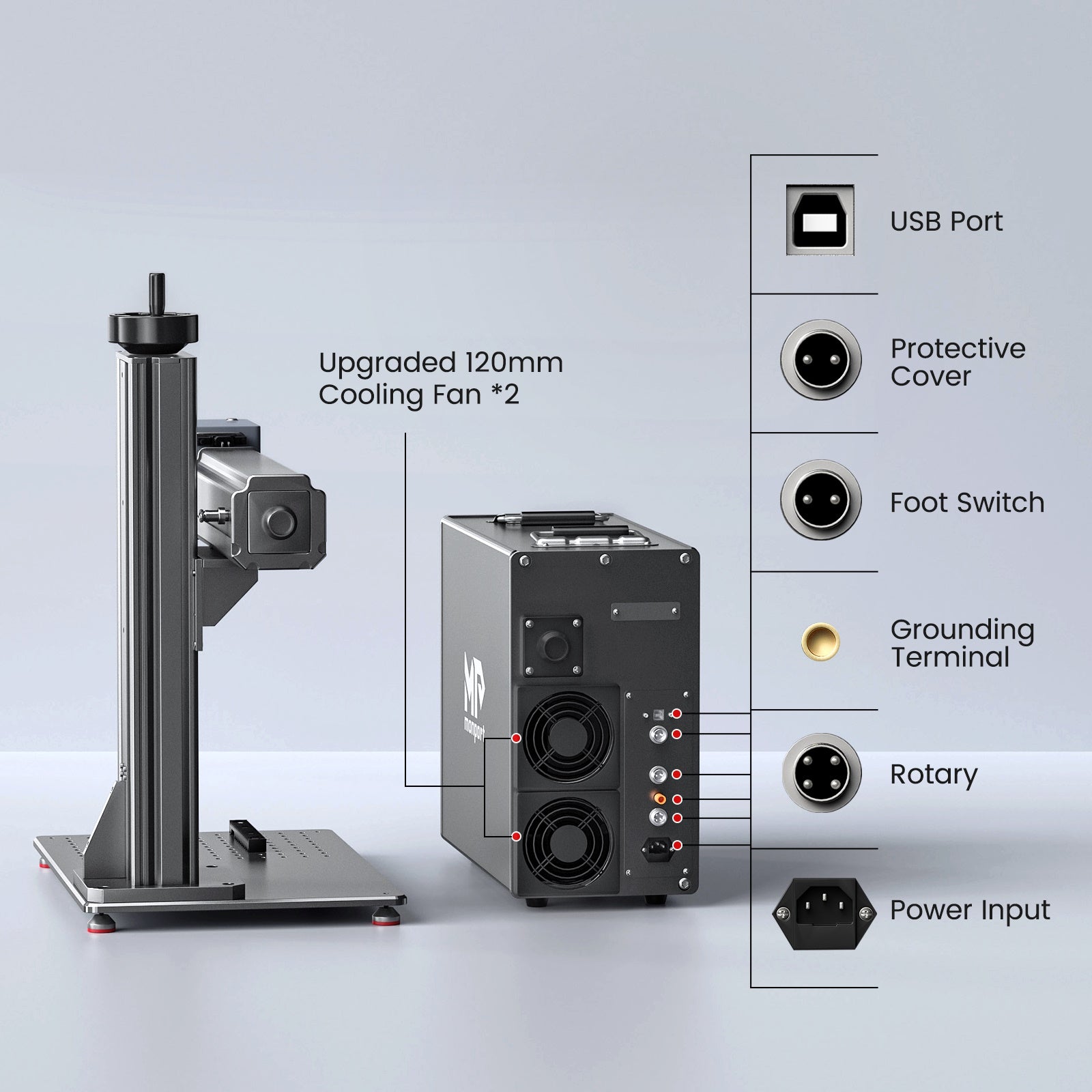

The GT 60W offers a harmonious balance of industrial capability and user-friendly operation. Its air-cooled system eliminates the need for external chillers, enabling quieter and more reliable performance. With compatibility for Windows & macOS and seamless integration with LightBurn and BslAppSimple, it supports creators of all skill levels.

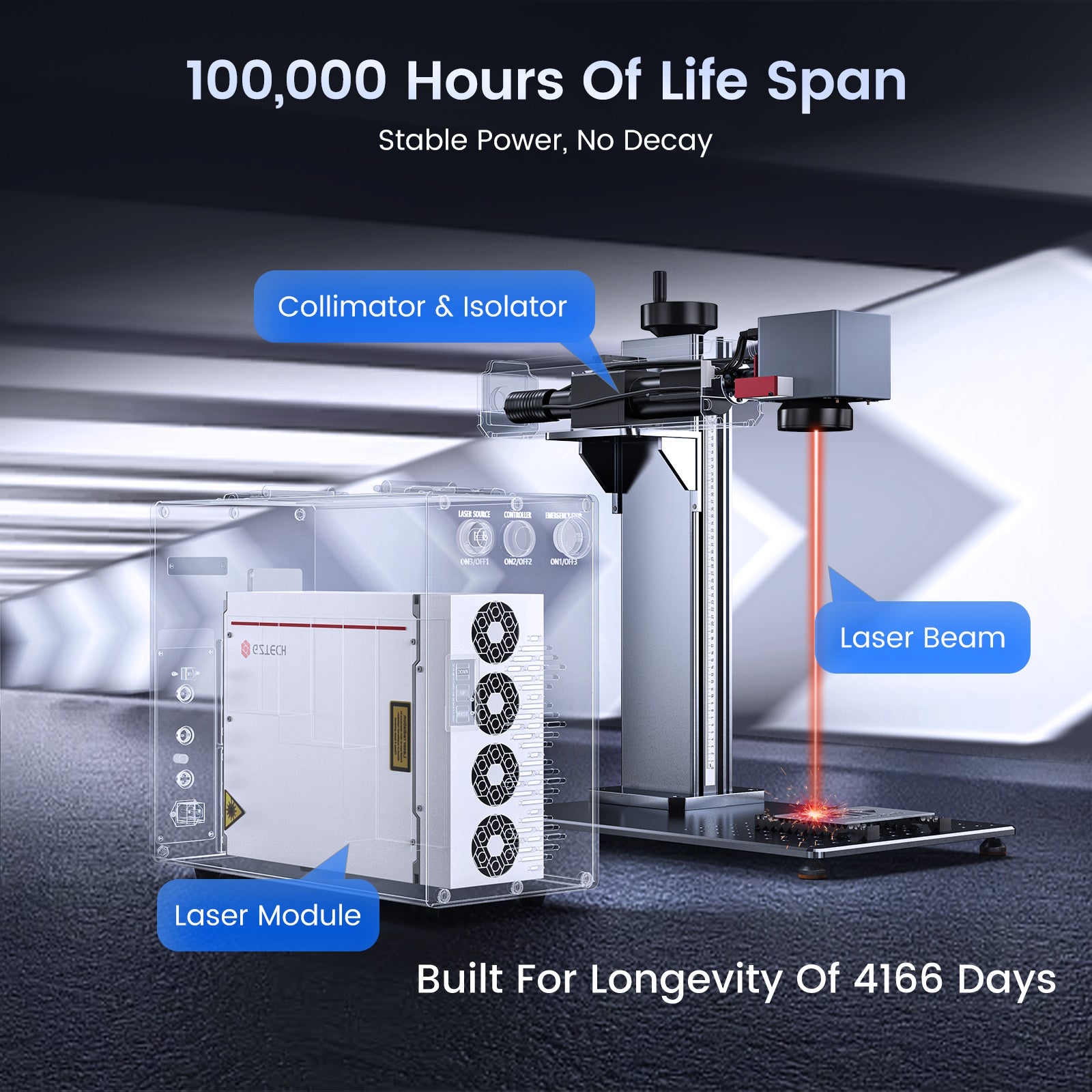

This machine is built to work—delivering consistent performance, low maintenance, and long-term value thanks to its 100,000-hour expected lifespan and 2-year warranty.
Specifications and Features:
| Product Name |
GT60 Mopa |
| Laser Power |
60 W |
| Engraving Area |
6.9 × 6.9 in. |
| (175 × 175 mm) |
|
| Max. Marking Depth |
0.004 in. |
| (single pass, material dependent) |
(0.10 mm) |
| Max Engraving Speed |
10 000 mm/s |
| (393.7 ips) |
| Engraving Accuracy |
0.01 mm |
| Positioning Accuracy |
± 0.1 µm |
| Input Power |
110 V (US) |
| Beam Quality M² |
< 1.8 |
| Beam Diameter |
7 ± 1 mm |
| Maximum Pulse Energy |
1.5 mJ |
| Max Z Height |
550 mm |
| (field lens to workbench) |
| Central Wavelength |
1 064 nm |
| Frequency Range |
1–3 000 kHz |
| Pulse Width |
2–500 ns |
|
| Expected Service Life (MTTF) |
100 000 h |
| Color Engraving |
YES |
| Focus Mode |
Autofocus |
| Electric Lifting |
YES |
| Cooling Type |
Air Cooling |

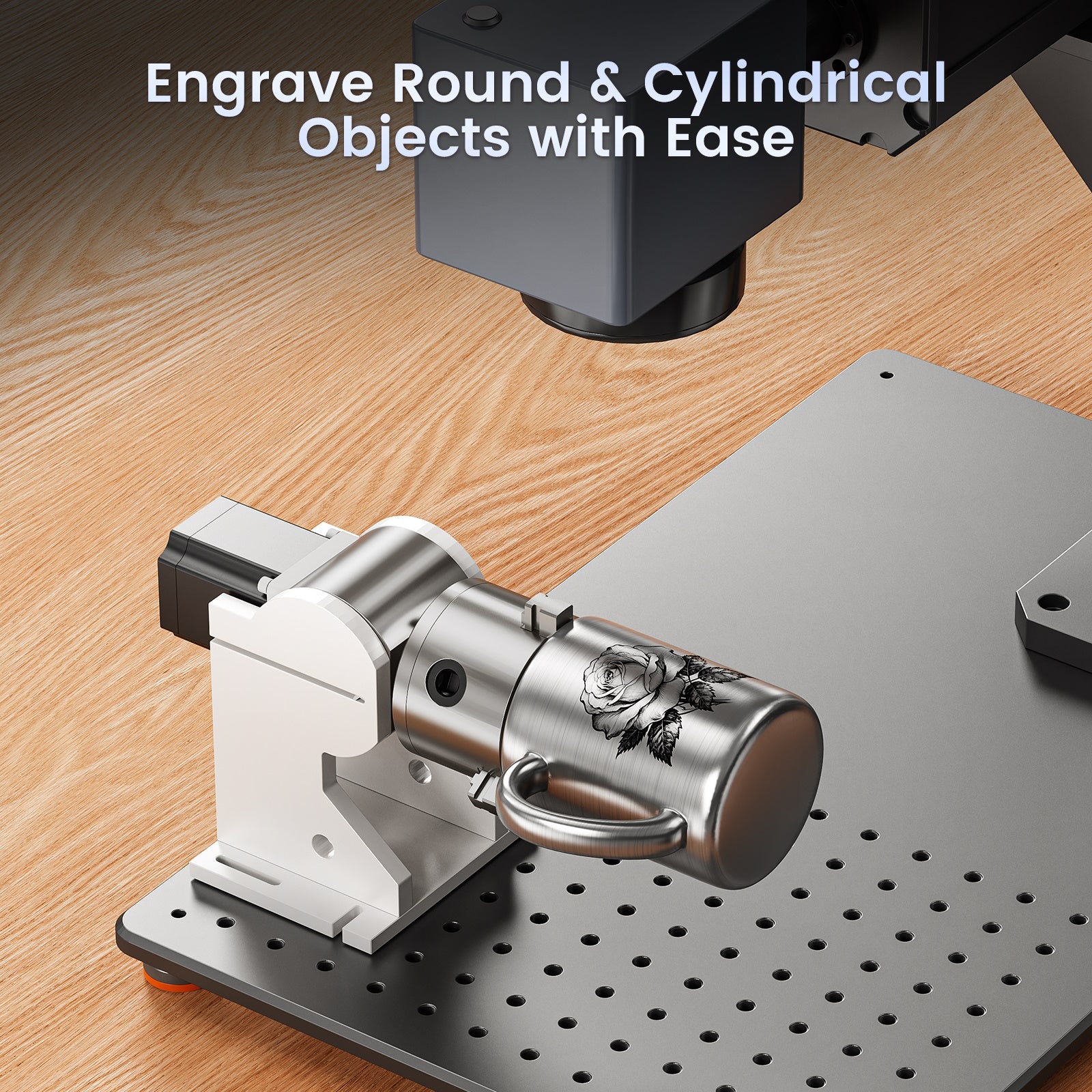

| Rotation Axis Function |
YES |
| Galvanometer Thread Size |
M68 |
| Field Lens Dimension |
M85 |
| Materials Suitable for Engraving |
Brass, Hard Plastic, Titanium, Brick, Marble, Gold, Carbide, Silver, Tungsten, Granite, Steel, etc. |
| Compatible Operating Systems |
Windows / macOS |
| Compatible Software |
BslAppSimple, Lightburn |
| Data Transmission |
USB Cable |
| Package Dimension (L × W × H) |
29.5" × 21.7" × 22.0" |
| (75 × 55 × 56 cm) |
| Gross Weight |
110.2 lb (50 kg) |
| Warranty |
2-year |
| (1 year for laser source) |

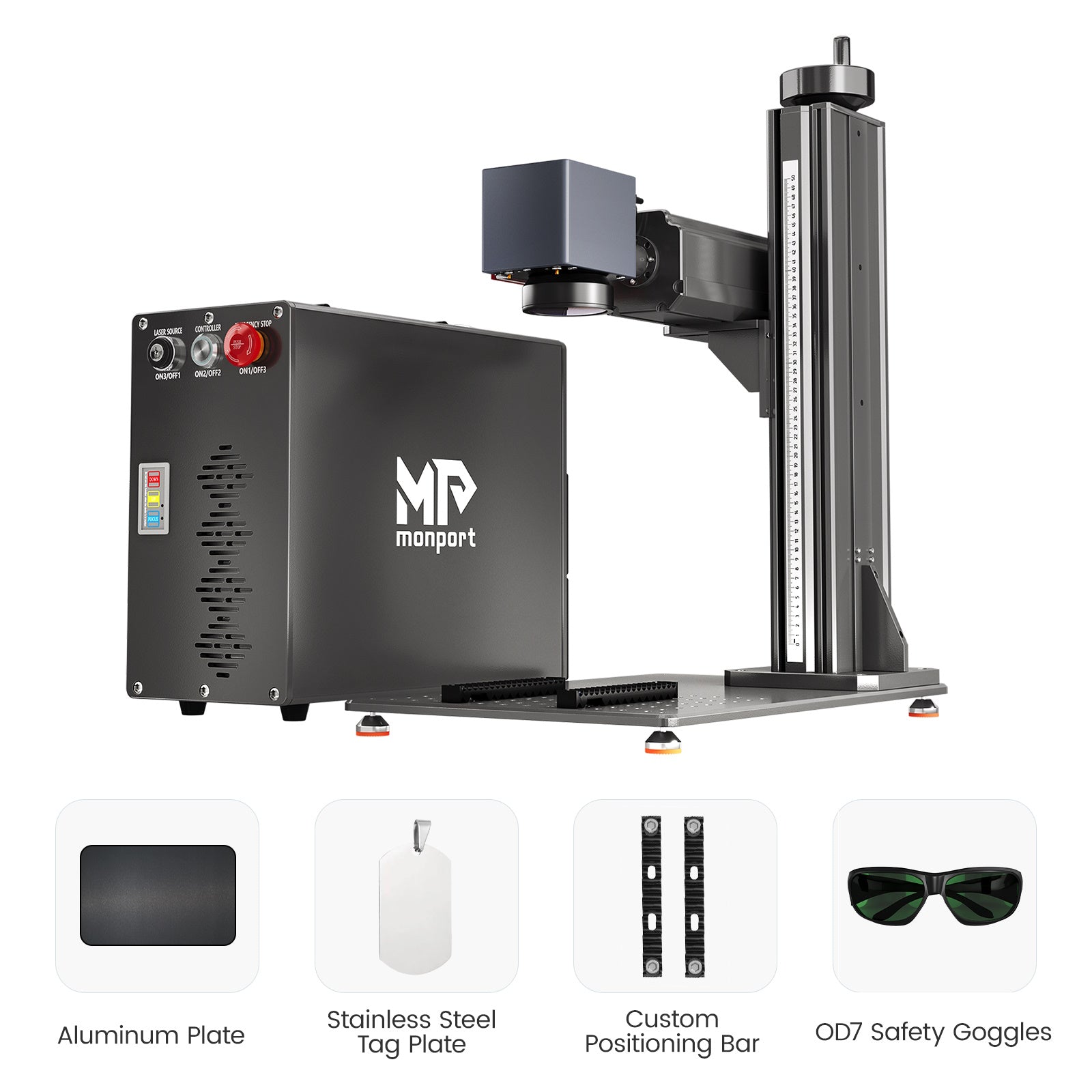

What's Included:
Frequently Asked Questions About Monport GT 60W Split MOPA Fiber Laser Engraver
What materials can it engrave?
The GT 60W works on brass, titanium, stainless steel, carbon steel, carbide, gold, silver, tungsten, stone (granite, marble), hard plastics, and more.
Does it support color engraving?
Yes—its advanced MOPA technology enables vivid color marking on stainless steel and a variety of metal surfaces.
How deep can it engrave?
Up to 0.004 in (0.10 mm) in a single pass, material dependent.
What software is compatible?
It works with LightBurn and BslAppSimple, compatible with Windows and macOS operating systems.
How accurate is the machine?
It delivers 0.01 mm engraving accuracy and ±0.1 µm positioning precision.
Is the machine easy to use?
Yes—features like autofocus, electric Z-axis lifting, and intuitive software make setup and operation simple for beginners and professionals.
What is the lifespan of the laser source?
The fiber laser has an expected life of 100,000 hours, providing years of high-volume operation.
Does it come with a warranty?
Yes—the GT 60W includes a 2-year warranty, with 1 year for the laser source.
