Introducing the Monport GT 30W Split Fiber Laser Engraver: Your Compact Powerhouse for Professional Metal Engraving.
Unlock precision, durability, and industrial-grade marking performance with the Monport GT 30W Split Fiber Laser Engraver—a compact yet powerful system built for creators, jewelers, manufacturers, and engraving professionals. Engineered for accuracy and long-term reliability, the GT 30W delivers flawless markings on metals, plastics, stone, and more.
Compatible Materials:
|
Metal
|
Plastics
|
Stone
|
Leather
|
Rubber
|
![]()
![]()
Elevate Your Craft with the Monport GT 30W Fiber Laser Engraver
Meet the Monport GT 30W Split Fiber Laser Engraver, designed for users who demand professional detail, high-speed performance, and consistent results. Featuring a 30W fiber laser, 10,000 mm/s engraving speed, and 0.01 mm precision, this machine offers the perfect balance of power and control for small businesses and advanced hobbyists.
Whether you're engraving jewelry, tools, serial plates, industrial components, or custom artwork, the GT 30W offers dependability, versatility, and exceptional clarity.
-
30W fiber laser for sharp, deep, high-contrast metal engravings
-
10,000 mm/s high-speed performance for rapid production
-
0.01 mm engraving accuracy with ±0.1 µm positioning precision
- Deep engraving capability up to 0.003 in (0.8 mm) single-pass
-
Autofocus and electric lifting for fast setup and consistent results
- Engraves brass, titanium, gold, steel, marble, tungsten, carbide, and more
- Long-lasting 100,000-hour MTTF fiber laser source.
With its compact split-head format and powerful software ecosystem, the GT 30W is the perfect solution for workshops, studios, and industrial marking environments.
Compact Split-Body Design for Maximum Flexibility
The split design of the GT 30W allows you to position the laser head independently from the controller, making it ideal for large, heavy, or irregularly shaped workpieces. With a generous 550 mm Z-axis clearance, you can engrave tall objects and complex shapes with ease.

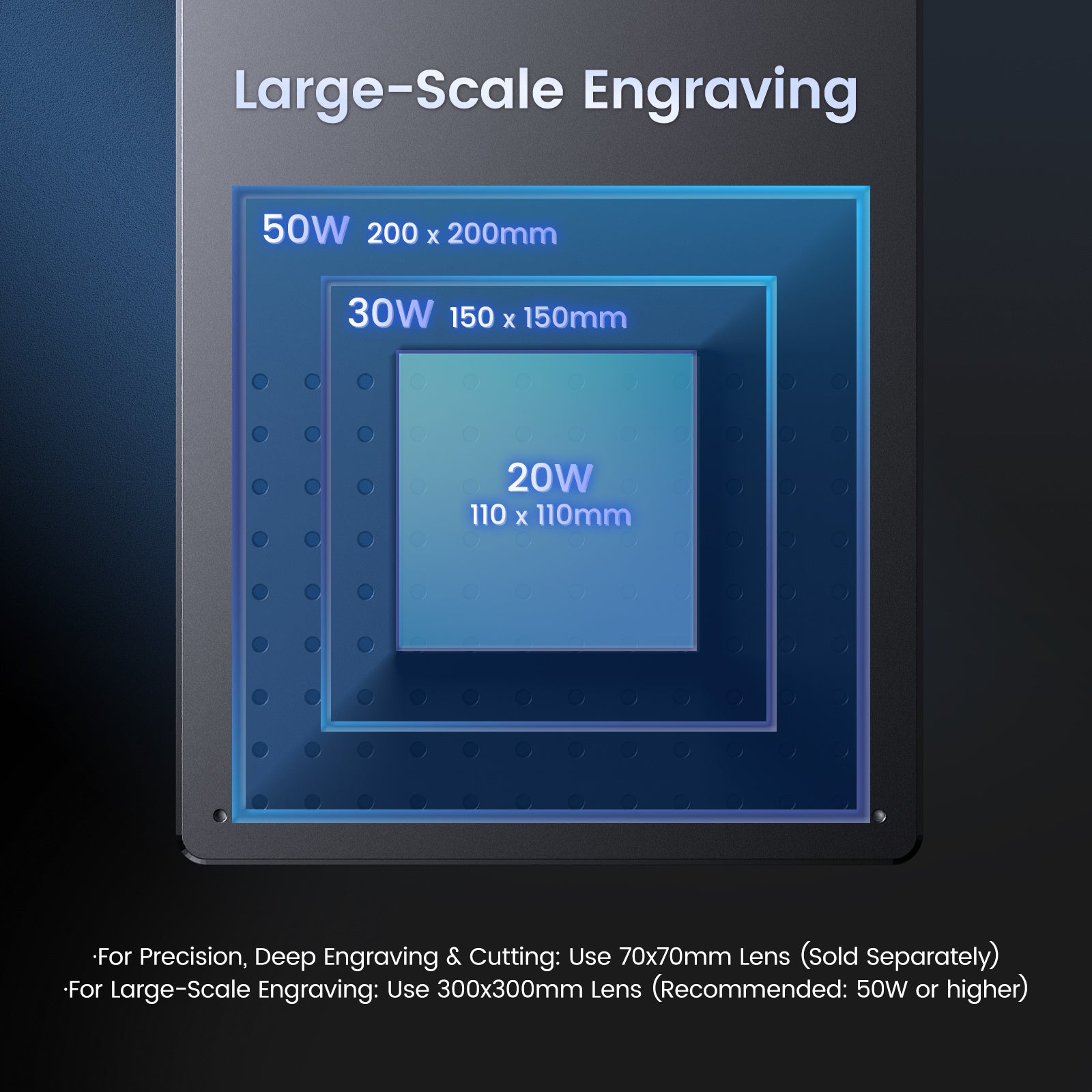

And with a compact 5.9 × 5.9 in (150 × 150 mm) engraving area, the GT 30W is optimized for precision-focused projects, small components, and high-detail work.

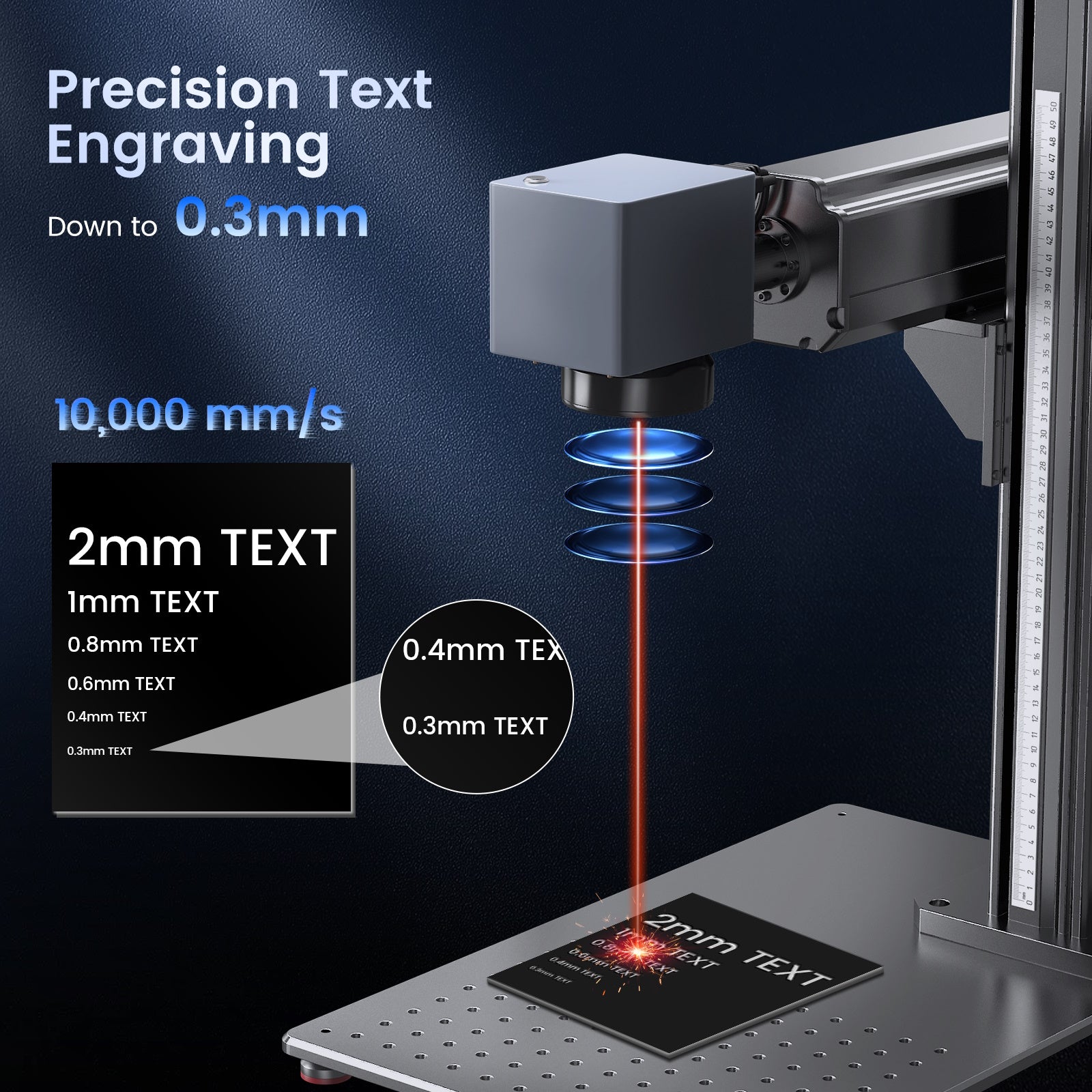

High-Speed Accuracy for Detailed, Professional Results
Experience engraving speeds up to 10,000 mm/s with exceptional 0.01 mm accuracy, thanks to the GT’s precision galvanometer and high-quality M² < 1.5 beam. Its 30–60 kHz frequency range ensures clean, consistent mark quality across metals and industrial substrates.
The GT 30W delivers crisp text, detailed logos, textured engravings, tool marking, ID codes, and serial numbers with extreme clarity.
Optimized for Deep Engraving & Industrial Hard Materials
With up to 0.003 in deep (0.8 mm) marking capability in a single pass*, the Monport GT 30W is built for more than shallow marking—it’s capable of deep metal engraving, durable tool marking, and industrial etching on:
- Brass
- Titanium
- Gold & silver
- Stainless steel
- Carbide
- Tungsten
- Hard plastics
- Marble, granite, brick
From jewelry to aerospace components, it delivers depth, uniformity, and long-term durability in every engraving.

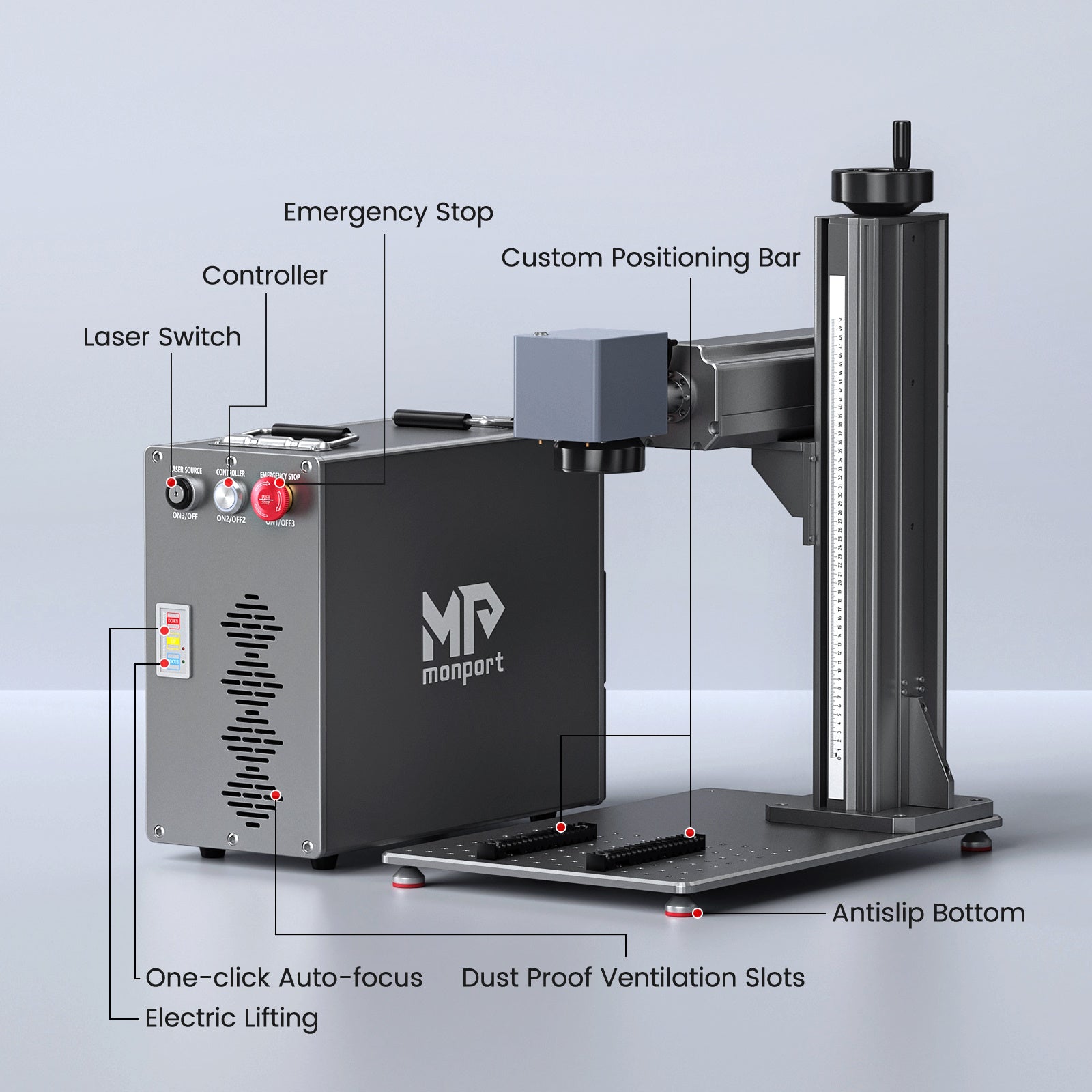

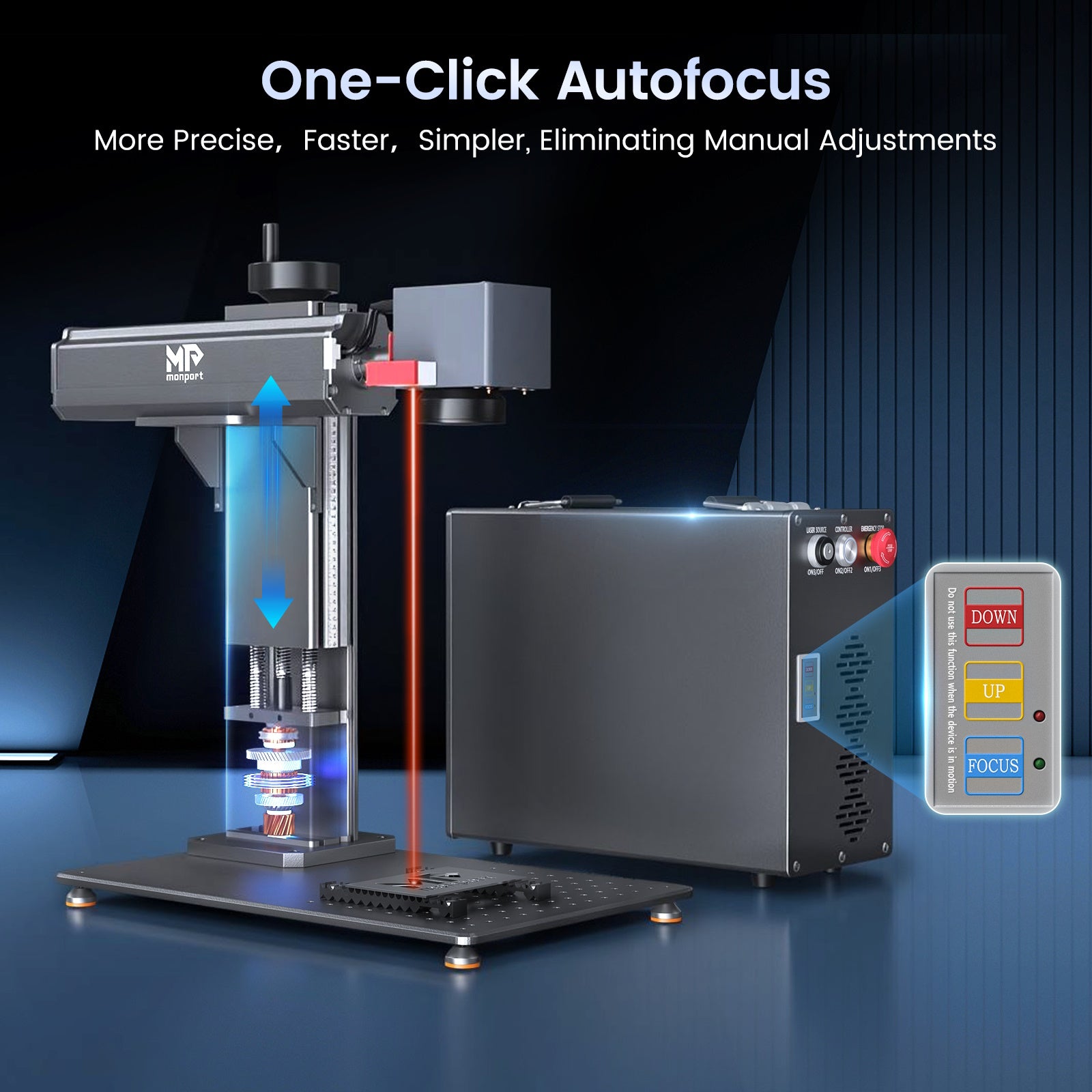

Easy to Use with Autofocus & Electric Lifting
The GT 30W’s autofocus system adjusts instantly to material height, while the electric lifting Z-axis allows smooth, precise height control. New users benefit from fast setup, while professionals save valuable production time.

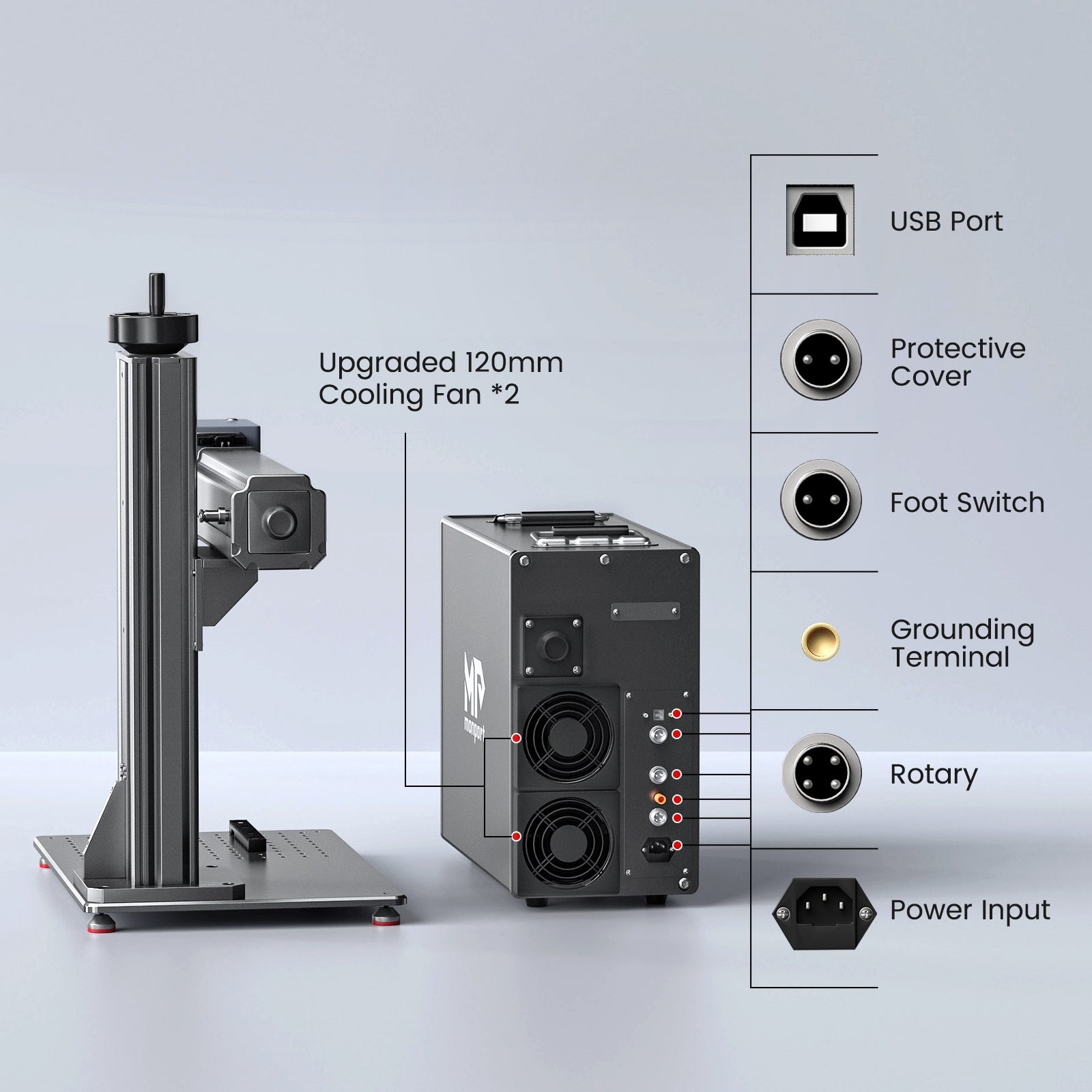

The machine is also fully air-cooled, ensuring stable operation with virtually zero maintenance.

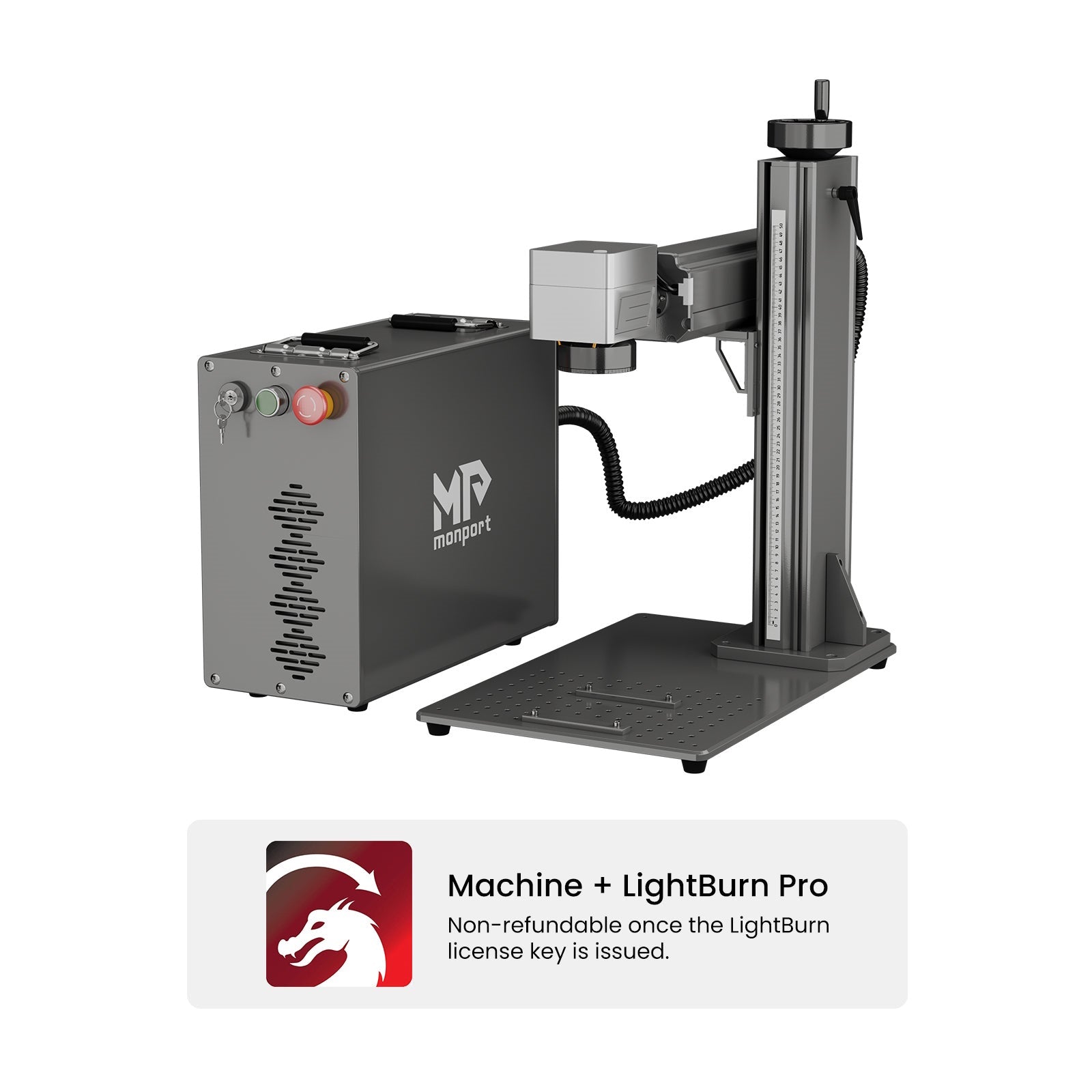

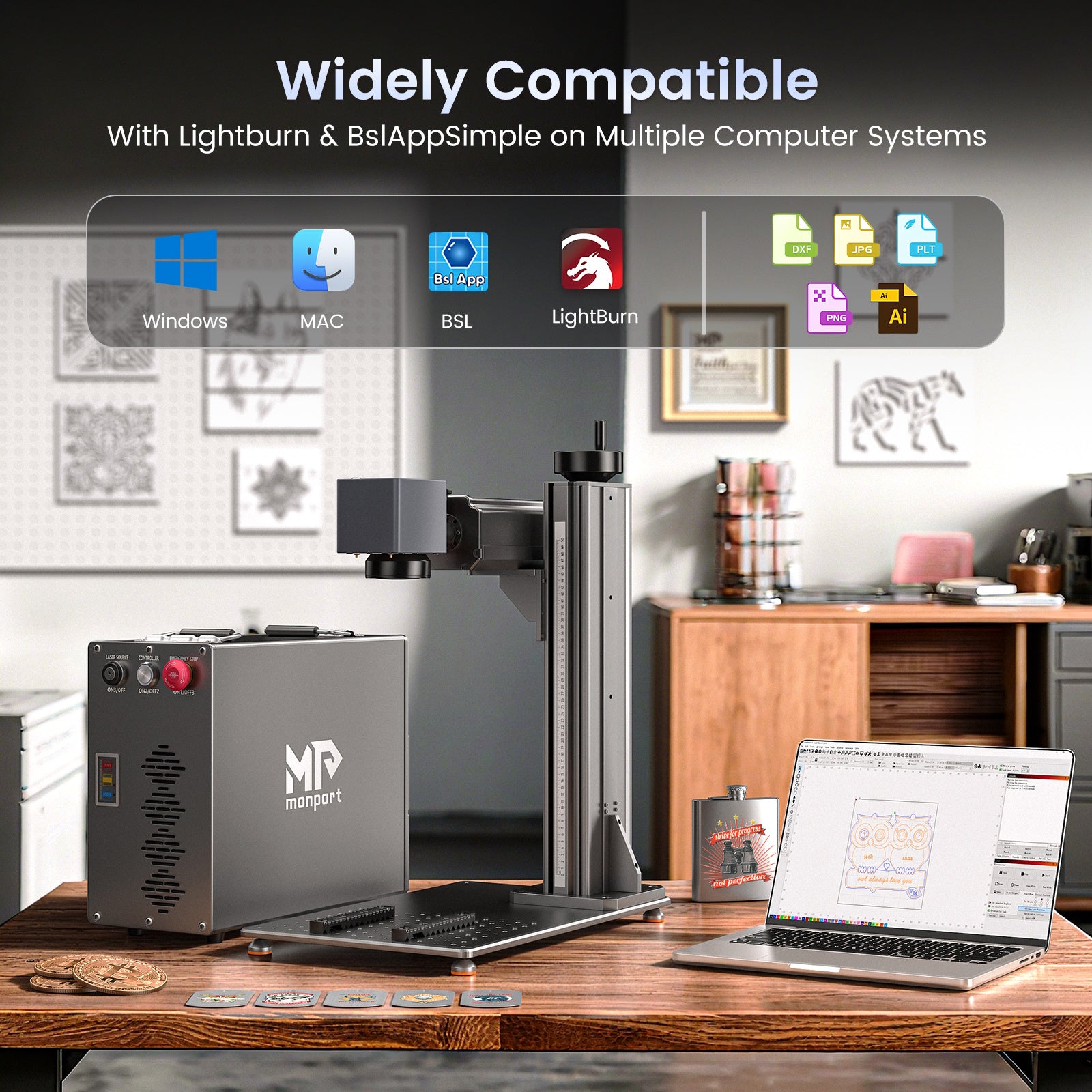

Fully Compatible with Top-Tier Software
The Monport GT 30W works seamlessly with:
-
LightBurn (full functionality with fiber lasers)
- BslAppSimple
Compatible with Windows and macOS, it offers a smooth workflow for both hobbyists and professionals.

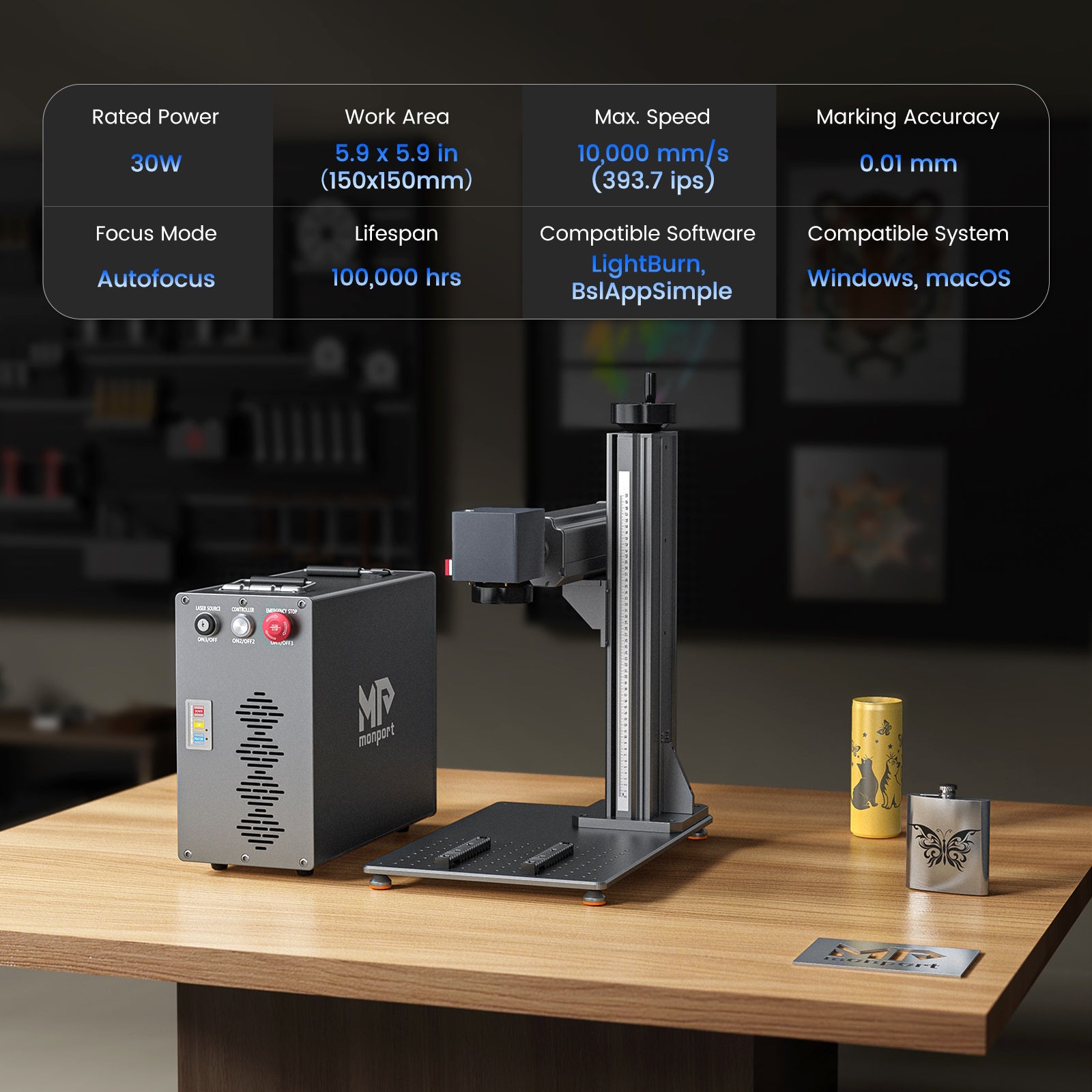

Specifications and Features
| Product Name |
GT30 |
| Laser Power |
30 W |
| Engraving Area |
5.9 × 5.9 in. |
| (150 × 150 mm) |
|
| Max. Marking Depth |
0.003 in. |
| (single pass, material dependent) |
(0.08 mm) |
| Max Engraving Speed |
10 000 mm/s |
| (393.7 ips) |
| Engraving Accuracy |
0.01 mm |
| Positioning Accuracy |
± 0.1 µm |
| Input Power |
110 V (US) |
| Beam Quality M² |
< 1.5 |
| Beam Diameter |
6–8 mm |
| Maximum Pulse Energy |
0.75 mJ |
| Max Z Height |
550 mm |
| (field lens to workbench) |
| Central Wavelength |
1 064 nm |
| Frequency Range |
30–60 kHz |
| Pulse Width |
80–120 ns |
| (Unadjustable) |
| Expected Service Life (MTTF) |
100 000 h |
| Color Engraving |
NO |
| Focus Mode |
Autofocus |
| Electric Lifting |
YES |
| Cooling Type |
Air Cooling |
| Rotation Axis Function |
YES |
| Galvanometer Thread Size |
M68 |
| Field Lens Dimension |
M85 |
| Materials Suitable for Engraving |
Brass, Hard Plastic, Titanium, Brick, Marble, Gold, Carbide, Silver, Tungsten, Granite, Steel, etc. |
| Compatible Operating Systems |
Windows / macOS |
| Compatible Software |
BslAppSimple, Lightburn |
| Data Transmission |
USB Cable |
| Package Dimension (L × W × H) |
29.5" × 21.7" × 22.0" |
| (75 × 55 × 56 cm) |
| Gross Weight |
102.5 lb (46.5 kg) |
| Warranty |
2-year |
| (1 year for laser source) |

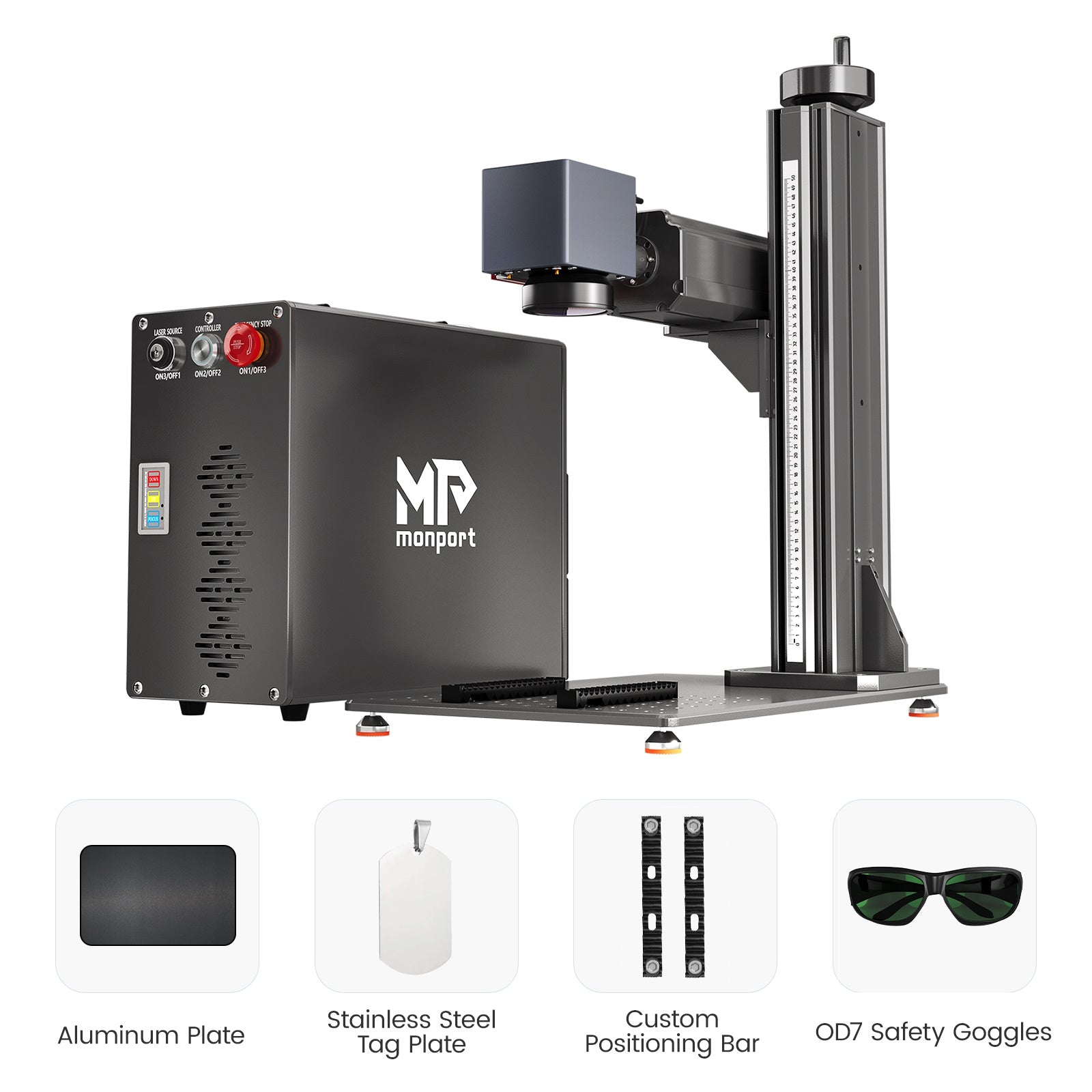

What's Included:
Frequently Asked Questions About Monport GT 30W Split Fiber Laser Engraver
What materials can it engrave?
The GT 30W engraves brass, titanium, gold, stainless steel, silver, marble, tungsten, carbide, hard plastics, granite, brick, and many more hard industrial materials.
Does the GT 30W support color engraving?
No—unlike MOPA systems, the 30W standard fiber laser does not produce color engravings.
How deep can it engrave?
It can engrave up to 0.003 in (0.8 mm) in a single pass, depending on the material.
Is it easy to use for beginners?
Yes—features like autofocus, electric lifting, and intuitive software make it beginner-friendly while still offering professional-grade performance.
How accurate is it?
It delivers 0.01 mm engraving accuracy and ±0.1 µm positioning precision, ideal for fine detail work.

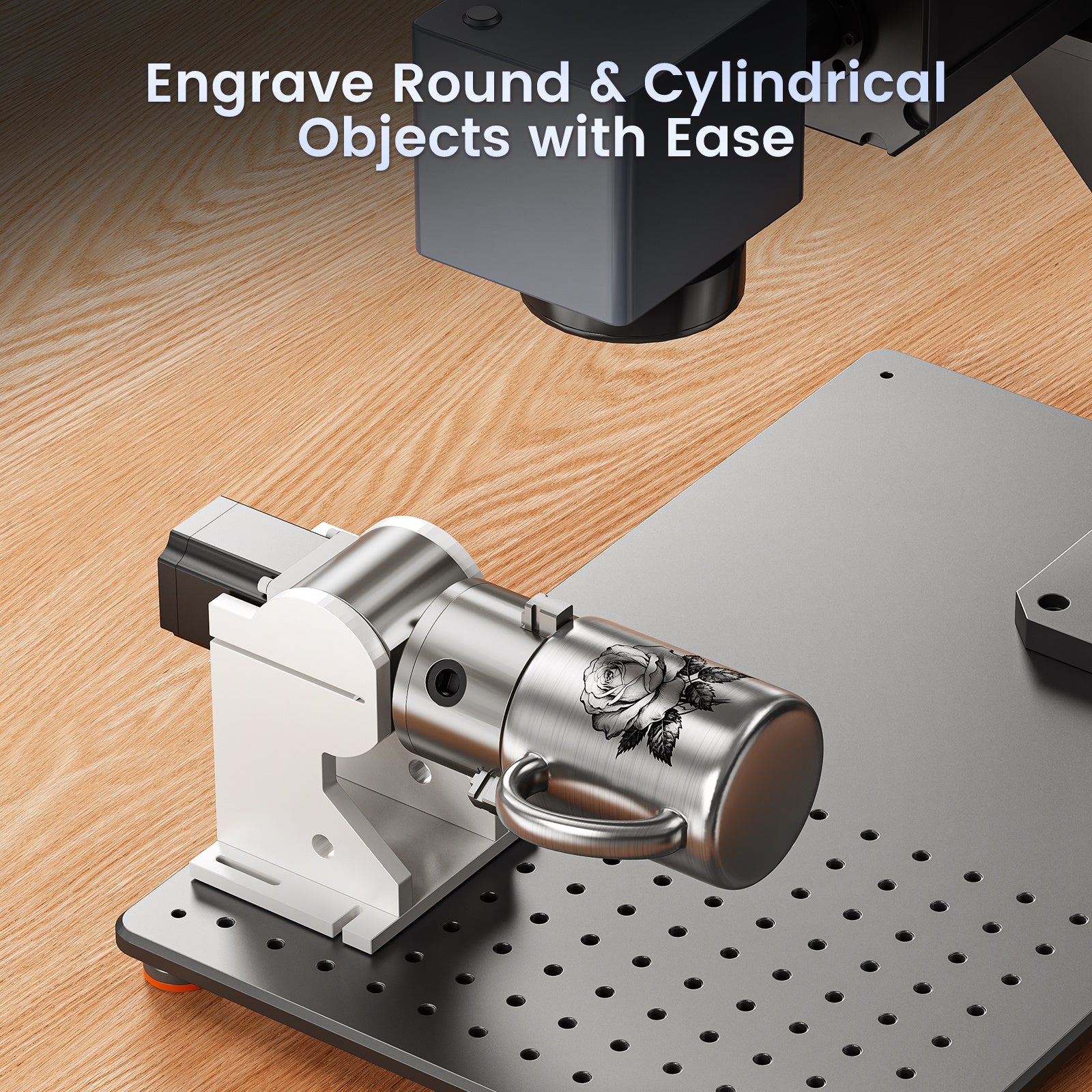

Does it support rotary engraving?
Yes—the GT 30W supports a rotary axis, making it suitable for cylindrical engraving.
What software does it work with?
It is compatible with LightBurn and BslAppSimple on Windows and macOS.
What is the expected lifespan of the laser source?
The fiber laser has an estimated 100,000-hour service life, ensuring years of reliable operation.
Does it come with a warranty?
Yes—the GT 30W includes a 2-year warranty, with 1 year of coverage for the laser source.
