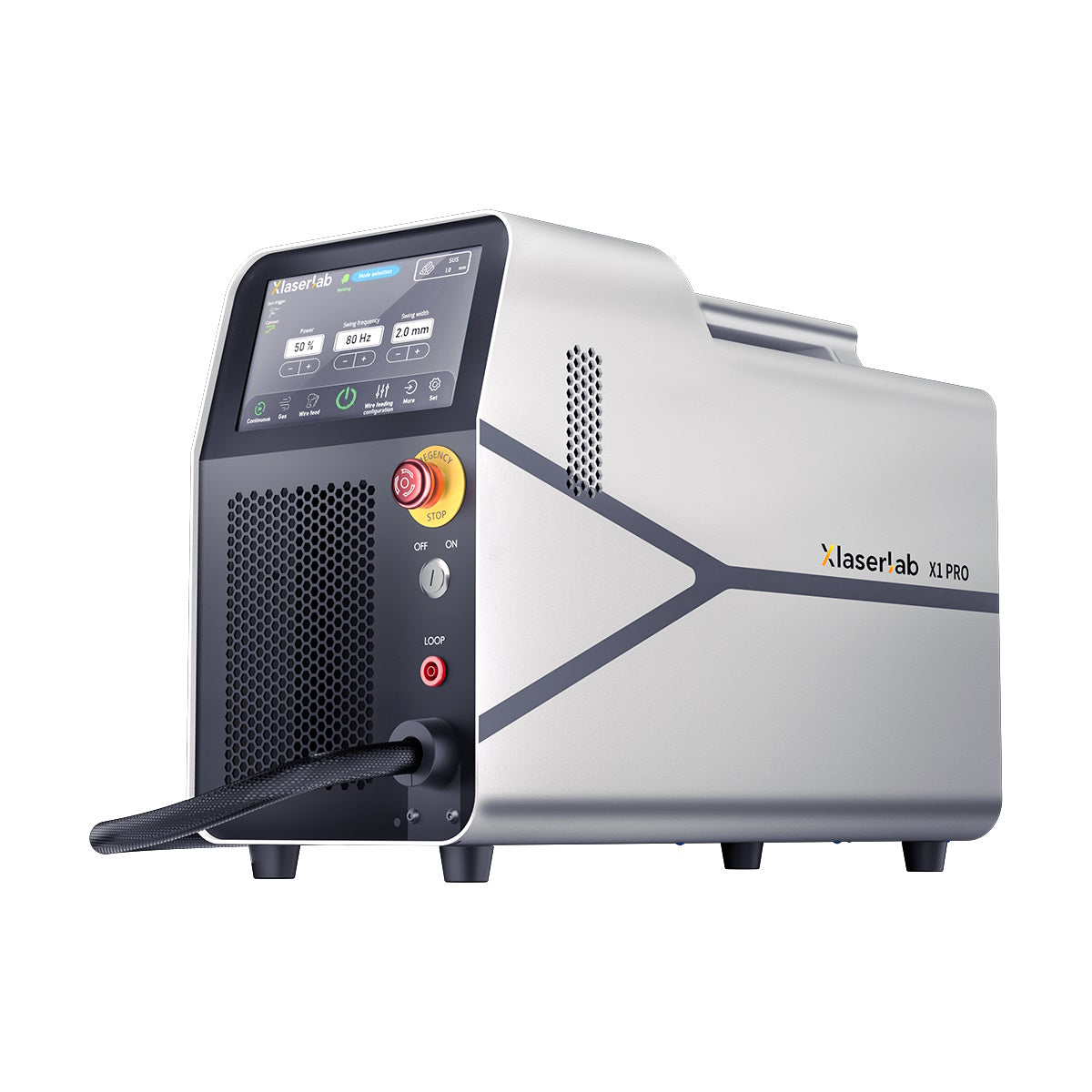

Xlaserlab X1 Pro Review: Is It Worth It?
Short verdict: The Xlaserlab X1 Pro is a strong fit for small shops, automotive work, mobile repair and first-time laser-welder buyers whose work is mainly thin stainless, mild steel and aluminum. Its advantages are portability, standard-voltage operation, air cooling and useful multi-function capability. Its limits are equally important: 700W leaves less process margin on thicker or reflective material, the cutting function is for light fabrication rather than production cutting, and a new operator still needs controlled fit-up, gas, parameters and Class 4 laser safety.
Already decided?
Use the product page for live pricing, current Single Wire and Dual Wire bundle contents, inventory, shipping, returns and warranty terms: check the current Xlaserlab X1 Pro price and bundles.
This page has a different job. It is an evidence-led review for buyers still deciding whether the machine suits their materials, thicknesses, workflow and tolerance for setup. It does not repeat live offers or availability because those details change and belong on the product page.
How this review was prepared: The Maker's Chest sells the X1 Pro, so we have a commercial interest and say so plainly. The assessment combines published machine specifications, independent demonstrations, recurring pre-sale questions and anonymized post-purchase support patterns. Where a point comes from manufacturer specifications rather than an independent observation, we identify it as such. We do not represent this as an in-house laboratory test.
What we evaluated
A useful X1 Pro review cannot stop at whether the machine can make an attractive bead in a demonstration. We evaluated it against the questions that decide whether it works in a real shop:
- Process fit: the materials, thicknesses and joint conditions where 700W provides a comfortable operating window.
- Repeatability: how much results depend on surface preparation, fit-up, standoff, travel speed, gas coverage and parameter selection.
- Workflow: power, cooling, portability, wire feeding, changeover between functions and consumable care.
- Limitations: where the machine becomes slow, sensitive or inappropriate compared with a higher-powered dedicated welder or cutter.
- Ownership risk: safety requirements, consumables, maintenance and the shorter long-term track record of a relatively young product line.
This approach deliberately separates capability from suitability. A machine may be able to complete a test weld at its published maximum thickness without being the best choice for repetitive work at that thickness.
Xlaserlab X1 Pro specifications that matter
| Specification | Published value | Why it matters |
|---|---|---|
| Laser output | 700W continuous-wave fiber laser | Well suited to thin-gauge work; less headroom than 1,500W-class systems. |
| Wavelength | 1080 ± 10nm | A near-infrared Class 4 beam that requires wavelength-appropriate controls and eyewear. |
| Published welding range | Approximately 0.5–3mm, material dependent | A maximum is not the same as the comfortable daily range; joint design and material matter. |
| Cooling | Air cooled | Reduces size and setup, but deserves scrutiny for sustained full-power production. |
| Input power | 100–240V AC | Useful for mobile and small-shop operation, subject to the correct dedicated circuit. |
| Machine weight | About 21kg / 46lb | Portable compared with water-cooled welding carts, though gas and accessories still travel separately. |
| Functions | Welding, cleaning, rust removal and handheld cutting | Useful when those jobs occur sequentially; not equivalent to owning several machines that can run at once. |
The specification with the greatest practical consequence is the combination of 700W output and air cooling. It creates the machine's portability advantage, while also defining its thickness and duty-cycle boundaries.
Where the X1 Pro performs well
Thin stainless and mild steel
The X1 Pro is at its best on clean, close-fitting stainless and mild-steel parts in roughly the thin-sheet range. Independent demonstrations consistently show smooth travel, a small heat-affected area and clean bead appearance when the joint is prepared and the parameters are appropriate. This is the territory where handheld laser welding can save meaningful time over TIG while reducing distortion.
Automotive panels, exhaust components, light brackets, cabinets, enclosures, HVAC work and similar thin fabrication are a logical match. The machine's lower heat input is particularly valuable where a conventional process can warp a panel or require more finishing.
Do not confuse an easy-looking demonstration with a process that ignores technique. Repeatable results still depend on a clean joint, close fit-up, consistent contact or standoff, the correct nozzle, adequate gas coverage and controlled travel speed. The machine reduces the coordination burden of TIG; it does not remove process discipline.
Portability and setup
Air cooling eliminates a separate water chiller, and the compact chassis is easier to move between benches or job sites than a typical water-cooled 1,500W system. Universal-voltage compatibility also makes the X1 Pro more adaptable, provided the outlet, breaker and extension setup meet the actual electrical requirements.
That is a real operational advantage for a repair business or a shop with limited floor space. It is less important in a fixed production cell where maximum throughput and sustained output matter more than mobility.
Welding as the primary function
The strongest reason to buy the X1 Pro is welding. Cleaning and light cutting add convenience, but neither should drive the decision if the shop does not already need a 700W-class welder. The multi-function claim is most valuable when a technician can clean a joint, weld it and perform limited post-weld cleanup with the same power source.
Handheld cutting is best understood as a supporting capability for trimming and occasional thin-sheet work. It is not a precision CNC process and it does not replace a dedicated production cutter.
The limitations buyers should understand
The 700W power ceiling
On thicker material, the process window narrows. Travel may need to slow, fit-up becomes more consequential and the machine has less reserve to overcome surface condition or heat loss. Although published ranges extend to approximately 3mm for some metals and joints, buyers who repeatedly work near that upper boundary should not size the machine from the maximum alone.
A practical buying rule is to choose a machine whose comfortable range covers the majority of the work, not one whose maximum merely touches it. If 3mm and heavier steel is routine rather than occasional, a higher-powered system deserves consideration. If most jobs are below roughly 2mm, the X1 Pro's power-to-portability tradeoff makes more sense.
Aluminum, brass and other reflective materials
Aluminum is possible, but it is less forgiving than stainless or mild steel. Oxide removal, joint cleanliness, fit-up and parameter control are critical because aluminum conducts heat quickly and reflects near-infrared energy. Thin aluminum can also move from insufficient fusion to burn-through over a relatively small adjustment range.
Brass and other copper-bearing alloys demand even more caution. Support cases involving reflective material frequently trace poor results to several interacting factors: incorrect focus or standoff, a contaminated protective lens, unsuitable parameters, weak gas coverage or an attempt to weld beyond the machine's comfortable power envelope. Repeated reflection or contamination can damage consumables and, in a poorly controlled process, more expensive optical components.
The sensible approach is to validate the exact alloy, joint and thickness on scrap, inspect the protective lens frequently and avoid assuming that a material appearing in a compatibility list will be equally easy to weld.
Fit-up and wire feed are not optional details
Laser welding prefers tight joints. A visible gap can produce underfill or inconsistent fusion because the beam has little material to bridge. Filler wire expands the range of workable joints, but wire position and feed rate must match travel speed and beam placement. If the wire enters inconsistently or misses the melt pool, increasing laser power alone will not correct the problem.
For shops choosing between the Single Wire and Dual Wire bundles, the product page should be used to confirm exactly what each current package contains. From a process standpoint, dual-wire capability is useful for wider joints or higher deposition needs; it is not automatically better for every weld.
Air cooling and production duty
Air cooling is a major convenience, but buyers considering long, repeated welds at high output should confirm the intended duty cycle for their ambient temperature and production pattern. A portable 700W machine is not automatically the best substitute for a water-cooled production system running near full output throughout a shift.
The decision is about workflow: intermittent fabrication and repair favor portability; sustained production favors thermal headroom, service infrastructure and a machine sized above the normal load.
Setup and operating lessons that affect results
Start with the joint, not the power setting
Before changing parameters, verify that the parts are clean, the edges meet closely, the ground connection is sound and the gun is stable. Many apparent “power problems” are actually joint-preparation or positioning problems. Use manufacturer presets as a starting point, then document the settings that work for the exact alloy, thickness, joint type, wire and gas in your shop.
Protective lenses are performance components
A protective lens is inexpensive compared with the optics behind it, but contamination can reduce delivered energy and create erratic results. Spatter, smoke or incorrect gas flow can foul a lens quickly. If weld quality changes suddenly, inspect the lens and nozzle before compensating with more power. Continuing to run a damaged or contaminated lens can turn a consumable issue into a larger repair.
Shielding gas matters
The X1 Pro requires a suitable gas setup. Gas choice and flow depend on the material and mode, but the purpose is consistent: protect the molten metal, stabilize the process and help protect the optics. Turbulence from excessive flow can be as unhelpful as insufficient coverage, so “more” is not always “better.” Follow the current Xlaserlab procedure and validate the result on scrap.
Class 4 safety is a shop-level responsibility
A handheld fiber laser is not simply another welder. The direct beam and specular reflections can cause severe eye or skin injury, and the wavelength is invisible. Safe ownership requires a controlled laser area, wavelength-rated eye protection selected for the system, protective clothing, fume extraction, access control, fire precautions, trained operators and a risk assessment appropriate to the workplace.
The included accessories do not by themselves establish a compliant laser program. Before operation, review our laser welding safety guide and the current manufacturer documentation. Regulated workplaces should involve a qualified laser safety professional.
Who the X1 Pro is for—and who should choose something else
| Good fit | Look at another class of machine |
|---|---|
| Most work is thin stainless, mild steel or aluminum. | Most work is 3mm+ or demands deep, repeatable penetration. |
| Portability and standard-voltage flexibility have daily value. | The machine will run near full output for long production shifts. |
| Welding is primary; cleaning and occasional cutting support it. | High-volume or precision cutting is a primary requirement. |
| The shop can establish proper Class 4 controls and process discipline. | The organization needs mature compliance documentation, validated procedures or established nationwide field service. |
For a dedicated-welder alternative at a similar power class, see our Theo MA1 vs. Xlaserlab X1 Pro comparison. For a higher-cost system with integrated CNC cutting, see xTool MetalFab vs. Xlaserlab X1 Pro. Those pages answer comparison intent; this review remains focused on whether the X1 Pro itself is a sound fit.
Xlaserlab X1 Pro pros and cons
Pros
- Strong thin-gauge welding capability when the joint and parameters are controlled.
- Air-cooled, compact format is genuinely easier to move and set up.
- Broad input-voltage compatibility suits small shops and mobile work.
- Cleaning and light handheld cutting can streamline mixed repair jobs.
- Wire-feed options help with joints that cannot be fused autogenously.
- Lower heat input can reduce distortion and finishing on suitable thin parts.
Cons
- 700W provides limited reserve for thick, reflective or poorly fitted work.
- Aluminum and brass require more parameter discipline and consumable vigilance.
- Handheld cutting is useful but should not be mistaken for production cutting.
- Air cooling may be less suitable for sustained high-output production.
- Xlaserlab has less long-term field history than established industrial laser brands.
- Safe use requires a real Class 4 laser-control program, not only conventional welding PPE.
Final verdict: is the Xlaserlab X1 Pro worth it?
Yes—for the buyer whose work matches the machine. The X1 Pro's value is not that it replaces every welder, cleaner and cutter. It is that it packages credible thin-gauge laser welding, useful cleaning and limited cutting into a portable, air-cooled platform with relatively modest infrastructure needs.
It is most convincing for automotive restoration, mobile repair, HVAC, cabinets and enclosures, light fabrication, prototype work and small businesses moving into laser welding. In those settings, lower heat input, fast travel and portability can matter more than maximum penetration.
It is a weaker choice when thick material, copper-rich alloys, all-shift production, formal compliance support or automated cutting are central to the job. In those cases, paying for higher output or a more specialized platform is not overbuying—it is sizing the equipment correctly.
Ready to evaluate the current offer?
The Xlaserlab X1 Pro product page is the source for current pricing, Single Wire and Dual Wire bundle contents, stock, shipping, financing, returns and warranty information.
Frequently asked review questions
Is the Xlaserlab X1 Pro good for a beginner?
It can be a good first laser welder because the controls and presets reduce some of the process complexity, but “beginner-friendly” does not mean risk-free or technique-free. A new operator still needs formal safety controls, scrap practice, joint preparation and documented settings before working on valuable or safety-critical parts.
What thickness is the X1 Pro best at?
Published capability extends to approximately 3mm for some metals and joint conditions, but its most comfortable territory is thinner work. Buyers who regularly operate at the published maximum should consider more power rather than assuming every 3mm joint will behave the same.
Can the X1 Pro weld aluminum?
Yes, within an appropriate thin-gauge range, but aluminum is less forgiving than stainless or mild steel. Remove oxide and contamination, maintain tight fit-up, begin with validated settings and test on matching scrap. The usable window changes with alloy, thickness and joint design.
Can it weld brass or copper?
Reflective, copper-rich materials are more demanding at 700W and may fall outside a comfortable production window depending on alloy and thickness. Confirm the exact application before buying, test conservatively and monitor the protective optics closely.
Does the cutting function replace a plasma or CNC cutter?
No. It is useful for occasional trimming and thin-sheet cuts, but it does not provide the capacity, repeatability or automated geometry of a dedicated cutting system.
What problems should an owner watch for?
The most important warning signs are a sudden loss of effective power, inconsistent bead shape, excessive spatter, poor wire placement or discoloration that suggests weak gas coverage. Stop and check joint condition, nozzle, protective lens, focus or standoff, gas and parameters before increasing output.
Where should I check price, bundles and warranty?
Use the current Xlaserlab X1 Pro listing. Keeping changing commercial details on the product page prevents an editorial review from becoming stale or giving conflicting purchase information.
